QNAP TS-h1886XU-RP R2
Cost-effective 10GbE-ready ZFS storage for virtualization and data-intensive enterprise applications

QNAP Products
Enterprise Storage Products
12 (+6) -Bay SATA 6Gbps (12 x 3.5″ + 6 x 2.5″) 2U NAS
Intel Xeon D-1622 4 cores/8 threads 2.6 GHz processor (burst up to 3.2 GHz), 32 GB DDR4 ECC RAM (2 x 16 GB, up to 128 GB); dual redundant power supply
#TS-h1886XU-RP-R2-D1622-32G-US
Our Price: $2,999.00

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Package Content

  • QNAP TS-h1886XU-RP R2 Storage
  • 2 x Ethernet cables
  • 2 x Power cords
  • 48 x Flat head screw (for 3.5" HDD)
  • 64 x Flat head screw (for 2.5" HDD)
  • Quick Installation Guide

Overview:

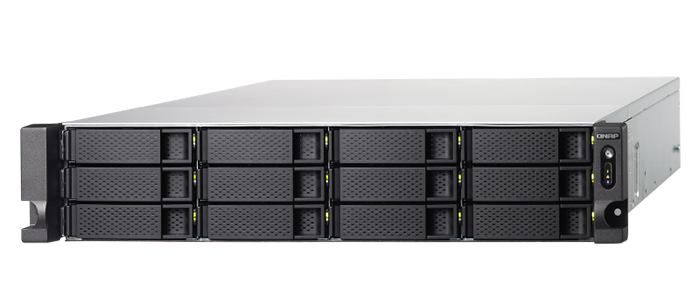

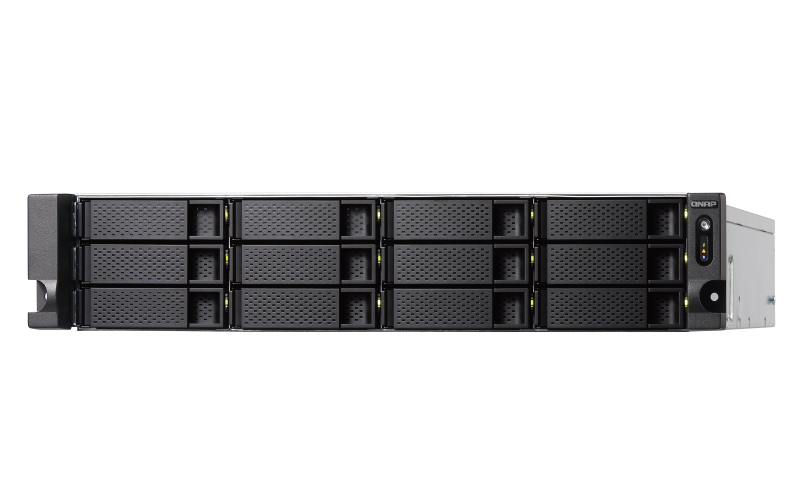

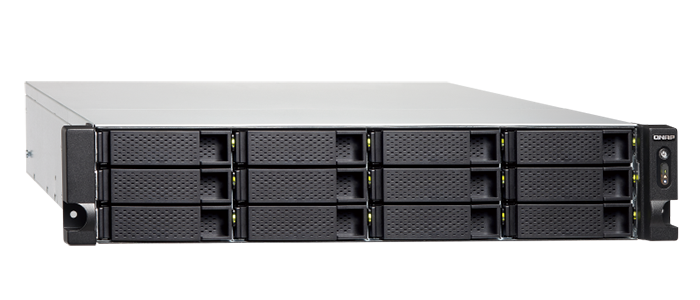

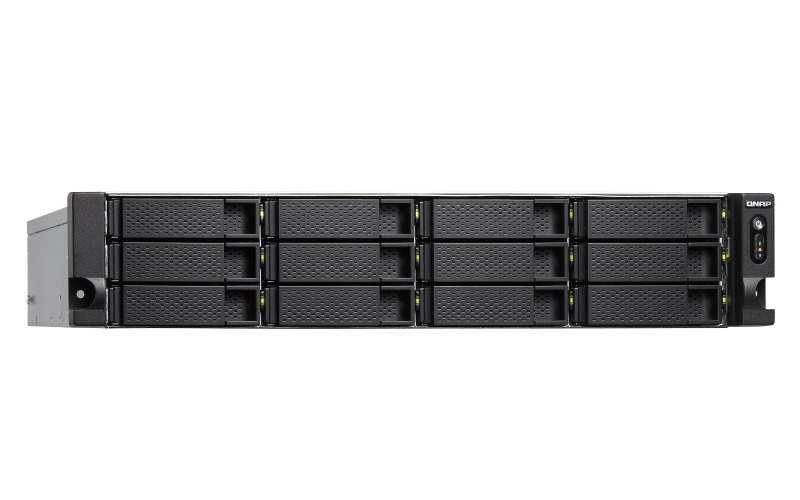

The 2U rackmount TS-h1886XU-RP R2 has twelve 3.5-inch SATA 6Gb/s drive-bays, six 2.5-inch SATA 6Gb/s SSD slots, supports 10GbE and four 2.5GbE connectivity, and features an Intel® Xeon® D-1622 quad-core processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory. Running on the ZFS-based QuTS hero operating system, the TS-h1886XU-RP R2 realizes server-grade performance with dependable reliability. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the three-year warranted TS-h1886XU-RP R2 delivers a high-performance yet cost-effective NAS solution.



Available Models

  • TS-h1886XU-RP R2-D1622-32G-
    Intel® Xeon® D-1622 4 cores/8 threads 2.6 GHz processor (burst up to 3.2 GHz), 32 GB DDR4 ECC RAM (2 x 16 GB, up to 128 GB); dual redundant power supply

Petabyte-level storage capacity

DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications.

Built-in 10GbE connectivity

Two 10GbE SFP+ SmartNIC ports with RDMA boost large file sharing and intensive data transfer.

Up to 128 GB DDR4 ECC memory

Up to 128 GB DDR4 ECC memory that can detect and correct single-bit memory errors, demonstrating high reliability for crucial applications.


Dual redundant power supply

Dual redundant power supplies for enhanced system reliability.

Optimal virtual machine experience

Supports storage for virtualization and can natively host independent virtual machines and containerized apps.

ZFS-based QuTS hero

Ensure data integrity and enhance data security with the ZFS-based QuTS hero operating system.

Features:

Intel® Xeon® D processor and up to 128 GB DDR4 ECC memory. Powerful and reliable

The TS-h1886XU-RP R2 features an Intel® Xeon® D-1622 quad-core processor, 32 GB DDR4 ECC memory (dual-channel module, four Long-DIMM slots, upgradable to 128 GB), and a redundant power supply to deliver a cost-efficient NAS solution with server-grade performance and the utmost reliability. By connecting multiple QNAP expansion enclosures, the storage capacity of the TS-h1886XU-RP can be easily expanded to satisfy fast-growing data and budget flexibility.

Intel® Xeon® D-1622

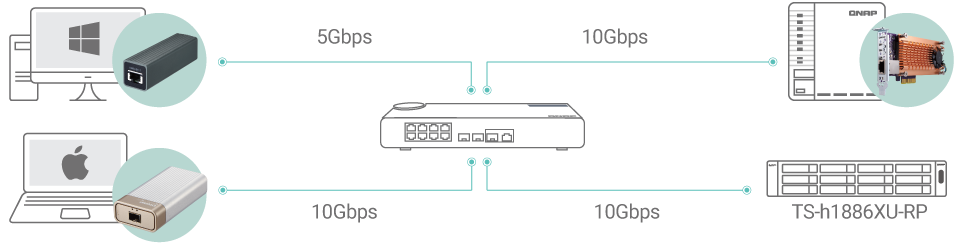

Dual 10GbE connectivity optimizes high-speed data transfer and supports RDMA/RoCE

The TS-h1886XU-RP R2 comes with a pre-installed dual-port 10GbE SFP+ Smart NIC (that uses the NVIDIA® Mellanox ConnectX®-4 Lx, or the same level SmartNIC) to improve bandwidth-demanding data center and virtualization applications and to support RDMA over Converged Ethernet (RoCE and RoCEv2), allowing data to bypass general network drivers, the socket layer, and directly enter ESXi server and storage memory buffer. RoCE technology can improve NAS performance while lowering CPU consumption of applications that use an Ethernet network, ideal for low-latency and high-speed large data transfer.

high-speed-transmission image

Abundant I/O capability with PCIe expansion

The TS-h1886XU-RP R2 has two PCIe Gen3 x4 slots (one slot pre-installed with a dual-port 10GbE expansion card) and one PCIe Gen2 x4 slot that allow for installing various expansion cards to expand application potential.

Note: 2U rackmount NAS model uses low-profile graphics cards.

10GbE/25GbE network cards

Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.






QM2 M.2 SSD/10GbE cards

Adds M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.








SAS expansion cards

Designed for connecting the TS-h1886XU-RP R2 to SAS 12Gb/s expansion units for up to petabytes of storage capacity.








Graphics cards

The TS-h1886XU-RP supports low-profile graphics cards that do not require additional external power to improve QuTS hero image processing and virtual machine performance (via GPU passthrough).

Note: When Virtualization Station uses the graphics card, the NAS will temporarily stop hardware transcoding acceleration for QuTS hero (or vice versa).


ZFS-based QuTS hero operating system enhances NAS performance and data integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Data integrity is key Data reduction improves storage efficiency and performance Multi-level cache technology
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported. Inline data deduplication, compression, and compaction reduce file sizes to conserve storage capacity and optimize performance. Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power failure protection are supported to boost performance and security.
RAID Z enables robust data protection QSAL (QNAP SSD Antiwear Leveling) enhances data protection App Center ecosystem extends NAS functionality
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection. RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability. Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the NAS.

Tiered storage configuration for a QuTS hero NAS

Basic requirements for setup are similar to QTS. We recommend you to follow these steps to acquire optimal storage efficiency and performance for QuTS hero.

Step 1: System Drive & Default Shared Folders

The first Storage Pool you create is where the system drive, default shared folders, and apps are stored. In this step, it is recommended to create an SSD RAID with at least two SSDs to attain optimal system performance and efficient app metadata management. (With an all-HDD configuration, the first Storage Pool is also where the system drive and default shared folders are stored.)

Step 2: Read/Write Cache

Use more SSDs for read cache or ZIL. You can also install QM2 expansion cards to add M.2 SSDs for expanding cache space.

Step 3: Data Storage

Allocate HDDs/SSDs to create a RAID for storing files and application data. If needed, you can configure an all-flash configuration for optimal performance.


Inline data deduplication, compression, and compaction drives Big Data storage efficiency

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h1886XU-RP R2 optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.

big-data-storage

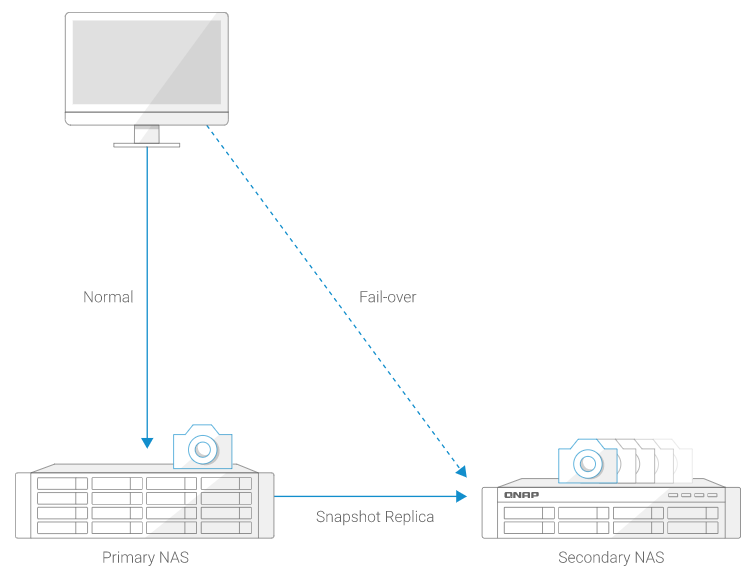

Real-time SnapSync ensures minimal RPO with real-time disaster recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

real-time-snapSync


The TS-h1886XU-RP R2 also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.


Snapshots multiply backup protection

Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.

HBS simplifies 3-2-1 backup plans

HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h1886XU-RP R2 to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.


Comprehensive backup and disaster recovery solution

The TS-h1886XU-RP R2 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.


PC/Laptop backup

For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.

Remote backup for NAS

Hybrid Backup Sync makes it easy to back up data from a TS-h1886XU-RP R2 to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM backup

Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.


SaaS backup

Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft® Office 365® to the NAS.

Cloud backup for NAS

Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup technology

Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.


Multi-version snapshots mitigate ransomware threats

The TS-h1886XU-RP R2 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Up to 65,535 snapshots

QuTS hero supports enough snapshots for you to create 1 snapshot every hour for 7 years without needing to delete any! Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing.

Back up snapshots

Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-h1886XU-RP R2 to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

real-time-snapSync


All-in-one solution for hosting virtual machines and containers

By running multiple virtual machines and containers on the TS-h1886XU-RP R2, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.


Virtualization Station

Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.

Conainer Station

Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.

Linux Station

Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.


Single Root I/O Virtualization (SR-IOV)

By installing an SR-IOV compatible PCIe SmartNIC in the TS-h1886XU-RP R2, you can allocate bandwidth resources from a physical network card directly to VMs, increasing network efficiency and reduced CPU overheads.

QuTScloud virtual NAS

QuTScloud is a virtual appliance based on the QTS operating system. Enterprises can quickly launch QuTScloud on hypervisors including Linux® KVM, Microsoft® Hyper-V, and VMware ESXi™ to acquire advanced NAS features without requiring additional NAS hardware.


Comprehensive security and privilege settings

The TS-h1886XU-RP R2 is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.


myQNAPcloud secures remote access

myQNAPcloud allows convenient connection to the TS-h1886XU-RP R2 through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.

Simplified privilege settings

The TS-h1886XU-RP R2 supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall protection

Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior security with QVPN

A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-h1886XU-RP R2 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.


QuWAN SD-WAN

To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.

Security Counselor

A security portal for the TS-h1886XU-RP R2 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover

Regularly scan your TS-h1886XU-RP R2 using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

TeamViewer remote access

TeamViewer app enables remote management and connectivity to multiple NAS devices from Windows® PCs with an unparalleled level of safety, while increasing IT efficiency and end user productivity.


The best file storage and collaboration center

The TS-h1886XU-RP R2 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.

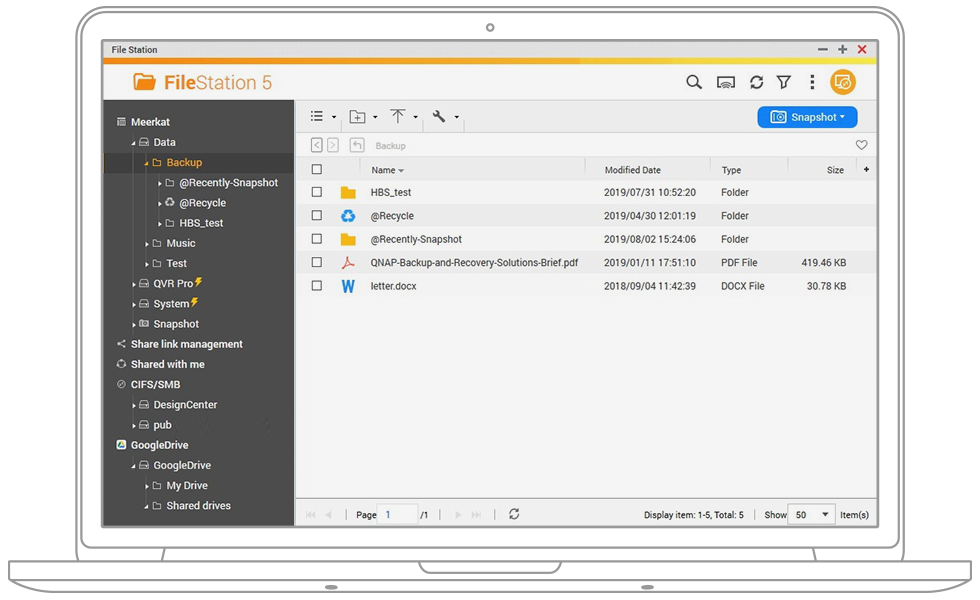

File Station

Manage, access, and share all the files in the TS-h1886XU-RP R2 and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.

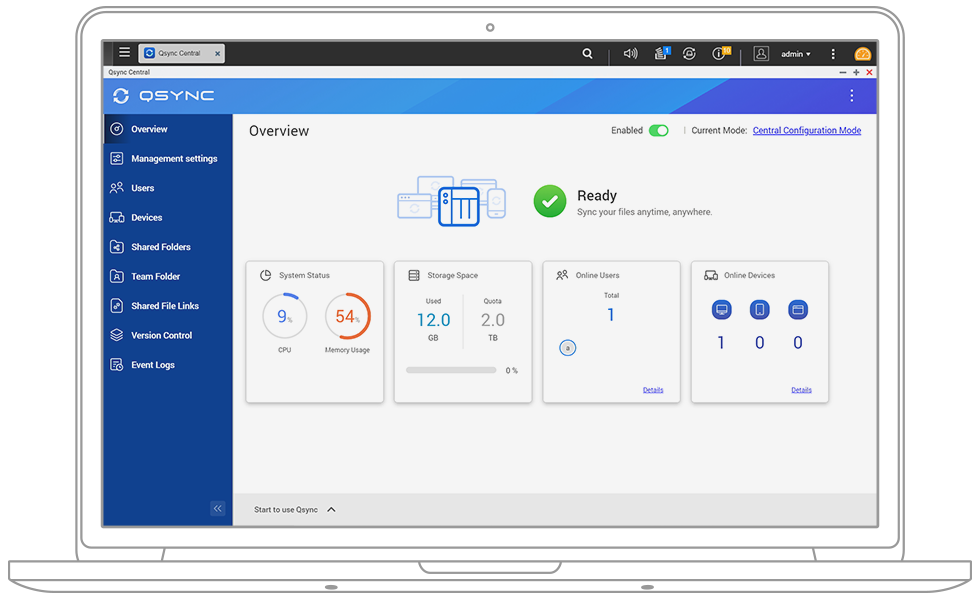

Qsync

Make any file uploaded to a TS-h1886XU-RP R2 available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.

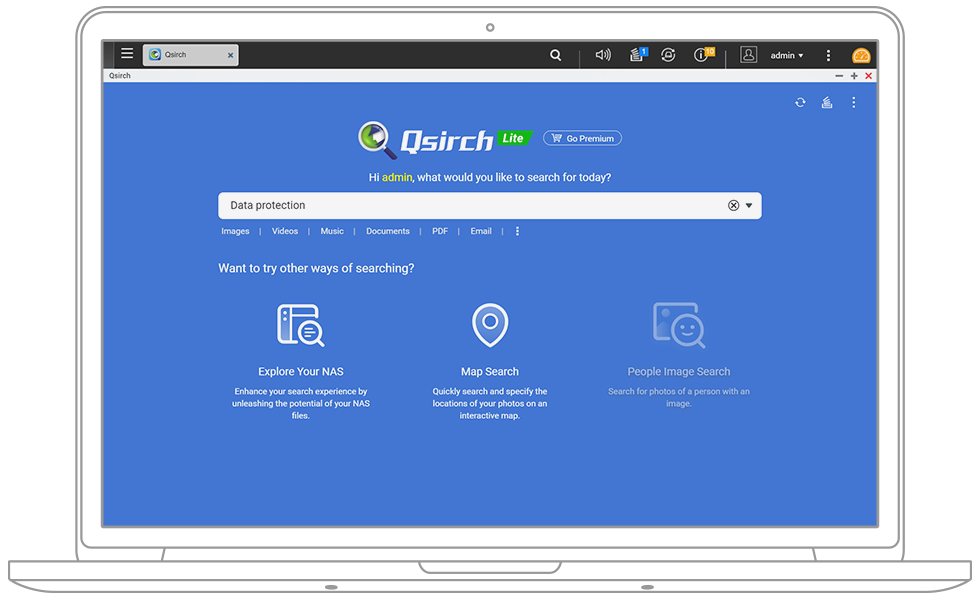

Qsirch

QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

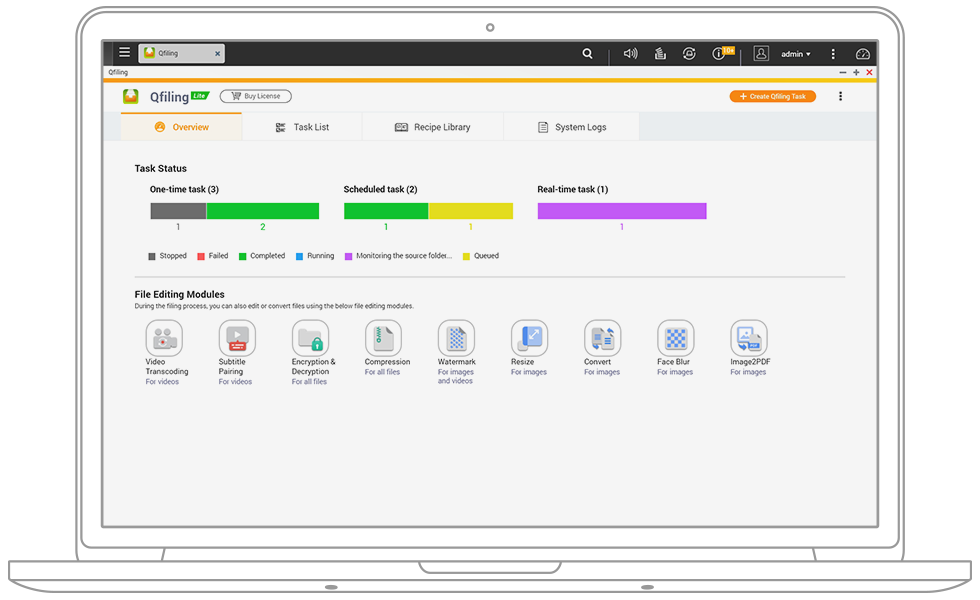

Qfiling

Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.

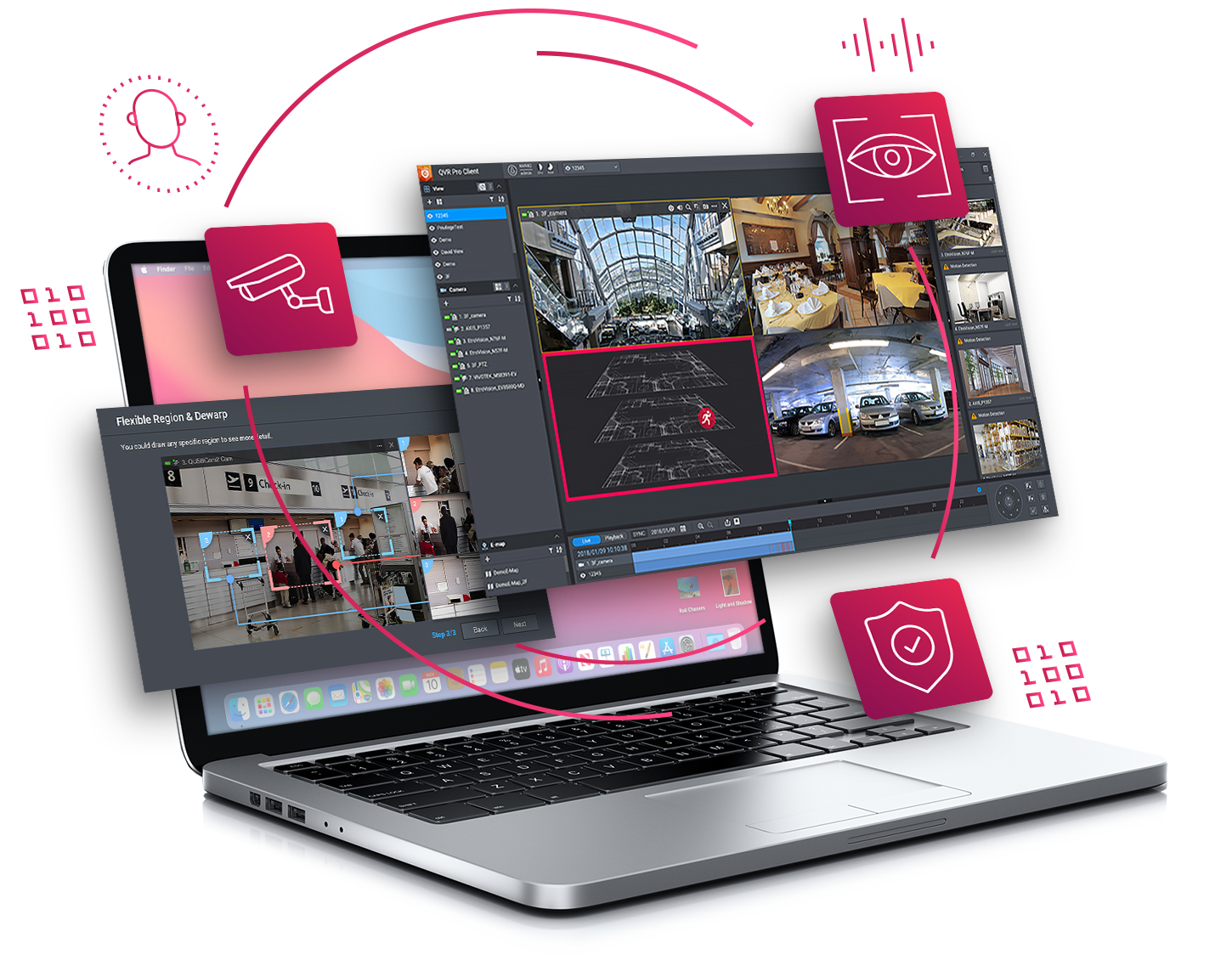

Smart surveillance solution for 24/7 security

QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-h1886XU-RP R2 and enjoy simplified camera management, storage space allocation, camera live viewing and playback.


Flexible and economical storage expansion

QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-h1886XU-RP R2 storage as needed to accommodate data and business growth.


Attach QNAP expansion enclosures

Connect expansion enclosures to the TS-h1886XU-RP R2, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers

Mount cloud storage or remote file servers to expand the capacity of the TS-h1886XU-RP R2 while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a new NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID capacity

Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.


More productivity-boosting applications

The TS-h1886XU-RP R2 provides an App Center that includes feature-rich apps to expand your NAS potential!


QuObjects

Run a high-performance S3 compatible development environment on your TS-h1886XU-RP R2 to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.

Notification Center

Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

Linux Station

Run Linux® applications (including apps from the Linux® Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. It also makes the TS-h1886XU-RP R2 an ideal gateway for IoT solutions.

Proxy Server

By using a high-capacity TS-h1886XU-RP R2 as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.

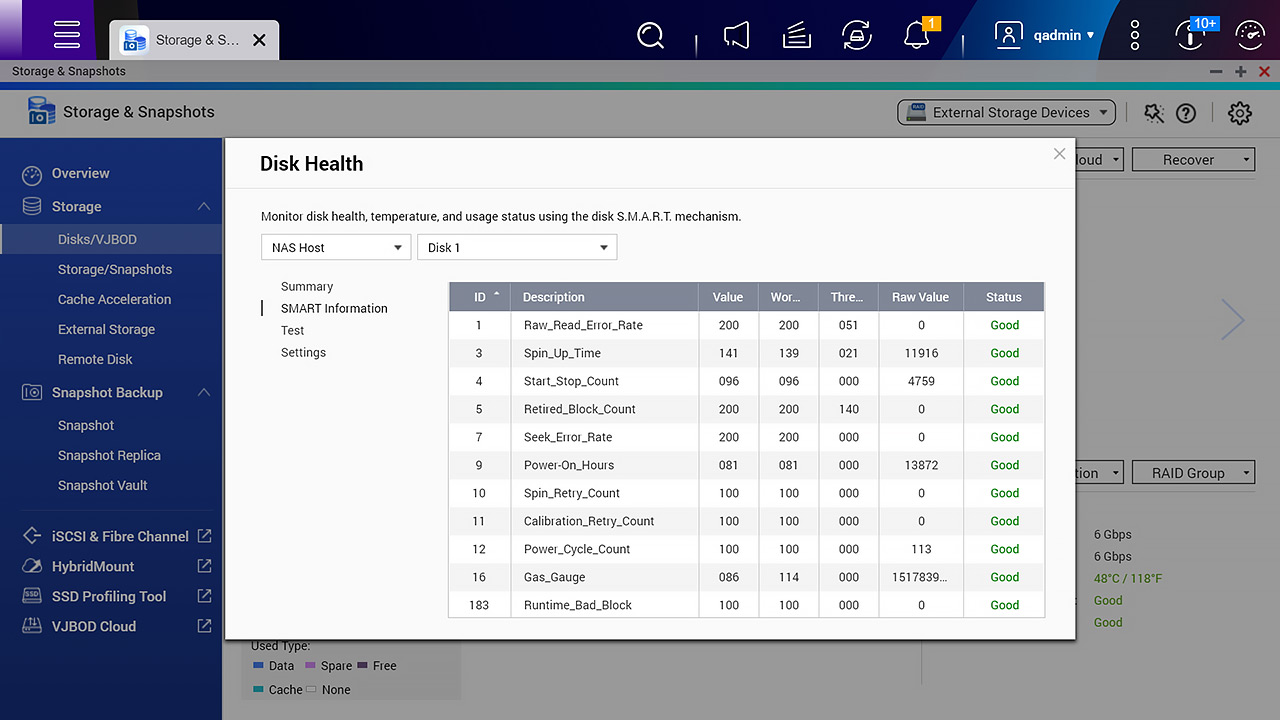

A health check for your hard drives

Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.


S.M.A.R.T. and back block scanning

If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.

real-time-snapSync


real-time-snapSync

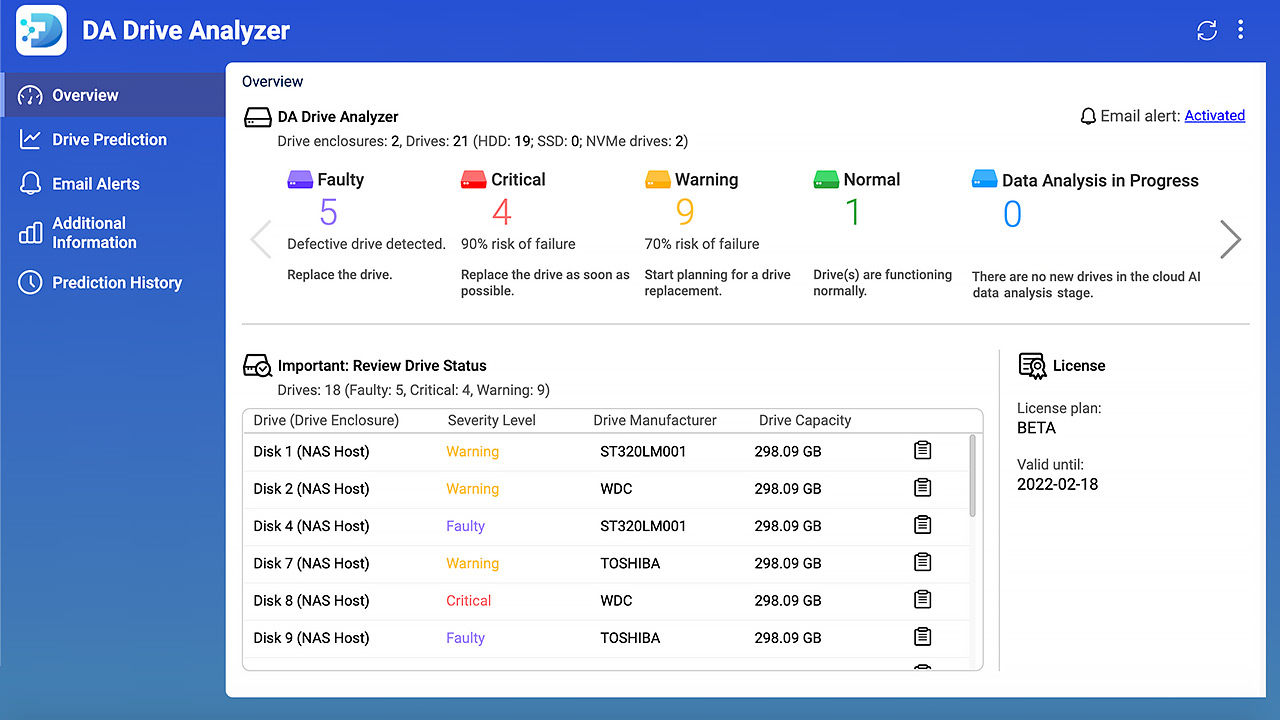

DA Drive Analyzer

The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.

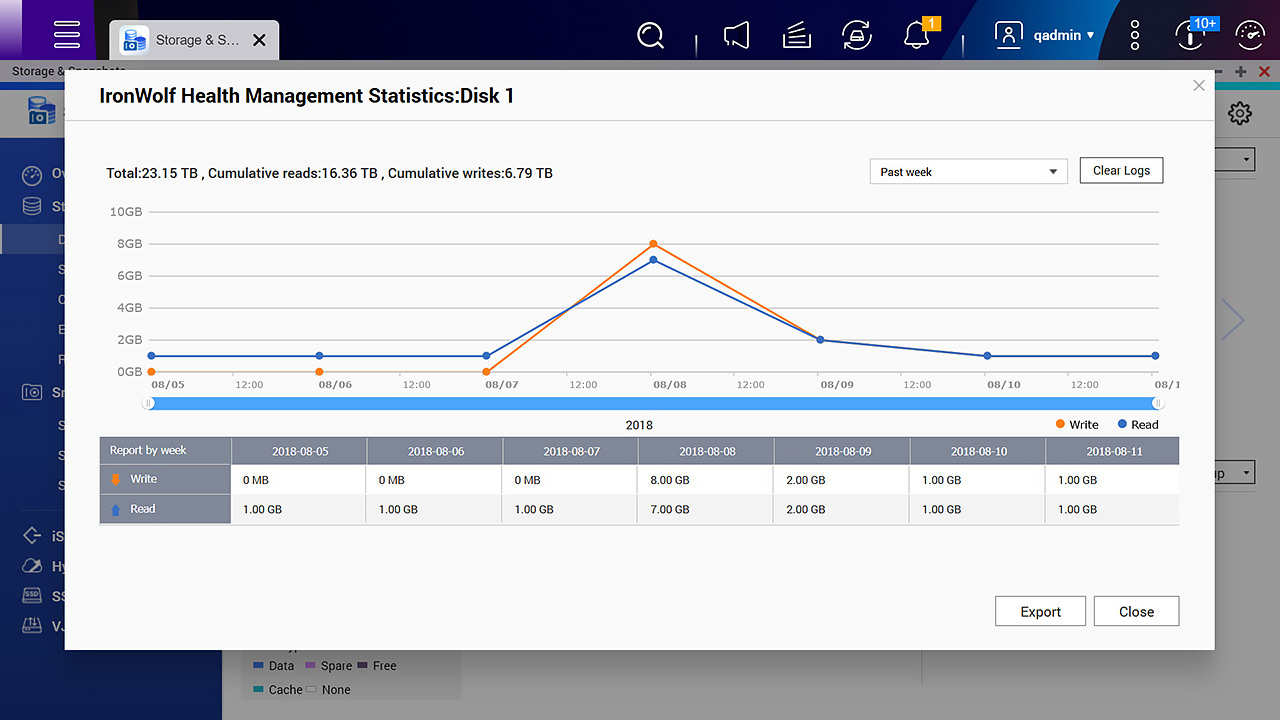

Seagate IronWolf Health Management

When using supported IronWolf or IronWolf Pro hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.

real-time-snapSync


Switch operating systems for higher everyday performance

The TS-h1886XU-RP R2 also supports QTS - QNAP’s standard NAS operating system – that provides greater everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TS-h1886XU-RP R2.


Extend hardware warranty up to 5 years

The TS-h1886XU-RP R2 is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Hardware Specifications:

  TS-h1886XU-RP-R2-D1622-32G
CPU Intel® Xeon® D-1622 4-core processor, burst up to 3.2 GHz
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
System Memory 32 GB UDIMM DDR4 ECC (2 x 16GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x DIMM DDR4
Flash Memory 5GB (Dual boot OS protection)

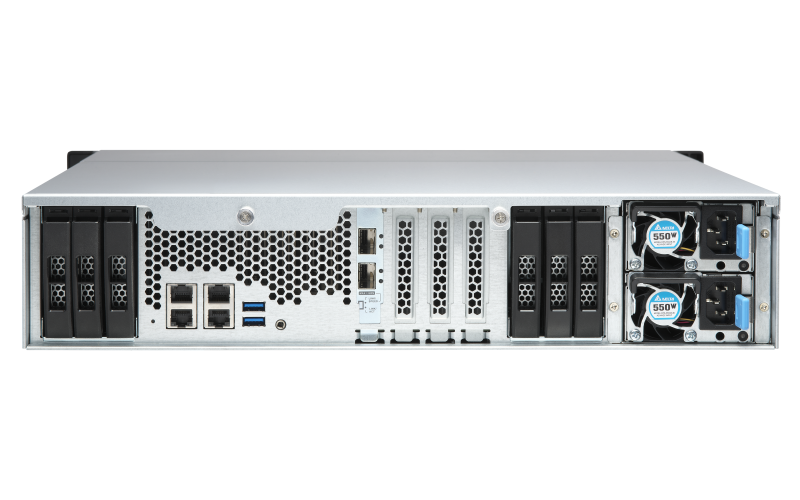

Drive Bay Front: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Rear: 6 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch SATA solid state drives

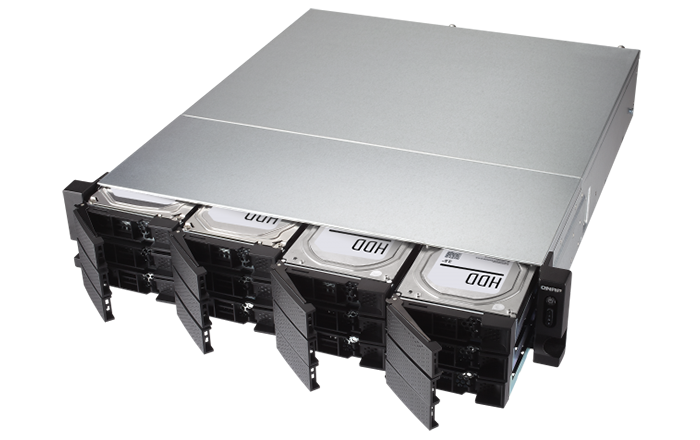

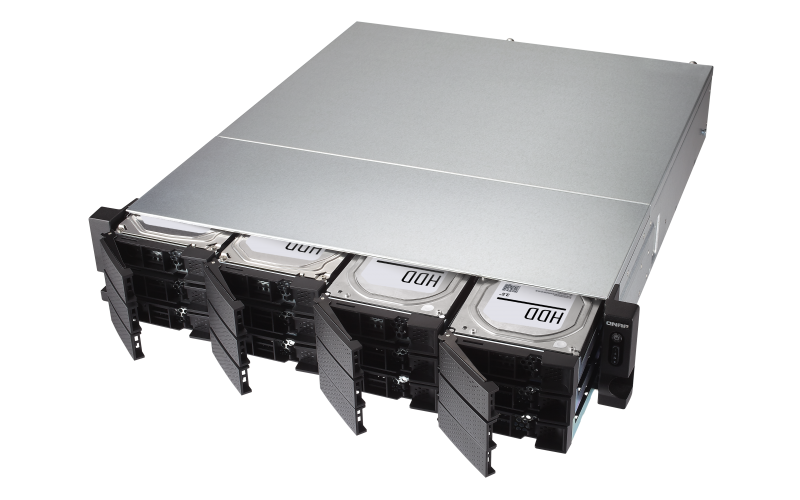

Hot-swappable
SSD Cache Acceleration Support
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 4
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port
Pre-installed with a 10GbE PCIe adapter
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 3
Slot 1: PCIe Gen 2 x4 (x8 Slot)
Slot 2: PCIe Gen 3 x4
Slot 3: PCIe Gen 3 x8 or x4 (x8 Slot)

*Slot 3 is preinstalled with a 10GbE network adapter.
**Slot 3 provides the width of PCIe Gen 3 x8 when Slot 2 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 2 is in use.
USB 3.2 Gen 1 port 2
Form Factor Rackmount
LED Indicators HDD, SSD, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 3.48 × 18.98 × 21.64 inch
Weight (Net) 28.06 lbs
Weight (Gross) 41.2 lbs
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 550W(x2), 100-240V
Power Consumption: Operating Mode, Typical 117.92 W
Tested with drives fully populated
Fan System fan: 3 x 60mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 1000
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

HDD + SSD hybrid structure to optimize storage performance and utilization

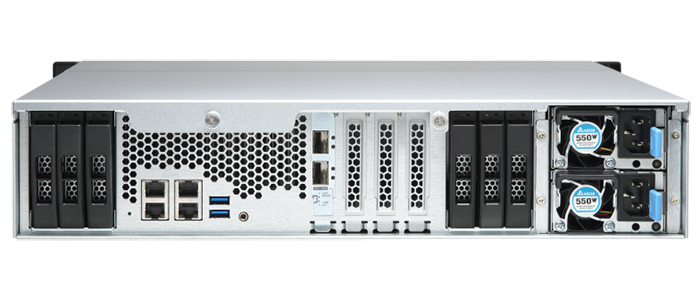

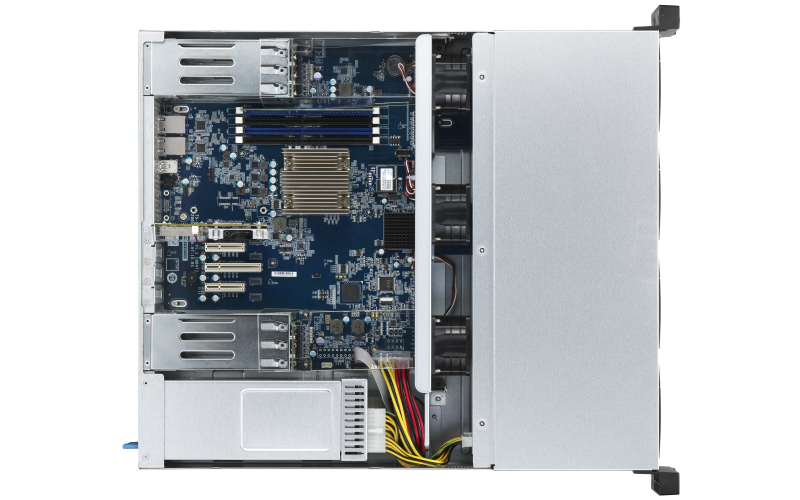

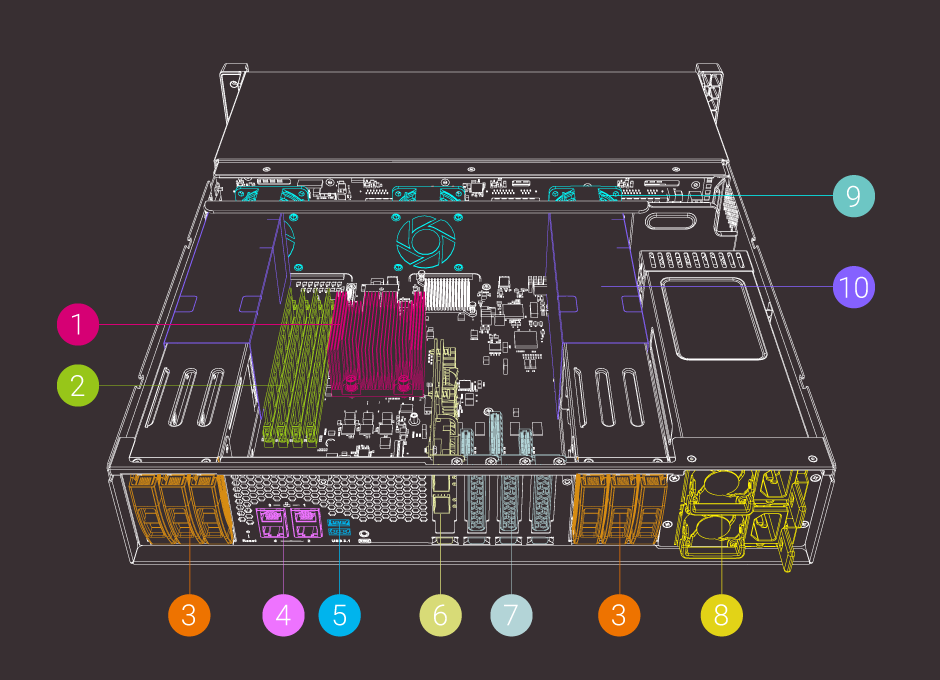

The TS-h1886XU-RP features outstanding hardware with an expandable architecture to satisfy business needs in various applications.

QNAP TS-h2490FU Hardware

1 Intel® Xeon® D processor Intel® Xeon® D-1622 quad-core processor with multi-core computing power..
2 DDR4 ECC memory Supports four DDR4 dual-channel Long-DIMM memory modules for up to 128 GB RAM.
3 6x 2.5-inch SATA 6Gb/s SSD slots Supports SSD cache acceleration to boost IOPS performance.
4 4x Gigabit Ethernet ports Ideal for service binding, port trunking, and MPIO configurations.
5 2x USB 3.2 Gen 1 ports Delivers up to 5Gbps transfer speeds. Supports external hard drives or UPS.
6 Dual-port 10GbE SFP+ network expansion card Uses a Broadcom NetXtreme®-E network controller and supports RDMA over Converged Ethernet (RoCE and RoCEv2). 10GbE bandwidth greatly boosts virtualization, large file sharing, and data-intensive applications.
7 4x PCIe Gen 3 expansion slots Supports installing 10/25/40GbE network cards, QM2 cards, SAS expansion cards, graphics cards, and Fibre Channel cards for greater application potential (one slot comes with a pre-installed dual-port 10GbE SFP+ adapter).
8 550W power supply units Redundant 550W power supplies ensure continuous system uptime.
9 Smart cooling Monitors system temperatures and automatically adjusts fan speeds.
10 Air ducts Provides dedicated and centralized air flow to effectively disperse SSD heat.

Product Views:

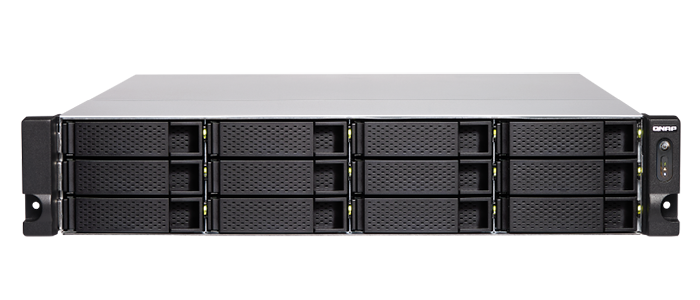

Front View

Front View

Top Right Angle View

Top Right Angle View

Top Left Angle View

Top Left Angle View

Rear View

Rear View

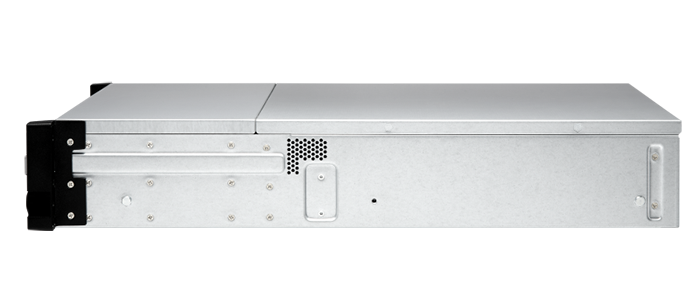

Right Angle View

Right Angle View

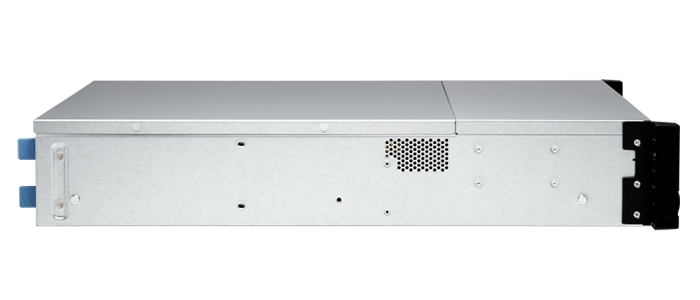

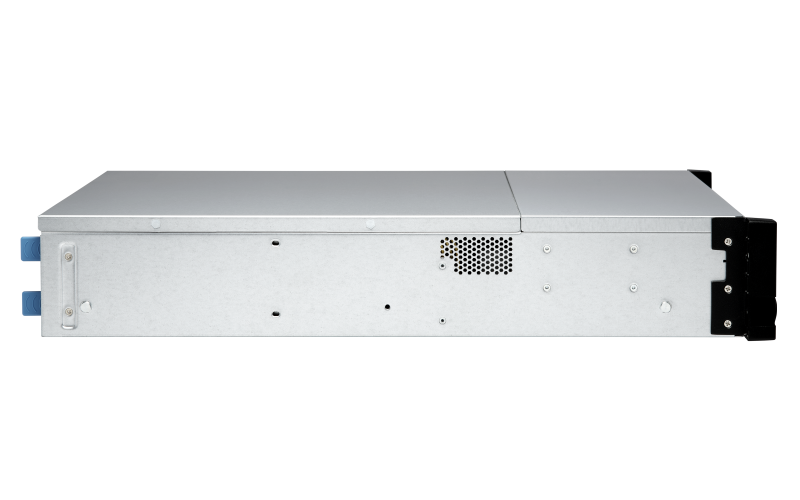

Left Angle View

Left Angle View

Hot-swappable View

Hot-swappable View





Pricing Notes:

QNAP Products
Enterprise Storage Products
12 (+6) -Bay SATA 6Gbps (12 x 3.5″ + 6 x 2.5″) 2U NAS
Intel Xeon D-1622 4 cores/8 threads 2.6 GHz processor (burst up to 3.2 GHz), 32 GB DDR4 ECC RAM (2 x 16 GB, up to 128 GB); dual redundant power supply
#TS-h1886XU-RP-R2-D1622-32G-US
Our Price: $2,999.00
Ironwolf Bundles
QNAP TS-h1886XU-RP-D1622 (32GB RAM) with Ironwolf Pro HDD 512/4KN SATA (QTY 12x10TB) 120 TB Capacity
#TS-Ironwolf-201
Get a Quote!
QNAP TS-h1886XU-RP-D1622 (32GB RAM) with Ironwolf Pro HDD 512/4KN SATA (QTY 12x12TB) 144 TB Capacity
#TS-Ironwolf-202
Get a Quote!
QNAP TS-h1886XU-RP-D1622 (32GB RAM) with Ironwolf Pro HDD 512/4KN SATA (QTY 12x14TB) 168 TB Capacity
#TS-Ironwolf-203
Get a Quote!
QNAP TS-h1886XU-RP-D1622 (32GB RAM) with Ironwolf Pro HDD 512/4KN SATA (QTY 12x16TB) 192 TB Capacity
#TS-Ironwolf-204
Get a Quote!
QNAP TS-h1886XU-RP (32GB RAM) with Ironwolf Pro HDD 512/4KN SATA Hard Drive (QTY 12 X 18TB) 216TB Capacity
#TS-Ironwolf-205
Get a Quote!
Exos Bundles
QNAP TS-h1886XU-RP (32GB RAM) with Exos 7E8 HDD 512E/4kn SATA Hard Drive (QTY 12 X 8TB) 96TB Capacity
#TS-Exos-260
Get a Quote!
QNAP TS-h1886XU-RP (32GB RAM) with Exos X10 HDD 512E SATA Hard Drive (QTY 12 X 10TB) 120TB Capacity
#TS-Exos-261
Get a Quote!
QNAP TS-h1886XU-RP (32GB RAM) with Exos X14 HDD 512E/4kn SATA Hard Drive (QTY 12 X 12TB) 144TB Capacity
#TS-Exos-262
Get a Quote!
QNAP TS-h1886XU-RP (32GB RAM) with Exos X16 HDD 512E/4kn SATA Hard Drive (QTY 12 X 14TB) 168TB Capacity
#TS-Exos-263
Get a Quote!
QNAP TS-h1886XU-RP (32GB RAM) with Exos X16 HDD 512E SATA SED Hard Drive (QTY 12 X 16TB) 192TB Capacity
#TS-Exos-264
Get a Quote!
QNAP TS-h1886XU-RP (32GB RAM) with Exos X16 HDD 512E SATA SED Hard Drive (QTY 12x18TB) 216TB Capacity
#TS-Exos-265
Get a Quote!
Storage Expansion Card
Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled *shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#QM2-2P-244A
Our Price: $89.00
Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled. Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#QM2-2P-344
Our Price: $119.00
Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled. Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#QM2-2P-384
Our Price: $149.00
QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen2 x 4 , 1 x AQC107S 10GbE NBASE-T port
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#QM2-2P10G1TA
Our Price: $169.00
Dual M.2 22110/2280 SATA SSD expansion card (PCIe Gen2 x2) *shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled. Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#QM2-2S-220A
Our Price: $69.00
Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x2) SSDs; PCIe Gen3 x4 host interface
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled. Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#QM2-4P-342
Our Price: $149.00
Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
#QM2-4P-384
Our Price: $169.00
Network Expansion Card
QNAP Dual-port 40GbE QSFP+ network expansion card
TS-ECx80,TVS-x80, TS-x71,TS-879U-RP, TS-1279U-RP, TS-EC879U-RP, TS-EC1279U-RP, TS-1679U-RP, TS-EC1679U-RP, WB-1200U-RP, WB-1600U-RP, TS-EC880U-RP (R2), TS-EC1280U-RP (R2), TS-EC1680U-RP (R2), TS-EC2480U-RP (R2), TVS-x71U, TVS-EC1280U-SAS-RP, TVS-EC1680U-SAS-RP, TVS-EC1580MU-SAS-RP (R2), TVS-EC2480U-SAS-RP(R2), TDS-16489U, TVS-x82/x82T
#LAN-40G2SF-MLX
Our Price: $499.00
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded
All QNAP NAS models with a PCIe slot, works for Windows/Linux PC (please download driver from Aquantia). Low-profile flat and Full-height bracksts are included
#QXG-10G1T
Our Price: $109.00
Dual-port SFP+ 10GbE network expansion card; low-profile formfactor; PCIe Gen3 x8
TS-470, TS-470 Pro, TS,473, TVS-472XT, TVS-473, TVS-473e, TS-670, TS-670 Pro, TS-673, TS-677, TVS-670, TVS-672XT, TVS-673, TVS-673e, TVS-682, TVS-682T, TS-870, TS-870 Pro, TS-870U-RP, TS-873, TS-877, TS-877XU, TS-877XU-RP, TS-883XU, TS-883XU-RP, TVS-870, TVS-872XT, TVS-872XU, TVS-872XU-RP, TVS-873, TVS-873e, TVS-882, TVS-882BR, TVS-882BRT3, TVS-882ST2, TVS-882ST3, TVS-882T, TS-1270U-RP, TS-1277, TS-1277XU-RP, TS-1283XU-RP, TVS-1272XU-RP, TVS-1282, TVS-1282T, TVS-1282T3, TS-1677XU-RP, TS-1683XU-R
#QXG-10G2SF-CX4
Our Price: $199.00
Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen2 x4
TS-470, TS-470 Pro, TS,473, TVS-472XT, TVS-473, TVS-473e, TS-670, TS-670 Pro, TS-673, TS-677, TVS-670, TVS-672XT, TVS-673, TVS-673e, TVS-682, TVS-682T, TS-870, TS-870 Pro, TS-870U-RP, TS-873, TS-877, TS-877XU, TS-877XU-RP, TS-883XU, TS-883XU-RP, TVS-870, TVS-872XT, TVS-872XU, TVS-872XU-RP, TVS-873, TVS-873e, TVS-882, TVS-882BR, TVS-882BRT3, TVS-882ST2, TVS-882ST3, TVS-882T, TS-1270U-RP, TS-1277, TS-1277XU-RP, TS-1283XU-RP, TVS-1272XU-RP, TVS-1282, TVS-1282T, TVS-1282T3, TS-1677XU-RP, TS-1683XU-R
#QXG-10G2T-107
Our Price: $179.00
Quad port 2.5GbE 4-speed Network card
PC/Server or NAS with a PCIe slot
#QXG-2G4T-I225
Our Price: $129.00
QNAP 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 1;low profile
PCIe supported NAS
#QXG-5G1T-111C
Our Price: $69.00
QNAP dual port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 2;low profile
PCIe supported NAS
#QXG-5G2T-111C
Our Price: $119.00
QNAP quad-port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen3 x 4;low profile
NAS Compatibility: www.qnap.com/go/compatibility
#QXG-5G4T-111C
Our Price: $219.00
Interface Expansion
USB 3.2 Gen 2 dual-port PCIe expansion card
NAS with a PCIe slot, Windows 8.x/10, Ubuntu 20.04 LTS Note: 1. Minimum QTS 4.3.6 requirement. 2. USB cable is not included. 3. Follow the compatibility guide: https://www.qnap.com/en/compatibility/
#QXP-10G2U3A
Our Price: $49.00
4-port miniSAS HD host bus adapter, Broadcom Mercator SAS3616W, PCIe 3.0 x 16 for TL SAS JBOD series
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#QXP-1620S-B3616W
Our Price: $649.00
16G Fibre Channel Host Bus Adapter, 2 x transceivers are included
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#QXP-16G2FC
Our Price: $999.00
32G Fibre Channel Host Bus Adapter, 2 x transceivers are included
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#QXP-32G2FC
Our Price: $1,499.00
Cable / Transceiver
Mellanox MFM1T02A-SR 10GbE Transceiver
For use with SFP+ 10GbE (except x85U and 16489U)
#TRX-10GSFP-SR-MLX
Our Price: $119.00
16G short wavelength SFP+ fibre channel transceiver
QXP-16G2FC
#TRX-16GFCSFP-SR
Our Price: $169.00
32G short wavelength SFP+ fibre channel transceiver
QXP-32G2FC
#TRX-32GFCSFP-SR
Our Price: $299.00
SFP+ 10GbE twinaxial direct attach cable, 1.5M, S/N and FW update
For use with SFP+ 10GbE
#CAB-DAC15M-SFPP
Our Price: $50.00
SFP28 25GbE twinaxial direct attach cable, 3.0M
For use with 25GbE
#CAB-DAC30M-SFP28-DEC01
Our Price: $90.00
SFP+ 10GbE twinaxial direct attach cable, 3.0M, S/N and FW update
For use with SFP+ 10GbE (except x85U)
#CAB-DAC30M-SFPP
Our Price: $70.00
SFP+ 10GbE twinaxial direct attach cable, 5.0M, S/N and FW update
For use with SFP+ 10GbE (except x85U and ARM Models)
#CAB-DAC50M-SFPP
Our Price: $100.00
QSFP DAC cable
40GbE NIC supported NAS
#CAB-NIC40G30M-QSFP
Our Price: $110.00
RAM
16GB ECC DDR4 RAM, 2666 MHz, UDIMM, T0 version
TS-1886XU-RP
#RAM-16GDR4ECT0-UD-2666
Our Price: $325.00
32GB ECC DDR4 RAM, 2666MHz, UDIMM, S0 version
TS-1886XU-RP, TS-1283XU, TS-h1283XU-RP, TS-h1683XU-RP, TS-h2483XU-RP, TS-h686, TS-h886
#RAM-32GDR4ECS0-UD-2666
Our Price: $449.00
Other Accessories
QNAP Rail Kit for 2U Rackmount Models
TS-431XeU, TS-431XU, TS-431XU-RP, TS-831XU, TS-831XU-RP, TS-1231XU, TS-1231XU-RP, TVS-871U-RP, TVS-1271U-RP, TVS-471U, TVS-471U-RP, TS-463U, TS-463U-RP,TS-863U, TS-863U-RP, TS-1263U, TS-1263U-RP Series, TS-873U, TS-873U-RP, TS-1273U, TS-1273U-RP, TS-x53BU, TS-x32XU series, UX-800U-RP, UX-1200U-RP, TS-853U, TS-853U-RP, TS-1253U, TS-1253U-RP, TS-877XU(-RP), TVS-872XU(-RP), TS-873XU/TS-873XU-RP, TS-883XU(-RP), TS-977XU(-RP), TVS-972XU(-RP), TS-983XU(-RP), TS-1886XU-RP, TS-873AU(-RP), TS-1273AU(-R
#RAIL-B02
Our Price: $99.00
email subscribe

Enjoy Exclusive Weekly Deals from Virtual Graffiti
