QNAP QSW-M2108R-2C
Entry-level 10GbE and 2.5GbE Layer 2 Web Managed Half-Width Rackmount Switch for Small Businesses
Marvell 98DX226S, 4GB DDR3, 8 port 2.5Gbps, 2 port 10Gbps SFP+/ NBASE-T Combo, Rackmount
Our Price: $399.00
Click here to jump to more pricing!
Package Content
- QNAP QSW-M2108R-2C Switch
- Power cord
- Rackmount kit
- Quick Installation Guide
Overview:
The QSW-M2108R-2C is a Layer 2 Web Managed Switch with two 10GbE SFP+/RJ45 combo ports and eight 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2108R-2C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution. With a half-width design, two QSW-M2108R-2C can be installed in a 1U rack space for space-saving. The QSW-M2108R-2C is compatible with 10GbE and NBASE-T technologies, supporting up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds when using existing Cat 5e and 6a cables.
Includes two 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing cables.
The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, The QSW-M2108R-2C avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.
QSS can be updated with just one click, helping IT staff ensure their network security.
Features:
Half-width design, 2 models in 1U
With a half-width rackmount design, two QSW-M2108R-2C can be installed in a 1U rack space for efficient physical space utilization and tidy cabling.
Note: A rackmount kit is required if two QSW-M2108R-2C are installed
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M2108R-2C provides two 10GbE SFP+/RJ45 combo ports and eight 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6 (or better) cabling. The switching capacity of the QSW-M2108-2C is 80Gbps, guaranteeing the full potential of each port.
Note: 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G / 5G / 2.5G / 1G / 100M).
Flexible deployment combo ports and 10GbE / NBASE-T
The QSW-M2108R-2C is compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing Cat 5e and Cat 6a cables. The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable type and lengths, different speeds can be achieved for faster, more efficient data transfer.
Note: If the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used to achieve up to 10Gb/s.
Fully embrace High-Speed Networking with QNAP!
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
| A fast NAS | A QNAP NAS with multiple 2.5GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential. Note: Managed Switch series support Port Trunking |
| Upgrade desktops and servers | Servers and desktops can install QNAP PCIe network cards that support 10G/5G/2.5G/1G/100M Multi-Gig. |
| Add a 5GbE port to laptops | Laptops and upgrade-limited computers can use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB. |
QSS: Intuitive Network Management Software
The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.
Sleek Design
Use the at-a-glance major functions, flat control layers and one-click login to simplify set up and management.
GUI
The visual illustration matches physical ports for greater usability.
Value-added
With the settings guide, status chart reference, online firmware update, learning and management costs are greatly reduced.
QSS: Human-centered settings guide
QSS provides an overview dashboard, port management and setting guide to help administrators control Layer 2 networks.
Overview Dashboard
View real-time system information, port connection status and port traffic.
Port Management
View port status, port packet statistics, and configure port speeds.
Setting Guide
Quickly learn how to set up the network using the introduction and step-by-step guide.
Exclusive Status Chart Referencing
Refer to four major status charts during each configuration to avoid going back and forth between different setting pages.
Online Firmware Check and Update
Keep your QSW-M2108R-2C secure with one-click firmware updates.
Optimize Network Performance with bandwidth and packet control
The QSW-M2108R-2C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.
| LACP | VLAN | QoS | IGMP Snooping |
|---|---|---|---|
| Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure. | Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network. | QoS (Quality of Service) helps prioritize bandwidth usage to optimize network resource allocation. | IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage. |
Powerful security and system functions
The QSW-M2108R-2C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
| ACL | LLDP | RSTP | Flow Control |
|---|---|---|---|
|
|
|
|
Dependable performance with effective heat dissipation
With a compact metal body, the QSW-M2108R-2C provides stable and reliable operations while staying near-silent even when under full load. The front-panel LEDs also assist in viewing the current system status.
Hardware Specifications:
| QSW-M2108R-2C | |
|---|---|
| Management Type | Web Managed |
| Number of Ports | 10 |
| 10GbE SFP+/RJ45 Combo Ports | 2 |
| 2.5GbE (RJ45) | 8 |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 60W |
| Input Power Type | AC |
| Input Voltage Range | 100 ‒ 240VAC, 50/60Hz |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 40Gbps |
| Switching Capacity | 80Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | |
| Fan | PWM double ball bearing fan x 1 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet (IEEE 802.1p Class of Service) |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.3 x 207 x 199.5 mm |
| Weight (Net) | 2.65 lbs |
| Weight (Gross) | 4.23 lbs |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5%–95% (non-condensing) |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
Product Views:

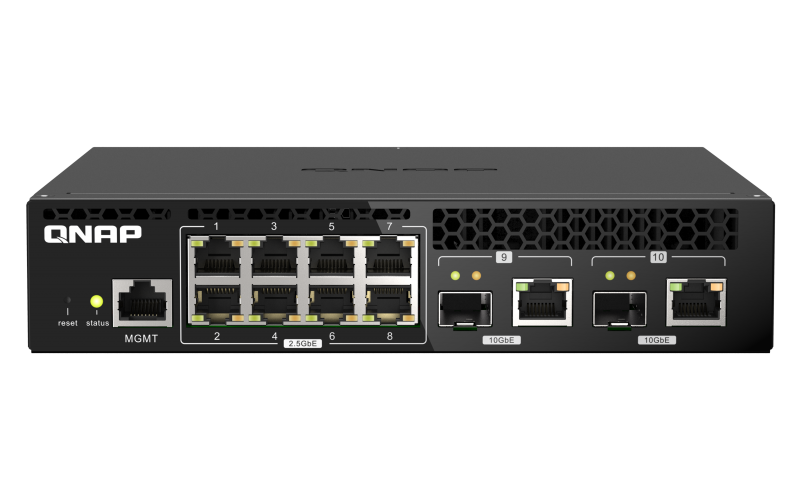

Front View |

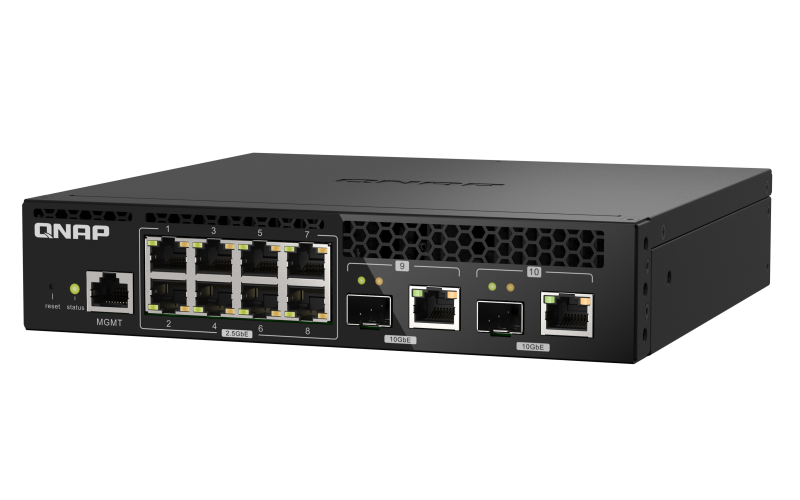

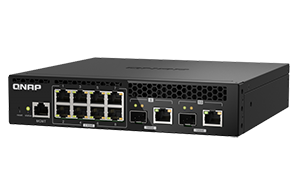

Top Right Side View |

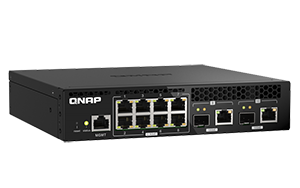

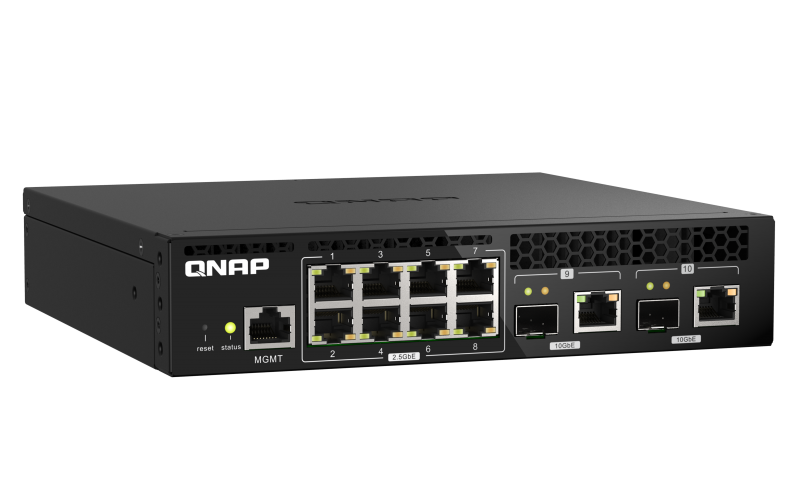

Top Left Side View |

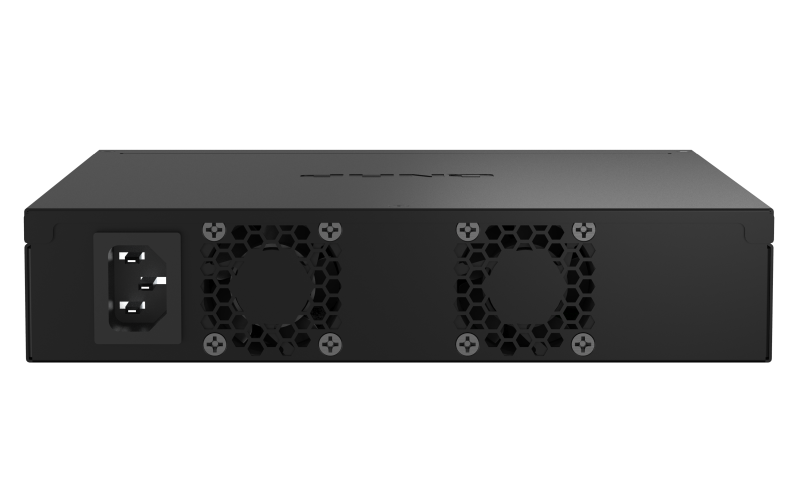

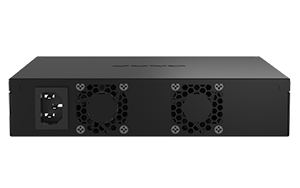

 Rear View |
