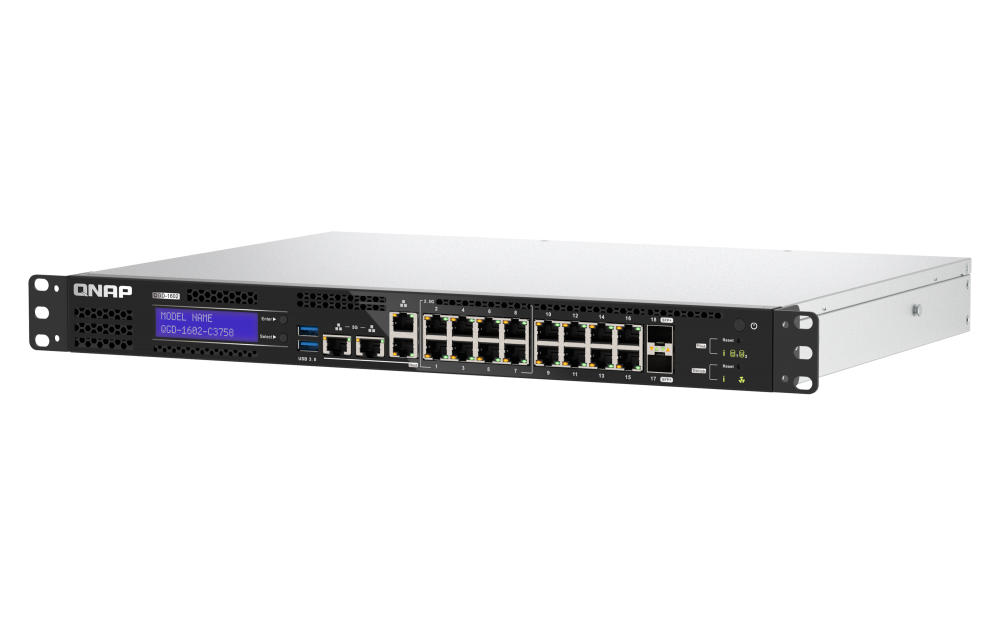

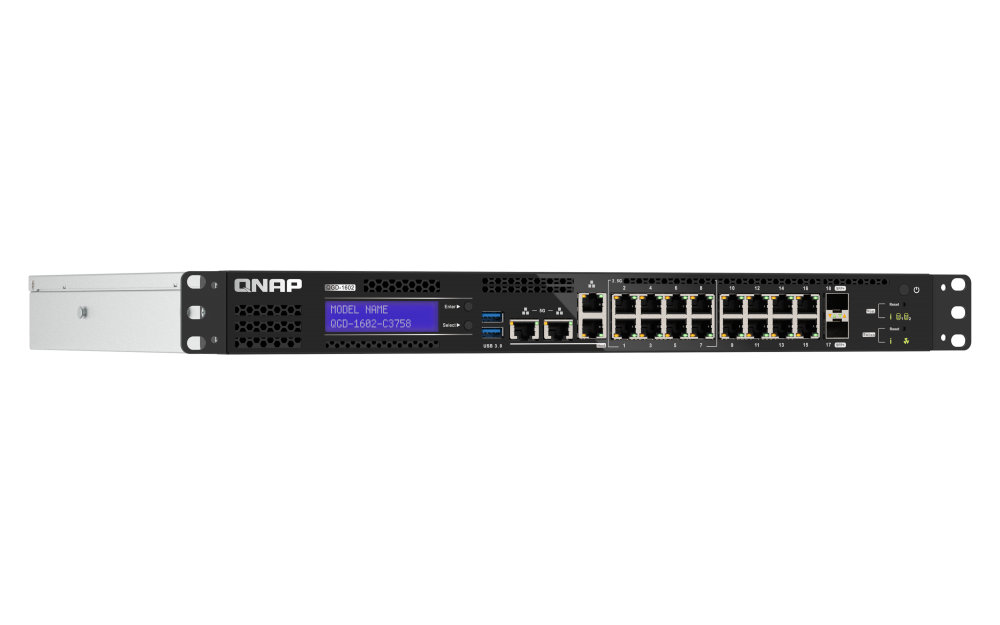

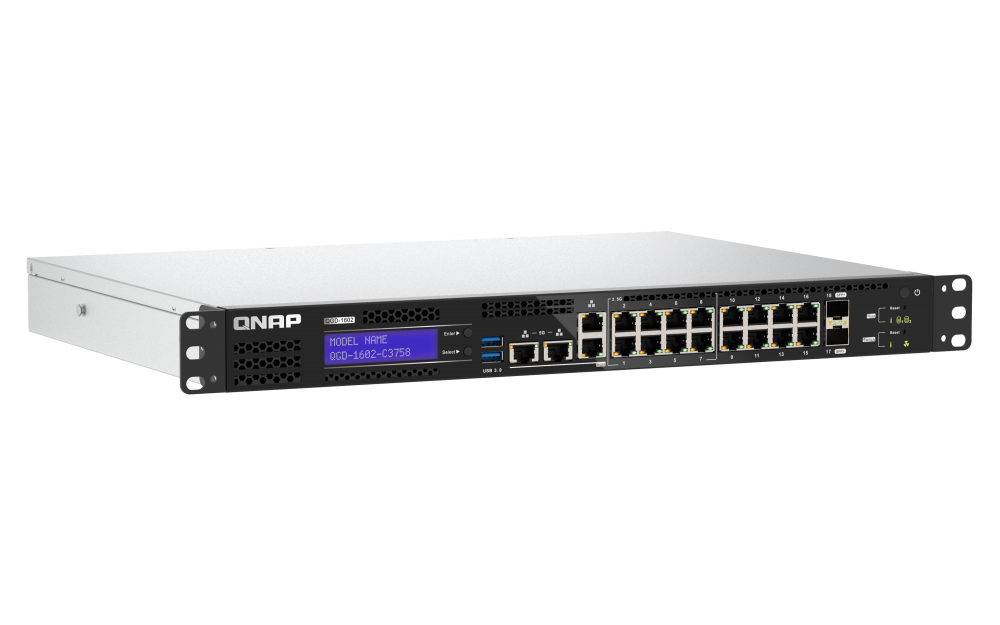

QNAP QGD-1602
Smart Edge Switch with 2.5GbE and 10GbE Capability


QNAP Products
QGD Smart Edge Switches
QNAP QGD-1602-C3758-16GB-US 16- port switch Intel® Atom® C3758 8C 2.2 GHz processor, 16GB DDR4 SODIMM RAM (2 x SODIMM Slot Max 64GB)
8 2.5GbE ports (2.5G/1G/100M), 8 1GbE ports, 2 SFP+ 10GbE(10G/1G), Intel Atom® C3758, 16GB DDR4 SODIMM RAM (Max 64GB), Equipped with QTS, 2 X 2.5″ SSD/HDD, 2 x PCIe Gen 3 slots, 2 X USB3.0
#QGD-1602-C3758-16G-US
Our Price: $1,279.00
QNAP QGD-1602-C3558-8GB-US 16- port switch, Intel® Atom® C3558 4C 2.2 GHz processor, 8GB DDR4 SODIMM RAM (2 x SODIMM Slot Max 64GB)
8 2.5GbE ports (2.5G/1G/100M), 8 1GbE ports, 2 SFP+ 10GbE(10G/1G), Intel Atom® C3558, 8GB DDR4 SODIMM RAM (Max 64GB), Equipped with QTS, 2 X 2.5″ SSD/HDD, 2 x PCIe Gen 3 slots, 2 X USB3.0
#QGD-1602-C3558-8G-US
Our Price: $949.00

Click here to jump to more pricing!

Package Content

  • QGD-1602 Storage System
  • 1 x Power Cord
  • 1 x Ethernet Cable
  • Flat Head Screw (for 2.5” HDD)
  • Rackmount kit
  • Rubber feet
  • Quick Installation Guide (QIG)

Overview:

The QNAP QGD-1602 is the world’s first managed switch series that supports Virtual Machines (VMs). Featuring 2.5GbE and 10GbE SFP+ ports, the QGD-1602 allows you to build a high-speed network infrastructure. With a dual-CPU design, the QGD-1602 uses Intel® Atom® multi-core 2.2GHz processors with two SATA drive bays to support VM and QTS applications. The QGD-1602 not only fulfills IP surveillance, network security and storage expansion applications, but also integrates QuWAN to form a SD-WAN architecture with other QNAP devices across multiple sites, helping to build a resilient and secure IT infrastructure. With 20GbE internal bandwidth capacity and Intel® QuickAssist Technology (Intel® QAT), the QGD-1602 achieves the high-performance transmission required for edge computing virtualization and IPsec VPN, and offers SMBs a cost-optimized and centrally managed LAN deployment solution.



Available Models

  • QGD-1602-C3758-16G-
    8 x 2.5GbE Gigabit RJ45 ports, 8 x Gigabit RJ45 ports, 2 x 10GbE SFP+ ports; Intel® Atom® C3758 octa-core 2.2 GHz processor, 16 GB DDR4 RAM, supports hosting up to 6 VMs

  • QGD-1602-C3558-8G-
    8 x 2.5GbE Gigabit RJ45 ports, 8 x Gigabit RJ45 ports, 2 x 10GbE SFP+ ports; Intel® Atom® C3558 quad-core 2.2 GHz processor, 8 GB DDR4 RAM, supports hosting up to 4 VMs

10GbE connectivity

Two 10GbE SFP+ ports provide computers, LAN switches and NAS with higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.

Layer 2 network

Provides comprehensive Layer 2 management features (such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN) with user-friendly network management software. IT staff can efficiently control network bandwidth and enhance security using a web-based management interface.

Dual M.2 PCIe slots

Set up an SSD cache or storage pools to increase file access efficiency.

Two SATA drive bays

Supports up to two SATA drives.

Flexible PCIe expansion

Two PCIe Gen3 x2 slots allow users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or wireless adapters.

Mesh VPN

Host containerized applications and virtual machines with various operating systems. Flexibly install QuWAN, virtual router, firewalls, or wireless LAN management software for various networking management applications.

Features:

Upgraded performance for smoother virtualization

The QGD-1602 provides a full upgrade of network speeds, performance and memory, which not only greatly enhances the network transmission speeds of edge devices, but also optimizes the capabilities of running multiple virtual machines and containers for highly-efficient virtualization applications.


8 -core

CPU (Max.)

10 GbE

network

20 Gbps

Internal bandwidth capacity

64 GB

RAM (Max.)


6 VMs


Sturdy hardware with Intel QAT for optimized performance

The QGD-1602 uses Intel® Atom® C3000 series multi-core 2.2GHz processors, has two SATA drive bays, and provides and two M.2 NVMe SSD slots for SSD caching to increase IOPS performance. Two PCIe Gen3 x2 slots allows users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or Wireless Adapters to boost core functionality. The QGD-1602 also supports Intel® QuickAssist Technology (Intel® QAT) to greatly enhance IPsec VPN performance.

Note: Intel® QAT is supported when using QTS 4.4.3 (or later).


The First Switch Series with VM Support

The Guardian supports QNAP’s QTS operating system and is the world’s first switch series that can host virtual machines, containers, and provide other cloud applications - enabling diverse networking and storage solutions. In addition to QuWAN, QVR Pro, HybridMount, and other applications, the included App Center also supports VMs for running many open-source software applications. The Guardian provides SMBs with not only an all-in-one networking solution for IP surveillance, storage expansion, network security, and wireless LAN management, but also a SD-WAN solution for connecting to other QNAP devices at multiple sites. The dual-processor Guardian enables you to independently run the networking management interfaces (QSS - QNAP Switch System) and QTS. The Guardian provides a user-friendly web interface, QuNetSwitch, to help SMBs deploy a flexible and secure IT infrastructure.

Note: QTS and QSS can work independently without interference to ensure continuous operation. For example, when restarting QTS, the QSS connections will not be interrupted; when rebooting QSS, the VMs on QTS will keep running.

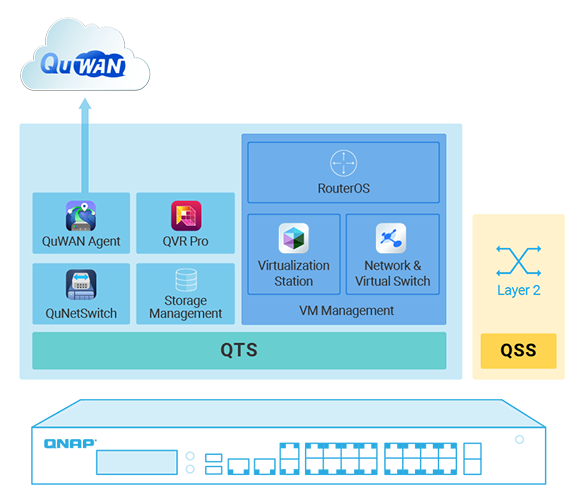

vc software


Deploy a multi-site VPN with SD-WAN solution


The QGD-1602 and other QNAP solutions now support QuWAN – QNAP’s SD-WAN solution. QuWAN provides full mesh IPsec VPN topology between QNAP devices based in multiple sites to fulfill enterprise video, VoIP, ERP system data, and filing needs. QuWAN adopts software-defined networking to achieve optimum network connectivity, and supports cloud-centric management for deploying a resilient IT Infrastructure.

QuWAN Orchestrator

QuWAN Orchestrator

Manage the network using a centralized management cloud platform.

QuCPE Server

QuCPE Server

The high-performance core VPN Server at the HQ.

QuWAN NAS

NAS

Add branch offices to the VPN Infrastructure with your existing NAS.

QGD Switch

QGD Switch

Fulfill surveillance and VoIP applications at small business sites (such as stores).


QHora Router

QHora Router

Provides easy-to-use VPN functions for remote workers.

QVPN

QVPN

Mobile users can connect to SSL VPN using their PCs, laptops or mobile phones.

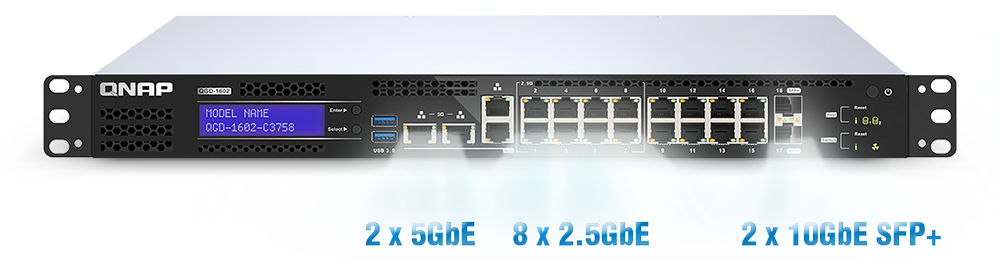

Faster wired and wireless transmission

The QGD-1602 has eight 2.5GbE ports and eight Gigabit ports for connecting various high-speed devices. Two in-built 10GbE SFP+ ports can serve as uplink ports to the Internet and core networks or simply be connected to routers and LAN Fiber switches. The additional two 5GbE and two Gigabit host management ports can be connected to multiple hosts or LAN devices to improve LAN efficiency. The switching capacity of QGD-1602 is 96Gbps, guaranteeing the full potential of each port. By installing an 802.11ac Wireless Adapter and the WirelessAP Station App, the QGD-1602 can work as an access point for connecting multiple edge devices and offer wireless speeds up to 2533Mbps.

faster-wired-and-wireless-transmission

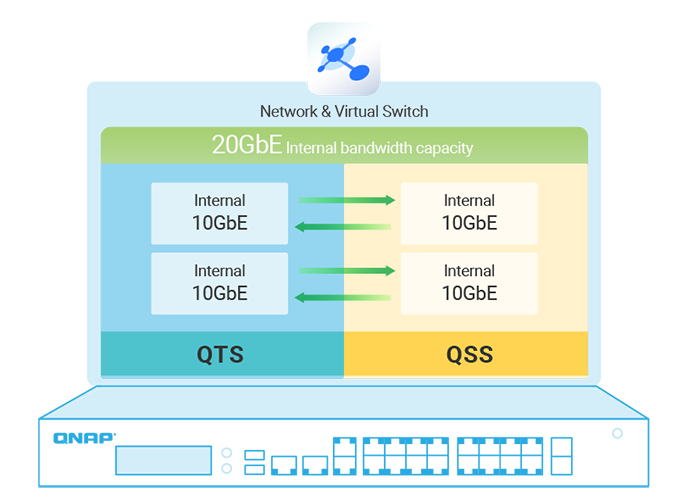

20GbE Internal Bandwidth for Virtualized Applications

QTS can directly access to and control the data processed in QSS using Virtual Switches. The QGD-1602 provides 20GbE internal bandwidth to accelerate computing between end devices and hosts. The additional two 5GbE and two Gigabit host management ports can also be connected to multiple hosts for deploying multiple virtual machines.

Internal Bandwidth for Virtualized Applications

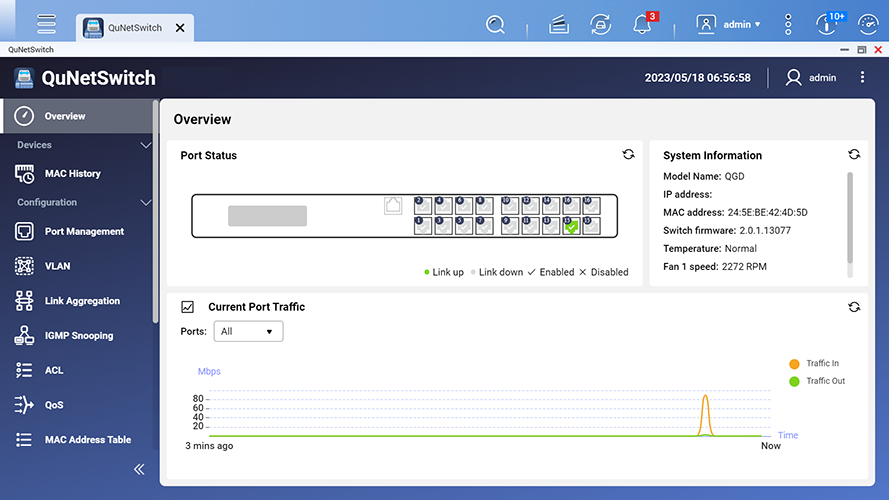

QuNetSwitch: Layer 2 Management with User-friendly Web GUI

The QGD-1602 provides comprehensive Layer 2 management features (including VLAN, LACP, and LLDP) for efficient control of networks through IP grouping and bandwidth management. Powerful security functions (including IGMP Snooping, static MAC, QoS, and Wake-on-LAN) are also suitable for simple networking environments and easy deployment. Aside from the QNAP Switch System (QSS), the QGD-1602 also offers the user-friendly web interface software QuNetSwitch (via QTS) to help IT staff control Layer 2 management networks. The overview dashboard and statistical analysis area displays all the information about the switch and devices at a glance, making centralized management of devices intuitive and easy.

qunetswitch UI

Port Management VLAN Port Trunking QoS
  • Port status
  • Port statistics
  • Port configuration
  • Jumbo frame support
  • IEEE 802.3x flow control
  • Auto-negotiation of speed and duplex modes
  • VLAN configuration
  • Port-based private VLAN
  • IEEE 802.1Q-based VLAN
  • Port trunking
  • LACP groups
  • Bandwidth control
  • Traffic classification
IGMP Security Management Advanced Applications
  • IGMP snooping v2/v3
  • Access Control Lists (ACL): ACL by IP address, ACL by MAC
  • Static MAC address
  • Rate limits
  • Link Layer Discovery Protocol (LLDP): LLDP remote device
  • Interfaces: Web UI, Telnet, Command Line Interface (CLI)
  • SNTP, DNS, DHCP client entry
  • Port mirroring
  • Loop protection to avoid broadcast loops
  • Wake-on-LAN

The Guardian Smart Edge Switch meets your business needs.

The QGD-1602 is a central networking solution that offers Web-based management, and innovative virtualization applications to solve various networking problems.


pfsense-logo

Virtual Router x Virtual Firewall = Enhanced Cybersecurity

The QGD-1602 can be transformed into a secure router with a firewall via virtual router and virtual firewall software by installing MikroTik RouterOS and OpenWrt. Flexibly configure routing functions and separate or protect local networks and apply multiple security policies. You can also easily manage all networking devices with Zabbix network management software.

zabbix_logo

Zabbix = Centralized Network Management Platform

The QGD-1602 supports Zabbix Network Monitoring Software that auto-detects connected SNMP-compliant servers/devices, and monitors network status. Zabbix provides a Dashboard and Analysis Reports for efficient large-scale network management.

Hardware Specifications:

  QGD-1602-C3558-8G QGD-1602-C3758-16G
Management Type Web Managed
Number of Ports 18
10GbE SFP+ 2
10G/1G
2.5GbE (RJ45) 8
1GbE (RJ45) 8
PCIe Slot Slot 1: PCIe Gen3 (x4 slot, x2 speed)
Slot 2: PCIe Gen3 (x4 slot, x2 speed)
USB 3.2 Gen 1 port 2
Management Port 2 x 5GbE ; 2 x 1GbE
USB 3.2 Gen 2 (10Gbps) Port Optional via PCIe adapter
Power Supply Description Internal Power Supply Unit
Max. Power Consumption 100W
Input Power Type AC
Input Voltage Range 100-240VAC, 50/60 Hz
MAC Address Table 32K
Total Non-Blocking Throughput 48Gbps
Switching Capacity 96Gbps
Management Interface Web
Fan System: 3 x 4 cm (12V DC)
Supported Standards IEEE 802.3u 100Tx Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet
IEEE 802.3an 10GBASE-T 10G Ethernet
IEEE 802.3ae 10GBASE-SR
IEEE 802.3ae 10GBASE-LR
IEEE 802.3z 1000Base-X
IEEE 802.3x Full-duplex flow control
IEEE 802.1q Virtual LANs (VLAN)
IEEE 802.1p QoS Protocol for Traffic Prioritization
Form Factor Rackmount
LED Indicators Per Port: Link/Activity/Speed
Per System: Warning/Fan
LCD Management
Buttons Device PSU power button
Host power button
Host reset button(load default)
Switch reset button
Dimensions (HxWxD) 1.74 × 17.13 × 12.9 inch
Weight (Net) 9.63 lbs
Weight (Gross) 12.17 lbs
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 5% to 95% non-condensing, wet bulb: 27°C (80.6°F)
Certifications CE, FCC, VCCI, BSMI RCM, CCC
Electromagnetic Compliance CLASS A, UL62368
Jumbo Frames
QTS Built-in
CPU Intel® Atom® C3558 quad-core 2.2 GHz processor Intel® Atom® C3758 8-core 2.2 GHz processor
CPU Architecture 64-bit x86
Intel QAT Support
Internal Network Bandwidth 2 x 10GbE
Floating Point Unit
Encryption Engine (AES-NI) (AES-NI)
System Memory 8 GB (1 x 8 GB) 16 GB (1 x 16 GB)
Maximum Memory 64 GB
Memory Slot 2 x SODIMM DDR4
Flash Memory 4GB (Dual boot OS protection)
Drive Bays 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 2.5-inch bays:
2.5-inch solid-state drives
2.5-inch hard disk drives
Hot-swappable
M.2 SSD Slots 2 (NVMe, PCIe Gen3 x 1)
SSD Cache Acceleration Support
File System: Internal Hard Drive+ EXT4
File System: External Hard Drive EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license)
Warranty 2 Years

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
