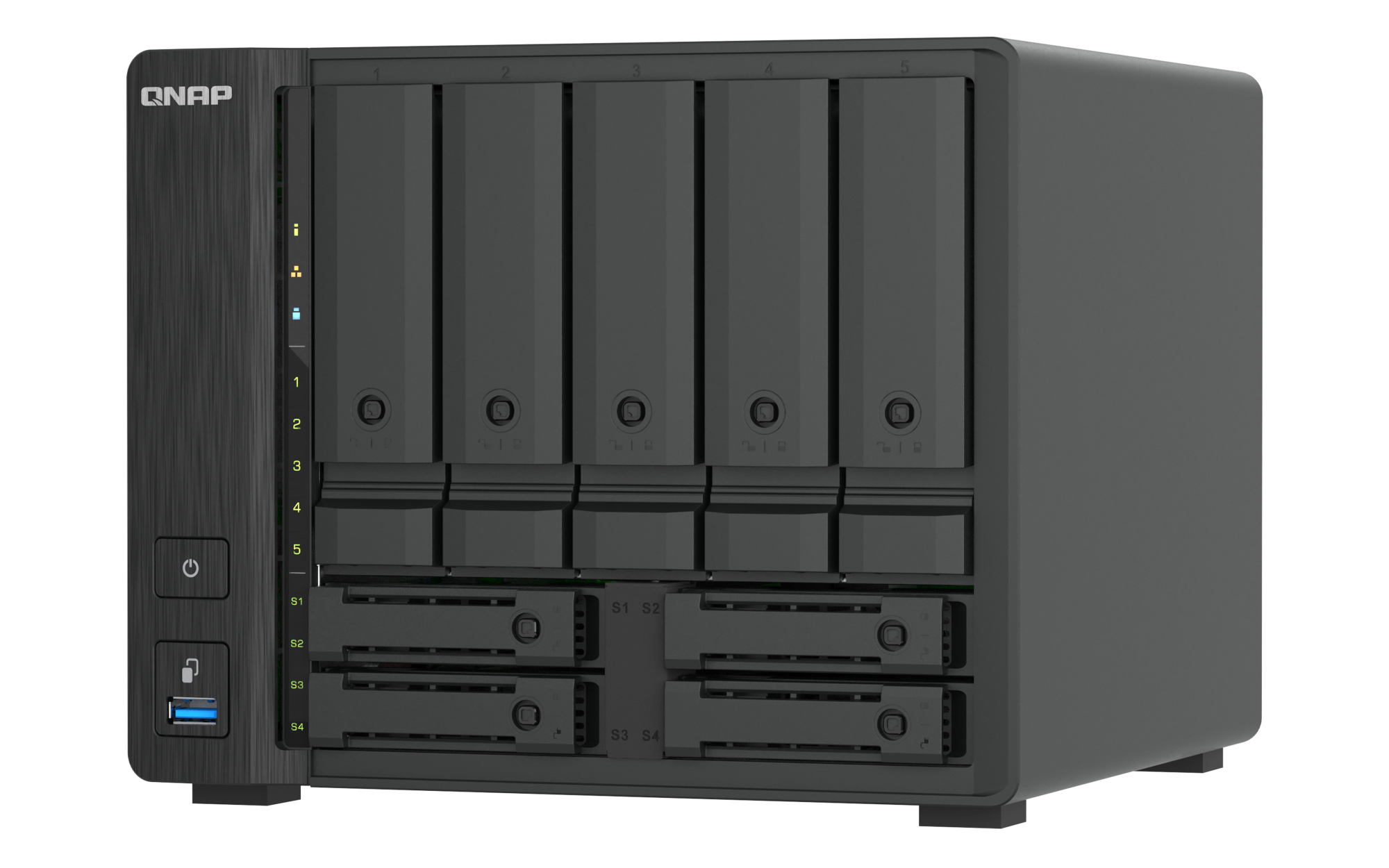

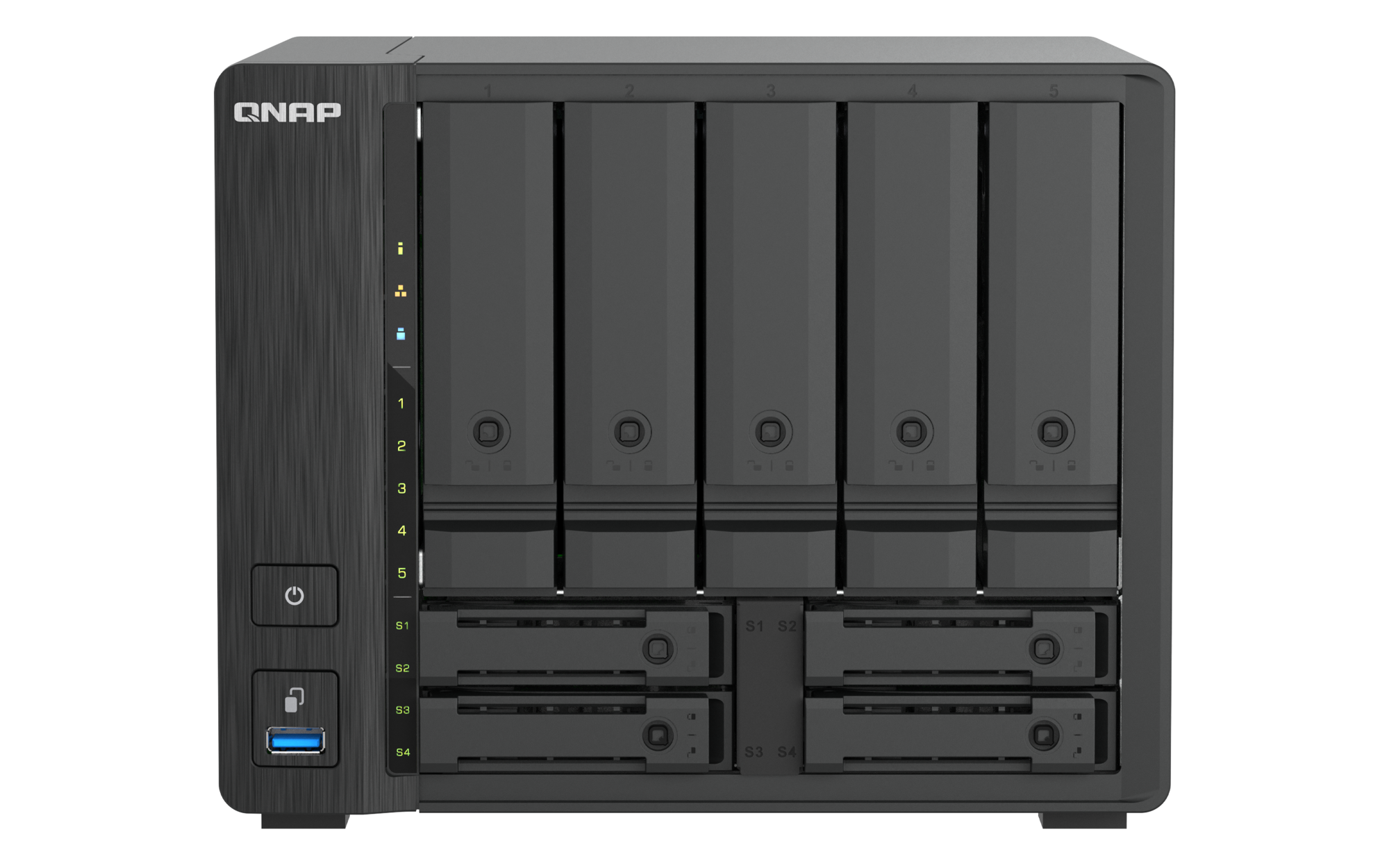

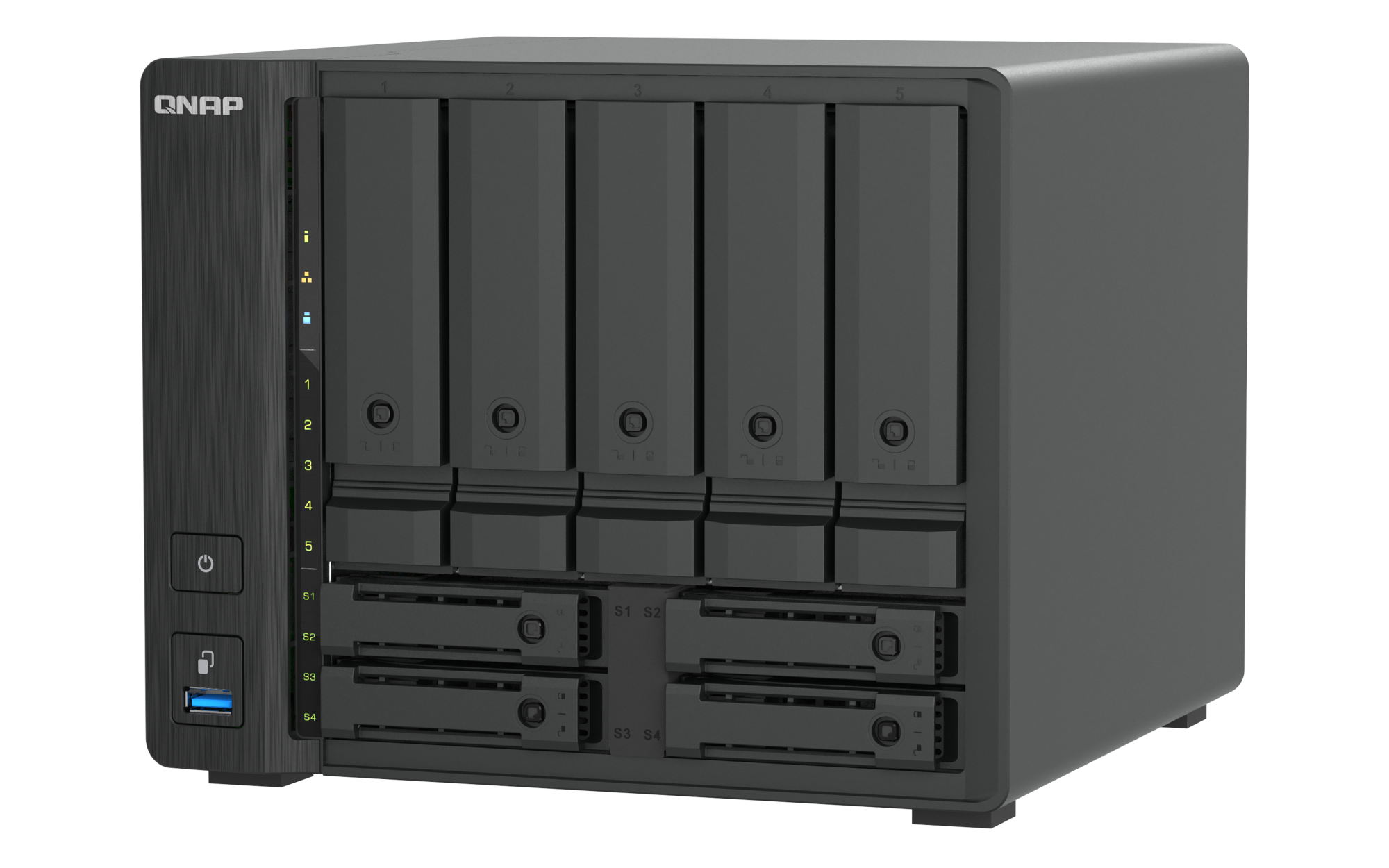

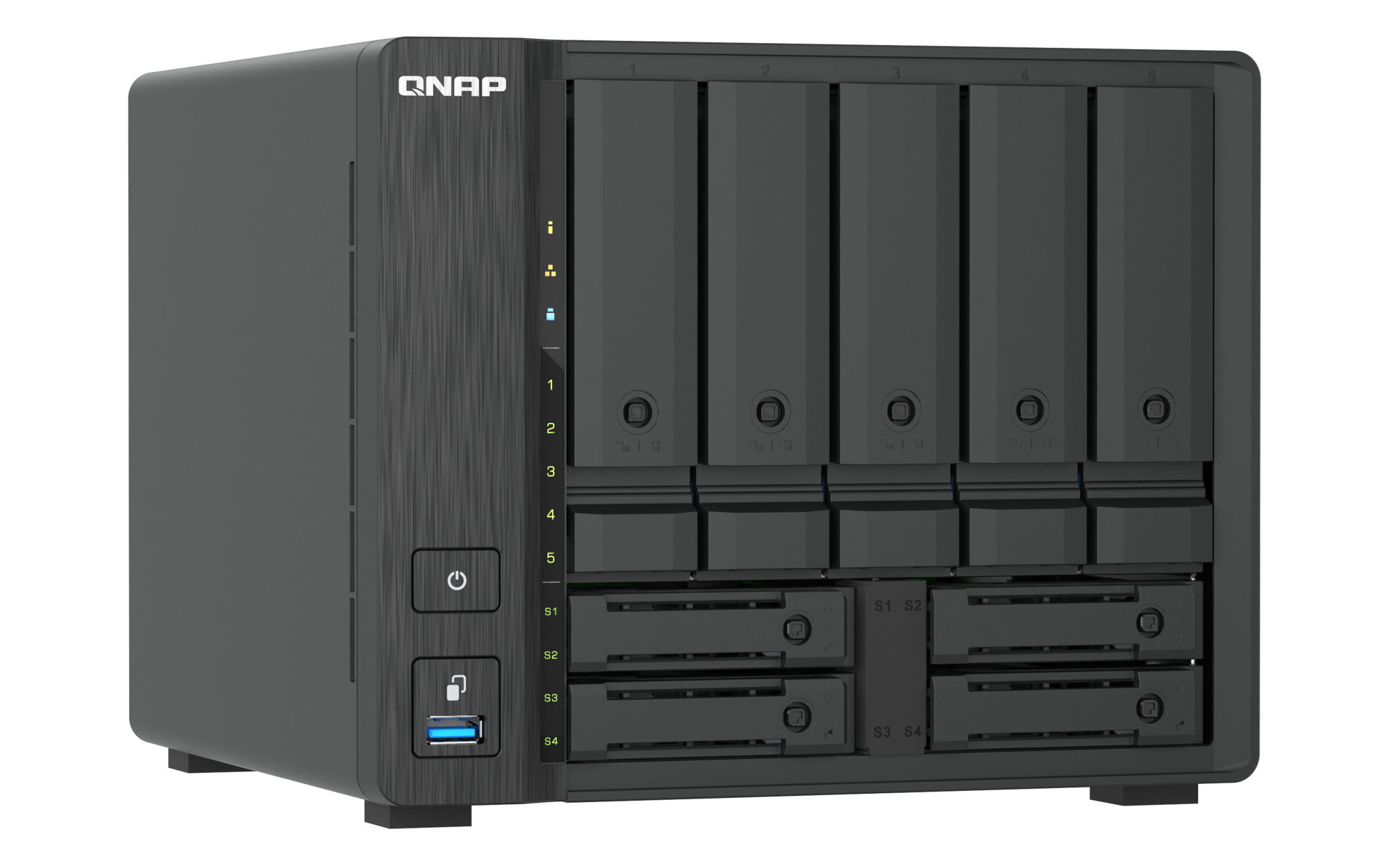

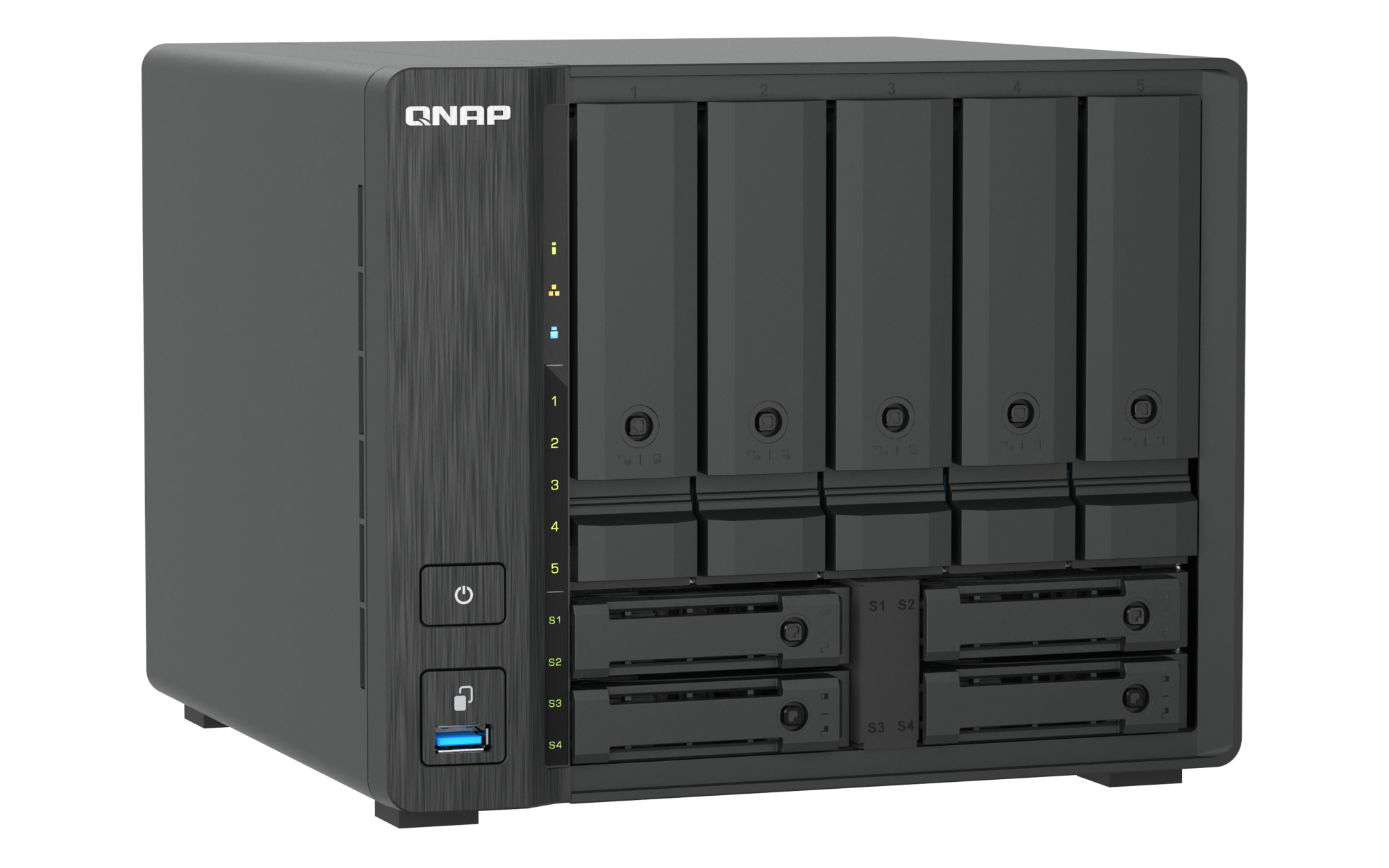

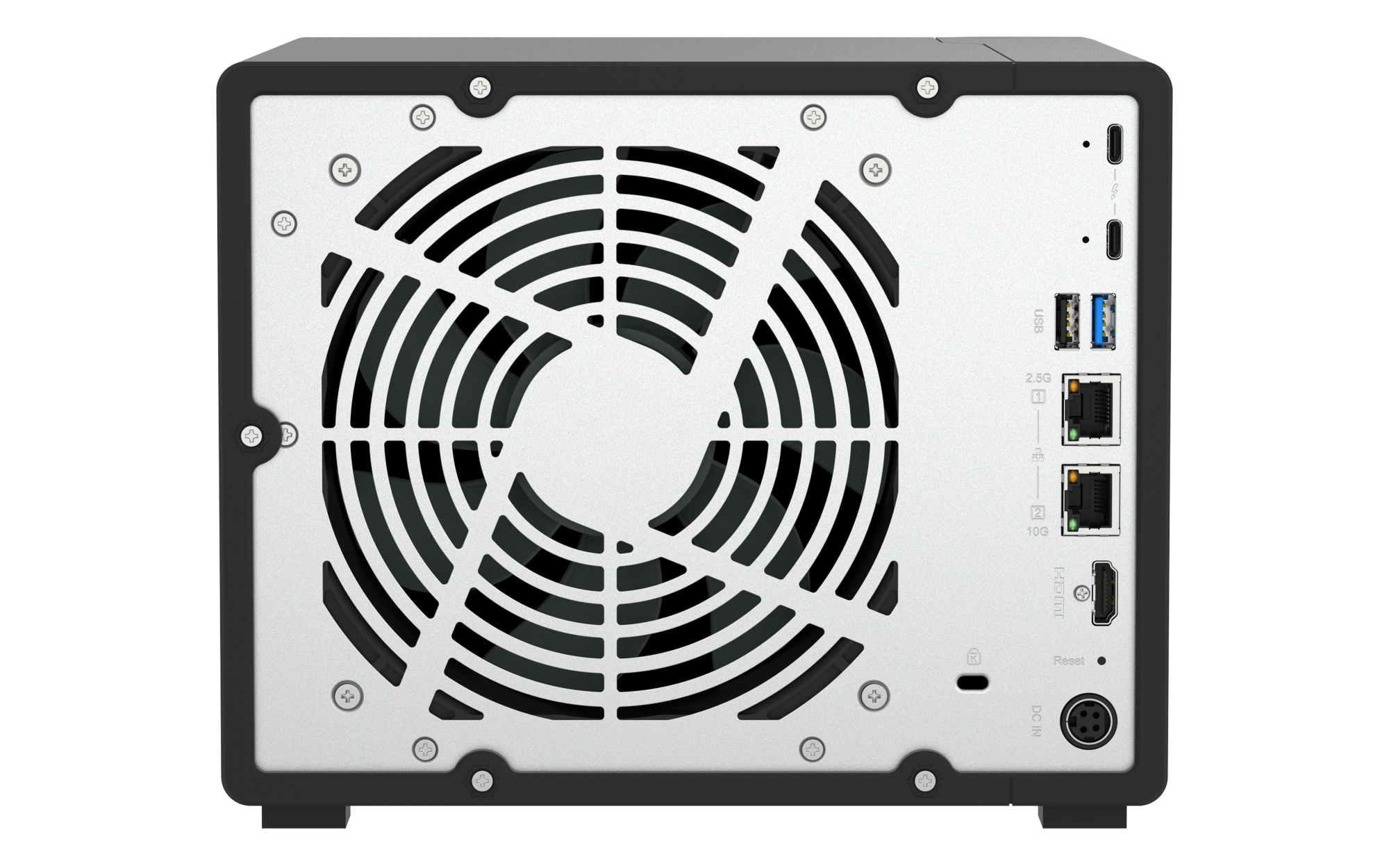

QNAP TS-h966TX
6-Core 9-Bay Hybrid Thunderbolt™ 4 NAS — High Performance Meets Massive Capacity

Overview:

The compact yet high-capacity 9-bay TS-h966TX is powered by an Intel® Core™ i3 6-core processor with high-speed I/O, purpose-built for Mac® and Windows® creators tackling online editing, VFX production, file transfer, and backup workflows — handling everything from on-set rough cuts to post-production collaboration in a single device. Built-in 10GbE and 2.5GbE ports, paired with a hybrid storage design featuring 5 x 3.5" SATA 6Gbps drive bays and 4 x 2.5" U.2 NVMe SSD slots, deliver the IOPS performance needed for intensive workloads. Running on QuTS hero with ZFS, TS-h966TX ensures data integrity with block-level inline deduplication, real-time compression, and SSD optimization — making it the ideal solution for file servers, virtualization, collaborative video editing, and reliable backup and disaster recovery.

Features:

High-Speed Transfer × Hybrid Storage

The TS-h966TX combines 5 x 3.5" SATA high-capacity drives with 4 x U.2 NVMe SSDs in a hybrid storage architecture that delivers both massive capacity and blazing-fast performance. Flexibly configure SSD caching or intelligent data tiering to handle large media assets and high-frequency read/write workloads with ease. Dual Thunderbolt™ 4 ports plus 10GbE and 2.5GbE networking support both solo high-performance editing and multi-user collaborative media workflows.

---

Intel® Core™ 6-Core Processor — A Leap in Performance

---

Dual Thunderbolt™ 4 Ports — Direct-Connect Workstation Performance

TS-h966TX features 2 Thunderbolt™ 4 ports for ultra-fast data transfer. Connect directly to Mac® or Thunderbolt™ 4 Windows® PC workstations for online video editing — transfer 1 TB of 4K footage in just 10 minutes, dramatically accelerating project collaboration.

---

U.2 NVMe + SATA Hybrid Storage — Flexible Balance of Performance and Capacity

The hybrid storage architecture features 4 U.2 NVMe and 5 SATA slots, letting you configure high-performance NVMe storage pools or large-capacity SATA volumes based on your workload. Qtier tiering and SSD caching keep your storage optimally configured at all times — boosting random read/write IOPS for small-file-intensive workloads while reducing latency.

---

QNAP Streamlines Creators' Workflows

The TS-h966TX is more than a simple backup/archiving machine, and provides a total solution for encouraging your creativity. Let’s take a look at its game-changing improvements for your workflows.

---

10GbE and 2.5GbE Networking — Smooth Large File Transfer and Media Editing

TS-h966TX offers one 10GBASE-T Multi-Gig (10G/5G/2.5G/1G/100M) port and one 2.5GbE RJ45 (2.5G/1G/100M) port, delivering high-bandwidth connectivity for demanding business applications. Pair with QNAP's managed and unmanaged 10GbE/2.5GbE switches to build a fast, secure, and scalable network environment without breaking the budget.

---

Secure Boot — Verified Security from the Moment You Power On

TS-h966TX uses hardware-level Secure Boot to verify firmware signatures and system integrity at every startup, blocking unauthorized or malicious software from loading — ensuring every boot begins from a trusted, clean state.

---

USB 3.2 Gen 2 High-Speed Backup — One Touch, Done

A front-facing USB 3.2 Gen 2 (10Gbps) port on TS-h966TX lets you connect external SSDs directly. At twice the speed of USB 3.2 Gen 1, simply press the One Touch Copy button to instantly start high-speed data import or export — saving time and keeping your workflow moving.

---

HDMI™ Output — Full NAS Control on the Big Screen

The TS-h966TX features an HDMI™ output supporting 4K (4096 x 2160) @60Hz. Connect to any display and operate the NAS like a desktop — play videos, browse the web, and manage files directly on screen for a high-quality visual experience and a streamlined workflow.

---

QuTS Hero Operating System — Enterprise ZFS Data Integrity

Designed for enterprises, the QuTS hero operating system adopts the highly reliable ZFS file system to provide utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses' stringent demands for performance and reliability — making the most of the four U.2 NVMe SSD slots in the TS-h966TX.

Capability	What It Does for You
Automatic repair of corrupted data	ZFS supports self-healing for silent data corruption, automatically detecting and repairing damaged data to ensure long-term data integrity.
Data immutability	Defend against ransomware by creating a WORM (Write Once, Read Many) folder that prevents data from being overwritten, modified, or deleted, while also enabling immutable backups.
Power failure protection	ZIL (ZFS Intent Log) safeguards unwritten data, protecting against the data corruption that an unexpected power loss can cause.
Data reduction	Block-level inline deduplication1 and real-time compression reduce storage consumption, keeping disk capacity available for active projects.
Snapshots and fast recovery	Near-limitless block-based snapshots capture point-in-time versions of files and volumes, so you can roll back to a healthy state within minutes.
Prevent simultaneous SSD failure	The patented QSAL algorithm regularly monitors RAID-level SSD lifespan to prevent simultaneous SSD failure, avoiding RAID crashes and data loss.

---

All-in-one backup solution

The TS-h966TX supports various apps that cover all your backup needs.

Category	Capability
NAS / File Server	Supports multiple protocols such as Rsync, FTP and CIFS/SMB for backing up different file servers.
Cloud	Back up NAS data to/from major cloud services, including QNAP’s myQNAPcloud One.
Mac	Set a QNAP NAS as Time Machine backup destination.
Windows® PC/Server	Back up full PC/server systems and manage all backups from multiple devices through a single interface.
VM	Back up VMware® vSphere and Microsoft® Hyper-V with dramatically lower costs than others
Google™ Workspace/Microsoft 365®	Use QNAP’s HDP for SaaS to back up, recover, and manage the data of 10,000+ users over multiple Google™ Workspace and Microsoft 365®.
WordPress	Backup, restore or migrate your WordPress site. QNAP NAS can also host a website.
Secondary backup or restore - By supporting secondary backup, replication, or restore in a single interface, QNAP makes your business Disaster Recovery (DR) quick, easy, and effective.
NAS and file server	Use the same interface to configure and run backup, replication, and restore jobs.
Cloud	Supports advanced technologies to save backup time, spaces, and effort.
myQNAPcloud One	QNAP-hosted cloud storage that only charges for storage space, with transmitting data being completely free.

---

Mobile backup and AI-powered photo management

---

Turn Your NAS into an AI-Powered Knowledge Hub

TS-h966TX combines Qsirch with next-generation RAG search technology to help teams find, understand, and extract critical information faster — making document management smarter while keeping your data secure and fully under your control.

---

Multi-Level Security Strategy for Enterprises

Bolster business data security with resilience from all aspects — securing the network connection, controlling user permissions, protecting data in transit, and continuously assessing risk.

---

Run VMs and Containers

With no additional fees, you can run multiple VMs of different OS on the TS-h966TX alongside Docker® containers and LXD environments, supporting VM live migration and high availability features to increase management efficiency and save hardware costs.

---

Extend hardware warranty up to 5 years

The TS-h966TX is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Hardware Specifications:

	TS-h966TX-8G
CPU	Intel® Core™ i3 6-core processor, up to 4.4 GHz
CPU Architecture	64-bit x86
Graphic Processors	Intel® UHD Graphics
Encryption Engine	(AES-NI)
Secure Boot
Hardware-accelerated Transcoding
System Memory	8 GB SODIMM DDR5
Maximum Memory	64GB (2 x 32GB)
Memory Slot	2 x SODIMM DDR5
Flash Memory	4GB (Dual boot OS protection)
Drive Bay	5 x 3.5-inch SATA 6Gb/s + 4 x 2.5-inch U.2 PCIe NVMe slots
Drive Compatibility	3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch U.2 PCIe NVMe solid state drives
Hot-swappable
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	1 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port	1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL)
Jumbo Frame
Thunderbolt™ Port	2 (Thunderbolt™ 4)
USB 2.0 Port	1
USB 3.2 Gen 2 (10Gbps) Port	2
HDMI™ Output	1 x HDMI™ (up to 4K@60Hz)
Form Factor	Tower
LED Indicators	3.5-inch HDD, 2.5-inch U.2 SSD, Status, LAN, USB port status
Buttons	Power, Reset, USB Copy
Dimensions (HxWxD)	7.19 × 8.84 × 8.8 inch
Weight (Net)	7.87 lbs
Weight (Gross)	11.2 lbs
Operating Temperature	0 - 40°C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit	150W adapter, AC 100 to 240 V
Power Consumption: Disk Standby Mode	38.619 W
Power Consumption: Operating Mode, Typical	55.186 W Tested with drives fully populated.
Fan	1 x 140mm, 12VDC
System Warning	Buzzer
Kensington Security Slot
Standard Warranty	3 years
Max. Number of Concurrent Connections (CIFS) - with Max. Memory	2000

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
