Package Content
- QNAP QSW-1108-8T-R2 Switch
- Power supply
- Bracket screws
- Anchors
- Foot pads
- Quick Installation Guide
Overview:
Affordable and compact, the QSW-1108-8T-R2 is your ideal entry-level 8-port 2.5GbE switch. As part of the QSW 1000 Series, this unmanaged switch offers high-speed and stable performance at an economical price. Optimized for Wi-Fi 6/6E, it’s perfect for home and office environments seeking to enhance workflows, multimedia streaming, and file transfers. Designed and manufactured in Taiwan, the QSW-1108-8T-R2 delivers reliable and secure networking quality.
2.5G Multi-Gig Connectivity
8x 2.5GbE RJ45 ports (supports 2.5G/1G/100M), with a total switching capacity of 40Gbps.
Plug and Play
Auto-negotiates optimal speeds based on connected devices—no need to overhaul your network.
Compact Desktop Design
Energy-efficient with EEE support and Class B EMI certification; ideal for indoor environments.
Ultra-Quiet
Fanless design with advanced heat dissipation keeps noise to a minimum—ideal for workspaces.
Network Stability
Loop detection and blocking automatically prevents network disruptions caused by looped connections.
Jumbo Frame Support
Supports 12K Jumbo Frames for more efficient large file transfers and reduced packet loss.
Features:
High-Value 2.5GbE Switch in a Compact Case
Compared to upgrading directly to 10GbE, 2.5GbE is a more cost-effective and practical upgrade. QSW-1108-8T-R2 is an easy-to-own, entry-level 2.5GbE switch featuring BASE-T ports that work with existing cabling. With a compact desktop footprint and optimal number of ports, it makes upgrading to 2.5GbE easier than ever.

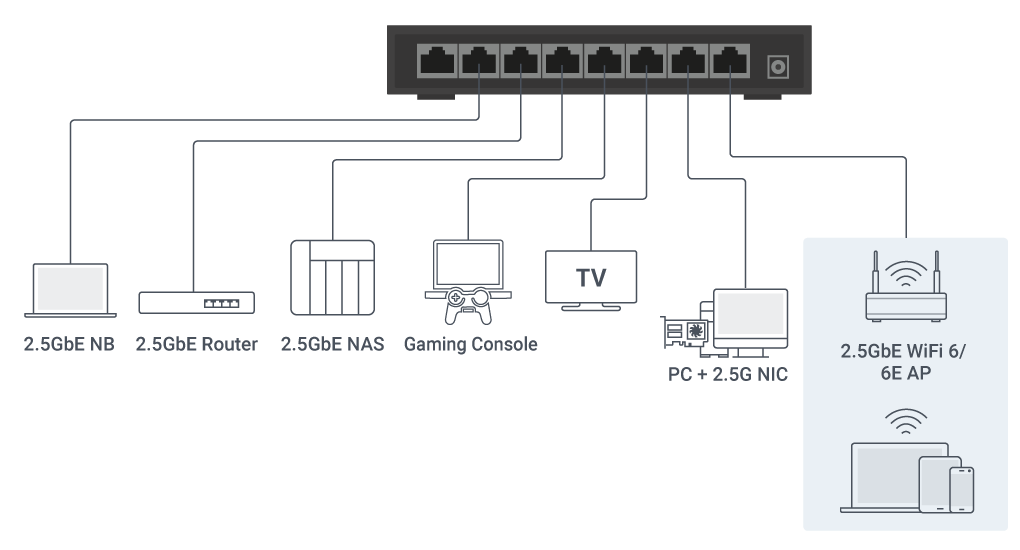

2.5GbE Performance – 2.5x Faster than Gigabit
The QSW-1108-8T-R2 features eight 2.5GBASE-T Ethernet ports and supports NBASE-T™ and Multi-Gigabit standards for 2.5G/1G/100M speeds, with a total switching capacity of 40Gbps. Connect devices like desktops, laptops, NAS, Wi-Fi 6/6E access points, set-top boxes, and game consoles for ultra-smooth backups, virtualization, media editing, and immersive entertainment.
Slim Body, Big Advantage

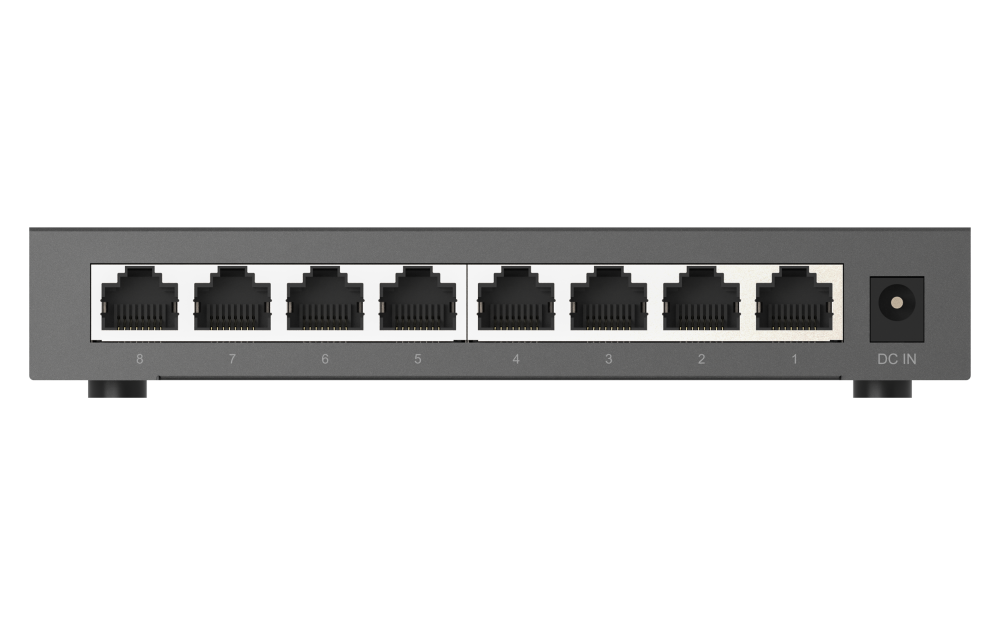

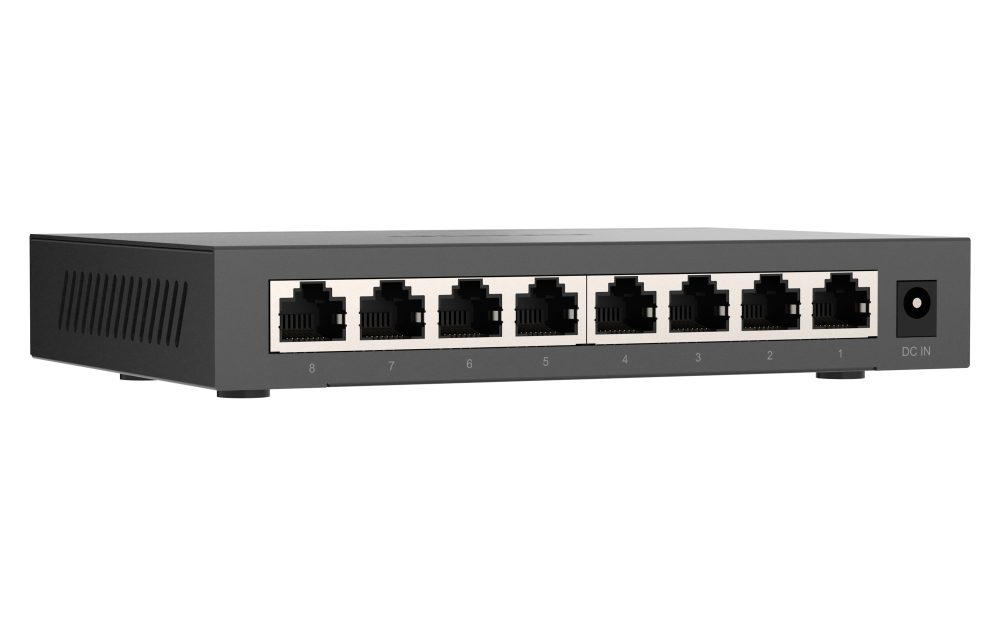

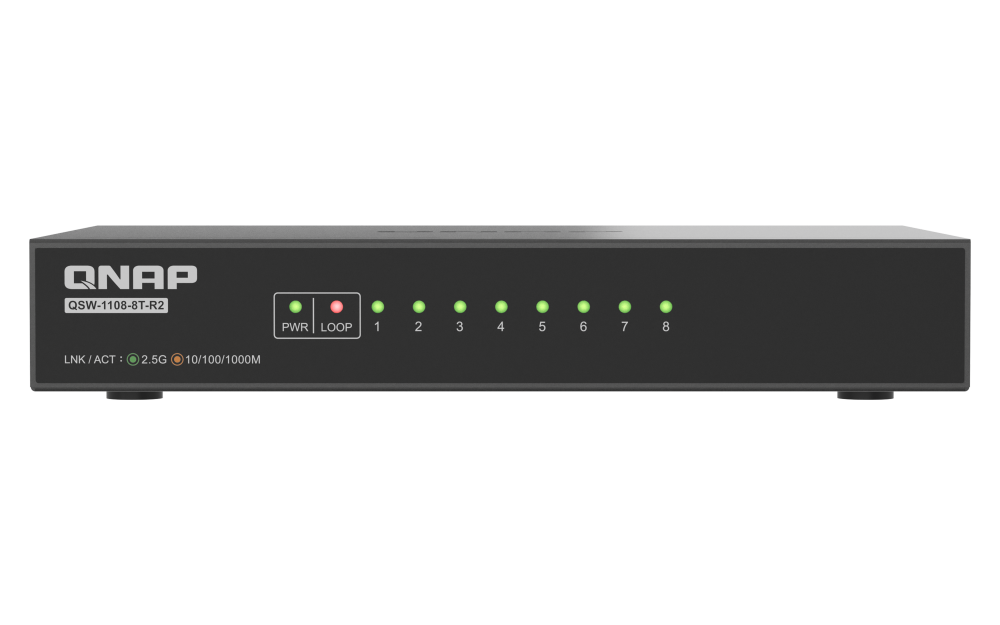

The QSW-1108-8T-R2 is 30% smaller than previous models and more compact than other multi-gigabit switches. With a clean LED display on the front and concentrated cabling on the back, it fits neatly in homes or small offices for efficient multi-device connectivity.
Auto-negotiation and Flow Control for optimized network performance
- Auto negotiation automatically detects optimal transmission speeds (2.5G/1G/100Mb) based on connected devices, eliminating the need to replace old equipment.
- A 4K MAC Address Table and Jumbo Frame 12KB improves network transmission efficiency.
- IEEE 802.3x Flow Control prevents packet loss during congestion.
Loop Detection & Prevention
The QSW-1108-8T-R2 features network loop detection. If a network loop is detected, the QSW-1108-8T-R2 automatically locks the looped ports to ensure the network environment quickly resumes normal operation. Network loops may also occur within a region, and the system can detect and handle such situations as well.

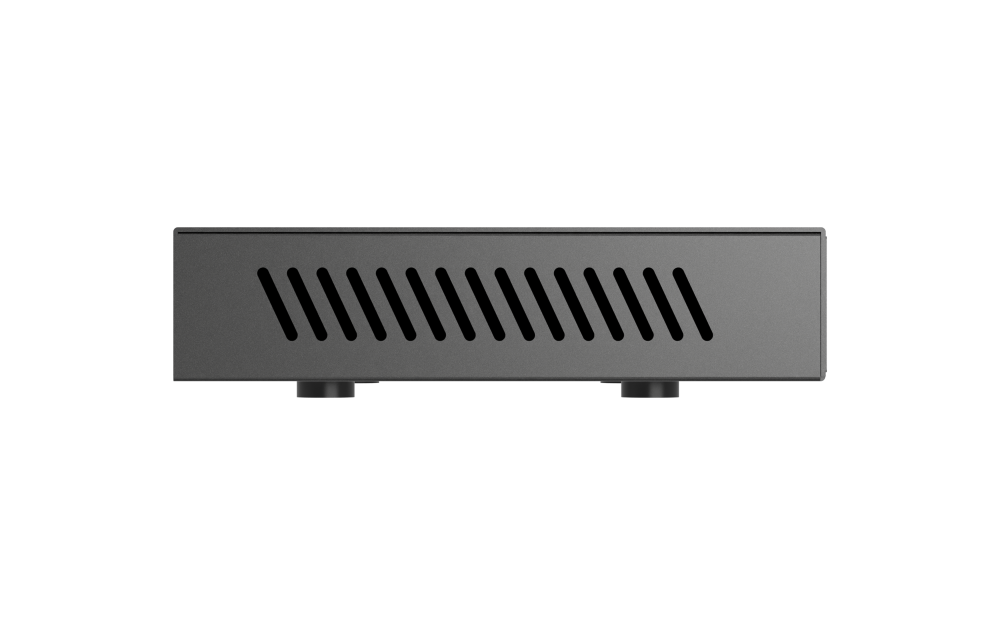

Silent Fanless Operation

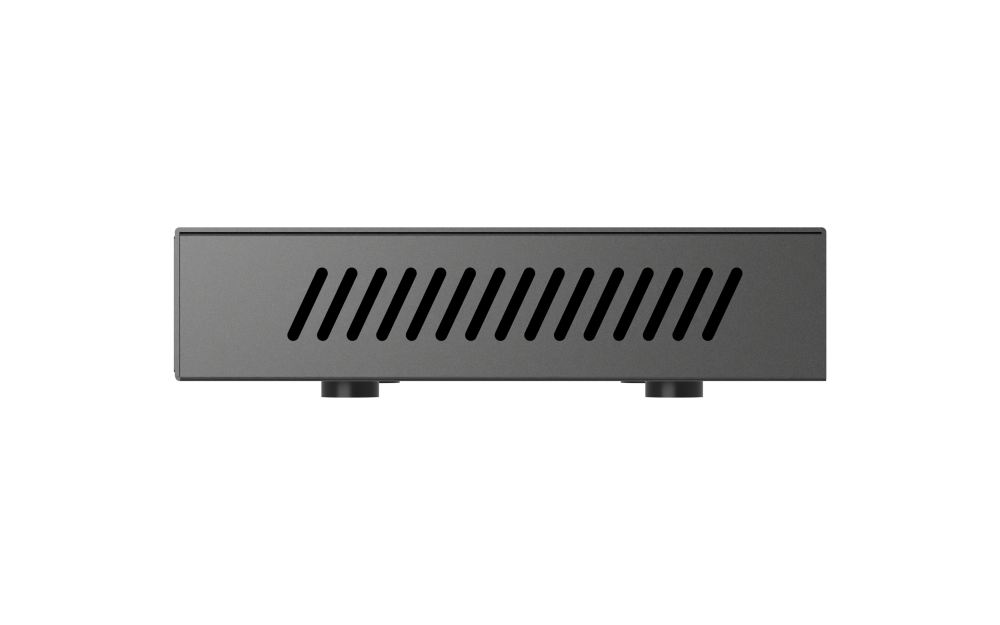

The QSW-1108-8T-R2 features a fanless design with internal heat sinks, metal heat dissipation plates, and vent holes to keep performance high and noise low—ideal for quiet work or living spaces.
Fully embrace high-speed networking with QNAP!
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
A switch that supports 2.5GbE/10GbE
QNAP 2.5GbE/10GbE switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
A fast NAS
A QNAP NAS with multiple 2.5GbE/10GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
Upgrade desktops and servers
Servers and desktops can install QNAP PCIe network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
Add a 5GbE/10GbE port to laptops
Use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter or QNAP Thunderbolt 3 to 10GbE adapter to connect laptops and upgrade-limited computers to 5G/2.5G/1G/100M networks.
Extend hardware warranty up to 5 years
The QSW-1108-8T-R2 is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Hardware Specifications:
| |
QSW-1108-8T-R2 |
| Management Type |
Unmanaged |
| Number of Ports |
8 |
| 2.5GbE (RJ45) |
8 |
| Power Supply Description |
Adapter |
| Max. Power Consumption |
12W |
| Input Power Type |
DC |
| Input Voltage Range |
12V/1A |
| MAC Address Table |
4K |
| Total Non-Blocking Throughput |
20Gbps |
| Switching Capacity |
40Gbps |
| Energy Efficient Ethernet (IEEE 802.3az complaint) |
|
| Fanless |
|
| Supported Standards |
IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBase-T
IEEE 802.3az EEE
IEEE 802.3x Full-Duplex Flow Control |
| Form Factor |
Desktop |
| LED Indicators |
Per Port: Speed/Link/Activity
Loop LED: Loop
Per System: Power/Status |
| Dimensions (HxWxD) |
26 x 160 x 110 mm |
| Weight (Net) |
0.5 kg |
| Weight (Gross) |
0.9 kg |
| Operating Temperature |
0˚C to 40°C (32°F to 104°F) |
| Relative Humidity |
10~90% Non-condensing |
| Certifications |
CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC |
| Electromagnetic Compliance |
CLASS B |
| Jumbo Frames |
12K |
| Warranty |
2 Years |
Note: QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
