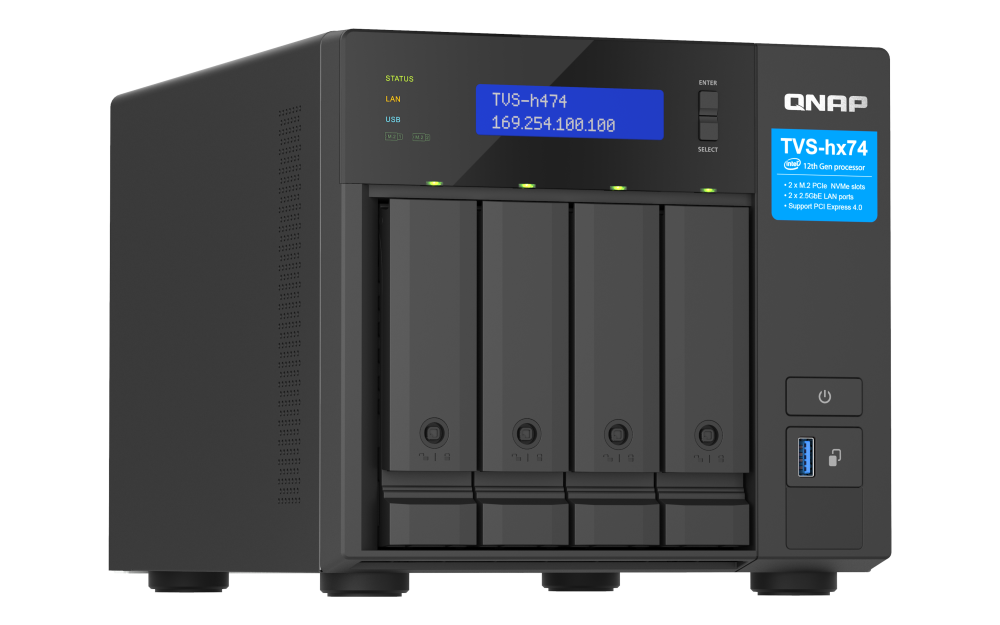

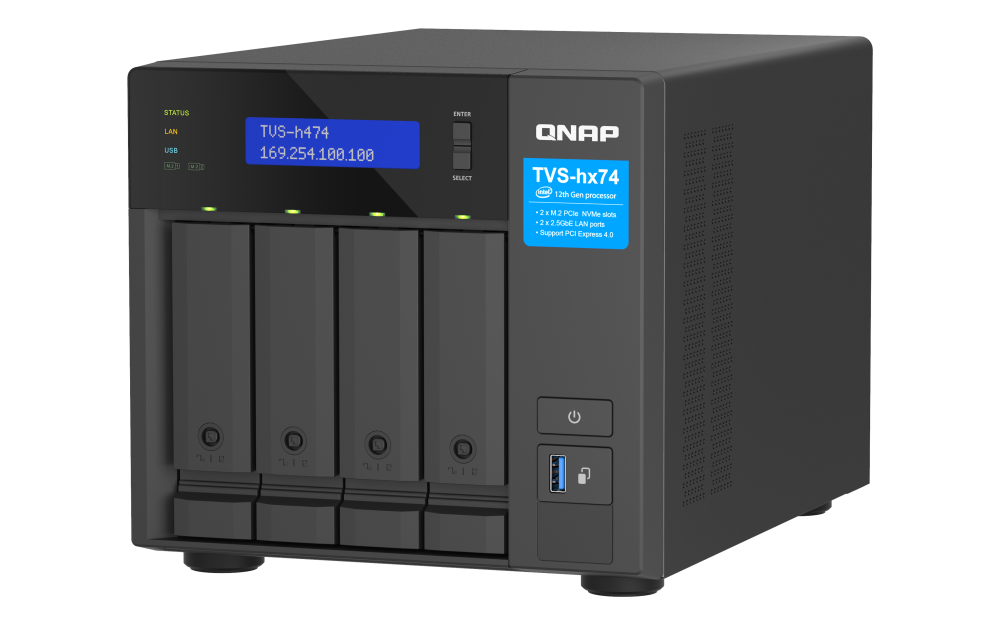

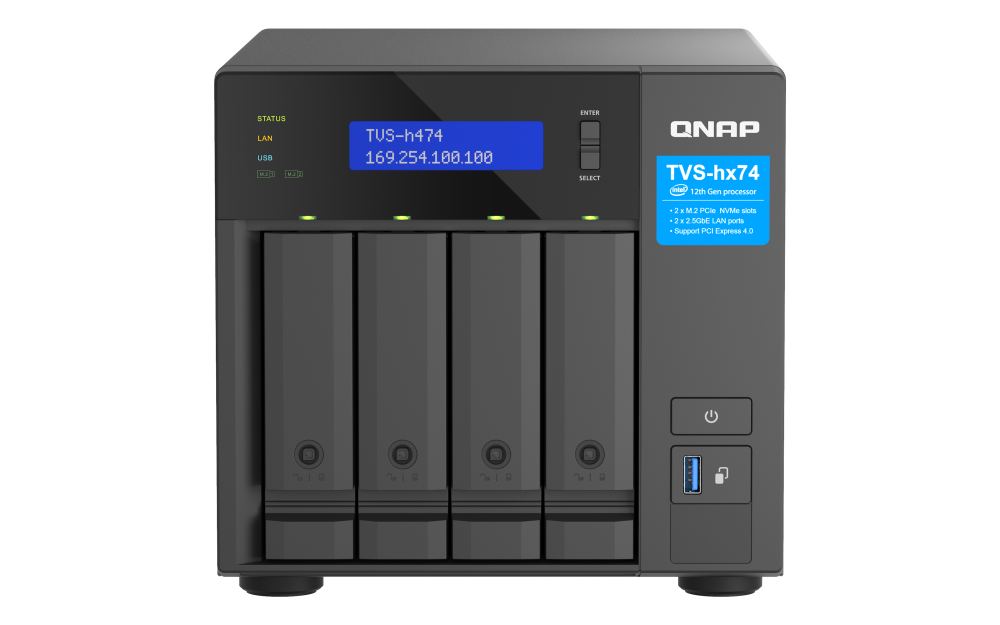

QNAP TVS-h474
Highly-reliable ZFS-based storage with PCIe Gen 4 expandability for 10/25GbE connectivity, M.2 NVMe SSD caching and multi-threads processors for virtualization applications

QNAP Products

Small Business Storage Products

QNAP 4-Bay Ultra-High Speed Desktop NAS, Intel® Core™ i3-12100 4C/8T, up to 4.3GHz, 8GB DDR4, 4 x 2.5″/3.5″ SATA Bay, 2 x 2.5GbE, 2x M.2 PCIe Gen3 x2 slots, PCIe Gen4 slots, HDMI 1.4b, 250W PSU
Intel® Core™ i3-12100 4C/8T, up to 4.3GHz, 8GB DDR4 SODIMM RAM (max 64GB 2 x 32GB), 4 x 2.5″/3.5″ SATA HDD/SSD + 2x M.2 PCIe Gen3 x2 slots, 2 x 2.5GbE, 1 x PCIe Gen 4x16, 1 x PCIe Gen 3 x2, 2x USB 3.2 Gen 2 type-1, 1x USB 3.2 Gen 2 type-C, 1 x HDMI 1.4b, 250W single power supply

#TVS-h474-i3-8G-US
Get a Quote!

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Overview

Features

Specifications

Package Content

TVS-h474 Storage System
1 x Ethernet cable
1 x Power Cord
2 x M.2 SSD Heatsink
16 Flat Head Screw (for 3.5” HDD)
12 Flat Head Screw (for 2.5” HDD)
2 x Drive tray keys
Quick Installation Guide (QIG)

Overview:

With an Intel® Pentium® Gold dual-core Processor to support the ZFS-based QuTS hero operating system, the TVS-h474 SMB NAS ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and SSD optimization. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the TVS-h474 delivers an ideal NAS solution. The high-performance TVS-h474 provides PCIe Gen 4 (up to twice the transmission speed of Gen 3) expandability, M.2 NVMe SSD caching, and 2.5GbE connectivity for high-speed virtualization network environments.

M.2 PCIe Gen 4

Enable NVMe SSD caching or Edge TPU empowered AI image recognition.

2.5GbE connectivity

2.5GbE ports provide higher transmission speeds with existing Cat 5e cables.

Flexible PCIe Gen4 expansion

PCIe slots allow for installing 2.5/5/10/25GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.

Virtual machines and containers

Host multiple virtual machines and containers with optimized resource utilization.

Full HD HDMI

Directly view creative works on an HDMI display. Enjoy smooth full HD media playback and real-time transcoding.

Faster image recognition with AI acceleration

The built-in Intel® OpenVINO™ and Intel® UHD Graphics help boost AI image recognition and offload CPU workloads.

Features:

High-performance Intel® Pentium® 3.7 GHz processor

The TVS-h474 adopts an Intel® Pentium® Gold dual-core Processor and Intel® UHD Graphics 710 to increase multi-tasking capabilities, offering SMBs a secure, reliable, and high-performance NAS solution.

Processor

Intel® Pentium® Gold 2-core/4-thread 3.7 GHz Processor

Memory

Supports up to 64 GB dual-channel DDR4 memory

Connections

Three USB 3.2 Gen 2 (10Gbps) ports.

Encryption Engine

Features Intel® AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data.

Transmission Performance

2 x 25GbE SMB sequential throughput (1M)	Write 2904 MB/s	Read 3086 MB/s
1 x 25GbE SMB sequential throughput (1M)	Write 2820 MB/s	Read 2645 MB/s
2 x 2.5GbE SMB sequential throughput (1M)	Write 590 MB/s	Read 590 MB/s

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:

NAS: TVS-h474 with QXG-25G2SF-CX6
OS: QuTS hero h5.0.0
Volume type: 4 x Samsung 860 EVO 1 TB SATA, RAID 5, thick volume
Client PC: Windows Server 2019 Standard, Intel i7-6700 3.4GHz, 64GB RAM
IOmeter: RAM*4, 30-sec ramp up time, 3-min seq. run time, 1 workers, 32-outstanding

Boost NAS performance with M.2 SSDs or TPU

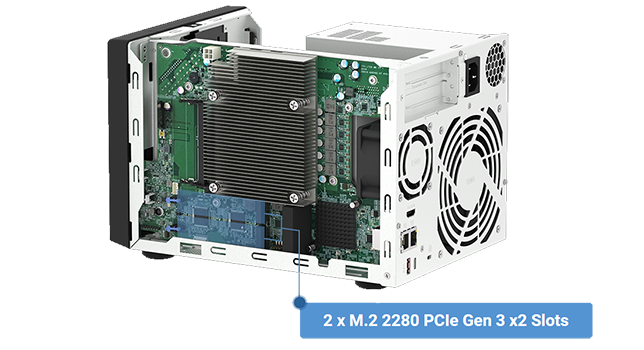

The TVS-h474 has two M.2 PCIe slots, enabling SSD caching or SSD storage pools for improved performance, or other applications.

Install M.2 NVMe SSDs for cache acceleration

The TVS-h474 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs with 2280 form factors (sold separately) for boosting overall NAS performance.

Learn More: SSD cache, Qtier

Accelerate AI-powered image recognition with TPU

By leveraging a Google Edge TPU to QNAP AI Core (AI-powered engine for image recognition), the TVS-h474 can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.

Note: M.2 Accelerators are sold separately and can be purchased from the Coral website.

System drive for QuTS hero operating system

Use the NVMe SSD storage pool as the QuTS hero operating system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.

Build a High-Speed 2.5GbE Network Environment

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

A fast 2.5GbE NAS

A QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.

Upgrade computers and servers

Servers and desktops can install PCIe-based QNAP network cards that support 2.5G/1G/100M Multi-Gig.

Add a 5GbE port to laptops

Laptops and upgrade-limited computers can use QNAP’s portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.

A switch that supports 2.5GbE+

QNAP’s 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.

Abundant I/O capabilities with PCIe expansion

The TVS-h474 has two PCIe slots that allow for installing various expansion cards for expanding application potential.

2.5/5/10GbE network card

Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, massive data transmission, fast backup/restore).

QM2 cards

Add M.2 SSD caching, Edge TPU or 2.5GbE/10GbE network connectivity to the NAS for optimized performance and bandwidth.

Graphics cards

Supercharge your video editing and transcoding or enable GPU pass-through to virtual machines.

Note:
1. Supports graphics cards with dimensions up to 169 x 47 x 111.5 mm (with cable).
2. Only entry-level graphics cards (that can be powered solely through the PCIe slot) are supported.

Ultimate visual experience with Full HD HDMI output and real-time video transcoding

HDMI output

The TVS-h474 features HDMI output that supports Full HD, providing great benefits for applications like video production/editing or industrial design that demands high resolution and intensive media storage, transfer, and display.

View NAS media or virtual machines on an TV

By connecting the TVS-h474 to an HDMI display, you can directly watch multimedia content saved on the NAS, operate virtual machines from Virtualization Station, or enjoy multimedia using HD Player or third-party players.

Real-time transcoding and display

The TVS-h474 features Intel® UHD Graphics that supports hardware decoding and real-time transcoding* for converting videos to universal file formats that can be smoothly played on multiple devices.

*The TVS-h474 provides hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors (including playback software, file formats, system usage, and available bandwidth).

Faster image identification with integrated Intel® OpenVINO™ AI engine.

With integrated Intel® OpenVINO™ AI computing resources, the TVS-h474 accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.

QuMagie photo management

Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection.

ZFS-based QuTS hero operating system enhances NAS performance and data integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Data integrity is key	Data reduction improves storage efficiency and performance	Multi-level cache technology
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.	Inline data deduplication, compression, and compaction reduce file sizes to conserve storage capacity and optimize performance.	Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.
RAID Z enables robust data protection	QSAL (QNAP SSD Antiwear Leveling) enhances data protection	App Center ecosystem extends NAS functionality
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.	RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.	Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the NAS.

Inline data deduplication, compression, and compaction improve SSD endurance

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TVS-h474 optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.

Note: Inline Data Deduplication requires a NAS with at least 16GB memory (at least 32GB memory is recommended for optimal performance).

big-data-storage

Comprehensive backup and disaster recovery solution

The TVS-h474 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

PC/Laptop backup

For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.

Remote backup for NAS

Hybrid Backup Sync makes it easy to back up data from a TVS-h474 to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM backup

Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS backup

Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.

Note: Minimum memory requirements are 2 GB available and 4 GB installed.

Cloud backup for NAS

Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup technology

Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Real-time SnapSync

Real-time SnapSync immediately synchronizes data changes with the destination storage, ensuring the primary and secondary NAS always have the same data. RPO is minimal to achieve real-time disaster recovery.

Note: SnapSync is supported by QNAP NAS models featuring the QuTS hero (4.5.3 or later) and QES ( v2.1.1 or later) operating systems. These NAS can be paired with each other to provide a perfect backup storage solution.

Multi-version snapshots mitigate ransomware threats

The TVS-h474 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

business-anti-ransomware-image

Up to 65,536 snapshots

QuTS hero supports enough snapshots for you to create 1 snapshot every hour for 7 years without needing to delete any! Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing.

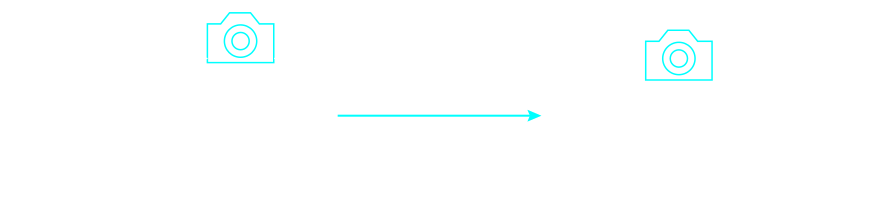

Back up snapshots

Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TVS-h474 to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

Comprehensive security and privilege settings

The TVS-h474 is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

myQNAPcloud secures remote access

myQNAPcloud allows convenient connection to the TVS-h474 through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.

Simplified privilege settings

The TVS-h474 supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall protection

Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior security with QVPN

A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TVS-h474 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.

QuWAN SD-WAN

To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.

Security Center

A security portal for the TVS-h474 to proactively detect NAS status, unusual file activity and potential security threats – offering instant protective measures against vulnerabilities to safeguard your system and data.

Malware Remover

Regularly scan your TVS-h474 using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

TeamViewer remote access

TeamViewer app enables remote management and connectivity to multiple NAS devices from Windows® PCs with an unparalleled level of safety, while increasing IT efficiency and end user productivity.

All-in-one solution for hosting virtual machines and containers

By running multiple virtual machines and containers on the TVS-h474, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station

Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.

Container Station

Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.

Linux Station

Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.

High availability (HA) and failover with dual-NAS architecture

Avoid unplanned downtime and data loss.

Create a HA cluster with two TVS-h474 — one as the active server, and the other as the passive server. If an unexpected failure or issue with the active server occurs, the passive server provides immediate protection with automatic failover. This ensures continuous storage service and system availability.

Easy management and monitoring

Use the High Availability Manager app to easily configure, remove, or rebuild clusters.

Guaranteed data consistency

Real-time data sync between active and passive servers minimizes the risk of data loss (RPO).

Ensured continuity of critical business

The passive server takes over within 1 minute if the active server fails (RTO ≤ 90 secs).

The best file storage and collaboration center

The TVS-h474 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.

File Station

Manage, access, and share all the files in the TVS-h474 and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.

Qsync

Make any file uploaded to a TVS-h474 available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.

Qsirch

QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

Qfiling

Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.

Smart surveillance solution for 24/7 security

QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TVS-h474 and enjoy simplified camera management, storage space allocation, camera live viewing and playback.

Free embedded channels

2 IP camera channels

Total camera channels

Scalable with optional licenses*

Subscription-based

Monthly US $1.99 /channel

Video format

MP4

Mobile app

QVR Pro Client and mobile app

Scalable storage

NAS expansion units

*The maximum number of channels supported varies by NAS model, network configuration, and camera settings.

Flexible and economical storage expansion

QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TVS-h474 storage as needed to accommodate data and business growth.

Attach QNAP expansion enclosures

Connect expansion enclosures to the TVS-h474, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers

Mount cloud storage or remote file servers to expand the capacity of the TVS-h474 while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a new NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID capacity

Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

More productivity-boosting applications

The TVS-h474 provides an App Center that includes feature-rich apps to expand your NAS potential!

QuObjects

Run a high-performance S3 compatible development environment on your TVS-h474 to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.

Notification Center

Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

Proxy Server

By using a high-capacity TVS-h474 as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.

QmailAgent

The best email backup solution that allows you to easily backup/recover and manage multiple email accounts in their native format with strong security and data integrity.

Qcontactz

Centrally manage all your contacts, import contacts from Google™, import/export contact information using CSV or vCard files, and enjoy an always-online database of contact information.

QuFTP

The TVS-h474 can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.

A health check for your hard drives

Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.

S.M.A.R.T. and back block scanning

If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.

DA Drive Analyzer

The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.

Seagate® IronWolf™ Health Management

When using supported IronWolf™ or IronWolf Pro™ hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.

Flexibly switch to QTS operating system

The TVS-h474 also supports QTS - QNAP’s standard NAS operating system – that provides greater everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TVS-h474.

QTS

Suited for performance-demanding tasks, cross-teams file sync, and HDD-SSD hybrid storage applications

QuTS hero

Featuring highly reliable data protection and data reduction, and optimized for SSD-based applications

Note: QTS and QuTS hero use different file systems. You must remove all the drives from the TVS-h474 before switching from QuTS hero to QTS.

business-quts-hero-to-qts-image

Extend hardware warranty up to 5 years

The TVS-h474 is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Specifications:

	TVS-h474-i3-8G
CPU	Intel® Core™ i3-12100 4-core/8-thread Processor, burst up to 4.3 GHz
CPU Architecture	64-bit x86
Graphic Processors	Intel® UHD Graphics 730
Floating Point Unit
Encryption Engine	(AES-NI)
Hardware-accelerated Transcoding
System Memory	8 GB SODIMM DDR4
Maximum Memory	64 GB ( 2 x 32 GB)
Memory Slot	2 x SODIMM DDR4
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
Hot-swappable	(Not supported M.2 SSD)
M.2 Slot	2 x M.2 2280 PCIe Gen3 x2 slots Compatible with NVMe SSD PCIe Gen 3 and above.
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M)	Optional via PCIe expansion card
10 Gigabit Ethernet Port	Optional via PCIe expansion card
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot	2 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 3 x2 Card dimensions for PCIe slot 1~Slot 2：185 x 68.9 x 18.76 mm / 7.28 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port	1
USB 3.2 Gen 2 (10Gbps) Port	1 x Type-C USB 3.2 Gen 2 10Gbps 1 x Type-A USB 3.2 Gen 2 10Gbps
HDMI™ Output	1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz)
LED Indicators	HDD 1-4, Status, LAN, USB port, M.2 port
LCD Display/ Button
Buttons	Power, Reset, USB Copy
Form Factor	Tower
Dimensions (H x W x D)	7.09 × 7.85 × 11.01 inch
Weight (Net)	13.45 lbs
Weight (Gross)	15.98 lbs
Operating Temperature	0 - 40°C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit	250W, 100-240V
Power Consumption: Disk Standby Mode	34.906 W
Power Consumption: Operating Mode, Typical	78.574 W Tested fully populated with WD10EFRX hard drives.
Fan	System fan: 1 x 120mm, 12VDC CPU fan: 1 x 60mm, 12VDC
System Warning	Buzzer
Kensington Security Slot
Standard Warranty	3
Max. Number of Concurrent Connections (CIFS) - with Max. Memory	700

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

Pricing Notes:

Pricing and product availability subject to change without notice.

QNAP Products

#TVS-h474-i3-8G-US
Get a Quote!

Storage Expansion Card

Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4)
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
*shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3

#QM2-2P-244A
Get a Quote!

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
TVS-hx74, TVS-1282T3, TS-hx87XU-RP, TS-1655

#QM2-2P-344A
Get a Quote!

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface.
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

#QM2-2P-384A
Get a Quote!

QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 8 , 1 x AQC113C 10GbE NBASE-T port

#QM2-2P10G1TB
Get a Quote!

QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port

#QM2-2P2G2T
Get a Quote!

Network Expansion Card

Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height bracksts are bundled
All NAS models with a PCIe slot.

#QXG-10G1T
Get a Quote!

Dual-port SFP+ 10GbE network expansion card; low-profile form factor; PCIe Gen3 x8
TS-470, TS-470 Pro, TS,473, TVS-472XT, TVS-473, TVS-473e, TS-670, TS-670 Pro, TS-673, TS-677, TVS-670, TVS-672XT, TVS-673, TVS-673e, TVS-682, TVS-682T, TS-870, TS-870 Pro, TS-870U-RP, TS-873, TS-877, TS-877XU, TS-877XU-RP, TS-883XU, TS-883XU-RP, TVS-870, TVS-872XT, TVS-872XU, TVS-872XU-RP, TVS-873, TVS-873e, TVS-882, TVS-882BR, TVS-882BRT3, TVS-882ST2, TVS-882ST3, TVS-882T, TS-1270U-RP, TS-1277, TS-1277XU-RP, TS-1283XU-RP, TVS-1272XU-RP, TVS-1282, TVS-1282T, TVS-1282T3, TS-1677XU-RP, TS-1683XU-R

#QXG-10G2SF-X710
Get a Quote!

Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen3 x4; Aquantia AQC107
All NAS models with a PCIe slot.

#QXG-10G2T
Get a Quote!

Dual-port (10GBASE-T) 10GbE network expansion card, Intel X710, PCIe Gen3 x4
PCIe supported NAS and Windows 8/10/Windows Server/Linux/uBuntu/ RHEL PCs. Visit https://www.qnap.com/go/compatibility for the compatibible NAS.

#QXG-10G2T-X710
Get a Quote!

Dual-port SFP28 25GbE network expansion card; low-profile form factor; PCIe Gen4 x8
PCIe supported NAS

#QXG-25G2SF-CX6
Get a Quote!

Dual-port SFP28 25GbE network expansion card; low-profile form factor; PCIe Gen4 x8
PCIe supported NAS

#QXG-25G2SF-E810
Get a Quote!

Single port 2.5GbE 4-speed Network card
PCIe supported NAS and Windows 10/ Windows Server 2016 & 2019 /Linux PCs. Visit https://www.qnap.com/go/compatibility for the compatibible NAS.

#QXG-2G1T-I225
Get a Quote!

Dual port 2.5GbE 4-speed Network card
PC/Server or NAS with a PCIe slot

#QXG-2G2T-I225
Get a Quote!

Quad port 2.5GbE 4-speed Network card
PC/Server or NAS with a PCIe slot

#QXG-2G4T-I225
Get a Quote!

QNAP 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 1;low profile
PCIe supported NAS

#QXG-5G1T-111C
Get a Quote!

Other Accessories

250W Delta power supply
TVS-x72XT, TL-D800C, TL-D800S, TVS-x72N, TS-x73A, TR-xCT, TVS-x72X, TVS-675

#PWR-PSU-250W-DT02
Get a Quote!

3.5″ HDD Tray with key lock and two keys, black and plastic, 2.5″ and 3.5″ screw packs included.
TL-D800C, TL-D800S, TL-D400S, TL-D1600S, TVS-h1288X, TVS-h1688X, TR-xCT, TS-x73A, TS-832PX, TVS-675

#TRAY-35-BLK02
Get a Quote!

Interface Expansion

USB 3.2 Gen 2 dual-port PCIe expansion card
NAS with a PCIe slot, Windows 8.x/10, Ubuntu 20.04 LTS Note: 1. Minimum QTS 4.3.6 requirement. 2. USB cable is not included. 3. Follow the compatibility guide: https://www.qnap.com/en/compatibility/

#QXP-10G2U3A
Get a Quote!

4-port miniSAS HD host bus adapter, Broadcom Aero SAS3816, PCIe 4.0 x 8 for TL SAS JBOD series

#QXP-1630S-3816
Get a Quote!

16G Fibre Channel Host Bus Adapter, 2 x transceivers are included

#QXP-16G2FC
Get a Quote!

32G Fibre Channel Host Bus Adapter, 2 x transceivers are included

#QXP-32G2FC
Get a Quote!

2-port miniSAS HD host bus adapter, Broadcom Tomcat SAS3408, PCIe 3.0 x 8 for TL SAS JBOD series

#QXP-820S-B3408
Get a Quote!

Call a Specialist Today! 844-356-5139

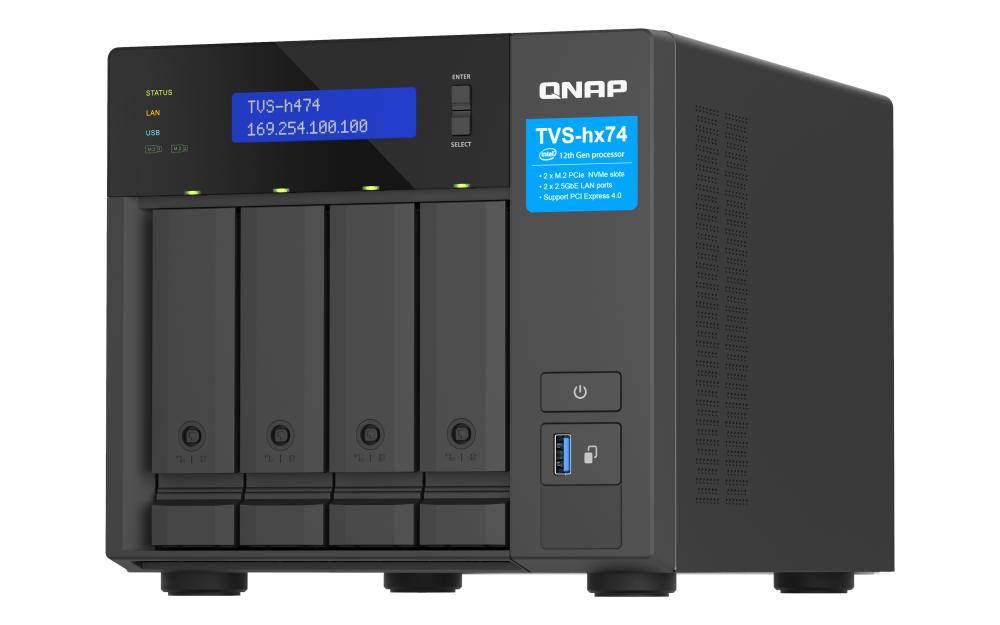

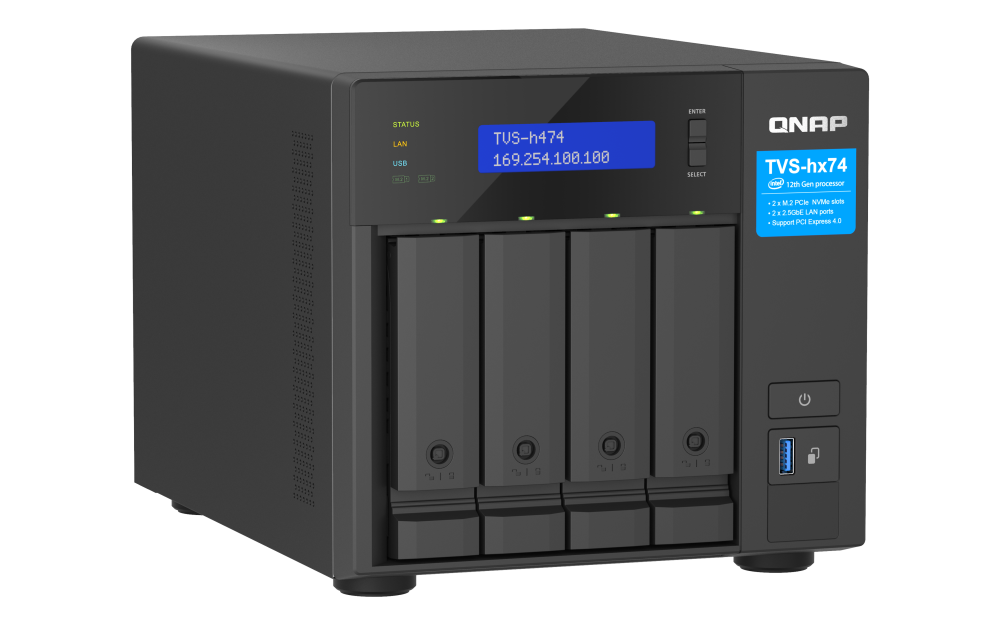

QNAP TVS-h474 Highly-reliable ZFS-based storage with PCIe Gen 4 expandability for 10/25GbE connectivity, M.2 NVMe SSD caching and multi-threads processors for virtualization applications
