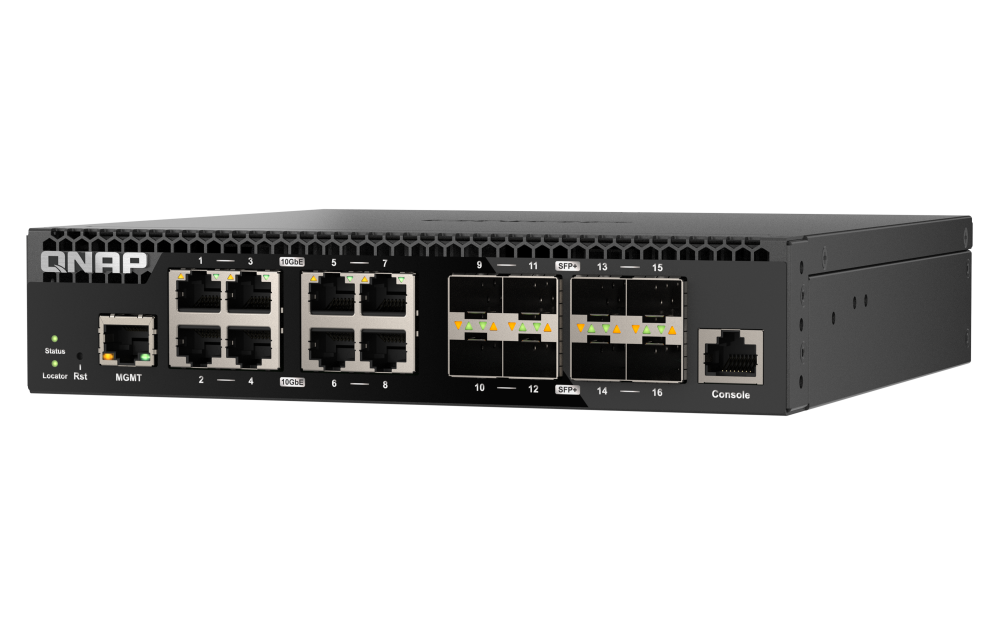

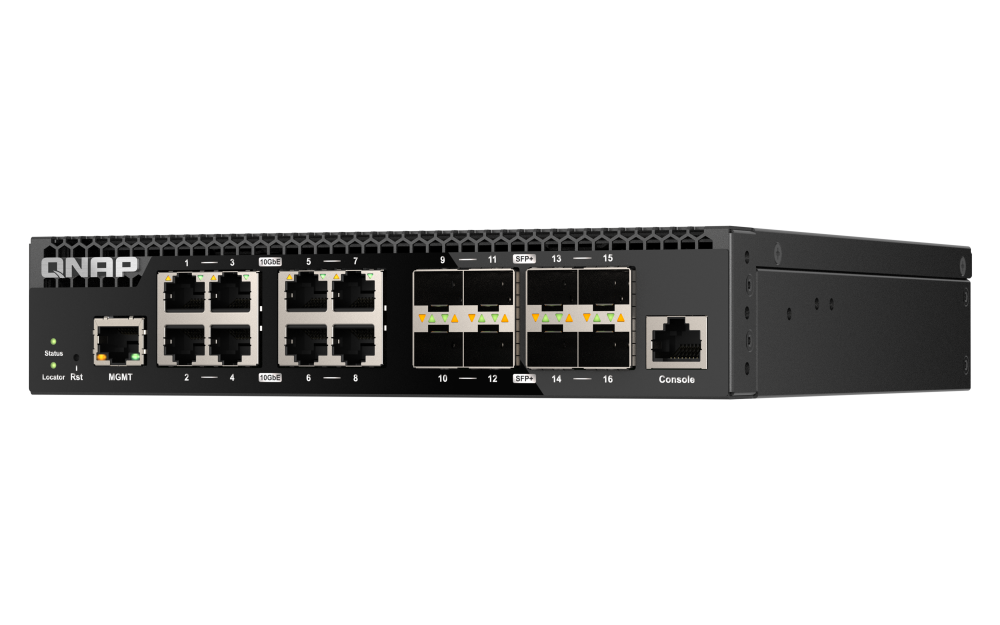

QNAP QSW-M3216R-8S8T
Half-width Rackmount 16-Port 10GbE Layer 2 Web Managed Switch for SMB/SOHO high-speed networking environments


QNAP Products
QNAP Web Managed Switches
QNAP Half-Rackmount Switch QSW-M3216R-8S8T-US, layer 2 16 port managed switch, 8 port of 10GbE NBASE-T (10G/5G/2.5G/1G/100M) & 8 port of 10GbE SFP+ (10G//1G), Easy management with web browser.
Marvell 98DX3550, 8 Gbit (1GB) DDR4
#QSW-M3216R-8S8T-US
Our Price: $599.00

Click here to jump to more pricing!

Package Content

  • QNAP QSW-M3216R-8S8T Switch
  • Power cord
  • Rackmount kit
  • Quick Installation Guide

Overview:

More 10GbE ports and more space-saving at an affordable price. The QNAP QSW-M3216R-8S8T is a half-width rackmount L2 Managed Switch with eight 10GbE SFP+ fiber ports and eight 10GbE RJ45 ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M3216R-8S8T offers flexible deployment in high-speed network environments and provides an entry-level network management solution. With a half-width design, the QSW-M3216R-8S8T can be conveniently placed within working environments without taking up too much space, and two can be installed in a single 1U rack space. The QSW-M3216R-8S8T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.


10G Multi-Gig connectivity

Includes eight 10GbE RJ45 and eight 10GbE SFP+ fiber ports for connecting different interfaces.

User-friendly management interface

The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.

Layer 2 network

Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.

RSTP

One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.

Online firmware update

QSS can be updated with just one click, helping IT staff ensure their network security.

Energy saving

Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-M3216R-8S8T avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.

Features:

Half-width design, 2 models in 1U

With a half-width rackmount design, a QSW-M3216R-8S8T can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-3216R-8S8T) for efficient physical space utilization and tidy cabling.

Note: The optional SP-EAR-QSW2FOR1-01 rackmount kit is required if two half-width rackmount switches are installed.


Flexible deployment with sixteen 10GbE SFP+ and RJ45 ports

The QSW-M3216R-8S8T provides eight 10GbE SFP+ ports and eight 10GbE RJ45 ports for connecting various devices and enabling high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6 (or better) cabling.

Note: 10GbE SFP+ ports are backward compatible with 1GbE SFP; the 10GbE RJ45 ports support up to five speeds (10G/5G/2.5G/1G/100M).

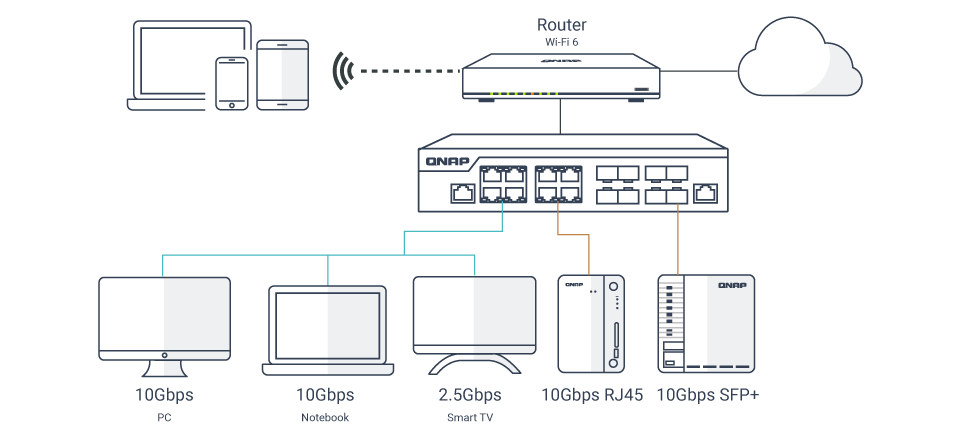

2.5gbex10gbe


Dependable performance with effective heat dissipation

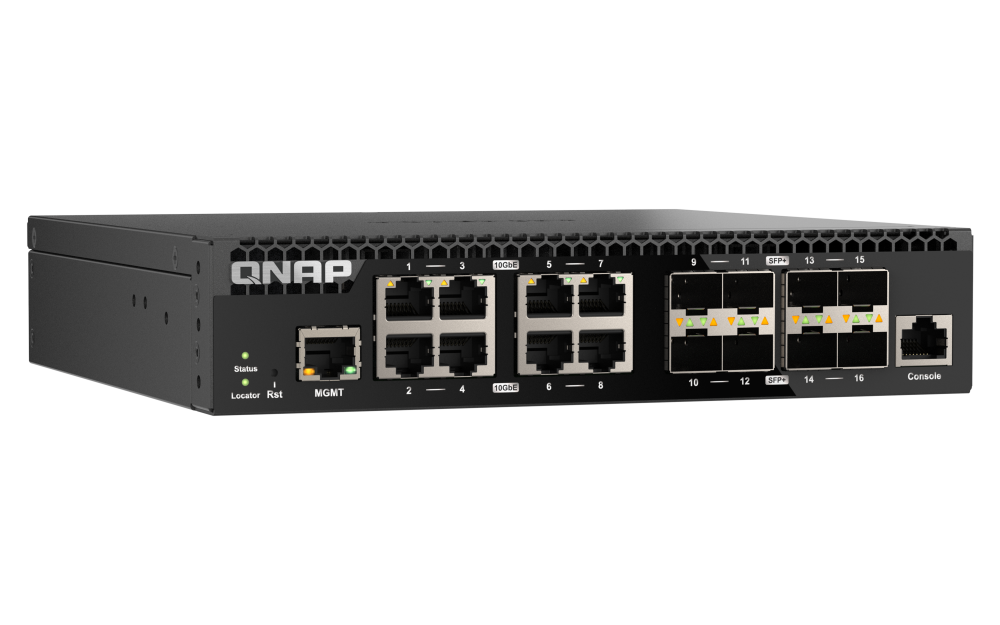

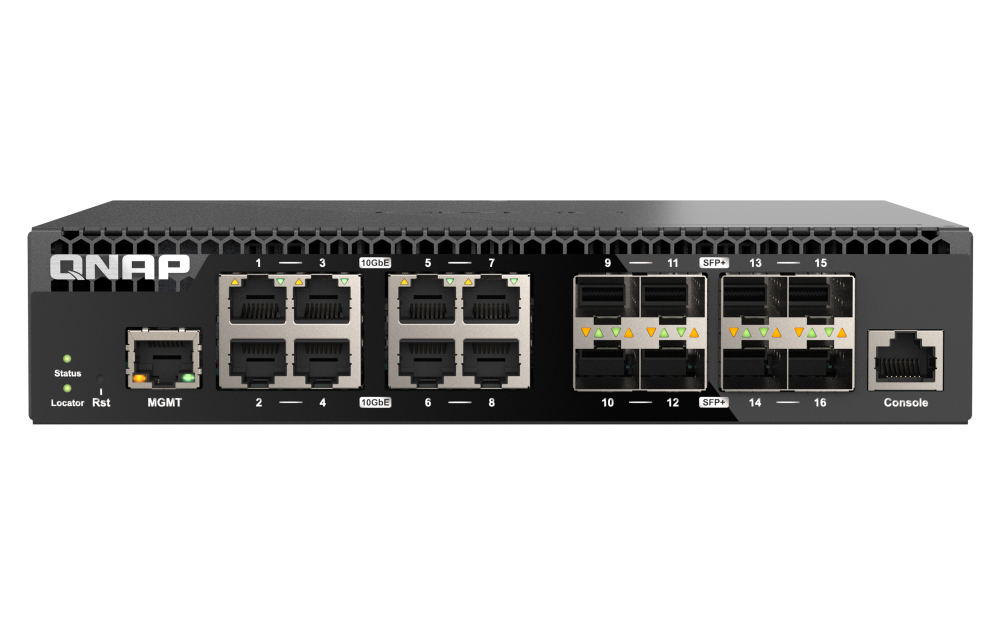

With a compact metal body that optimizes cooling performance, the QSW-M3216R-8S8T provides stable and reliable operations even when under full load. The front-panel LEDs also assist in viewing the current system status.


QSS: Human-centered settings guide

The QSW-M3216R-8S8T uses the QNAP Switch System (QSS), featuring an easy-to-use Web GUI with Layer 2 management and value-added functions to simplify network set up and management.


Overview Dashboard

View real-time system information, port connection status and port traffic.

Port Management

View port status, port packet statistics, and configure port speeds.

Setting Guide

Quickly learn how to set up the network using the introduction and step-by-step guide.


Exclusive Status Chart Referencing

Refer to four major status charts during each configuration to avoid going back and forth between different setting pages.

Online Firmware Check and Update

Keep your QNAP switch secure with one-click firmware updates


Optimize Network Performance with bandwidth and packet control

The QSW-M3216R-8S8T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

LACP VLAN QoS IGMP Snooping
Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure. Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network. QoS (Quality of Service) helps prioritize bandwidth usage to optimize network resource allocation. IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

Powerful security and system functions

The QSW-M3216R-8S8T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL LLDP RSTP Flow Control
Filters packets based on rules to offer firewall-like security protection. Allows devices to advertise device information to directly-connected peers/neighbors to simplify troubleshooting processes. Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic. Balances traffic between a sender and a receiver to avoid network congestion.

Fully embrace High-Speed Networking with QNAP!

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

A switch that supports 2.5GbE/10GbE QNAP 2.5GbE/10GbE switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
A fast NAS A QNAP NAS with multiple 2.5GbE/10GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential.

Note: Managed Switch series support Port Trunking.

Upgrade desktops and servers Servers and desktops can install QNAP PCIe network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
Add a 5GbE/10GbE port to laptops Use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter or QNAP Thunderbolt 3 to 10GbE adapter to connect laptops and upgrade-limited computers to 5G/2.5G/1G/100M networks.

Extend hardware warranty up to 5 years

The QSW-M3216R-8S8T is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Hardware Specifications:

  QSW-M3216R-8S8T
Management Type Web Managed
Number of Ports 16
10GbE SFP+ 8
10GbE BASE-T (RJ45) 8
Management Port 1 x 1GbE RJ45
Power Supply Description Internal Power Supply Unit
Max. Power Consumption 80W
Input Power Type AC
Input Voltage Range 100 ‒ 240VAC, 50/60Hz
MAC Address Table 16K
Total Non-Blocking Throughput 160Gbps
Switching Capacity 320Gbps
Management Interface Web
Console RJ45
Energy Efficient Ethernet (IEEE 802.3az complaint)
Fan PWM VAPO Bearing fan x 2
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
Form Factor Rackmount
LED Indicators Per Port: Speed/Link/Activity
Per System: Power/Status
Buttons Reset button
Dimensions (HxWxD) 43.3 x 207 x 199.5 mm
Weight (Net) 3.35 lbs
Weight (Gross) 4.92 lbs
Operating Temperature 0˚C to 40°C (32°F to 104°F)
Relative Humidity 5%–95% (non-condensing)
Certifications CE, FCC, VCCI, BSMI
Electromagnetic Compliance CLASS A
Jumbo Frames 9K
Warranty 2 Years

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
