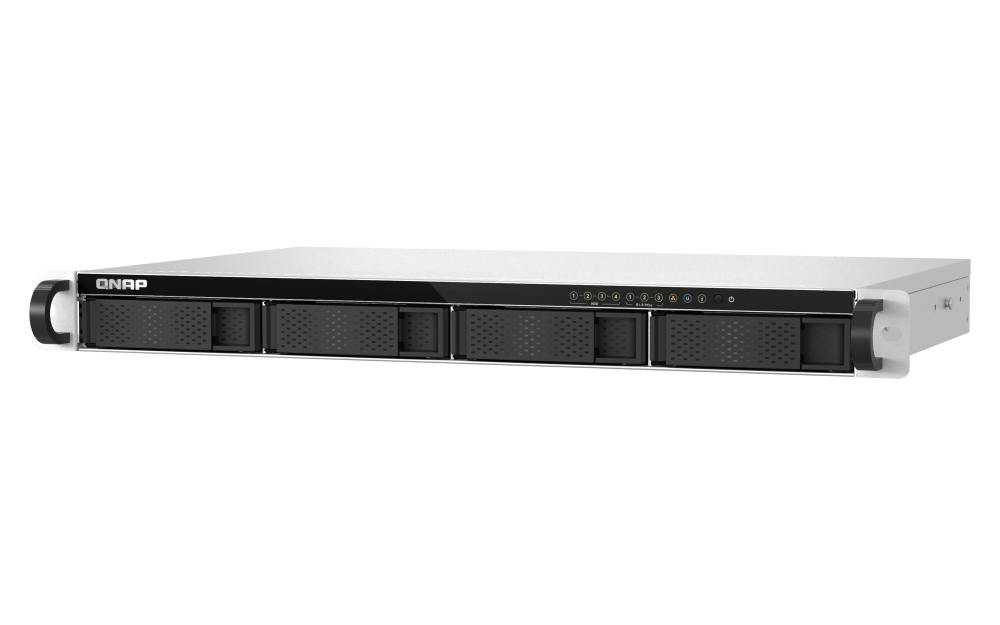

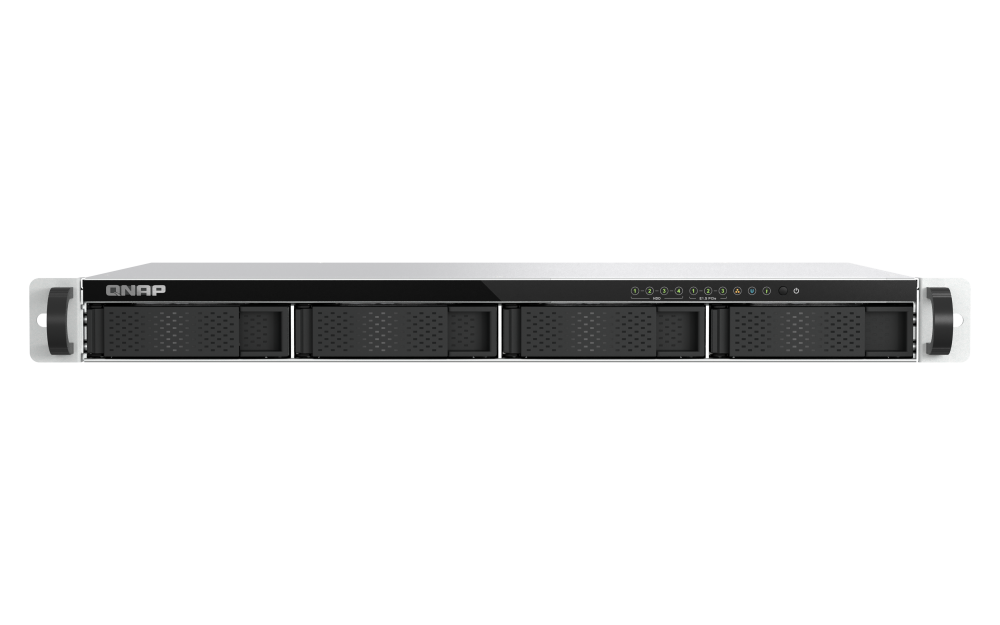

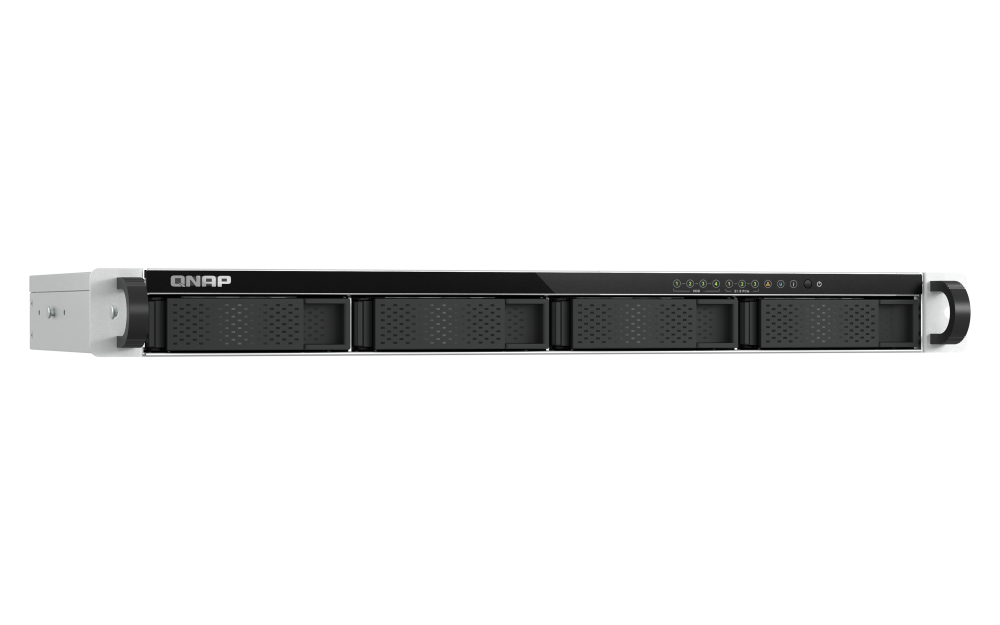

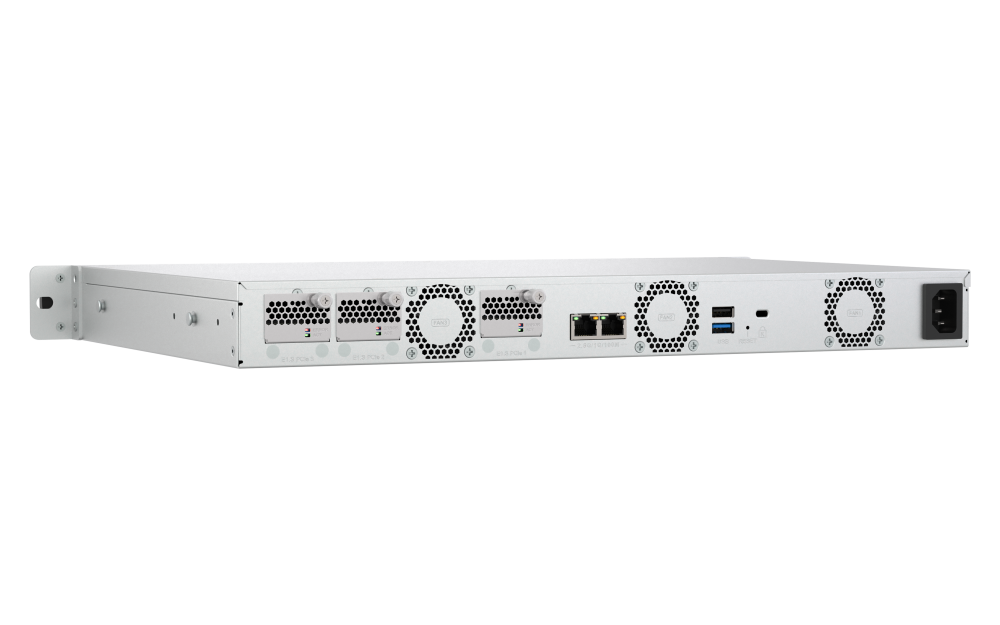

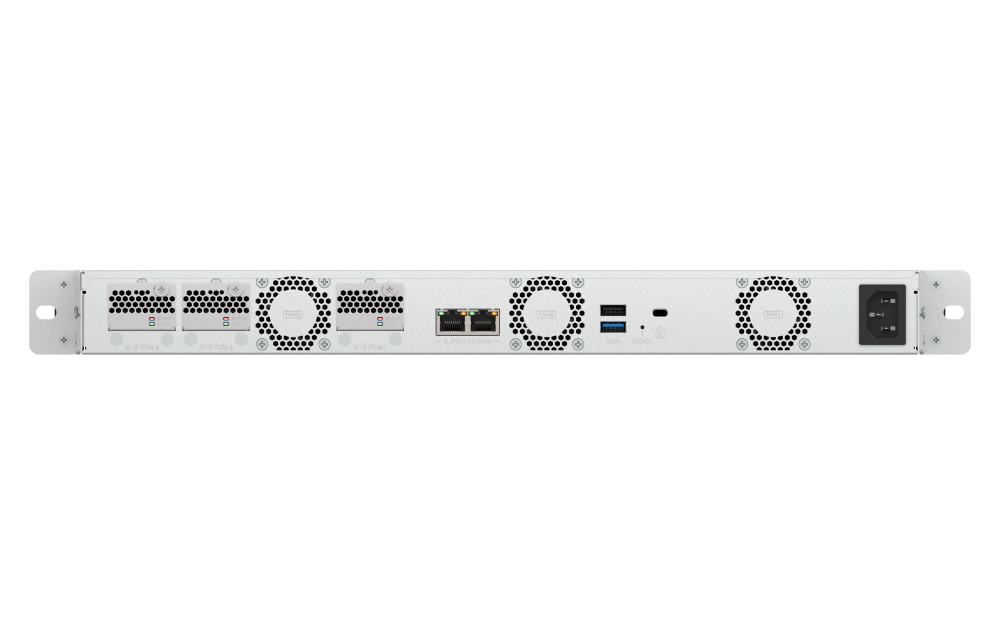

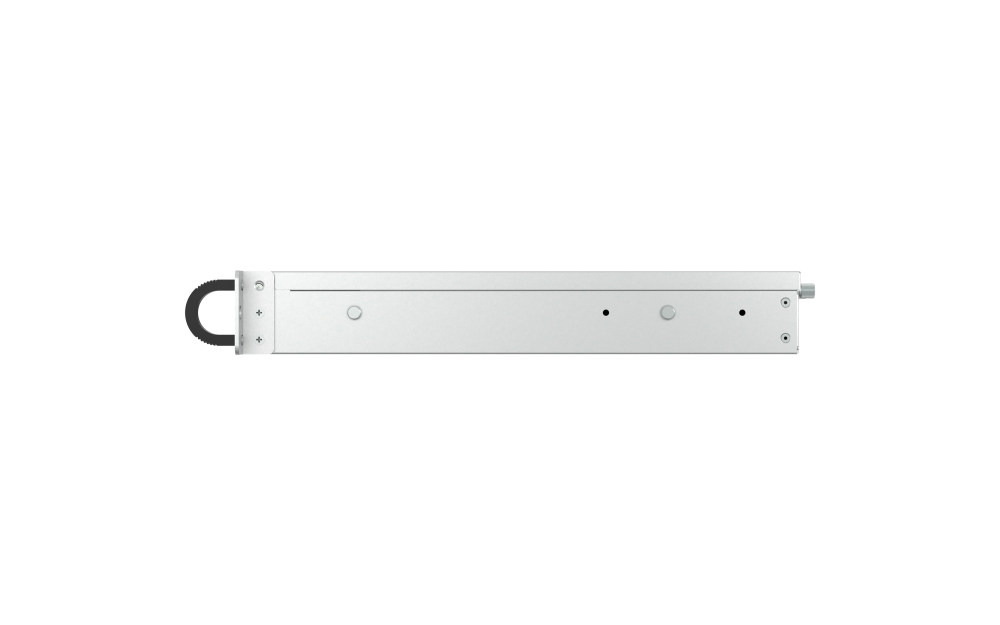

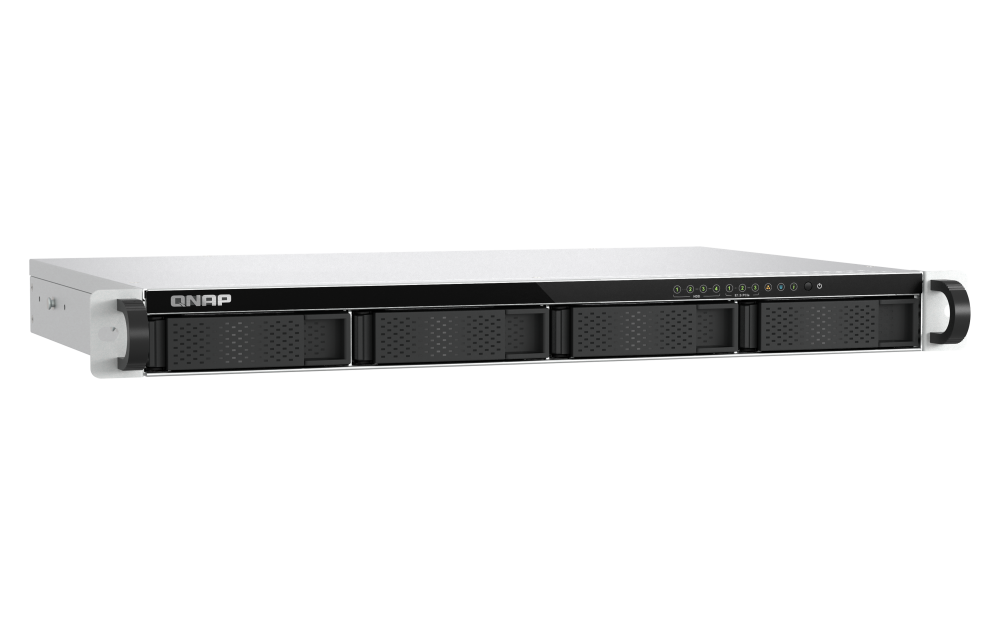

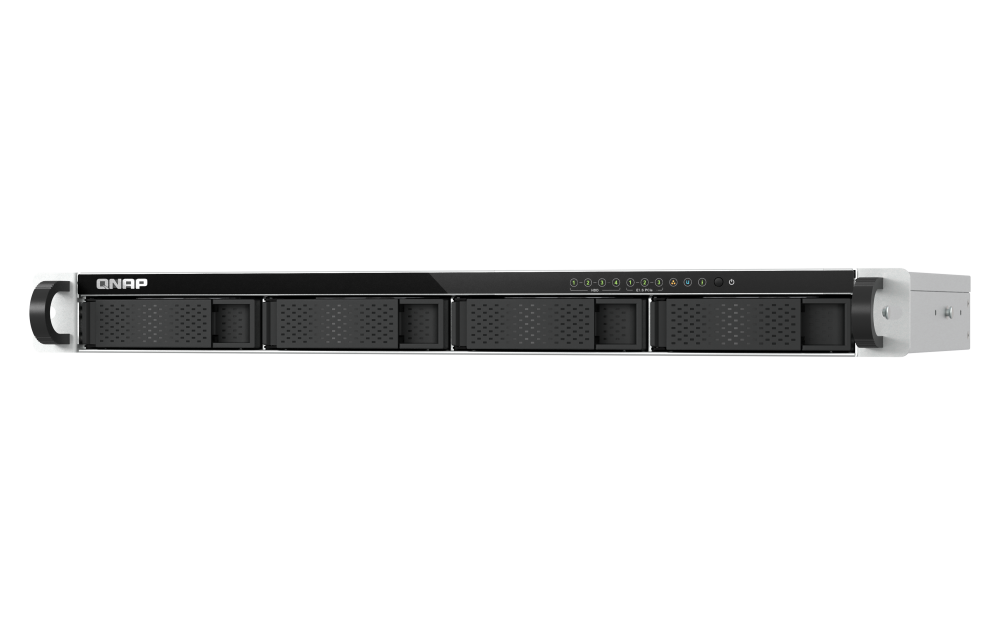

QNAP TS-h765eU
Compact 1U short-depth rackmount NAS, with E1.S/M.2 PCIe NVMe slots and 10GbE expandability
Our Price: $799.00
Want to build a custom bundle? Contact us!
Click here to jump to more pricing!
Package Content
- TS-h765eU Storage System
- 1 x Ethernet cable
- 16 Flat Head Screw (for 3.5” HDD)
- 12 Flat Head Screw (for 2.5” HDD)
- 1 x Power Cord
- 2 x Hanger
- 2 x Holder
- Quick Installation Guide (QIG)
Overview:
The 1U short-depth rackmount TS-h765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. Adopting the latest Intel® Atom x7000C Series processor, the TS-h765eU comes with four 3.5-inch drive bays and three E1.S / M.2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high performance and multitasking demands. The TS-h765eU runs the ZFS-based QuTS hero operating system that ensures data integrity and WORM protection for data immutability.
Available Models
- TS-h765eU-8G-
Intel Atom x7405C 4-core, up to 3.4GHz, 8 GB SODIMM DDR5 (1 x 8 GB), enabled in-band ECC
Space-saving
The 1U short depth of only 292.1mm (12 inches) is suited for small media cabinets or wall-mount network racks.
DDR5 RAM
Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.
Expand to two 10GbE ports
Flexibly upgrade to high-speed 10GbE by installing two E1.S to 10GbE network modules (QXG-ES10G1T).
Dual 2.5GbE as standard
Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
Easy storage expansion via USB
Connect a QNAP's short-depth USB JBOD TR-004U to the TS-h765eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).
Long-term supply
The TS-h765eU will be available and supported by QNAP for an extended period, up to 2031.
Features:

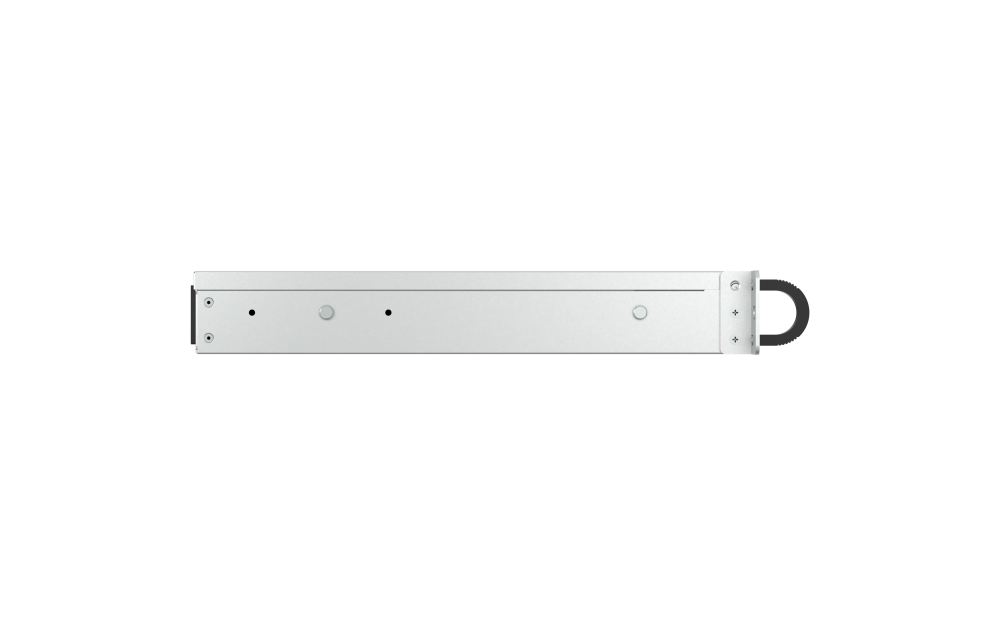

1U short-depth design for flexible deployment
The TS-h765eU has a shorter chassis depth of only 12 inches (292.1mm), making it easy to install in small cabinets and various space-limited environments, including factories, small offices, surveillance rooms, audiovisual rooms, or in-vehicle applications.
New-gen high-performance Intel® Atom x7000C Series processor
Processor
Intel® Atom x7405C quad-core processor (Up to 3.4 GHz)
Memory
Built-in DDR5 non-ECC RAM (Supports In-Band ECC); upgradable to 16GB (1 x 16GB)
AES-NI Encryption Engine
AES 256-bit hardware-accelerated encryption boosts system performance while securing sensitive data
In-Band ECC
Enhances system security and data reliability
Transmission efficiency
| 2 x 2.5GbE SMB sequential throughput (1M) | Read 574 MB/s |
Write 591 MB/s |
| 2 x 10GbE SMB sequential throughput (1M) | Read 2358 MB/s |
Write 2352 MB/s |
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TS-h765eU with QXG-ES10G1T
OS：QuTS hero h5.3.0.2883
Volume Type:4 x Samsung 850 PRO 512GB SATA SSD , RAID 5, thick volume
Client PC : Windows Server 2019 Standard, Intel i7-6700 3.4GHz, 64GB RAM, LAN-10G2T-X550
IOmeter: RAM*4, 30-sec ramp up time, 3-min seq. run time, 1 workers, 32-outstanding
Powerful expansion with E1.S / M.2 PCIe NVMe slots
The TS-h765eU comes with three E1.S / M.2 PCIe NVMe slots that offer unparalleled NAS flexibility for boosting performance. To reach its full potential, it is recommended to upgrade the TS-h765eU to support high-speed 10GbE networking and pair it with M.2 SSDs.
Create SSD system drive
Use the E1.S / M.2 PCIe NVMe SSD storage pool as the QuTS hero system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.
Create SSD storage pool
Create E1.S / M.2 PCIe NVMe SSD volumes to boost intensive data transfer and access performance.
Enable SSD caching
Install E1.S / M.2 PCIe NVMe SSDs and enable SSD caching to reduce latency and enhance random read/write efficiency (IOPS) for small files.
Upgrade to 10GbE
Install QXG-ES10G1T 10GbE network module for faster network connectivity.
Note:
- HS-M2SSD-07 or TPAD-M2SSD-04 thermal kit (optional purchase) is recommended for optimizing M.2 PCIe NVMe SSD cooling efficiency for stable data transfer.
- Before installing a 5.9mm E1.S SSD, please remove the built-in E1.S to M.2 SSD adapter from the slot.
- Before installing a 9.5/15mm E1.S SSD, please purchase the TRAY-E1S-01 drive tray for installation.
Surpass the competitor with standard 2.5GbE and flexible 10GbE upgrade
In modern business IT, a NAS with only 1GbE is a performance bottleneck. The TS-h765eU comes with faster network connectivity which enables businesses to facilitate bandwidth-demanding applications, such as large file access, backup/restore, virtualization, and more.
Built-in 2.5GbE
The TS-h765eU comes with two 2.5GbE ports, outperforming similar competitor NAS that only provides 1GbE.
Upgradable to 10GbE
You can install up to two QXG-ES10G1T E1.S to single 10GbE network modules via the E1.S / M.2 PCIe NVMe slots.
Enhance overall bandwidth
Obtain increased network speed and fault tolerance by configuring Port Trunking.
QuTS hero operating system
Designed for enterprises, the QuTS hero operating system adopts the highly reliable ZFS file system to provide utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses’ stringent demands for performance and reliability.
Automatic repair of corrupted data
ZFS supports self-healing for silent data corruption, automatically detecting damaged data to ensure data integrity.
Data immutability
Enable WORM (Write Once, Read Many) to prevent written data from being overwritten, modified, or deleted, effectively mitigating ransomware threats.
Power failure protection
ZIL (ZFS Intent Log) protects against potential data corruption caused by power failure by safeguarding unwritten data.
Data reduction
Inline data deduplication* reduces storage consumption for maintaining optimal disk capacity.
Prevent simultaneous SSD failure
The patented QSAL algorithm automatically and regularly detects RAID-level SSD lifespan to prevent simultaneous SSD failure, avoiding RAID crashes and data loss.
All-in-one backup solution
The TS-h765eU supports various apps that cover all your backup needs.
| NAS/File server | Cloud | Mac |
| Supports multiple protocols such as Rsync, FTP and CIFS/SMB for backing up different file servers. | Back up NAS data to/from major cloud services, including QNAP’s myQNAPcloud Storage. | Set a QNAP NAS as Time Machine backup destination. |

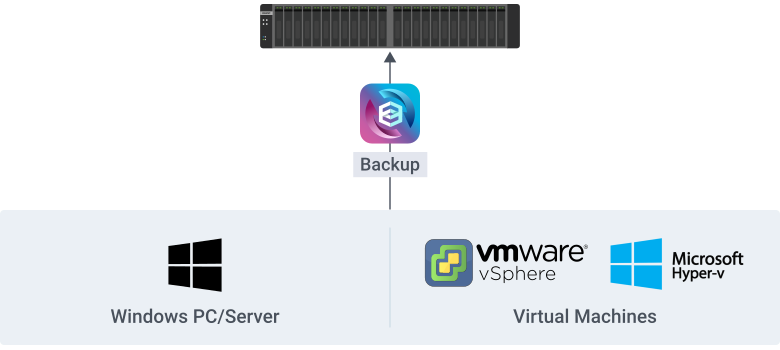

Windows® PC/Server
Back up full PC/server systems and manage all backups from multiple devices through a single interface.
VM
Back up VMware® vSphere and Microsoft® Hyper-V with dramatically lower costs than others.
Google™ Workspace/Microsoft 365®
Use QNAP’s Boxafe to back up, recover, and manage the data of 10,000+ users over multiple Google™ Workspace and Microsoft 365®.
WordPress
Backup, restore or migrate your WordPress site. QNAP NAS can also host a website.
Google Photos
Migrate archive photos to a QNAP NAS and free up your Google Photos spaces.
Secondary backup or restore
By supporting secondary backup, replication, or restore in a single interface, QNAP makes your business Disaster Recovery (DR) quick, easy, and effective.
NAS and file server
Use the same interface to configure and run backup, replication, and restore jobs.
Cloud
Supports advanced technologies to save backup time, spaces, and effort.
myQNAPcloud Storage
QNAP-hosted cloud storage that only charges for storage space, with transmitting data being completely free.
Real-time sync for seamless team collaboration
Whether you’re in the office or on the go, you can access the latest files synchronized to TS-433eU on multiple devices for efficient teamwork. Version Control keeps track of document changes, simplifying file management and restoration.
- Cross-Device Sync
Sync NAS files across multiple devices, including desktops, laptops, tablets, and phones. - Custom Sync Rules
Set rules for automatic file sync and conflict resolution. - Team Folders
Share folders with specific teams for collaborative file management.
AI-powered NAS file search
| AI-driven semantic search for images | Full-text search | Image search |
| Use intuitive descriptions and simple-language prompts to find desired images fast. For example, “a dog playing on the beach”. | Qsirch searches for files based on file name, content, title, metadata, email title and body text, file path, and more. | Search for images by color or object. AI OCR recognizes and enables capturing text from images. |
| Document preview | At-a-glance file distribution |
| Preview content of unopened documents, view keyword-relevant paragraphs, and check out a few relevant sentences related to the file subject. | Stay informed of storage utilization and distribution of data and files stored on the TS-h765eU via charts and analytics. |
Multi-level security strategy for enterprises
Bolster business data security with resilience from all aspects
Connection
| Enterprise private network connection | Filtering unauthorized access |
| Build secure VPN connection using QVPN Service. Multi-site organizations can leverage QuWAN SD-WAN to quickly set up Mesh VPN for remote workers and branches. | Implement QuFirewall to allow/deny specific IP addresses and regions, preventing unauthorized access and cyber threats. |
Permission
| Efficient NAS user management | Strengthened NAS log-in security |
| The TS-h765eU supports Windows® AD, Azure® AD, and LDAP; Admins can further improve management productivity and NAS security via delegated administration. | Set up passwordless login or two-factor authentication (2FA) for your NAS accounts to prevent data breaches and unauthorized access. |
Transmission
| SMB signing acceleration |
| Enable SMB signing to facilitate secure SMB file transfer, while QNAP’s exclusive algorithm greatly increases data signing efficiency and data transmission performance. |
Assessment
| Security and risk assessment | Centralized notification management | Block malware attacks |
| Security Center proactively detects NAS status and unusual file activity, and offers instant protective measures. | Centrally manage system events and alert notifications via Notification Center to stay up-to-date with NAS status. | Malware Remover regularly scans your NAS. When detecting malware attacks, infected files are immediately blocked and removed to ensure NAS security. |
Trusted storage for virtualization
Powerful yet affordable
Cost-effective iSCSI/IP-SAN storage solutions with high bandwidth for reduced latency.
Flexible & Scalable
Supports multiple protocols and expansion options to meet business needs.
Data protection
Offers LUN encryption, snapshots, and backup to ensure data safety.
Compatible with top-tier solutions
The TS-h765eU supports VMware® vSphere™, Microsoft® Hyper-V®, and Citrix® XenServer™ mainstream virtualization platforms. With the QNAP CSI Plugin for Kubernetes®, the TS-h765eU is also ideal block storage for Kubernetes® containerized apps.
Object storage certified as Veeam® Ready
Use the TS-h765eU with QuObjects as the premier destination for S3 object storage and backup. QuObjects supports Object Lock, validated as Veeam® Ready – Object with Immutability.
Run VMs and Containers
With no additional fees, you can run multiple VMs of different OS on TS-h765eU. This allows you to deploy multi-tenant environments and applications to increase management efficiency and save hardware costs.
VMs
Securely run Windows®, Linux®, UNIX®, QuTScloud VMs using Virtualization Station.
Containers
Run Docker®, LXD, Kata Containers and download Container Apps using Container Station.
VM High Availability
(Coming soon)
VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.
Network & Virtual Switch
Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.
Surveillance NAS solution for Business
Surveillance NAS is an easy-to-deploy and cost-effective all-in-one smart surveillance solution. Integrating AI analysis, high-availability failover video surveillance and CMS, Surveillance NAS satisfies professional surveillance demands in all kinds of surveillance scenarios.
| Simplifying surveillance structure | An all-in-one surveillance solution integrating NVR and VMS. Record, analyze and manage videos on surveillance NAS to boost deployment and maintenance efficiency. |
| Support ONVIF® cameras | Over 8000 ONVIF cameras from 200+ brands are supported. |
| PoE switch solution | QNAP offers a one-stop QNAP PoE switch solution designed for connecting TS-h765eU NAS and IP cameras to simplify network and power cabling. |
| Smart AI surveillance | Surveillance NAS performs AI image identification, analysis and search on the NVR server side, saving you from having to purchase expensive AI cameras. |
| Larger surveillance storage | Longer video archiving requirements needs larger storage space. |
Use AI-powered drive failure prediction to safeguard your data
Powered by cloud-based AI engine, DA Drive Analyzer can predict drive failure and lifespan. Enterprises can plan drive replacement in advance to prepare for drive failure before it occurs and prevent data loss.
- Supports SATA / SAS / NVMe drive analysis
- Supports Proxy sever connection
- Completes drive failure prediction in 24 hours
- Customized drive data upload time
- All NAS include 1 drive license for permanently free

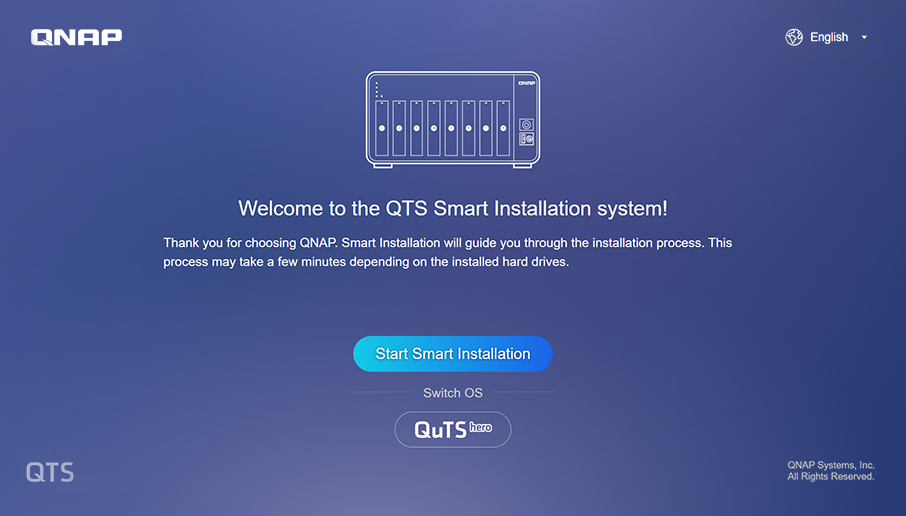

Switch to QTS operating system
for choosing various cache modes
The TS-h765eU supports QTS - QNAP’s standard NAS operating system. QTS provides great everyday performance and efficient memory utilization.
Extend hardware warranty up to 5 years
The TS-h765eU is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Specifications:
| TS-h765eU-8G | |
|---|---|
| CPU | Intel Atom x7405C 4-core, up to 3.4GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 8 GB SODIMM DDR5 (1 x 8 GB), enabled in-band ECC |
| Maximum Memory | 16 GB (1 x 16GB) |
| Memory Slot | 1 x SODIMM DDR5 |
| Flash Memory | 8GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s 3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots) |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives E1.S NVMe PCIe SSDs M.2 2280 NVMe PCIe SSDs |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | 3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots) |
| SSD Cache Acceleration Support | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| USB 2.0 port | 1 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 1U Short Depth Rackmount |
| LED Indicators | Power/Status, LAN, USB, HDD1-4, E1.S/PCIe SSD1~3 |
| Buttons | Power, Reset |
| Dimensions (H x W x D) | 1.69 × 16.93 × 11.5 inch |
| Weight (Net) | 9.94 lbs |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 150W, 100-240V |
| Fan | 3 x 40mm |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
