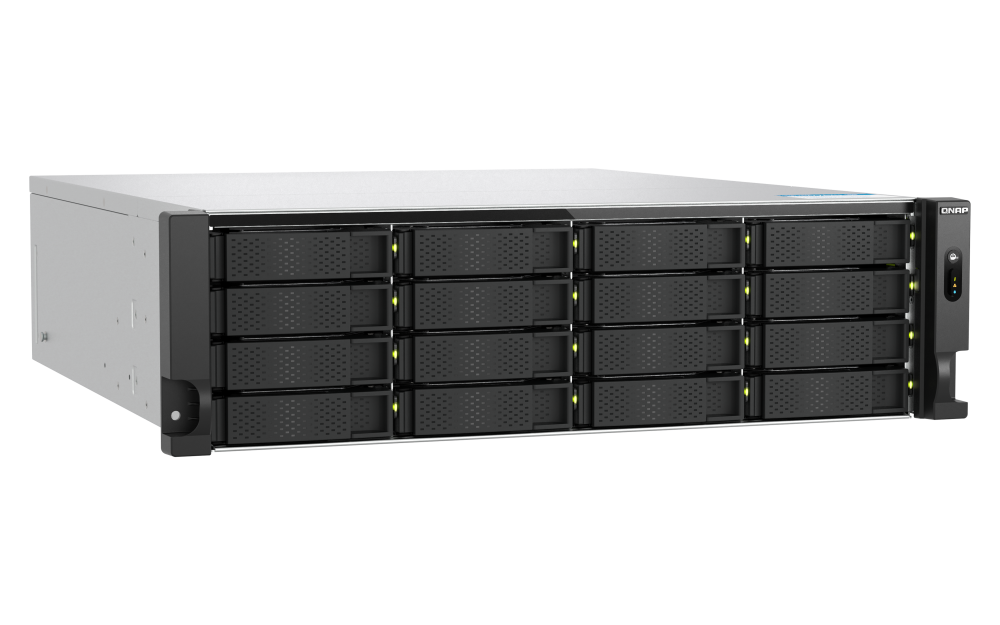

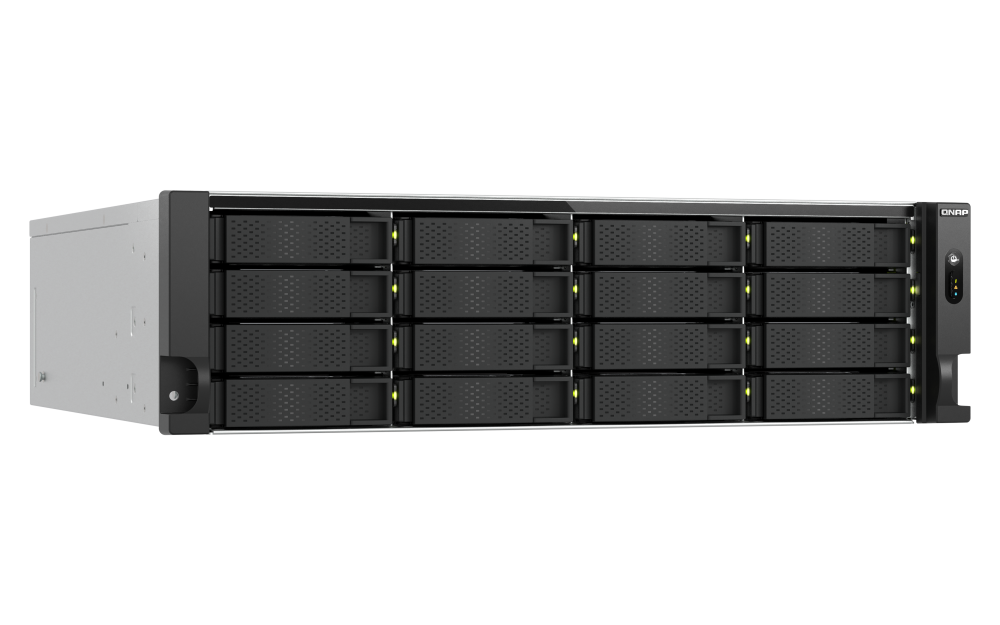

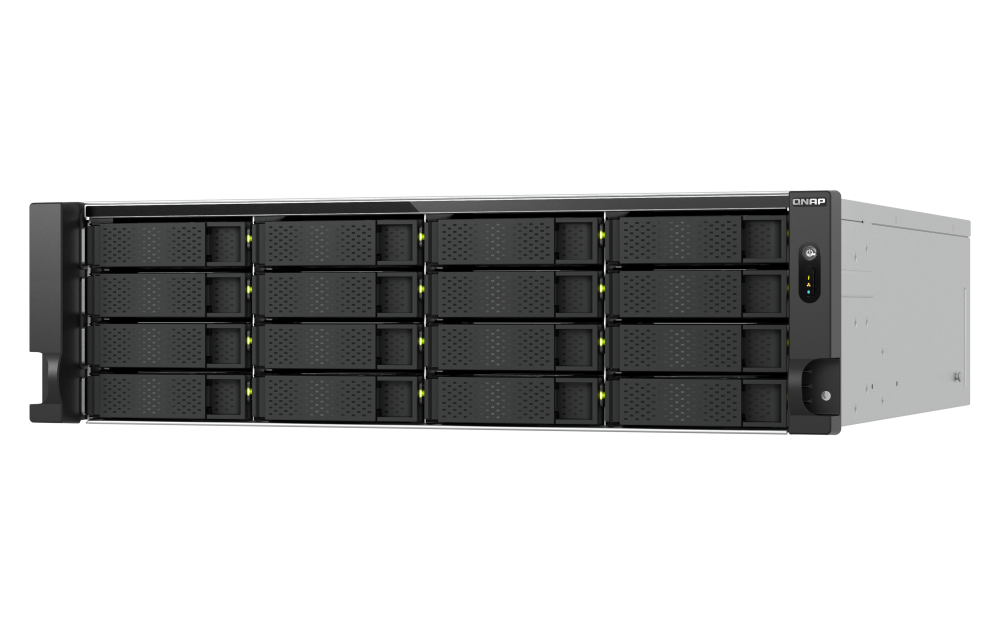

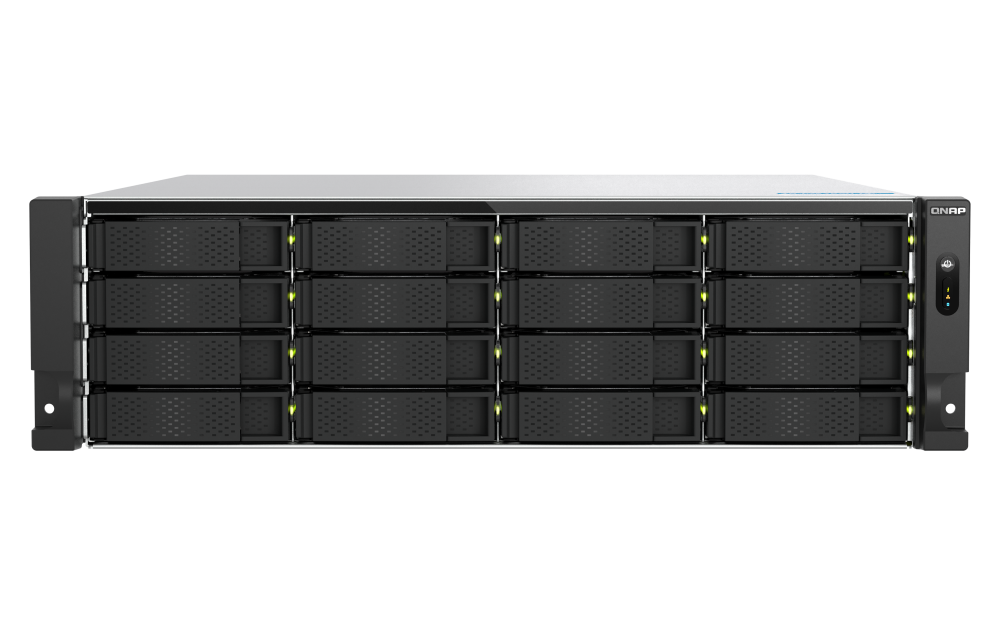

QNAP TS-h1677AXU-RP
Experience exceptional enterprise performance with the power of AMD Ryzen™ 7000 Series processors, DDR5, and M.2 PCIe Gen 5
AMD Ryzen 7 7000 series 8C16T (boost up to 5.3 GHz), 32GB DDR5 non-ECC RAM (max. 128GB total), 16x 2.5″/3.5″ SATA HDD/SSD, 2x M.2 2280 PCIe Gen5 x2 slots for SSD cache, 2x 10GBASE-T + 2x 2.5 GbE RJ45, 3 x PCIe Gen 4 expansion slots, 2 x 550W redundant pwoer supply
Our Price: $4,699.00
Want to build a custom bundle? Contact us!
Click here to jump to more pricing!
Package Content
- TS-h1677AXU-RP Storage System
- 1 x 10Gbase-T Ethernet cable
- 2 x Power Cord
- 64 Flat Head Screw (for 3.5” HDD)
- 64 Flat Head Screw (for 2.5” HDD)
- Quick Installation Guide (QIG)
Overview:
Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1677AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1677AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.
Available Models
- TS-h1677AXU-RP-R7-32G-
AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz, 32 GB UDIMM DDR5 (1x 32 GB), redundant power supply
DDR5 RAM
Supports up to 128GB high-performance and low power consumption DDR5 RAM for heavy workloads (ECC RAM is also supported).
Dual M.2 PCIe Gen 5 slots
Install M.2 NVMe SSDs for SSD caching acceleration. PCIe Gen 5 is backward compatible with PCIe Gen 4 / PCIe Gen 3 for flexible deployment.
2.5GbE and 10GbE as standard
Two 2.5GbE and two 10GbE ports accelerate virtualization, storage centers, and large file transfer.
PCIe Gen 4 expandability
Three PCIe Gen 4 slots provide diverse expandability by installing 25GbE cards, SAS storage expansion cards, or Fibre Channel cards.
Petabyte-scale storage
Connect up to eight 24-bay TL-R2400PES-RP JBODs to attain PB-level storage capacity of 208 disks.
Long-term supply
The TS-h1677AXU-RP will be available and supported by QNAP for an extended period, up to 2030.
Features:
New-gen AMD Ryzen™ 7000 Series processors unleash enterprise-level power and potential

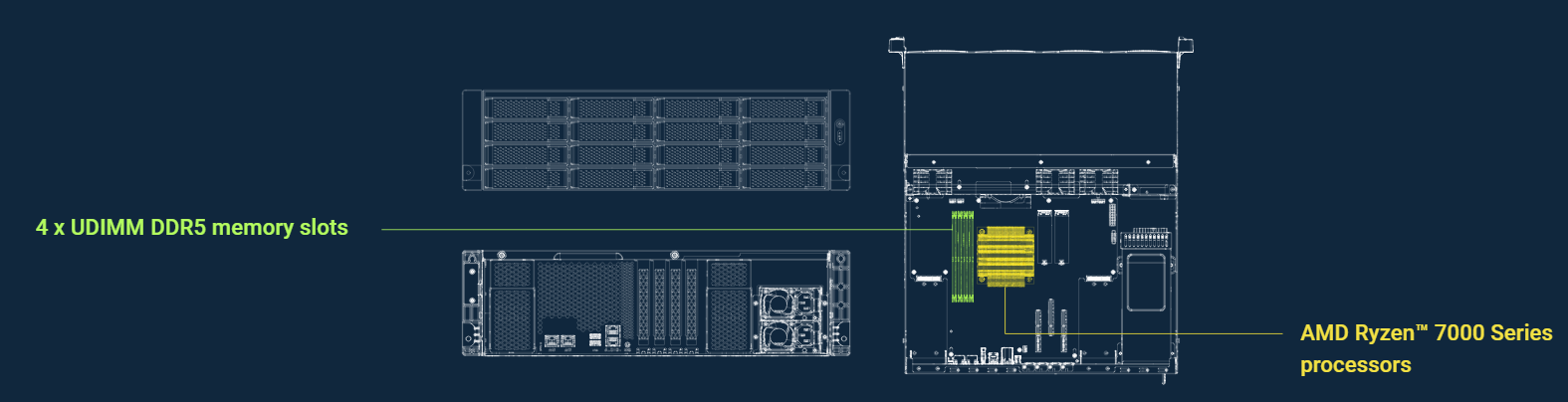

Processor
AMD Ryzen™ 7 7000 Series 8-core and 16-thread (up to 5.3 GHz)
AMD AM5 Platform
Zen 4 architecture and 5nm technology with support for DDR5 and M.2 PCIe 5.0
Memory
Comes with 32GB DDR5 non-ECC RAM as standard, supports up to 128GB (4x 32GB)
Supports ECC RAM (cannot be used with non-ECC RAM)
GPU
Built-in AMD Radeon™ Graphics accelerates video processing and graphical computing
Unmatched hardware design and high performance
The TS-h1677AXU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet diverse application requirements.
M.2 PCIe Gen 5 ultra-fast transfer speed
The TS-h1677AXU-RP comes with two M.2 2280 PCIe Gen 5 slots that allow for installing NVMe SSDs (including WD®, Micron®, Seagate®, Kingston®) to boost NAS performance. PCIe Gen 5 is backwards compatible with PCIe Gen 4 / PCIe Gen 3 for flexible SSD deployment.
M.2 SSD sold separately. Due to limited space, you should remove large heatsinks from M.2 SSDs and replace them with QNAP’s M.2 SSD heatsink before installing in the TS-h1677AXU-RP.
SSD caching
Boost IOPS for transferring a huge number of small files by configuring SSD caching with two M.2 SSDs, without occupying any 3.5-inch drive bays.
Power failure protection
Add M.2 SSDs to enable ZIL power failure protection, ensuring that the NAS can continue completing unfinished data writes after power outage followed by a power restoration, and preventing data corruption while modifying data.
High-speed SSD volume
Create M.2 NVMe SSD storage pools to increase intensive data transfer speed with boosted performance.

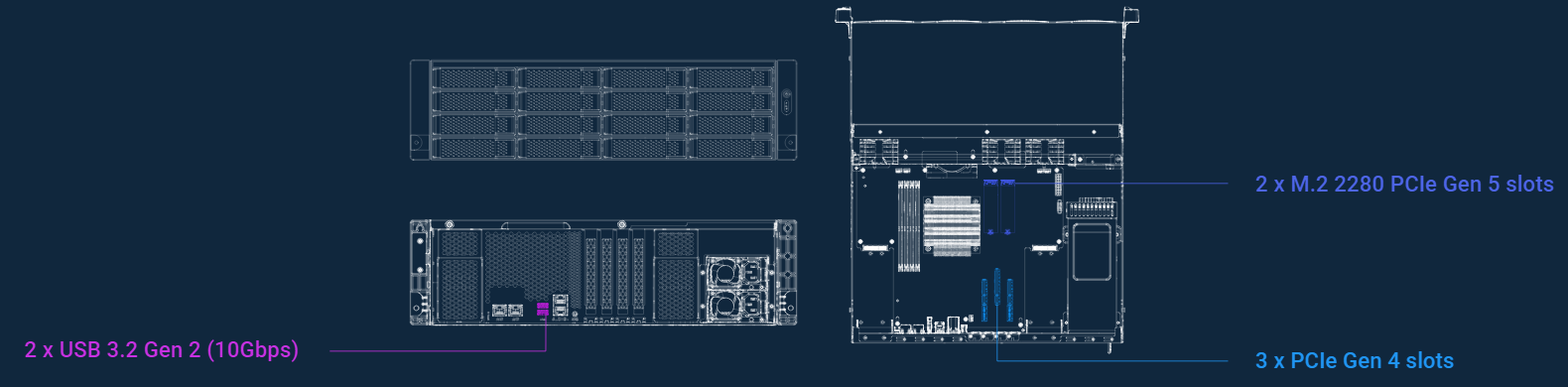

Abundant I/O capabilities with PCIe Gen 4 expansion
The TS-h1677AXU-RP has three PCIe Gen 4 slots (twice the bandwidth of PCIe Gen 3) that allow for installing various expansion cards for expanding application potential.
10/25GbE network card
Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, mass data transmission, and fast backup/restore).
QM2 cards
Add M.2 SSDs or 2.5GbE/10GbE connectivity to the TS-h1677AXU-RP for optimized performance and bandwidth.
SAS / SATA storage expansion cards
Connect the TS-h1677AXU-RP to SAS 12Gb/s or SATA 6Gb/s expansion units for petabyte-scale storage capacity.
Graphics cards
Install graphics cards to the TS-h1677AXU-RP for supercharging your video editing and transcoding or enabling GPU passthrough to virtual machines.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h1677AXU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Meets diverse business needs
Tier 2 Storage
High-capacity TS-h1677AXU-RP with built-in 2.5GbE/10GbE fulfills high-speed transfer performance as a cost-effective Tier 2 storage solution.
Virtualization
The TS-h1677AXU-RP supports GPU passthrough to VMs by leveraging graphics cards; coupled with inline data deduplication to maximize storage efficiency.
4K Video Editing
Install up to three 25GbE network cards in the TS-h1677AXU-RP for bandwidth-demanding multimedia transfer and video online editing.
PB-Level Storage
Achieve future-proof PB-level storage by connecting up to eight 24-bay TL-R2400PES-RP PCIe JBOD units to the TS-h1677AXU-RP.

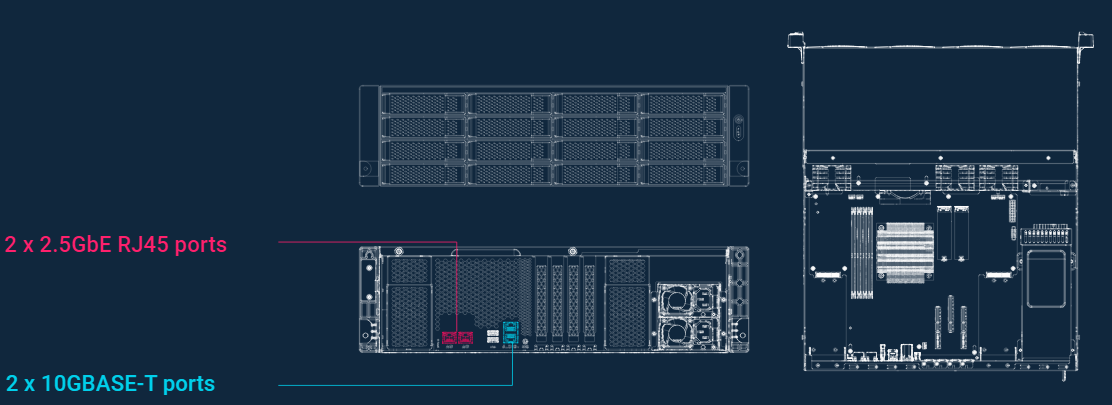

High-speed connectivity
2.5GbE and 10GbE ports
The TS-h1677AXU-RP has two 2.5GbE ports and two 10GBASE-T ports, and supports Port Trunking for enhanced performance and fault tolerance.
USB 3.2 Gen 2 ports
Two USB 3.2 Gen 2 (10Gbps) Type-A ports allow faster import/export of large number of files from external storage devices to the TS-h1677AXU-RP.
Comprehensive backup and disaster recovery solution
The TS-h1677AXU-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-h1677AXU-RP to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.
VM backup
Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.
SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.
Note: Minimum memory requirements are 2 GB available and 4 GB installed.
Cloud backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.
QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.
Real-time SnapSync
Real-time SnapSync immediately synchronizes data changes with the destination storage, ensuring the primary and secondary NAS always have the same data. RPO is minimal to achieve real-time disaster recovery.
Note: SnapSync is supported by QNAP NAS models featuring the QuTS hero (4.5.3 or later) and QES ( v2.1.1 or later) operating systems. These NAS can be paired with each other to provide a perfect backup storage solution.
Multi-version snapshots mitigate ransomware threats
The TS-h1677AXU-RP supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
Volume and LUN snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.
Instantly restore snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.
Up to 65,536 snapshots
QuTS hero supports enough snapshots for you to create 1 snapshot every hour for 7 years without needing to delete any! Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing.
Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-h1677AXU-RP to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.
Comprehensive security and privilege settings
The TS-h1677AXU-RP is loaded with flexible privilege settings and security measures. Besides IP blocking, QNAP Authenticator, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
Simplified privilege settings
The TS-h1677AXU-RP supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.
TeamViewer remote access
TeamViewer app enables remote management and connectivity to multiple NAS devices from Windows® PCs with an unparalleled level of safety, while increasing IT efficiency and end user productivity.
Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-h1677AXU-RP as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.
QuWAN SD-WAN
To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.
Security Counselor
A security portal for the TS-h1677AXU-RP to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Malware Remover
Regularly scan your TS-h1677AXU-RP using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.
All-in-one virtual machine and container hosting solution
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.
Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-h1677AXU-RP storage as needed to accommodate data and business growth.
Attach QNAP expansion enclosures
Connect expansion enclosures to the TS-h1677AXU-RP, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.
Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-h1677AXU-RP while also centrally managing files on the NAS, cloud storage, and remote devices.
Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
| Data integrity is key | Data reduction improves storage efficiency and performance | Multi-level cache technology |
|---|---|---|
| QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported. | Inline data deduplication, compression, and compaction reduce file sizes to conserve storage capacity and optimize performance. | Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security. |
| RAID Z enables robust data protection | QSAL (QNAP SSD Antiwear Leveling) enhances data protection | App Center ecosystem extends NAS functionality |
| Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection. | RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability. | Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the NAS. |
Flexibly switch to QTS operating system
The TS-h1677AXU-RP also supports QTS - QNAP’s standard NAS operating system – that provides great everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TS-h1677AXU-RP.
QTS
Suited for cross-teams file sync, and HDD-SSD hybrid storage applications
QuTS hero
Featuring highly reliable data protection and data reduction, and optimized for SSD-based applications
Note: QTS and QuTS hero use different file systems. You must remove all the drives from the TS-h1677AXU-RP before switching from QuTS hero to QTS.
5-year warranty as standard
The TS-h1677AXU-RP is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.
Hardware Specifications:
| TS-h1677AXU-RP-R7-32G | |
|---|---|
| CPU | AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz AMD Radeon Graphics |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 32 GB UDIMM DDR5 (1x 32 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR5 Support optional ECC memory |
| Flash Memory | 5GB (Dual boot OS protection) |

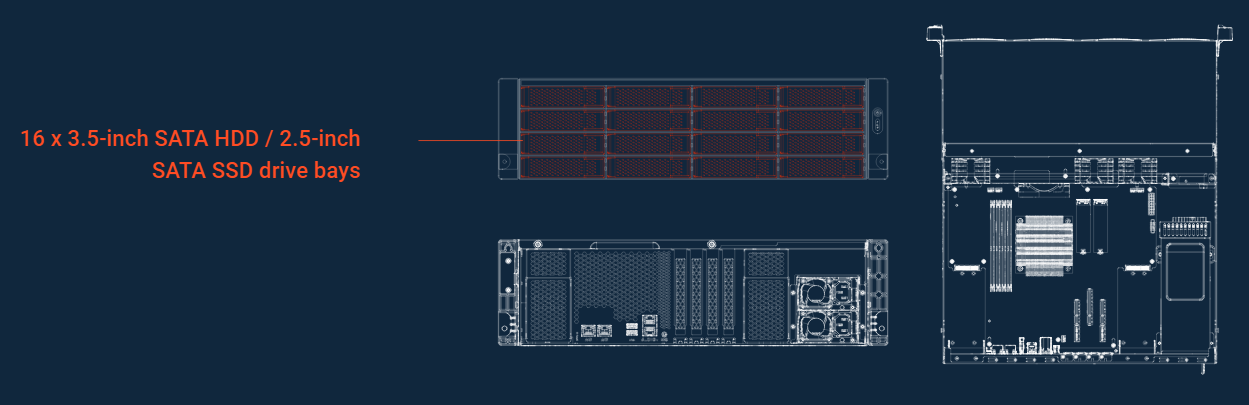

| Drive Bay | 16 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives |
| Hot-swappable | |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 5 x2 slots Compatible with NVMe SSD PCIe Gen 3 and above. |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 3 Slot 1: Gen 4 x 4 Slot 2: Gen 4 x 8 or Gen 4 x 4* Slot 3: Gen 4 x 4 *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use. |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 3U Rackmount |
| LED Indicators | Power Status, HDD 1-16, M.2 SSD 1-2, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 5.17 × 18.98 × 21.69 inch Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 34.48 lbs |
| Weight (Gross) | 48.68 lbs |
| Operating temperature | 0 - 40°C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |

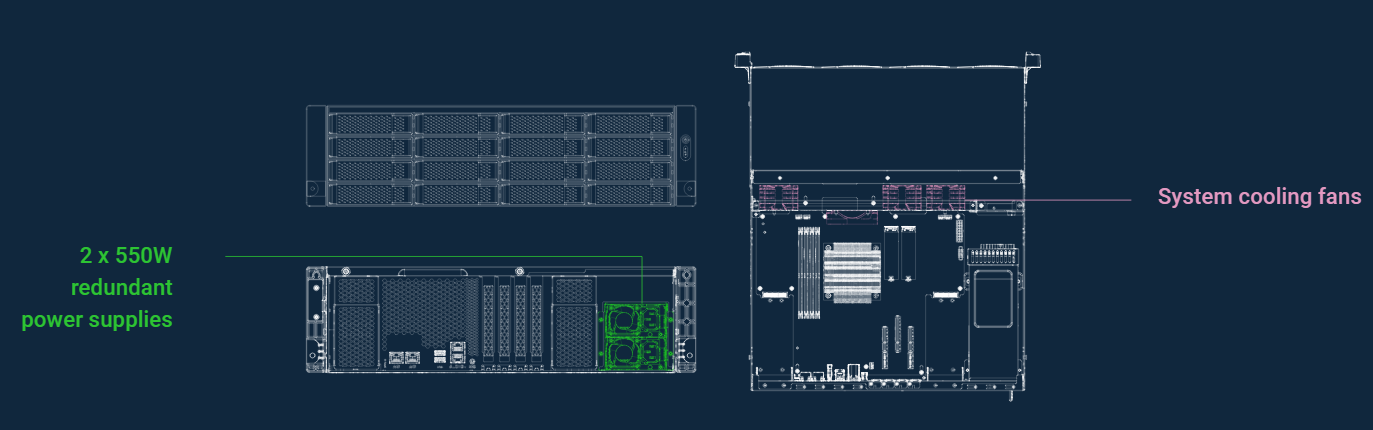

| Power Supply Unit | 550W(x2), 100-240V |
| Fan | System fan: 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 5000 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
