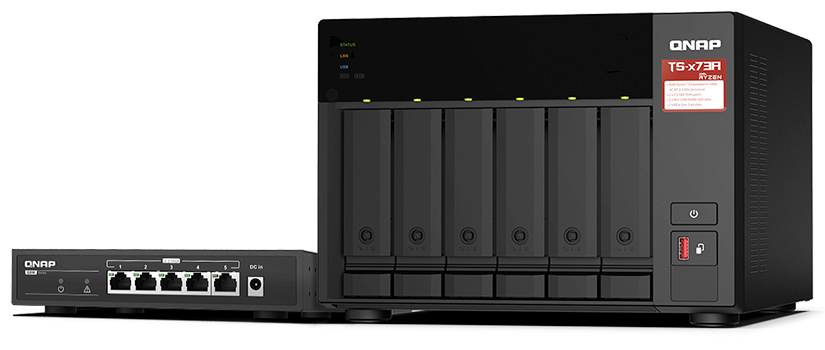

QNAP TS-673A + QSW-1105-5T Bundle Pack
6-bay AMD Ryzen™ NAS with 5-Port 2.5G Switch
Upgrade to 2.5G network with limited-time bundle offer!
AMD Ryzen V1000 series V1500B 4C/8T 2.2GHz, 8GB DDR4 RAM (2 x SODIMM slots, max. 64GB, optional ECC RAM support), 2x M.2 NVMe PCIe Gen3 SSD slots, 2 x 2.5GbE LAN, optional 10GbE expansion via a PCIe, 2 x PCIe 3.0 x 4 slots, USB 3.2 Gen2 Type-C & Type-A bundled with QSW-1105-5T 2.5GbE x 5 ports unmanaged switch, Realtek TL8371+RTL8221B, Warranty 3 Years(NAS), 2 years(Switch)
Our Price: $949.00
Want to build a custom bundle? Contact us!
Click here to jump to more pricing!
Overview:
Bye-bye Gigabit, hello 2.5GbE.
Gigabit Ethernet isn’t fast enough to unleash your 2.5G LAN and WAN devices. Upgrade to a 2.5G switch now!
ISPs offer Multi-Gig internet for homes
Many ISPs have started delivering multi-gigabit fiber to the home (FTTH) customers, providing speeds exceeding that of standard gigabit ethernet.
Multi-Gig enables Wi-Fi 6
Wi-Fi 6 (802.11ax) routers or APs require multi-gig network devices to unleash optimal wireless performance.
PC / laptops adopt 2.5G ports
Modern PCs and laptops have adopted 2.5G ports to fulfill high-bandwidth demands of streaming, video calls, gaming, and other modern web services.
Package Content
TS-673A
- QNAP TS-673A Storage
- 1 x Ethernet cable
- 1 x Power cord
- 18 x Flat head screw (for 3.5" HDD)
- 18 x Flat head screw (for 2.5" HDD)
- 2 x M.2 SSD Heatsink
- 2 x Drive tray keys
- Quick Installation Guide
QSW-1105-5T
- QNAP QSW-1105-5T Switch
- Power supply
- Bracket screws
- Anchors
- Foot pads
- Quick Installation Guide
Features:
Make your work and life smooth with the high-speed Switch and NAS
QNAP helps you upgrade to a high-speed network and data storage center in your home or office, providing a full 2.5G network experience.
QNAP’s most cost-effective 2.5GbE solution
Why 2.5G? Cost-effective high-speed option.
If you can’t budget a 10GbE upgrade at this time, the more affordable 2.5GbE provides a notable improvement in current Ethernet speeds. Use existing CAT5e cables to upgrade 2.5GbE network without stretching your budget.
Why QNAP 2.5G solution? More cost-effective solution.
The lack of consumer-grade switches has made it hard for home and personal users to adopt 2.5GbE/5GbE networking. QNAP now offers cost-effective 2.5GbE switches, helping you to transform your home network at a wallet-friendly price.
Why now? The most cost-effective timing.
QNAP now hosts a flash sale for the 2.5GbE NAS and Switch Bundle. Buy now!
TS-673A
AMD Ryzen™ Quad-core multi-tasking 2.5GbE NAS
TS-673A not only provides a secure and reliable storage solution for backing up all your files, but also supports running multiple VMs and containers for diverse applications.
| Two 2.5GbE ports can be combined for bandwidth for up to 5Gbps! | Multi-tasking AMD Ryzen™ 4-core/8-thread 2.2 GHz processor | 8GB RAM, supports up to 64GB RAM (ECC memory also supported) | Add more 2.5G/10G ports via PCIe network cards |
| Supports entry-level graphics cards to boost performance for video transcoding or VM output | Install two M.2 NVMe SSD (sold separately) for faster data accessing or image recognition | Three USB 3.2 Gen 2 (10Gbps) ports and one USB 3.2 Gen 1 (5Gbps) port allow faster backup to/from USB devices | Add an additional twenty-four hard drives by connecting to multiple storage expansion units |
Smart storage • Simple backup • Easy management
TS-673A helps you easily back up, search, share and manage all your files and data. Super!
Storage protection
Diverse backups
Boost production efficiency
RAID protection
QNAP NAS supports various RAID types that provide varying levels of performance and data redundancy.
Volume and LUN snapshots
Snapshots record the complete status of your NAS system and data. Certain data and files can be reverted when needed. It’s the best way to recover your files from ransomware.
Flexibly expand storage space
The TS-673A supports a storage capacity of up to 100 TB by installing six 3.5-inch 22 TB hard drives in RAID 5. By connecting to QNAP storage expansion units, you can add additional storage space to meet growing storage requirements.
Mount cloud storage
HybridMount allows you to mount cloud storage and file servers on your NAS and centrally manage file access. Local caching for cloud data can be enabled to provide near-LAN access speeds.
Back up devices
Easily back up from PC/Mac or File servers supporting Rsync, FTP and CIFS to NAS. Then use Hybrid Backup Sync to back up data to another remote NAS or cloud based on the 3-2-1 backup rule.
Back up services
Back up diverse services to NAS, including VMware® and Hyper-V™ VMs, Google™ Workspace and Microsoft 365® business account data, WordPress andGoogle Photos.
Back up NAS data to the Cloud
Hybrid Backup Sync supports mainstream public cloud services for backing up or syncing data from NAS to Cloud.
Search NAS files quickly
Powerful Qsirch full-text search engine allows you to quickly find documents, media files, and emails using keywords, colors, or faces. AI OCR image recognition technology recognizes and captures text inside images.
Auto-sync files
Qsync allows you to sync files between NAS and multiple computers or mobile devices via one-way or two-way sync.
AI photo management
Large-capacity NAS leverages the powerful AI photo management app QuMagie and creates smart photo albums based on people, objects, locations, and events, making photos easy to find and share.
QTS 5 empowers VM, surveillance and cybersecurity deployment
The QTS 5 operating system provides a next-generation data storage usage experience with optimized user interface.
Run VMs and containers
By running multiple virtual machines and containers on the TS-673A, you can deploy multi-tenant environments and applications to increase management efficiency and reduce hardware costs.
Predict drive life with AI
QNAP’s AI-based drive health analysis technology, and automatic RAID disk replacement with spares, ensures a reliable storage environment.
All-in-one surveillance
QNAP’s integrated surveillance NAS solution offers a subscription licensing solution or perpetual licensing solution for flexible deployment based on your needs.
Enhanced data security
QVPN Service enables secure virtual private network (VPN) connections between NAS and devices. Snapshots, QuFirewall and Malware Remover ensure optimal NAS protection against threats like malware and hackers.
QSW-1105-5T
Affordable 5-port 2.5G switch
Enjoy 2.5x high-speed transmission by connecting more 2.5G devices, such as, NAS, Wi-Fi 6 Router/AP, PC/laptop, etc.
| Five 2.5G NBASE-T ports for unleashing LAN/WAN 2.5Gbps potential | Supports auto-negotiation, backward compatible with 1GbE devices | Use existing Cat 5e cables |
| Hassle free plug and play | Fanless design with ventilated construction for near-silent operation | Automatic loop detection and blocking to ensure continuous network operation |
Enjoy 5Gbps speeds without an extra network card
Enable SMB Multichannel on TS-673A NAS to combine two 2.5GbE ports for up to 5Gbps transmission speed. This increased bandwidth greatly accelerates large file transfer/backup and video editing applications.
Deploy 2.5GbE network environment to boost application efficiency
The TS-AI642 has one PCIe Gen 3 x2 slot, allowing you to increase its application potential.
Faster Backup and Restore
Increased transfer speeds help save time when backing up files to NAS, or when backing up using HBS (Hybrid Backup Sync).
High-quality Video Streaming
Higher bandwidth improves the playback quality of 4K/8K videos.
Gaming Storage
Mount an iSCSI LUN from a 2.5GbE NAS to your computer to store your vast game collection. Gaming x 2.5GbE NAS Solution
Smooth Video Calls
In the era of remote working and classes, a faster network provides high-quality live streams for video calls and online courses.
Specifications:
| TS-673A-8G | |
|---|---|
| CPU | AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe adapter |
| System Memory | 8 GB SO-DIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB ( 2 x 32 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 Support ECC memory For dual-DIMM configurations, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. |
| M.2 SSD Slot | 2 x M.2 2280 PCIe Gen3 x1 slots The M.2 SSD is not included as standard. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a PCIe adapter |
| 10 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 1 5Gbps |
| IR Sensor | (QNAP RM-IR004) |
| HDMI Output | Optional via a PCIe adapter |
| Form Factor | Tower |
| LED Indicators | Status/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 188.2 × 264.3 × 280.8 mm |
| Weight (Net) | 5.78 kg |
| Weight (Gross) | 7.35 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W, 100-240V, 50-60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 21.891 W |
| Power Consumption: Operating Mode, Typical | 45.898 W Tested with drives fully populated |
| Fan | System fan: 2 x 92mm CPU fan: 1 x 60mm |
| Sound Level | 20.3 db(A)) |
| System Warning | Buzzer |
| Kensington Security Slot |
| QSW-1105-5T | |
|---|---|
| Management Type | Unmanaged |
| Number of Ports | 5 |
| 2.5GbE (RJ45) | 5 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 12 W |
| Input Power Type | AC |
| Input Voltage Range | 100~240 VAC, 50/60Hz |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 12.5Gbps |
| Switching Capacity | 25Gbps |
| Fan | Fanless |
| Fanless | |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBase-T IEEE 802.3x Full-Duplex Flow Control |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Loop LED: Loop Per System: Power/Status |
| Dimensions (HxWxD) | 34 x 180 x 145 mm |
| Weight (Net) | 1.27 lbs |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Certifications | FCC, CE, BSMI, VCCI, LVD,CCC,KCC,ASNZ |
| Electromagnetic Compliance | Class B |
| Jumbo Frames | 9K |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
