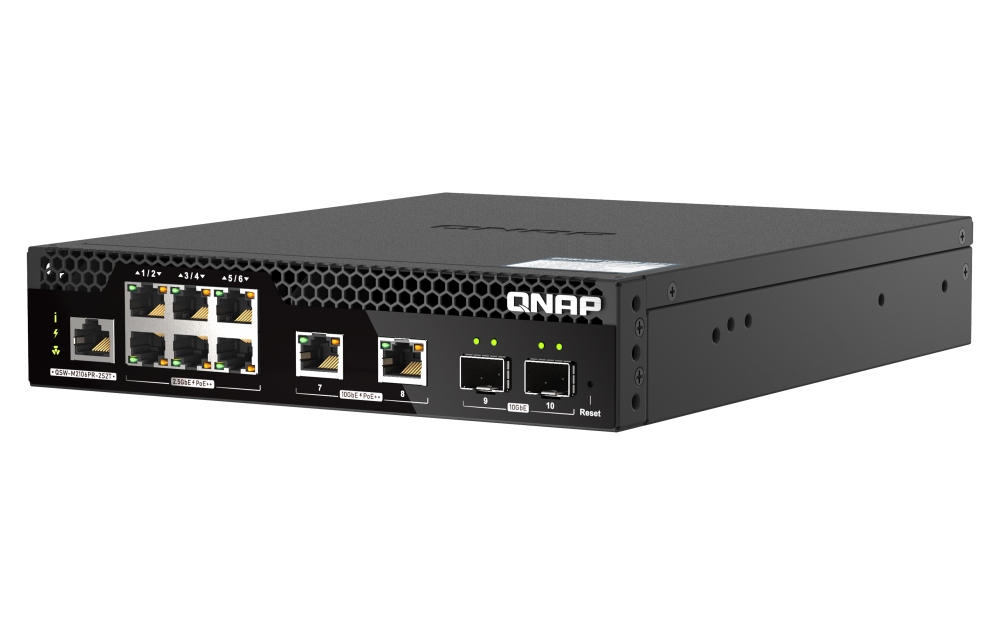

QNAP QSW-M2106PR-2S2T
Half-width Rackmount 10GbE and 2.5GbE PoE++ Layer 2 Web Managed Switch for New-generation Wi-Fi Deployment


QNAP Products
QSW 2.5GbE Switches
QNAP Half-Rackmount Switch QSW-M2106PR-2S2T-US, Management Switch
Marvell 98DX2528, 1GB DDR4, 6 port 2.5Gbps with PoE 802.3bt(90W), 2 port 10Gbps SFP+, 2 port 10GbE NBASE-T (10G/5G/2.5G/1G/100M) with PoE 802.3bt(90W), Max PoE power consumption up to 310W . Easy management with web browser.
#QSW-M2106PR-2S2T-US
Our Price: $599.00

Click here to jump to more pricing!

Package Content

  • QNAP QSW-M2106PR-2S2T Switch
  • 1 x Power cord
  • Rackmount kit
  • Quick Installation Guide

Overview:

The QNAP QSW-M2106PR-2S2T is a half-width rackmount L2 PoE Managed Switch with six 90-watt 2.5GbE PoE++ ports, two 90-watt 10GbE PoE++ ports and two 10GbE SFP+ fiber ports. Providing a total power budget of 310 watts, the QSW-M2106PR-2S2T enables a high-speed and high-power PoE network infrastructure for Wi-Fi 6/Wi-Fi 6E/Wi-Fi 7 Access Points and Routers. The QNAP Switch System (QSS) features a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras and Digital Signage, core Switches and Servers. The QSW-M2106PR-2S2T offers SMBs a cost-optimized and centrally managed LAN deployment solution. With a half-width design, two QSW-M2106PR-2S2T can be installed in a 1U rack space for space-saving.


10G Multi-Gig connectivity

Includes two 10GbE SFP+ fiber ports (Backward compatible with 1G SFP) and two 10GbE RJ45 ports, compatible with NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M).

2.5Gb Ethernet connectivity

Six 2.5GbE RJ45 ports allow you to immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.

90W PoE++

Can supply a total power budget of 310 watts to meet the demands of high-powered devices (PDs).

User-friendly management interface

IT administrators can efficiently control Layer 2 and PoE networks, including network connection status and power consumption information, making central management of high-power devices intuitive and easy.

Layer 2 network

Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.

Online OS update

Update QSS with just one click to help ensure network security.

Features:

10GbE/2.5GbE for Ultra-high-speed Wi-Fi Applications

From Wi-Fi 6 to Wi-Fi 6E and even the Wi-Fi 7, ultra-high-speed and high-power APs and Routers are driving up access point uplink requirements. Supporting multiple 10GbE/2.5GbE ports, the QSW-M2106PR-2S2T breaks through the bandwidth limitations of cabled and wireless networks to enhance your storage and access experience. With two 10GbE SFP+ ports for backbone network uplinking capability, the QSW-M2106PR-2S2T provides an ultra-high-speed Wi-Fi 6 wireless network infrastructure solution for small-to-medium businesses, hotels, and stores.

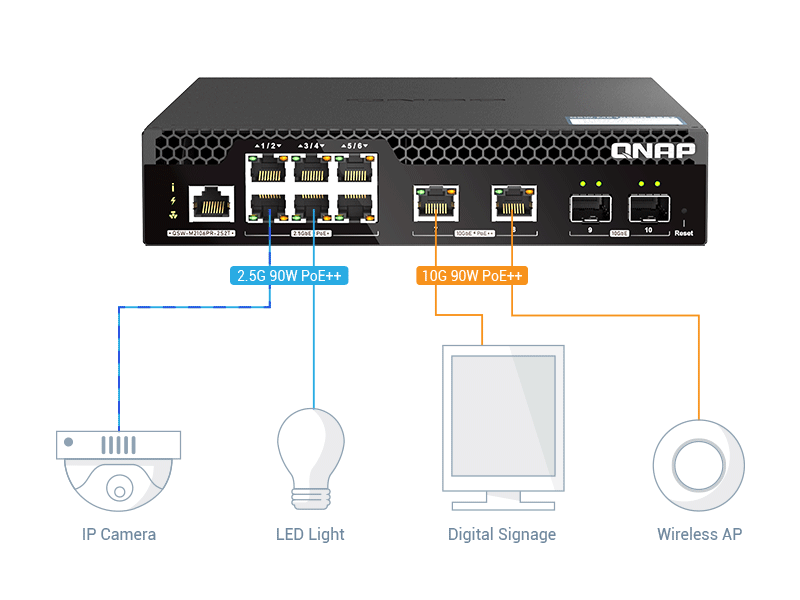

High PoE Capability– up to Eight-port 90W PoE++ and 310 Total Power Budget

The QSW-M2106PR-2S2T is compliant with the IEEE 802.3bt PoE++ standard and offers 2-port 10GbE and 6-port 2.5GbE 90-watt PoE++ capabilities. The QSW-M2106PR-2S2T can supply a total power budget of 310 watts to meet the demands of many high-power devices (PDs) (such as 4K IP cameras, wireless APs, IP phones, LED lights, and digital signage).

High PoE Capability

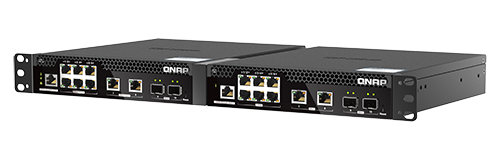

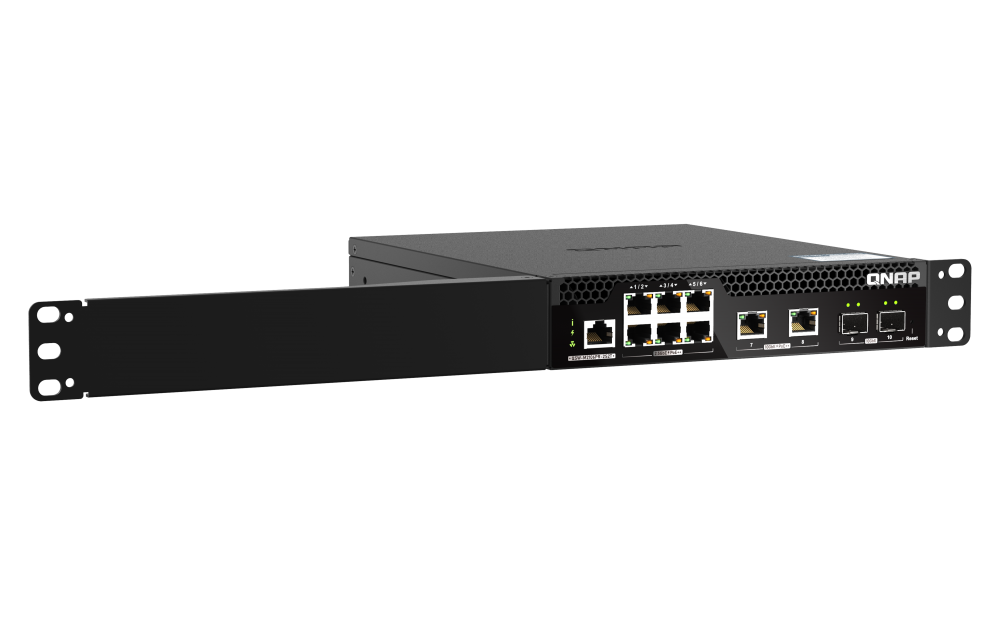

Half-width design, two models in 1U

With a half-width rackmount design, a QSW-M2106PR-2S2T can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-M2106R-2S2T) for efficient physical space utilization and tidy cabling.

Note: A rackmount kit is required if two half-width rackmount switches are installed.

Half-width design

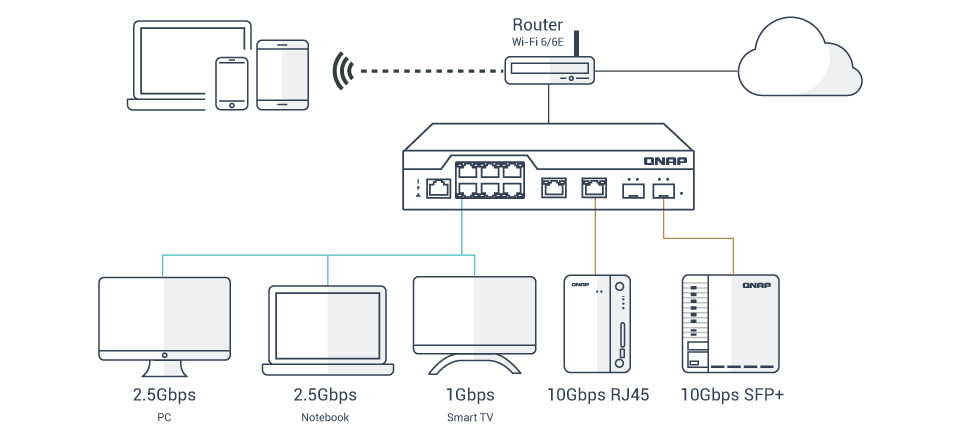

Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports

The QSW-M2106PR-2S2T provides two 10GbE SFP+ ports, two 10GbE RJ45 ports and six 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6a (or better) cabling. The switching capacity of the QSW-M2106PR-2S2T is 110Gbps, guaranteeing the full potential of each port.

2.5gbex10gbe

  CAT 5e CAT 6 CAT 6A & CAT 7
100M
1G
2.5G
5G
10G (55m)

Note 1: 10GbE SFP+ ports are backward compatible with 1GbE SFP; the 10GbE RJ45 (copper) ports support up to five speeds (10G / 5G / 2.5G / 1G / 100M).
Note 2: If the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used to achieve 10Gb/s speeds.

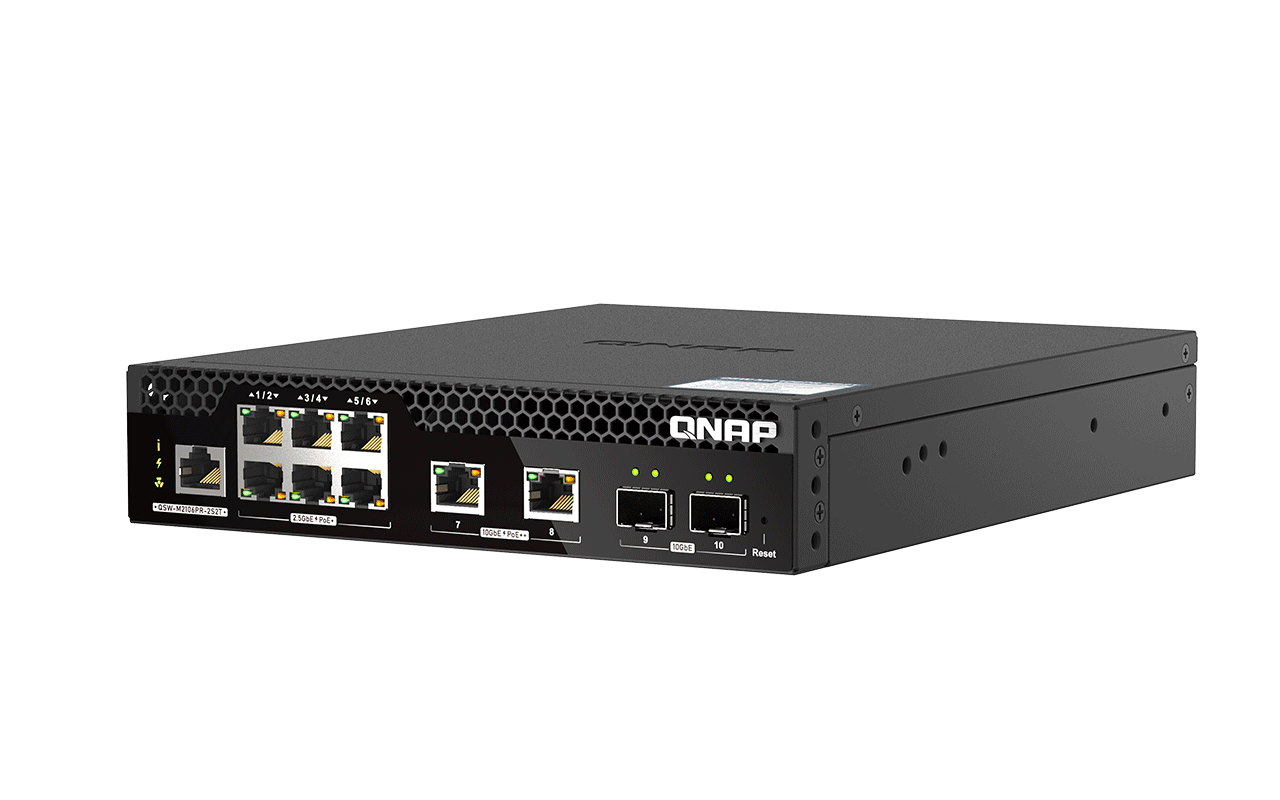

Dependable performance with effective heat dissipation

With a compact metal body, the QSW-M2106PR-2S2T provides stable and reliable operations while staying near-silent even when under full load. The front-panel LEDs also assist in viewing the current system status.

effective heat dissipation


QSS: Human-centered settings guide

The QSW-M2106PR-2S2T uses the QNAP Switch System (QSS), featuring an easy-to-use Web GUI with Layer 2 management and value-added functions to simplify network set up and management.


Overview Dashboard

View real-time system information, port connection status and port traffic.

Port Management

View port status, port packet statistics, and configure port speeds.

Setting Guide

Quickly learn how to set up the network using the introduction and step-by-step guide.


Exclusive Status Chart Referencing

Refer to four status charts during configuration and avoid going back and forth between settings pages.

Online Firmware Check and Update

Keep your QNAP switch secure with one-click firmware updates.


Optimize Network Performance with bandwidth and packet control

The QSW-M2106PR-2S2T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

LACP VLAN QoS IGMP Snooping
Link Aggregation combines multiple network connections to increase throughput and protect against connection failure. Virtual Networks allows groups of devices from different networks to be combined into a single network. QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation. IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

Powerful security and system functions

The QSW-M2106PR-2S2T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL LLDP RSTP Flow Control
Filters packets based on rules to offer firewall-like security protection. Allows devices to advertise device information to directly-connected peers/neighbors to simplify troubleshooting processes. Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic. Balances traffic between a sender and a receiver to avoid network congestion.

Intelligent PoE Functions for Efficient, Centralized PD Management

The QSW-M2106PR-2S2T supports intelligent PoE management functions, including scheduling, power supply prioritization, and enabling/disabling power via QSS. You can obtain real-time network connection status and power consumption information of Powered Devices (PD) and configure PDs simultaneously to promote an energy-saving PoE network.

PoE Power Consumption PoE scheduling and enabling PoE Power Supply Prioritization
View real-time information about the PoE power consumption of every port. Schedule PoE to be on/off based on business hours. You can also disable and enable power when disconnecting. Prioritize power allocation to critical PoE devices to ensure non-stop services.

Fully embrace High-Speed Networking with QNAP!

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

A switch that supports 2.5GbE/10GbE QNAP 2.5GbE/10GbE switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
A fast NAS A QNAP NAS with multiple 2.5GbE/10GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential.

Note: Managed Switch series support Port Trunking.
Upgrade desktops and servers Servers and desktops can install QNAP PCIe network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
Add a 5GbE/10GbE port to laptops Use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter or QNAP Thunderbolt 3 to 10GbE adapter to connect laptops and upgrade-limited computers to 5G/2.5G/1G/100M networks.

Extend hardware warranty up to 5 years

The QSW-M2106PR-2S2T is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Hardware Specifications:

  QSW-M2106PR-2S2T
Management Type Web Managed
Number of Ports 10
10GbE SFP+ 2
10GbE BASE-T (RJ45) 2
2.5GbE (RJ45) 6
Total PoE Ports 8
PoE++ PSE (802.3bt, 90W) Port 1-8 (90W)
PoE Power Output Port 1-8 (90W)
Total PoE Power Budget 310W
Power Supply Description Internal Power Supply Unit
Max. Power Consumption 350W
Input Power Type AC
Input Voltage Range 100-240VAC, 50/60 Hz
MAC Address Table 16K
Total Non-Blocking Throughput 55Gbps
Switching Capacity 110Gbps
Management Interface Web
Console RJ45
Energy Efficient Ethernet (IEEE 802.3az complaint)
Fan PWM VAPO Bearing fan x 2
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3an 10G BASE-T
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3af/at/bt Power-over-Ethernet (PoE)
Form Factor Rackmount
LED Indicators Per Port: Speed/Link/Activity
Per System: Status/PoE/Fan
Buttons Reset button
Dimensions (HxWxD) 43.3 x 207 x 248.8 mm
Weight (Net) 3.9 lbs
Weight (Gross) 5.6 lbs
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 5~95% Non-condensing
Certifications CE, FCC, VCCI, BSMI
Electromagnetic Compliance CLASS A
Jumbo Frames 9K
Warranty 2 Years
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
