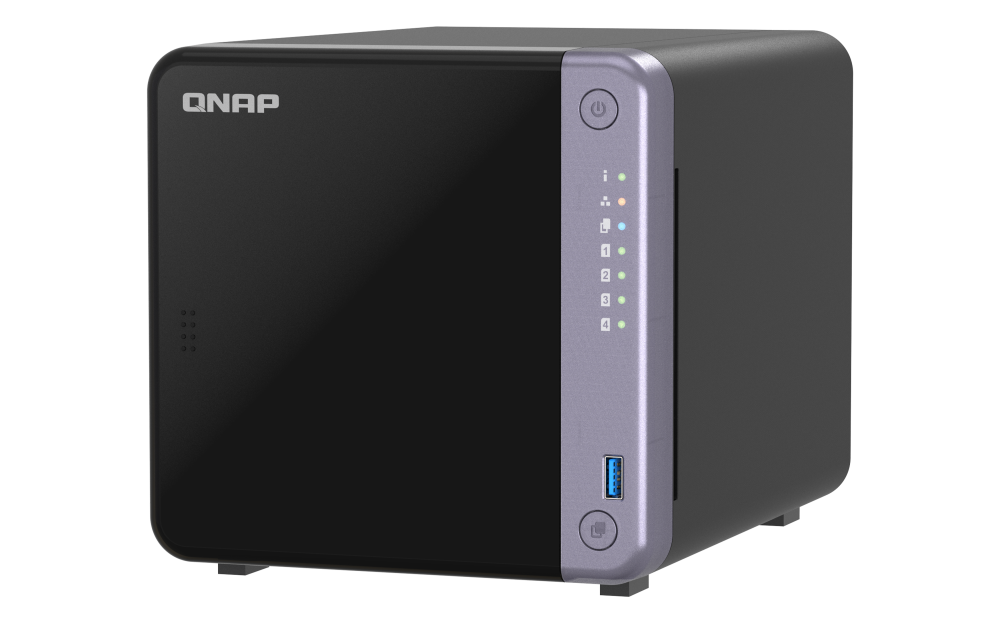

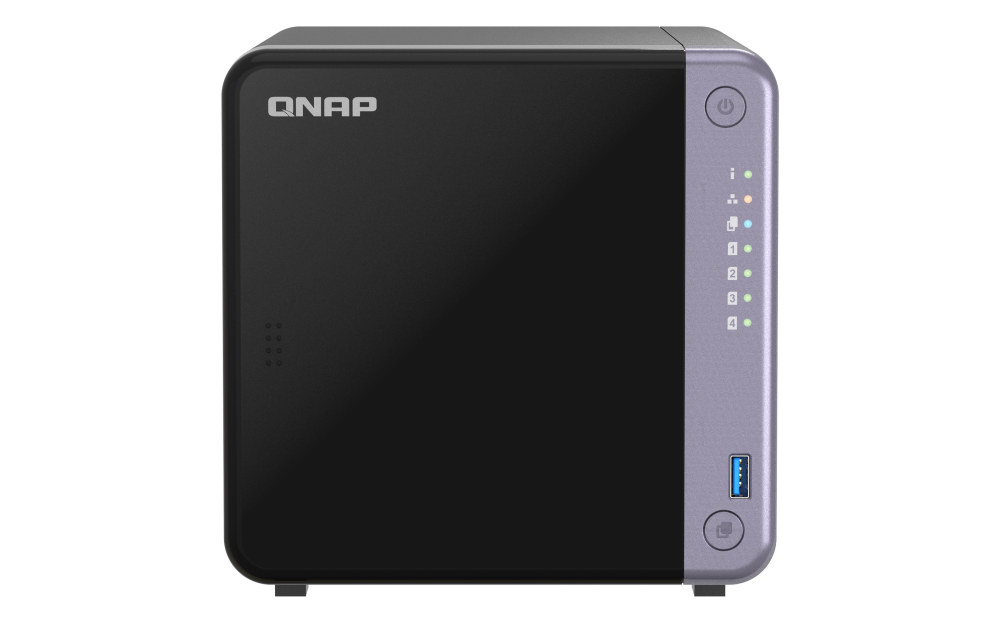

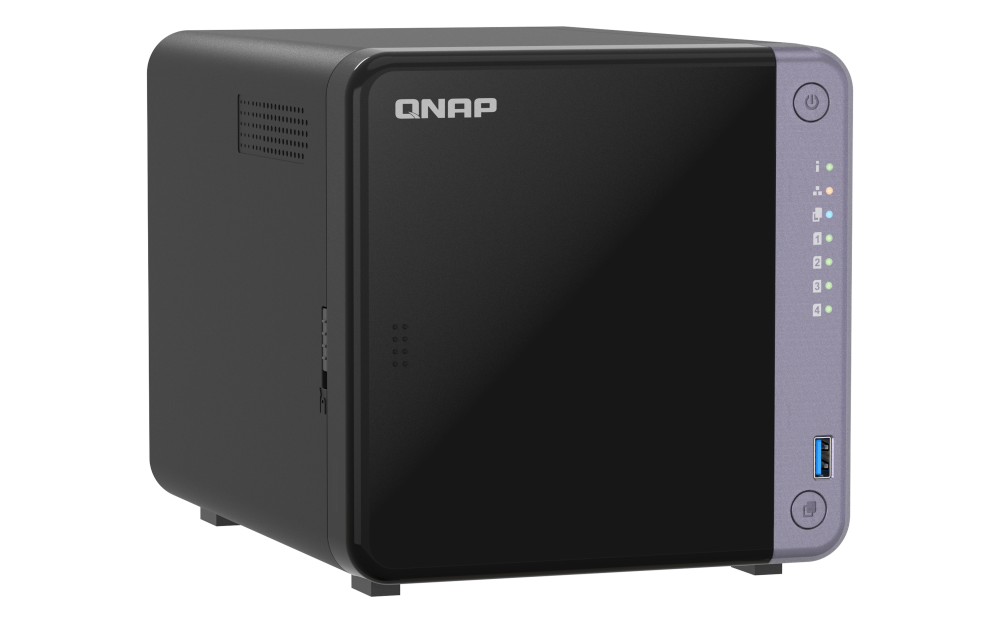

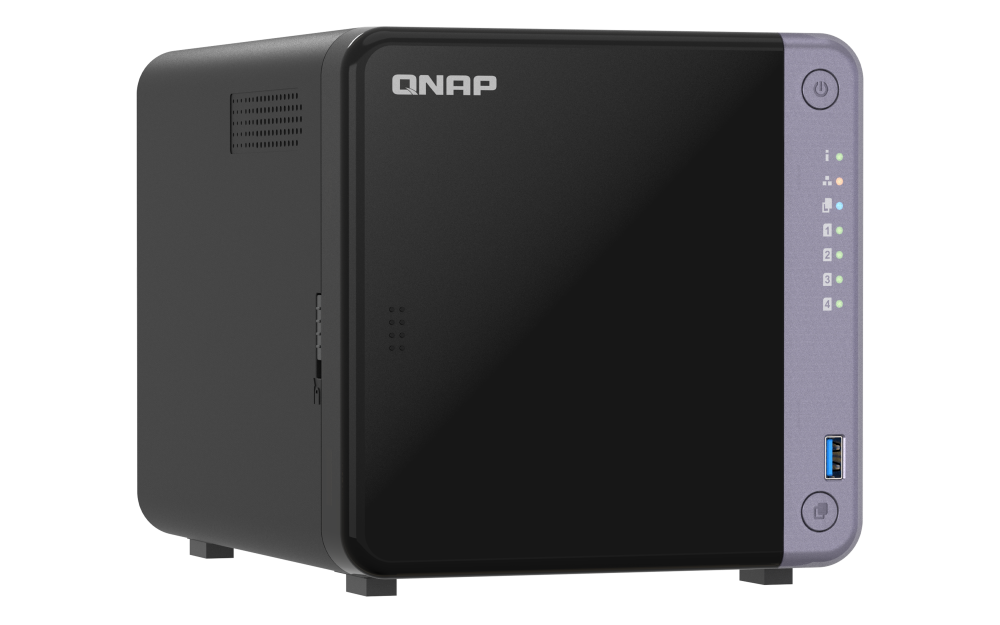

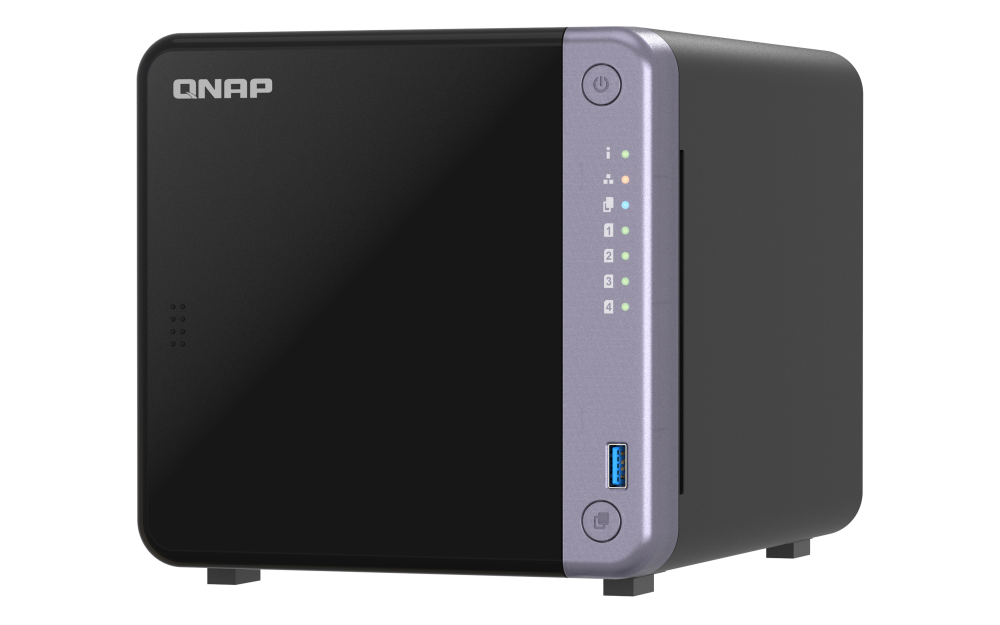

QNAP TS-432X
Cost-effective 4-bay 10GbE NAS, designed to accelerate your workloads



QNAP Products
Small Business Storage
QNAP 4-Bay ARM-based NAS with Hardware Encryption, Quad Core 2.0GHz, 4GB DDR4 RAM, 10GbE(SFP+), 2.5GbE and PCIe Gen3 Expansion Slot
Annapurna Labs AL524 4-core 2.0GHz, 4GB DDR4 RAM (max 16GB), 1 x 10GbE SFP+, 2 x 2.5GbE, 1 x PCIe Gen3, 2 x USB 3.2 Gen1 Expansion Slot
#TS-432X-4G-US
Our Price: $579.00

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Package Content

  • TS-432X Storage System
  • 1 x Ethernet cable
  • 1 x Power Cord
  • 1 x AC Adapter
  • 16 Flat Head Screw (for 3.5” HDD)
  • 12 Flat Head Screw (for 2.5” HDD)
  • Quick Installation Guide (QIG)

Overview:

Unlock the potential of 4-bay storage capacity and harness the speed of 10GbE with the TS-432X! This versatile storage solution offers secure backup, rapid transmission, support for container applications, and much more. Cost-effective yet powerful, the TS-432X streamlines workflow efficiency without exceeding your budget.



Available Models

  • TS-432X-4G-
    AnnapurnaLabs, an Amazon company Alpine AL524, 4-core, 2.0GHz, 4 GB SODIMM DDR4 (1 x 4 GB)

Quad-core for multitasking

Quad-core 2.0GHz processor and 4 GB non-ECC RAM (expandable to 16 GB, supports ECC RAM)

Dual-port 10GbE SFP+

High-speed 10GbE connectivity enhances transfer speed for intensive data transmission and shortens backup time.

2.5GbE is a must!

Leverage SMB Multichannel or Port Trunking with built-in dual 2.5GbE ports to increase bandwidth and access speed.

PCIe Gen 3 expandability

Install a PCIe expansion card to add 2.5/5/10GbE connectivity or M.2 SSD slots to the NAS for more I/O potential.

Faster USB transfer and backup

Two USB 3.2 Gen 1 (5Gbps) ports with One Touch Copy support allow faster backup to/from USB devices.

Centralized backup and snapshot protection

Easily back up different types of data and endpoints and create snapshots regularly to prevent ransomware threats.

Features:

High-performance yet energy-efficient quad-core processor

The TS-432X adopts a quad-core processor with built-in 4 GB of memory, offering excellent read/write performance at low power consumption, making it reliable for hosting versatile NAS applications in office.

Processor

Annapurna Labs, an Amazon company Alpine AL524 quad-core 2.0 GHz processor

Memory

Built-in 4 GB non-ECC RAM, upgradable to 16 GB and supports ECC RAM

Connections

2 x USB 3.2 Gen 1 (5Gbps) ports

Encryption Engine

Supports AES 256-bit encryption


Read/Write capabilities


SMB Sequential Throughout 1MB (2 x 2.5GbE) Read

590 MB/s

Write

590 MB/s

SMB Sequential Throughout 1MB (2 x 10GbE) Read

1181 MB/s

Write

887 MB/s

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:
NAS:TS-432X
OS:QTS 5.1.7.2743
Volume type:4 x Samsung 860 PRO 512GB, RAID 5, thick volume
Client PC: Windows Server 2019, Intel Core i7-6700 3.4GHz, 64GB RAM, w/ QXG-10G2SFCX4 & QXG-2G4T-I225
IOmeter : 16MB, 30-sec ramp up time, 3-min seq. run time, 16 workers, 4-outstanding


Enhance seamless workflows with 10GbE network

Create a flexible, high-speed network environment to optimize team collaboration.

  1. Quick direct access for individuals: Utilize the TS-432X's built-in 2.5GbE and 10GbE ports to achieve faster LAN speeds.

  2. Efficient collaboration with multiple users: Implement the TS-432X with expansion cards and QNAP 10GbE SFP+ switches to connect more devices.

TS-432X with 10GbE network


TS-432X with Multiply bandwidth

Multiply bandwidth for streamlined tasks

By using the built-in network ports or installing an expansion card, you can maximize the network bandwidth of the TS-432X by aggregating two or more same-speed network ports. Choose from the following options according to your needs:

SMB Multichannel:
Suited for small/home office users. Fulfill multiplied available bandwidth between NAS and directly-connected clients to accelerate file transfer speed.

Port Trunking:
Recommended for midsized to large businesses where IT infrastructure involves network switches and multiple end-users.

Note: The actual performance may vary depending on factors such as hardware configuration and network environment.


Abundant I/O capabilities with PCIe expansion

The TS-432X features a PCIe Gen 3 x 4 slot, supporting a variety of expansion cards to maximize application versatility.

QM2 card

QM2-2P2G2T

Add two 2.5GbE ports and two M.2 SSD slots at the same time.

QM2 card

QM2-2P-344A

Add two M.2 SSDs to create a storage pool or enable SSD caching.

Network expansion card

QXG-10G2T

Add two 10GbE ports that support five speeds.


Store, backup and video surveillance.

QNAP enables ALL.


Smart storage

QNAP’s exclusive apps provide easy-to-use file storage and collaboration tools. Snapshots also help protect important data from Ransomware.

Storage protection

Boost production efficiency


Volume and LUN snapshots

“Snapshots” record the complete status of your NAS system and data. Certain data and files can be reverted when needed.

Versioning

Regularly create snapshots. The more snapshots you have, the lower the risk of data loss.

Smart snapshot space management

QNAP supports smart snapshot space management to ensure there is enough storage space for new snapshots.


Qsync

Sync files between NAS and multiple computers or mobile devices.

Qsirch

Quickly find documents, media files, and emails using key words, colors, or faces.

Qfiling

Create filing rules and set schedules to automatically archive files into dedicated folders based on their category.

QuMagie

TS-432X leverages powerful AI photo management and creates smart photo albums based on people, objects, locations, and events, making photos easy to find and share.


Simple Backup

Superior hardware performance with an all-in-one Backup Solution to speed up backup/recovery tasks.

Back up all your devices

Remote Replication for NAS data


PC and Mac backup

Sync your computer files to NAS with Qsync. TS-432X also supports Time Machine for Mac computers.

File server backup

Supports multiple protocols such as Rsync, FTP and CIFS for backing up different file servers.

SaaS Business Backup Solution

Use Boxafe to easily back up Google™ Workspace and Microsoft 365® business account data.

Google Photos and WordPress backup

The exclusive MARS service enables backing up Google Photos and WordPress databases and files to NAS.


Back up data from one NAS to another NAS

Back up data on a local NAS to another remote NAS using Hybrid Backup Sync. You can also deduplicate your backup using QuDedup to save time and storage space.

Back up NAS data to the Cloud

Hybrid Backup Sync supports mainstream public cloud services for backing up or syncing data from NAS to Cloud.

Cloud Storage Gateway

VJBOD Cloud connects cloud object storage (Bucket) and back up data from NAS to the cloud.

Back up NAS snapshots

Use Snapshot Replica to back up NAS snapshots to another NAS and recover when needed.


Video Surveillance

Turn the TS-432X into a professional, all-in-one Surveillance NAS, which is compatible with over 8,000 IP cameras and ONVIF-compatible cameras.

Easy to set up:

Easily set up an integrated surveillance system by purchasing a subscription or perpetual licenses based on your needs.

Real-time monitoring from everywhere:

Monitor live feeds and receive alert event notifications from client applications on PCs or mobile devices.

Surveillance failover:

Implement a QVR Guard failover server to automatically takeover recording tasks if the host server fails.


Host container applications

If you are curious about Docker or are a hobbyist developer, Container Station on the TS-432X integrates Docker® lightweight virtualization technology, allowing you to run all kinds of self-contained applications. You can download apps from the built-in Docker Hub®, including popular and fully-configured applications, and deploy them with just one click. From smart homes to multimedia applications, you can explore your creativity and bring containerized applications to life.

Besides Container Station, more apps (including tools for backup/sync, content management, communications, download, and entertainment) are available from the App Center. Simply click and install on-demand to further extend the functionality of your TS-432X.


Enhanced cybersecurity and data protection

The TS-432X is loaded with comprehensive privilege settings and protection measures to block malicious attackers and ensure that data in the NAS are secure.

Account security

Administrators can manage the access permissions of multiple NAS through shared folder permission settings. Multi-factor authentication (MFA) is supported to prevent password cracking and unauthorized access.

Secure remote access

Access your NAS from anywhere using myQNAPcloud Link, providing secure connections via the Internet. You can also enhance security by setting up a VPN connection to your NAS using QVPN.

NAS Firewall

QuFirewall restricts and blocks suspicious packets sent by proxy servers and the onion routing (Tor) based on user rules. It also dynamically updates its block list based on detected malicious packets.

Malware Protection

Malware Remover regularly scans your NAS using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.


Drive health check & failure prediction

The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.

Comprehensive overview

Quickly check life prediction scores and drive health status.

Visual insights

Identify drive information in each drive bay/slot, and view recommendations.

Advanced diagnostics & alerts

Acquire proactive detection and receive replacement warnings based on 24-hour disk usage data collection.

sustainable

Less packaging. More sustainability.

The TS-432X come in a lighter protective package, ensuring their safety while reducing waste.

Extend hardware warranty up to 5 years

The TS-432X is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.


Specifications:

  TS-432X-4G
CPU AnnapurnaLabs, an Amazon company Alpine AL524, 4-core, 2.0GHz
CPU Architecture 64-bit ARM
Floating Point Unit
Encryption Engine
System Memory 4 GB SODIMM DDR4 (1 x 4 GB)
Maximum Memory 16 GB (1 x 16 GB)
Memory slot 1 x SODIMM DDR4
Support ECC memory
Flash Memory 512 MB (Dual boot OS protection)

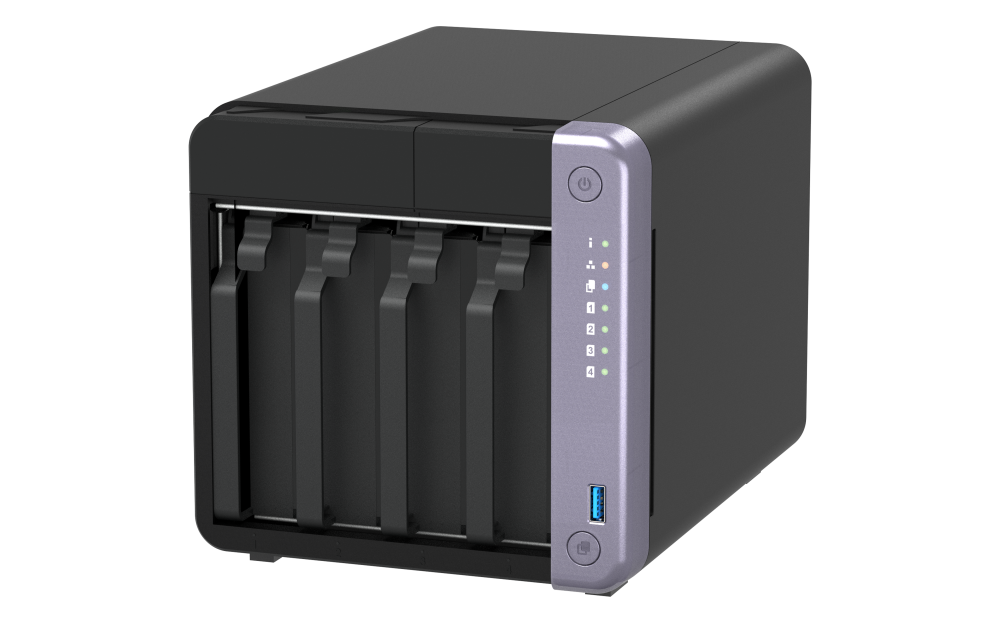

Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

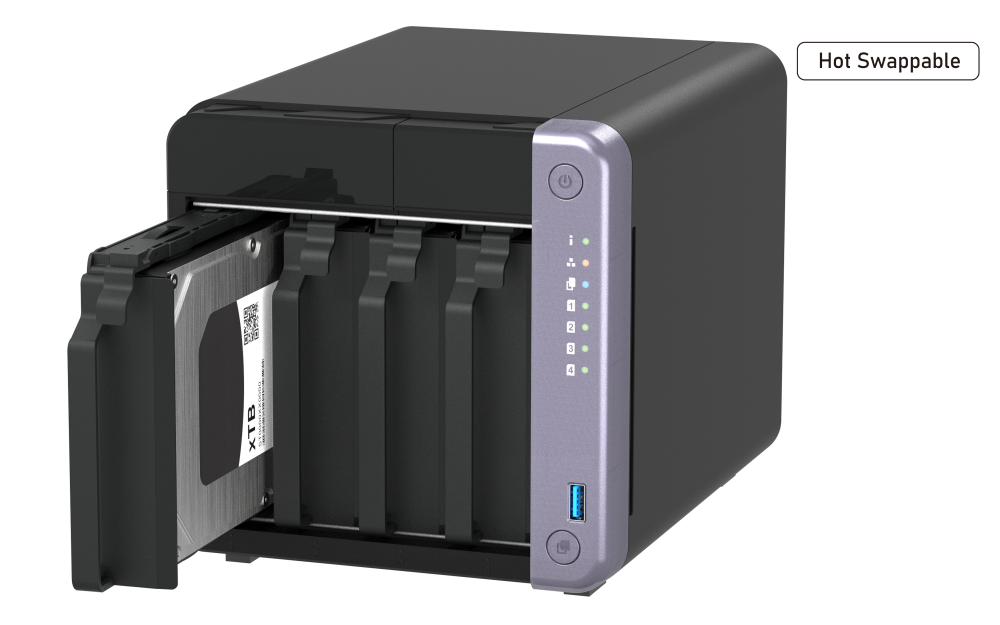

Hot-swappable
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2(2.5G/1G/100M)
10 Gigabit Ethernet Port 1 x 10GbE SFP+
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 1
Slot 1: PCIe Gen 3 x4

Card dimensions for PCIe slot:190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
USB 3.2 Gen 1 port 2
Form Factor Tower
LED Indicators Power, Status, LAN, USB, HDD1-4
Buttons Power, Reset, USB Auto Copy
Dimensions (H x W x D) 8.92 × 6.69 × 6.5 inch
Weight (Net) 4.39 lbs
Weight (Gross) 10.58 lbs
Operating temperature 0 - 40°C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit 90W adapter (12VDC), 100-240VAC
Fan 1 x 120mm, 12VDC
System Warning Buzzer
Kensington Security Slot
Standard Warranty 2

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
