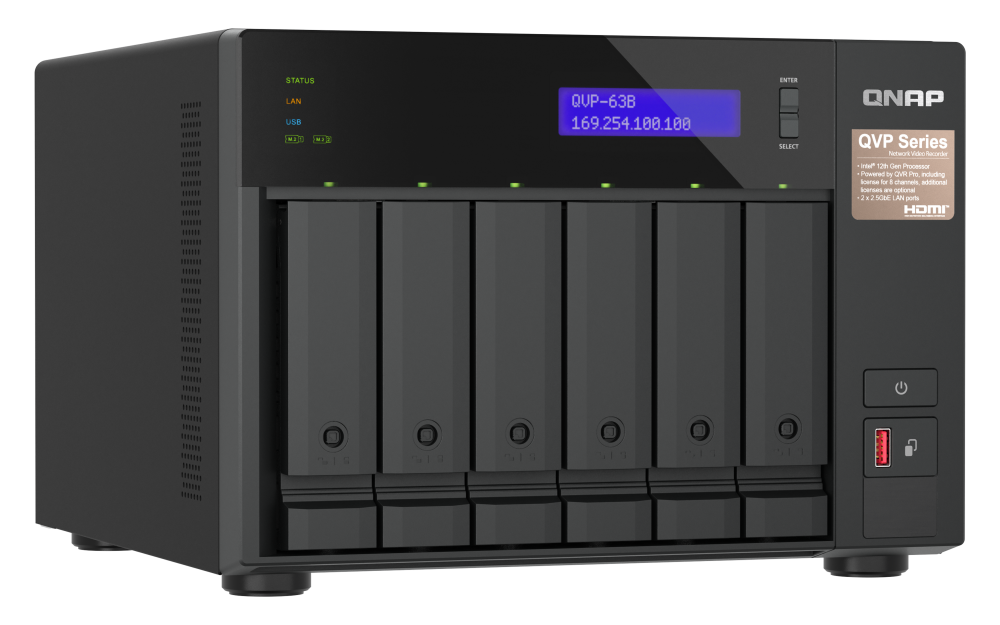

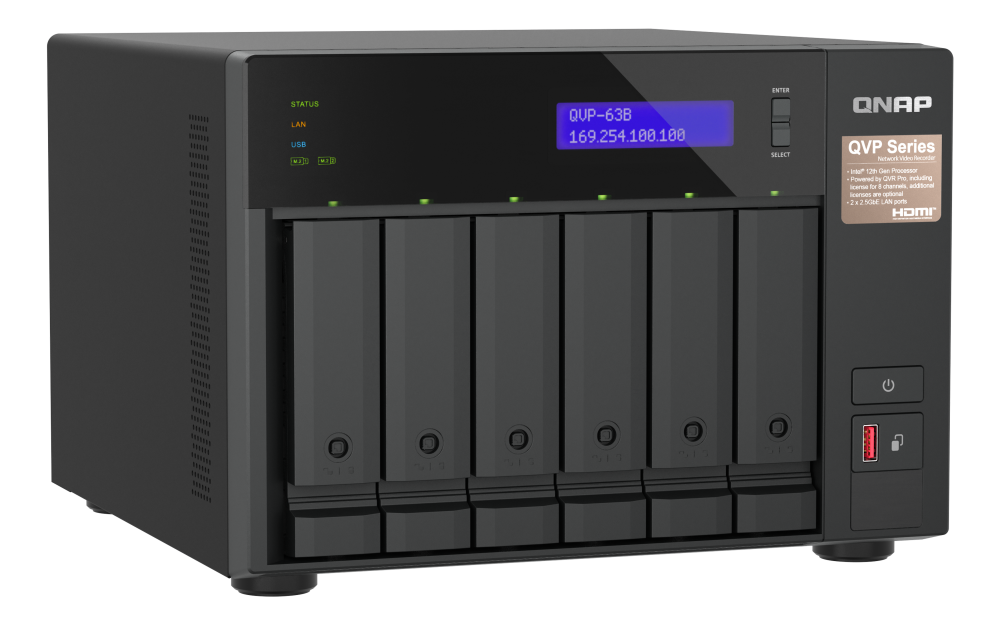

QNAP QVP-63B
6-bay high-performance NVR for SMBs and SOHO
Intel® Core™ i3 4-core/8-thread Processor, 16GB RAM, SATA 6Gb/s, 2 x M.2, 2.5 GbE LAN x 2
Our Price: $1,699.00
Click here to jump to more pricing!
Package Content
- QNAP QVP-63B
- 1 x Power cord
- 1 x Ethernet cable
- 24 x Flat head screw (for 3.5″ HDD)
- 18 x Flat head screw (for 2.5″ HDD)
- 2 x M.2 SSD Heatsink
- 2 x Drive tray keys
- Quick Installation Guide
Overview:
The QVP-63B QVR Pro is a tower-based network surveillance server with an Intel® Core™ multi-core processor that supports eight free IP camera channels and up to thirty-six IP camera channels. Offering an economic and high-performance software and hardware integrated video surveillance solution, the QVP-63B fulfills requirements for secure, reliable, and centrally-managed video surveillance storage for small businesses and offices.
Support ONVIF cameras
Supports thousands of cameras from over 190 brands and ONVIF standards.
Surveillance management
Monitor and manage cameras from Windows®, Mac® and mobile devices.
Storage scalability
Add storage space to the QVP-63B by using QNAP expansion units.
QVP-63B vs. other NAS-based surveillance systems. What’s the difference?
In a conventional NAS-based surveillance system, surveillance is just one of many applications available to users. As all these applications need to share NAS system resources and storage space, surveillance performance could be impacted. The QVP-63B QVR Pro Appliance overcomes this by providing dedicated storage space and reserving full system resources for surveillance, delivering the utmost performance to fulfill professional surveillance system requirements. The QVP-63B also comes with built-in camera channel licenses and essential applications to enable local installation without requiring an internet connection. Simply install the hard drives and power up the QVP-63B to start the installation process.
Features:
High-capacity video surveillance storage solution
QVP-63B is a professional network surveillance server, compatible with 6,000+ IP cameras of 190+ brands and thousands of ONVIF network cameras.
Build a complete surveillance solution with affordable deployment
Live surveillance monitoring, remote management, and smart AI
All-in-one surveillance
Say goodbye to expensive and complicated PC NVR. QNAP network surveillance server integrates QVR Pro software and high-performance hardware.
Direct video playback
QVP-63B has HDMI™ output for direct surveillance video playback, removing the need for a dedicated workstation.
Surveillance failover
Install the high-availability QVR Guard app on another NAS to automatically takeover recording tasks if QVP-63B fails.
Live surveillance video monitoring
Monitor live feeds and receive alert notifications from client applications on PCs or mobiles.
Large-scale central management
Centrally control up to 256 Surveillance NAS (licenses sold separately) in different locations via QVR Center.
AI surveillance event search
Instead of manually searching through a whole day of event videos, QVR Smart Search helps you efficiently search through hundreds of hours of video recordings from hundreds of cameras to find specific events.
MP4 surveillance videos
Videos are saved using the non-proprietary MP4 video format.
Comprehensive camera support and management
The QVP-63B supports thousands of camera models from over 190+ brands with a variety of image formats (including cameras that use ONVIF and RTSP/ HTTP streaming). Even USB webcams are supported, allowing home and budget-conscious users to quickly build surveillance solutions tailored to their environment while providing convenient camera management.
Motion detection using budget-friendly USB webcams
Standard surveillance systems normally only support event recording and notification functions for expensive cameras with integrated motion detection. The QVP-63B provides motion detection even for entry-level cameras and USB webcams. As long as your camera can stream its footage to the QVR Pro appliance (e.g. through RTSP protocol) it supports motion detection, allowing you to build a budget-friendly, motion-detecting surveillance system.

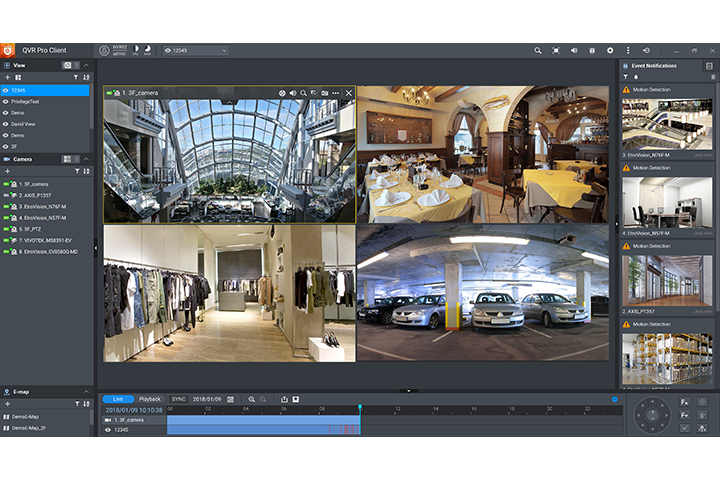

QVR Pro Client
The QVR Pro Client software can be installed on Windows® and Mac® devices, allowing you to monitor from different platforms and flexibly switch from live view or playback mode to take full control over monitored areas.
Live view and playback
Monitor the live view of multiple channels and play recordings on a single interface. You can also view recordings at a specific time by clicking the timeline or by defining a time range.

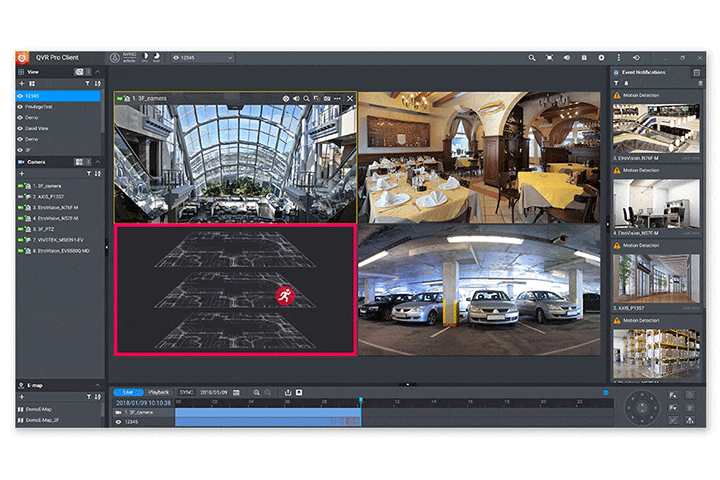

Multiple Notification Methods
The event notification provides multiple ways of being informed of emerging events, including flashing red borders of channels, alert buzzers, and the motion icon on the e-map.

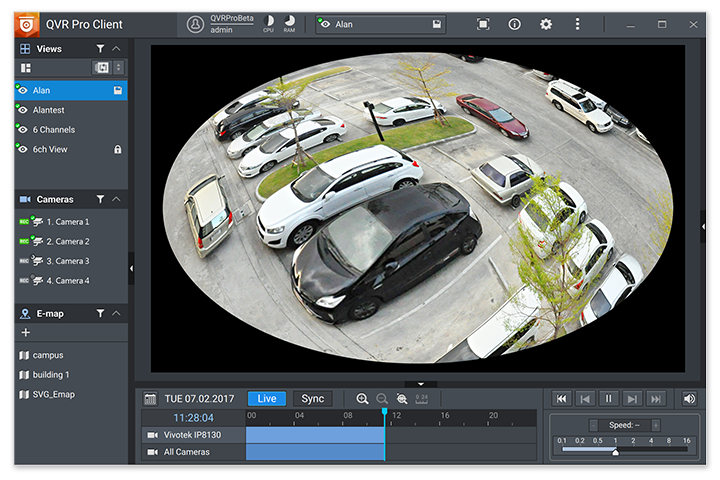

Qdewarp Technology
The innovative Qdewarp enables users to view standard fisheye camera recordings in proportional ratios and sizes without affecting original recordings. The distorted parts on the edges can be turned into a clear panoramic view.

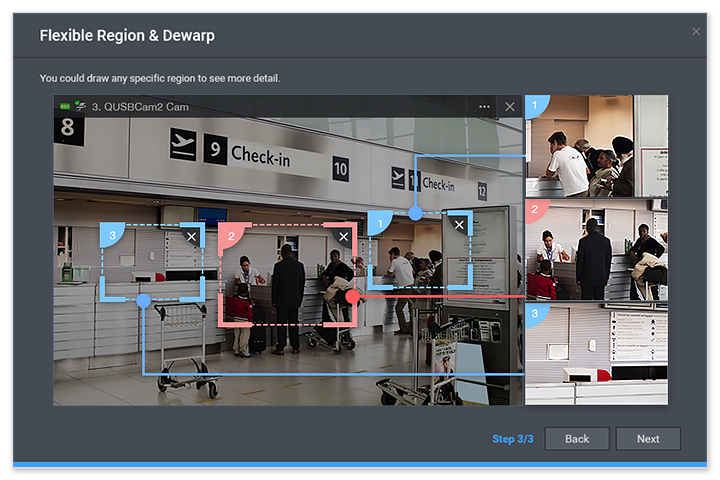

Region of Interest
The Region of Interest (ROI) feature allows for viewing multiple regional images from the same camera in live view and playback mode. You can define and enlarge multiple areas to watch the area more closely.

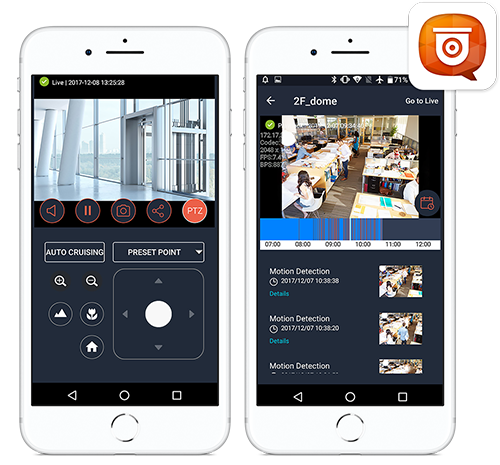

Easy remote monitoring with the QVR Pro Client mobile app
The QVR Pro Client mobile app allows you to remotely monitor multiple channels simultaneously. If your network connection is slow or metered/capped, you can choose the low-bandwidth mode to view a bandwidth-optimized stream without affecting the quality of recordings. In addition, you can remotely set the camera’s preset point or control the PTZ cameras within the app.
Expand your surveillance applications – Control, failover, and facial recognition
QVR Center
QVR Pro Control Center
Centrally manage multiple QVR Pro servers installed in different areas. You can also centrally monitor live feeds, play back recordings and receive event notifications from multiple QVR Pro servers, helping you reduce response times to events.
QVR Guard
High-availability Failover Management
Protect QVR Pro from system failure to ensure uninterruptible surveillance recordings. If your QVR Pro fails or crashes, QVR Guard automatically takes over recording tasks, providing dependable redundancy for your surveillance system.
QVR Face
Smart facial recognition and analytics
Obtain real-time video analytics from connected cameras and use them to set profiles, groups, and event notifications for instant facial recognition. This is ideal for smart retail, door access management, and VIP welcoming systems.
Smoother surveillance streaming with 2.5GbE connectivity
Connect the two built-in 2.5GbE ports to a QNAP 2.5GbE switch to benefit from a smoother surveillance streaming experience.
Flexible Storage Expansion
Connect TL SATA JBODs: TL-D400S, TL-R400S, TL-D800S, TL-D1600S to expand the storage capacity of the QVP-63B to accommodate data and business growth.
Extend hardware warranty up to 5 years
The QVP-63B is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Hardware Specifications:
| QVP-63B | |
|---|---|
| OS | QVR Pro OS (QVP) |
| CPU | Intel® Core™ i3 4-core/8-thread Processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics 730 |
| Hardware-accelerated Transcoding | |
| System Memory | 16 GB SODIMM DDR4 (1 x 16 GB) |
| Maximum Memory | 64 GB ( 2 x 32 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Max Live Cameras (Local Display) | 50ch @ All 720p,H.264, 30FPS 30ch @ All 1080p,H.264, 30FPS |
| Max Playback Cameras (Local Display) | 16 |
| Max Concurrent Connection (Client) | 16 (4 live cameras / per remote client) *The number of client concurrent connection varies by live cameras |
| Embedded Channel | 8 |
| Max Channel | 36 H264 / 1920x1080 / 30FPS |
| Max Throughput | 1188 Mbps |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 SSD Slot | 2 x M.2 2280 PCIe Gen4 x4 slots |
| 2.5 Gigabit Ethernet Port | 2 |
| PCIe Slot | 2 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 2 x Type-A USB 3.2 Gen 2 10Gbps |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-6, Status, LAN, USB port, M.2 port |
| LCD Display/ Button | Yes |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 7.41 × 10.41 × 11.06 inch |
| Weight (Net) | 13.93 lbs |
| Weight (Gross) | 5.34 kg |
| Operating temperature | 0 - 40°C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6°F) |
| Power Supply Unit | 250W, 100-240V |
| Power Consumption: HDD Sleep Mode | 39.911 W |
| Power Consumption: Operating Mode, Typical | 79.363 W With WD10EFRX drives fully populated |
| Fan | System fan: 2 x 92mm, 12VDC CPU fan: 1 x 60mm, 12VDC |
| System Warning | Voice prompts or Buzzer |
| Tray Locker | Yes |
| File System: Internal Hard Drive | EXT4 |
| RAID Recovery | |
| Online RAID Capacity Expansion | |
| Online RAID Level Migration | |
| RAID 10+ hot spare | |
| RAID 10 | |
| RAID 6+ hot spare | |
| RAID 6 | |
| RAID 5+ Spare | |
| RAID 5 | |
| RAID 1 | |
| JBOD | |
| Single Disk | |
| Global Hot Spare | |
| Wake on LAN (WOL) | |
| Schedule Power On/Off (15 settings) | |
| Telnet & SSH logins (Admin only) | |
| Syslog Server & Client | |
| Language | English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
