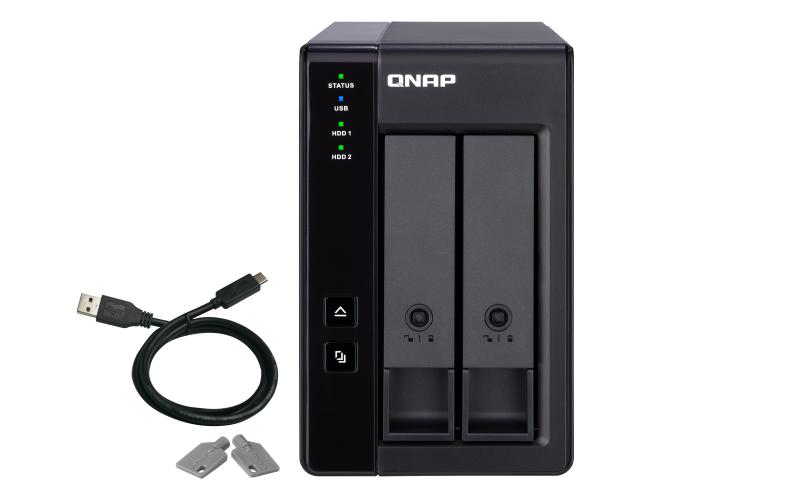

2-bay USB 3.1 Gen. 2 RAID Expansion Enclosure

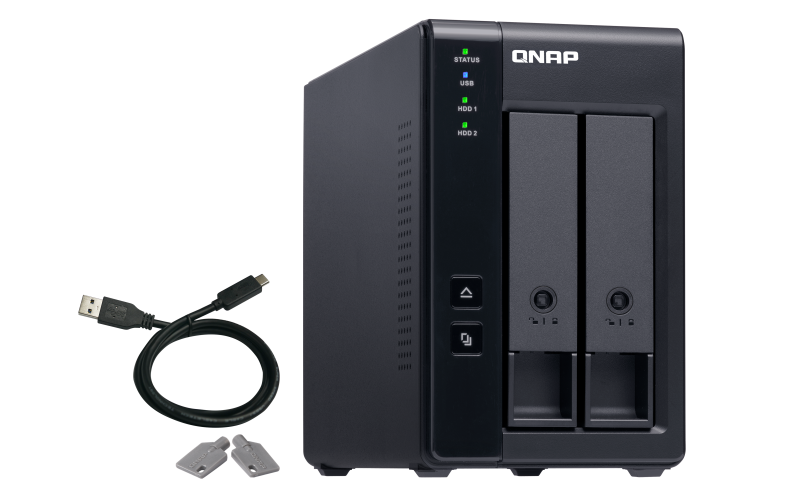

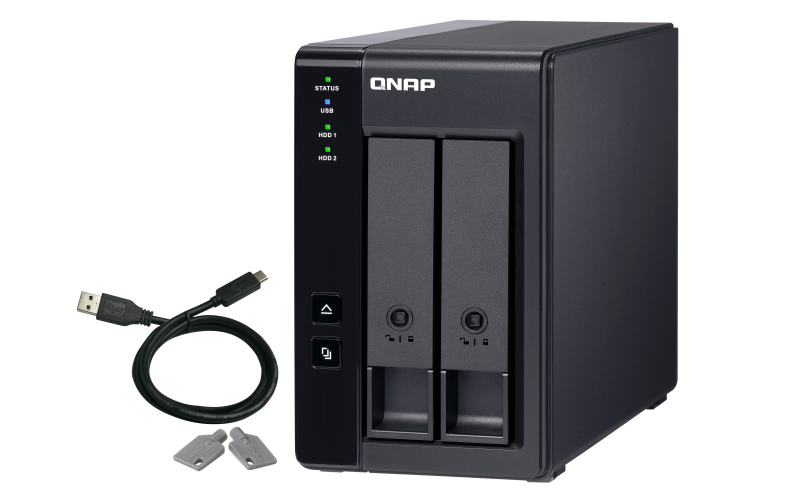

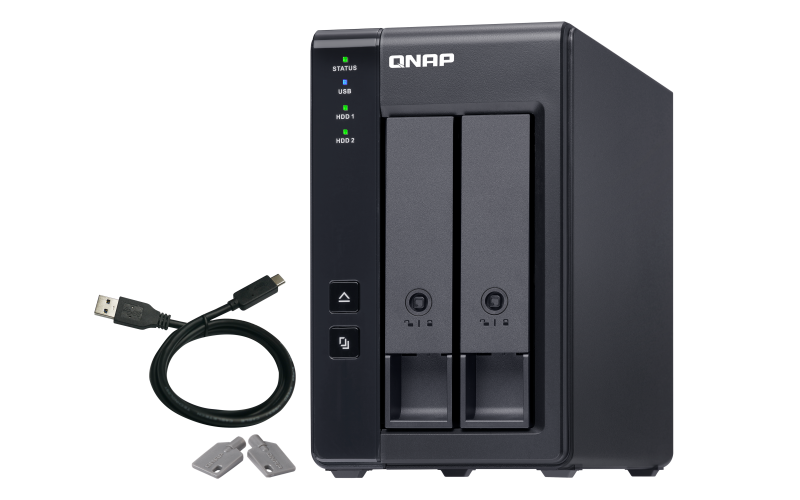

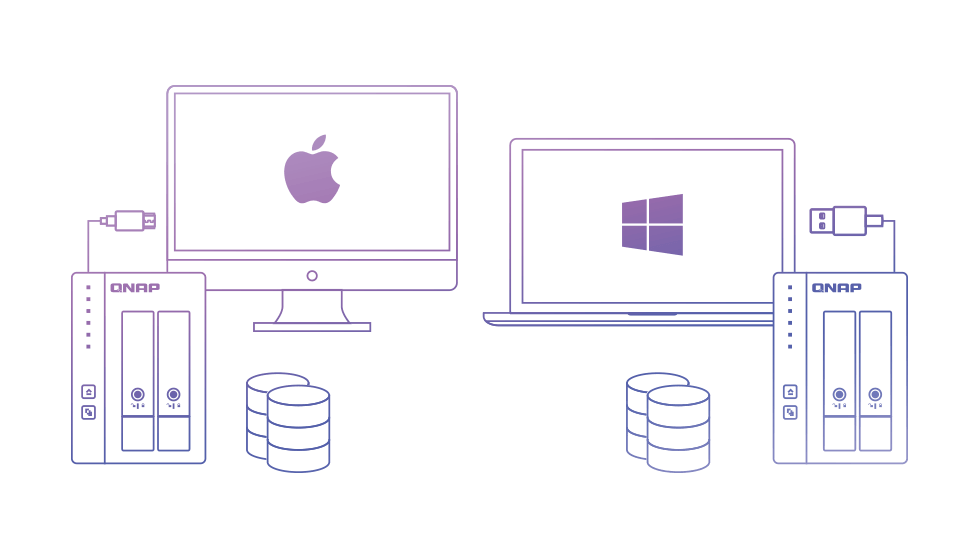

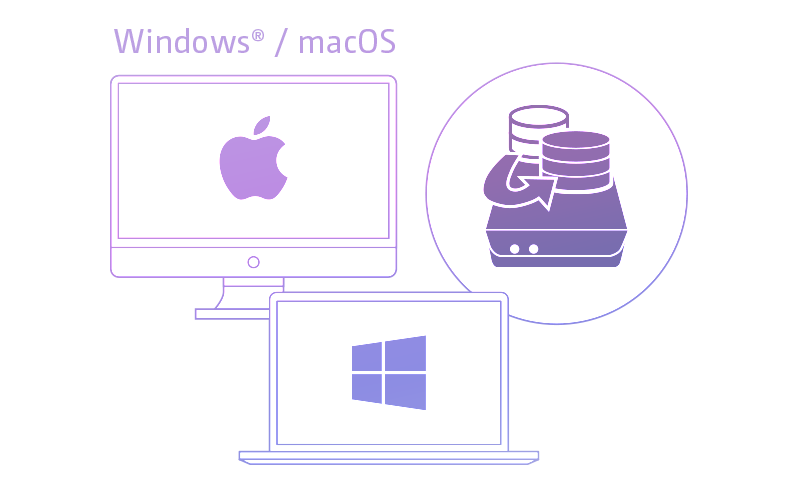

USB-C to USB-A cable included. Expansion unit for QNAP NAS, Windows, Mac, Linux computers.
Our Price: $159.00

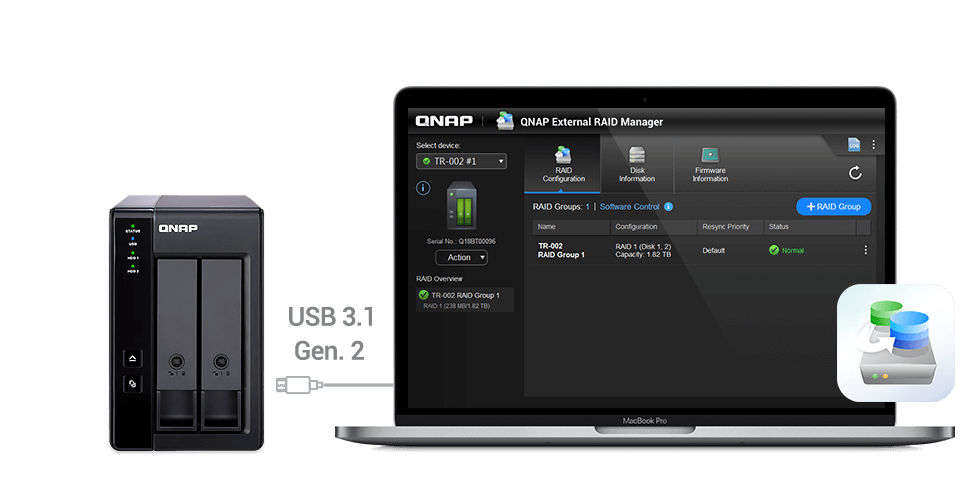

USB 3.1 Gen. 2 Type-C port for faster data transfer.
Supports up to two SATA drives.

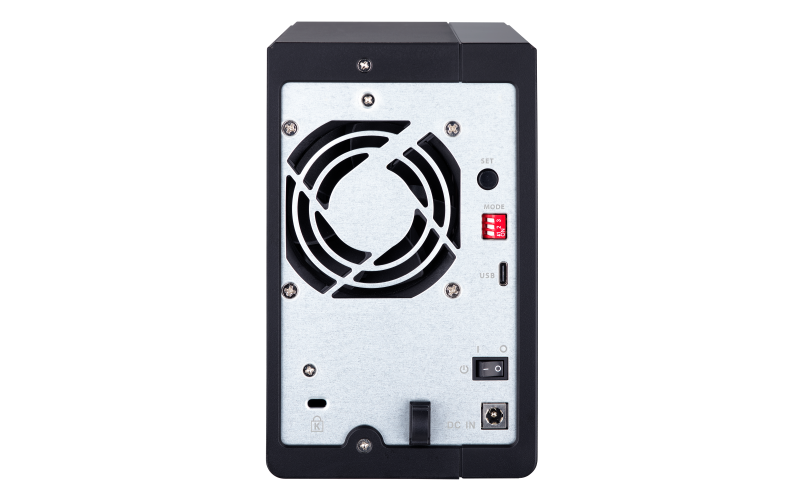

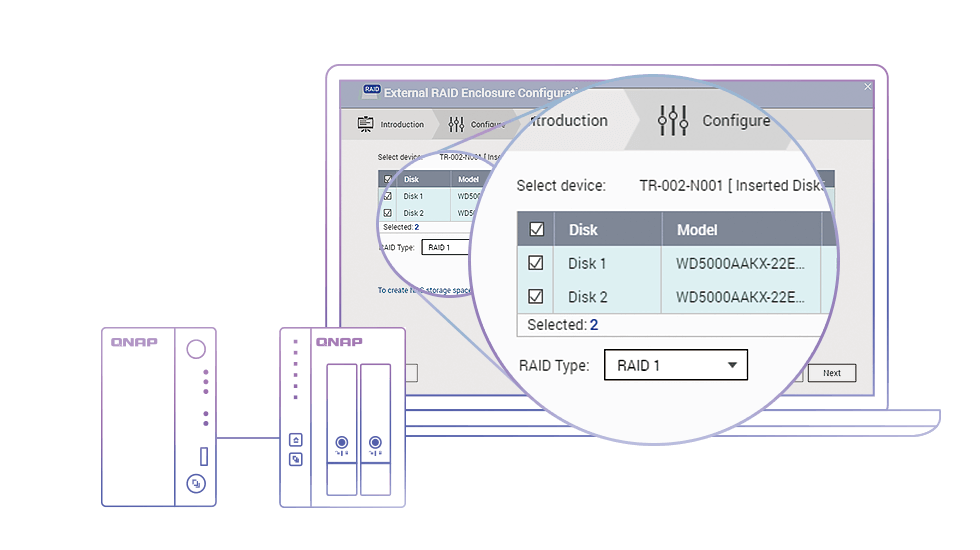

Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.

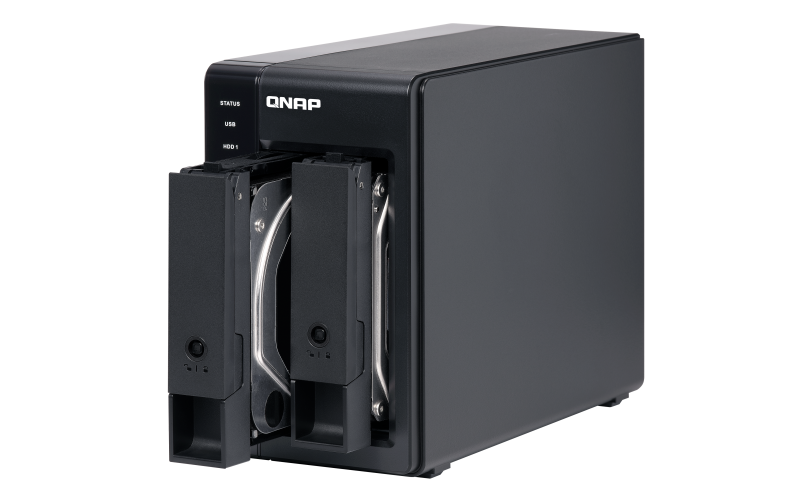

Lockable hard drive trays to prevent accidental drive removal.
Eject button for disconnecting the TR-002 from a NAS or computer*.
*Requires the QNAP External RAID Manager utility.
Instantly back up files from the TR-002 to the NAS using the One Touch Copy button**.
**Requires a QNAP NAS with a one touch copy button when in external drive mode. This feature will be supported in 2019 Q2.
|Drive Bay||4 x 3.5-inch SATA 3Gb/s|
|Drive Compatibility||• 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
• 2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
• 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
|Lockable with key lock||Key lock|
|USB Port||1 x USB 3.0 Type-C
NOTE: This port is only for connecting the RAID enclosure to a NAS or computer.
• One Touch Copy
• RAID modes: Software Ctrl, Individual, JBOD, RAID 0/1/5/10
|Dimensions (H x W x D)||168.5 x 160.2 x 219 mm
6.63 x 6.31 x 8.62 inch
|Weight||1.85 kg (4.08 lbs)|
|Power Supply Unit||65W, 100-240V AC, 50/60 Hz|
|Power Consumption (W)||HDD standby: 4.17 W
In operation: 18.21 W
(with 4 x 1TB HDDs)
|Sound Level||18.1 db(A).|
|Operating Temperature & Relative Humidity||0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)|
|Fan||System: 1 x 12 cm, 12V DC smart fan|
|Security Slot||Kensington security slot|
Datasheet for QNAP TR-002 is coming soon.
- Pricing and product availability subject to change without notice.
