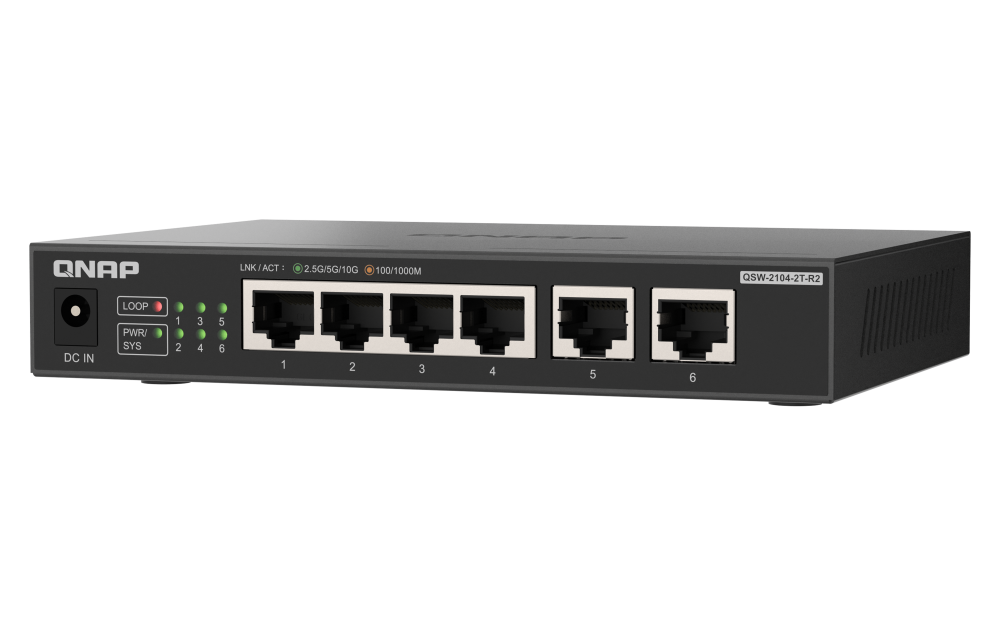

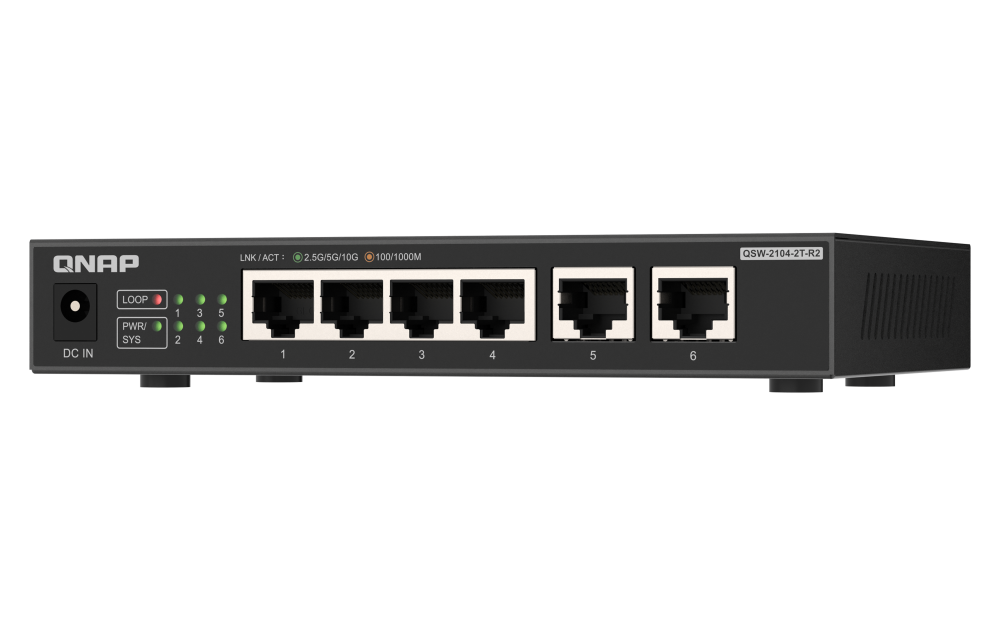

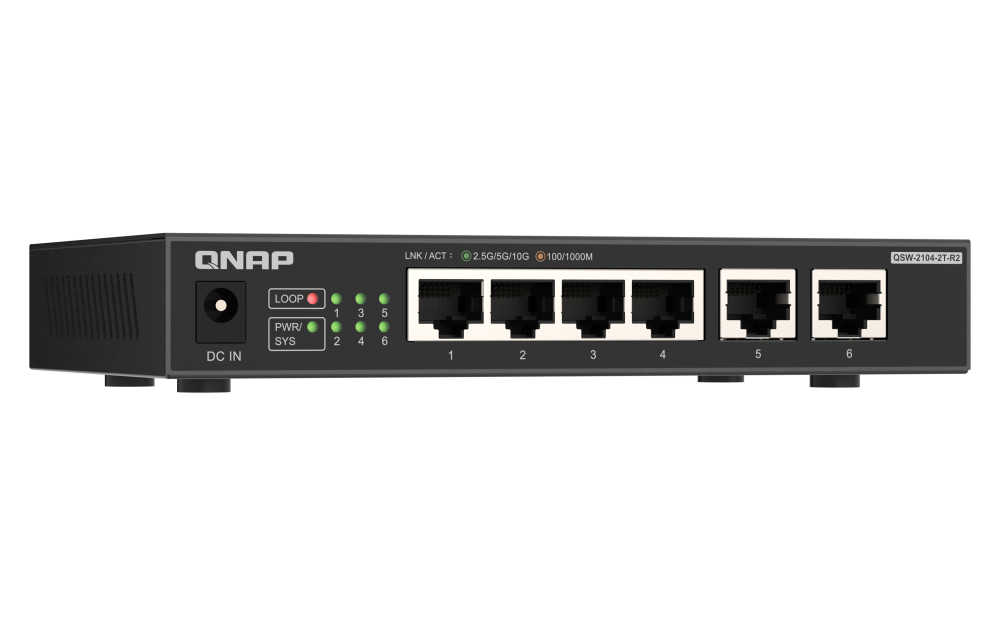

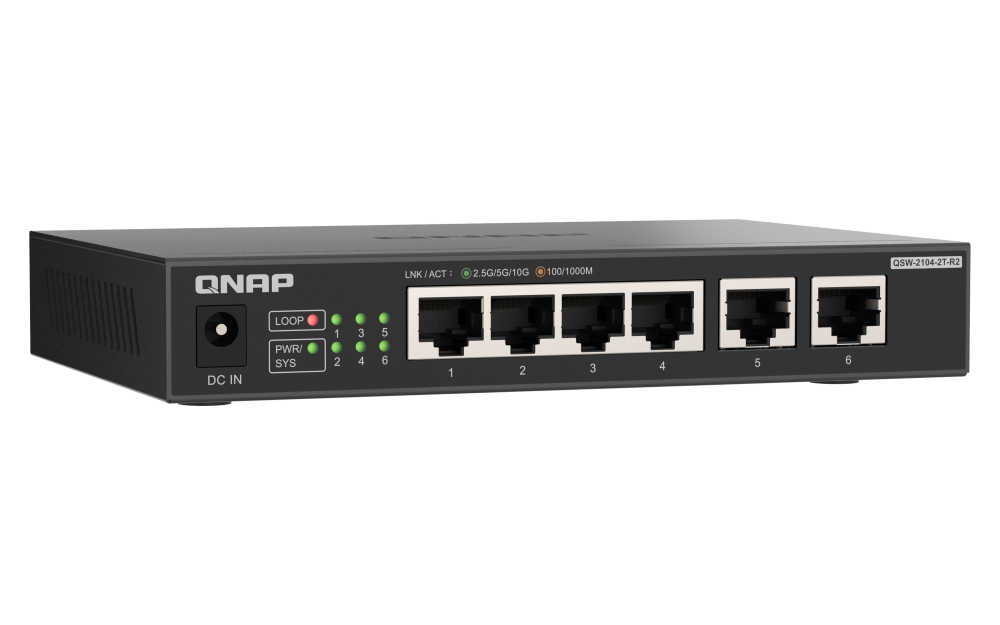

QNAP QSW-2104-2T-R2
4-port 2.5GbE and 2-port 10GbE Multi-Gig unmanaged switch. Affordably upgrade to high-speed networking.
Our Price: $119.00
Click here to jump to more pricing!
Package Content
- QNAP QSW-2104-2T-R2 Switch
- Power supply
- Bracket screws
- Anchors
- Foot pads
- Quick Installation Guide
Overview:
Upgrade now with our wallet-friendly compact 6-port high-speed switch! The QNAP QSW-2104-2T-R2 unmanaged switch with four 2.5GbE ports and two 10GbE ports allows you to upgrade to stable high-speed networking at an affordable price. Integrated seamlessly with Wi-Fi 6/6E/7 for optimal wireless network performance, the QSW-2104-2T-R2 is perfect for offices and multimedia teams, providing high-speed data transfer, large file sharing, and efficient collaborative workflows. The QSW-2104-2T-R2 is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
2.5G/10G Multi-Gig speeds
4x 2.5GBASE-T RJ45 ports supporting speeds: 2.5G, 1G, and 100Mb. 2x 10GBASE-T RJ45 ports supporting five speeds: 10G, 5G, 2.5G, 1G, and 100Mb. Provides 60Gbps switching capacity.
Plug and play
No complicated setup required. The QSW-2104-2T-R2 automatically sets the best transfer speeds based on connected devices. There’s no need to upgrade or replace older hardware immediately.
Desktop design
Light, compact, and compliant with EEE low-power energy-saving and EMC Class B, ideal for indoor environments.
Silent operation
Fanless, ultra-quiet design with efficient heat dissipation, ensuring a noise-free working environment.
Ensure stable network
Built-in loop detection and blocking automatically detects and blocks any network loops, ensuring smooth and uninterrupted network performance.
Jumbo Frame supported
Supports 12K jumbo frame transmission, improving large file transfer efficiency and reducing packet loss rates.
Features:
Your compact cost-efficient 2.5GbE/10GbE switch is here!
Want to upgrade to 2.5GbE/10GbE but find the price too high or the setup too complicated? Don't worry—QSW-2104-2T-R2 is an affordable, entry-level 2.5GbE/10GbE switch. Its BASE-T ports work with existing network cables (CAT 5e/CAT6/CAT7), which allow you to simply plug and play without extra expenses and configuration. With six ports and a compact desktop form factor, upgrading to 2.5G/10G network is simple and hassle-free.

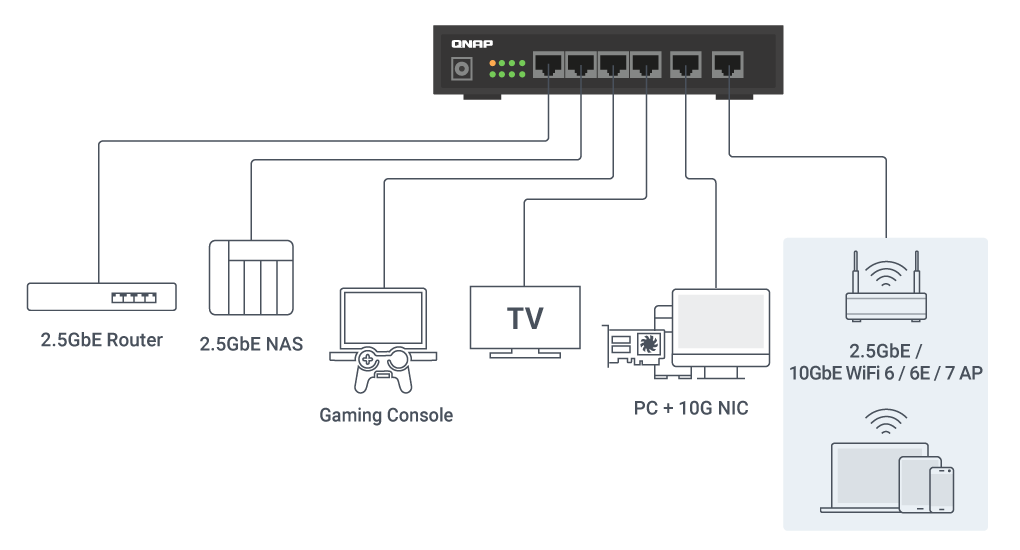

10GbE speeds, 10x faster performance
The QSW-2104-2T-R2 features 4x 2.5GBASE-T and 2x 10GBASE-T Ethernet ports, supporting NBASE-T™ technology and Multi-Gigabit standards to offer 2.5G / 1G / 100Mb and 10G / 5G / 2.5G / 1G / 100Mb speeds. The switching capacity of QSW-2104-2T-R2 is 60Gbps, guaranteeing the full potential of each connected device, including computers, laptops, NAS, and Wi-Fi 6/6E/7 access points. The QSW-2104-2T-R2 is perfect for use in offices, small/medium-sized businesses, and video studios requiring high-speed networking for seamless file transfers, high-speed backups, virtual machine applications, or multimedia content creation and sharing. Connect to TV boxes or gaming consoles in homes to enable faster and smoother entertainment.

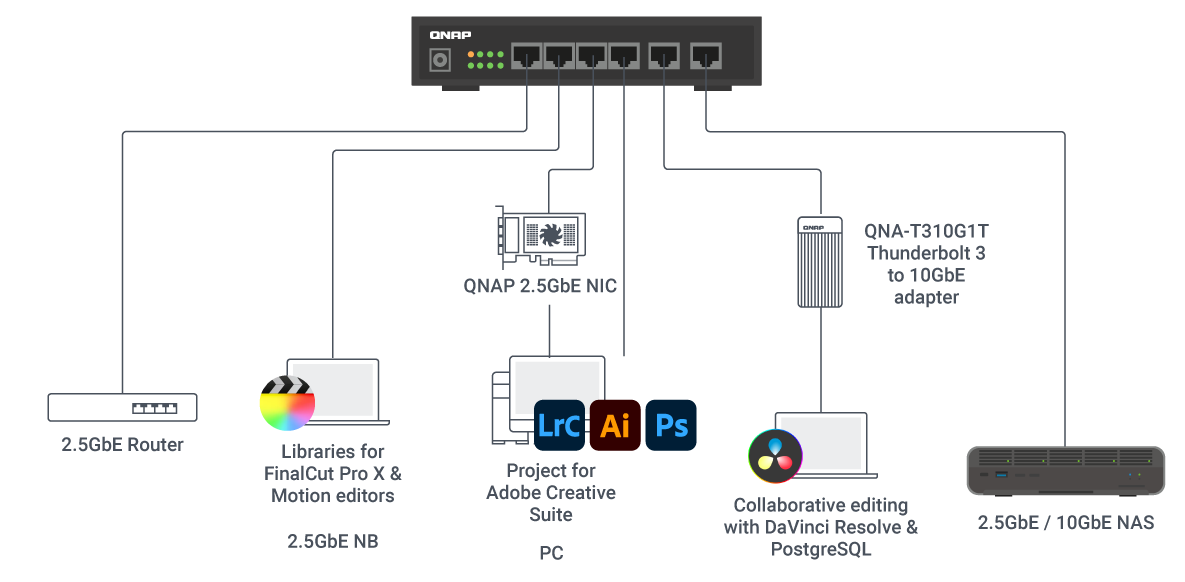

Easily build a 10GbE high-speed video editing and collaboration environment
Setting up the QSW-2104-2T-R2 is as easy as connecting it to your NAS and workstations, immediately realizing a 2.5GbE/10GbE multi-user collaboration environment. High-speed access, sharing assets, and editing 4K/8K video files has never been easier, allowing you to focus on your work instead of managing a network.
Auto-negotiation and Flow Control for optimized network performance
- Supports Auto Negotiation to automatically detect optimal transmission speeds (10G/5G/2.5G/1G/100Mb) based on connected devices, eliminating the need to replace old equipment.
- Supports a 4K MAC Address Table and Jumbo Frame 12KB, improving network transmission efficiency.
- Supports IEEE 802.3x Flow Control to prevent packet loss during congestion.
Loop detection and blocking for normal network operation
The QSW-2104-2T-R2 features network loop detection. If a network loop is detected, the QSW-2104-2T-R2 automatically locks the looped ports to ensure the network environment quickly resumes normal operation. Network loops may also occur within a region, and the system can detect and handle such situations as well.

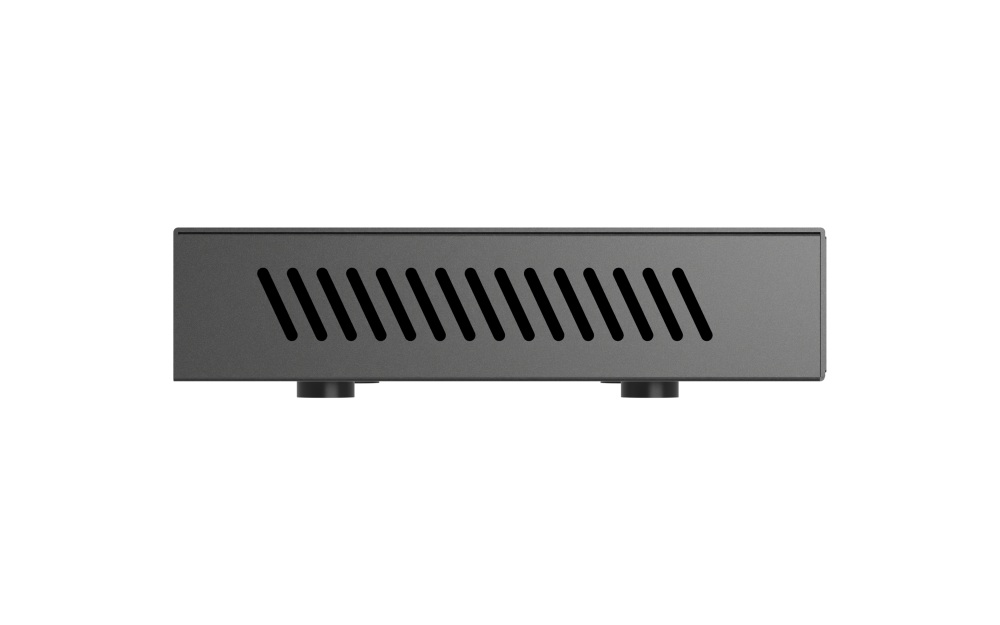

Quiet fanless operation

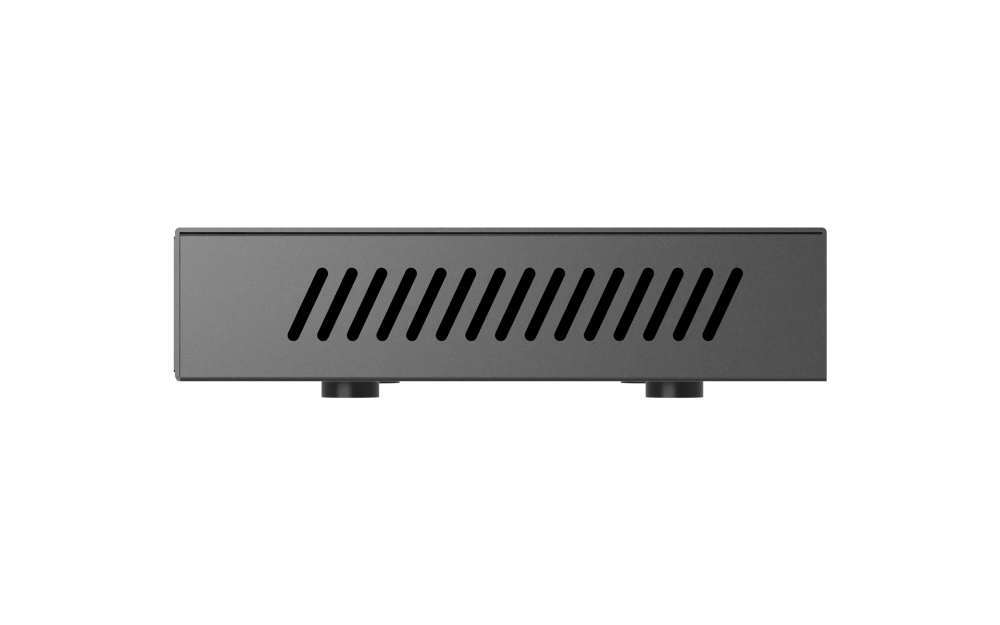

The QSW-2104-2T-R2 has fanless cooling for near-silent operation, ensuring that your living/working space remains free from distracting noise. The unique ventilated construction ensures the QSW-2104-2T-R2 maintains high performance even during heavy workloads.
Fully embrace high-speed networking with QNAP!
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
| A switch that supports 2.5GbE/10GbE | QNAP 2.5GbE/10GbE switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments. |
| A fast NAS | A QNAP NAS with multiple 2.5GbE/10GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential. Note: Managed Switch series support Port Trunking. |
| Upgrade desktops and servers | Servers and desktops can install QNAP PCIe network cards that support 10G/5G/2.5G/1G/100M Multi-Gig. |
| Add a 5GbE/10GbE port to laptops | Use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter or QNAP Thunderbolt 3 to 10GbE adapter to connect laptops and upgrade-limited computers to 5G/2.5G/1G/100M networks. |
QNAP high-speed switch solutions for Home and SOHO network environments
QNAP provides multiple unmanaged switches with 1GbE, 2.5GbE, 10GbE via RJ45 or fiber ports to deploy hybrid high-speed network infrastructure. Simply plug and play to achieve faster networking for storage and multimedia applications in homes and offices.
Extend hardware warranty up to 5 years
The QSW-2104-2T-R2 is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Hardware Specifications:
| QSW-2104-2T-R2 | |
|---|---|
| Management Type | Unmanaged |
| Number of Ports | 6 |
| 10GbE BASE-T (RJ45) | 2 10G/5G/2.5G/1G/100M |
| 2.5GbE (RJ45) | 4 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 18W |
| Input Power Type | DC |
| Input Voltage Range | 12V/1.5A |
| MAC Address Table | 4K |
| Total Non-Blocking Throughput | 30Gbps |
| Switching Capacity | 60Gbps |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | |
| Fanless | |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10GBASE-T IEEE 802.3az EEE IEEE 802.3x Full-Duplex Flow Control |
| Form Factor | Desktop |

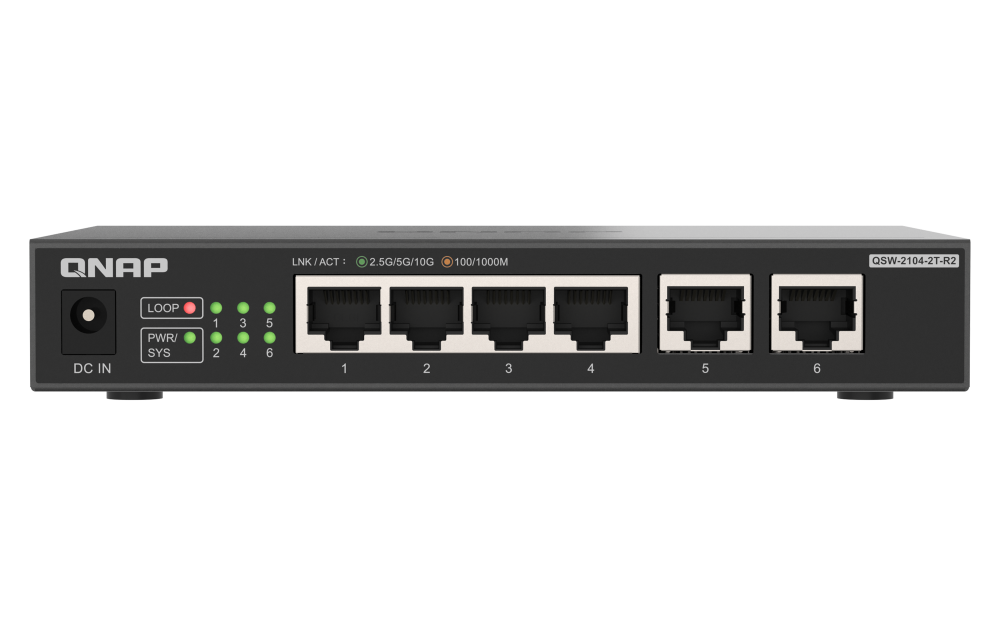

| LED Indicators | Per Port: Speed/Link/Activity Loop LED: Loop Per System: Power/Status |
| Dimensions (HxWxD) | 26 x 160 x110 mm |
| Weight (Net) | 0.99 lbs |
| Weight (Gross) | 1.15 lbs |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 10~95% Non-condensing |
| Certifications | CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC |
| Electromagnetic Compliance | CLASS B |
| Jumbo Frames | 12K |
| Warranty | 2 Years |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
