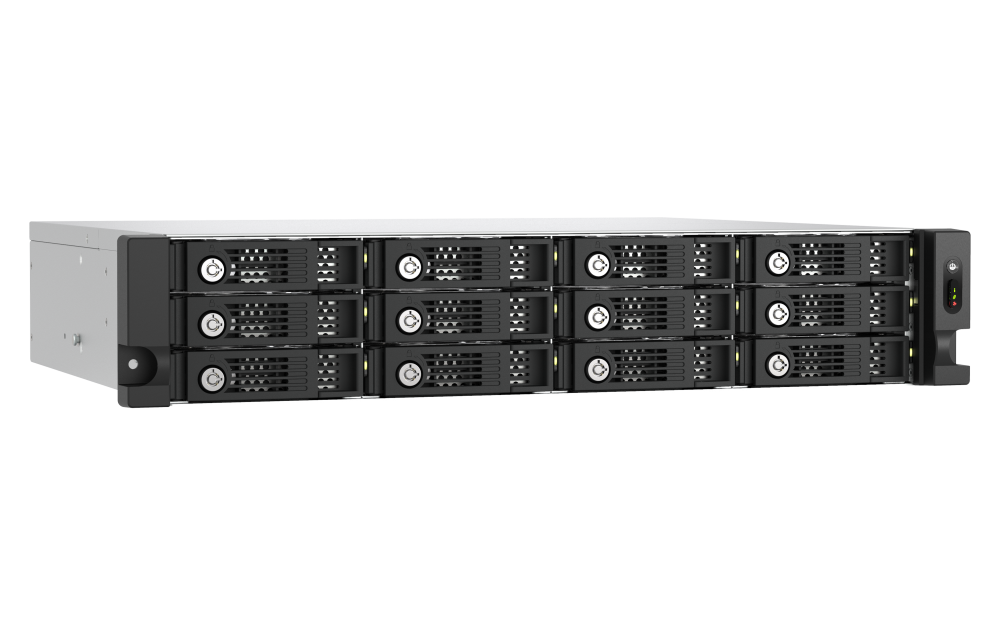

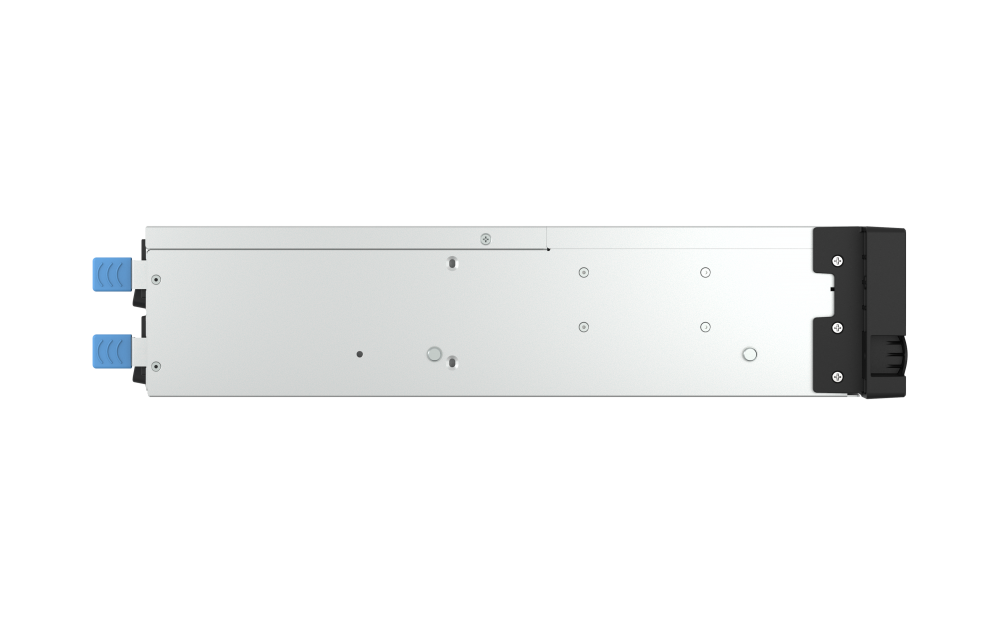

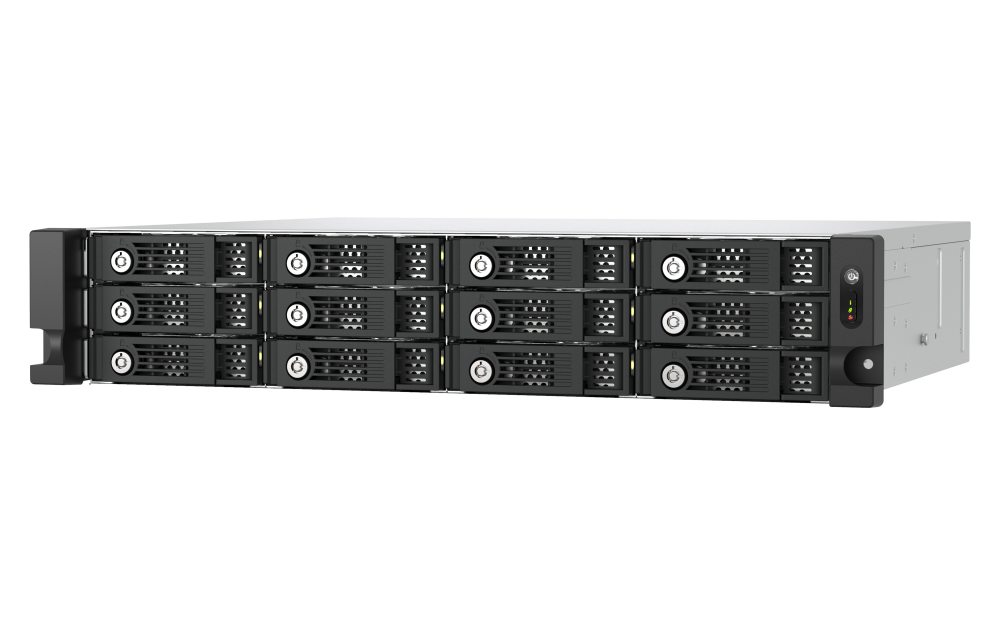

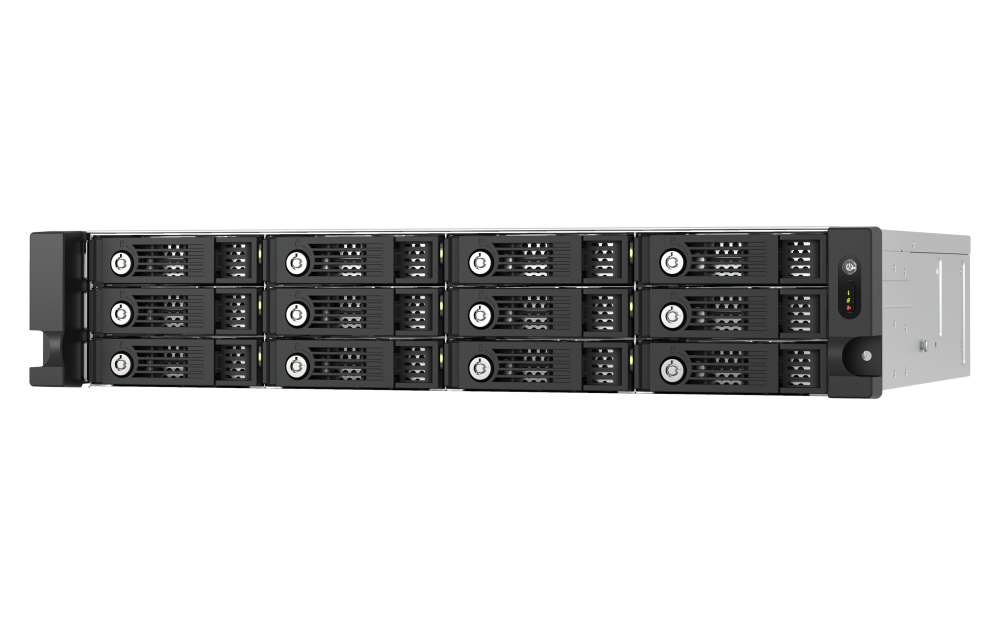

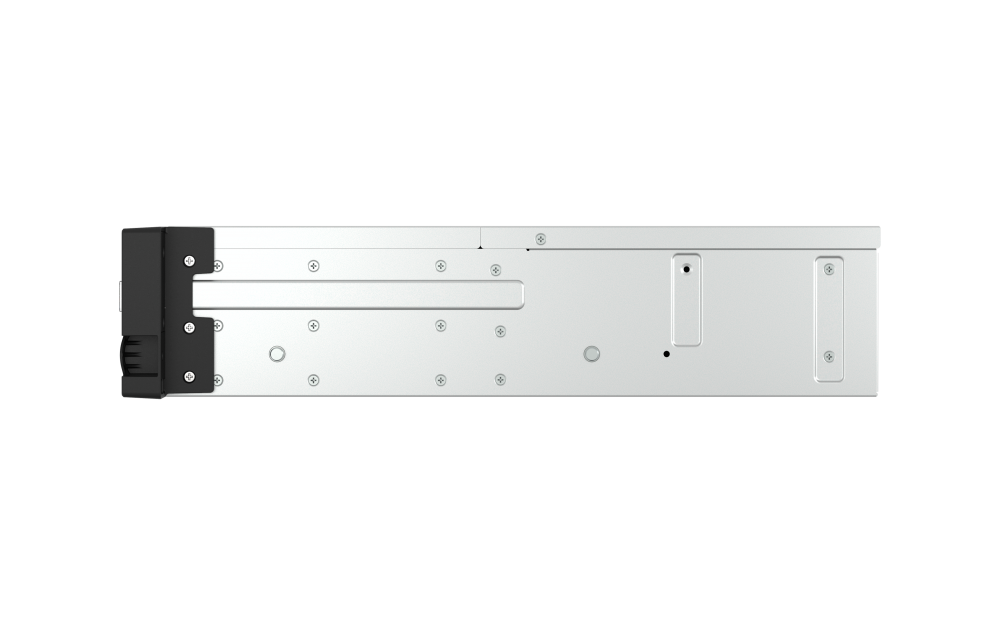

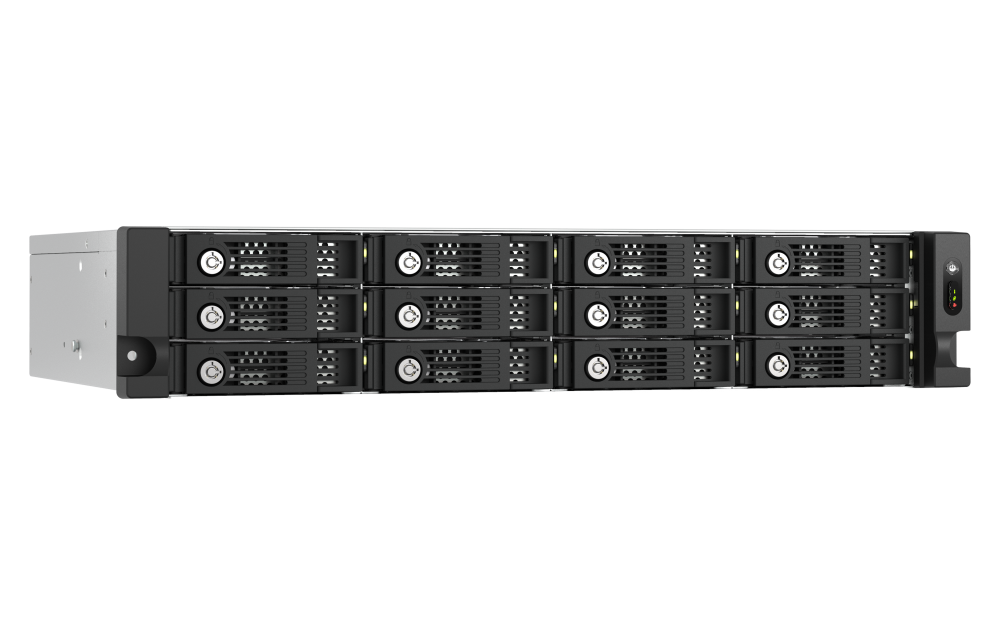

QNAP TL-R1200PES-RP
PCIe Interface 12-bay SATA JBOD for petabyte-scale expansion designed specifically for QNAP NAS


QNAP Products
Expansion Enclouse
QNAP 12-bay 2U rackmount PCIe interface SATA JBOD expansion enclosure, 2.5/3.5″ SATA 6Gbps drives, 2 ports (SFF-8644 1x2), short depth 14.59-inch / 370.65mm, redundant PSU, without rail kit. power, without rail kit
Support TS-h3087XU-RP, TS-h2287XU-RP, TS-h1887XU-RP, TS-h987XU-RP, TDS-h2489FU, TS-h2490FU, TS-h1090FU, TS-855eU(RP)
#TL-R1200PES-RP-US
Our Price: $1,499.00

Click here to jump to more pricing!

Package Content

  • QNAP TL-R1200PES-RP Storage
  • 2 x Power cords
  • 2 x Hard disk tray key
  • 1 x CAB-PCIE10M-8644-8X
  • 48 x Flat head screw (for 3.5" HDD)
  • 36 x Flat head screw (for 2.5" HDD)
  • Quick Installation Guide

Overview:

The TL-R1200PES-RP TL PCIe interface SATA JBOD storage enclosure allows you to expand the storage capacity of a QuTS hero or QTS NAS by using SATA hard drives. Providing large data capacity and fast transfer speed, the TL-R1200PES-RP is the ideal solution for archiving/backing up virtualization applications, surveillance recordings, large data, and multimedia.

Actual number of expansion units may depend on the host NAS.



Note:

  • The host QNAP NAS requires QuTS hero h5.1.2 / QTS 5.1.2 (or later) and updating to specific BIOS versions per each model.
  • Supported maximum pool sizes: 2.0 PB for QuTS hero NAS; 308 TB for QTS NAS.

2.0 PB capacity

Expand up to 2.0 PB capacity1 for QuTS hero NAS, by connecting twelve expansion enclosures (up to 144 hard drives in total).

Economy

The TL-R1200PES-RP supports SATA hard drives, which are common, budget-friendly, and available with large capacities.

Up to 64 Gb/s

The TL-R1200PES-RP features PCIe Gen 3 x8, providing up to 64 Gb/s data transfer speed.

Note: Actual transfer speeds depend on the host NAS's PCIe slot and the storage units used.


Easy setup

Just connect your TL-R1200PES-RP to the host NAS to expand NAS capacity. RAID re-building on the host NAS is not required, and setup is finished within a few minutes.

Host-based power management

The TL-R1200PES-RP power on/off is linked with the host NAS.

Redundant power supply

Ensures service continuity with stable and reliable power supplies.

Note:

  1. QNAP calculated the effective capacity assuming RAID 60 with 22TB hard drives, PB-to-PiB conversion, and using storage utilization processes such as pool over-provisioning.

Features:

QNAP enterprise NAS with petabyte-class storage

Use QNAP enterprise and all-flash QuTS hero NAS paired with multiple TL-R1200PES-RP JBODs, to obtain both breakthrough performance and massive capacity. The TL-R1200PES-RP supports SATA hard drives, providing greater choice in selecting high-capacity drives. This configuration is ideal for enterprises, science research institutions, and media production companies that require high-capacity storage for backing up or storing virtual machines, containers, and what is produced/generated by their high-performance NAS.


Find your petabyte-class solution

  TL-R1600PES-RP TL-R1200PES-RP
Drive bays per unit 16 12
Max. number of JBOD units connected 12 12
Max. number of total hard drives 192 144
Max. capacity1 2.9 PB 2.0 PB

Note:
1. QNAP calculated the effective capacity assuming RAID 60 with 22TB hard drives, PB-to-PiB conversion, and using storage utilization processes such as pool over-provisioning.


Cascades multiple expansion units

Install the QXP-3X8PES (PCIe Gen 3 x8) or the QXP-3X4PES (PCIe Gen 3 x4) storage expansion cards in your QNAP NAS depending on your requirements for flexible storage expansion.

Actual number of expansion units may depend on the host NAS.

Note:

  1. The TL-Rx00PES-RP PCIe expansion series requires users to connect cables to specific inputs/outputs.
  2. Not all NAS models support cascade connections.

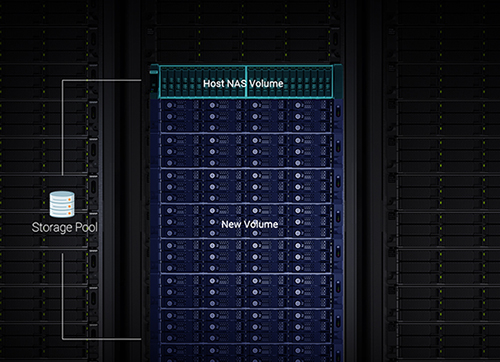

Expand existing NAS storage pools

You can expand existing storage pools on the host NAS by simply adding new volumes created on the TL-R1200PES-RP. RAID re-building or complicated settings are not required. All settings can be configured using Storage & Snapshots Manager on the host NAS. The TL-R1200PES-RP is a great solution for accommodating ever-increasing data or backup files.

Note: To achieve better performance, it is recommended to create storage volumes physically located within the same NAS or expansion enclosure, rather than creating storage volumes across the NAS or expansion enclosure.

NAS storage pools

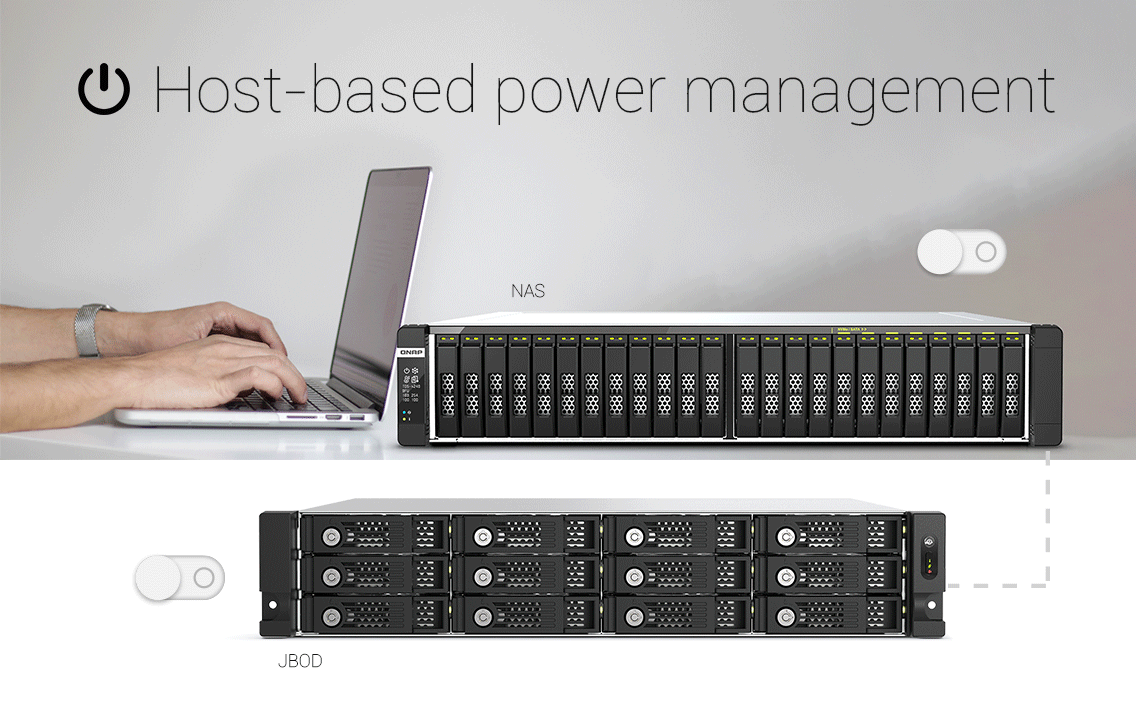

Power on/off

Power on/off linked with host QNAP NAS

The TL-R1200PES-RP power status is linked with the host NAS, which helps to reduce hardware management tasks for IT staff.


5-year warranty as standard

The TL-R1200PES-RP is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.

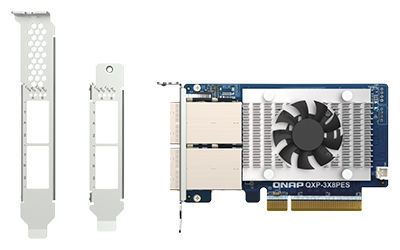

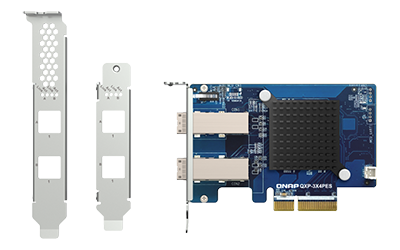

Supported PCIe storage expansion cards

  QXP-3X8PES QXP-3X8PES QXP-3X4PES QXP-3X4PES
Expansion ports 2 2
Interface PCIe Gen 3 x8 PCIe Gen 3 x4
Supported cables CAB-PCIE10M-8644-8X special cables CAB-PCIE10M-8644-4X special cables


Note:

  • The TL-R1200PES-RP package contains a 1M CAB-PCIE10M-8644-8X special cable that only support the QXP-3X8PES. The QXP-3XxPES series are sold separately.
  • The QXP-3XxPES series does not come with any cables.
  • Always consult the compatibility list before purchasing accessories and expansion cards.

Supported models by TL-R1200PES-RP


NAS
8 Bays TS-855eU, TS-855eU-RP
9 Bays TS-h987XU-RP
10 Bays TS-h1090FU
18 Bays TS-h1887XU-RP
22 Bays TS-h2287XU-RP
24 Bays TDS-h2489FU, TS-h2490FU
30 Bays TS-h3087XU-RP

Hardware Specifications:

  TL-R1200PES-RP
Drive Bay 12 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
Form Factor 2U Short Depth Rackmount

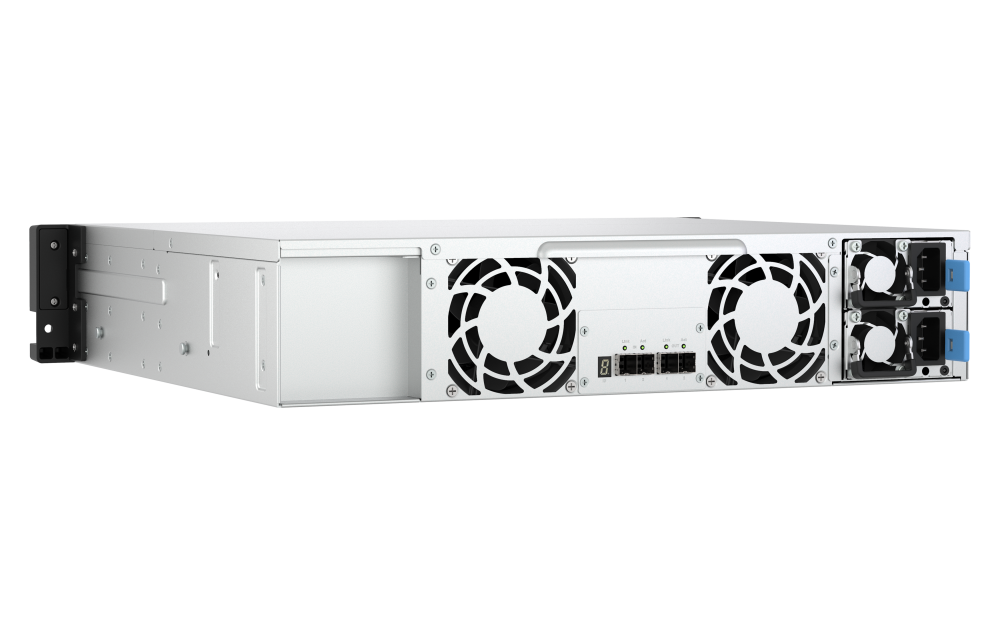

Host Interface 2 x SFF-8644 1x2 (in, out)

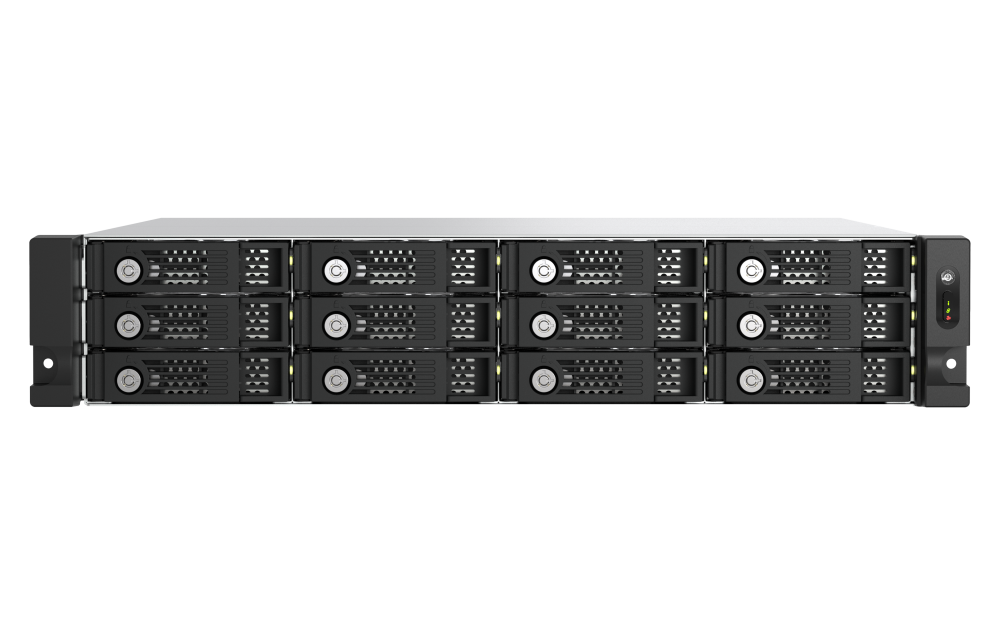

LED Indicators Front panel: HDD 1-12, Power, Status, Link, Fan error

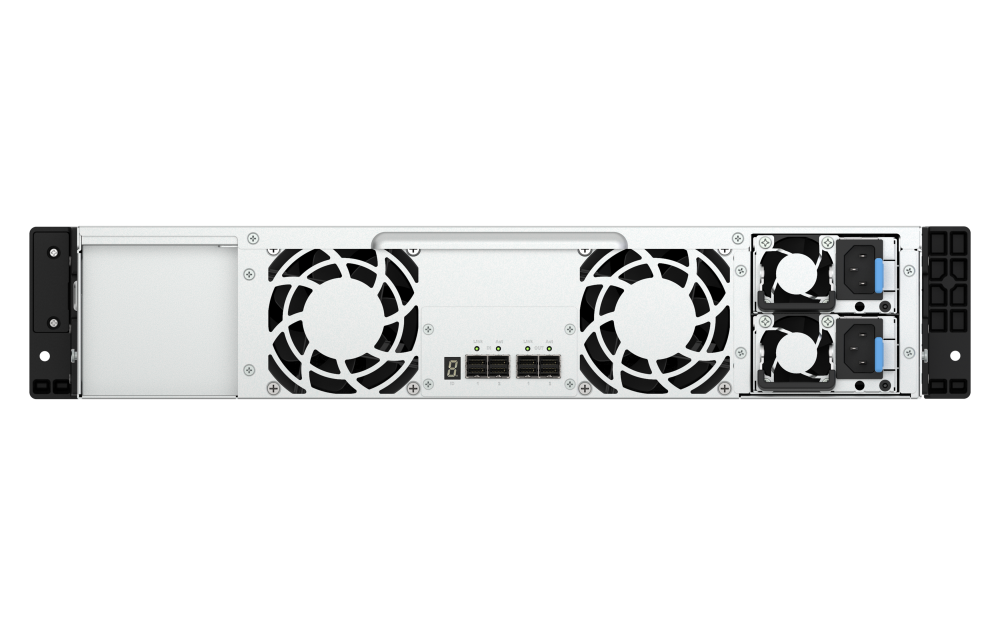

Rear panel: SAS connector, Enclosure ID
Buttons Power
Dimensions (HxWxD) 3.49 × 18.98 × 16.69 inch
Weight (Net) 20.33 lbs
Weight (Gross) 30.91 lbs
Max. number of HDDs/SSDs supported 12
Hard Drive Type 3.5″ or 2.5″ SATA 6Gb/s and 3Gb/s drives
Operating temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70 °C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 300W (x2), 100 - 240V
Fan 2 x 80mm, 12VDC
System Warning Buzzer
Management Managed via QNAP QTS / QuTS hero OS
  1. Supports disk S.M.A.R.T. information
  2. RAID expansion enclosure identifier
  3. Locate RAID expansion enclosures
  4. Locate hard disks on RAID expansion enclosure
  5. Smart fan control by detecting system and hard drive temperature
  6. Support Host-Based Power Management

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
