QNAP TL-R1620Sep-RP
Enterprise-grade SAS 12Gb/s storage expansion supporting multipath routing and daisy chaining

QNAP Products
Expansion Units
16-bay 3U rackmount SAS 12Gbps JBOD expansion enclosure
With SAS expander, 2.5″/3.5″ SAS 12Gbps & SAS/SATA 6Gbps drives, 4 x SFF-8644 Mini-SAS HD ports, redundant PSU, without rail kit.
#TL-R1620Sep-RP-US
Our Price: $2,499.00

Click here to jump to more pricing!

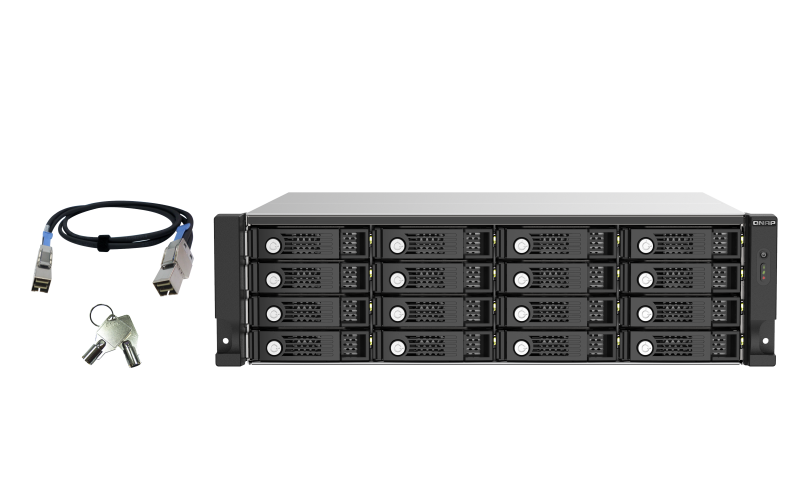

Package Content

  • QNAP TL-R1620Sep-RP Storage
  • 2 x Power cords
  • Hard disk tray key
  • 1 x Mini SAS cable (SFF-8644 to SFF-8644)
  • 64 x Flat head screw (for 3.5" HDD)
  • 48 x Flat head screw (for 2.5" HDD)
  • Quick Installation Guide

Overview:

The TL-R1620Sep-RP SAS 12Gb/s storage expansion enclosure is designed for expanding the storage space of your QTS or QuTS hero NAS. Up to sixteen expansion enclosures can be daisy-chained via high-speed mini SAS HD cables to support up to 4.6PB raw capacity, ideal for archiving/backing up virtualization applications, surveillance recordings, large data, or multimedia. Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1620Sep-RP consolidates 6Gb/s infrastructure into 12Gb/s. When connected to a QTS/QuTS hero NAS that supports multipath routing, the TL-R1620Sep-RP can achieve smoother data transmission and continuous system operation.

Supported NAS System DataBolt Bandwidth Optimization Multipath Routing
Expand the storage space of a QTS/QuTS hero NAS, supports up to 4.6PB raw capacity by daisy-chaining up to 16 expansion enclosures. Combine multiple 6Gb/s transmissions into 12 Gb/s data streams to achieve faster speed with existing 6Gb/s infrastructure. Ensure smooth data transmission and continuous operation by using the TL-R1620Sep-RP with a NAS that supports multipath routing.
Storage Management Remote Files Transfer Easy Installation & Storage
Manage the storage space and settings of the TL-R1620Sep-RP with Storage & Snapshot Manager on the host NAS. Conserve network bandwidth and performance by using the TL-R1620Sep-RP to transfer huge files from one device to another. With a short-depth design, the TL-R1620Sep-RP is suitable for universal deployment.
Note: The QNAP NAS requires QTS 4.5.1 / QuTS hero h4.5.1 (or later) with a PCIe SAS storage expansion card installed.

Features:

96-Gbps_tl-r1620sep-rp

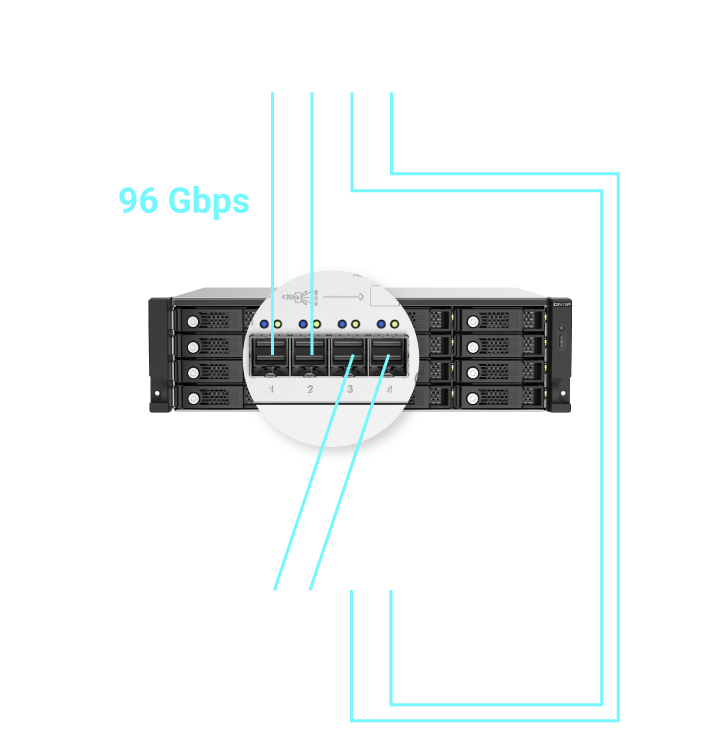

Achieve up to 96Gb/s with link aggregation

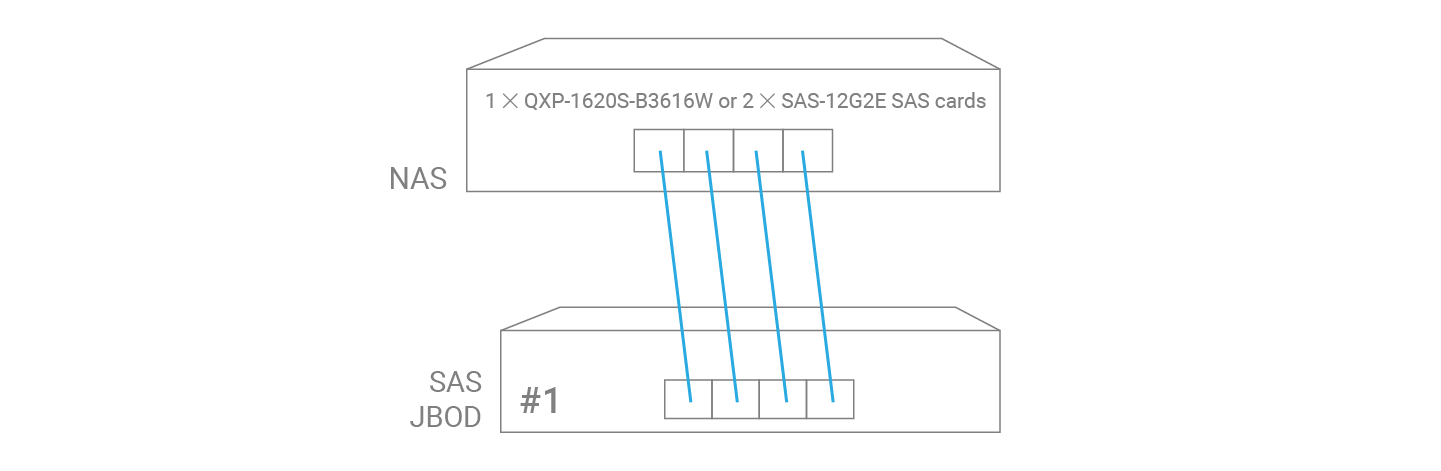

The TL-R1620Sep-RP is powered by a low-power 28nm SAS35x36R SAS Expander and supports 12/6 Gb/s SAS/SATA drives. Also, it has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. By connecting the TL-R1620Sep-RP to the host NAS and daisy-chaining multiple JBODs with two wide ports configured with link aggregation, the solution delivers up to 96Gb/s transfer speed.


Supports SAS DataBolt™ technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure

Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1620Sep-RP features an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1620Sep-RP uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1620Sep-RP at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure.

Note: The QNAP host NAS requires QTS 4.5.1 / QuTS hero h4.5.1 (or later) with a PCIe SAS storage expansion card installed.


Short-depth design Can be installed in standard server racks or small AV cabinets

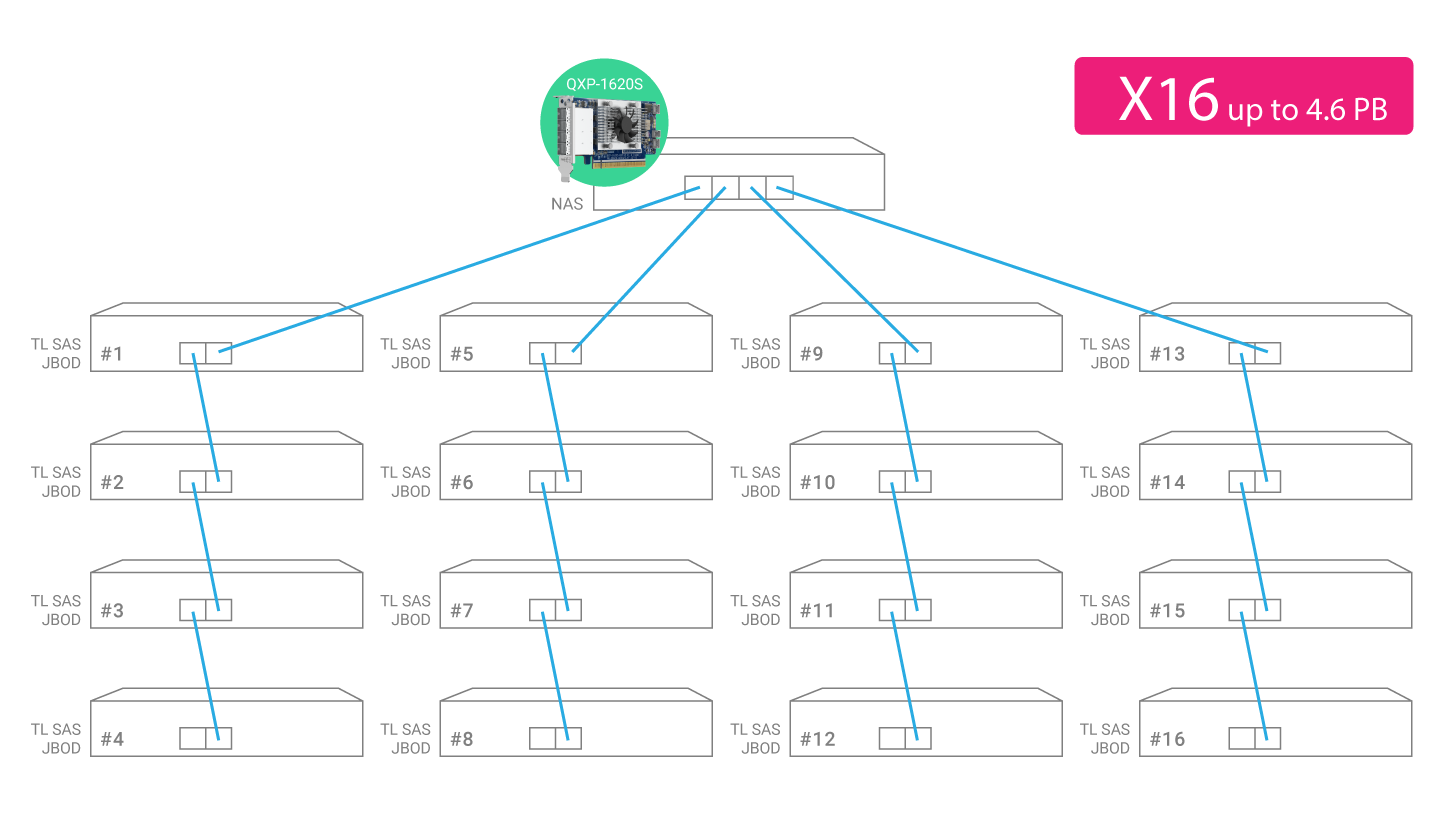

Connect up to 16 JBODs, support up to 4.6 PB raw capacity

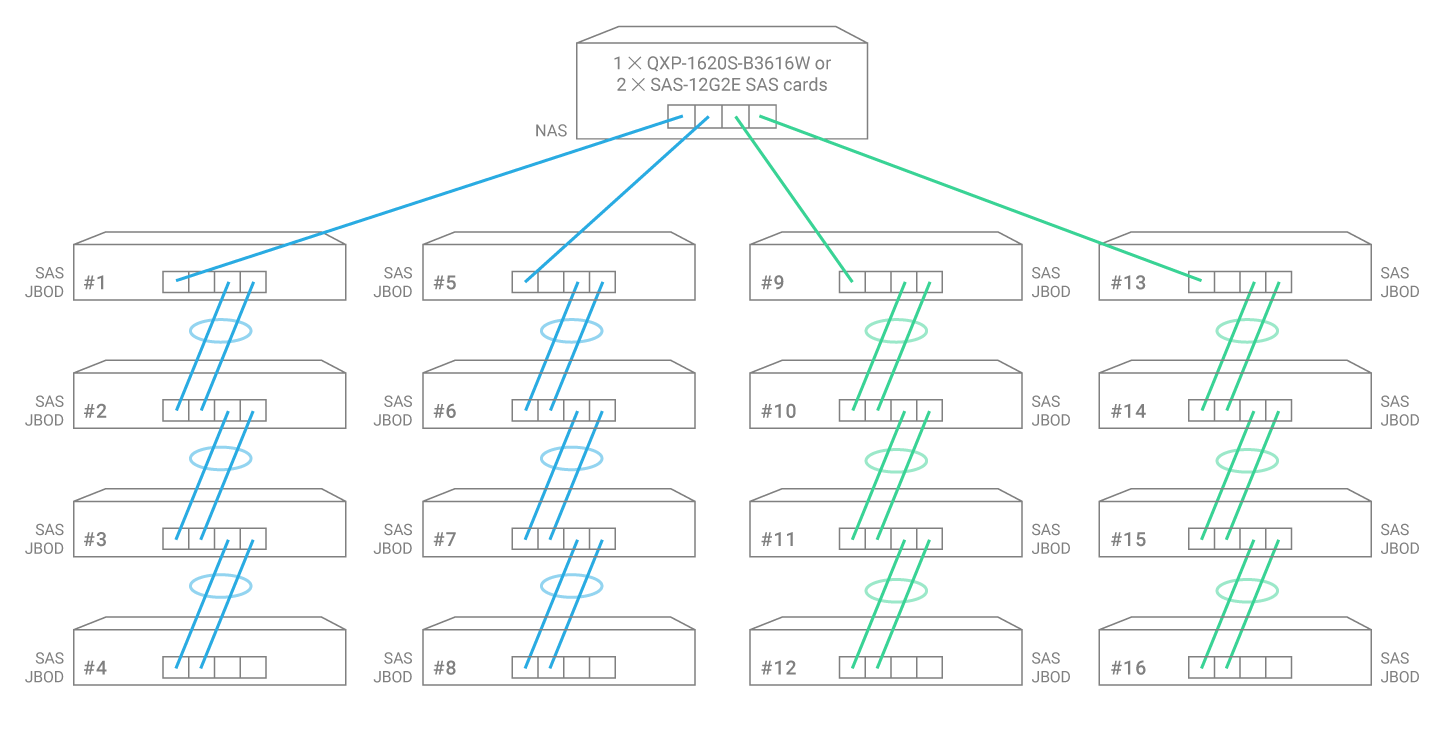

The TL-R1620Sep-RP has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. Up to sixteen TL-R1620Sep-RP can be daisy-chained to achieve a raw capacity of up to 4.6PB.

Note:

  1. Use the CAB-SAS10M-8644-8088 12Gb/s to 6Gb/s external cable to connect to SAS NAS / REXP expansion enclosures and 6 Gb/s SAS HBA.
  2. The host NAS requires one QXP-1620S-B3616W SAS card to daisy chain sixteen JBODs with single path routing. Using multipath routing with link aggregation enabled, the host NAS with one QXP-1620S-B3616W SAS card can daisy chain four JBODs; the host NAS with two QXP-1620S-B3616W SAS cards can daisy chain eight JBODs.

sas35x28r-sas-expander


Multipath routing to ensure continuous system operations

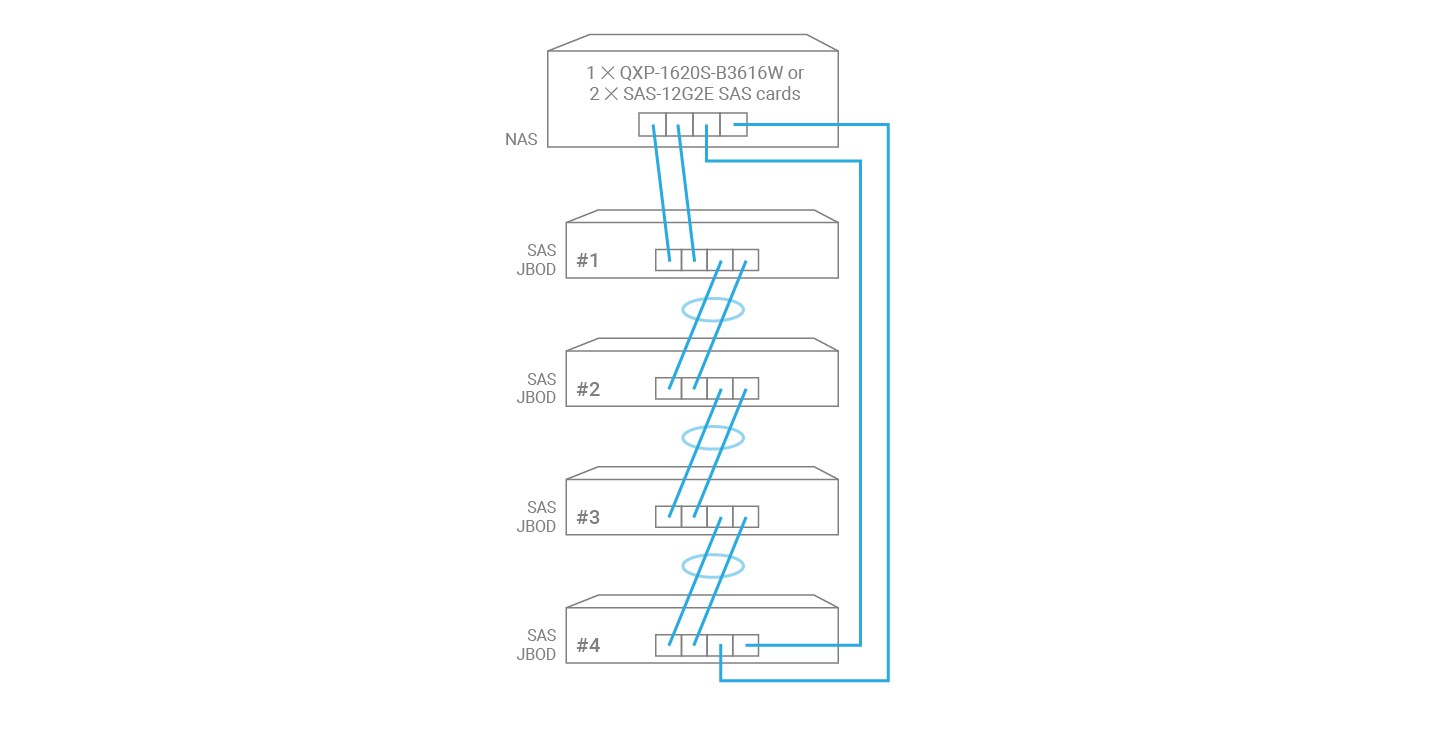

By daisy chaining the TL-R1620Sep-RP, data transmission loads can be balanced with multipath routing to achieve high availability. If one route fails, another transmission route can be used to access the data and ensure continuous system operations. The TL-R1620Sep-RP also features a redundant power supply to ensure system uptime.

Note: Multipath routing requires a host NAS with QTS 4.5.1 / QuTS hero h4.5.1 (or later).


Flexible daisy chaining modes

By daisy-chaining your NAS to multiple TL SAS JBODs and REXP SAS JBODs, you can take advantage of multipath routing and link aggregation to benefit from higher transfer speeds and system availability.

High Storage Capacity

High Storage Capacity


Ultra-high Performance (up to 192Gb/s)

Ultra-high Performance (up to 192Gb/s)


Performance and Security

Performance and Security


Storage Management

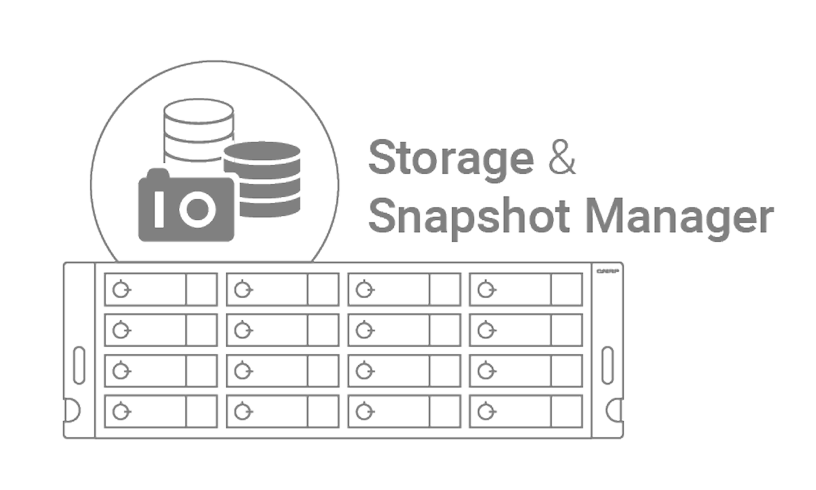

With Storage & Snapshot Manager on the host NAS, you can configure and manage the TL-R1620Sep-RP settings (including RAID groups, storage pools and snapshots), allowing you to easily expand NAS storage to accommodate massive data or backup files. You can also configure and manage the TL-R1620Sep-RP via the Console Port.

VJBOD Cloud Block


Speed up remote file transfers with JBOD migration

Moving many small files or a single large data file over a network can be time-consuming and negatively impact network performance. By setting up the RAID configuration on the TL-R1620Sep-RP, you can use it to move files to another computer or NAS. Simply save the files to the TL-R1620Sep-RP, connect it to the destination device, and then copy the files over.

Note: When using software RAID configuration, the TL-R1620Sep-RP migration only supports hosts that use the same operating system.


Extend hardware warranty up to 5 years

The TL-R1620Sep-RP is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.

Applicable PCIe SAS storage expansion card


Model

QXP-1620S

QXP-1620S

SAS-12G2E

SAS-12G2E

SAS controller Broadcom SAS3616W Tri-mode Broadcom SAS3008
Ports 4 Wide Ports (each port contains 4 12Gb/s SAS signals) 2 Wide Ports (each port contains 4 12Gb/s SAS signals)
Interface PCIe Gen 3 x16 PCIe Gen 3 x8

Get the best SAS cables for your work environment



CAB-SAS05M-8644

CAB-SAS05M-8644

CAB-SAS10M-8644

CAB-SAS10M-8644

CAB-SAS20M-8644

CAB-SAS20M-8644

CAB-SAS30M-8644

CAB-SAS30M-8644

Length 0.5m 1m 2m 3m


Hardware Specifications:

  TL-R1620Sep-RP
Drive Bay 16 x 3.5-inch SAS 12Gb/s, SAS/SATA 6Gb/s
The system is shipped without HDD.
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
Form Factor 3U Rackmount
Host Interface 4 x Mini-SAS HD (SFF-8644)
LED Indicators Front panel: HDD 1-16, Power, Status, Link, Fan error
Rear panel: SAS connector, Enclosure ID
Buttons Power
Dimensions (HxWxD) 5.17 × 18.98 × 16.74 inch
Weight (Net) 25.31 lbs
Weight (Gross) 35.3 lbs
Max. number of HDDs/SSDs supported 16
Hard Drive Type 3.5″ or 2.5″ SAS 12Gb/s, SAS/SATA 6Gb/s and 3Gb/s drives
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 550W(x2), 100-240V
Power Consumption: Operating Mode, Typical 207.13 W
Tested with drives fully populated.
Fan 3 x 80mm, 12VDC
Sound Level 36 db(A)
System Warning Buzzer
Management Managed via QNAP QTS / QuTS hero OS
Supports disk S.M.A.R.T. information
RAID expansion enclosure identifier
Locate RAID expansion enclosures
Locate hard disks on RAID expansion enclosure
Smart fan control by detecting system and hard drive temperature
In-band SAS firmware update
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Product Views:

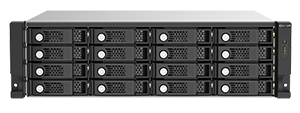

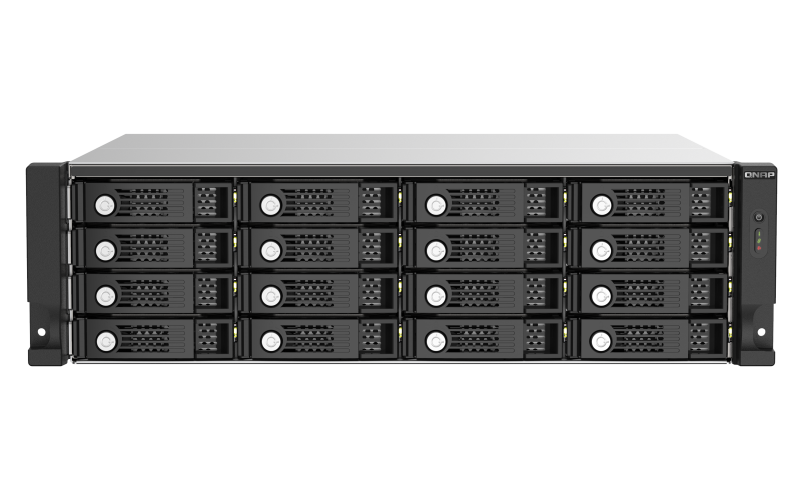

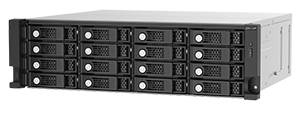

Front View

Front View

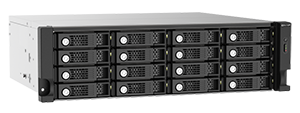

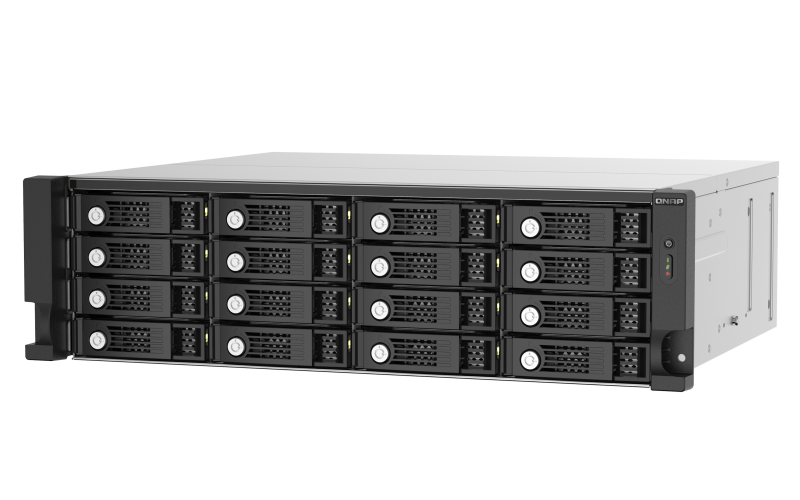

Top Right Angle View

Top Right Angle View

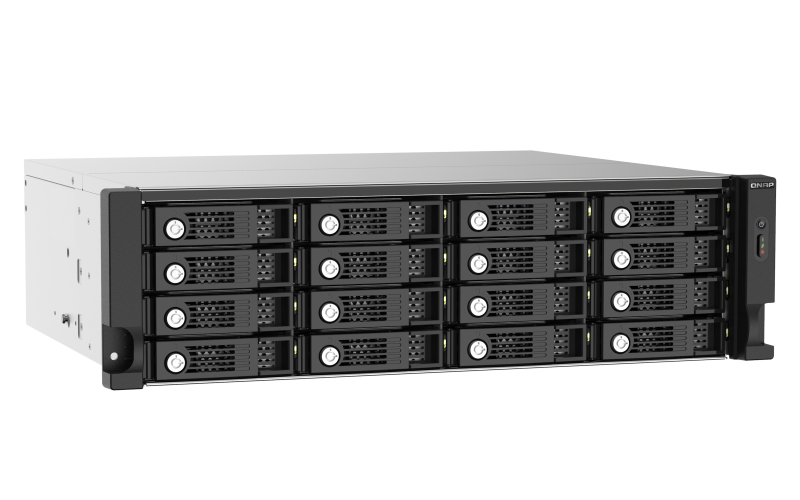

Top Left Angle View

Top Left Angle View

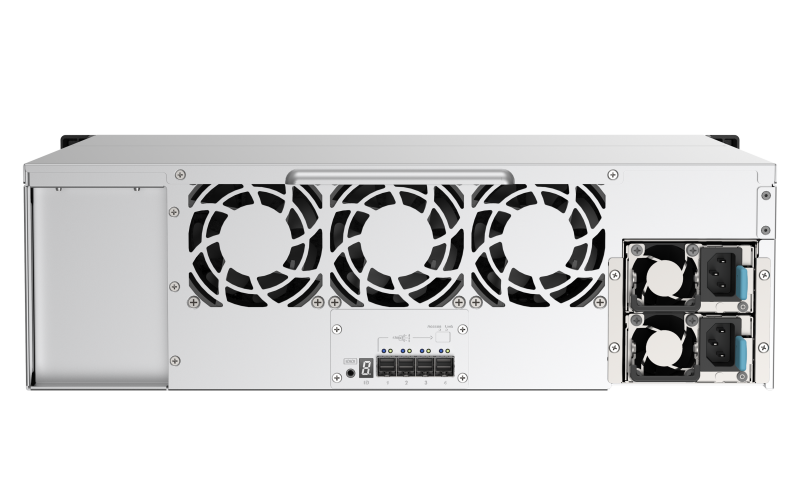

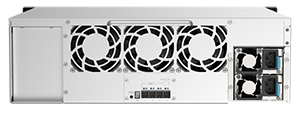

Rear View

Rear View
