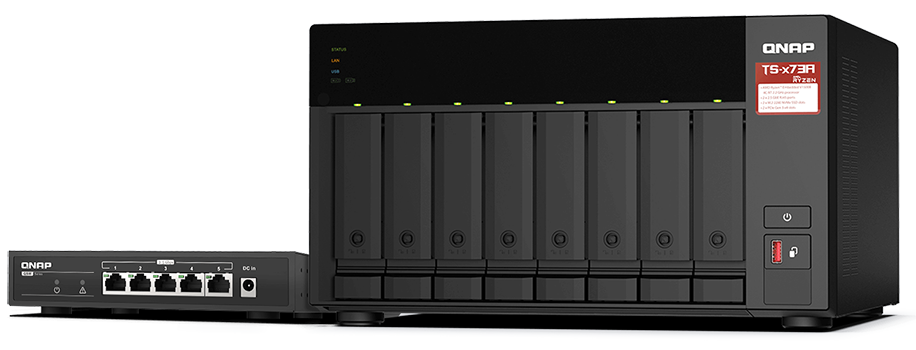

QNAP TS-873A + QSW-1105-5T Bundle Pack
8-bay AMD Ryzen™ NAS with 5-Port 2.5G Switch
Upgrade to 2.5G network with limited-time bundle offer!


QNAP TS-873A and QSW-1105-5T Bundle Pack
QNAP Products
2.5GbE NAS + Switch Bundle Pack
QNAP Desktop 8-bay NAS/iSCSI IP-SAN, AMD Ryzen V1000 series V1500B 4C/8T 2.2 GHz, 8GB RAM, two 2.5GbE, 10G-ready bundled with QSW-1105-5T 2.5GbE x 5 ports unmanaged switch, Realtek TL8371+RTL8221B
AMD Ryzen V1000 series V1500B 4C/8T 2.2GHz, 8GB DDR4 RAM (2 x SODIMM slots, max. 64GB, optional ECC RAM support), 2x M.2 NVMe PCIe Gen3 SSD slots, 2 x 2.5GbE LAN, optional 10GbE expansion via a PCIe, 2 x PCIe 3.0 x 4 slots, USB 3.2 Gen2 Type-C & Type-A bundled with QSW-1105-5T 2.5GbE x 5 ports unmanaged switch, Realtek TL8371+RTL8221B, Warranty 3 Years(NAS), 2 years(Switch)
#TS-873A-SW5T-US
Our Price: $1,099.00

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Overview:

Bye-bye Gigabit, hello 2.5GbE.

Gigabit Ethernet isn’t fast enough to unleash your 2.5G LAN and WAN devices. Upgrade to a 2.5G switch now!


ISPs offer Multi-Gig internet for homes

Many ISPs have started delivering multi-gigabit fiber to the home (FTTH) customers, providing speeds exceeding that of standard gigabit ethernet.

Multi-Gig enables Wi-Fi 6

Wi-Fi 6 (802.11ax) routers or APs require multi-gig network devices to unleash optimal wireless performance.

PC / laptops adopt 2.5G ports

Modern PCs and laptops have adopted 2.5G ports to fulfill high-bandwidth demands of streaming, video calls, gaming, and other modern web services.


Package Content


TS-873A

  • QNAP TS-873A Storage
  • 1 x Ethernet cable
  • 1 x Power cord
  • 24 x Flat head screw (for 3.5" HDD)
  • 24 x Flat head screw (for 2.5" HDD)
  • 2 x M.2 SSD Heatsink
  • 2 x Drive tray keys
  • Quick Installation Guide

QSW-1105-5T

  • QNAP QSW-1105-5T Switch
  • Power supply
  • Bracket screws
  • Anchors
  • Foot pads
  • Quick Installation Guide

Features:

Make your work and life smooth with the high-speed Switch and NAS

QNAP helps you upgrade to a high-speed network and data storage center in your home or office, providing a full 2.5G network experience.

high-speed Switch and NAS

QNAP’s most cost-effective 2.5GbE solution

check icon

Why 2.5G? Cost-effective high-speed option.

If you can’t budget a 10GbE upgrade at this time, the more affordable 2.5GbE provides a notable improvement in current Ethernet speeds. Use existing CAT5e cables to upgrade 2.5GbE network without stretching your budget.


check icon

Why QNAP 2.5G solution? More cost-effective solution.

The lack of consumer-grade switches has made it hard for home and personal users to adopt 2.5GbE/5GbE networking. QNAP now offers cost-effective 2.5GbE switches, helping you to transform your home network at a wallet-friendly price.


check icon

Why now? The most cost-effective timing.

QNAP now hosts a flash sale for the 2.5GbE NAS and Switch Bundle. Buy now!


TS-873A

AMD Ryzen™ Quad-core multi-tasking 2.5GbE NAS

TS-873A not only provides a secure and reliable storage solution for backing up all your files, but also supports running multiple VMs and containers for diverse applications.

Two 2.5GbE ports can be combined for bandwidth for up to 5Gbps! Multi-tasking AMD Ryzen™ 4-core/8-thread 2.2 GHz processor 8GB RAM, supports up to 64GB RAM (ECC memory also supported) Add more 2.5G/10G ports via PCIe network cards
Supports entry-level graphics cards to boost performance for video transcoding or VM output Install two M.2 NVMe SSD (sold separately) for faster data accessing or image recognition Three USB 3.2 Gen 2 (10Gbps) ports and one USB 3.2 Gen 1 (5Gbps) port allow faster backup to/from USB devices Add an additional twenty-four hard drives by connecting to multiple storage expansion units


Smart storage • Simple backup • Easy management

TS-873A helps you easily back up, search, share and manage all your files and data. Super!

Storage protection

Diverse backups

Boost production efficiency


RAID protection

QNAP NAS supports various RAID types that provide varying levels of performance and data redundancy.

Volume and LUN snapshots

Snapshots record the complete status of your NAS system and data. Certain data and files can be reverted when needed. It’s the best way to recover your files from ransomware.

Flexibly expand storage space

The TS-873A supports a storage capacity of up to 154 TB by installing eight 3.5-inch 22 TB hard drives in RAID 5. By connecting to QNAP storage expansion units, you can add additional storage space to meet growing storage requirements.

Mount cloud storage

HybridMount allows you to mount cloud storage and file servers on your NAS and centrally manage file access. Local caching for cloud data can be enabled to provide near-LAN access speeds.


Back up devices

Easily back up from PC/Mac or File servers supporting Rsync, FTP and CIFS to NAS. Then use Hybrid Backup Sync to back up data to another remote NAS or cloud based on the 3-2-1 backup rule.

Back up services

Back up diverse services to NAS, including VMware® and Hyper-V™ VMs, Google™ Workspace and Microsoft 365® business account data, WordPress andGoogle Photos.

Back up NAS data to the Cloud

Hybrid Backup Sync supports mainstream public cloud services for backing up or syncing data from NAS to Cloud.


Search NAS files quickly

Powerful Qsirch full-text search engine allows you to quickly find documents, media files, and emails using keywords, colors, or faces. AI OCR image recognition technology recognizes and captures text inside images.

Auto-sync files

Qsync allows you to sync files between NAS and multiple computers or mobile devices via one-way or two-way sync.

AI photo management

Large-capacity NAS leverages the powerful AI photo management app QuMagie and creates smart photo albums based on people, objects, locations, and events, making photos easy to find and share.


QTS 5 empowers VM, surveillance and cybersecurity deployment

The QTS 5 operating system provides a next-generation data storage usage experience with optimized user interface.

Run VMs and containers

By running multiple virtual machines and containers on the TS-873A, you can deploy multi-tenant environments and applications to increase management efficiency and reduce hardware costs.


Predict drive life with AI

QNAP’s AI-based drive health analysis technology, and automatic RAID disk replacement with spares, ensures a reliable storage environment.



All-in-one surveillance

QNAP’s integrated surveillance NAS solution offers a subscription licensing solution or perpetual licensing solution for flexible deployment based on your needs.

Enhanced data security

QVPN Service enables secure virtual private network (VPN) connections between NAS and devices. Snapshots, QuFirewall and Malware Remover ensure optimal NAS protection against threats like malware and hackers.


QSW-1105-5T

Affordable 5-port 2.5G switch

Enjoy 2.5x high-speed transmission by connecting more 2.5G devices, such as, NAS, Wi-Fi 6 Router/AP, PC/laptop, etc.

Five 2.5G NBASE-T ports for unleashing LAN/WAN 2.5Gbps potential Supports auto-negotiation, backward compatible with 1GbE devices Use existing Cat 5e cables
Hassle free plug and play Fanless design with ventilated construction for near-silent operation Automatic loop detection and blocking to ensure continuous network operation



Enjoy 5Gbps speeds without an extra network card

Enable SMB Multichannel on TS-873A NAS to combine two 2.5GbE ports for up to 5Gbps transmission speed. This increased bandwidth greatly accelerates large file transfer/backup and video editing applications.

SMB Multichannel on TS-873A

Deploy 2.5GbE network environment to boost application efficiency

The TS-AI642 has one PCIe Gen 3 x2 slot, allowing you to increase its application potential.

Faster Backup and Restore

Increased transfer speeds help save time when backing up files to NAS, or when backing up using HBS (Hybrid Backup Sync).

High-quality Video Streaming

Higher bandwidth improves the playback quality of 4K/8K videos.



Gaming Storage

Mount an iSCSI LUN from a 2.5GbE NAS to your computer to store your vast game collection. Gaming x 2.5GbE NAS Solution

Smooth Video Calls

In the era of remote working and classes, a faster network provides high-quality live streams for video calls and online courses.

Specifications:

  TS-873A-8G
CPU AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
CPU Architecture 64-bit x86
Graphic Processors Optional via a PCIe adapter
Floating Point Unit
Encryption Engine (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe adapter
System Memory 8 GB SO-DIMM DDR4 (1 x 8 GB)
Maximum Memory 64 GB ( 2 x 32 GB)
Memory Slot 2 x SO-DIMM DDR4
Support ECC memory
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 SSD Slot 2 x M.2 2280 PCIe Gen3 x1 slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a PCIe adapter
10 Gigabit Ethernet Port Optional via a PCIe adapter
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 2 (10Gbps) Port 3 x Type-A USB 3.2 Gen 2 10Gbps
1 x Type-C USB 3.2 Gen 1 5Gbps
IR Sensor (QNAP RM-IR004)
HDMI Output Optional via a PCIe adapter
Form Factor Tower
LED Indicators Status/Power, USB, LAN, Drive 1-8, M.2 SSD 1-2
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 188.2 × 329.3 × 280.8 mm
Weight (Net) 6.76 kg
Weight (Gross) 8.41 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W, 100-240V, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode 54.067 W
Power Consumption: Operating Mode, Typical 25.668 W
Tested with drives fully populated
Fan System fan: 2 x 120mm
CPU fan: 1 x 60mm
Sound Level 23 db(A))
System Warning Buzzer
Kensington Security Slot
  QSW-1105-5T
Management Type Unmanaged
Number of Ports 5
2.5GbE (RJ45) 5
Power Supply Description Adapter
Max. Power Consumption 12 W
Input Power Type AC
Input Voltage Range 100~240 VAC, 50/60Hz
MAC Address Table 16K
Total Non-Blocking Throughput 12.5Gbps
Switching Capacity 25Gbps
Fan Fanless
Fanless
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBase-T
IEEE 802.3x Full-Duplex Flow Control
Form Factor Desktop
LED Indicators Per Port: Speed/Link/Activity
Loop LED: Loop
Per System: Power/Status
Dimensions (HxWxD) 34 x 180 x 145 mm
Weight (Net) 1.27 lbs
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 10% to 90% (non-condensing)
Certifications FCC, CE, BSMI, VCCI, LVD,CCC,KCC,ASNZ
Electromagnetic Compliance Class B
Jumbo Frames 9K

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
