QNAP TS-453DU
Intel® quad-core 2.0GHz NAS with 2.5GbE and Feature-rich Applications for Office
Sorry, this product is no longer available, please contact us for a replacement.
Want to build a custom bundle? Contact us!
Click here to jump to more pricing!
Package Content
- QNAP TS-453DU Storage
- 1 x Ethernet cable
- 1 x Power cords
- 16 x Flat head screw (for 3.5" HDD)
- 12 x Flat head screw (for 2.5" HDD)
- Quick Installation Guide
Overview:
Powered by an Intel® Celeron® J4125, quad-core 2.0 GHz processor, the TS-453DU features two 2.5GbE RJ45 ports, providing up to 2.5 times the speed of Gigabit Ethernet and enabling smoother multimedia playback and everyday usage. With a PCIe Gen 2.0 x 2 slot, the TS-453DU provides flexibility in extending NAS functionality, allowing you to install various cards for extra network ports, M.2 SSD caching/tiering, or Wi-Fi connectivity. The TS-453DU ensures data security with AES 256-bit encryption, boosting system performance while ensuring the safety of sensitive business data stored.
Available Models
- TS-453DU-4G-
Intel® Celeron® J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz), 4 GB DDR4 RAM
2.5GbE connectivity accelerates file sharing between teams, and is idealfor office users for multimedia storage.
PCIe expansion allows for installing a 10/5/2.5GbE network card, USB 3.2 Gen 2 (10Gbps) card or QWA-AC2600 wireless adapter.
Snapshots fully record the system status and data. If files are accidentally deleted or modified, they can be quickly restored to previously-recorded states.
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.
Expand your storage capacity by using the unused storage of another QNAP NAS, or connect TR/TL series expansion enclosures.
Features:
Build a Faster Network with QNAP
Powered by an Intel® Celeron® J4125 quad-core 2.0 GHz processor (burst up to 2.70 GHz), DDR4 dual-channel RAM (up to 8GB), two 2.5GbE Gigabit LAN ports, the TS-453DU provides smoother multimedia playback and everyday NAS usage. Additional high-speed network options from QNAP include USB 3.2 Gen 1 to 2.5GbE/5GbE adapters (supports N-BASET/Multi-Gig), QXG 5GbE/10GbE PCIe cards, and QNAP QSW 10GbE switches. All these options allow users to revolutionize their network at a cost-effective price.
Extend NAS Functionality with a PCIe Card
With a PCIe Gen 2.0 x 2 slot, the TS-453DU provides flexibility in extending NAS functionality and potential applications. To optimize system performance, install a QNAP QM2 card to add M.2 SATA or NVMe SSD caching/10GbE connectivity and use with Qtier tiered storage for optimal system performance. Wireless connectivity can be added by installing a QNAP QWA-AC2600. A QXG-10GbE/5GbE network card adds extra high-speed network ports. Alternatively, you can add an affordable QNAP QNA-UC5G1T USB 3.2 Gen 1 to 5GbE adapter to enjoy higher network speeds or boost the USB connectivity by installing a USB 3.2 Gen 2 (10Gbps) card.

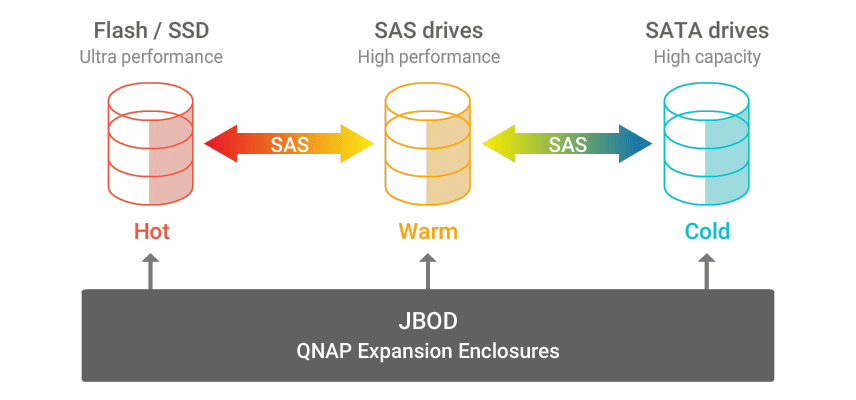

SSD Caching and Auto Tiering for Optimized Storage Efficiency
The TS-453DU supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-453DU with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
Easy and Secure File Management
File Station centralizes files stored on your TS-453DU and in the cloud. You can easily upload files from your computer, drag and drop files between folders, rename files, delete files, and configure file and folder permissions to prevent unauthorized access. With Microsoft Office Online you can directly open and modify Microsoft Office documents stored on the TS-453DU without having to download them to your local device. When sharing sensitive/confidential files on the TS-453DU, use File Station to encrypt files into .qenc files, set a password, and use QENC Decrypter to decrypt the file.
Multi-Point File Backup, Access, and Sync
The TS-453DU supports common file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows®, Mac®, and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-453DU becomes available for all linked devices, such as computers, laptops, and mobile devices. Hybrid Backup Sync helps you easily backup or synchronize data on the TS-453DU to another QNAP NAS, remote server, or cloud storage for disaster recovery. Additionally, QuDedup technology greatly improves the efficiency and storage utilization of multi-version backup by deduplicating the backup data. You can install the QuDedup Extract Tool on your computer and restore deduplicated files to their normal status.
Protect Important Data with Snapshots
Snapshots fully record the NAS system state and metadata and can be used to quickly restore files to previously-recorded states if they are accidentally deleted/modified or if the system is compromised by ransomware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data.
Stay Notified of System Status and Security
Notification Center consolidates all QTS system events and alerts, providing you with a single-app solution for notifications. Security Counselor evaluates and recommends settings to improve NAS security.
Stay informed at all times
Notification Center is a single-app solution for QTS system events and alerts. You don’t need to configure settings in different apps, helping you streamline management processes and save time.
NAS security portal
Security Counselor checks for weaknesses and offers recommendations to secure your NAS. Anti-virus and anti-malware solutions are also included to ensure complete protection.
Low-latency Access to Cloud-based Data
The TS-453DU can be integrated with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TS-453DU, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud solution.
HybridMount File-based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud Block-based Cloud Gateway
Mount object cloud storage as a block-based volume or LUN on a NAS. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes (such as addition, modification, or deletion) will be transmitted. This is ideal for enterprise-level applications with large file transfer requirements (such as databases, VM volumes, and videos).
Next-generation Surveillance Solution
QVR Pro allows you to establish dedicated, independent storage space for surveillance data on a TS-453DU and leverage the advantages of scalability and storage manageability of QTS. With QVR Pro, camera management, storage space allocation, camera live view and playback is greatly simplified, and the QVR Pro Client mobile app allows for universal monitoring of surveillance feeds.
NAS as a Multi-OS Platform
Virtualization Station and Container Station provide comprehensive solutions for creating virtualized environments to improve business IT infrastructure, workflows, and productivity.
.png)
Virtualization Station
Virtualization Station allows you to run multiple Windows®, Linux®, UNIX® and Android™ virtual machines on the TS-453DU. You can use Virtual Network Computing (VNC) through a browser to operate virtual machines. Virtualization Station is ideal for organizations to run multiple applications on a single NAS.
Container Station
Container Station integrates LXC and Docker® lightweight virtualization technologies. Download apps from the built-in Docker Hub® to easily import/export container apps and manage access controls to enjoy the benefits of easy installation, transferability and high-efficiency.
High-speed 2.5GbE VM Backup Solution
With Hyper Data Protector, the TS-453DU becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. With 2.5GbE connectivity, backup and restoration times are greatly reduced, providing a cost-effective solution for disaster recovery.
Flexible and economical storage expansion
QNAP provides easy storage capacity expansion solutions. Here are several ways to expand the TS-453DU storage to accommodate data growth:
Attach Expansion Enclosures
Connect two expansion enclosures (TR-004U) or one USB 3.2 Gen 2 JBOD (TL-R1200C-RP) and use the Storage & Snapshots Manager to handle NAS capacity expansion.
Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-453DU.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Multiply Your Productivity
The app-driven QTS operating system provides solutions for simplifying file backup, management, search, and more.
QmailAgent
Centrally manage and switch between different email accounts, back up emails to the TS-453DU, and safeguard email security and personal privacy.
Notes Station 3
Notes Station 3 provides the advantages of collaborative note-taking with improved productivity to provide higher efficiency for your workgroup.
Smart Filing
Qfiling automates file organization. Files are automatically archived into folders based on your settings.
Full-Text Search
Qsirch quickly finds images, music, videos, documents, emails, and other files.
Extend hardware warranty up to 5 years
The TS-453DU is backed by a 3-year warranty at no additional cost. You can purchase a warranty extension that extends your warranty coverage up to 5 years.
Hardware Specifications:
| TS-453DU-4G | |
|---|---|
| CPU | Intel® Celeron® J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics 600 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 4 GB SO-DIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 8 GB (2 x 4GB) |
| Memory Slot | 2 x SO-DIMM DDR4 When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots. |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 SSD Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 |
| Jumbo Frame | |
| PCIe Slot | 1 Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance. |
| USB 2.0 port | 2 |
| USB 3.2 Gen 1 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via a PCIe adapter |
| HDMI Output | 1, HDMI 1.4b |
| Form Factor | 1U Rackmount |
| LED Indicators | HDD 1-4, Status, LAN, Expansion, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 1.7 × 19 × 19.05 inch |
| Weight (Net) | 14.55 lbs |
| Weight (Gross) | 18.83 lbs |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W (x1), 100-240V |
| Power Consumption: HDD Sleep Mode | 17.209 W |
| Power Consumption: Operating Mode, Typical | 32.038 W Tested with drives fully populated. |
| Fan | 2 x 40mm, 12VDC |
| Sound Level | 38 db(A) |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) | 1500 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.
Product Views:

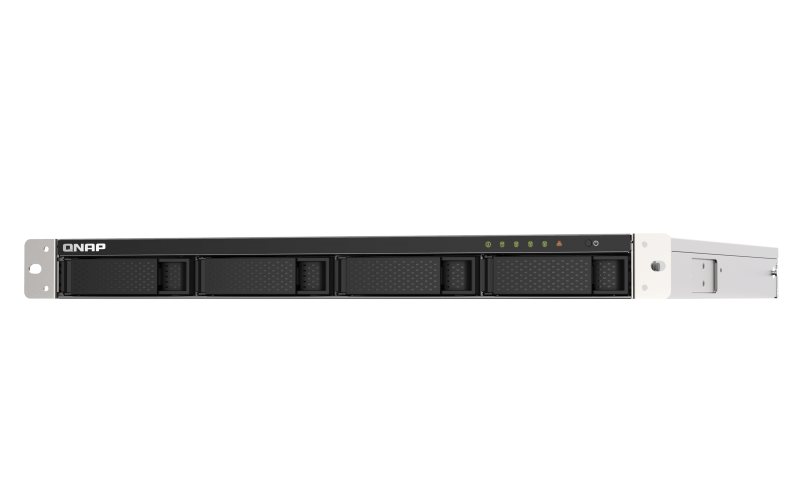

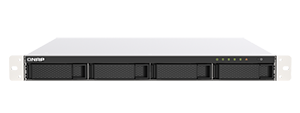

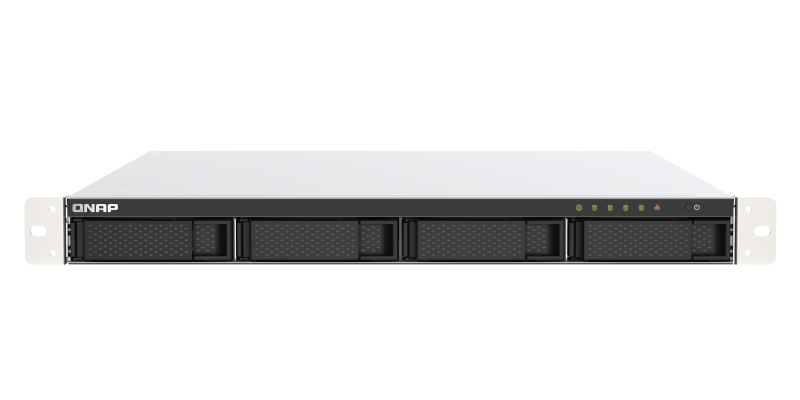

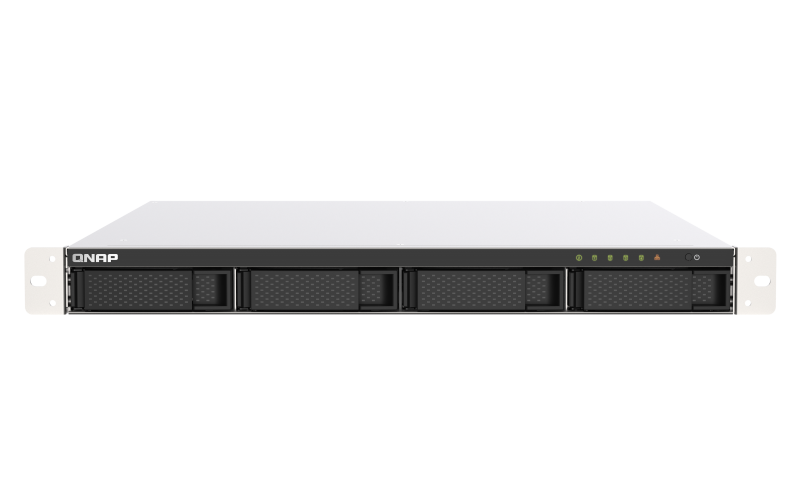

 Front View |

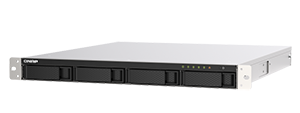

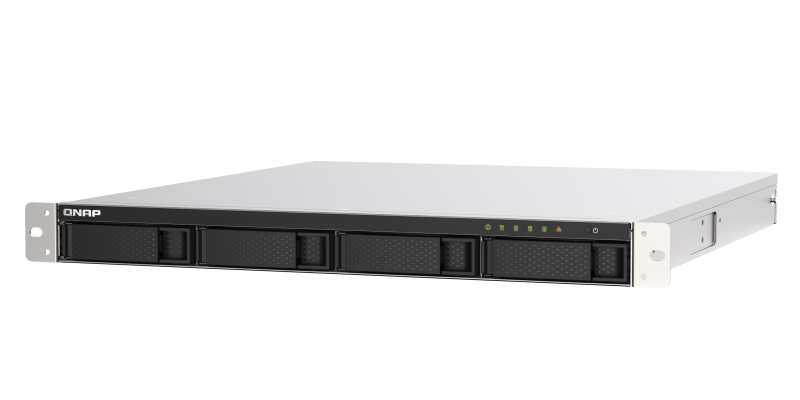

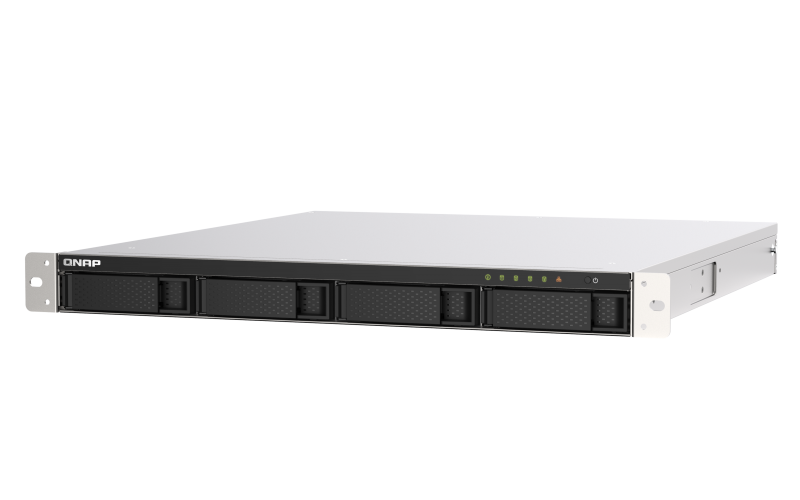

 Right Angle View |

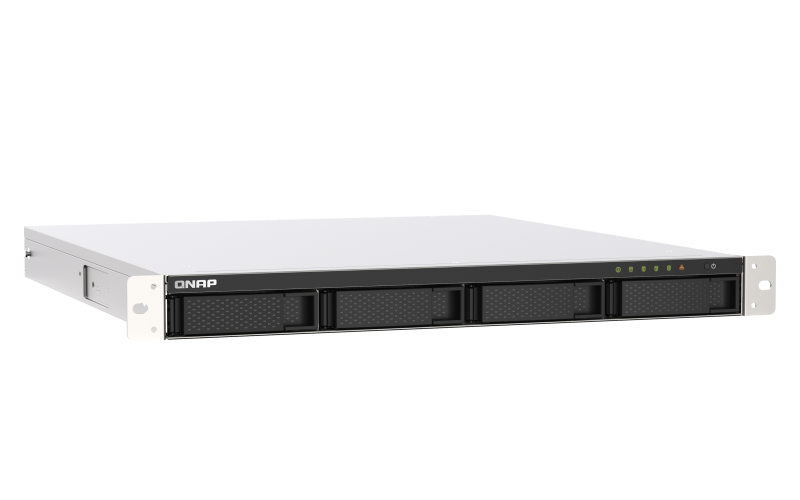

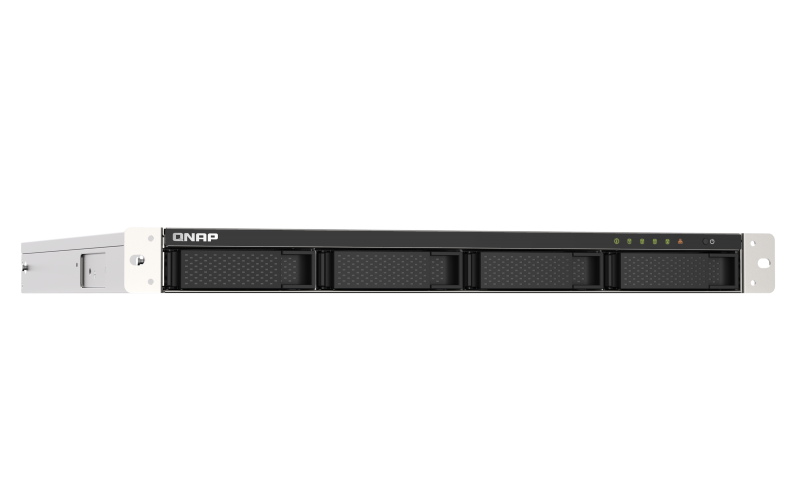

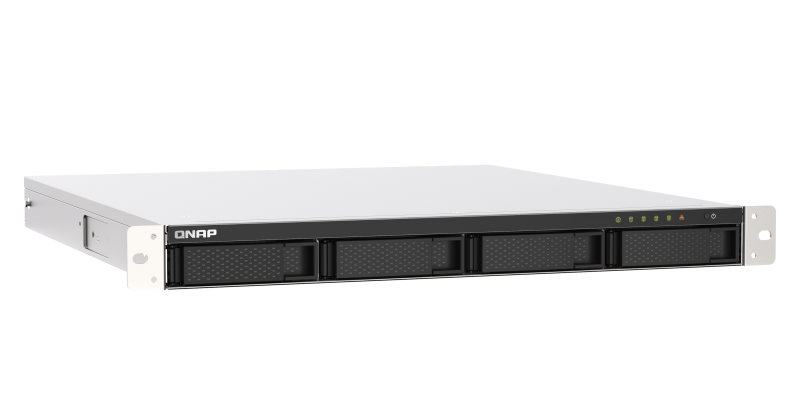

 Left Angle View |

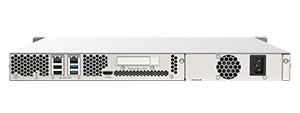

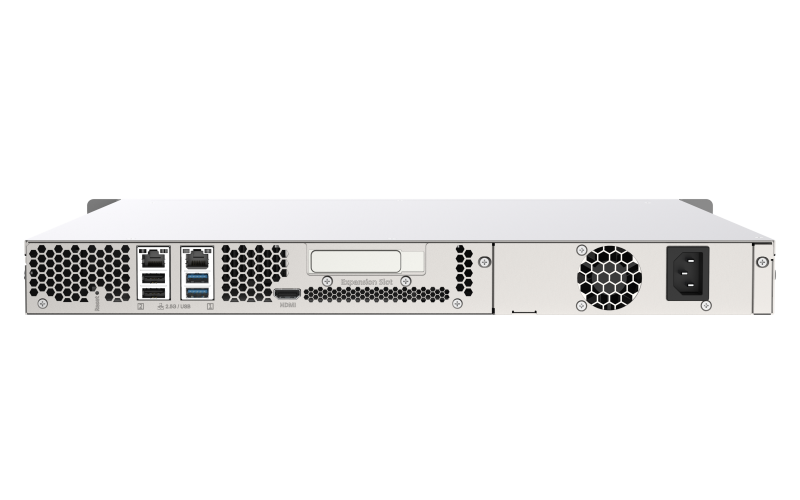

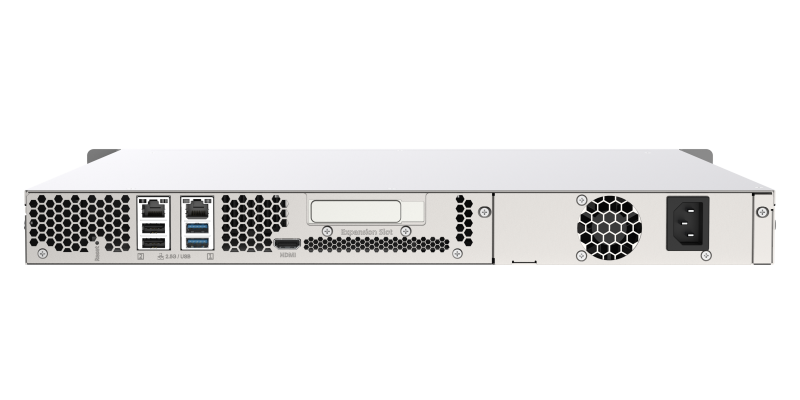

 Rear View |
Documentation:
Datasheet for QNAP TS-453DU is coming soon.
