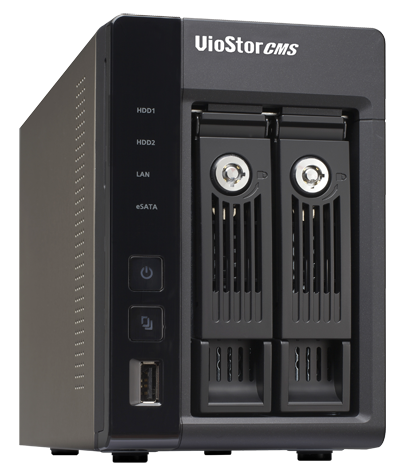

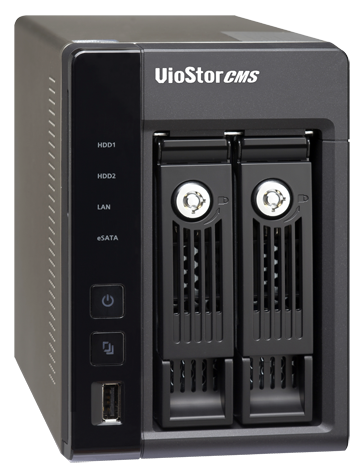

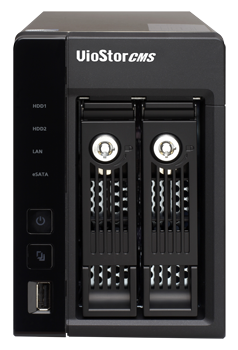

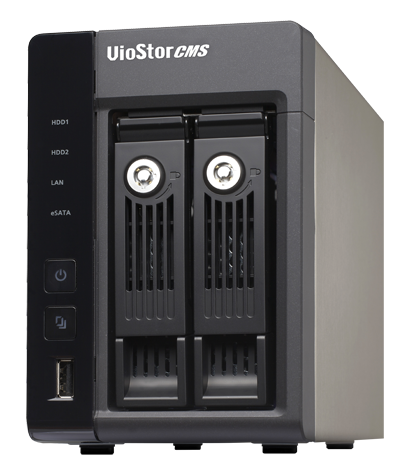

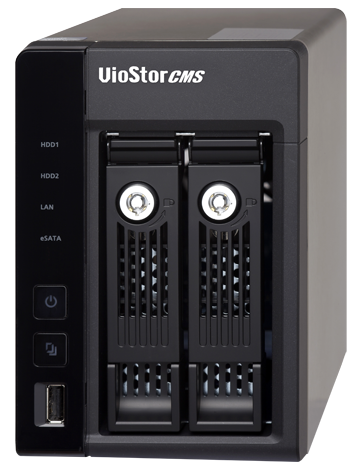

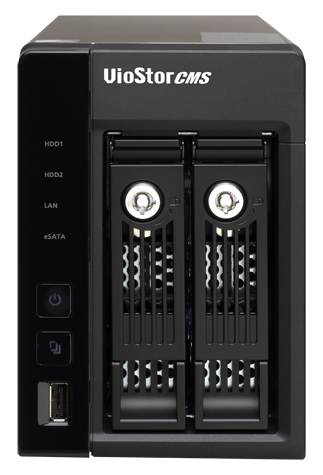

QNAP VSM-2000
2-bay / Central Management System / Tower Network Video Recorder
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Package Content
- VioStor CMS VSM-2000 Server
- CD-ROM
- 2 x Ethernet Cable
- Quick Installation Guide
- 8 x Flat Head Screw (for 3.5" HDD)
- 6 x Flat Head Screw (for 2.5" HDD)
- Hard Disk Lock
- Power Cord
- Power Adapter
QNAP VioStor CMS is a Linux-embedded turnkey solution to centrally monitor, manage, and configure distributed NVRs, cameras, and events at multiple locations. A truly unified platform for projects of various sizes, it is designed to help those with the following roles to manage projects easily and efficiently:
- Control center operators or managers can maintain overall control of areas for which they are responsible, receive event notifications, and respond in a correct, timely manner when events occur
- Event examiners can retrieve video footage of events efficiently
- Project installers can configure the system quickly and intuitively, with less time for setup
Why QNAP NVR?
QNAP VioStor NVR (Network Video Recorder) is designed for high quality megapixel recording, and high performance real-time monitoring. It is a reliable standalone NVR with powerful surveillance features and mass storage capacity. Based on Linux OS, the NVR supports H.264, MPEG-4, M-JPEG and MxPEG recording from over 1,100 network camera models from popular brands. With QNAP's unique multi-server monitoring feature, multiple VioStor NVRs can be cascaded together for central monitoring of up to 128 channels of video surveillance. The VioStor NVR is an ideal solution for small, medium, and large facilities that integrate IP cameras, advanced intelligent video analytics and RAID storage technologies to help companies provide a safe environment for employees and protect company assets.
- Supports a Broad Range of IP Cameras
The VioStor NVR supports H.264, MPEG-4, M-JPEG, and MxPEG recording from over 1,000 network camera models of many popular brands. - PC-less Network Surveillance by HD Local Display
The VioStor NVR supports PC-less system configuration, monitoring of IP cameras over the network, and video playback by a monitor or high-definiton TV, a USB mouse, and a USB keyboard. - Multi-server Monitoring
You can connect to the VioStor NVR and add other QNAP NVR servers to monitor up to 128 channels on a PC over LAN or WAN. - Intelligent Video Analytics (IVA) for Fast Video Retrieval
The VioStor NVR supports intelligent video analytics (IVA), such as motion detection, missing object, foreign object, out of focus, and camera occlusion to provide fast video retrieval. - Advanced Event Management
The compatibility between the NVR and the surveillance devices are strengthened to provide more event handling options when events are detected or alarms are triggered on the IP cameras. - Live View on Mobile Devices by VMobile
With VMobile installed on your Android phone, iPad, iPhone, iPod touch, or Windows PDA phone, you can monitor your home and office and receive instant event alert anytime, anywhere. - RAID Data Protection
The VioStor NVR supports RAID 1, 5, 6, 5+hot spare, 6+hot spare to protect the recording data against hard drive failure. Single disk, JBOD, and RAID 0 are also offered**. - Convenient Video Backup to External USB Storage
You can press the one-touch-auto-video-backup button on the front of the NVR to copy the data from the NVR to an external storage device. - Linux-embedded System
The VioStor NVR is a Linux-embedded system which is more powersaving and less vulnerable to virus attack compared to PC-based surveillance solutions.
QNAP Unique Utilities
QNAP Finder |
VioStor Player |
Watermark Proof
(Installed with VioStor Player) |
V-Mobile |
* For VioStor Pro series NVR only. ** The RAID levels supported depend on the number of hard drives installed.
Key Features:
Turnkey Solution
QNAP CMS server is a Linux-embedded turnkey solution, with other needed services built-in, such as database SQL server. This makes the installation of the QNAP VioStor CMS easily and intuitively - just run the CMS server Quick Configuration, install the CMS client software on a PC, then it's ready to log into CMS server from the CMS client. QNAP develops both the hardware and software solution in house, tuning the collaboration between hardware and software to the finest point, thus brining the optimal performance of the CMS system.
Centralized Event Management
At big sites, a large number of cameras, devices, recording servers, etc. are usually distributed widely at great intervals. This can be a challenge for control center operators to monitor the status of all devices, especially when an event occurs.
VioStor CMS helps overcome the challenge by providing several features such as E-map based event alert: When an event occurs, there will be red indicators on e-map to show the event location, and by double-clicking the camera icon, live video of the event will pop out.
The e-map layers are unlimited, and e-map links are multi-directional.
Centralized Device Management
One of the most challenging tasks in a large project is the configuration of numerous NVRs and cameras. VioStor CMS helps the project installer to monitor and configure the devices in the system easily from a central location. This significantly reduces set-up time and enhances efficiency.

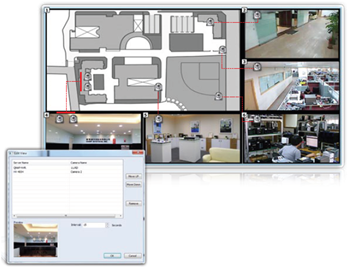

Flexible Central Monitoring for fast focusing
In a large-scale project, a great number of camera channels need to be displayed on several monitors. Control center operators need a flexible, customizable tool to help them monitor these many channels, and quickly focus on the specific channels.
VioStor CMS has a customizable monitoring layout, which allows the users to freely mix and match e-map and camera videos in different slots of a view. Each slot can include multiple camera videos to form a sequence. By doing so, the non-critical channels can all be displayed in sequential mode, while keep the critical channels always displayed.

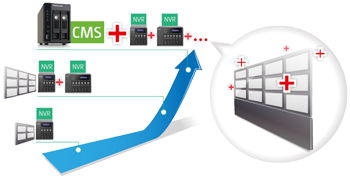

Online License Scalability
VioStor CMS is compatible with QNAP NVRs with firmware version 4.1.0 or above. The number of channel licenses can be increased online as the project grows. This provides more flexibility to the project designers and installers.
Specifications:
| VSM-2000 Specifications | |
|---|---|
| Number of license | Base: 64, Maximum:1,024 |
| CPU | Intel Dual-core Processor |
| HDD Capacity | 2 x Hot-swappable HDD and lockable tray (2.5'' or 3.5'') Maximum 4TB per HDD |
| Operating System | Linux Embedded |
| LAN Port | 2 x Gigabit RJ-45 Ethernet port |
| Voltage | 110~240V |
| Form Factor | Tower |
| Dimensions | 150 (H) x 102 (W) x 216 (D) mm, 5.91 (H) x 4.02 (W) x 8.5 (D) inch |
| Weight | Net weight: 1.74 kg (3.84 lbs), Gross weight: 2.92 kg (6.44 lbs) |
| Temperature | 0~40˚C / 32~104˚F |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C. |
| Power Consumption (W) | 25W |
| Package Contents |
|
Software Specifications:
| Server Configuration | |
|---|---|
| Operating System | Linux Embedded |
| Interface | Web browser: IE, Google chrome, Firefox |
| System Administration | |
| General Settings | System Administration: Set the CMS Server Name and System Port,
Enable Secure Connection (SSL): when SSL is enabled, the users can only connect to the CMS via the https connection Date and Time: Setup Time Zone, Date Format, Time Setting: Manual Setting, Synchronize with an Internet Time Server (NTP) automatically, Set the server time the same as the computer time Daylight Saving Time: Adjust system clock automatically for daylight saving time Enable customized daylight saving time table |
| Network | TCP/IP: Use static IP address Obtain IP address automatically from DHCP server Enable CMS server as the DHCP server DDNS: Select the DDNS server Enter the username/password/domain name to register with the DDNS provider |
| Power Management | Restart, Shutdown Power-on the CMS server automatically after the AC power resumption, or to remain power-off after the power resumption |
| Backup / Restore / Reset Settings | Support |
| System Logs | System event logs, System connection logs, On-line users |
| Firmware Update | Support |
| Disk Management | |
| RAID Management | VSM-2000 (2 bays): RAID 0, 1 VSM-4000U-RP (4 bays): RAID 0, 1, 5, 6, 10 Online RAID Level Migration without turning off the CMS server RAID Recovery without turning off the CMS server |
| HDD Smart | Bad Block Scan & Hard Drive S.M.A.R.T. |
| System Status | |
| System Information | Check the Server Name, Firmware Version, System Up Time, Serial Number |
| Resource Monitor | Check the CPU Usage, Memory Usage, Disk Usage, Bandwidth Transfer, Process |
| Client Configuration | |
| Operating System | Windows 7 (64 bits preferred) |
| Interface | QNAP CMS client software |
| Dashboard | Alarm: alarm input, motion alarm User account: login error, never login Hardware status: NVR disconnection, camera disconnection, HDD failure, fan failure |
| License | Activate license online Activate license offline |
| Server | Centrally configure up to 128 NVRs Available configurations made on NVRs: * Shutdown, Reboot, Update firmware, Synchronize settings with NVR, * Edit IP: assign static IP manually * Edit system time: manually set the time zone, automatically synchronize with an Internet time server * Edit alert notification: E-mail, SMS settings The above configurations can be synchronized by grouping devices of the same NVR model. |
| Camera | Centrally configure up to 1,024 cameras Available configurations made on cameras: * Edit recording parameters (codec, resolution, FPS), quality * Enable audio recording, manual recording * Set recording schedule The above configurations can be synchronized by grouping devices of the same camera model. |
| Event Management | Centrally receive events from multiple NVRs Event from camera: motion detection, camera I/O Event from hardware: NVR disconnection, camera disconnection, fan failure, HDD failure |
| View | Centrally configure the view from multiple NVRs
View layout: 1, 2X2, 3X3, 4X4, 5X5, 6X6, 7X7, 8X8, 1+1+4, 1+5, 1+7, 2+8, 1+11, 1+12, 12+1 View can be managed by creating video group for security guard's easier monitoring Sequential mode: Each slot can be composed of multiple camera channels to form a sequential mode The interval between each camera video's display is adjustable |
| E-map | Centrally setup E-maps for multiple NVRs Available E-map format: JPEG, PNG, BMP Device indicators on E-map: NVR, camera, link to other E-maps Unlimited E-map layers Flexible and easy editing of E-map links for multi-directional E-map management |
| User Managemen | Users can be created and assigned to different user group. Each user group can have different permission of:
Feature access: * Administrator: System operation, User Management, View Management, E-map Management, Log Out * Client Live View: Information, Camera control, Bookmark, Snapshot, Event log * Client Playback:
|
| Server Log | Sever, System event, NVR event, On-line users |
| CMS Server Configuration | Configure SMTP server, SMS server |
| Live View | |
| Quad-monitor Mode | 1, 4, 6, 8, 9, 10, 12 or 16-channel display |
| Central Monitor | Connect up to 1,024 camera channels from up to 128 NVRs Display up to 64 camera channels per monitor Display up to 256 camera channels per CMS client PC (depending on PC specification) |
| View Layout | 1, 2X2, 3X34, 4X, 5X5, 6X6, 7X7, 8X8, 1+1+4, 1+5, 1+7, 2+8, 1+11, 1+12, 12+1 |
| Content List | View, E-map, NVR (camera) The content list window can be auto hidden, leaving more room to display the camera video |
| View Content | Flexible view content of mixed camera videos and E-maps |
| Camera Control | Connect to the camera webpage, Snapshot, Enable manual recording, Enable digital zoom, Zoom in, Zoom out, Enable audio input, Enable audio output, Focus near, Focus far, Fit image to window, Keep aspect ratio, PTZ panel The camera control panel can be auto hidden, leaving more room to display the camera video. |
| E-map | When event occurs, the camera icon will turn into red indicator to show the event location. When double-click the camera icon, the live view video will pop up to show the instant status. Unlimited E-map layers Multi-directional E-map links |
| Alarm Mode | When event happens, the alarm indicator will flash and can be clicked to enter the alarm mode. When enabling the alarm mode: 1) The snapshot of the alarm will be shown on the Alarm List Maximum number of snap shot kept on the Alarm List: 15 2) The log of the alarm will be shown on the Event Log Maximum number of log shown on the Event Log: 150 Based on each alarm snapshot and the alarm log, the operators have 4 types of event instant handling options: 1) Open live view, 2) Open event playback (30 seconds before and after the event), 3) Go to live view layout, 4) Go to e-map layer, |
| Bookmark | For the easier event tracking: Click Quick Bookmark to place a vertical thin bar on video footage. Click Detailed Bookmark to place a vertical thin bar on video footage, and text details accordingly. |
| Sequential Mode | Each slot can be composed of multiple camera channels to form a sequential mode. Sequential mode can take place only in the selected slots. The interval between each camera video’s display is adjustable. Sequential mode can be easily enabled or paused on live view page. |
| Shortcut | Up to 5 most used view layout or E-map can be dragged onto the top of the window for quicker access |
| Playback | |
| Central Playback | Up to 16 channels from 16 NVRs |
| View Layout | 1, 2X2, 3X3, 4X4 |
| Video Time Frame | Maximum time length is 24 hours, and can be cross the other day. |
| Content List | NVR (camera) The content list window can be auto hidden, leaving more room to display the camera video. |
| Video Operation | Play, Pause, Stop, Play rewind, Speed up, Speed down, Play the next frame, Play the previous frame, Enable audio output, Place quick bookmark, Place detailed bookmark, Export video (AVI format), Enable digital PTZ, Zoom in, Zoom out, Fit image to window, Keep aspect ratio, Sync playback, Non-sync playback Sync playback: All channels are displayed based on the identical timeslot. Non-sync playback: Each channel can be assigned to display different timeslot. |
| Information of each channel | On slot bar: Camera name, OSD: Date, time |
| Timeline | Timeline can be stretched wider for easier video searching |
| Miscellaneous | |
| Number of CMS Client Installation | Unlimited |
| Supporting QNAP VioStor NVR | NVR Hardware platform: VS-x1xx NVR Firmware version: v. 4.1.0 |
Documentation:
Download the QNAP VioStor CMS Datasheet (PDF).
