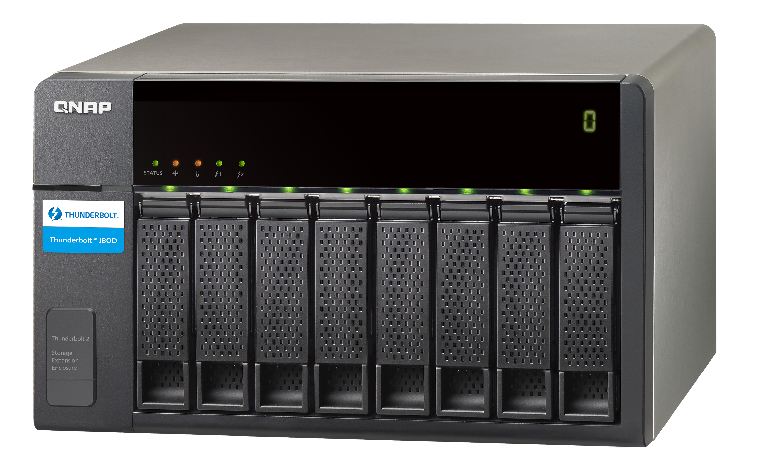

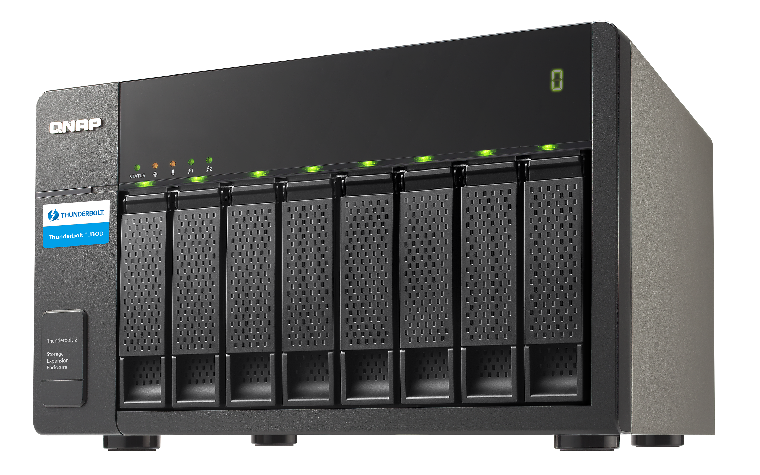

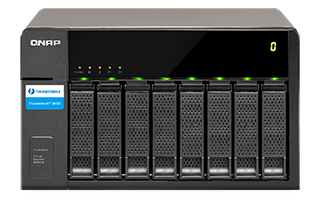

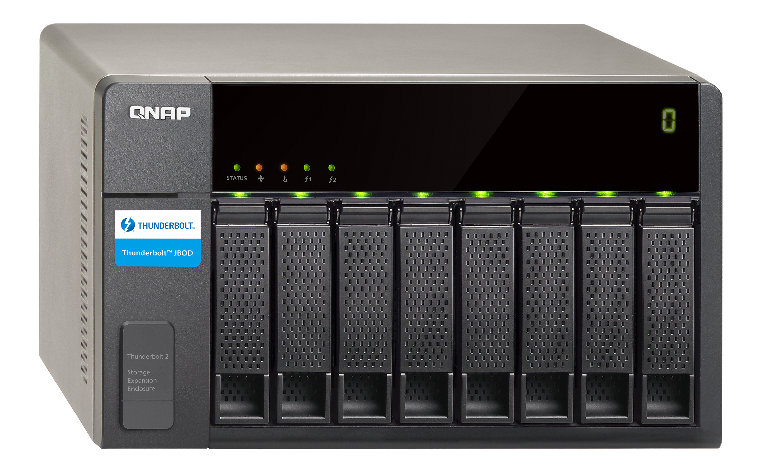

QNAP TX-800P
Thunderbolt™ storage expansion enclosure for Thunderbolt NAS
Sorry, this product is no longer available, please contact us for a replacement.
Accessories are still available below
Overview:
When expanding data storage capacity, deploying multiple servers can lead to complexity in management and dramatically increased costs. QNAP TX-800P expansion enclosure provides a flexible expansion alternative designed with easy setup in mind for scaling up Thunderbolt NAS storage space via high-speed Thunderbolt 2 (20Gbps) cables. The TX-800P provides an additional 8 hard drives providing up to 64 TB* expanded capacity for the Thunderbolt NAS, making it ideal for data backup, 4K digital media collection and video surveillance storage with blazing-fast data transmission performance.
Package Content
- Thunderbolt Storage Expansion Enclosure for Thunderbolt NAS
- 1 x Power Cord
- 20 x Flat Head Screws (for 3.5" HDD)
- 15 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide
Highlights:
- Easily add additional drive capacity to a Thunderbolt NAS
- Missing mode protection
- Powerful QTS Storage Manager
- Efficient backup solution for Thunderbolt NAS
- Smart power design
- Excellent hardware design
Easily add additional drive capacity to a Turbo NAS

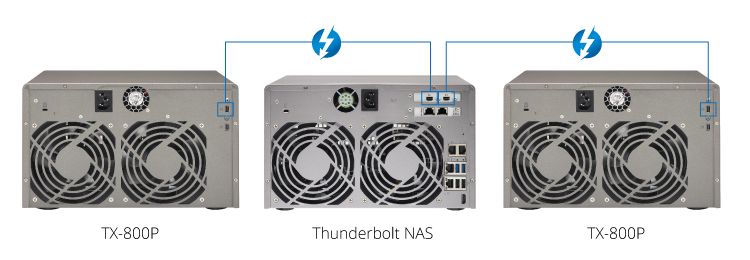

Simply connect the TX-800P to a Thunderbolt NAS via Thunderbolt 2 cables and power it on. The Thunderbolt NAS will automatically detect the hard drives in the TX-800P as newly-installed local drives. The Thunderbolt NAS capacity can then be seamlessly expanded as a large volume by using the powerful QTS Storage Manager.
![Easily add additional drive capacity to a Turbo NAS](/images/Storage/TX-800P/TX-800P_easilyAdd.png)
*Supported Thunderbolt NAS models and the maximum number of applicable expansion enclosures
Supported Turbo NAS models | TVS-871T |
RAM of NAS | >= 2GB |
Maximum number of connected TX-800P | 6 |
Maximum number of hard drives | 56 |
Maximum raw capacity* | 448 TB |
Maximum RAID group size | 144 TB |
Maximum number of RAID groups per storage pool | 128 |
Maximum storage pool size | 144 TB |
Maximum number of storage pools per system | 128 |
Maximum Flexible Volume size | 144 TB |
Maximum iSCSI LUN size | 144 TB |
*The maximum capacity is calculated by using 8TB HDDs
Missing mode protection
If your TX-800P is accidentally disconnected, the Thunderbolt NAS enters missing mode and blocks I/O access to protect the stored data. The system can then recover from the missing mode to the normal state with data staying intact.
![Missing mode protection](/images/Storage/TX-800P/MissingMode.png)
Powerful QTS Storage Manager

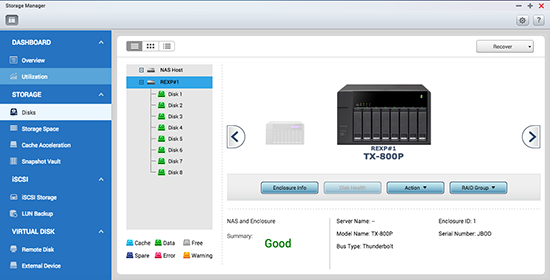

The QTS Storage Manager neatly presents tools and options for managing system storage with a modern & intuitive graphical user interface, which greatly simplifies the process of NAS capacity expansion and TX-800P management. IT administrators can easily monitor the health status of TX-800P and the disks within it. When multiple expansion enclosures are connected, the Locate Disk and Locate Enclosure functions assist you in quick maintenance.
![Powerful QTS Storage Manager](/images/Storage/TX-800P/TX-800P_storage-manager.png)
Efficient backup solution for Thunderbolt NAS
In addition to expanding an existing volume, you can use the TX-800P as a flexible external storage to perform speedy and secure backup tasks for the Thunderbolt NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up Thunderbolt NAS data to the TX-800P on a real time or scheduled basis.
![An excellent backup solution for Turbo NAS](/images/Storage/TX-800P/TX-800P_backup.png)
Smart power design

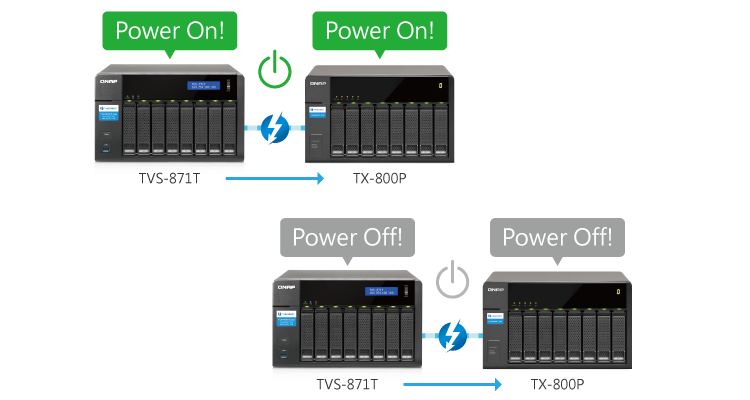

The TX-800P automatically powers on and off with your Thunderbolt NAS, allowing for total convenience and energy saving.
![Smart power design](/images/Storage/TX-800P/TX-800P_smart-power.png)
Flexible drive selection

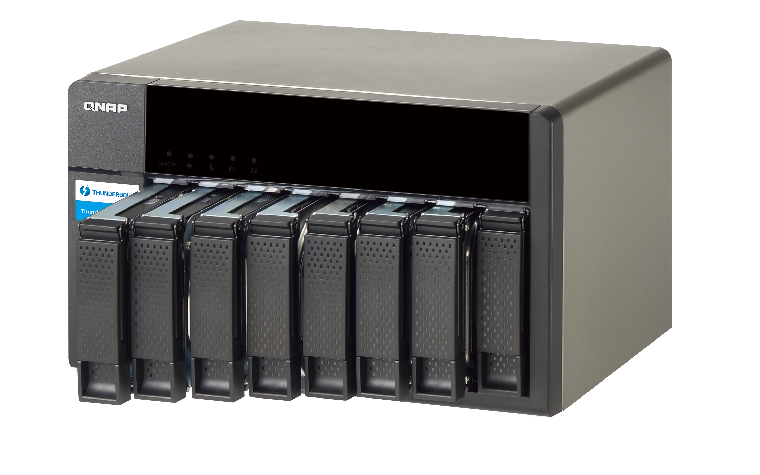

The TX-800P offers high flexibility in hard drive selection. IT administrators can choose low-cost but high-capacity SATA HDDs for large data archiving, or high-speed and high-stability SSDs for I/O intensive operations.
![Flexible drive selection](/images/Storage/TX-800P/TX-800P_flexible-drive.png)
Excellent hardware design

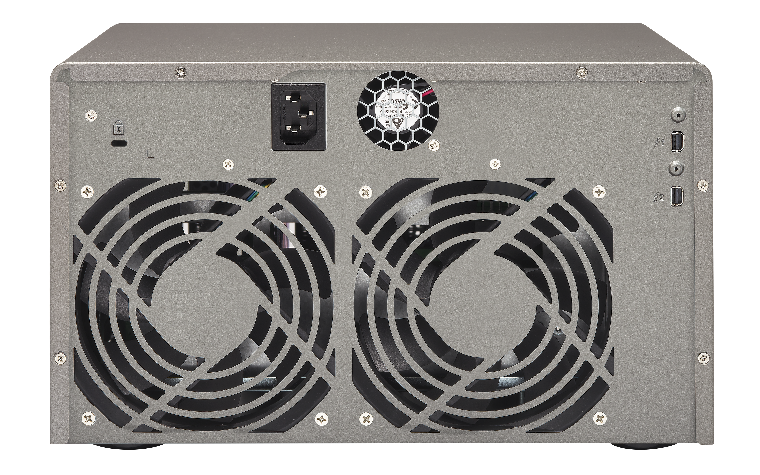

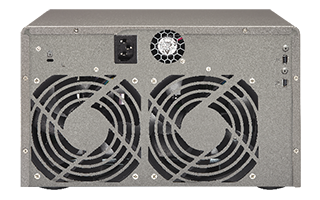

The TX-800P includes a full 350W internal PSU to provide ample power even under sustained full load. The well-ventilated chassis and smart fan helps to provide efficient cooling for better stability and reliability, with the fan enabling efficient heat removal even when all 8 drives are under full operation simultaneously.
![Excellent hardware design](/images/Storage/UX-1200U-RP/UX_fan.png)
Specifications:
![]() |
![]() |
QNAP TX-800P Specification | |
---|---|
Form Factor | Tower |
Hard Disk Drive | 8 x 3.5" or 2.5" SATA 6Gb/s, SATA 3Gb/s hard drive NOTE:
|
Hard Disk Tray | 8 x Hot-swappable tray |
RAID Management | Yes, (via QNAP QTS Storage Manager or software in Mac OS X) |
Thunderbolt port | Two Thunderbolt™ 2 high-speed ports (daisy-chain up to 6) |
LED Indicator | Status, fan error, system overheat, thunderbolt port status |
Secure Design | Kensington security slot for theft prevention |
Fan | Quiet cooling fan (12 cm, 12V DC) x 2 |
Power Supply Unit | Input: 100-240V AC, 50/60Hz, Output: 250W |
Power Consumption | HDD standby: 24.9W In operation: 50.66W (with 8 x 2TB WD20EFRX HDD installed) |
Sound Level (dB) | Sound pressure (LpAm) (by stander positions): 22.1 dB (with 8 x 2TB WD20EFRX HDD installed) |
Dimension | 185.2 (H) x 298.2 (W) x 235.4 (D) mm 7.29 (H) x 11.74 (W) x 9.27 (D) inch |
Weight | Net: 7.3 kg (16.08 lbs) Gross: 8.6 kg (18.94 lbs) |
Temperature | 5°C ~ 35°C (40°F ~ 95°F) |
Humidity | 5~95% RH non-condensing, wet bulb: 27˚C. |
