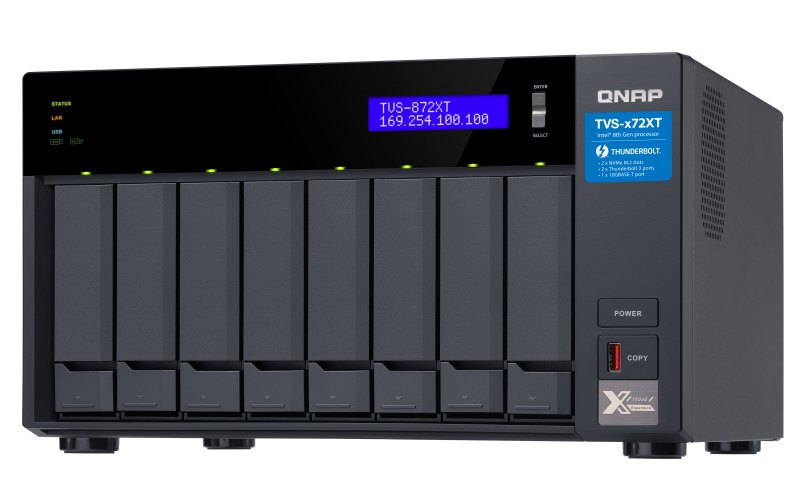

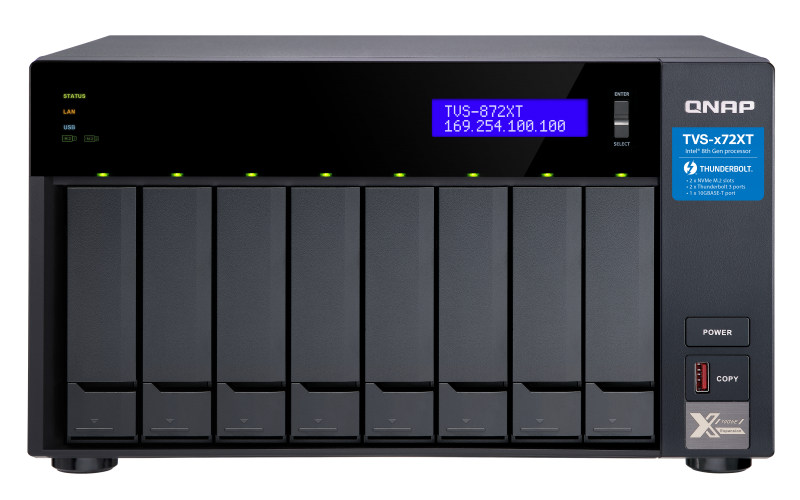

QNAP TVS-872XT
Breakthrough performance and outstanding connectivity with 10GbE, Thunderbolt 3, and M.2 PCIe NVMe SSD slots

Fast and flexible Thunderbolt™ 3 and 10GBASE-T connectivity

The TVS-872XT adopts the powerful 8th generation Intel® Core™ processor with 16 GB dual-channel DDR4 memory (upgradable to 64 GB) to deliver outstanding performance. It provides two Gigabit and one 5-speed 10GBASE-T port (10G/5G/2.5G/1G/100M), supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data. You can also connect USB Type-C devices through the Thunderbolt™ 3 ports to transfer large media files across devices, providing you with a more efficient workflow.

Note: Mac OS 10.11.5 (and later) enables SMB signing by default, which may impact the connection speed to the NAS. To improve the connection speed, users can disable SMB signing or use Qfinder Pro to connect to the NAS.

---

Extend NAS functionality with a graphics card and other PCIe devices

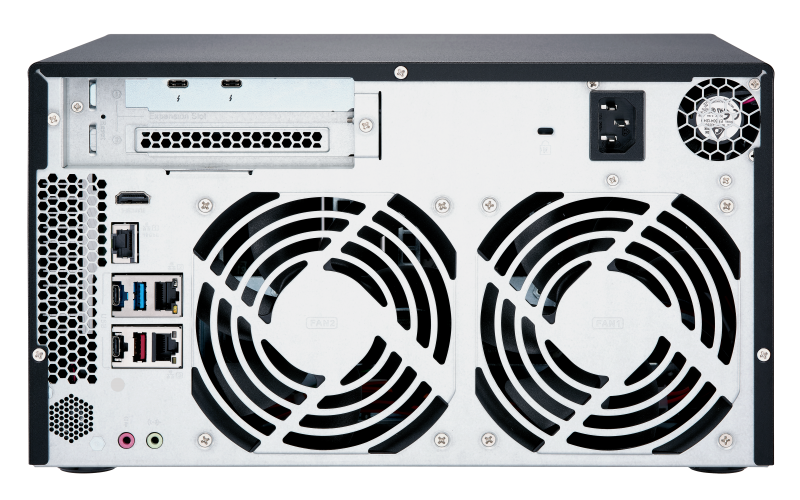

The TVS-872XT features two PCIe Gen 3 slots (the first slot is pre-installed with a Thunderbolt™ 3 card) that allow for the usage of various expansion cards to expand application potential.

---

Obtain performance benefits from M.2 SSD caching

Besides using 2.5-inch SSDs for caching, you can utilize the two M.2 SSD slots built in to the TVS-872XT for installing PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs with 2280 form factors (M.2 SSDs are sold separately).

Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows.

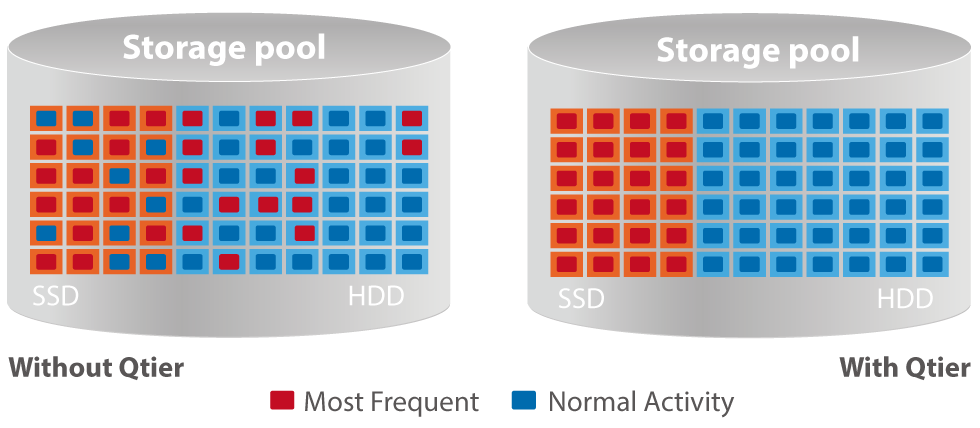

Maximize the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TVS-872XT with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.

---

---

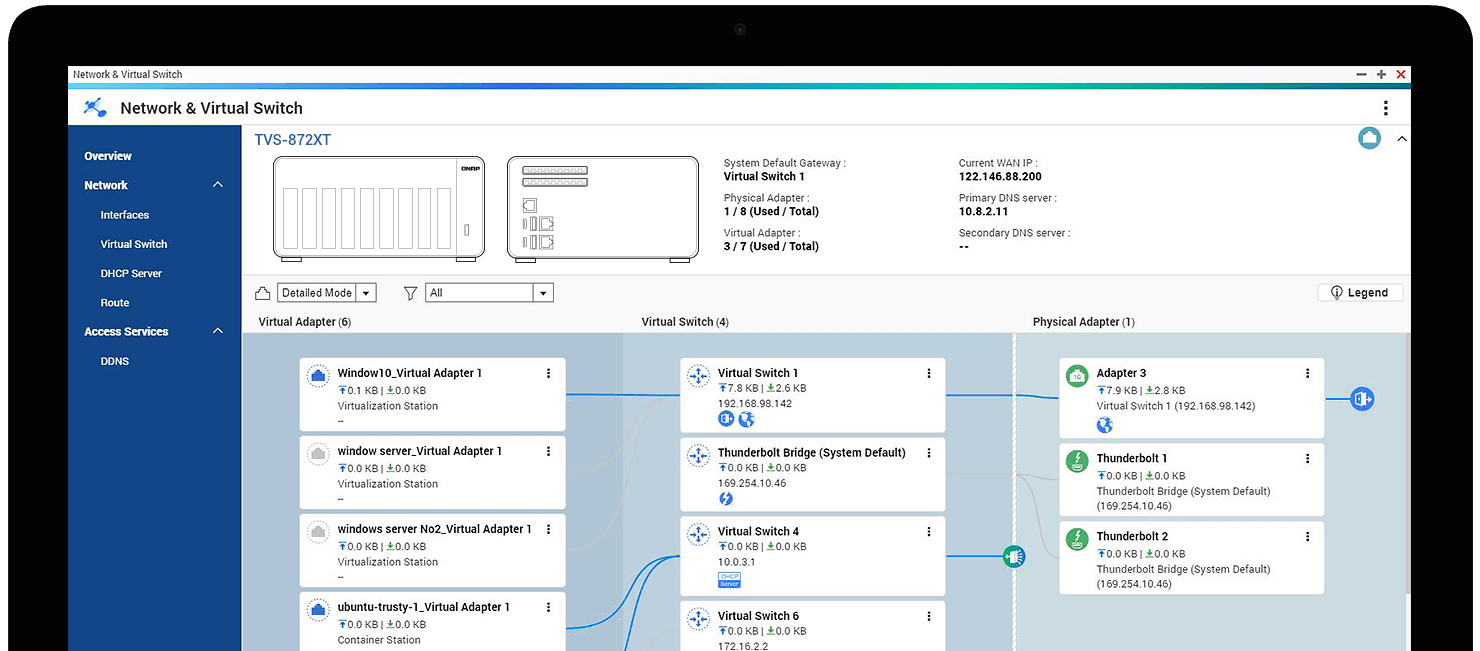

Flexibly manage virtual and physical networks

The Network & Virtual Switch app manages physical network interfaces (including network adapters and Thunderbolt™ ports) and virtual adapters (virtual machines and containers) and their communications, providing a visualized topology that clearly presents the connections of physical and virtual networks. The flexible manageability enables you to reorganize physical and virtual network connections with greater ease, so you can allocate adequate network resources to the TVS-872XT, virtual machines and containers whenever needed.

---

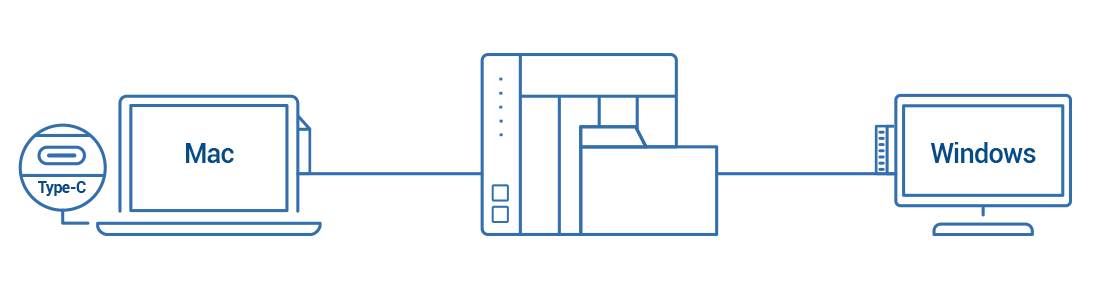

Collaboration station for Mac and Windows

The TVS-872XT is the perfect match for Thunderbolt™-equipped Mac® users - especially for photographers, filmmakers, and graphic designers who require 4K media storage, instant sharing and have bandwidth-intensive workflows. Up to 2 Thunderbolt™ devices can be connected to the TVS-872XT to process real-time photo and audio editing simultaneously without impacting system performance. As Final Cut Pro® X 10.3 (and later) supports file sharing via SMB, Windows® users and other devices utilizing Thunderbolt™ 3, 10GbE or GbE connections can join the editing workflow more efficiently.

Note:

1. Thunderbolt™ cables are sold separately. Using SSDs with RAID 5 configuration is recommended for optimal performance.
2. If you connect a Thunderbolt™ 4 computer to a Thunderbolt™ 3 NAS, you must use a Thunderbolt™ 4 certificated cable or a passive Thunderbolt™ 3 cable that is shorter than 0.8 meters.

---

The best storage solution for the 10GbE-equipped iMac Pro

The iMac Pro® is the first Mac® computer that includes a 10Gb Ethernet port, marking a milestone in the growing mainstream demands for 10GbE connectivity. As the TVS-872XT comes with both 10GbE and Thunderbolt™ 3 ports, it provides an exceptional storage base for iMac Pro® users as they can flexibly choose between Thunderbolt™ 3 and 10GbE connections to suit their application and device needs.

---

Create a seamless 10GbE environment for both Mac and Windows users

QNAP provides various budget-friendly solutions to help upgrade your network environment to 10GbE. No matter if your team members use Mac® or Windows® computers, they can enjoy blazing-fast transfer speeds and simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia).

---

Ultimate visual experience with 4K HDMI output

The TVS-872XT has an HDMI 2.0 port which supports 4K (3840 x 2160) 60Hz output, providing great benefits for applications like video production/editing, industrial design and professional photography that demand on-image resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-872XT to an HDTV via the HDMI output, you can directly view multimedia content saved on the NAS on a bigger screen. You can also download and install versatile multimedia apps from Ubuntu® Software Center through QNAP Linux Station. QNAP's HD Station also allows users to directly enjoy multimedia using the HD Player or third-party players such as Plex® Home Theater.

---

---

Protect your data with higher security

The TVS-872XT is loaded with comprehensive security features to keep your data safe.

• QuFirewall for network security: Supports IPv6, firewall access lists, and GeoIP filtering to restrict access upon the geographical location for higher network security.
• WPA2 Enterprise: Provides enterprise-grade wireless security for business networks, including certificate authority, encryption key, and enhanced encryption/decryption.
• Security Counselor: A security portal that checks for weaknesses and offers recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

---

Complete backup planning

The TVS-872XT provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.

---

High-speed VM Backup Solution

With Hyper Data Protector, the TVS-872XT becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression that provides you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.

Notes: QNAP NAS must be running QTS version 4.3.6 or later

---

Optimized collaboration with seamless file sharing and sync

The TVS-872XT centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TVS-872XT will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.

---

All-in-one server to host virtual machines and containers

Virtualization Station and Container Station jointly introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support.

---

More Productivity Applications

---

Flexible and economical storage expansion

QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.

---

Switch operating systems for optimal data integrity and reliability

The TVS-872XT also supports QuTS hero - QNAP’s ZFS-based NAS operating system. Providing end-to-end data integrity, data reduction (inline data deduplication, compression, and compaction), and much more, QuTS hero uses additional system resources to ensure an optimal environment for protecting business data.

Note:
1. QTS and QuTS hero use different file systems. You must remove all the drives from the TVS-872XT before switching from QTS to QuTS hero.
2. QuTS hero requires a NAS with at least 8 GB memory.
3. Inline Data Deduplication requires a NAS with at least 16 GB memory (at least 32 GB memory is recommended for optimal performance).
4. It is recommended to create an SSD RAID with at least two SSDs for the QuTS hero system drive to attain optimal system performance. Please note that M.2 SSD hot-swapping is only supported by M.2 SSD slots on PCIe cards (such as the QM2). M.2 SSD slots that are built into the NAS do not support hot-swapping.

---

Extend hardware warranty up to 5 years

The TVS-872XT is backed by a 2-year warranty at no extra cost. If needed, you can purchase a warranty extension that increases your coverage up to 5 years.
