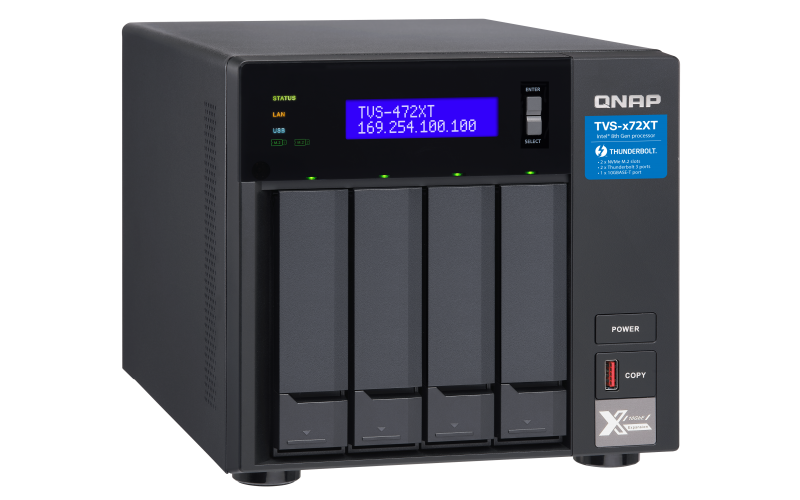

QNAP TVS-472XT
Breakthrough performance and outstanding connectivity with 10GbE, Thunderbolt 3, and M.2 PCIe NVMe SSD slots

QNAP Products
Small Business Storage
QNAP Ultra-High Speed 4 Bay Thunderbolt™ 3 NAS.Intel® Core™ i3-8100T 4-core 3.1 GHz
Intel® Core™ i3-8100T 4-core 3.1 GHz Processor, 4GB DDR4 RAM (max 32GB), 4x 2.5″/3.5″ SATA HDD/SSD + 2x M.2 PCIe SSD slot, 2xGbE LAN, 1 x 10GBase-T, 2 x Thunderbolt 3 port, 4x USB 3.1 Gen 2 type-C & type-A, USB. 3.0, LCD, 2x PCIe expansion slot, 250W single power supply, 1x MIC In, 1x Line Out
#TVS-472XT-i3-4G-US
Our Price: $1,499.00
QNAP Ultra-High Speed 4 Bay Thunderbolt™ 3 NAS.Intel® Core™ i5-8400T 6-core 1.7 GHz (max 3.3)
Intel® Core™ i5-8400T 6-core 1.7 GHz Processor (max 3.3), 4GB DDR4 RAM (max 64GB), 4x 2.5″/3.5″ SATA HDD/SSD + 2x M.2 PCIe SSD slot, 2xGbE LAN, 1 x 10GBase-T, 2 x Thunderbolt 3 port, 4x USB 3.1 Gen 2 type-C & type-A, USB. 3.0, LCD, 2x PCIe expansion slot, 250W single power supply, 1x MIC In, 1x Line Out
#TVS-472XT-i5-4G-US
Our Price: $1,649.00
QNAP Ultra-High Speed 4 Bay Thunderbolt™ 3 NAS. Intel® Pentium 2-core 3.1 GHz, 4GB DDR4 RAM
Intel® Pentium 2-core 3.1 GHz Processor, 4GB DDR4 RAM (max 32GB), 4x 2.5″/3.5″ SATA HDD/SSD + 2x M.2 PCIe SSD slot, 2xGbE LAN, 1 x 10GBase-T, 2 x Thunderbolt 3 port, 4x USB 3.1 Gen 2 type-C & type-A, USB. 3.0, LCD, 2x PCIe expansion slot, 250W single power supply, 1x MIC In, 1x Line Out
#TVS-472XT-PT-4G-US
Our Price: $1,399.00

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Package Content

  • TVS-472XT Storage System
  • 2 x Gigabit Ethernet Cables
  • 1 x 10Gbase-T Ethernet cable
  • 1 x Power Cords
  • Flat Head Screw (for 3.5” HDD)
  • Flat Head Screw (for 2.5” HDD)
  • 2 x M.2 SSD Heatsink
  • Quick Installation Guide (QIG)

Overview:

Powered by an 8th generation Intel® Pentium® Gold / Intel® Core™ i3 processor, the high-performance TVS-472XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-472XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-472XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!



Available Models

  • TVS-472XT-PT-4G-
    Intel® Pentium® Gold G5400T dual-core 3.1 GHz processor, 4 GB RAM (2 GB x2)

  • TVS-472XT-i5-4G-
    Intel® Core™ i5-8400T six-core processor (burst to 3.3 GHz), 4 GB memory (4 GB x 1)

  • TVS-472XT-i3-4G-
    Intel® Core™ i3 8100T quad-core 3.1. GHz processor, 4 GB RAM (2 GB x2)

High-speed Thunderbolt™ 3 with SMB protocol, allowing Mac® and Windows® users to collaborate on media editing.

5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.

PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.

Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.

4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.

Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

Features:

Fast and flexible Thunderbolt™ 3 and 10GBASE-T connectivity

The TVS-472XT provides options with the powerful 8th generation Intel® Pentium® Gold G5400T dual-core 3.1 GHz processor with 4 GB dual-channel DDR4 memory (upgradable to 32 GB), and Intel® Core™ i3 8100T quad-core 3.1 GHz processor with 4 GB dual-channel DDR4 memory (upgradable to 64 GB). It provides two Gigabit and one 5-speed 10GBASE-T port (10G/5G/2.5G/1G/100M), supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data. You can also connect USB Type-C devices through the Thunderbolt™ 3 ports to transfer large media files across devices, providing you with a more efficient workflow.

Note: Mac OS 10.11.5 (and later) enables SMB signing by default, which may impact the connection speed to the NAS. To improve the connection speed, users can disable SMB signing or use Qfinder Pro to connect to the NAS.


Extend NAS functionality with a graphics card and other PCIe devices

The TVS-472XT features two PCIe Gen 3 slots (the first slot is pre-installed with a Thunderbolt™ 3 card) that allow for the usage of various expansion cards to expand application potential.

icon gpu

Graphic cards

Accelerate NAS video processing and empower GPGPU tasks. GPUs can also be passed-through to virtual machines.

icon m2

QM2 M.2 SSD/10GbE cards

Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.

icon 10GbE

10GbE/ 40GbE adapters

Enable lightning-fast throughput for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration

icon wifi

Wireless networks cards

Use the QNAP QWA-AC2600 wireless adapter with WirelessAP Station to transform the TVS-472XT into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.


Obtain performance benefits from M.2 SSD caching

Besides using 2.5-inch SSDs for caching, you can utilize the two M.2 SSD slots built in to the TVS-472XT for installing PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs with 2280 form factors (M.2 SSDs are sold separately).

Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows.

Maximize the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TVS-472XT with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.

overview-2

overview-2

Potentially attain performance and endurance levels similar to enterprise-grade SSDs

With SSD prices continuing to become more affordable, there's never been a better time for using SSDs in your NAS to enjoy higher performance, faster file backups, smoother multimedia experiences, and optimized virtualization applications. From QTS 4.3.5 you can benefit from software-defined SSD RAID extra over-provisioning (OP) that enables you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TVS-472XT, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs.


Flexibly manage virtual and physical networks

The Network & Virtual Switch app manages physical network interfaces (including network adapters and Thunderbolt™ ports) and virtual adapters (virtual machines and containers) and their communications, providing a visualized topology that clearly presents the connections of physical and virtual networks. The flexible manageability enables you to reorganize physical and virtual network connections with greater ease, so you can allocate adequate network resources to the TVS-472XT, virtual machines and containers whenever needed.

overview-2

Collaboration station for Mac and Windows

The TVS-472XT is the perfect match for Thunderbolt™-equipped Mac® and Windows® users - especially for photographers, filmmakers, and graphic designers who require 4K media storage, instant sharing and have bandwidth-intensive workflows.

Up to 2 Thunderbolt™ devices can be connected to the TVS-472XT to process real-time photo and audio editing simultaneously without impacting system performance. As Final Cut Pro® X 10.3 (and later) supports file sharing via SMB, Windows® users and other devices utilizing Thunderbolt™ 3, 10GbE or GbE connections can join the editing workflow more efficiently.

Note: Thunderbolt™ cables are sold separately. Thunderbolt™ 3 (USB-C) to Thunderbolt™ 2 converters may not be compatible with certain Windows PC models.

overview-2

The best storage solution for the 10GbE-equipped iMac Pro

The iMac Pro® is the first Mac® computer that includes a 10Gb Ethernet port, marking a milestone in the growing mainstream demands for 10GbE connectivity. As the TVS-472XT comes with both 10GbE and Thunderbolt™ 3 ports, it provides an exceptional storage base for iMac Pro® users as they can flexibly choose between Thunderbolt™ 3 and 10GbE connections to suit their application and device needs.


Create a seamless 10GbE environment for both Mac and Windows users

QNAP provides various budget-friendly solutions to help upgrade your network environment to 10GbE. No matter if your team members use Mac® or Windows® computers, they can enjoy blazing-fast transfer speeds and simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia).


Ultimate visual experience with 4K HDMI output

The TVS-472XT has an HDMI 2.0 port which supports 4K (3840 x 2160) 60Hz output, providing great benefits for applications like video production/editing, industrial design and professional photography that demand on-image resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-472XT to an HDTV via the HDMI output, you can directly view multimedia content saved on the NAS on a bigger screen. You can also download and install versatile multimedia apps from Ubuntu® Software Center through QNAP Linux Station. QNAP's HD Station also allows users to directly enjoy multimedia using the HD Player or third-party players such as Plex® Home Theater.


overview-5

Real-time transcoding for an excellent cross-device media experience

Featuring advanced Intel® UHD Graphics 630, the TVS-472XT supports triple-channel 4K H.264 hardware decoding and real-time transcoding, allowing you to convert videos to universal file formats that can be smoothly played on multiple devices*.

*The TVS-472XT’s hardware provides H.264 hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.


Protect your data with higher security

The TVS-472XT is loaded with comprehensive security features to keep your data safe.

  • QuFirewall for network security: Supports IPv6, firewall access lists, and GeoIP filtering to restrict access upon the geographical location for higher network security.
  • WPA2 Enterprise: Provides enterprise-grade wireless security for business networks, including certificate authority, encryption key, and enhanced encryption/decryption.
  • Security Counselor: A security portal that checks for weaknesses and offers recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Complete backup planning

The TVS-472XT provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.

Time-icon

Hybrid Backup Sync

Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

Camera-icon

Snapshots for Volume & LUN

Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable method for protecting data in the face of the growing threat of ransomware. The TVS-472XT supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.


Computer-icon

Windows and Mac backup

Use the license-free QNAP NetBak Replicator utility to back up/restore files from Windows® computers. Time Machine® is fully supported for backing up Mac® computers.

VM-icon

VM backup

With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TVS-472XT is perfect for backing up virtual machines.


High-speed VM Backup Solution

With Hyper Data Protector, the TVS-472XT becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression that provides you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.

Notes: QNAP NAS must be running QTS version 4.3.6 or later


Optimized collaboration with seamless file sharing and sync

The TVS-472XT centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TVS-472XT will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.


All-in-one server to host virtual machines and containers

Virtualization Station and Container Station jointly introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support.

Virtualization-Station

Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or VNC (Virtual Network Computing). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container-Station

Experience LXC and Docker® lightweight virtualization technologies, and download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.


More Productivity Applications

IFTTT Agent

IFTTT Agent

A popular web automation service for combining QNAP NAS and mobile devices/apps to customize NAS applets.

QmailAgent

QmailAgent

Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy.

Browser Station

Browser Station

Enable remote access through NAS browsers to access local LAN resources without requiring complex VPN settings.


Cinema28

Cinema28

Turns your NAS into a multimedia hub for streaming photos, music and videos to different devices in different rooms.

Qsirch

Qsirch

A full-text search engine that helps quickly find specific images, music, videos, documents, and emails by using keywords and search conditions.


Flexible and economical storage expansion

QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.

Attach Expansion Enclosures

Attach Expansion Enclosures

Connect up to 6 TX-800P or TX-500P Thunderbolt™ 2 expansion enclosures.*

*A Thunderbolt™ 3 (USB-C) to Thunderbolt™ 2 Adapter is required for connecting Thunderbolt™ 2 expansion enclosures.

Upgrade RAID Capacity

Upgrade RAID Capacity

Hot swap lower-capacity drives with larger-capacity drives so that your QNAP NAS can grow with your business.


Migrate to a New NAS

Migrate to a New NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

VJBOD

VJBOD

Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to 8 QNAP NAS can be mounted as local disks on the TVS-472XT.


Extend hardware warranty up to 5 years

The TVS-472XT is backed by a 2-year warranty at no extra cost. If needed, you can purchase a warranty extension that increases your coverage up to 5 years.

Specifications:

  TVS-472XT-i5-4G TVS-472XT-i3-4G TVS-472XT-PT-4G
CPU Intel® Core™ i5-8400T 6-core/6-thread Processor, burst up to 3.3 GHz Intel® Core™ i3-8100T 4-core 3.1 GHz Processor Intel® Pentium G5400T 2-core 3.1 GHz Processor
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics 630 Intel® UHD Graphics 630 Intel® UHD Graphics 610
Floating Point Unit
Encryption Engine (AES-NI) (AES-NI) (AES-NI)
Hardware-accelerated Transcoding
System Memory 4 GB SODIMM DDR4 (1 x 4 GB) 4 GB SODIMM DDR4 (1 x 4 GB) 4 GB SODIMM DDR4 (2 x 2 GB)
Maximum Memory 64 GB ( 2 x 32 GB)
Memory Slot 2 x SO-DIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

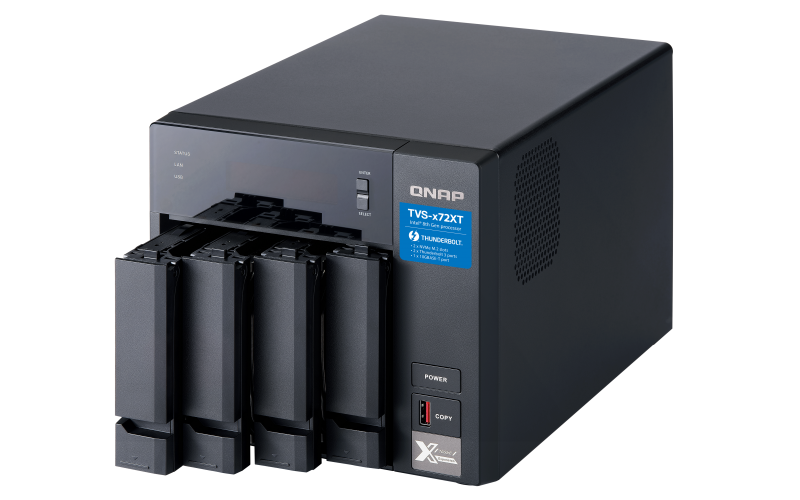

Hot-swappable
M.2 SSD Slot 2 x M.2 2280 PCIe Gen3 x2 slots
SSD Cache Acceleration Support

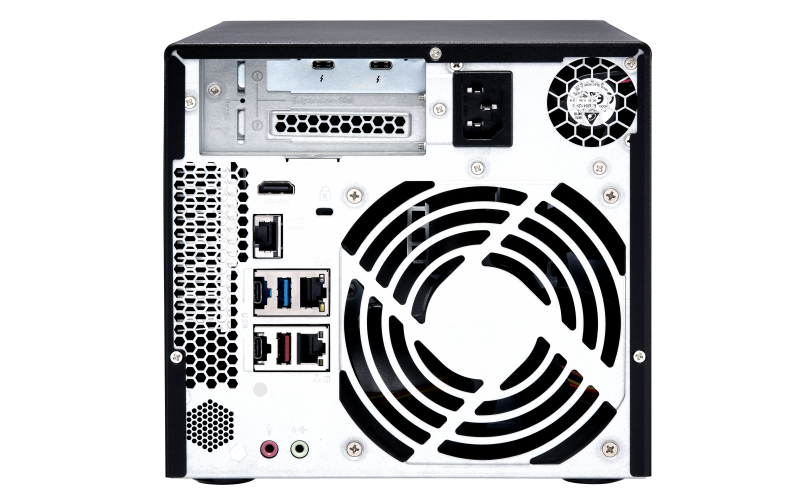

Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL)
Jumbo Frame
Thunderbolt Port 2 (Thunderbolt™ 3)
PCIe Slot 2
Slot 1: PCIe Gen 3 x16 (CPU)
Slot 2: PCIe Gen 3 x4 (PCH)

Slot 1 is preinstalled with a Thunderbolt 3 adapter
USB 3.2 Gen 1 port 1
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 10Gbps
2 x Type-A USB 3.2 Gen 2 10Gbps
IR Sensor (QNAP RM-IR004 & MCE) (QNAP RM-IR004 & MCE) (QNAP RM-IR004 & MCE)
HDMI Output 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)
Form Factor Tower

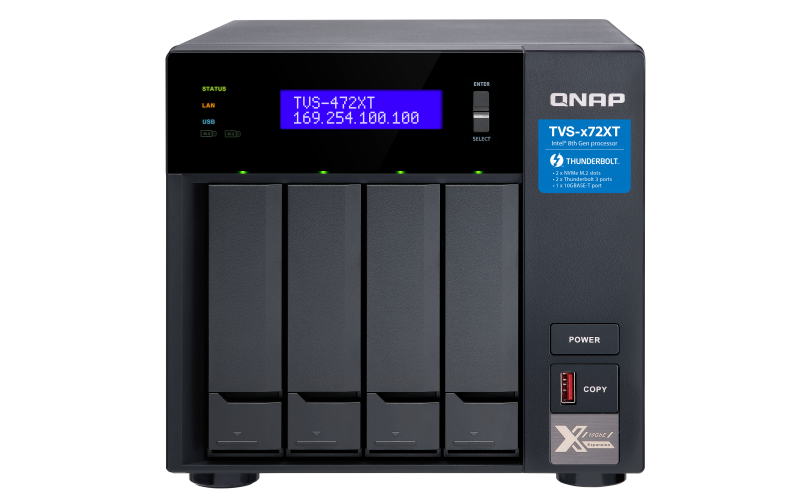

LED Indicators HDD 1-4, Status, LAN, USB port, M.2 port
LCD Display/ Button
Buttons Power, Reset, USB Copy
Dimensions (H x W x D) 7.41 × 7.85 × 11.01 inch
Weight (Net) 11.9 lbs
Weight (Gross) 15.45 lbs
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Power Supply Unit 250W, 100-240V
Power Consumption: HDD Sleep Mode 24.14 W
Power Consumption: Operating Mode, Typical 37.32 W
Tested fully populated with WD10EFRX hard drives.
Fan System fan: 1 x 120mm, 12VDC
CPU fan: 2 x 60mm blower fan
Sound Level 21.2 db(A)
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 700
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
