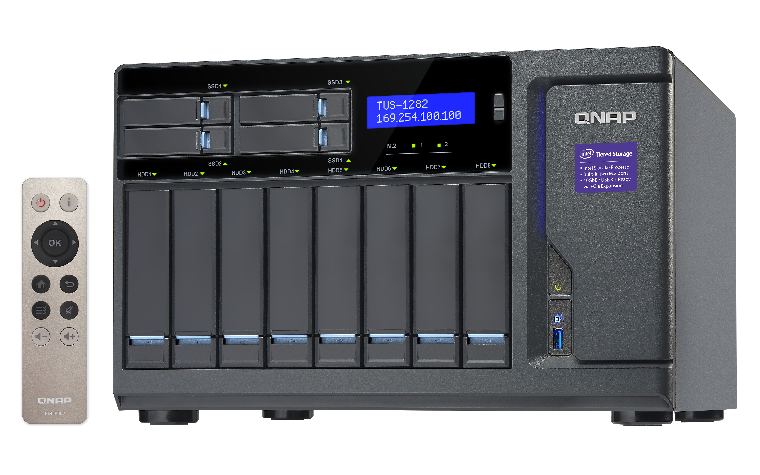

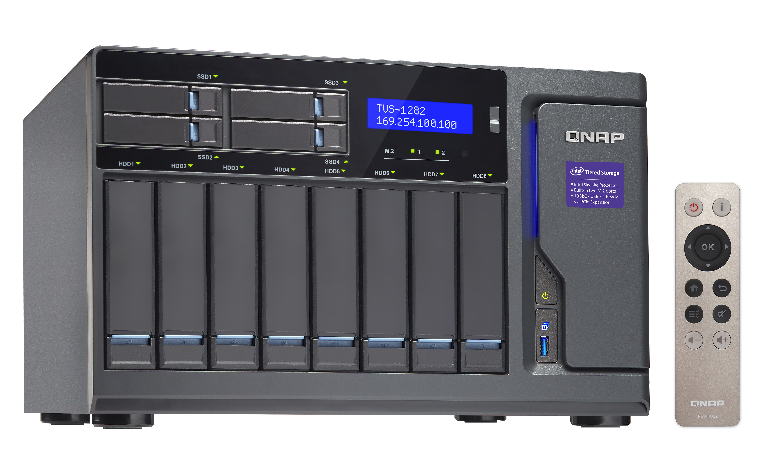

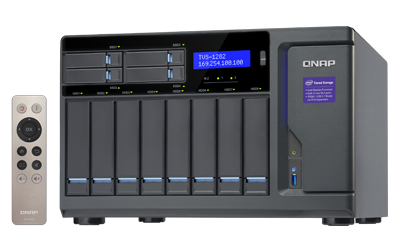

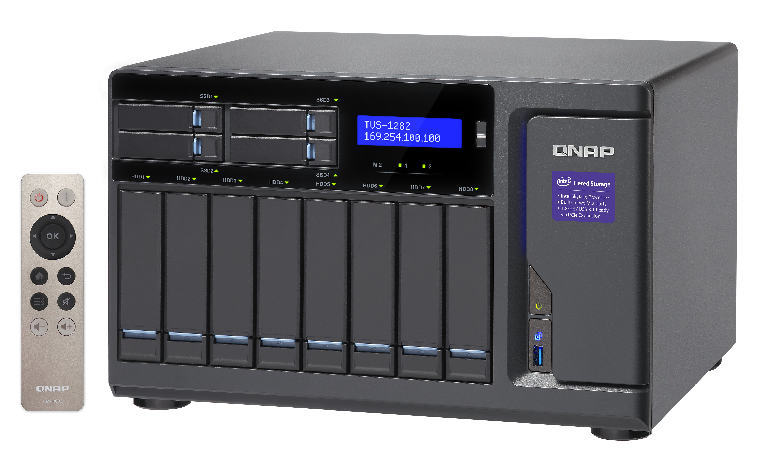

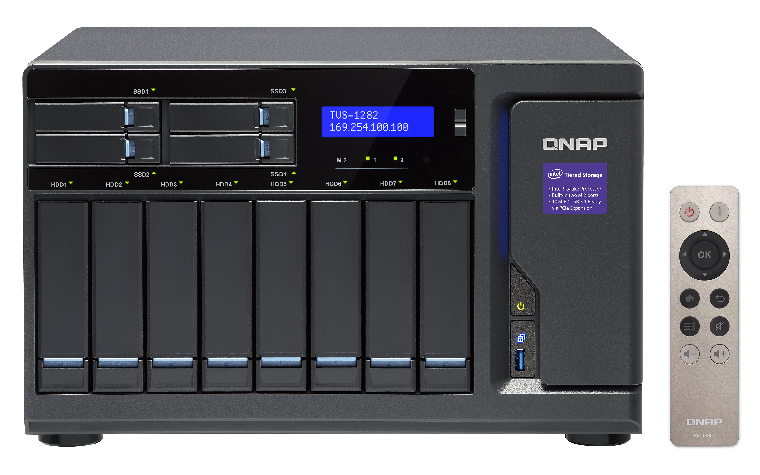

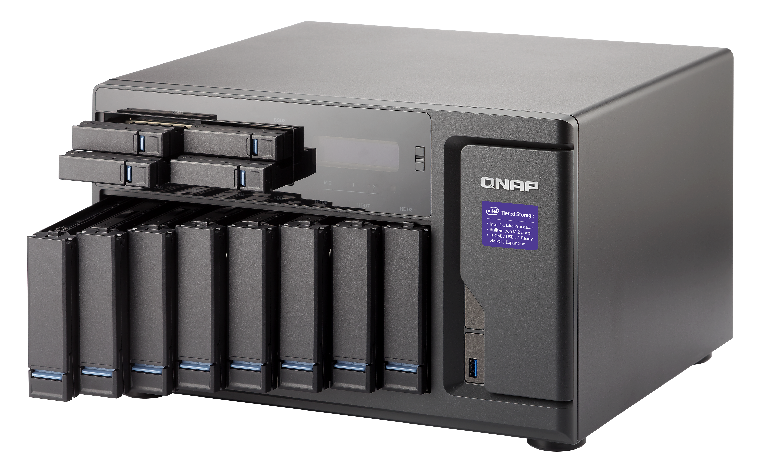

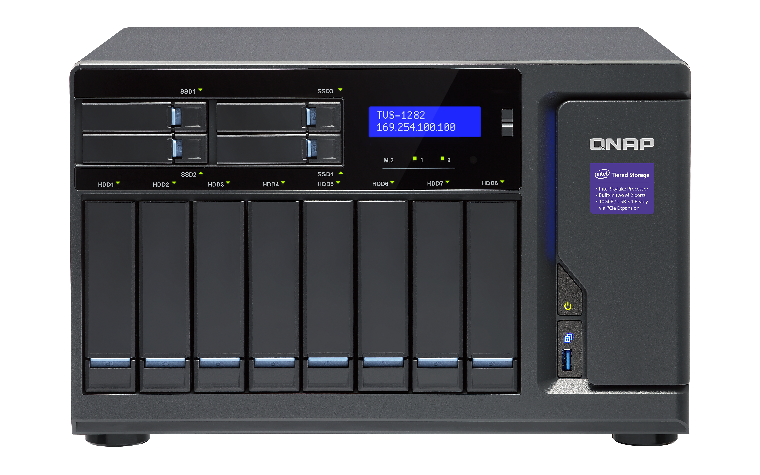

QNAP TVS-1282
High-performance NAS: tiered storage, application-based partitioning and network traffic distribution

QNAP TVS-1282

Sorry, this product is no longer available, Please contact us for a replacement.



Overview:

Package Content

  • Turbo NAS TVS-1282-I7-32G SAN/NAS Server
  • 4 x Ethernet Cables
  • Quick Installation Guide (QIG)
  • 1 x Power Cord
  • Screws for M.2 Installation: 2 x Screws + 2 x Bolt
  • 24 x Flat Head Screws (for 2.5" HDD)
  • 2 x M.2 SSD Heatsinks

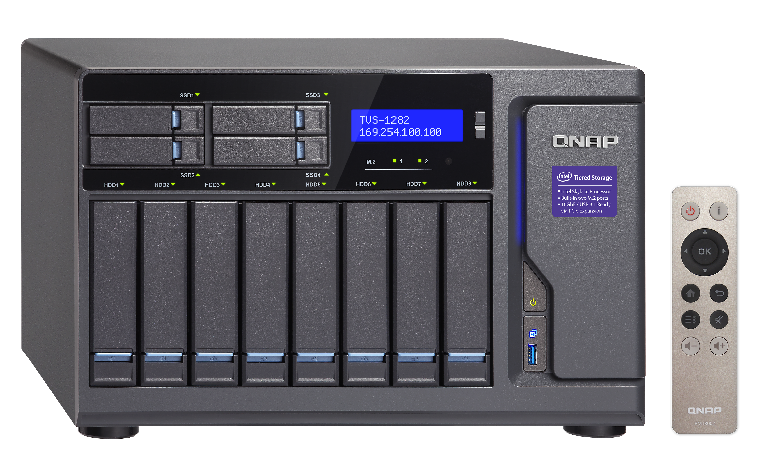

  • IR Remote Control

The TVS-1282 features advanced hardware by adopting 6th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards, the TVS-1282 also supports smooth 4K @30Hz video transfer, cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization and more business applications. Incorporating reliability and security, the TVS-1282 presents an ideal choice for a complete business-ready storage solution.

  • Built-in M.2 SATA 6Gb/s slots & 2.5” SSD slots
  • Qtier technology and SSD cache enable 24/7 optimized storage efficiency
  • The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
  • Triple HDMI output for smooth 4K video playback
  • Scalable design with economical QNAP storage expansion enclosures
  • Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-1282’s storage capacity
  • Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications, and storage for virtualization

TVS-1282

Features:

6th Generation Intel® processors, extraordinary performance

The TVS-1282 is powered by high-performance 6th Generation Intel® multi-core processors with options including Core™ i3, Core™ i5, and Core™ i7, increasing system performance by 20% - 30% compared with previous generations. It greatly enhances the efficiency of CPU-demanding applications such as virtualization, real-time 4K @30Hz video playback, and serving large numbers of simultaneous connections.

Performance

Advanced hardware for greater efficiency

High-performance hardware, well-designed application functionalities and thoroughly-planned usage scenarios are three distinctive cornerstones for achieving optimum performance.

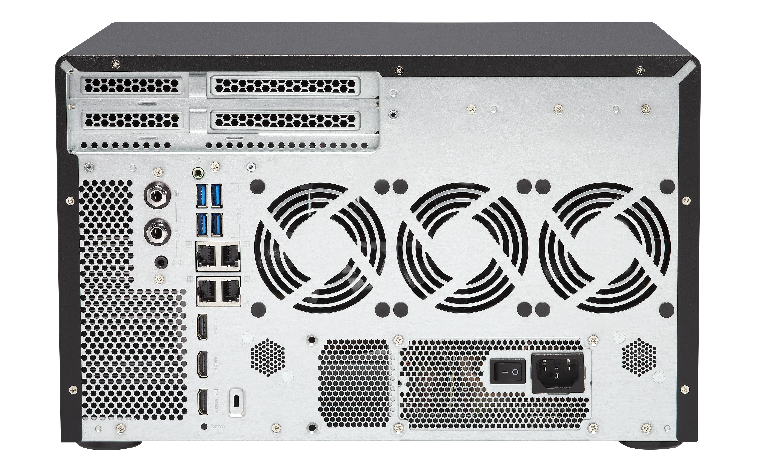

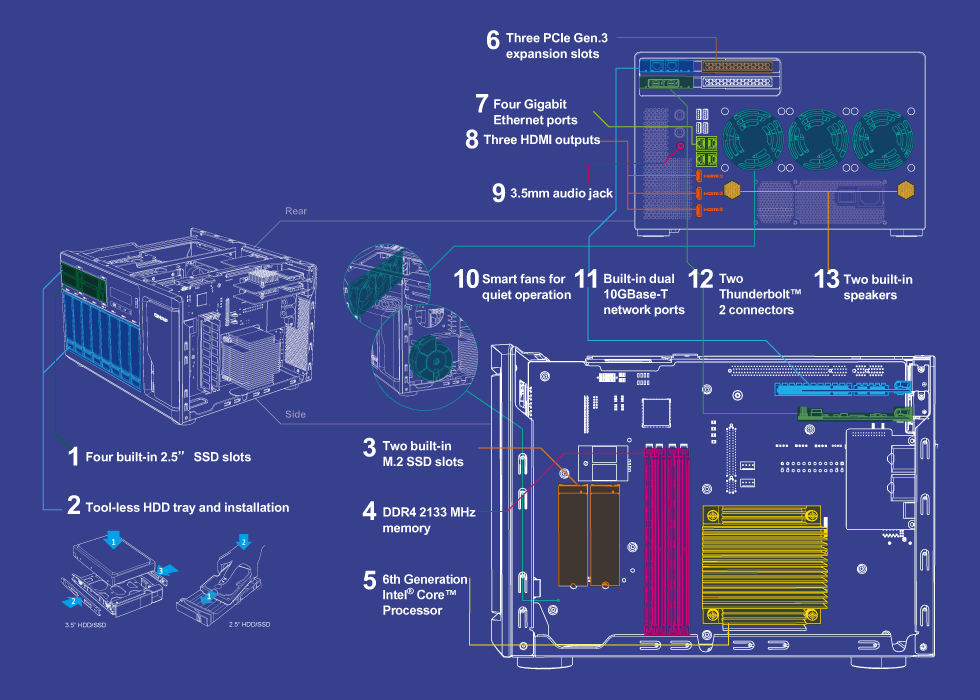

TVS-1282T Hardware

  1. 4 x 2.5" SSD slots
    Offers flexible configuration in tiered storage and enables cache acceleration.

  2. Tool-less HDD tray and installation
    2.5" SSD trays and 3.5" hard drive trays feature tool-less design for easy installation and replacement.

  3. 2 x built-in M.2 SSD slots
    Supports SATA M.2 SSDs with 2242, 2260, 2280, and 22110 form factors; allows the greatest flexibility in tiered storage configuration and enables cache acceleration.

  4. DDR4 2133 MHz memory
    Supports four DDR4 memory modules for a maximum of 64GB RAM.

  5. 6th Generation Intel® Core™ Processor
    Features the latest 14nm manufacturing technology with faster buses to support DDR4, PCIe Gen.3, and DMI 3.0 for incredible performance and extremely efficient data transmission.

  6. 3 x PCIe Gen.3 expansion slots
    PCIe Gen.3 provides 1GB/s bandwidth per lane; support for 10GbE/ 40GbE adapters, PCIe NVMe SSD, external graphics cards (AMD Radeon™ R7), and USB 3.1 expansion cards

  7. 4 x Gigabit Ethernet ports
    Ideal for service binding, port trunking, and MPIO configurations.

  8. 3 x HDMI outputs
    Three HDMI ports support duplicated and extended desktop options.

  9. 3.5mm audio jack
    Connect speakers or headphones for direct audio output from the NAS.

  10. Compartmentalized smart cooling
    Separately detects the CPU and hard drive temperatures to dynamically control fan speed and performs quieter fan operations.

  11. 2 x 10GBase-T network port
    Allows optimized network traffic distribution with the other four Gigabit Ethernet ports for diverse applications. The Network & Virtual Switch app makes network management much easier.

  12. 2 x Thunderbolt™ 2 connectors
    Thunderbolt™ 2 (20 Gbps) capabilities; industry-leading converged storage with Thunderbolt™ DAS/NAS/iSCSI connectivity

  13. 2 x built-in speakers
    Supports direct audio output and provides verbal system warnings.


TVS-1282T Cache

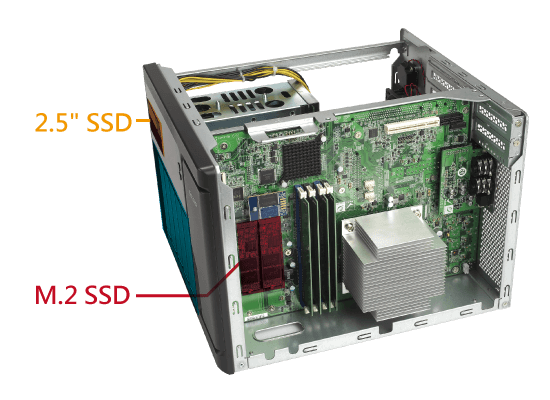

M.2 SATA 6Gb/s SSD & 2.5" SSD cache

The TVS-1282 provides 4 SSD slots dedicated for caching to increase IOPS performance, and provides higher transfer speeds and reliability with the compact, energy-efficient M.2 SSD. Using an SSD cache boosts overall system performance, and is perfect for improving overall workflow of random IOPS demanding applications such as virtualization. The TVS-1282 combines M.2 SSD, 2.5” SSD and HDD in one box to effectively realize tiered storage for exceptional application performance and lower TCO of storage at the same time.


Perfect storage trio: tiered storage, application-based partitioning & network traffic distribution

The advanced hardware design of TVS-1282 can facilitate optimized storage deployment based on different usage scenarios.

Tiered Storage

QNAP’s Qtier Technology empowers the TVS-1282 with Auto Tiering that helps continuously optimize storage efficiency across PCIe NVMe SSD, M.2 SSD, SSD and SATA drives. With Auto Tiering, the TVS-1282 can automatically move frequently-used "hot" data to high-performance storage tiers and less-accessed "cold" data to lower-cost, higher-capacity drives, making the TVS-1282 an extremely efficient shared resource. Businesses will no longer have to invest heavily in expensive Flash technology, but can still enjoy exceptional application performance and cost efficiency from Auto Tiering with the TVS-1282.

Qtier Technology

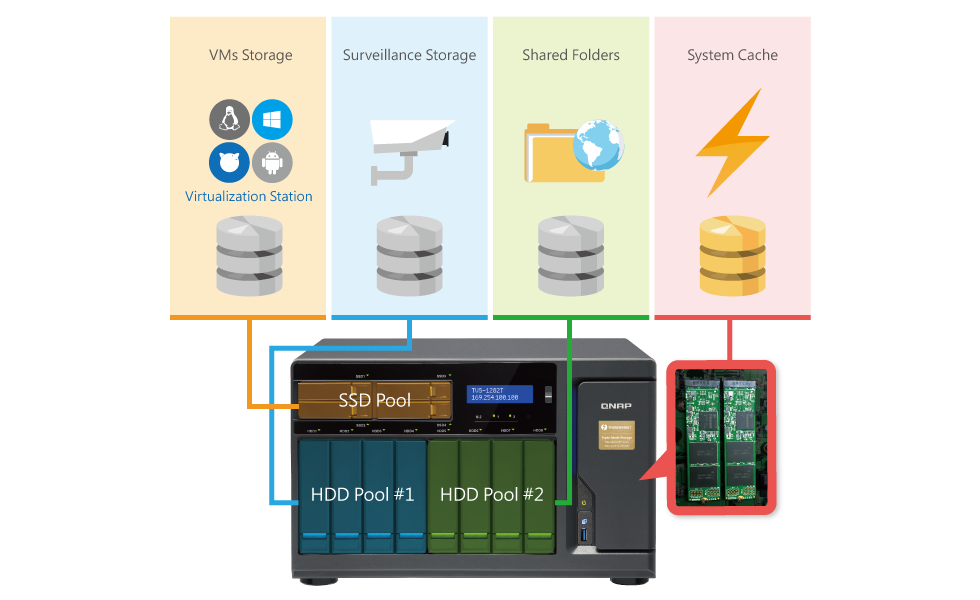

Application-based Partitioning

Every application requires different performance. For example, Surveillance Station requires higher-priority access to storage to ensure the integrity of recordings, while normal transmission speeds are sufficient for file sharing. However, when multiple applications are running on the same storage media, the required throughput level cannot be guaranteed as the storage media is busy handling I/O requests from all of them. The TVS-1282 supports three different types of storage media: M.2, SSD and SATA hard drives, and they can be configured as independent partitions for different applications, ensuring a sufficient throughput level for every application.

Application-based Partitioning

Network Traffic Distribution

With four 1 Gigabit Ethernet ports, the TVS-1282 allows applications to use dedicated interfaces to meet network traffic distribution requirements. Network interfaces can also be easily managed with the Network & Virtual Switch app, which enables optimized network resources for TVS-1282, virtual machines and containerized apps. No matter if they are business organizations or individual users, they can effortlessly manage network connections by using the Network & Virtual Switch.

Network Traffic Distribution

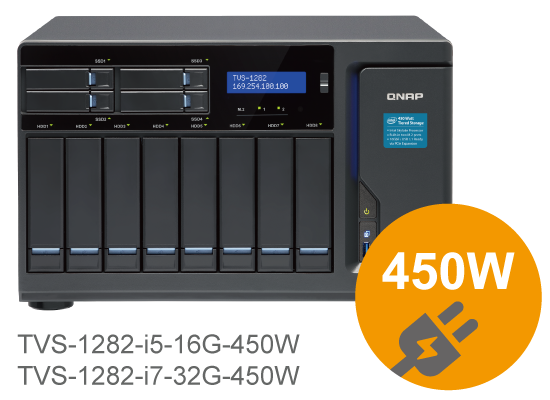

450W power supply

450W power supply fuels GPU passthrough

Graphics cards are optimized for graphical calculations and transformations, but require significantly more power compared to other hardware. The TVS-1282 offers an option with a 450 watt power supply that is capable of powering an AMD Radeon™ R7 Series or RX 480 graphics card for smooth GPU passthough to virtual machines.

Note: Only TVS-882 and TVS-1282 provides an option with 450W power supply.

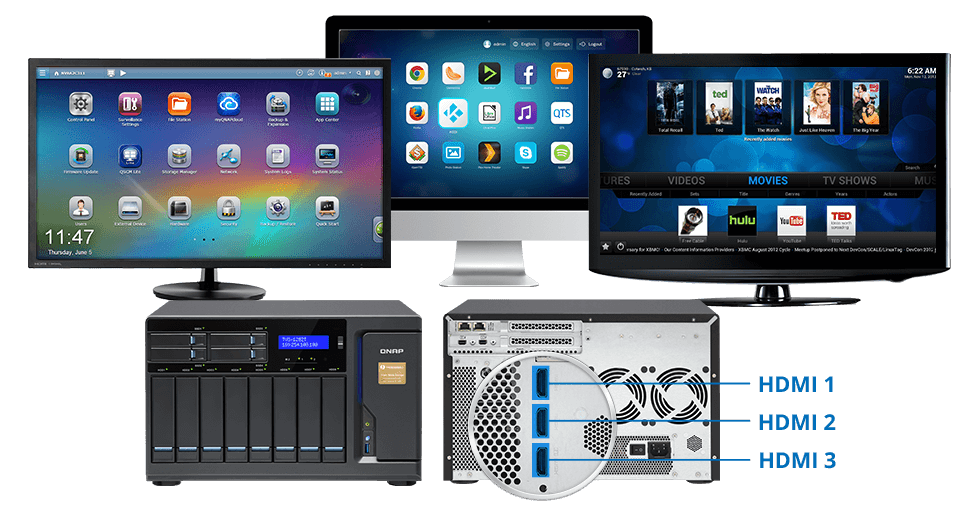

Three HDMI outputs - switch between HD Station and Linux desktop

The TVS-1282 comes with three HDMI outputs for using three monitors in either “duplicated” or “extended” desktop configuration. Duplicating will display the same content on every display, and extended desktop mode allows users to display applications across the displays for improved multitasking convenience and productivity. When displaying content using HDMI, you can use the TVS-1282 as an amazing multimedia player by using HD Station to enjoy rich apps including Plex Home Theater, Google Chrome™, Mozilla Firefox®, and more. Alternatively, you can choose to output the Linux® operating system desktop to use the TVS-1282 as a PC.

Note: To use Linux Station, please install it from the App Center from firmware QTS 4.2.1.

Three HDMI outputs

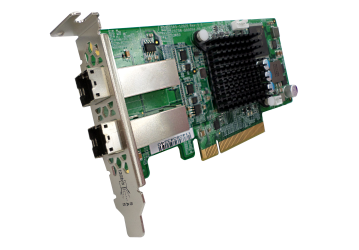

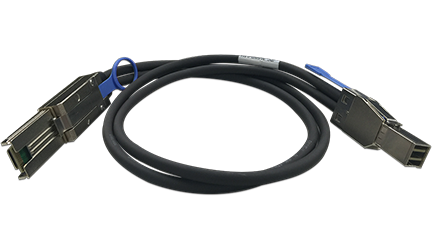

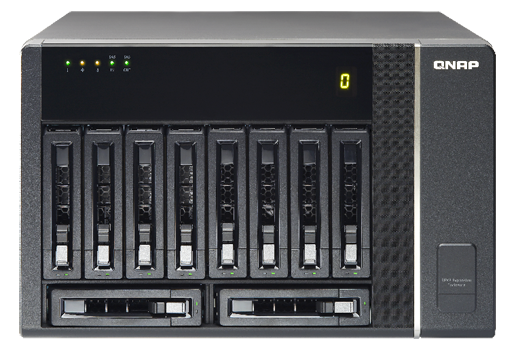

Seamless capacity expansion via SAS or USB interface

The TVS-1282 supports online capacity expansion by connecting multiple high-performance SAS-enabled QNAP RAID expansion enclosures or economical USB 3.0 expansion units to meet the needs of growing business data. The total storage capacity of the TVS-1282 can be gradually expanded and easily managed by the QTS Storage Manager, being useful for large data applications such as video surveillance, data archiving, and TV broadcast storage, and more.

The maximum raw storage capacity available by connecting QNAP expansion enclosures:

QNAP NAS Model RAID Expansion Enclosure No. of RAID Expansion Enclosure Total HDD No. (NAS + Enclosure) Max. Raw Capacity (TB)*
TVS-1282 REXP-1000 Pro 4 48 384
3 38 304
2 28 224
1 18 114
UX-800P** 2 24 192
1 16 128
UX-500P** 2 18 144
1 13 104

*The maximum capacity is calculated by using 8TB HDDs.

**To support UX-500P and UX-800P, QTS 4.2.0 (or later) firmware is required. Please create a separate static volume or storage pool on the UX expansion unit to expand the NAS storage space.

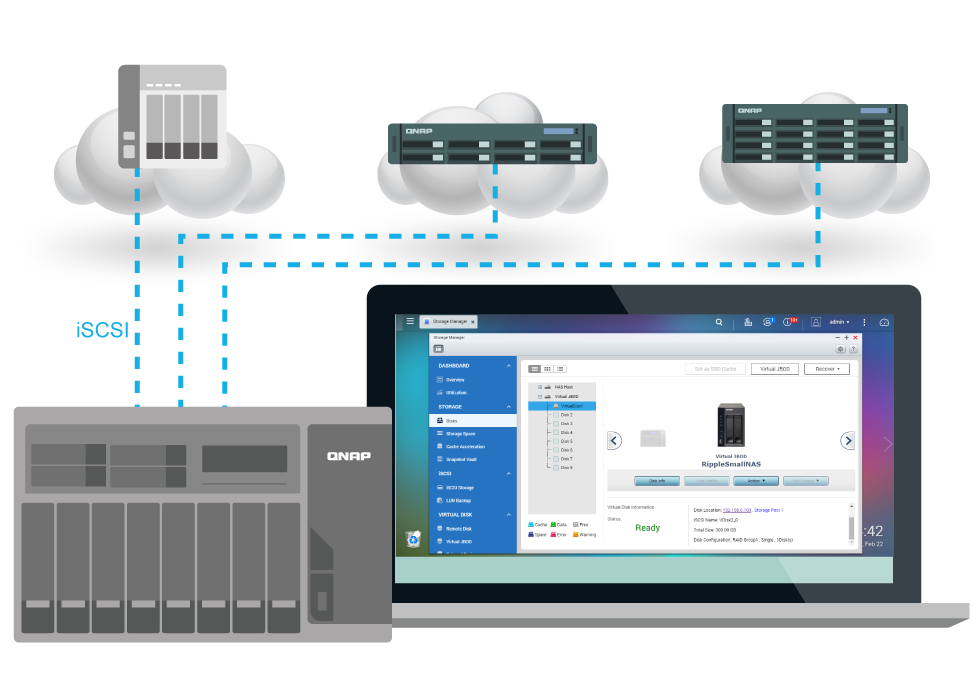

Use NAS to expand NAS capacity with Virtual JBOD

Besides using physical storage expansion enclosures, there is an additional option to expand NAS storage capacity. QNAP VJBOD (Virtual JBOD) is network-based JBOD, allowing you to expand storage of your QNAP NAS with multiple QNAP NAS units. You can mount iSCSI LUNs from a QNAP NAS to the TVS-1282 as local disks, and create virtual storage pools and volumes for operating NAS functionalities, such as creating and reverting snapshots, indexing multimedia files into the media library, and even further creating iSCSI LUNs. With VJBOD, you can centrally utilize the storage space from multiple QNAP NAS units* and manage it with the interface on the local NAS. VJBOD supports 10GbE/40GbE Ethernet connection interface and port trunking (link aggregation with multiple LAN ports) that increase the performance and reliability of your VJBOD storage.

Virtual JBOD

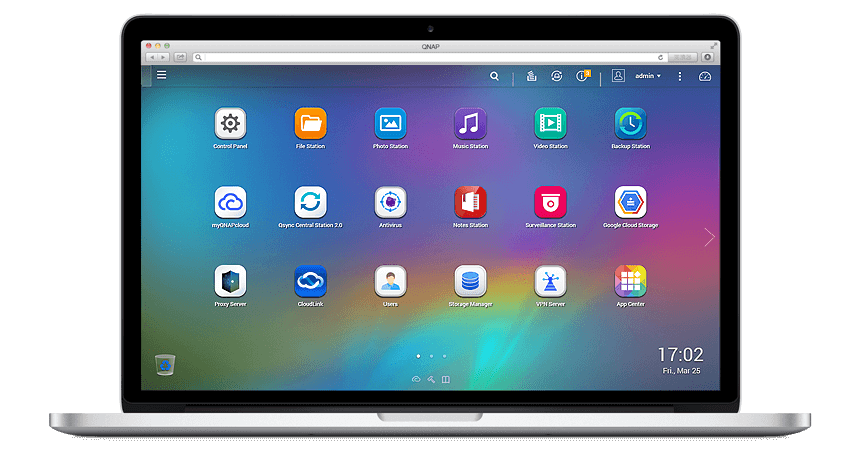

QTS – simple and powerful

The intuitive QTS features a modern flat design to streamline loading times, and its intelligent desktop allows you to find desired functions quickly, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater operating efficiency.

QTS

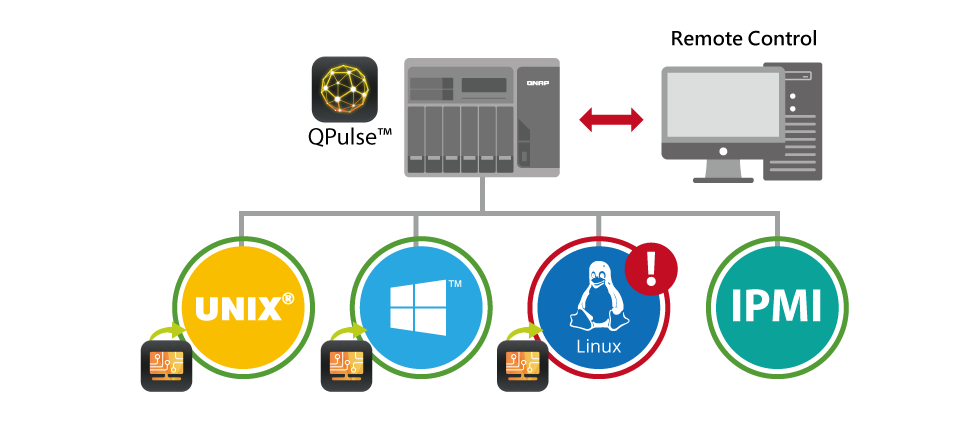

QRM+: Centralized Remote Server Management Solution

QRM+ is QNAP’s Centralized Remote Server Management solution designed for IT teams. It provides a web-based solution - accessible from any web browser - to discover, map, monitor and manage all of the critical computing devices on the network such as servers, PCs, embedded PCs, and thin clients from a single-point. Supporting IPMI 1.5 and 2.0, QRM+ provides remote KVM (Keyboard, Video, Mouse) for certain IPMI devices, and supports tracking every action using KVM recording and playback. With centralized management by QRM+, IT infrastructure and device security is enhanced and troubleshooting & network resource performance analysis is greatly simplified.

Note: Will be available by end of year 2016

QRM+


High accessibility

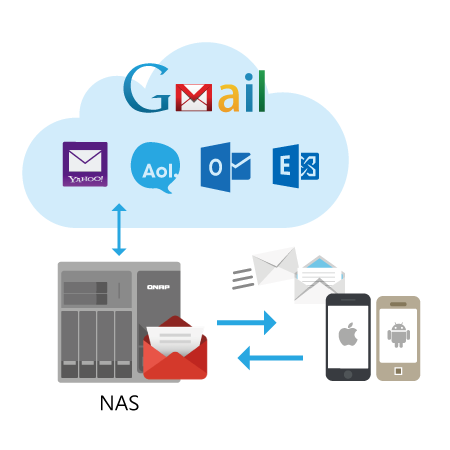

QmailAgent: a mailroom center for your private cloud

QmailAgent is an online email client that helps you manage multiple email accounts, allowing you to access all of your emails and to easily switch between different accounts. It provides complete functionality for composing, reading and organizing emails. You can even attach files, photos and documents from the TVS-1282 when composing emails. Qmail also allows iOS® and Android™ users to quickly check multiple email accounts with mobile devices, and to browse & send emails using the QmailAgent on their TVS-1282.


Storage for hosting virtual machines and containerized applications

Virtualization Station allows you to host virtual machines (VM) on the TVS-1282 and access them via a web browser or VNC. Virtualization Station supports multiple operating systems, fast VM creation, VM backup & restoration, VM import/export, snapshot, and Device Management for centrally managing VM. Virtualization Station allows the TVS-1282 and VMs to share the same LAN port. No longer constrained by physical network performance, high-speed virtual switches greatly increases data transfer between VMs as well as between VMs and NAS through the internal interface. An AMD Radeon™ R7 Series or RX 480 graphics card can also be installed into the TVS-1282's PCIe slot for GPU passthrough to virtual machines, greatly boosting the computational and rendering power of virtualized applications.

The TVS-1282 also features Container Station, which integrates LXC and Docker® lightweight virtualization technologies. You can operate multiple isolated Linux® systems on the TVS-1282 as well as download apps from the built-in Docker Hub Registry®.

Thunderbolt-equipped Mac users


Storage for comprehensive virtualization applications

As an iSCSI/IP-SAN storage solution, the TVS-1282 supports VMware® and Citrix®, and is compatible with Microsoft® Hyper-V® and Windows Server® 2012 R2, benefiting flexible deployment and management in virtualization environments. The TVS-1282 supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced efficiency of operations and management in virtualization applications.

QTS

Comprehensive security

QNAP’s full NAS encryption by volume-based technology effectively ensures data security by encrypting all of the files stored in the default shared folders on the TVS-1282. Besides AES 256-bit encryption for both volumes and shared folders, the TVS-1282 also provides numerous security options, such as encrypted access, IP blocking, 2-step verification, and more.

Security


TVS-1282T as a PC

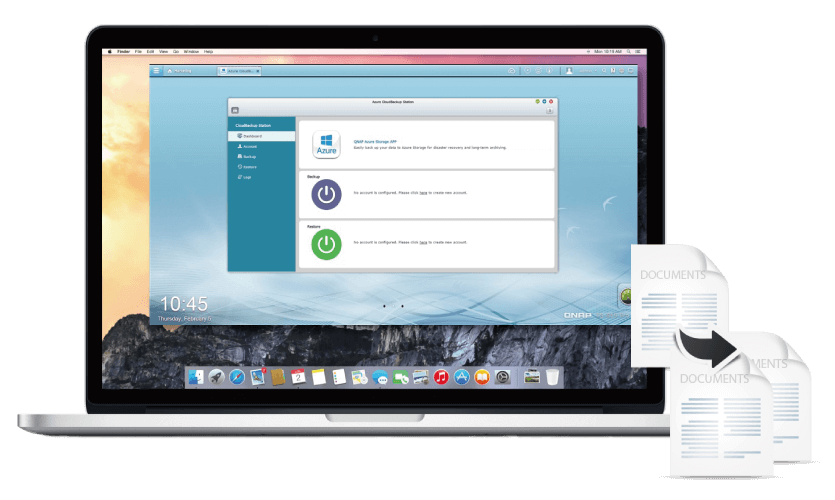

Well-rounded backup & disaster recovery solutions

The TVS-1282 offers flexible backup solutions for Windows® and Mac® users, Volume/LUN snapshots (up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS), Snapshot Replica and Clone, and disaster recovery solutions including RTRR, rsync and cloud storage backup (Amazon® S3, Amazon® Glacier, Microsoft® Azure, ElephantDrive®, Dropbox® and Google Cloud Storage™) are also included.


Cross-device file synchronization

Qsync provides multiple ways of file synchronization and group file sharing, greatly enhancing the flexibility of collaboration. Any file uploaded to the TVS-1282 will be made available for all linked devices, such as computers, laptops or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most up-to-date files on different devices.

Backup and Disaster Recovery

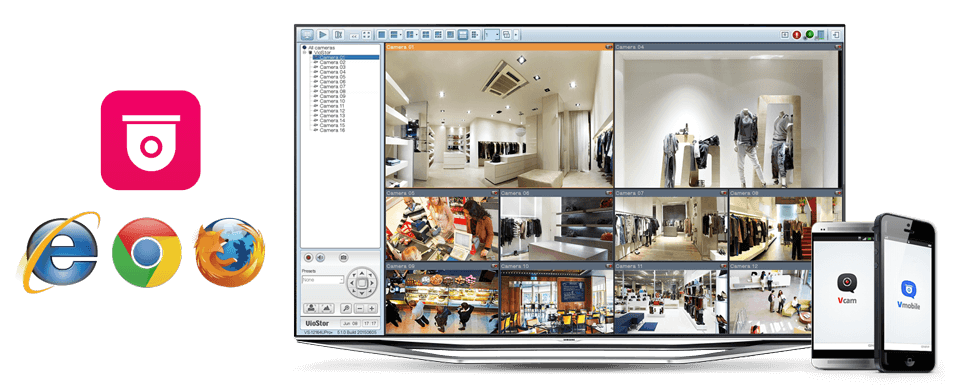

Comprehensive surveillance solution providing 24/7 security

Surveillance Station is a professional network surveillance Video Management System (VMS) that offers a user-friendly management interface, over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS® or Android™ devices to manage monitored channels anytime and anywhere to safeguard your office environment, or install the Vcam mobile app to turn your device into a network camera to instantly record to your TVS-1282. The TVS-1282 includes 8 free IP camera channels and you can expand up to 80 channels by purchasing additional licenses.

Backup and Disaster Recovery

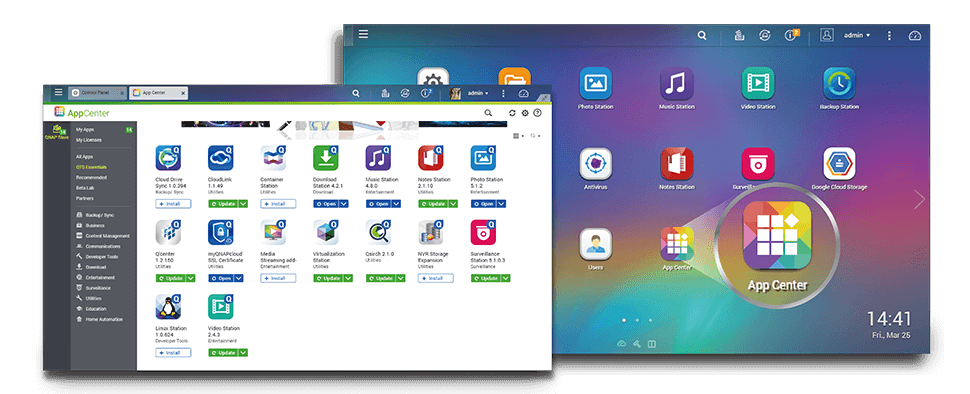

Install-on-demand apps to extend NAS functionality

The TVS-1282 has a built-in App Center that provides over 100 apps, including tools for backup/sync, business, content management, communications, downloading, entertainment, and much more. You can freely install apps as needed to expand your TVS-1282’s functionality.

Backup and Disaster Recovery


Additional SMB-ready features

The TVS-1282T supports various business applications as an all-in-one Turbo NAS with cost-efficiency.

FTP Server Web Server RADIUS Server
FTP Server
The Turbo NAS supports FTP server to share large files, coming with user-defined settings including bandwidth limitations, number of connections, and write-only permission.
Web Server
The Turbo NAS supports a Web server which allows numerous websites built on the same server conveniently. Administrators can manage up to 32 websites on a single Turbo NAS with reduced IT cost.
RADIUS Server
The Turbo NAS supports RADIUS server which provides centralized authorization management for computers to connect and use a network service.
VPN Server Print Server Surveillance Station
VPN Server
The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections.
Print Server
The Turbo NAS supports Printer server to send remote printing request over the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management and Bonjour printing for Mac OS X.
Surveillance Station
The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications.

Specifications:

TVS-1282 Specifications
Ordering P/N TVS-1282-i7-64G
TVS-1282-i7-64G-450W
CPU Intel® Core™ i7-6700 3.4 GHz quad-core processor
System Memory Total DIMM slots: 4
Maximum memory: 64 GB (16 GB x4)
Memory modules pre-installed:
64 GB DDR4 RAM (16 GB x 4)
Flash Memory 512MB DOM
M.2 Slot 2 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD
Note: The M.2 SSD is not included as standard.
Hard Drive Tray 4 x 2.5" SSD
8 x 2.5"/3.5" hard drive or SSD
Drive Interface SATA 6Gbps/3Gbps; Hot-swappable
USB 1 x USB 3.0 port (Front)
4 x USB 3.0 port (Rear)
LAN Port 4 x GbE port
HDMI Output 3
Audio Input Audio In: 2 x 6.3mm MIC In
Audio Output 2 x built-in speaker, 1 x 3.5mm Line-out jack
Note: Only one of the above audio output ports can work at a time. If a speaker is connected, the sound will output through the speaker.
LED Indicators System status, 2.5" SSD, M.2 SSD, 3.5" HDD
Buttons System: Power button, Reset button, USB one-touch-backup button
System Warning Buzzer
Form Factor Tower
Dimensions 234.6 (H) x 369.9 (W) x 319.8 (D) mm
9.23 (H) x 14.56 (W) x 12.59 (D) inch
Weight Net (NAS only): 11.55kg/ 25.46 lb
Gross (with packing and accessories): 13.65 kg/ 30.09 lb
Sound Level (dB)* Sound pressure (LpAm) (bystander position): 21.6 dB
(with 8 x Seagate ST2000VN000-1HJ164 hard drive installed)
Temperature 0-40˚C
Relative Humidity 5~95% non-condensing, wet bulb: 27˚C
Power Supply TVS-1282-i7-64G: Input: 100-240V~, 3-1.5A, 60-50Hz; Output 250W
TVS-1282-i7-64G-450W: Input: 100-240V~, 8-4A, 60-50Hz; Output: 450W

Note: If you plan to use a graphics card with your NAS, please check its power requirements beforehand. When using advanced graphics cards, the TVS-1282-i5-16G-450W and TVS-1282-i7-32G-450W are recommended as they have a suitable power supply for these graphics cards.
PCIe Slot 3 (1* PCIe Gen3 x8; 2* PCIe Gen3 x4)
Fan System: 3 x 8 cm cooling fan
CPU: 1 x 9 cm fan
* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS

Software Specifications:

Operating System
  • QTS 4.1 (embedded Linux)

Supported Clients

  • Windows XP, Vista, Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows Server 2003/2008 R2/2012, Apple Mac OS X, Linux & UNIX

Supported Browsers

  • Google Chrome
  • Microsoft Internet Explorer 10+
  • Mozilla Firefox 8+
  • Apple Safari

Multilingual Support

  • Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish

File System

  • Internal Hard Drive: EXT4
  • External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+

Networking

  • TCP/IP (IPv4 & IPv6: Dual Stack)
  • Quad Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
  • Service binding based on network interfaces
  • Proxy server (Squid available in App Center)
  • Proxy client
  • DHCP client, DHCP server
  • Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  • UPnP & Bonjour Discovery
  • USB Wi-Fi Adapter Support

Security

  • Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  • CIFS host access control for shared folders
  • FIPS 140-2 validated AES 256-bit volume-based data encryption*
  • AES 256-bit external drive encryption*
  • Importable SSL certificate
  • Instant alert via eE-mail, SMS, beep, and LCD panel

Storage Management

  • QNAP flexible Volume/LUN with thin provisioning and space reclaim
  • RAID 0,1, 5, 6, 10, + hot spare
  • Supports storage pool
  • Online volume expansion
  • Online storage pool expansion
  • Online RAID capacity expansion and online RAID level migration
  • SMART data migration
  • Storage expansion via QNAP TX-800P and TX-500P expansion unit
  • Bad block scan and hard drive S.M.A.R.T.
  • Bad block recovery
  • RAID recovery
  • Bitmap support

Power Management

  • Wake on LAN
  • Internal hard drive standby mode
  • Scheduled power on/off
  • Automatic power on after power recovery
  • USB and network UPS support with SNMP management
  • System sleep mode (S3)

Access Right Management

  • Batch users creation
  • Import/export users
  • User quota management
  • Local user access control for CIFS, AFP, FTP, and WebDAV
  • Application access control for Photo Station, Music Station, Video Station, and Multimedia Station
  • Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station

myQNAPcloud Service

  • Private cloud storage and sharing with myQNAPcloud id (QID)
  • Free host name registration (DDNS)
  • Auto router (via UPnP) configuration
  • Web-based file manager with HTTPS 2048-bit encryption
  • Cloudlink for remote access without complicated router setup
  • myQNAPcloud connect for easy VPN connection (Windows VPN utility)

Qsync

  • Syncs files among multiple devices with SSL support
  • Selective synchronization for syncing specific folders only
  • Share team folder as a file center for team collaboration (Maximum sync tasks: 32)
  • Shares files by links via e-mail
  • Policy settings for conflicted files and file type filter support
  • Version control: up to 64 versions.
  • Incremental synchronization for HDD space saving
  • Supports Windows & Mac OS

Web Administration

  • Multi-window, multi-tasking based system management
  • Movable Icons and personalized desktop
  • Smart toolbar and dashboard for neat system status display on system status
  • Smart fan control
  • Dynamic DNS (DDNS)
  • SNMP (v2 & v3)
  • Resource monitor
  • Network recycle bin for file deletion via CIFS/SMB, AFP and File Station
    • Automatic cleanup
    • File type filter
  • Comprehensive logs (events & connection)
  • Syslog client/server
  • System settings backup and restore
  • Restore to factory default
  • Mobile app: Qmanager for remote system monitoring & management

File Server

  • File Sharing across Windows, Mac, and Linux/UNIX
  • Windows ACL
  • Advanced folder permission for CIFS/SMB, AFP, FTP
  • Shared Folder Aggregation (CIFS/SMB)

FTP Server

  • FTP over SSL/TLS (Explicit)
  • FXP supported
  • Passive ftp port range control

File Station

  • Supports ISO Mounting (Up to 256 ISO Files)
  • Support thumbnail display of multimedia files
  • Support share download link and upload link
  • Drag-n-drop Files via Chrome and Firefox Browsers
  • Photo, music, and video preview and playback with hardware accelerated transcoding
  • File Compression (ZIP or 7z)
  • Creation of and sending download links for sharing public files with expiration time and password protection
  • Support for displaying subtitles display (*.SRT, UTF-8 format)
    • Video seeking support for video playback during on-the-fly transcoding
    • Support slideshow playback in media viewer
  • Mobile App: Qfile for file browsing and management)

Backup Station

  • Remote replication server (over rsync)
  • Real-time remote replication (RTRR) to another QNAP NAS or FTP server
  • Works as both RTRR server & client with bandwidth control
  • Real-time & scheduled backup
  • Encryption, compression, file filter, and transfer rate limitation
  • Encrypted replication between QNAP NAS servers
  • Desktop backup with QNAP NetBak Replicator for Windows
  • Apple Time Machine backup support
  • Data backup to multiple external storage devices
  • Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, EMC retrospect, Symantec Backup Exec, etc.

Cloud Storage Backup

  • Amazon S3
  • Amazon Glacier
  • WebDAV-based cloud storage
  • Microsoft Azure
  • Open Stack
  • Google Drive
  • Dropbox
  • ElephantDrive

Print Server

  • Max number of printers: 3
  • Support for Internet Printing Protocol
  • Print job display and management
  • IP-based and Domain Name-based Privilege Control

Virtualization Station

  • Support Virtual Machine (VM) creation to run an operating system such as Windows, Linux, Unix and Android
  • Support importing VM from the other virtual platform, e.g. VirtualBox, VMware Workstation
  • Support exporting VM with *.ovf, *.qvm formats
  • VM clone
  • VM snapshot
  • HTML5-based shared remote console
  • User-based permission setting
  • Support USB device pass-through
  • Support VM console display via HDMI

HD (HybridDesk) Station 3.0

  • Playbacks videos, music, photos on TV with Kodi via HDMI output
  • Watch various online contents such as YouTube, Flickr, Picasa, Shoutcast, and more, etc.
  • Web browser (Chrome, Firefox)
  • Supports USB U.S. keyboard and mouse
  • Supports QNAP Qremote app and the official XBMC remote app
    • 4 new desktop themes
    • Supports user login permissions

Signage Station

  • Supports dynamic content including videos, images, music, and text messages
  • Supports multi- users collaboration
  • Supports searching via keywords
  • Supports sharing via email and social networks sharing
  • Supports design software - iArtist Lite
  • Supports account authority management
  • Supports various web browsers for playback (Chrome, Firefox, IE, Safari)
  • Supports most- viewed, latest- released and different categories content list

iSCSI (IP SAN)

  • iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs combined)
  • Support for LUN mapping & masking
  • Online LUN capacity expansion
  • Support for SPC-3 persistent reservation
  • Support for MPIO & MC/S
  • iSCSI LUN backup, one-time snapshot, and restoration
  • iSCSI connection and management by QNAP Windows Qfinder
  • Virtual disk drive (via iSCSI initiator)
  • Stack chaining master
  • Max No. of virtual disk drives: 8

Server Virtualization & Clustering

  • Server Virtualization & Clustering
  • VMware vSphere (ESXi 5.x)
  • VMware VAAI for iSCSI and VAAI for NAS
  • vSphere Plug-in
  • Citrix XenServer (6.2)
  • Windows Server 2012 R2 Hyper-V
  • Supports Microsoft ODX
  • QNAP SMI-S provider for Microsoft SCVMM

Surveillance Station

  • Supports over 3,000 IP cameras
  • Includes 4 free camera licenses, up to 72 camera channels via additional license purchase
  • Instant playback to check the recent events
  • Online editing to edit cameras when live view
  • Visual aid by e-map
  • Playback and speed control by shuttle bar
  • Video preview on playback timeline
  • Intelligent video analytics (IVA) for advanced video search
  • Surveillance client for Mac
  • Mobile surveillance app: vmobile (iOS and Android)
  • Mobile recording app: Vcam (iOS and Android)

Notes Station

  • Graphical web-based editor for taking notes
  • Integrate with NAS file system: insert attachment or image from NAS file system
  • Event calendar and to-do list
  • Image editor: a easy way to highlight the focus in your image
  • Support note publishing with a single link
  • Support key word search
  • Provide Chrome Extension: Notes Station Clipper
  • Mobile app: Qnotes

VPN Server

  • Secure remote access: PPTP & OpenVPN VPN services
  • Max number of clients: 30

VPN Client

  • Supported VPN protocols: PPTP & OpenVPN services
  • PPTP Authentication: PAP, CHAP, MS-CHAP, MS-CHAPv2
  • PPTP Encryption: None, AES 40/128 bit, AES 256 bit
  • OpenVPN Encryption: None, AES 40/128 bit, AES 256 bit
  • Transmission package monitor
  • OpenVPN port control
  • OpenVPN link compression

Domain Authentication Integration

  • Microsoft Active Directory (AD)
  • Domain controller
  • LDAP server, LDAP client
  • Domain users login via CIFS/SMB, AFP, FTP, and File Station

AirPlay & Chromecast

  • Streams videos, photos and music from the NAS to Apple TV via Qfile or QAirplay&Chromecast's web-based controller
  • Streams videos, photos and music from the NAS to TV with a Chromecast dongle via Qfile , Qvideo or QAirplay&Chromecast's web-based controller

App Center

  • More than 100 official and community software add-ons (ex: Dropbox, Google Drive Sync, McAfee, WordPress, HappyGet II, etc.)
  • Photo Station
  • Music Station
  • Video Station
  • iTunes Server
  • DLNA Server
  • AirPlay: Streams videos, photos and music from NAS to Apple TV via Qfile or QAirPlay's web-based controller
  • Digital TV Station
  • Download Station
  • HD Station + Kodi media player + Google Chrome

Mobile Apps

  • Qfile: iOS, Android Phone, window phone
  • Qfile HD: iPad version
  • Qmanager: iOS, Android Phone
  • Qmusic: iOS, Android Phone
  • Qremote: iOS, Android Phone
  • Qget: Android Phone
  • Vmobile: iOS, iPad, Android Phone

Design and specifications are subject to change without notice.
*SomeThe data encryption functions may not available in accordance with the legislative restrictions of some countries.

Optional Accessories:

Optional Accessories
Storage expansion accessories
REXP-1000 Pro

REXP-1000 Pro

Tower 10-bay SAS/SATA RAID expansion enclosure.
UX-800P

UX-800P

Tower 8-bay USB RAID expansion enclosure
UX-500P

UX-500P

Tower 5-bay USB RAID expansion enclosure
SAS-12G2E

SAS-12G2E

Dual-wide-port storage expansion card, SAS 12Gbps.
Note: The storage expansion card is to be installed in the NAS for connecting to the RAID expansion enclosures.
CAB-SAS10M-8644-8088

CAB-SAS10M-8644-8088

Mini SAS external cable (SFF 8644 to SFF 8088), 1.0 m
LAN card
LAN-40G2SF-MLX

LAN-40G2SF-MLX

Dual-port 40G QSFP+ network expansion card
M.2 SSD
SSD-M2080-256GB-A01

SSD-M2080-256GB-A01

256GB M.2 2280SATA SSD
RAM
RAM-16GDR4-LD-2133

RAM-16GDR4-LD-2133

16GB DDR4 RAM, 2133 MHz, UDIMM
RAM-8GDR4-LD-2133

RAM-8GDR4-LD-2133

8GB DDR4 RAM, 2133 MHz, UDIMM
RAM-4GDR4-LD-2133

RAM-4GDR4-LD-2133

4GB DDR4 RAM, 2133 MHz, UDIMM

Utilities:

Various handy utilities are available for you to work smartly with your Turbo NAS. These utilities help increase your productivity and make it absolutely easy with connecting the Turbo NAS, setting up the system, data backup and synchronization, downloading files, and so on.


Qfinder

Connect and set up NAS easily

Qfinder is a utility, available for Windows, Mac, and Linux, to quickly find and access the Turbo NAS over the LAN. Install the Finder on your computer, open it, and double click your Turbo NAS name, and the login page is ready for you.

Chromebook-ready

If you're finding it difficult to connect your NAS to a Chromebook, Qfinder for Chrome allows you to quickly find & connect to the Turbo NAS over LAN. Just download Qfinder from the Chrome Web Store and enjoy easy access to your Turbo NAS now.

Connect and set up NAS easily
Easily access the NAS by Storage Plug & Connect

Easily access the NAS by Storage Plug & Connect

Windows version of Qfinder provides a convenient way to connect to the Turbo NAS and map a network drive or a virtual disk. By creating a shared folder on the Turbo NAS and mapping it as a network drive, you can use it as an additional drive and store files on it as it is a local drive of the computer.


myQNAPcloud Connect

NAS Connection by VPN

myQNAPcloud Connect helps you access the published services of the Turbo NAS quickly and securely on the Internet. myQNAPcloud Connect application is designed for Windows PC users. By installing the myQNAPcloud Connect, you will be able to connect to the Turbo NAS and easily manage files by drag-and-drop within the Windows Explorer.

NAS Connection by VPN

Qsync

Synchronize files anytime, anywhere

Synchronize files anytime, anywhere

Qsync is a useful tool to synchronize files in multiple computers. It creates a specific “Qsync folder” in your devices that you can simply drop files in, and synchronizes the files to all your devices linked to the Turbo NAS.

Sync in multiple ways

Full Sync

Whenever you add, edit, delete or rename a file on one computer, the change applies to all others linked with the Turbo NAS, so you have exactly identical contents on all your devices.

Full Sync
Smart Sync
Smart Sync

It allows you to remove files on one computer without affecting the copies stored on others that are linked with the Turbo NAS. However, when someone updates the files you deleted from another computer, you can still retrieve them in the Qsync folder.

Advanced Selective Sync

With both Full Sync or Smart Sync options, you can choose to only sync specific sub-folders within the Qsync folder, useful if your computers have limited storage.

Advanced Selective Sync
Share files and folders easily

Share files and folders easily

Quickly share files with download links
You can create download links to share files with people, even if they don’t have an account on the Turbo NAS. This greatly reduces the time in creating user account and password for users.

Share folders for collaboration
Your life is connected with different groups of people. You can create sub-folders within the Qsync folder, and share each with different groups of Turbo NAS users as a file exchange center. Everyone in the same sub-folder is always kept up-to-date with the latest version of the files.


QNAP NetBak Replicator

Backup data on PC

The QNAP NetBak Replicator, provided with any Turbo NAS unit free of charge, helps you easily back up files from Windows PC - entire disk drives, documents, pictures, music, videos, fonts, emails, and more - to the Turbo NAS. The operation is very simple. You can do the backup task in just a few clicks using NetBak Replicator by the setting of real-time synchronization, scheduled backup and auto-backup from multiple PCs to the Turbo NAS.

NetBak Replicator also supports backing up to a remote server via FTP and WebDAV through the Internet. Imagine that you can backup new photos whenever on vacation. Even you are away from home, the convenient backup supports your memories.

QNAP NetBak Replicator

vsphere Client plug-in

Manage QNAP NAS within vSphere Client

The Turbo NAS supports vSphere Client Plug-in that allows managing VMware datastores on the Turbo NAS directly from the vSphere client console. In a large-scale server virtualization environment, management is centralized and straightforward. Administrators can easily control the status of the Turbo NAS and datastores and create additional datastores to multiple ESXi hosts in just a few clicks.

Note: The TS-x51 series doesn’t support vSphere Client plug-in.

vsphere Client plug-in

Q’center Virtual Appliance

Deploy Q’center as virtual appliance

Deploy Q’center as virtual appliance

Q’center is a powerful QNAP NAS management system. The Q’center Virtual Appliance can be easily deployed in Microsoft® Hyper-V™ or VMware® ESXi™ to increase its flexibility and connectivity for large storage environments.

Minimum requirements:108 GB free disk space, 1 GB memory and 4 virtual CPUs
Supported platforms: VMware ESXi (ESXi 5.0, ESXi 5.1, ESXi 5.5), VMware Fusion 7, VMware Workstation 11, Microsoft Windows Server 2012 R2 with Hyper-V 3.0.

Use Q’center to monitor multiple NAS

With Q’center, you can view the status and system information of multiple QNAP NAS units at the same time, inspect system resource usage, monitor disk/volume health and perform other management tasks. With these features, Q’center can better assist IT administrators and QNAP NAS users in system resource allocation and future capacity planning.

Use Q’center to monitor multiple NAS.

QNAP Snapshot Agent

QNAP Snapshot Agent

In QTS 4.2, the Storage Manager's Snapshot function supports iSCSI LUNs to rapidly back up and restore data. When creating a LUN snapshot, QNAP Snapshot Agent for Windows Server or VMware vCenter allows the NAS to communicate with the remote server when taking snapshots and ensures Application-consistent LUN snapshots.

VSS Hardware Provider also allows NAS ROW (Redirect on Write) instead of Windows COW (Copy on Write) to increase backup efficiency and to offload the snapshot to the NAS for reducing the performance impact on the Windows server.

VSS Hardware Provider

Qsnap

Qsnap

Take screenshots, easy and fast
Qsnap is a handy utility assisting you to quickly capture screenshots on your PC, and easily edit, save, and share, enabling quick note-taking or productive communication in your work and life.

  • Hotkey capturing: Taking PC screenshots without complicated mouse operations.
  • Easy editing: Add emphasis or remove unnecessary elements with a range of editing tools.
  • Instant sharing: Simply drag and drop the screenshots to instant messengers and emails as attachments to share.

Documentation:

Download the QNAP TVS-x82 Series Datasheet (PDF).
