QNAP TS-853BU
Intel® Celeron® quad-core rackmount NAS with PCIe slot for diverse storage applications
Sorry, this product is no longer available, Please contact us for a replacement.
Overview:

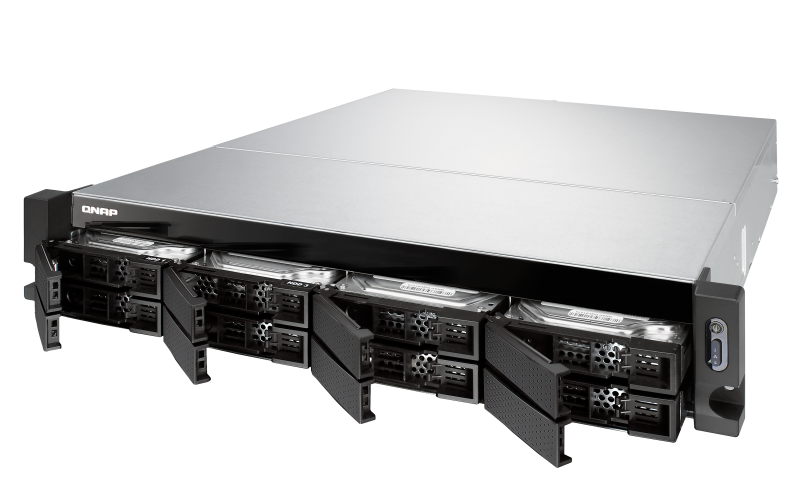

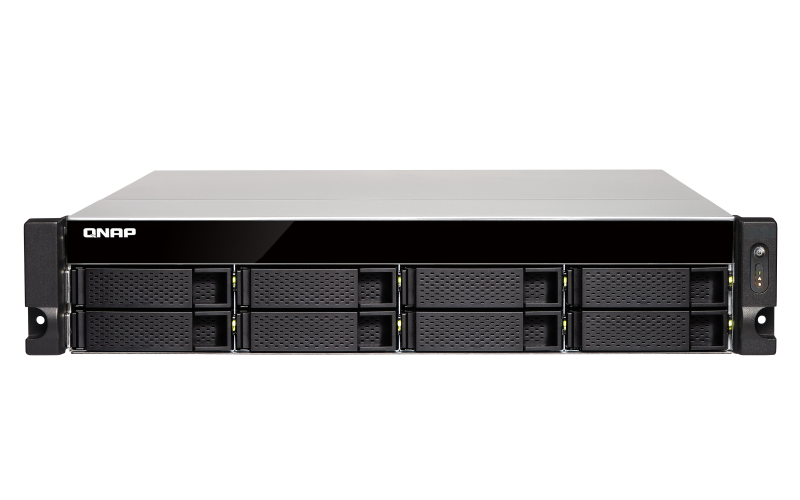

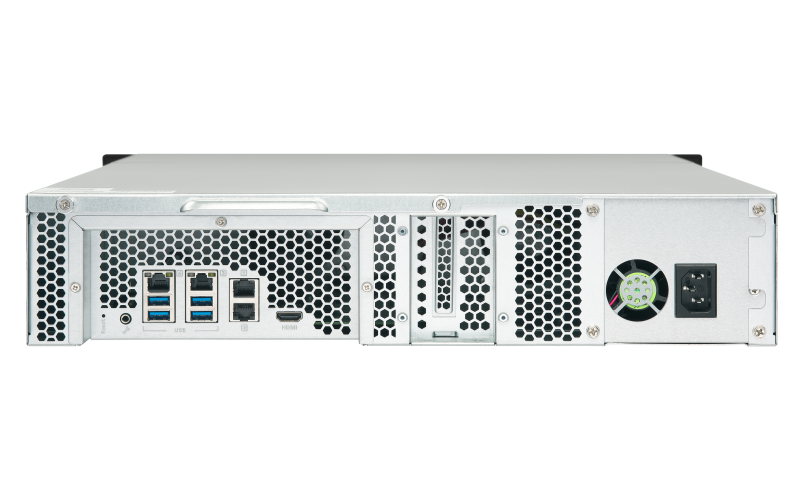

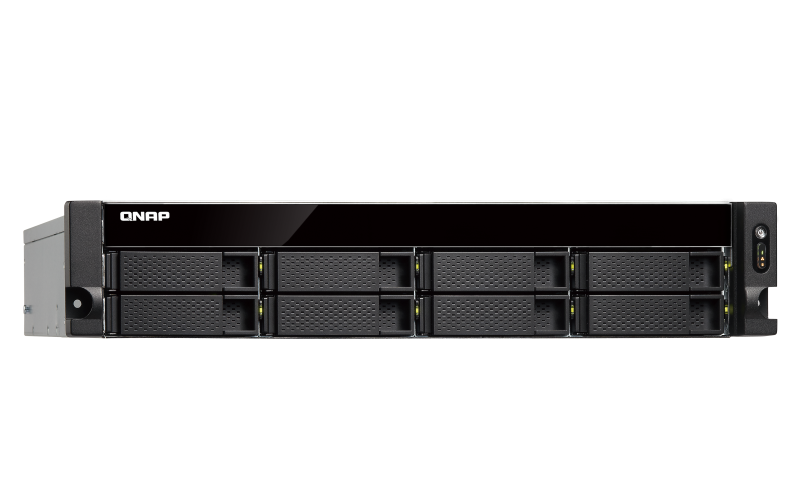

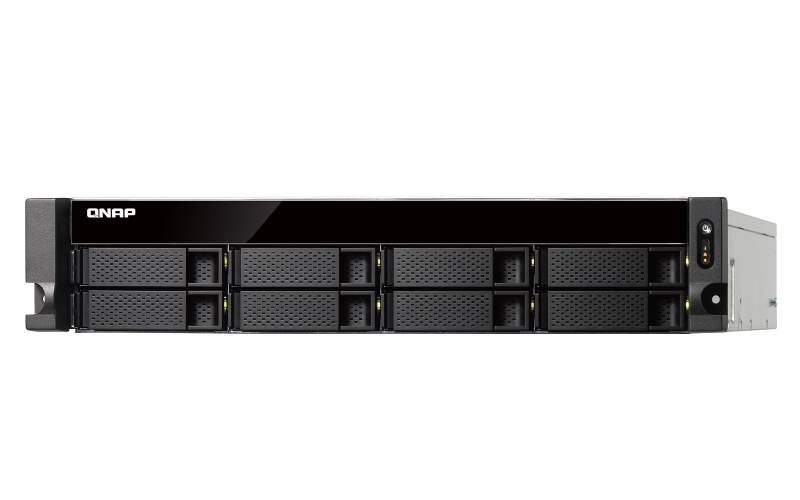

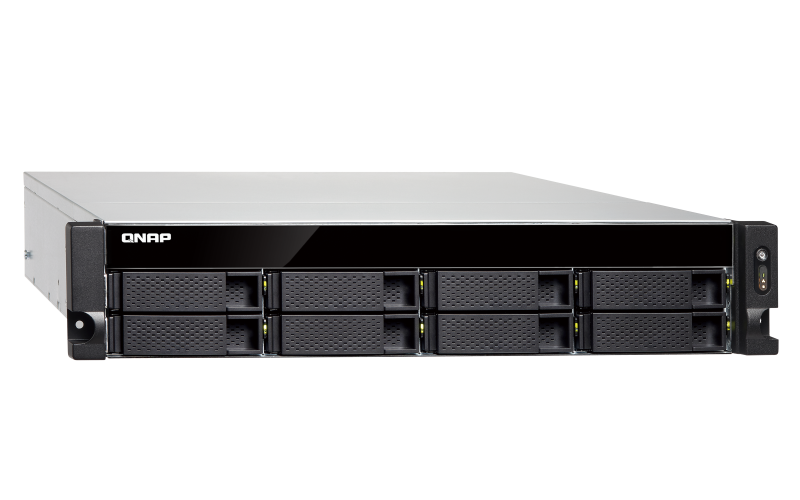

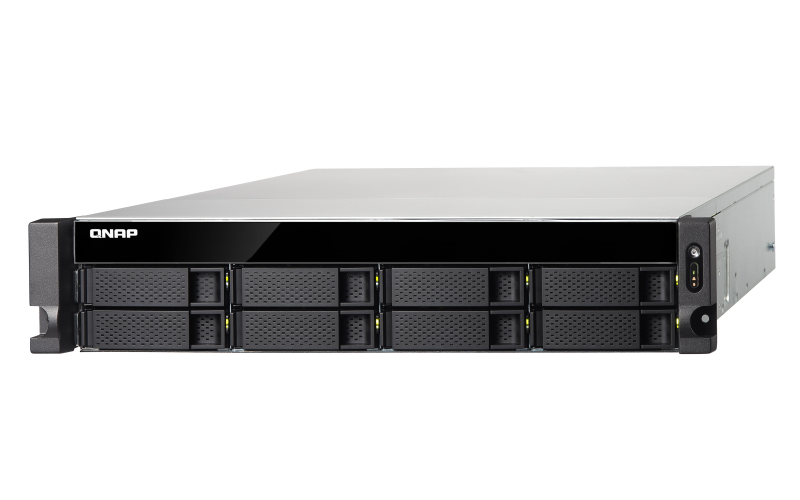

The TS-853BU is a 2U rackmount NAS that easily fits into a standard 19-inch rack, providing an ideal storage solution in the server room for small and medium businesses. The TS-853BU comes with a PCIe slot for boosting potential applications: the QNAP QM2 expansion card can be installed to add an M.2 SSD cache/10GbE connectivity, a compatible wireless card can be installed to use the TS-853BU as a wireless access point, and a USB 3.1 10Gbps card can be added for easier backup to/from multiple external storage. The TS-853BU also provides a wide range of value-added features: 4K video playback and real-time transcoding; deployment of virtual environments through Virtualization Station and Container Station; centralized management of remote Windows®, Linux® and IPMI-compatible devices with QRM+; and web automation services with IFTTT Agent.
Package Content
- Turbo NAS TS-853BU SAN/NAS Storage System
- 2 x Ethernet Cables
- Quick Installation Guide (QIG)
- Flat Head Screw (for 3.5" HDD)
- Flat Head Screw (for 2.5" HDD)
- Power Cord
- PCIe slot supports installing a QNAP QM2 dual-port M.2 SSD/10GbE card, a compatible wireless adapter, or a USB 3.1 10Gbps card.
- Supports dual-channel 4K H.265/H.265 hardware decoding and on-the-fly or offline transcoding
- Qfiling automates file organization and Qsirch provides full-text search for easier file management
- QRM+ enables centralized management of remote Windows®, Linux® and IPMI-compatible devices.
- A hybrid approach to virtualization in one NAS: Virtualization Station and Container Station
- Scalable storage space with VJBOD and UX-1200U-RP/UX-800U-RP expansion enclosures
Specifications:
| Ordering P/N | TS-853BU-4G | TS-853BU-8G |
|---|---|---|
| CPU | Intel Apollo Lake J3455 4-core 1.5GHz | |
| System memory | 4 GB DDR3L 2 x 2GB | 8 GB DDR3L 2 x 4GB |
| Ram slot | SODIMM x 2 (MAX. 8GB) | |
| Flash Memory | 4GB eMMC | |
| PCIe Slot | 1 x PCIe gen 2 x 2 slot | |
| Hard Drive Tray | 8 | |
| Drive Interface | SATA 6Gb/s, 3Gb/s HDD or SSD; Hot-swappable | |
| USB | 4 x USB 3.0 (Rear) | |
| LAN Port | 4 x GbE | |
| HDMI Output | 1 x HDMI 1.4b | |
| LED Indicators | System Status, HDD,USB, LAN | |
| Buttons | Power, Reset | |
| System Warning | Buzzer | |
| Form Factor | 2U, rack mountable | |
| Dimensions | 89 x 482 x 534 mm 3.5 x 18.98 x 21.02 inch |
|
| Weight | Net: 11.02 kg (24.29 lbs.) Gross: 19.26 kg (42.46 lbs.) |
|
| Power consumption (W) | HDD sleep: 30.9W Typical Operation: 52.1W |
|
| Sound Level (dB)* | Operating low speed: 28.2 dB(A) | |
| Temperature | 0-40˚C | |
| Relative Humidity | 0~95% R.H. | |
| Power Supply | ATX 250W | |
| Fan | 2 x 70mm, 12V DC | |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.
Documentation:
Download the QNAP TS-x53BU Series Datasheet (PDF).
