QNAP TS-453Bmini
Vertical NAS with an Intel® Quad-core processor and 4K Display
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Designed for office and family users with a vertical form factor and elegant glossy look, the TS-453Bmini features the latest Intel® Quad-core processor and AES-NI hardware encryption to provide high performance, high security, and intelligent operation. Its user-friendly design, quiet cooling, adjustable LED indicators, and abundant applications provides a comfortable user experience for small organizations and home users to fulfill their various data storage, backup, sharing, and entertainment needs. Internet of Things (IoT) developers can even install the open-source Ubuntu® platform to develop and run IoT applications directly on the TS-453Bmini for enjoying a private cloud system integrated with storage and IoT.
- Enhanced data security with high-performance AES 256-bit encryption and anti-virus
- Use the TS-453Bmini as a PC with QvPC Technology
- QNAP Linux Station supports the Ubuntu® OS with direct output via HDMI
- Transcode Full HD videos on-the-fly or offline with QNAP's proprietary transcoding technology
- Manage, share, and back up business data with Real-time Remote Replication (RTRR)
- NAS and iSCSI-SAN unified storage solution for server virtualization
- Run multiple containers and Windows/Linux/UNIX/Android-based virtual machines with Container Station and Virtualization Station
- Supports VMware®, Citrix®, Microsoft® Hyper-V and advanced virtualization features
- Expand the total raw storage capacity up to 12 drivers with the economical UX-800P QNAP expansion enclosure
Specifications:
| TS-453 Pro Specifications | ||
|---|---|---|
| Ordering P/N | TS-453Bmini-8G | TS-453Bmini-4G |
| Processor | 14nm Quad-core Intel® Celeron® J3455 1.5 GHz (burst up to 2.3 GHz) | |
| Hardware Encryption Accleration | ，AES-NI | |
| Graphics | 9th Genertion Intel® HD Graphics 500 | |
| System Memory | 8GB DDR3L (2 x 4GB) | 4GB DDR3L (2 x 2GB) |
| Maximum Memory | 8GB | |
| Memory slot | 2 x SODIMM DDR3L (For dual-DIMM configurations, you must use a pair of identical DDR3L modules.) |
|
| Drive Type | 4 x 3.5"/2.5" SATA 6Gb/s HDDs/SSDs | |
| GbE Port | 2 x Gigabit RJ45 LAN ports | |
| USB Port | front：1 x USB 3.0 port rear：3 x USB 3.0 port, 1 x USB 2.0 port |
|
| HDMI | 1, max. resolution 3840 x 2160 @ 30Hz | |
| LED Indicator | Status/Power， USB， Drive 1 - 4 | |
| Button | Power/Status, USB Auto Copy, Reset | |
| IR Sensor | ， supports QNAP RM-IR002, RM-IR004 and MCE-compliant remote controls | |
| Other | Kensington security slot，console port | |
| Form Factor | Vertical | |
| Dimension (H x W x D) |
210 x 151 x 200 mm 8.27 x 5.95 x 7.87 inch |
|
| Weight | Net：2 kg (4.41 lbs) Gross：3.4 kg (7.50lbs) |
|
| Operating Temperature | 0-35˚C | |
| Relative Humidity | 5~95% RH non-condensing, wet bulb：27˚C | |
| Noise Level | Sound pressure (LpAm):16.9 dB (A) Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS |
|
| Power Consumption | HDD standby：10.95W In operation：24.32W (with 4 x 1TB HDDs installed) |
|
| Power | 90W AC power adapter, 100-240V AC | |
| Fan | Internal compact system fan | |
Designs and specifications are subject to change without notice.
Product Views:

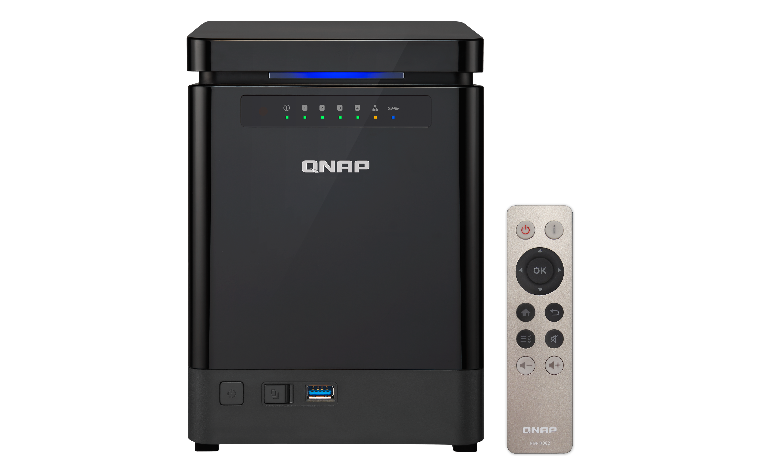

Front View |
Left View |
Right View |

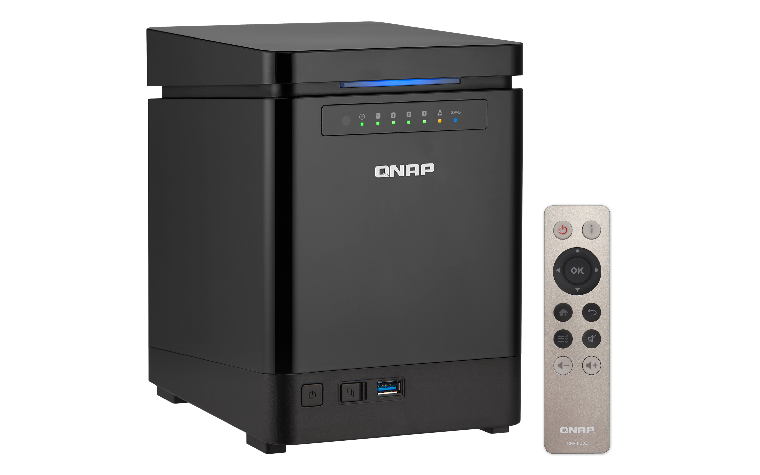

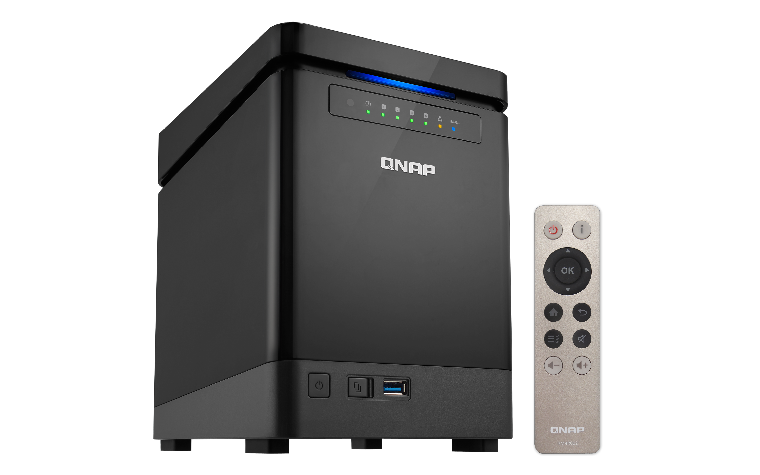

Left Angle View |

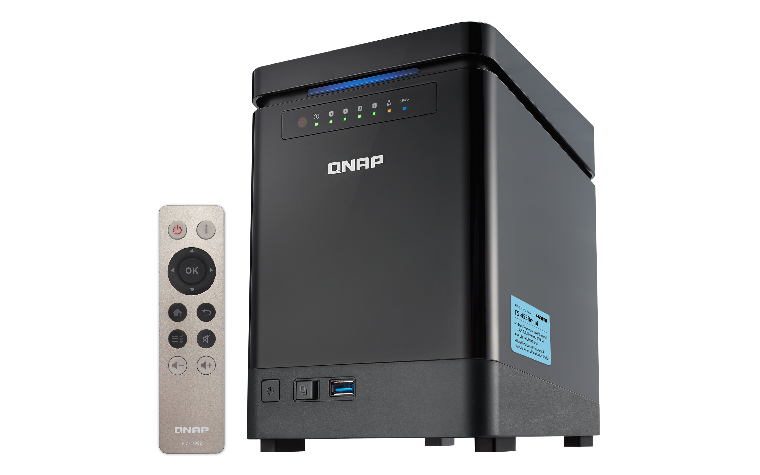

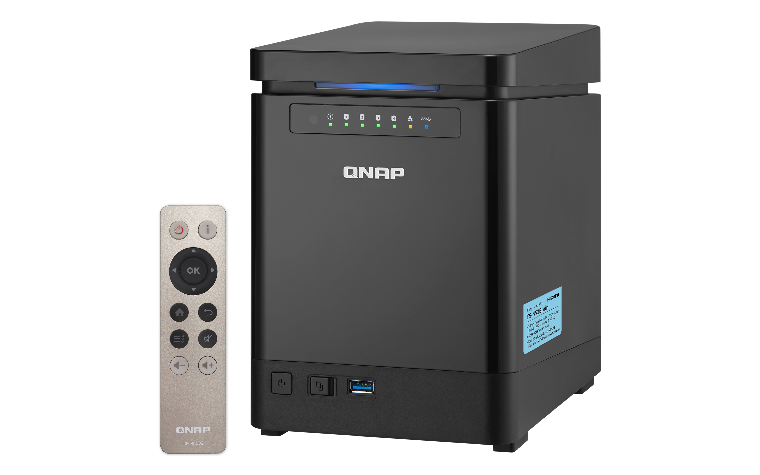

Right Angle View |

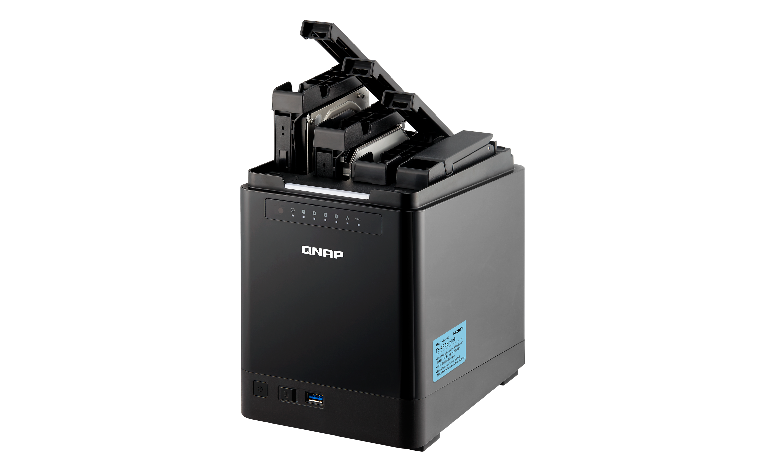

Hot Swappable View |

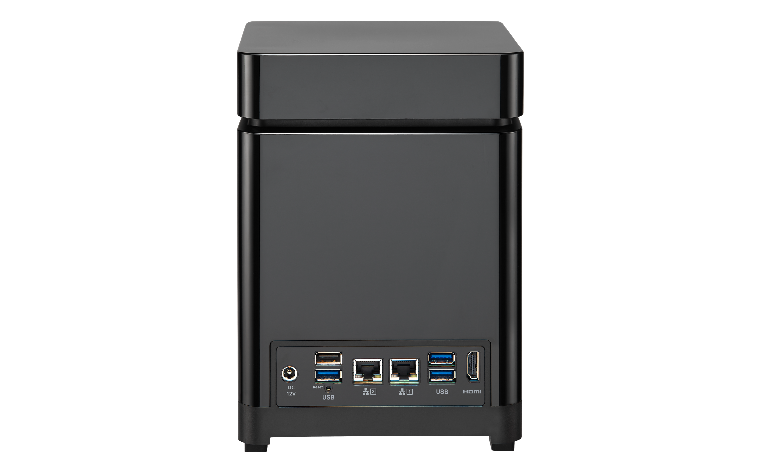

Back View |
Documentation:
Download the QNAP TS-453Bmini Datasheet (PDF).
