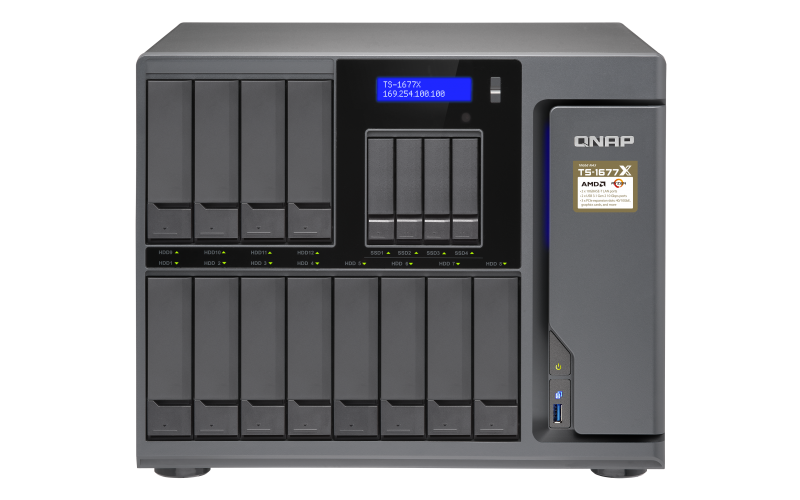

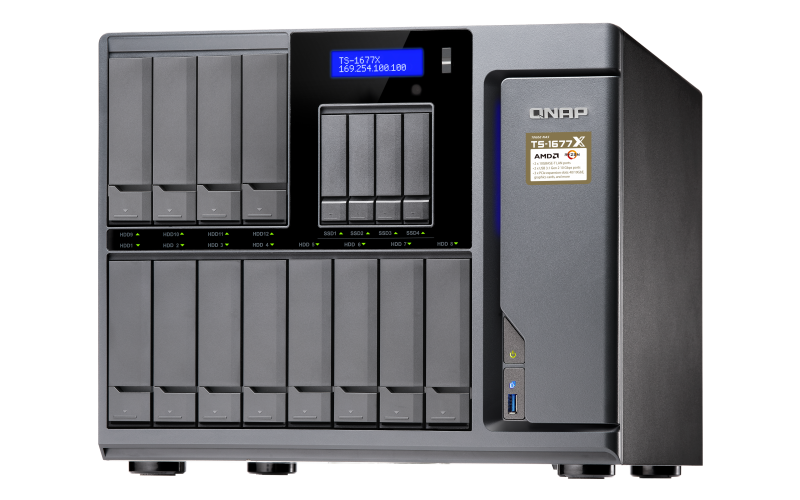

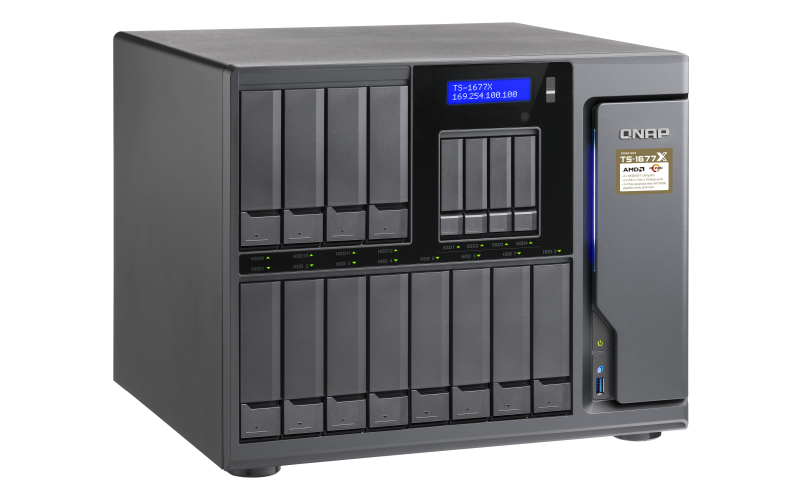

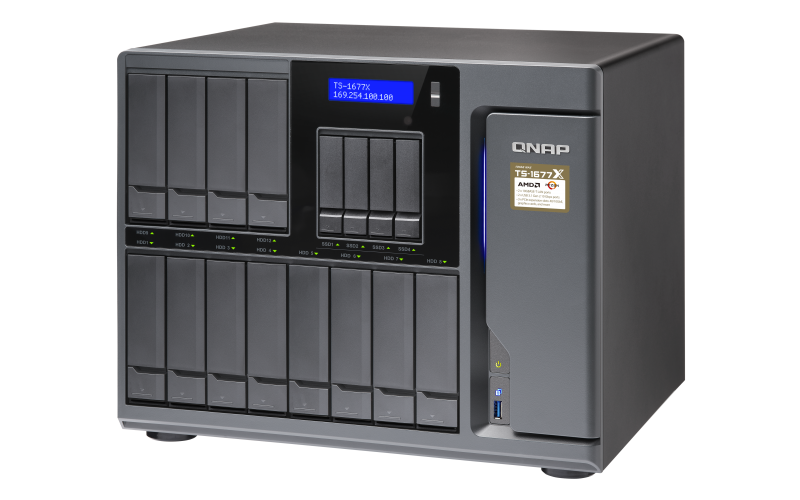

QNAP TS-1677X
Ryzen™ NAS with graphics processing to facilitate AI-oriented tasks
Sorry, this product is no longer available, please contact us for a replacement.
Want to build a custom bundle? Contact us!
Overview:
The giant TS-1677X is powered by an AMD Ryzen™ processor with up to 8 cores/16 threads. When used with a high-end graphics card, the TS-1677X delivers incredible computing performance to empower data-intensive machine learning applications. The AMD Ryzen™ processor, with Turbo Core of up to 3.7 GHz, can greatly boost virtual machine performance.
Package Content
- QNAP TS-1677X 16-Bay NAS Enclosure
- 2 x Ethernet Cables
- 1 x Power Cord
- Flat Head Screws (For 2.5" HDDs)
- Flat Head Screws (For M.2 SSDs)
- Quick Installation Guide (QIG)
GPU-accelerated NAS for AI machine learning
The TS-1677X provides cutting-edge capabilities to help organizations develop cost-efficient AI-oriented big data storage solutions. Combined with a high-end graphics card, SSD caching, and QNAP's “QuAI” AI developer package, the vast data stored on the TS-1677X can be leveraged to quickly build, train, and optimize AI model-based services, beneficial for exploring intelligent services and greater business value.
Absolute performance with AMD Ryzen™ and up to 64GB RAM
Powered by a high-performance multi-core AMD Ryzen™ processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-1677X delivers aggressive yet power-smart performance to meet your multitasking demands, including running multiple virtual machines simultaneously. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-1677X.
Top-class hardware engineering with high I/O expandability
The exceptional hardware of the TS-1677X bolsters overall system performance. Coupled with the flexible and expandable architecture, the TS-1677X fulfills diversified application needs.

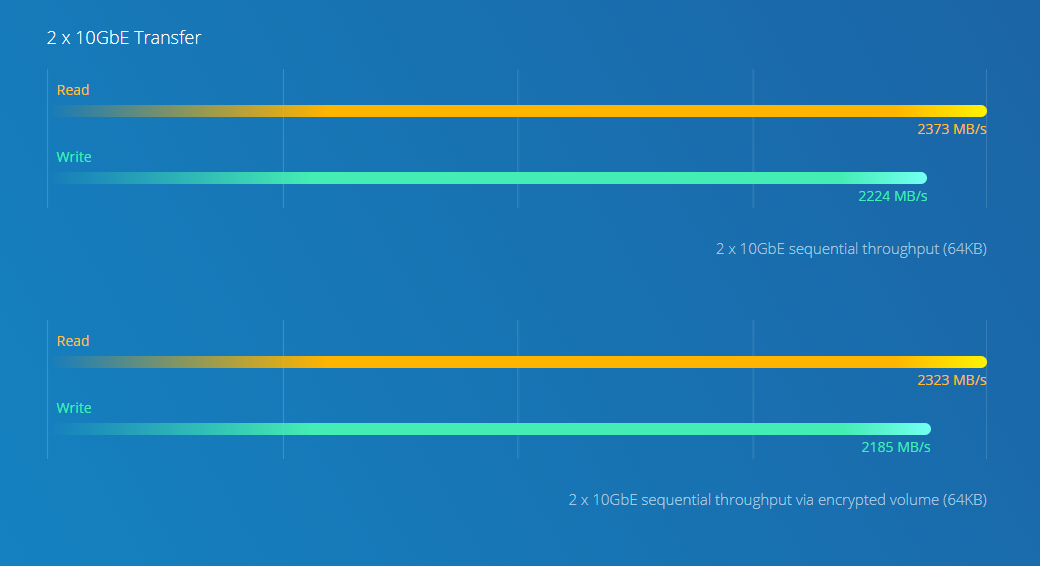

Built-in dual 10GbE 10GBASE-T ports

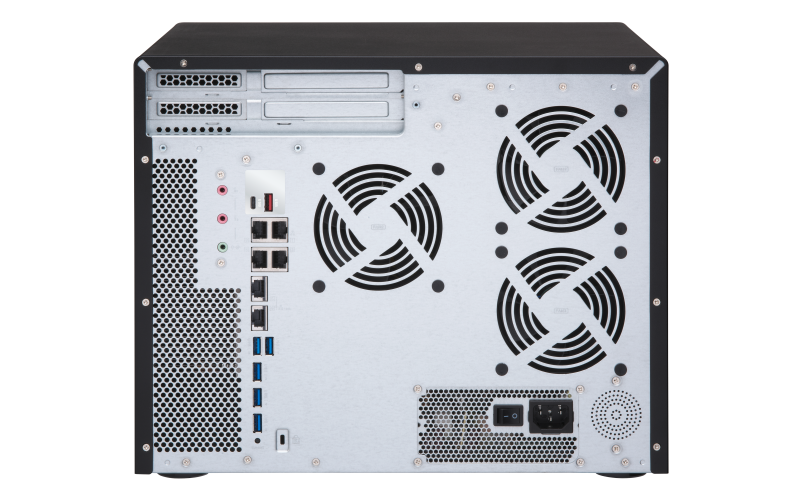

The TS-1677X offers not only four Gigabit Ethernet ports but also two 10GBASE-T RJ45 ports to fully support 10GbE high-speed networks and accelerate applications such as virtualization and on-the-fly video editing. The 10GBASE-T RJ45 ports also support 10G/5G/2.5G/1G/100M speeds to fulfill various bandwidth demands.
Fuel GPU-accelerated computing with a 550W power supply
Graphics cards are optimized for graphical calculations and transformations. The TS-1677X provides a 550 watt power supply to ensure compatibility with high-end graphics cards that can greatly empower applications including data-intensive AI machine learning, imaging processing, and virtual machine performance (via GPU passthrough). When watching videos with the TS-1677X, you can use the remote control ( RM-IR004, optional purchase) that supports QButton for a more convenient control of your multimedia experience.
Features:
PCIe expandability allows for graphics cards, 10GbE/40GbE adapters, QM2 cards, USB 3.1 10Gbps cards, or wireless network cards.

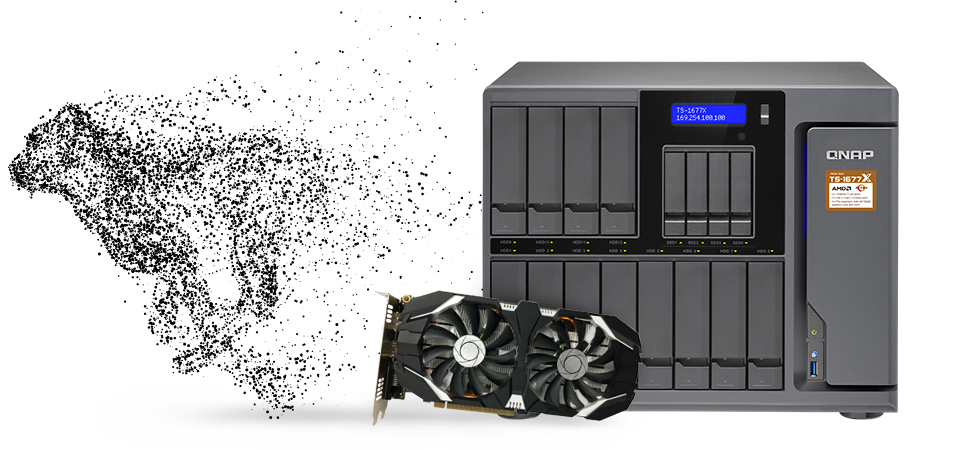

Supports AMD Radeon™ and NVIDIA® graphics cards for AI-computing, video processing or GPU-passthrough to VMs.
Dual 10GBASE-T (RJ45) ports accelerate virtualization applications and high-resolution video editing and sharing.
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity, protection, and performance.
10GbE/ 40GbE adapters
Enables lightning-fast throughput for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration.
QM2 M.2 SSD/10GbE cards
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance.
Graphics cards
Accelerates NAS video processing and GPU computing, empowers AI machine learning, and supports GPU-passthrough to VMs.
Wireless network cards
Works with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.
Complete backup planning
Windows and Mac backup
Use the free QNAP NetBak Replicator utility to backup/restore Windows® files. Time Machine® is also supported for Mac® devices.
Hybrid Backup Sync
Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.
Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and its block-level operation makes it a dependable method for mitigating the growing threat of ransomware. The TS-1677X supports up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS.
VM backup
With potentially huge storage capacities, high performance, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-1677X is perfect for backing up virtual machines.
Specifications:
| CPU | AMD Ryzen™ 7 1700 8-core/16-thread 3.0 GHz processor, Turbo Core 3.7 GHz Architecture: 64-bit Graphics: Optional (with PCIe expansion card) Encryption Engine: AES-NI |
| System Memory | 64 GB DDR4 (4 x 16 GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x Long-DIMM slots (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) |

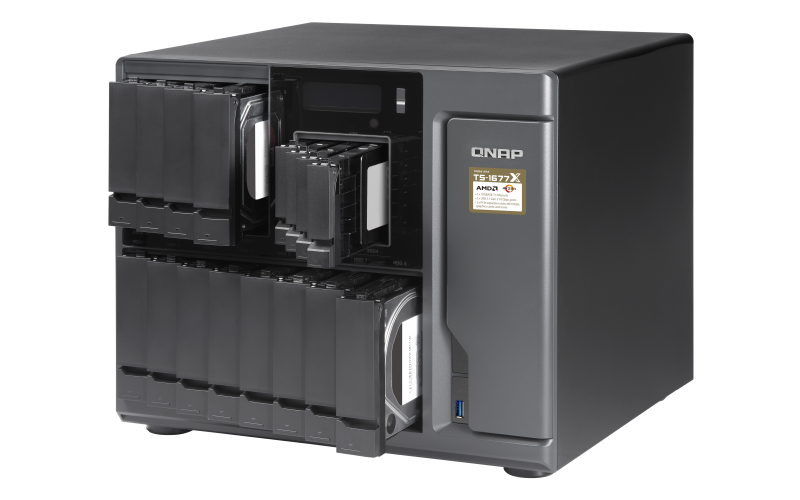

| Drive Bay | 12 x 3.5-inch SATA 6 Gbps bays 4 x 2.5-inch SATA 6 Gbps bays |
| Drive Compatibility | 3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives 2.5-inch bays: • 2.5-inch solid state drives |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T RJ45, supporting 10G/5G/2.5G/1G/100M Note: Please use CAT6a or CAT 7 LAN cables (sold separately) to achieve 10GbE speed |
| Gigabit Ethernet Port | 4 x RJ45 |
| USB Port | 8 x USB 3.0 • Front: 1 x USB 3.0 Type-A (Note: It comes with the One-Touch Copy button) • Back: 6 x USB 3.0 Type-A; 1 x USB 3.0 Type-C |
| PCIe Slot | Slot 1: Gen3 x8 Slot 2: Gen3 x4 Slot 3: Gen2 x4 |
| HDMI Output | Optional: With PCIe expansion card |
| USB One Touch Copy | Front: USB 3.0 Type-A |
| Audio | • 2 x 3.5 mm dynamic microphone jacks • 1 x 3.5 mm line-out jack • 1 x speaker • Alarm buzzer Note: You cannot use the speakers and the line-out jack simultaneously. |
| IR sensor | Yes Note: Requires an optional graphics card and RM-IR004 remote control |
| Form Factor | Tower |
| Dimensions (H x W x D) | 303.84 x 369.89 x 319.8 mm 11.96 x 14.56 x 12.59 inch |
| Weight | 13.39 kg (29.52 lbs) |
| Power Supply Unit | 550W, 100-240V AC, 50/60Hz |
| Fan | System: 3 x 9.2cm fan (12V DC) CPU: 2 x 9cm fan |
| Operating Temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Security Slot | Kensington security slot |
| CPU | AMD Ryzen™ 7 1700 8-core/16-thread 3.0 GHz processor, Turbo Core 3.7 GHz Architecture: 64-bit Graphics: Optional (with PCIe expansion card) Encryption Engine: AES-NI |
| System Memory | 16 GB DDR4 (2 x 8 GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x Long-DIMM slots (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) |
| Drive Bay | 12 x 3.5-inch SATA 6 Gbps bays 4 x 2.5-inch SATA 6 Gbps bays |
| Drive Compatibility | 3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives 2.5-inch bays: • 2.5-inch solid state drives |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T RJ45, supporting 10G/5G/2.5G/1G/100M Note: Please use CAT6a or CAT 7 LAN cables (sold separately) to achieve 10GbE speed |
| Gigabit Ethernet Port | 4 x RJ45 |
| USB Port | 8 x USB 3.0 • Front: 1 x USB 3.0 Type-A (Note: It comes with the One-Touch Copy button) • Back: 6 x USB 3.0 Type-A; 1 x USB 3.0 Type-C |
| PCIe Slot | Slot 1: Gen3 x8 Slot 2: Gen3 x4 Slot 3: Gen2 x4 |
| HDMI Output | Optional: With PCIe expansion card |
| USB One Touch Copy | Front: USB 3.0 Type-A |
| Audio | • 2 x 3.5 mm dynamic microphone jacks • 1 x 3.5 mm line-out jack • 1 x speaker • Alarm buzzer Note: You cannot use the speakers and the line-out jack simultaneously. |
| IR sensor | Yes Note: Requires an optional graphics card and RM-IR004 remote control |
| Form Factor | Tower |
| Dimensions (H x W x D) | 303.84 x 369.89 x 319.8 mm 11.96 x 14.56 x 12.59 inch |
| Weight | 13.39 kg (29.52 lbs) |
| Power Supply Unit | 550W, 100-240V AC, 50/60Hz |
| Fan | System: 3 x 9.2cm fan (12V DC) CPU: 2 x 9cm fan |
| Operating Temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Security Slot | Kensington security slot |
| CPU | AMD Ryzen™ 5 1600 6-core/12-thread 3.2 GHz processor, Turbo Core 3.6 GHz Architecture: 64-bit Graphics: Optional (with PCIe expansion card) Encryption Engine: AES-NI |
| System Memory | 8 GB DDR4 (2 x 4 GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x Long-DIMM slots (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) |
| Drive Bay | 12 x 3.5-inch SATA 6 Gbps bays 4 x 2.5-inch SATA 6 Gbps bays |
| Drive Compatibility | 3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives 2.5-inch bays: • 2.5-inch solid state drives |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T RJ45, supporting 10G/5G/2.5G/1G/100M Note: Please use CAT6a or CAT 7 LAN cables (sold separately) to achieve 10GbE speed |
| Gigabit Ethernet Port | 4 x RJ45 |
| USB Port | 8 x USB 3.0 • Front: 1 x USB 3.0 Type-A (Note: It comes with the One-Touch Copy button) • Back: 6 x USB 3.0 Type-A; 1 x USB 3.0 Type-C |
| PCIe Slot | Slot 1: Gen3 x8 Slot 2: Gen3 x4 Slot 3: Gen2 x4 |
| HDMI Output | Optional: With PCIe expansion card |
| USB One Touch Copy | Front: USB 3.0 Type-A |
| Audio | • 2 x 3.5 mm dynamic microphone jacks • 1 x 3.5 mm line-out jack • 1 x speaker • Alarm buzzer Note: You cannot use the speakers and the line-out jack simultaneously. |
| IR sensor | Yes Note: Requires an optional graphics card and RM-IR004 remote control |
| Form Factor | Tower |
| Dimensions (H x W x D) | 303.84 x 369.89 x 319.8 mm 11.96 x 14.56 x 12.59 inch |
| Weight | 13.39 kg (29.52 lbs) |
| Power Supply Unit | 550W, 100-240V AC, 50/60Hz |
| Fan | System: 3 x 9.2cm fan (12V DC) CPU: 2 x 9cm fan |
| Operating Temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Security Slot | Kensington security slot |
| CPU | AMD Ryzen™ 3 1200 4-core/4-thread 3.1 GHz processor, Turbo Core 3.4 GHz Architecture: 64-bit Graphics: Optional (with PCIe expansion card) Encryption Engine: AES-NI |
| System Memory | 4 GB DDR4 (1 x 4 GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x Long-DIMM slots (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) |
| Drive Bay | 12 x 3.5-inch SATA 6 Gbps bays 4 x 2.5-inch SATA 6 Gbps bays |
| Drive Compatibility | 3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives 2.5-inch bays: • 2.5-inch solid state drives |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T RJ45, supporting 10G/5G/2.5G/1G/100M Note: Please use CAT6a or CAT 7 LAN cables (sold separately) to achieve 10GbE speed |
| Gigabit Ethernet Port | 4 x RJ45 |
| USB Port | 8 x USB 3.0 • Front: 1 x USB 3.0 Type-A (Note: It comes with the One-Touch Copy button) • Back: 6 x USB 3.0 Type-A; 1 x USB 3.0 Type-C |
| PCIe Slot | Slot 1: Gen3 x8 Slot 2: Gen3 x4 Slot 3: Gen2 x4 |
| HDMI Output | Optional: With PCIe expansion card |
| USB One Touch Copy | Front: USB 3.0 Type-A |
| Audio | • 2 x 3.5 mm dynamic microphone jacks • 1 x 3.5 mm line-out jack • 1 x speaker • Alarm buzzer Note: You cannot use the speakers and the line-out jack simultaneously. |
| IR sensor | Yes Note: Requires an optional graphics card and RM-IR004 remote control |
| Form Factor | Tower |
| Dimensions (H x W x D) | 303.84 x 369.89 x 319.8 mm 11.96 x 14.56 x 12.59 inch |
| Weight | 13.39 kg (29.52 lbs) |
| Power Supply Unit | 550W, 100-240V AC, 50/60Hz |
| Fan | System: 3 x 9.2cm fan (12V DC) CPU: 2 x 9cm fan |
| Operating Temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Security Slot | Kensington security slot |
Documentation:
Download the QNAP TS-1677X Specification Sheet (PDF).
