QNAP TS-1673U-RP
High-performance quad-core NAS with dual 10GbE SFP+ ports and redundant power supplies

Sorry, this product is no longer available, please contact us for a replacement.

Want to build a custom bundle? Contact us!

Overview:

Powered by a high-performance AMD R-Series quad-core processor with up to 64GB DDR4 RAM, the TS-1673U-RP features dual 10GbE SFP+ ports and provides two M.2 SATA 6Gb/s SSD slots that allows the greatest flexibility in tiered storage configuration and enables cache acceleration. This powerful hardware can also double the encrypted file transfer performance with AES-NI encryption acceleration. The TS-1673U-RP is designed for small and medium-sized businesses looking for private cloud, cross-platform file sharing and collaboration, efficient backup/restoration, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks with maximized ROI.

Package Content

Turbo NAS TS-1673U-RP SAN/NAS Storage System
2 x Ethernet Cables
2 x Power Cords
64 x Flat Head Screws (for 3.5" HDD)
64 x Flat Head Screws (for 2.5" HDD)
M.2 SSD Installation Kit
Quick Installation Guide (QIG)
2 x M.2 SSD Heatsink

NAS and iSCSI-SAN unified storage solution
Built-in 10GbE SFP+ ports, highly-efficient storage solution for virtualization and on-the-fly media editing & sharing

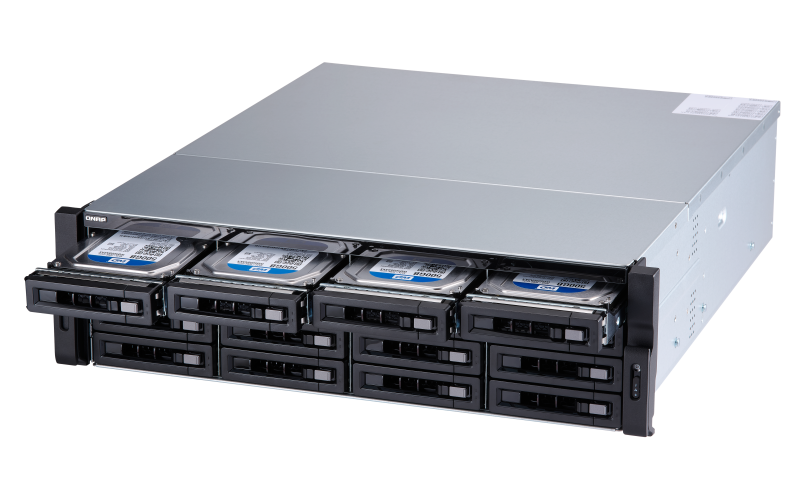

Hot-swappable redundant power supplies ensures maximum system uptime
Supports virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery
Secure access with VPN Server & VPN Client
Qfiling enables automatic file organization, Qsirch provides full-text file searching, and QmailAgent simplifies managing multiple email accounts
The new QVR Pro allows dedicated storage space for surveillance data in the NAS, and leverages the advantages of storage manageability from QTS
Expandable storage capacity by using QNAP expansion enclosures or VJBOD (Virtual JBOD)

Specifications:

TS-1673U-RP Hardware Specifications
Ordering Information	TS-1673U-RP-64G	TS-1673U-RP-16G	TS-1673U-RP-8G
CPU	AMD R-Series RX-421ND quad-core 2.1 GHz processor, turbo core up to 3.4 GHz
Hardware Encryption Engine	Yes, AES-NI
System Memory	64GB DDR4 (4 x 16GB)	16GB DDR4 (2 x 8GB)	8GB DDR4 (2 x 4GB)
Maximum Memory	64GB (4 x 16GB)
Memory Slot	4 x UDIMM DDR4 (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Flash Memory	512MB DOM
Drive	16 x 3.5"/2.5" SATA 6Gb/s HDDs/SSDs
M.2 SSD Slot	2 x M.2 2280 SATA 6Gb/s SSDs
10Gigabit LAN Port	2 x 10GbE SFP+ port via a preinstalled PCIe network card
Gigabit LAN Port	4 x Gigabit RJ45 LAN ports
PCIe Slot	1 x PCIe Gen 3 (x4), pre-installed with a dual-port 10GbE SFP+ LAN card
USB Port	2 x USB 3.0 port 4 x USB 2.0 port
LED Indicator	Status/Power，LAN，USB, Drive 1 - 16
Button	Power/Status, Reset
Maintenance Port	1 x 3.5mm console port
Form Factor	3U Rackmunt
Dimension (H x W X D)	130 x 481 x 536 mm 5.12 x 18.94 x 21.10 inch
Net Weight	15.45 kg (34.06 lbs.)	15.42 kg (34 lbs.)	15.42 kg (34 lbs.)
Operating temperature & Relative Humidity	0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C
Power Suply	500W (x2), 100-240V AC, 50/60 Hz
Fan	4 x 92mm, 12V DC

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.

* Sound Level Test Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS.

Designs and specifications are subject to change without notice.

Documentation:

Download the QNAP TS-x73U Series Datasheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.
