QNAP QSW-M804-4C
Upgrade your network with a 10GbE managed switch


QNAP Products
QNAP Switches
QNAP QSW-M804-4C, Management Switch, 8 port of 10GbE port speed, 4 port SFP+, 4 port SFP+/ NBASE-T Combo, support for 5-speed auto negotiation (10G/5G/2.5G/1G/100M)
#QSW-M804-4C-US
Our Price: $499.00

Click here to jump to more pricing!

Package Content

  • QNAP QSW-M804-4C Switch
  • 1 x Power cord
  • Rackmount kit
  • Rubber feet
  • Quick Installation Guide

Overview:

The QSW-M804-4C is a Layer 2 Web Managed Switch with four 10GbE SFP+ ports and four 10GbE SFP+/RJ45 combo ports that enables blazing-fast transfer speeds, simultaneous multi-workstation access to large files (ideal for video editing and multimedia), and empowers bandwidth-demanding tasks like virtualization. Supporting Layer 2 switching and providing a user-friendly entry-level network management solution, the QSW-M804-4C is an affordable way for businesses and organizations to fully embrace 10GbE connectivity.


10GbE SFP+

Includes eight 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing cables.

QSS

The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.

Layer 2

Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.


RSTP

One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.

Energy Efficient

Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-M804-4C avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.

network security

QSS can be updated with just one click, helping IT staff ensure their network security.

Features:

Flexible deployment combo ports and 10GbE / NBASE-T

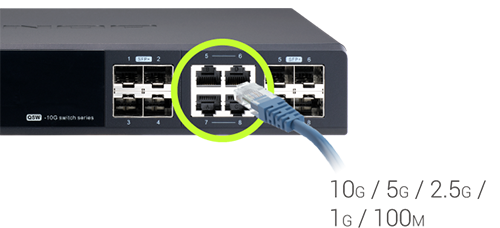

The 8-port QSW-M804-4C switch includes four SFP+ (fiber) ports, and four SFP+/RJ45 (copper) combo ports for connecting different interfaces. With RJ45 interfaces, 10GbE is supported using Cat 6a (or above) cables. Direct Attach Copper (DAC) cables can be used with SFP+ ports for connecting to servers inside a rack. The switching capacity of the QSW-M804-4C is 240 Gbps, guaranteeing the full potential of each port. The QSW-M804-4C is also compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.

Note: If the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used to achieve 10Gb/s speeds.

multiple-ports-qsw-m1204


Fully embrace High-Speed Networking with QNAP!

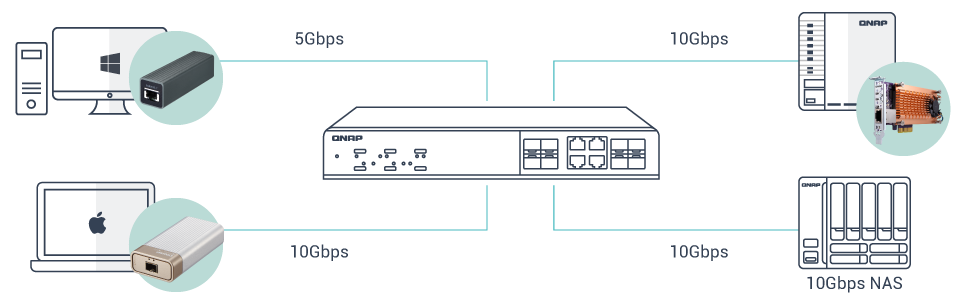

From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters. These can all be used with the QSW-M804-4C to create a comprehensive high-speed network environment for boosting the performance of photo/video editing, virtualization, large-file data transfers, and other bandwidth-demanding tasks.

high-speed-network


QSS: Intuitive Network Management Software

The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.


Sleek Design

Use the at-a-glance major functions, flat control layers and one-click login to simplify set up and management.

GUI

The visual illustration matches physical ports for greater usability.

Value-added

With the settings guide, status chart reference, online firmware update, learning and management costs are greatly reduced.


QSS: Human-centered settings guide

QSS provides an overview dashboard, port management and setting guide to help administrators control Layer 2 networks.


Overview Dashboard

View real-time system information, port connection status and port traffic.

Port Management

View port status, port packet statistics, and configure port speeds.

Setting Guide

Quickly learn how to set up the network using the introduction and step-by-step guide.


Exclusive Status Chart Referencing

Refer to four major status charts during each configuration to avoid going back and forth between different setting pages.

Online Firmware Check and Update

Keep your QSW-M804-4C secure with one-click firmware updates.


Optimize Network Performance with bandwidth and packet control

The QSW-M804-4C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

LACP VLAN QoS IGMP Snooping
Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure. Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network. QoS (Quality of Service) helps prioritize bandwidth usage to optimize network resource allocation. IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

Powerful security and system functions

The QSW-M804-4C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL LLDP RSTP Flow Control
  • Access controls
  • Security system
  • Device disclosure
  • Troubleshooting
  • Loop prevention
  • Backup path
  • Balance speed
  • Jam prevention

Near-silent and energy saving

With its smart cooling system, the QSW-M804-4C ensures high-speed network performance without distracting background noise. IEEE 802.3az (EEE) support also reduces power consumption without sacrificing performance or functionality. By dynamically detecting link speeds and activities and adjusting accordingly, the QSW-M804-4C provides energy savings of up to 50% to minimize operational costs.


Versatile installation and sleek appearance

The QSW-M804-4C features a sleek modern design that blends in with modern digital homes and offices. A Rackmount Kit is included to provide extra installation options.

Hardware Specifications:

  QSW-M804-4C
Management Type Web Managed
Number of Ports 8
10GbE SFP+ 4
10GbE SFP+/RJ45 Combo Ports 4
Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).
Management Port 1 x 1GbE
Power Supply Description Internal Power Supply Unit
Max. Power Consumption 70W
Input Power Type AC
Input Voltage Range 100 ‒ 240VAC, 50/60Hz
MAC Address Table 16K
Total Non-Blocking Throughput 80Gbps
Switching Capacity 160Gbps
Management Interface Web
Console RJ45
Energy Efficient Ethernet (IEEE 802.3az complaint)
Fan System: 4 x 4 cm (12V)
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3an 10G BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3az Energy Efficient Ethernet
(IEEE 802.1p Class of Service)
LED Indicators Per Port: Speed/Link/Activity
Per System: Power/Status
Buttons Reset button
Dimensions (HxWxD) 46.65 x 285 x 236.6 mm
Weight (Net) 4.67 lbs
Operating Temperature 0˚C–50˚C (32°F –122°F)
Relative Humidity 5%–95% (non-condensing)
Certifications FCC, CE, VCCI, BSMI, RCM, WEEE
Electromagnetic Compliance CLASS A
Jumbo Frames 9K
Warranty 2 Years
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Product Views:

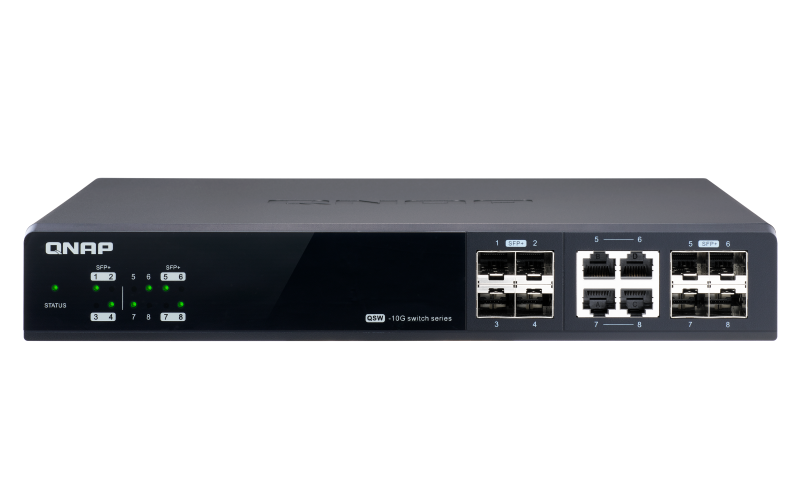

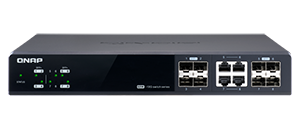

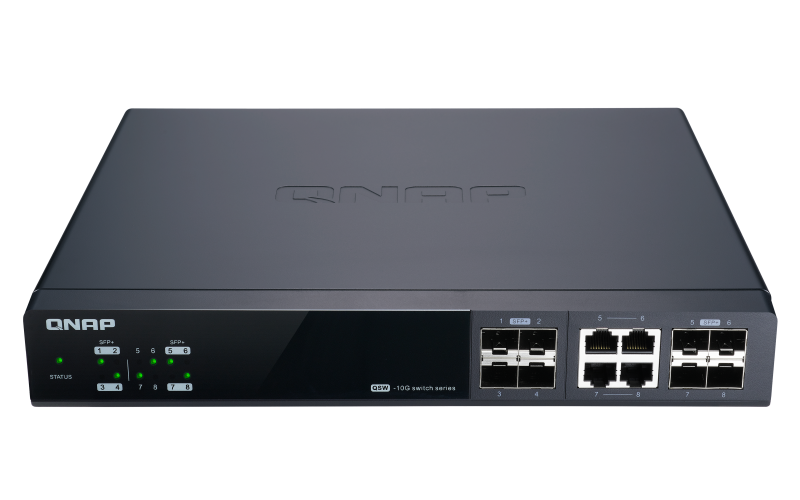

Front View

Front View

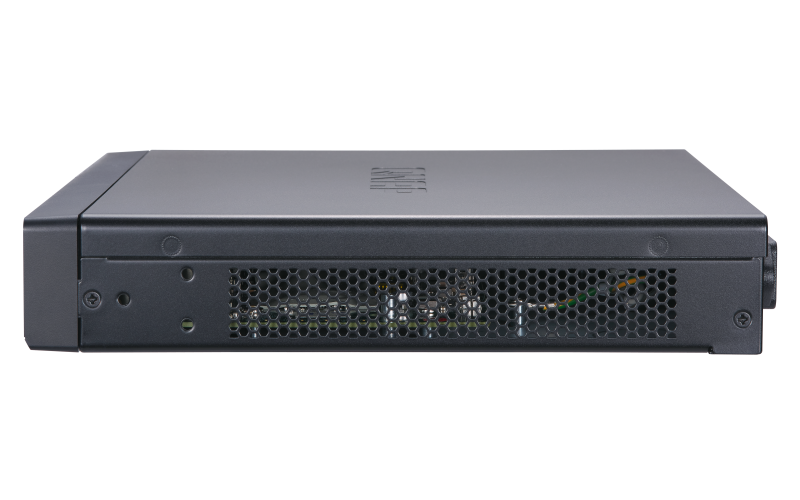

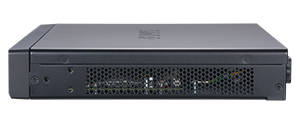

Top Right Side View

Top Right Side View

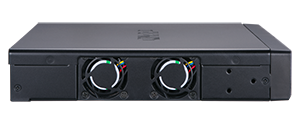

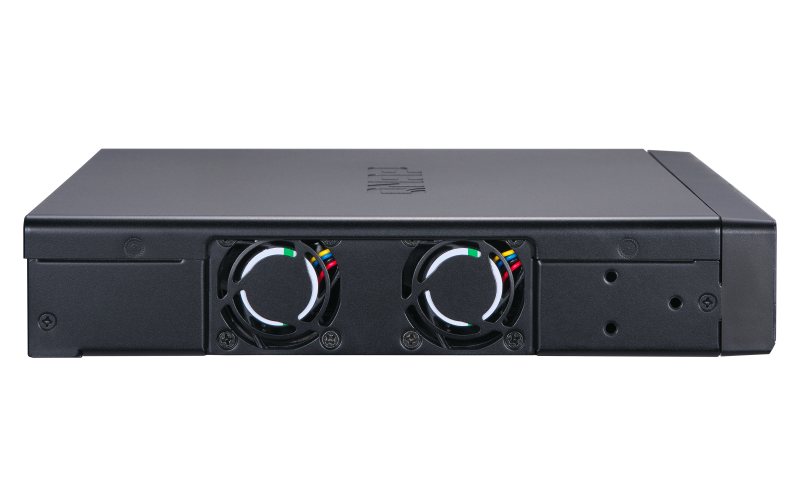

Top Left Side View

Top Left Side View

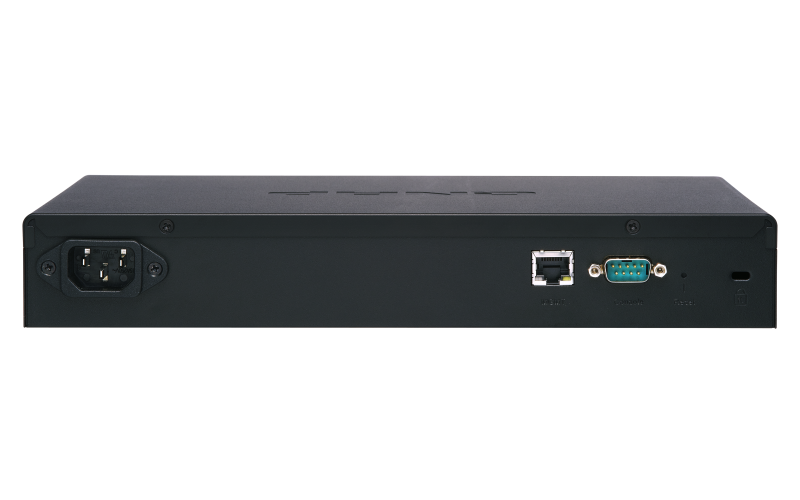

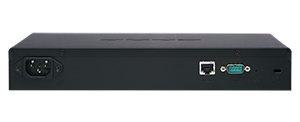

Rear View

Rear View

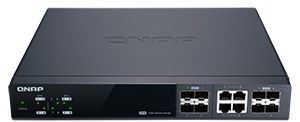

Top View

Top View
