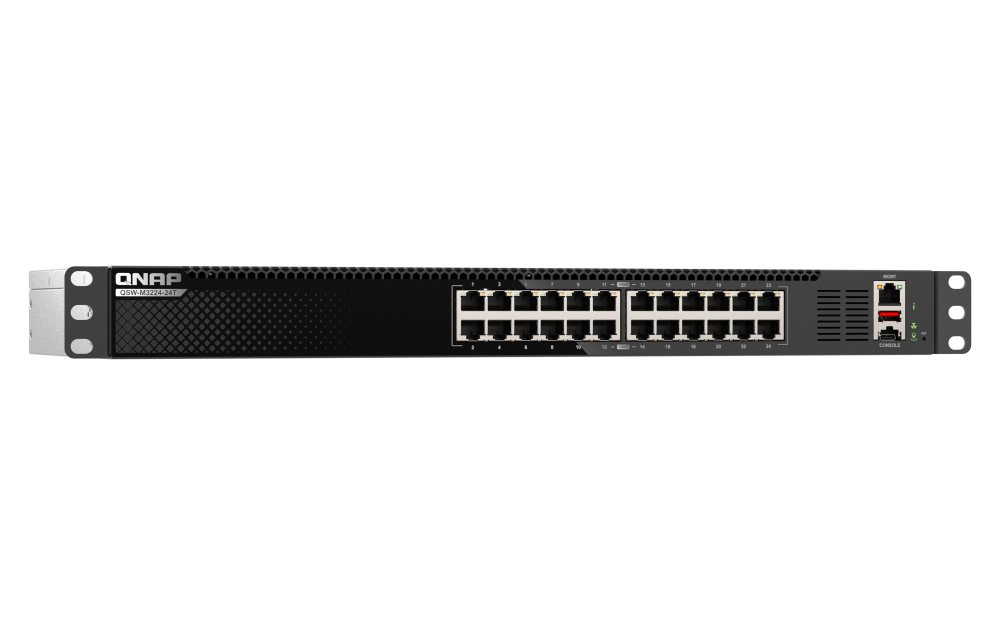

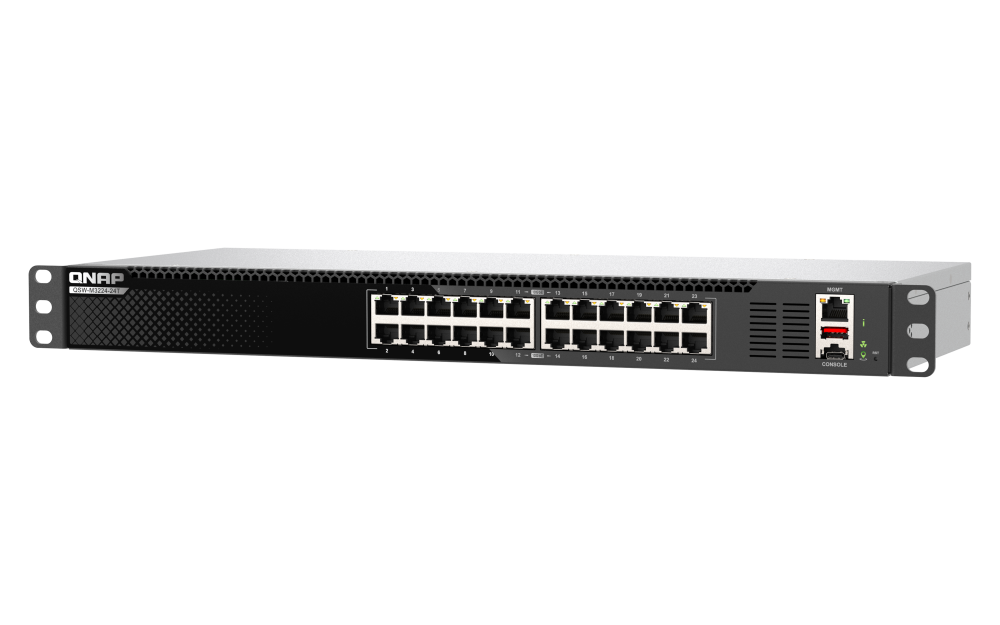

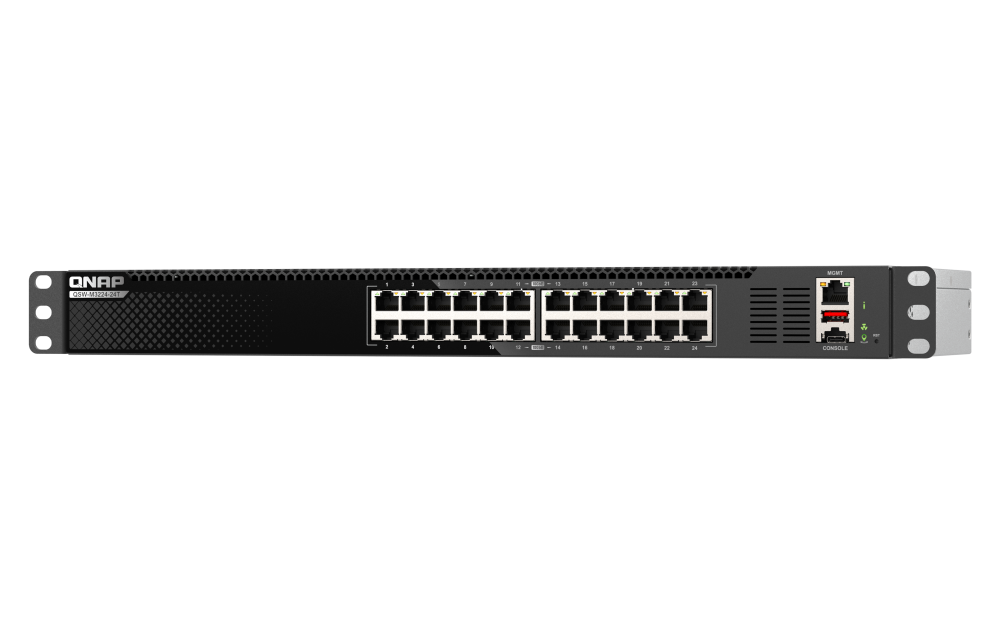

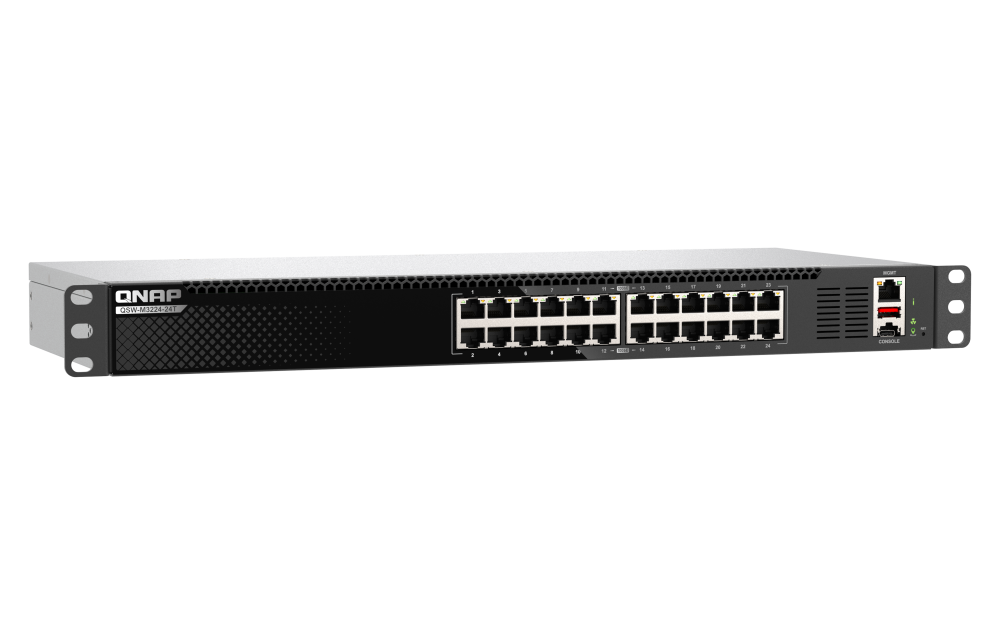

QNAP QSW-M3224-24T
Cost-optimized high-density 1U Rackmount 24-port 10GbE Multi-gigabit L3 Lite managed switch, supporting MC-LAG for realizing IT room High Availability
Marvell 98DX4550 + 88F6821 & 8 Gbit (1GB) DDR4
Our Price: $1,249.00
Click here to jump to more pricing!
Package Content
- QNAP QSW-M3224-24T Switch
- Power cord
- Rackmount kit
- Quick Installation Guide
Overview:
QSW-M3224-24T is a cost-effective L3 Lite managed switch designed for enterprises. With twenty four 10GbE Multi-Gig ports for low-latency and high-density 10G network applications, QSW-M3224-24T accelerates high-speed storage, video editing, virtualization, AI and AVoIP applications. The QSW-M3224-24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
24-port 10GbE network
Offers switching capacity of 480Gbps; compatible with 10GBASE-T and Multi-Gigabit NBASE-T™ technologies to connect 10G / 5G / 2.5G / 1G for high-speed network devices. LACP is supported to combine two ports for up to 20Gbps bandwidth.
L3 Lite
Provides IP settings (IPv4, IPv6, DNS), static routing, DHCP server, SNTP and advanced VLAN settings to deploy and manage high-performance and secure enterprise network infrastructure.
Continuous Enterprise networks
Adopts MC-LAG, (Multi-chassis link aggregation group) to offer High Availability and redundancy to guarantee uninterrupted network switching.
Secure network management
Supports ACL, Qfinder Pro login, and SNMP (Simple Network Management Protocol) management to ensure secure connections between the switch and network devices and enable central management and maintenance.
Easier AV-over-IP configuration
Supports IGMP Snooping management and IGMP Snooping traffic forwarding control for low-latency network connections with multiple AV devices.
User-friendly management interface
QSS Pro (QNAP Switch System Pro) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
Features:
Scale secure and highly-efficient enterprise network infrastructure with the QNAP L3 Lite switch
Medium to large-scale enterprises often have large and complicated network infrastructure. Upgrading to L3 Lite managed switches not only scales a secure high-speed network infrastructure, but also saves tremendous maintenance and management costs.
Scalability
When scaling your network, more network switches are required for more end devices. Deploying a L3 Lite switch helps realize granular control over large-scale segmented networks.
High-performance
High-performance network transmission is essential for critical business applications and services. A L3 Lite switch effectively satisfies the high-performance network demands in AI, multimedia, and virtualization applications.
Security
Having trouble with the complicated connections in the medium to large-scale networks? A L3 Lite switch provides an IP routing table to both boost connection security and simplify security management.
Enterprise IP routing, network high availability and high-performance demands
IP routing
Forwards packets through IP addresses to enable communication between devices in different network segments, or efficiently connect between different segments and subnets to achieve more complicated network segments based on functions.
MC-LAG network redundancy
Combines multiple connections between switches into a single, logical link. This logical link provides high availability and redundancy for client devices as it can continue to function even if one or more of the physical links fail.
LACP
Link Aggregation Control Protocol combines multiple network connections to increase throughput and protect against connection failure.
24x 10GbE ports for connecting more high-speed network devices
The switching capacity of the QSW-M3224-24T is 480Gbps, guaranteeing the full potential of each port. The QSW-M3224-24T can uplink to switches and servers in server rooms or connect to 10GbE NAS, workstations, AV-over-IP devices, and SNMP-compliant devices to build a flexible high-speed network transmission topology.
Connect 10GbE NAS, servers, and computers
Compliant with 10GBASE-T and Multi-Gigabit NBASE-T™ to connect to 10G/5G/2.5G/1G NAS, servers, and computers.
Uncompromising AV-over-IP experience
Offers AV-over-IP Wizard, IGMP Snooping, and VLAN to direct AV traffic to specific client devices for efficient bandwidth utilization in particular applications or scenarios, such as video walls.
Manage all networked devices
Supports SNMP for centrally and securely manage all networked devices in your network environment, such as NAS, routers, network switches, workstations, modems, IP phones, and IP cameras.
Powerful security and system functions
The QSW-M3224-24T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
ACL
Filters packets based on rules to offer firewall-like security protection.
LLDP
Allows devices to advertise device information to directly-connected peers/neighbors to simplify troubleshooting processes.
RSTP
Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic.
Flow Control
Balances traffic between a sender and a receiver to avoid network congestion.
QSS Pro: Powerful and Smart
The QSW-M3224-24T adopts QNAP Switch System Pro (QSS Pro), which features an easy-to-use Web GUI with Layer 3 Lite and Layer 2 management and value-added functions to simplify network set up and management.
Overview Dashboard
View real-time system information, port connection status, and port traffic.
Port Management
View port status, port packet statistics, and configure port speeds.
Setting Guide
Quickly learn how to set up the network using the introduction and step-by-step guide.
Status Charts
Refer to four status charts during configuration and avoid going back and forth between settings pages.
Online Firmware Check and Update
Keep your QNAP switch secure with one-click firmware updates.
Dependable performance with effective heat dissipation

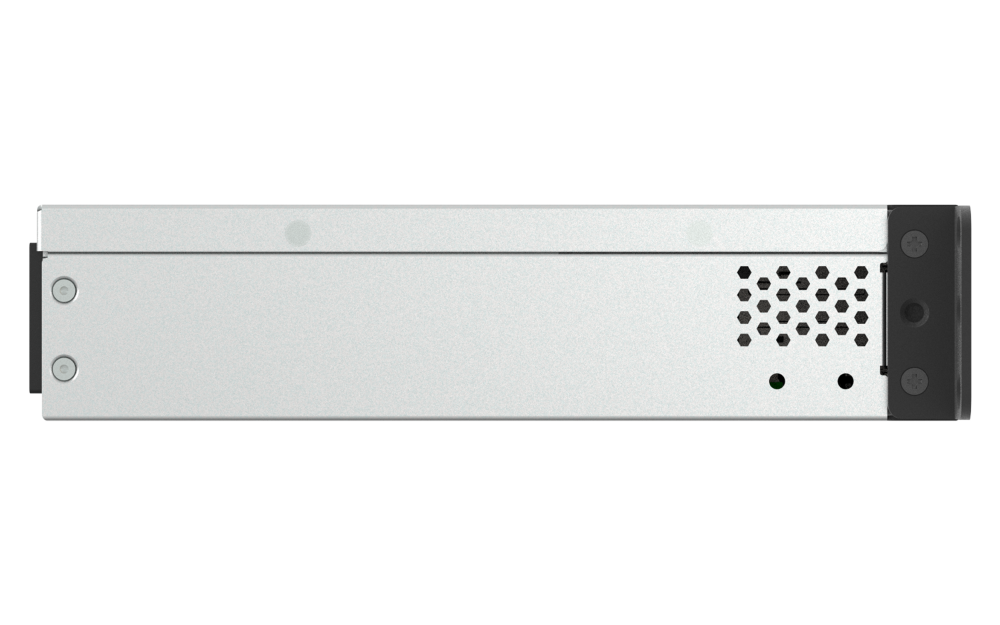

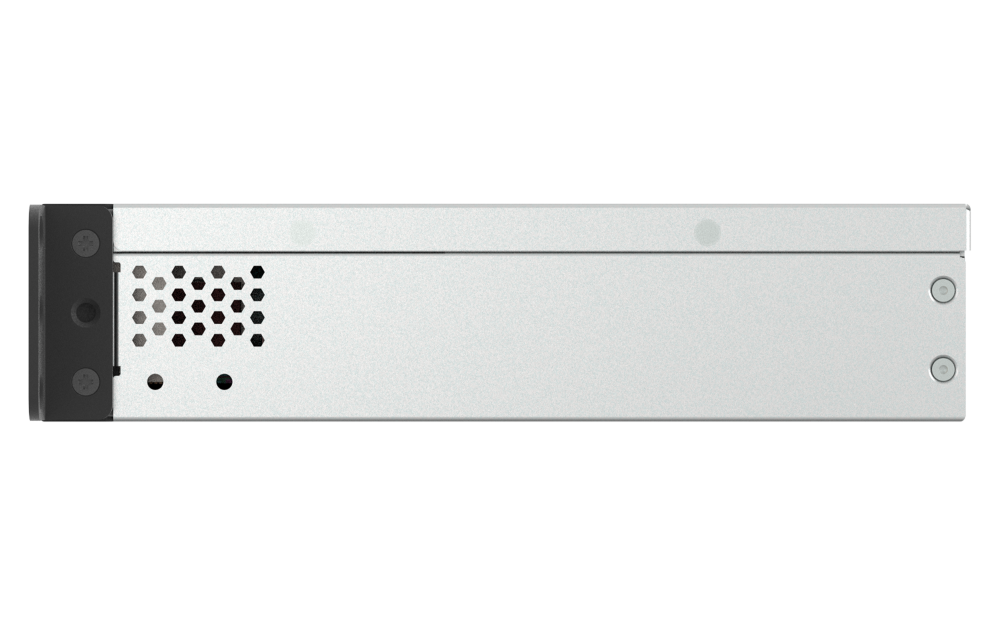

With a compact metal body, the QSW-M3224-24T provides stable and reliable operations while staying near-silent even when under full load. The front-panel LEDs also assist in viewing the current system status.
Extend hardware warranty up to 5 years
The QSW-M3224-24T is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Hardware Specifications:
| QSW-M3224-24T | |
|---|---|
| Management Type | L3 Lite Web Managed |
| Number of Ports | 24 |
| 10GbE BASE-T (RJ45) | 24 (10G/5G/2.5G/1G/100M) |
| Management Port | 1 x 1GbE RJ45 |
| Power Supply Description | Internal Power supply Unit |
| Max. Power Consumption | 116.9W |
| Input Power Type | AC |
| Input Voltage Range | 100 ‒ 240VAC, 50/60Hz |
| MAC Address Table | 32k |
| Total Non-Blocking Throughput | 240Gbps |
| Switching Capacity | 480Gbps |
| Management Interface | Web |
| Console | USB Type C |

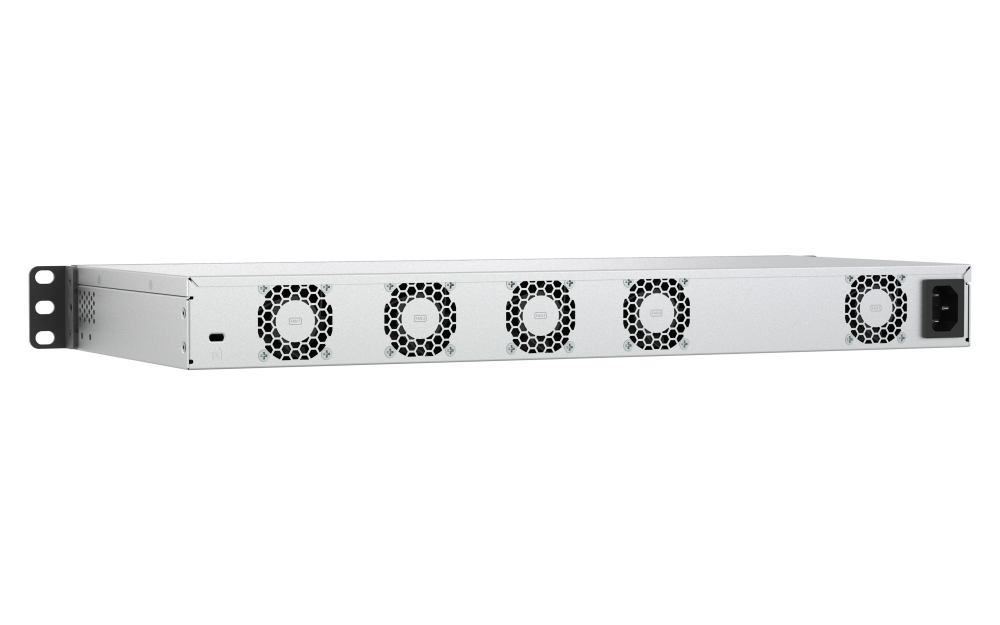

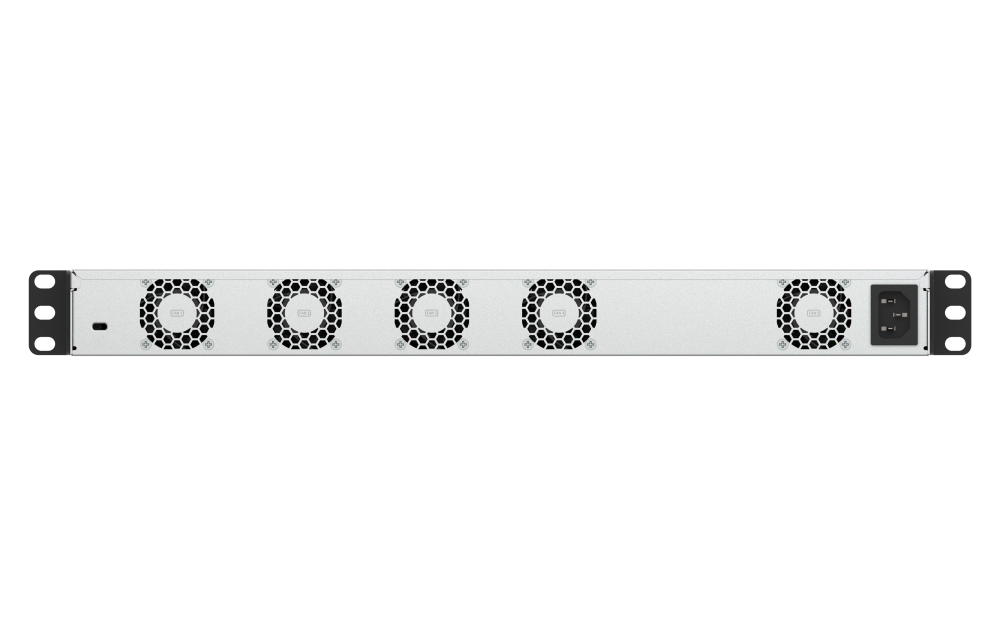

| Fan | PWM VAPO Bearing fan x 5 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10GBASE-T IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Form Factor | Rackmount |

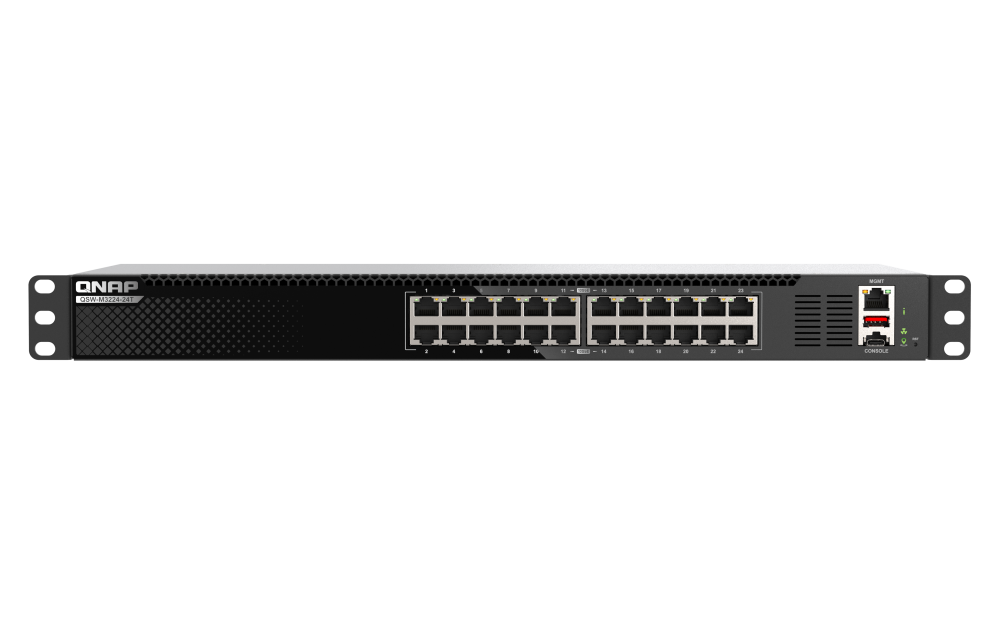

| LED Indicators | Per Port: Speed/Link/Activity Per System: Status/Fan/Locator |
| Buttons | Reset button |
| Dimensions (HxWxD) | 44.2 x 438.5 x 190 mm |
| Weight (Net) | 6.46 lbs |
| Weight (Gross) | 9.92 lbs |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5%–95% (non-condensing) |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
