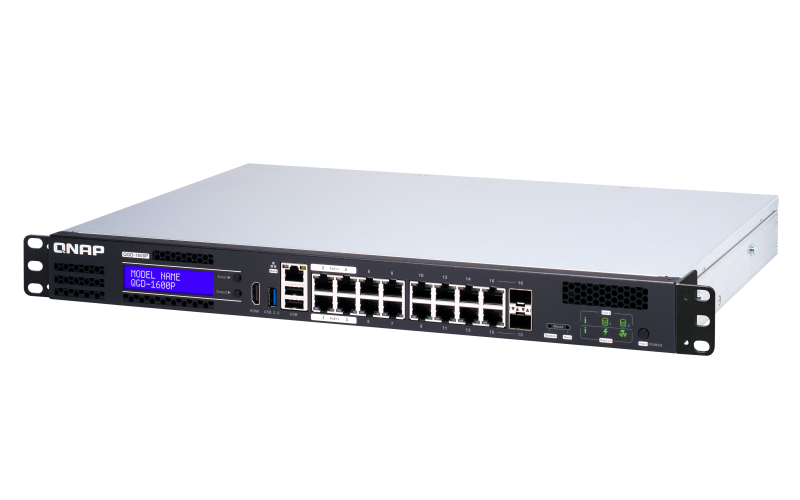

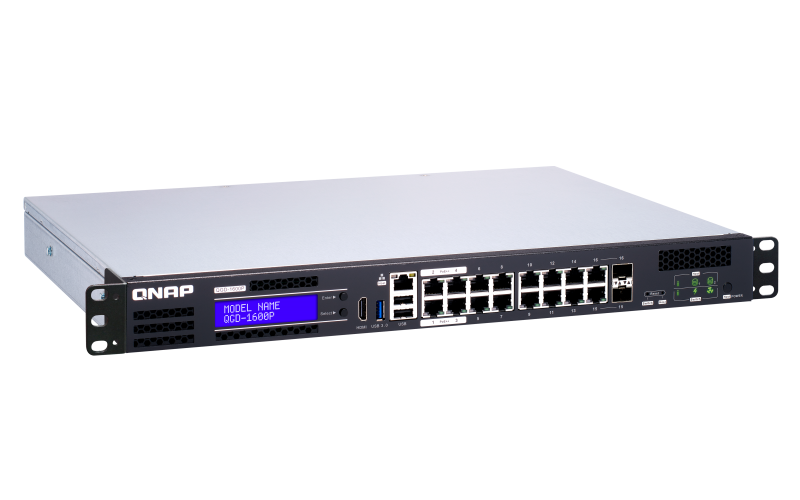

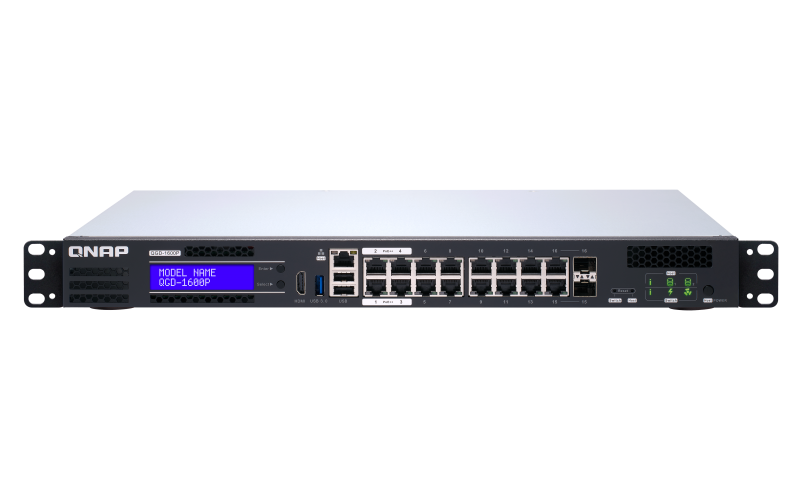

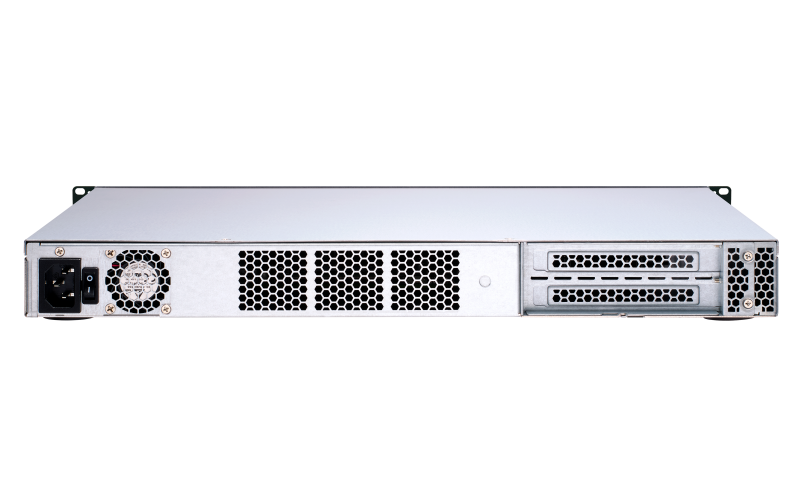

QNAP QGD-1600P
The all-in-one Guardian PoE Switch satisfies all SMB networking needs

QNAP Products
QNAP QGD-1600P
QNAP 16-port 1GbE switch with 2 RJ45 and SFP+ combo port with Intel Celeron processor and 8GB RAM
Intel® Celeron®J4115, 2 X 2.5″ SSD/HDD, 2 x PCIe Gen 2x2 slots, 1 X USB3.0, 2 X USB 2.0, 1 X HDMI
#QGD-1600P-8G-US
Our Price: $739.00
QNAP 16-port 1GbE switch with 2 RJ45 and SFP+ combo port with Intel Celeron processor and 4GB RAM
Intel® Celeron®J4115, 2 X 2.5″ SSD/HDD, 2 x PCIe Gen 2x2 slots, 1 X USB3.0, 2 X USB 2.0, 1 X HDMI
#QGD-1600P-4G-US
Our Price: $689.00

Click here to jump to more pricing!

Overview:

QNAP’s QGD-1600P is the world’s first PoE managed switch that supports Virtual Machines (VMs). It features 4-port 60-watt and 12-port 30-watt Gigabit PoE (with two PoE/SFP Combo ports) for highly flexible networking environment deployment. With a dual-CPU design, the QGD-1600P provides both Layer 2 management functions for VM and QTS applications. The QGD-1600P also features Software-Defined Networking (SDN), enabling it to function as a NAS, NVR, router, firewall and AP controller for IP surveillance, network security, storage expansion, and wireless LAN management applications. Therefore, the Guardian series offers SMBs a cost-optimized and centrally managed LAN deployment solution.

60W PoE++

QGD-1600P is compliant with the latest IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, and offers 4-port 60-watt and 12-port 30-watt Gigabit PoE capability. QGD-1600P can supply a total power budget of 370 watts to meet the demands of high-powered devices (PDs).

Layer 2

QGD-1600P provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT administrators to efficiently control the network bandwidth and enhance security via the user-friendly switch management web interface.

User-Friendly Web Interface

QuNetSwitch offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and pored devices at a glance, making central management of high-power devices intuitive and easy.

SSD

Supports up to two SATA drives.

PCIe

PCIe expandability allows for 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.1 Gen 2 (10Gbps) cards, or Wireless Adapters.

Host Containerized Apps and VMs

Host containerized applications and virtual machines with various operating systems. Flexibly install virtual router, firewall, or wireless LAN management software for various networking management applications.

Features:

SMB IT Needs: Power Supply, Network Deployment, and Application Service

Business management and IT infrastructure are important when you start a SOHO, SMB office, retail chain store, or Airbnb business. For example, your IT infrastructure needs to ensure that any POS, IP surveillance, or IP access control systems are in continuous operation. The three main SMB IT requirements are as follows:

Power supply

Power supply

Power on energy consuming devices easily in locations without power outlets.

Network deployment

Network deployment

Simple and easy network set-up solution that can be completed without hiring IT professionals.

Application service

Application service

Integrated hardware and software solution for business data storage spaces, surveillance systems, and firewalls.

The Guardian Smart Edge PoE Switch meets all your business needs.

The QNAP QGD-1600P Smart Edge PoE Switch is a one-stop central networking solution that offers a flexible power supply, Web GUI management, and innovative virtualization applications to solve all your network problems.

High PoE Power Supply

High PoE Power Supply

The QGD-1600P is compliant with the latest IEEE 802.3bt PoE++ standard, offering 4-port 60-watt and 12-port 30-watt Gigabit PoE capabilities. Use your existing RJ45 cable to transmit power and data to edge devices.

Layer 2 Functions via Web GUI Management

Layer 2 Functions via Web GUI Management

The QGD-1600P provides comprehensive Layer 2 management features, including VLAN, LACP, LLDP, QoS IGMP Snooping, and Wake-on-LAN for IT administrators to efficiently control network bandwidth and enhance security via the user-friendly switch management web interface.

QTS-Supported VM Services

QTS-Supported VM Services

The QGD-1600P is also a NAS that can host containerized applications and virtual machines on different operating systems. Flexibly install virtual routers, firewalls, or wireless LAN management software for various networking management applications.

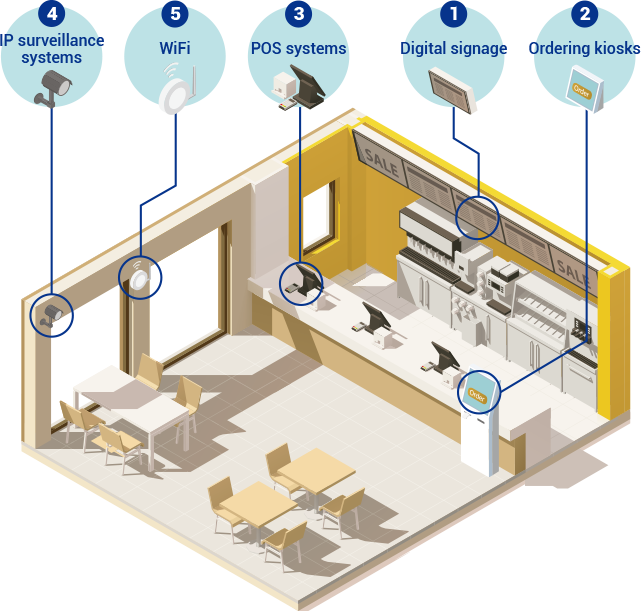

Restaurant Franchise Applications

If you are a restaurant franchise owner, you might need digital signage to display new menus or ongoing promotions. You also need to make sure the POS system is connected at all times to ensure sales data is saved securely. An NVR surveillance system is required to ensure your environment security and for eliminating disputes involving theft. Moreover, your restaurant must provide Wi-Fi services to stay up to date.

Guardian Smart Edge PoE Switch applications:

  • Digital Signage: The QGD-1600P provides 60-watt PoE capability. It’s also a NAS that can provide storage space for storing digital files of menus and promotion plans.
  • Ordering Kiosk: The QGD-1600P provides 60-watt PoE capability and high-speed connectivity for transferring customers’ order details in real time.
  • POS System: The QGD-1600P provides 60-watt PoE capability and high-speed connectivity for remote server connections. It’s also a NAS that provides storage space to centrally store all sales data.
  • IP Surveillance System: The QGD-1600P provides 15–60-watt PoE capability to IP cameras. You can deploy QVR Pro surveillance applications to auto-detect ONVIF IP cameras for greater management convenience. The QGD-1600P also features an HDMI port for directly displaying security footage on an HD display.
  • WiFi Service: The QGD-1600P provides 15–60-watt PoE capability to wireless APs and also supports Ubiquiti Unifi applications for centrally managing all connected Unifi APs. A QNAP QWA-AC2600 wireless adapter can be installed via the QGD-1600P’s PCIe port, coupled with the Wireless AP Station app to provide high-speed dual-band wireless connections.

Restaurant Franchise Applications

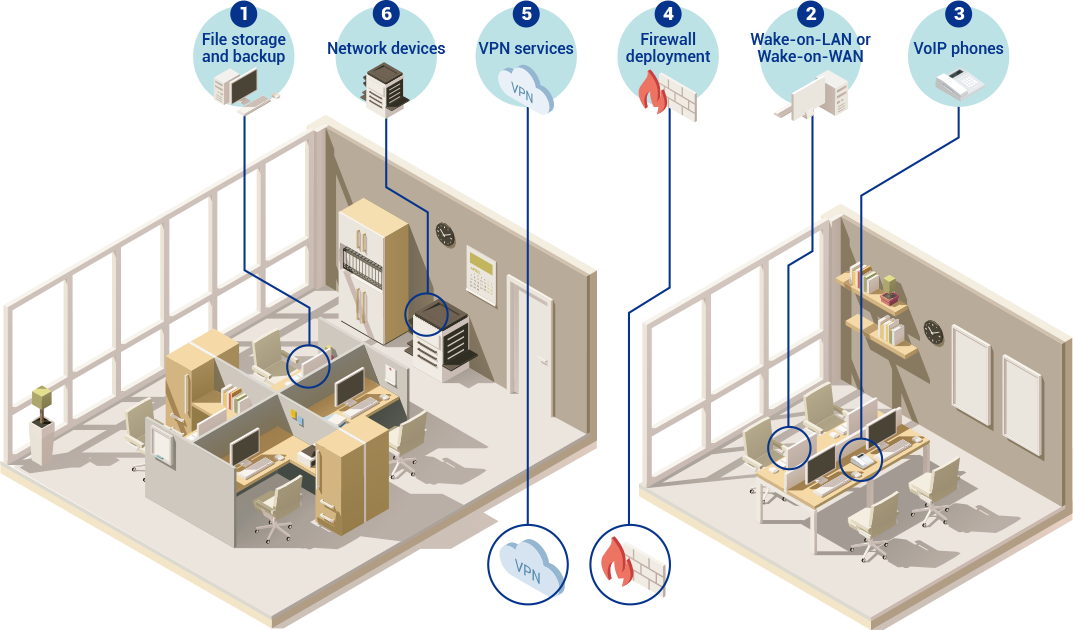

Small Business IT Applications

If you are an IT professional for a small business, you often need to set up file servers for all employees to centrally store files. You will also need to create networks for connecting office equipment, such as network printers and VoIP phones. Setting up a firewall is also crucial in information security for mitigating internal attacks and external threats. In addition, a VPN connection is necessary to perform secure remote file transfers between headquarters and branch offices.

The "Guardian" smart edge PoE switch can help you with:

  • File storage/backup: The QGD-1600P can serve as a NAS for centrally storing data for the whole team and facilitating collaboration among peers.
  • Wake-on-LAN: You can remotely wake devices on local network to improve routine maintenance or operation efficiency.
  • VoIP phone: The QGD-1600P can supply power (15–30 watts) via PoE for deploying a low-latency enterprise IP PBX system.
  • Deploying a firewall: You can install pfSense on the QGD-1600P as a virtual machine to protect companies and studios from both internal attacks and external threats.
  • VPN service: You can install router software on the QGD-1600P located in each branch office to establish secure communications for reliable data exchange.
  • Network Devices: the QGD-1600P provides Gigabit Ethernet connectivity to printers and fax machine.

Small Business IT Applications

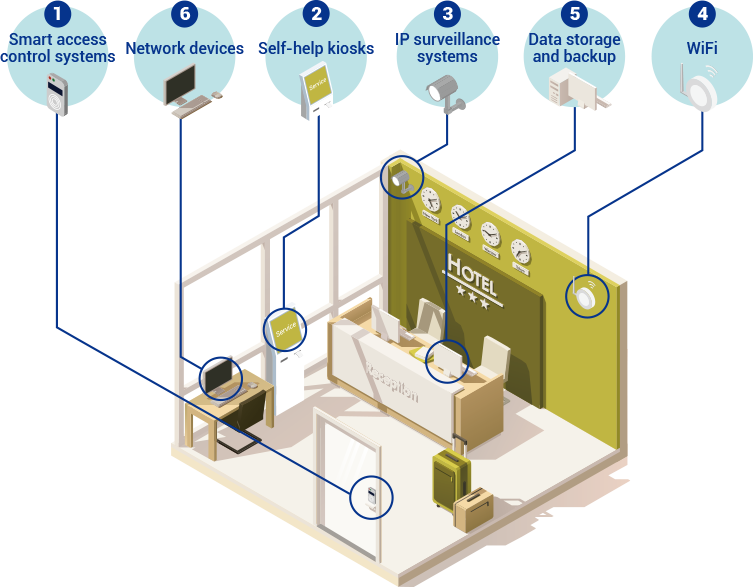

Airbnb Applications

If you are an Airbnb owner, both you and your customers can benefit from a smart access control system. Customers can check in with self-help kiosks upon arrival while browsing through room details and service packages. As an Airbnb owner, you must provide WiFi for your customers so that they can easily check information and contact customer service via VoIP phones . Customers’ check-in data needs to be saved securely, and an IP surveillance system is required to ensure environmental security.

The Guardian Smart Edge PoE Switch can help you achieve the following:

  • Smart Access Control System: The QGD-1600P provides PoE capability and can transfer customers’ check-in data in real time.
  • Self-help Kiosk: The QGD-1600P provides 60-watt PoE capability, enabling data connection for self-help kiosks and digital signage.
  • IP Surveillance System: The QGD-1600P provides PoE capability to IP cameras. You can deploy QVR Pro surveillance applications to auto-detect ONVIF IP cameras for greater management convenience. The QGD-1600P also features an HDMI port for directly displaying security footage on an HD display.
  • WiFi Service: QGD-1600P provides 15–60-watt PoE capability for wireless access points (WAPs), while also supporting Ubiquiti UniFi application for central managing a connected UniFi Access Point (UniFi AP). A QNAP QWA-AC2600 wireless adapter can be installed via the QGD-1600P’s PCIe port, coupled with the Wireless AP Station app to provide high-speed dual-band wireless connections.
  • Data Storage and Backup: The QGD-1600P is also a NAS for centrally storing customers’ check-in data.
  • Network Devices: the QGD-1600P provides Gigabit Ethernet connectivity to printers, fax machine, and VoIP phones.

Airbnb Applications

Specifications:

QGD-1600P-4G
Management Type Web Managed
CPU Intel® Celeron® J4115 quad-core 1.8 GHz processor (burst up to 2.5 GHz)
CPU Architecture 64-bit x86
System Memory 4 GB
Drive Bays 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Rate Limiting
IGMP Snooping Querier
IGMP Snooping v2/v3
IP-based Access Control List (ACL)
DSCP-based QoS
Port-based QoS
VLAN-based QoS
Port Mirroring
Trunking/LACP
IEEE 802.1Q-based VLAN
Port-based Private VLAN
VLAN Configuration
PoE Detection
PoE Schedule
PoE Status
LLDP
MAC Address Table Display
Loop Protection
Flash Memory 4GB (Dual boot OS protection)
File System: External Hard Drive EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license)
File System: Internal Hard Drive EXT4
SSD Cache Acceleration Support
M.2 SSD Slots Optional via PCIe adapter
Hot-swappable
Drive Compatibility 2.5-inch bays:
2.5-inch solid-state drives
2.5-inch hard disk drives
Memory Slot 2 x SODIMM DDR4
SNTP/DNS/DHCP Client
Maximum Memory 8 GB (2 x 4 GB)
Encryption Engine (AES-NI)
Floating Point Unit
Graphics Processors Intel® HD Graphics 600
QTS Built-in
Static MAC Address
IEEE 802.3x Flow Control
Auto-negotiation of Speed and Duplex Modes
Port Configuration
Number of Ports 16
USB 3.0 port 1
Input Power Type AC
Max. Power Consumption 418W
Power Supply Description Internal Power Supply Unit
HDMI Output 1
USB 3.1 Gen 2 (10Gbps) Port Optional via PCIe adapter
Management Port 1
USB 2.0 port 2
PCIe Slot Slot 1: PCIe Gen2 (x2)
Slot 2: PCIe Gen2 (x2)
MAC Address Table 8K
Total PoE Power Budget 370W
PoE Power Output Ports 1-4 (60W), Ports 5-16 (30W)
PoE++ PSE (802.3bt, 60W) Ports 1-4
PoE+ PSE (802.3at, 30W) Ports 1-16
PoE PSE (802.3af, 15.4W) Ports 1-16
Total PoE Ports 16
1GbE SFP/RJ45 Combo Ports 2
1GbE (RJ45) 14
Input Voltage Range 100-240VAC, 50/60 Hz
Total Non-Blocking Throughput 16Gbps
Port Statistics
Weight (Net) 9.72 lbs
Port Status
Jumbo Frames 9k
Electromagnetic Compliance CLASS A, UL62368
Certifications CE, FCC, VCCI, BSMI RCM
Relative Humidity 5% to 95% non-condensing, wet bulb: 27˚C (80.6˚F)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Weight (Gross) 12.26 lbs
Dimensions (HxWxD) 6.3 × 20.79 × 15.87 inch
Switching Capacity 32Gbps
Buttons Device PSU power button
Host power button
Host reset button(load default)
Switch reset button
LCD Management
LED Indicators Per Port: Link/Activity/Speed/PoE
Per System: Warning/PoE/Fan
Form Factor Rackmount
Supported Standards IEEE 802.3 10Tx Ethernet
IEEE 802.3u 100Tx Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000Base-X
IEEE 802.3x Full-duplex flow control
IEEE 802.3af/at/bt Power-over-Ethernet (PoE)
IEEE 802.1q Virtual LANs (VLAN)
IEEE 802.1p QoS Protocol for Traffic Prioritization
Fan System: 2 x 4 cm (12V DC)
Energy Efficient Ethernet (IEEE 802.3az complaint)
Management Interface CLI/Web
Warranty 2 Years

Documentation:

Download the QNAP QGD-1600P Datasheet (PDF).
