QNAP GM-1000 Gemini Series
Intel® Xeon® E dual NAS with doubled performance: ZFS-based QuTS hero provides outstanding backup and hybrid cloud solutions


Sorry, this product is no longer available, please contact us for a replacement.


Want to build a custom bundle? Contact us!

Click here to jump to more pricing!


Package Content

  • QNAP GM-1000
  • 2 x Ethernet cables
  • 2 x Power cords
  • 4 x Flat head screw (for M.2 SSD)
  • 64 x Flat head screw (for 3.5" HDD)
  • 80 x Flat head screw (for 2.5" HDD)
  • Quick Installation Guide

Overview:

The GM-1000 series features a unique dual-NAS architecture that delivers cost-efficient and space-saving advantages. It contains two replaceable TNS-h1083X NAS nodes, which are powered by Intel® Xeon® E processors and provide high-performance 10GbE / 2.5GbE connectivity and expandable I/O. M.2 and U.2 SSD interfaces are also included to enable cache acceleration for tackling the performance wall in bandwidth-demanding and low-latency business applications (such as intensive backup and virtualization). Both TNS-h1083X NAS nodes use the ZFS-based QuTS hero operating system that supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and more business-oriented features to achieve reliable service-level agreement performance.



Available Models

  • GM-1001-
    • Including a TEC-2N16 enclosure with two TNS-h1083X-E2234-8G NAS nodes. Each node is powered by an Intel® Xeon® E-2234 4 cores/8 threads 3.6 GHz processor (Bursts up to 4.8 GHz), 8 GB DDR4 ECC UDIMM memory (2 x 4 GB), 2 x NVMe Gen3 x2 M.2 slots, 2 x 2.5GbE ports, 2 x 10GbE SFP+ SmartNIC (Mellanox ConnectX®-4 Lx EN).

  • GM-1002-
    • Including a TEC-2N16 enclosure with two TNS-h1083X-E2236-16G NAS nodes. Each node is powered by an Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Bursts up to 4.8 GHz), 16 GB DDR4 ECC UDIMM memory (2 x 8 GB), 2 x NVMe Gen3 x2 M.2 slots, 2 x 2.5GbE ports, 2 x 10GbE SFP+ SmartNIC (Mellanox ConnectX®-4 Lx EN).


chassis design

Economic and space-saving chassis design for dual NAS nodes and doubled performance.

Note: The GM-1000 does not support High Availability.

increase performance

Built-in 10GbE and 2.5GbE ports, PCIe slots, and M.2 SSD slots (NVMe Gen 3 x2) and U.2 SSD slots (NVMe Gen 3 x4 / SATA 6Gb/s) to increase performance potential.

ZFS

The QuTS hero operating system combines ZFS advantages with the QTS App Center ecosystem to empower your business.


Features:

Highly-flexible enclosure-based system with two replaceable NAS nodes

The GM-1000 consists of an enclosure with two independent NAS nodes. This layout provides greater flexibility in maintaining and upgrading NAS nodes to meet future performance needs for backup applications and other business tasks, and saves costs on the system enclosure.

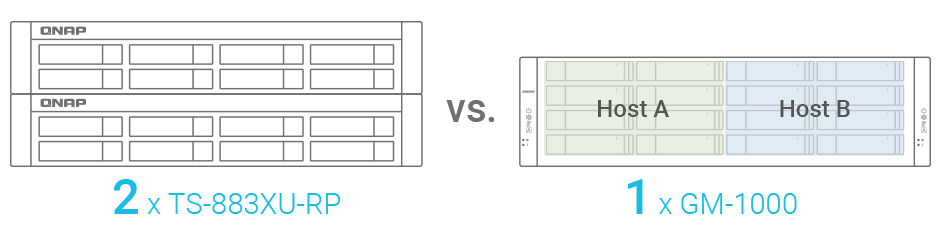

Economic and space-saving chassis design

The GM-1000 is a 3U chassis with sixteen 3.5-inch drive bays. Compared with deploying two similar 2U 8-bay rackmount NAS, the GM-1000 saves rack space and system costs. The support for replaceable NAS nodes also simplifies upgrades and maintenance. Two NAS nodes can share the 770W redundant power supplies on the enclosure to ensure reliable services, providing rigid enterprise IT with a high-performance, reliable, and cost-efficient storage solution.

Double-box-space

Flexible combination of NAS nodes and enclosure

NAS node Enclosure

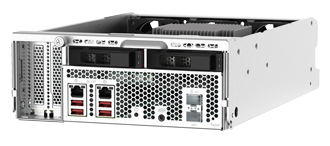

TNS-h1083X

TNS-h1083X

TEC-2N16

TEC-2N16


Ideal for cross backup and hybrid cloud applications

The GM-1000 hosts NAS nodes that feature the ZFS-based QuTS hero operating system. QuTS hero provides flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT.

  • Supports inline data deduplication, compression, and compaction for highly-efficient backup storage. Both NAS nodes can be used for cross backup.
  • Double your NAS performance. Each NAS node can mount different cloud storage to offload cloud gateway services.
  • Hosts virtual machines to run diverse virtualized server applications.
  • Delivers high-performance, reliable, and cost-effective storage for virtualization.
  • Supports Fibre Channel SAN for high-performance data storage and backup.

Extend hardware warranty up to 5 years

The GM-1000 is backed by a 3-year warranty at no additional costs. You can purchase a warranty extension that increases your warranty coverage up to 5 years.

Hardware Specifications:

  GM-1002 GM-1001
CPU Intel® Xeon® E-2236 6-core 3.4 GHz processor (burst up to 4.8 GHz) per node Intel® Xeon® E-2234 quad-core 3.6 GHz processor (burst up to 4.8 GHz) per node
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI) (AES-NI)
Hardware-accelerated Transcoding
System Memory 16 GB UDIMM DDR4 (2 x 8 GB) per node 8 GB UDIMM DDR4 (2 x 4 GB) per node
Maximum Memory 128 GB (4 x 32 GB) per node
Memory Slot 4 x Long-DIMM DDR4 per node
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch + 2 x 2.5-inch per node
The system is shipped without HDD/SSD.
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch SATA solid state drives
2.5-inch U.2 Gen3 x4 solid state drives
Hot-swappable
M.2 SSD Slot 2 x M.2 2280 NVMe Gen3 x2 slots per node
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 per node
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC (Mellanox ConnectX®-4 Lx EN)
Jumbo Frame
PCIe Slot 2 per node
Slot 1: PCIe Gen3 x4 (PCH)
Slot 2: PCIe Gen3 x8 (CPU)
USB 3.2 Gen 2 (10Gbps) Port 4 x Type-A per node
Form Factor 3U Rackmount
LED Indicators HDD, SSD, Status, Power, Fan, Temperaure, Node ID
Buttons Power, Reset, OLED
Dimensions (HxWxD) 5.2 × 18.96 × 24.54 inch
Weight (Net) 55.58 lbs
Weight (Gross) 75.95 lbs
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 770W(x2), 100-240V
Power Consumption: HDD Sleep Mode 169.68 W
Power Consumption: Operating Mode, Typical 201.07 W
Tested with drives fully populated.
Fan 3 x 60mm, 12VDC per node
Sound Level 45.6 db(A)
System Warning Buzzer
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

2-in-1 storage system with optimal performance and efficiency

The GM-1000 features outstanding hardware with an expandable architecture, enabling optimal performance and flexibility to meet diverse business requirements.

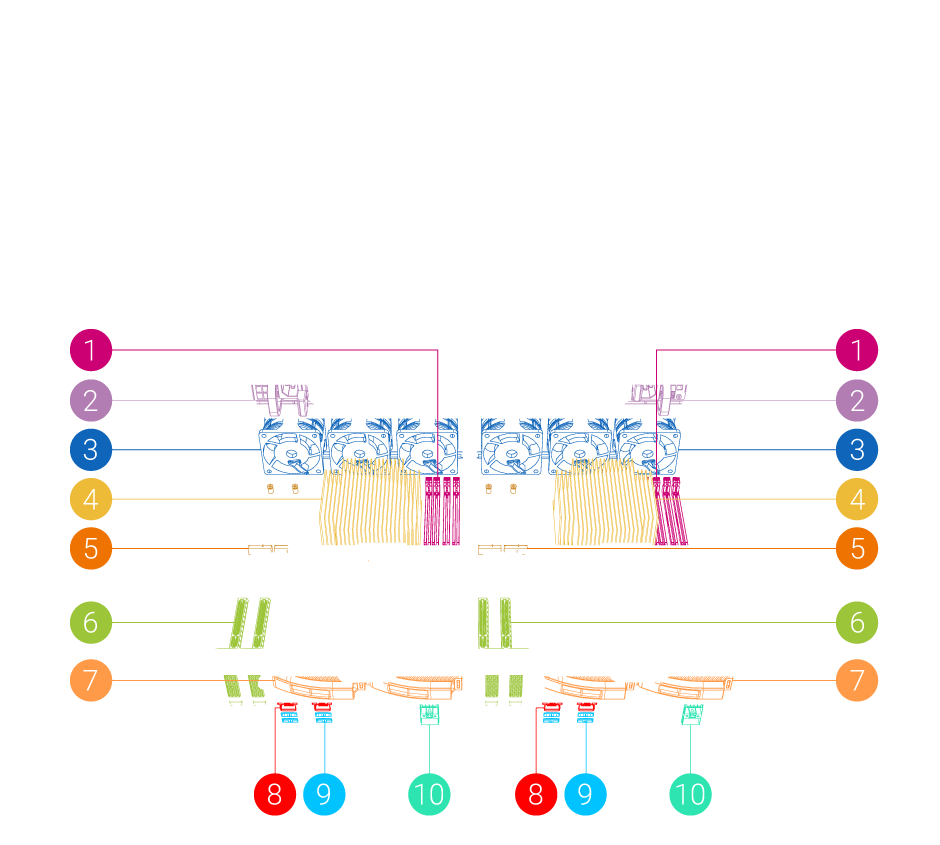

QNAP GM-1000 Series Hardware

1 DDR4 ECC memory Supports four DDR4 dual-channel Long-DIMM memory modules for a maximum of 128 GB RAM.
2 770W Redundant power supply unit Redundant 770W power supplies are shared by two NAS nodes and ensure continuous system uptime.
3 Smart cooling Three 60mm system fans have their speeds automatically adjusted based on system temperatures.
4 Intel® Xeon® E processor Intel® Xeon® E series processor with multi-core computer power and up to 4.8 GHz speeds.
5 2x M.2 SSDs Supports NVMe Gen 3 x2 M.2 SSD with the 2280 form factor for enabling cache acceleration.
Note: M.2 SSD sold separately.
6 2x PCIe expansion slots Includes one PCIe Gen 3 x8 (CPU) slot and one PCIe Gen 3 x4 (PCH) slot. Support 10GbE/25GbE/40GbE adapters, QM2 cards, QXP or SAS expansion cards.
7 2x U.2 SSD slots Support NVMe Gen 3 x4 or SATA 6Gb/s for fast data access, cache acceleration, or system drive configuration. Users can install QNAP QDA-UMP or QDA-U2MP adapters to use M.2 SSDs in a U.2 SSD drive bay to maximize PCIe bandwidth utilization in a cost-effective way. Note: U.2 SSD sold separately.
8 2x 2.5GbE LAN ports Supports Port Trunking and failover.
9 4x USB 3.2 Gen 2 ports (Type-A) Delivers transfer speeds up to 10 Gbps. Backwards compatible with USB 3.2 Gen 1 and USB 2.0 devices.
10 2x 10GbE SFP+ ports Ideal for bandwidth-demanding applications such as virtualization and fast backup/restoration.

Optional Accessories:

RAM-16GDR4ECP0-UD-2666

RAM-4GDR4ECP0-UD-2666

  • DDR type: DDR4(288PIN)
  • Capacity: 4GB
  • Spec: 512M X 8
  • Manufacturer: APACER
  • Frequency: DDR4-2666
  • Form(PIN): 288PIN
  • with ECC Supported: ECC
  • Manufacturer P/N: 78.B1GSB.4050B
  • Power Supply: 1.2V
  • Dram Organization: 512M*72
  • Temperature: 0℃~85℃
  • Environmental Regulation: RoHS

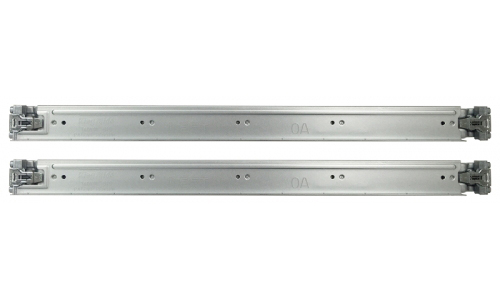

RAIL-E02

RAIL-E02

Rail Kit for ES NAS Series
Note: RAIL-E02 is included inside package of ES NAS and EJ JBOD series.
CAB-DAC15M-SFPP

CAB-DAC15M-SFPP

1.5M SFP+ 10GBE DIRECT ATTACH CABLE
Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
CAB-DAC30M-SFPP

CAB-DAC30M-SFPP

3.0M SFP+ 10GBE DIRECT ATTACH CABLE
Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
CAB-DAC50M-SFPP-DEC02

CAB-DAC50M-SFPP-DEC02

5.0M SFP+ 10GbE DIRECT ATTACH CABLE
Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

Product Views:

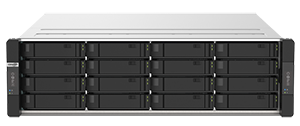

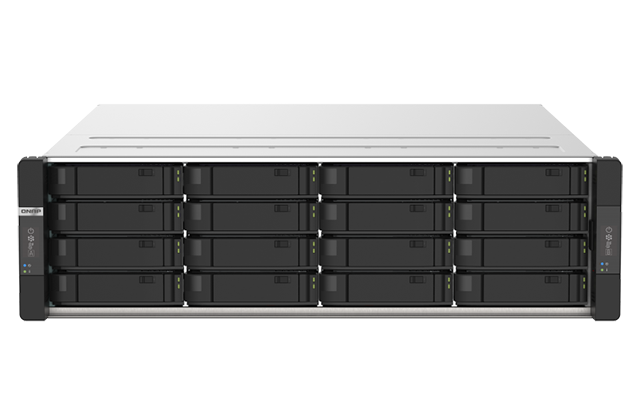

Front View

Front View

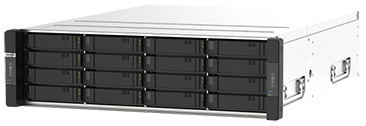

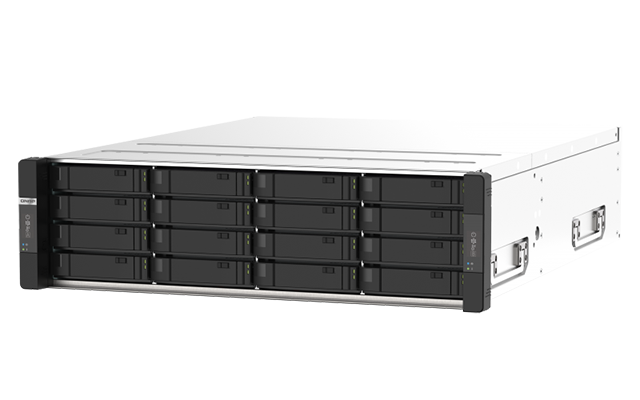

Top Right Angle View

Top Right Angle View

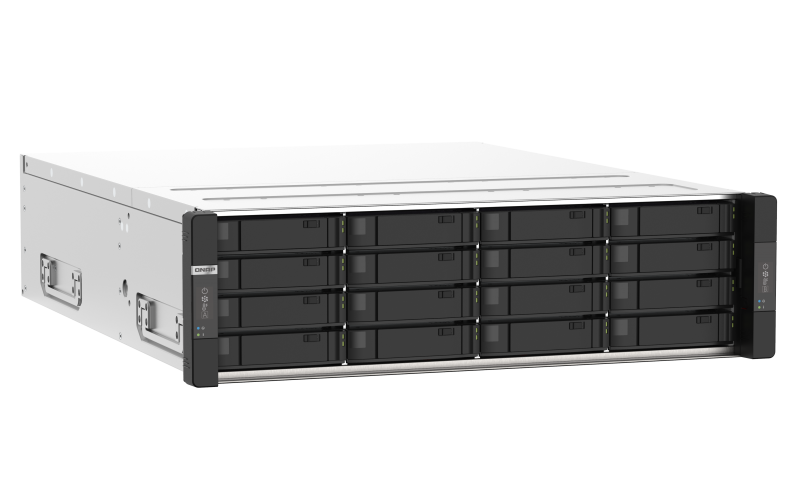

Top Left Angle View

Top Left Angle View

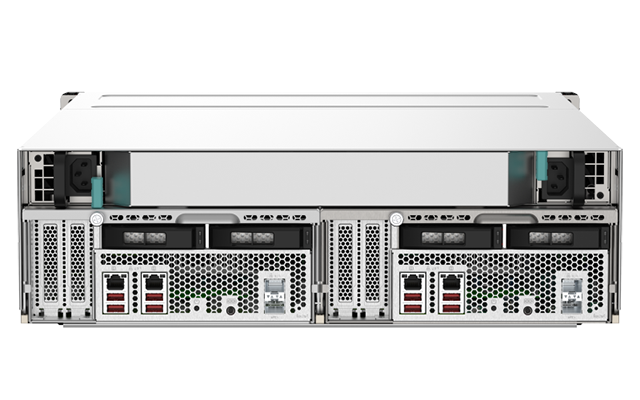

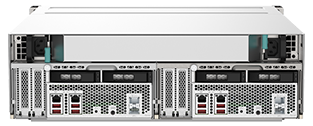

Rear View

Rear View

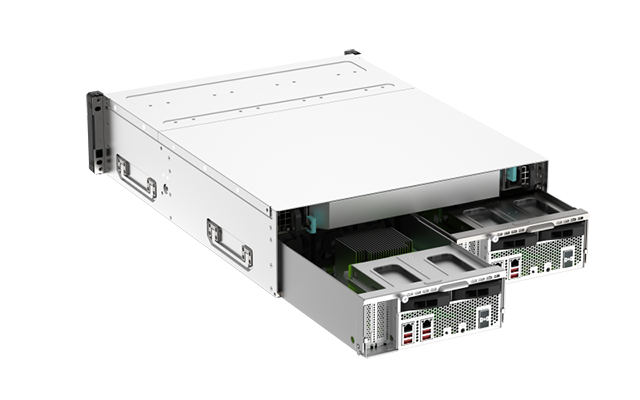

Left Rear View

Left Rear View

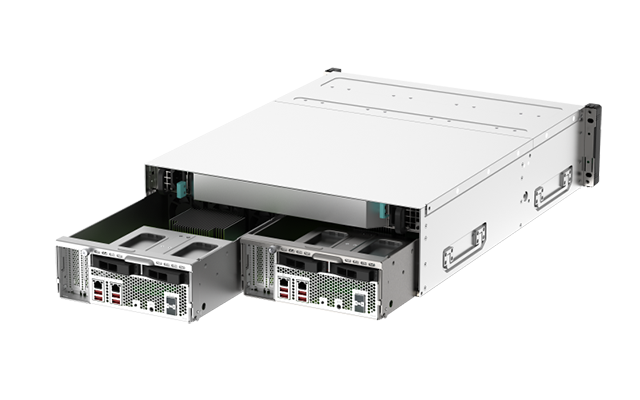

Right Rear View

Right Rear View

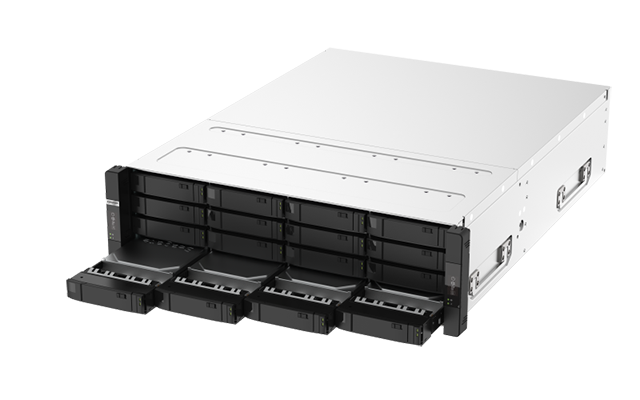

Hot-swappable View

Hot-swappable View



Documentation:

Datasheet for QNAP GM-1000 Gemini Series is coming soon.
