QNAP TS-977XU-RP
HDD + SSD hybrid-structure AMD Ryzen™ 1U rackmount NAS with up to 6 cores/12 threads

Sorry, this product is no longer available, please contact us for a replacement.

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Overview:

Powered by AMD’s powerful Ryzen™ processor, the TS-977XU-RP delivers high system performance with up to 6 cores/12 threads and Turbo Core up to 3.9 GHz. The TS-977XU-RP features a hybrid structure with four 3.5-inch HDD and five 2.5-inch SSD drive bays, allowing for enabling SSD caching and Qtier™ auto-tiering technology to greatly boost IOPS to meet the performance requirements of demanding applications. The TS-977XU-RP features two SFP+ 10GbE ports and two Gigabit ports for high-speed connectivity, providing businesses and organizations with an ideal solution for quickly deploying a high-bandwidth, high-reliability storage environment. The TS-977XU-RP also features a redundant power supply to ensure maximum system uptime.

Package Content

TS-977XU-RP-2600-8G SAN/NAS Storage System
2 x Ethernet Cables
2 x Power Cords
16 x Flat Head Screws (for 3.5" HDD)
36 x Flat Head Screws (for 2.5" HDD)
Quick Installation Guide (QIG)

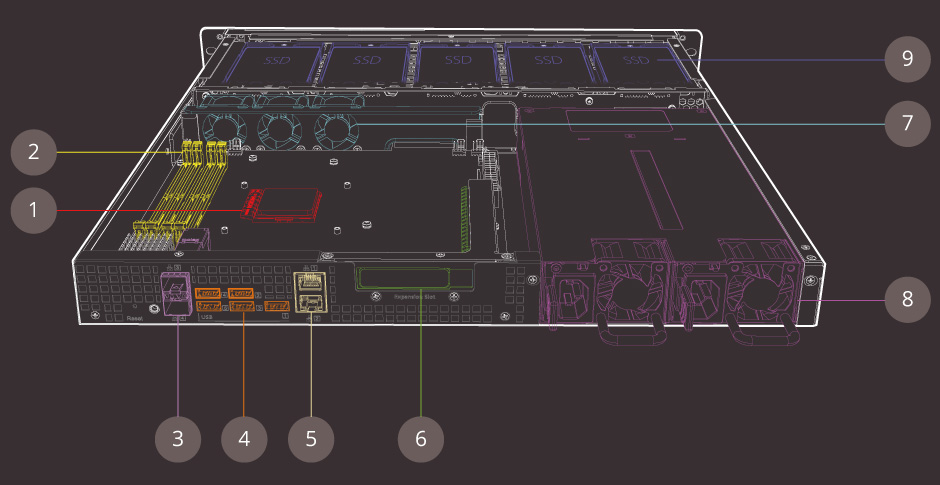

Top-class hardware engineering with high I/O expandability

The hardware design of the TS-977XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.

Multi-core AMD Ryzen™ processor
DDR4 2400 MHz memory
2 x 10GbE SFP+ ports
USB 3.0/ 3.1 ports
2 x Gigabit Ethernet ports
1 x PCIe expansion slots
Three 4cm System fans
2 x 300W Power Supply Units
Five 2.5-inch SSD drive bays

Absolute performance with AMD Ryzen™ and up to 64GB RAM

Powered by a high-performance AMD Ryzen™ 3 1200 processor or Ryzen™ 5 2600 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-977XU-RP delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-977XU-RP.

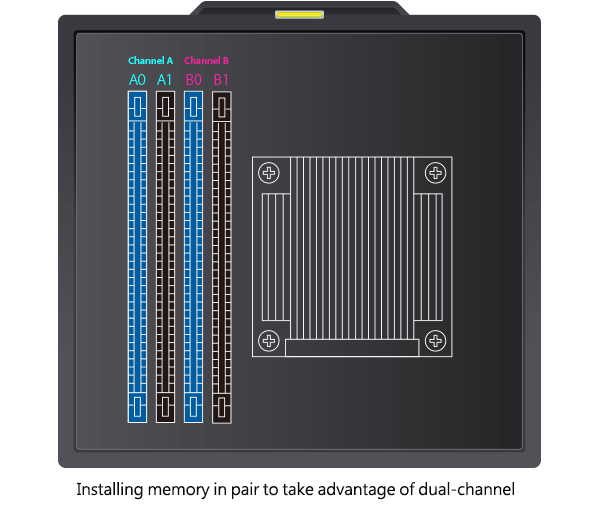

Dual-channel Memory to deliver power-smart performance

The TS-977XU-RP supports dual-channel DDR4 memory and features four Long-DIMM slots. When using paired memory modules, the TS-977XU-RP leverages the power of dual-channel architecture to boost performance. You can also customize the memory configuration (supports up to 64GB RAM) of the TS-977XU-RP, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.

Extend NAS functionality with PCIe slots

The TS-977XU-RP features a PCIe slot that allows for installing a 10GbE/40GbE network card, a QM2 M.2 SSD/10GbE PCIe card, or a wireless network card to provide greater application potential.

10GbE/ 40GbE adapters

Supports lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.

QM2 card with M.2 SSD/10GbE support

Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.

Wireless network cards

Use with the WirelessAP Station app to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

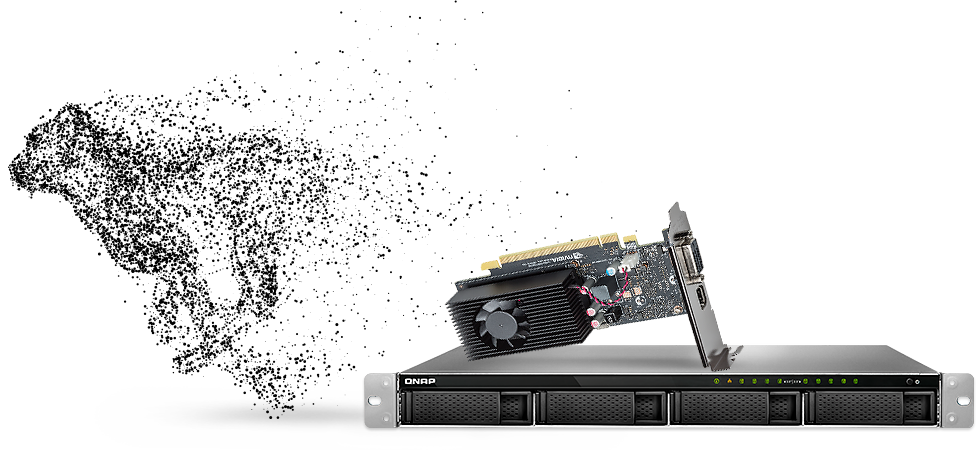

Install a graphics card for GPU-accelerated computing

Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-977XU-RP provides a 300 watt power supply and a PCIe slot that supports low-profile AMD Radeon™ or NVIDIA® GeForce® graphics cards that do not require additional power. Installing a graphics card can boost performance of applications such as video editing, 4K video transcoding, imaging processing in QTS and the performance of virtual machines via GPU passthrough.

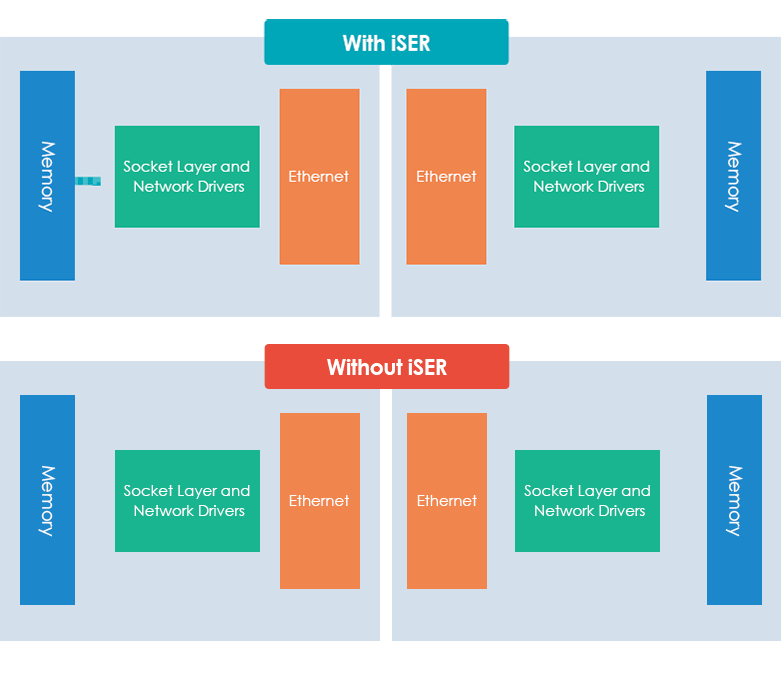

Optimized performance for VMware Virtualization with iSER

With the built-in dual 10GbE ports that natively features Mellanox® ConnectX-4, the TS-977XU-RP supports the iSCSI Extensions for RDMA (iSER) protocol to boost data transfer performance of the TS-977XU-RP as VMware® ESXi storage and to reduce the CPU load of the ESXi server. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.

Features:

Install up to five SSDs in the 2.5-inch drive bays to enable SSD caching and Qtier for optimal system performance.

Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.

PCIe expandability allows for installing QM2 expansion card, USB 3.1 Gen 2 (10Gbps) cards, or wireless network cards.

Snapshots add an extra layer of protection for disaster recovery plans. You can set a custom snapshot schedule and can use snapshots to recover data from a local or remote NAS.

Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

Besides using QNAP storage expansion enclosures, you can also leverage QNAP VJBOD technology to use the unused storage space from other NAS.

CPU	AMD Ryzen™ 5 2600 6-core/12-thread 3.4 GHz processor, Turbo Core 3.9 GHz Architecture: 64-bit Graphics: Optional (with PCIe expansion card) Encryption Engine: AES-NI
System Memory	8 GB DDR4 (2 x 4 GB)
Maximum Memory	64 GB (4 x 16 GB)
Memory Slot	4 x Long-DIMM slots (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)

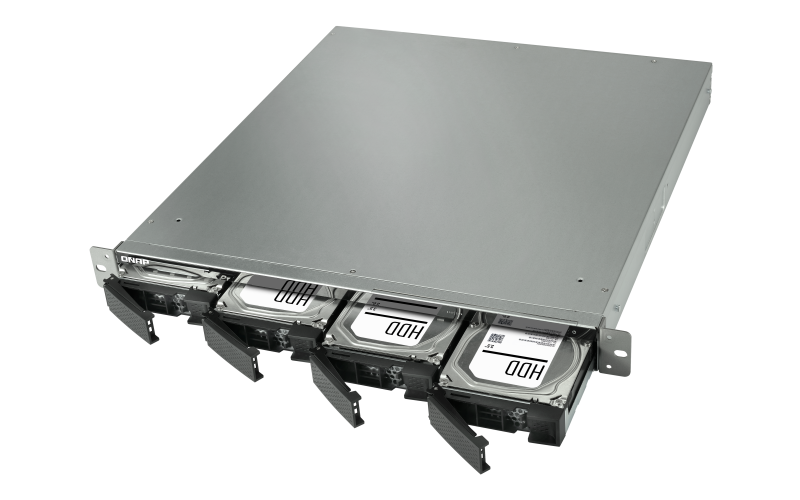

Drive Bay	4 x 3.5-inch SATA 6 Gbps bays HDD 5 x 2.5-inch SATA 6 Gbps bays SSD
Drive Compatibility	3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives 2.5-inch drive bay • 2.5-inch SATA solid state drives
10 Gigabit Ethernet Port	2 x 10GbE SFP+ SmartNIC ports
Gigabit Ethernet Port	2 x RJ45
USB Port	1 x 3.1 Gen 2 (10 Gbps) Type-A 4 x USB 3.0 Type-A
PCIe Slot	Slot 1: Gen3 x16
HDMI Output	Optional: With PCIe expansion card
Form Factor	1U Rackmount
Dimensions (H x W x D)	43.3 x 482.6 x 505.54 mm 1.7 x 18.99 x 19.90 inch
Weight	Net weight: 8.62 kg (19 lbs)
Power Supply Unit	300W (x2), 100-240V AC, 50/60Hz
Power Consumption (W)	76.43 W
Fan	3 x 4.0cm fan (12V DC)
Sound Level	43.8 dB(A)
Operating Temperature & Relative Humidity	0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

CPU	AMD Ryzen™ 3 1200 4-core/4-thread 3.1 GHz processor, Turbo Core 3.4 GHz Architecture: 64-bit Graphics: Optional (with PCIe expansion card) Encryption Engine: AES-NI
System Memory	4 GB DDR4 (1 x 4GB)
Maximum Memory	64 GB (4 x 16 GB)
Memory Slot	4 x Long-DIMM slots (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Drive Bay	4 x 3.5-inch SATA 6 Gbps bays HDD 5 x 2.5-inch SATA 6 Gbps bays SSD
Drive Compatibility	3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives 2.5-inch drive bay • 2.5-inch SATA solid state drives
10 Gigabit Ethernet Port	2 x 10GbE SFP+ SmartNIC ports
Gigabit Ethernet Port	2 x RJ45
USB Port	1 x 3.1 Gen 2 (10 Gbps) Type-A 4 x USB 3.0 Type-A
PCIe Slot	Slot 1: Gen3 x16
HDMI Output	Optional: With PCIe expansion card
Form Factor	1U Rackmount
Dimensions (H x W x D)	43.3 x 482.6 x 505.54 mm 1.7 x 18.99 x 19.90 inch
Weight	Net weight: 8.62 kg (19 lbs)
Power Supply Unit	300W (x2), 100-240V AC, 50/60Hz
Power Consumption (W)	76.43 W
Fan	3 x 4.0cm fan (12V DC)
Sound Level	43.8 dB(A)
Operating Temperature & Relative Humidity	0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Documentation:

Datasheet for QNAP TS-977XU-RP is coming soon.

Pricing Notes:

Pricing and product availability subject to change without notice.
