QNAP TS-877XU-RP
Ryzen™-based rackmount NAS with up to 6 cores/12 threads and integrated dual 10GbE SFP+ ports to optimize system performance

Sorry, this product is no longer available, please contact us for a replacement.

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Overview:

Package Content

TS-877XU-RP SAN/NAS Storage System
2 x Ethernet Cables
1 x Power Cord
32 x Flat Head Screws (for 3.5" HDD)
24 x Flat Head Screws (for 2.5" HDD)
Quick Installation Guide (QIG)

Powered by AMD’s powerful Ryzen™ processor, the TS-877XU-RP is capable of boosting virtual machine performance with up to 6 cores/12 threads and Turbo Core up to 3.9 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-877XU-RP. The TS-877XU-RP also features a redundant power supply to ensure maximum system uptime.

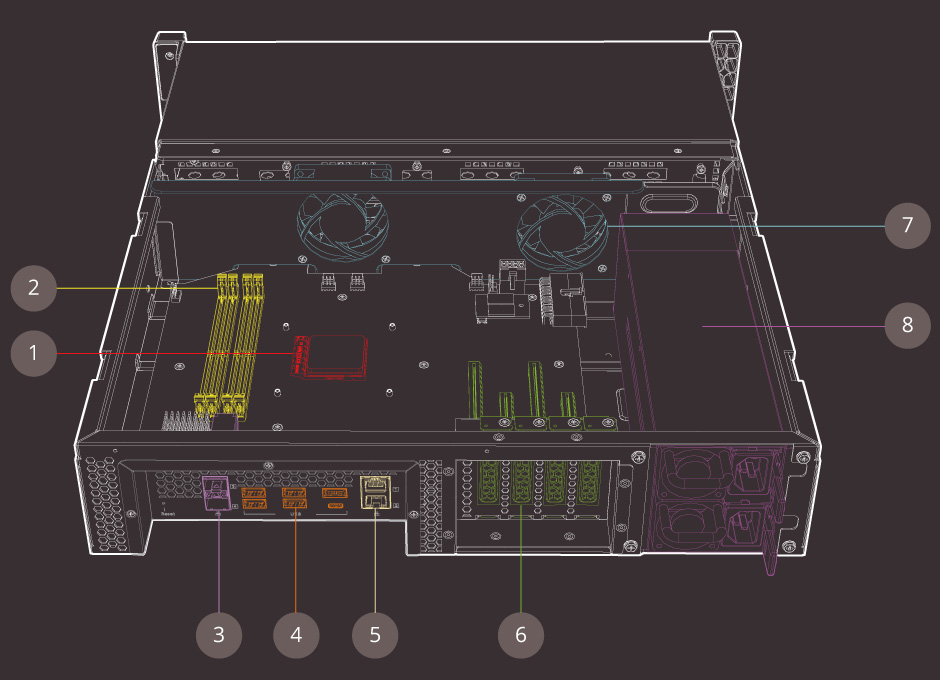

Top-class hardware engineering with high I/O expandability

The hardware design of the TS-877XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.

Multi-core AMD Ryzen™ processor
DDR4 2400 MHz memory
2 x 10GbE SFP+ ports
USB 3.0/ 3.1 ports
2 x Gigabit Ethernet ports
4 x PCIe expansion slots
Dual 7cm System fans
2 x 300W Power Supply Units

Absolute performance with AMD Ryzen™ and up to 64GB RAM

Powered by a high-performance AMD Ryzen™ 5 2600 or AMD Ryzen™ 3 1200 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-877XU-RP delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-877XU-RP.

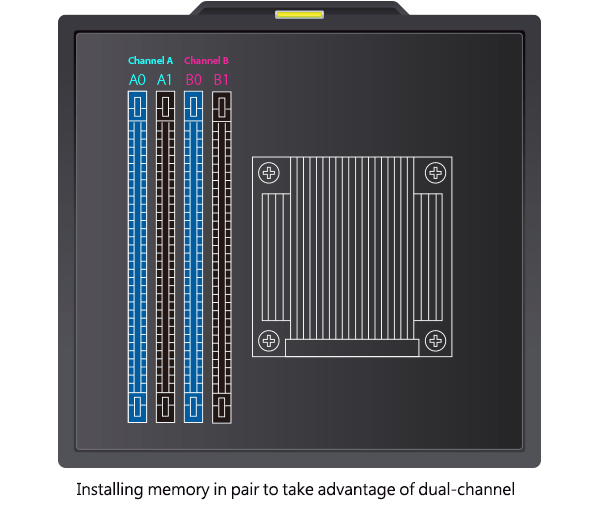

Dual-channel Memory to deliver power-smart performance

The TS-877XU-RP supports dual-channel DDR-4 memory and four Long-DIMM slots. When using paired memory modules, the TS-877XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64GB RAM) of the TS-877XU-RP, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.

Extend NAS functionality with PCIe slots

The TS-877XU-RP features four PCIe slots* that allow for installing 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or compatible wireless network cards for greater application potential.

10GbE/ 40GbE adapters

Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.

QM2 card with M.2 SSD/10GbE support

Install QNAP's innovative QM2 card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.

Wireless network cards

Install QNAP's wireless network card (QWA-AC2600) to work with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

Install a graphics card for GPU-accelerated computing

Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-877XU-RP offers a 300 watt power supply and PCIe slots to support low-profile graphics cards that do not need power cables, including AMD Radeon™ or NVIDIA® GeForce® graphics cards to boost performance of applications such as video editing , 4K UHD transcoding, imaging processing in QTS and performance of virtual machines via GPU passthrough.

Features:

Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.

PCIe expandability allows for installing 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.1 Gen 2 (10Gbps) cards, or wireless network cards.

Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.

Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity, protection, and performance

CPU	AMD Ryzen™ 5 2600 6-core/12-thread 3.4 GHz processor, Turbo Core 3.9 GHz Architecture: 64-bit Graphics: Optional (with PCIe expansion card) Encryption Engine: AES-NI
System Memory	8 GB DDR4 (2 x 4 GB)
Maximum Memory	64 GB (4 x 16 GB)
Memory Slot	4 x Long-DIMM slots (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Drive Bay	8 x 3.5-inch SATA 6 Gbps bays
Drive Compatibility	3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives
10 Gigabit Ethernet Port	2 x 10GbE SFP+ ports
Gigabit Ethernet Port	2 x RJ45
USB Port	2 x USB 3.1 Gen 2 (10 Gbps) • 1 x USB 3.1 Gen 2 (10 Gbps) Type-C • 1 x 3.1 Gen 2 (10 Gbps) Type-A 4 x USB 3.0 Type-A
PCIe Slot	Slot 1: Gen3 x8 (if Slot 2 is occuied, then the speed becomes Gen3 x4) Slot 2: Gen3 x4 Slot 3: Gen3 x8 (if Slot 4 is occuied, then the speed becomes Gen3 x4) Slot 4: Gen3 x4
HDMI Output	Optional: With PCIe expansion card
Form Factor	2U Rackmount
Dimensions (H x W x D)	88.3 x 482 x 562 mm
Weight	13.31 kg
Power Supply Unit	300W (x2), 100-240V AC, 50/60Hz
Power Consumption (W)	In operation: 86.04 W
Fan	2 x 7cm fan (12V DC)
Sound Level	37.7 dB(A)
Operating Temperature & Relative Humidity	0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

CPU	AMD Ryzen™ 3 1200 4-core/4-thread 3.1 GHz processor, Turbo Core 3.4 GHz Architecture: 64-bit Graphics: Optional (with PCIe expansion card) Encryption Engine: AES-NI
System Memory	4 GB DDR4 (1 x 4GB)
Maximum Memory	64 GB (4 x 16 GB)
Memory Slot	4 x Long-DIMM slots (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Drive Bay	8 x 3.5-inch SATA 6 Gbps bays
Drive Compatibility	3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives
10 Gigabit Ethernet Port	2 x 10GbE SFP+ ports
Gigabit Ethernet Port	2 x RJ45
USB Port	2 x USB 3.1 Gen 2 (10 Gbps) • 1 x USB 3.1 Gen 2 (10 Gbps) Type-C • 1 x 3.1 Gen 2 (10 Gbps) Type-A 4 x USB 3.0 Type-A
PCIe Slot	Slot 1: Gen3 x8 (if Slot 2 is occuied, then the speed becomes Gen3 x4) Slot 2: Gen3 x4 Slot 3: Gen3 x8 (if Slot 4 is occuied, then the speed becomes Gen3 x4) Slot 4: Gen3 x4
HDMI Output	Optional: With PCIe expansion card
Form Factor	2U Rackmount
Dimensions (H x W x D)	88.3 x 482 x 562 mm
Weight	13.31 kg
Power Supply Unit	300W (x2), 100-240V AC, 50/60Hz
Power Consumption (W)	In operation: 86.04 W
Fan	2 x 7cm fan (12V DC)
Sound Level	37.7 dB(A)
Operating Temperature & Relative Humidity	0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Documentation:

Datasheet for QNAP TS-877XU-RP is coming soon.
