QNAP TS-1253DU-RP
Intel® quad-core 2.0GHz NAS with 2.5GbE and Feature-rich Applications for Office

Sorry, this product is no longer available, please contact us for a replacement.

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Package Content

QNAP TS-1253DU-RP Storage
1 x Ethernet cable
2 x Power cords
48 x Flat head screw (for 3.5" HDD)
36 x Flat head screw (for 2.5" HDD)
Quick Installation Guide

Overview:

Powered by an Intel® Celeron® J4125, quad-core 2.0 GHz processor, the TS-1253DU-RP features two 2.5GbE RJ45 ports, providing up to 2.5 times the speed of Gigabit Ethernet and enabling smoother multimedia playback and everyday usage. With a PCIe Gen 2.0 x 2 slot, the TS-1253DU-RP provides flexibility in extending NAS functionality, allowing you to install various cards for extra network ports, M.2 SSD caching/tiering, or Wi-Fi connectivity. The TS-1253DU-RP ensures data security with AES 256-bit encryption, boosting system performance while ensuring the safety of sensitive business data stored.

Available Models

TS-1253DU-RP-4G-
Intel® Celeron® J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz), 4 GB DDR4 RAM, redundant power supply

2.5GbE ports

2.5GbE connectivity accelerates file sharing between teams, and is idealfor office users for multimedia storage.

PCIe cards

PCIe expansion allows for installing a 10/5/2.5GbE network card, USB 3.2 Gen 2 (10Gbps) card or QWA-AC2600 wireless adapter.

Snapshots

Snapshots fully record the system status and data. If files are accidentally deleted or modified, they can be quickly restored to previously-recorded states.

virtual machines

Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

storage efficiency

Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

storage capacity

Expand your storage capacity by using the unused storage of another QNAP NAS, or connect TR/TL series expansion enclosures.

Features:

Build a Faster Network with QNAP

Powered by an Intel® Celeron® J4125 quad-core 2.0 GHz processor (burst up to 2.70 GHz), DDR4 dual-channel RAM (up to 8GB), two 2.5GbE Gigabit LAN ports, the TS-1253DU-RP provides smoother multimedia playback and everyday NAS usage. Additional high-speed network options from QNAP include USB 3.2 Gen 1 to 2.5GbE/5GbE adapters (supports N-BASET/Multi-Gig), QXG 5GbE/10GbE PCIe cards, and QNAP QSW 10GbE switches. All these options allow users to revolutionize their network at a cost-effective price.

Extend NAS Functionality with a PCIe Card

With a PCIe Gen 2.0 x 2 slot, the TS-1253DU-RP provides flexibility in extending NAS functionality and potential applications. To optimize system performance, install a QNAP QM2 card to add M.2 SATA or NVMe SSD caching/10GbE connectivity and use with Qtier tiered storage for optimal system performance. Wireless connectivity can be added by installing a QNAP QWA-AC2600. A QXG-10GbE/5GbE network card adds extra high-speed network ports. Alternatively, you can add an affordable QNAP QNA-UC5G1T USB 3.2 Gen 1 to 5GbE adapter to enjoy higher network speeds or boost the USB connectivity by installing a USB 3.2 Gen 2 (10Gbps) card.

SSD Caching and Auto Tiering for Optimized Storage Efficiency

The TS-1253DU-RP supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-1253DU-RP with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

ssd-qtier

Easy and Secure File Management

File Station centralizes files stored on your TS-1253DU-RP and in the cloud. You can easily upload files from your computer, drag and drop files between folders, rename files, delete files, and configure file and folder permissions to prevent unauthorized access. With Microsoft Office Online you can directly open and modify Microsoft Office documents stored on the TS-1253DU-RP without having to download them to your local device. When sharing sensitive/confidential files on the TS-1253DU-RP, use File Station to encrypt files into .qenc files, set a password, and use QENC Decrypter to decrypt the file.

Multi-Point File Backup, Access, and Sync

The TS-1253DU-RP supports common file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows®, Mac®, and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-1253DU-RP becomes available for all linked devices, such as computers, laptops, and mobile devices. Hybrid Backup Sync helps you easily backup or synchronize data on the TS-1253DU-RP to another QNAP NAS, remote server, or cloud storage for disaster recovery. Additionally, QuDedup technology greatly improves the efficiency and storage utilization of multi-version backup by deduplicating the backup data. You can install the QuDedup Extract Tool on your computer and restore deduplicated files to their normal status.

hybrid-backup-sync_rackmount

Protect Important Data with Snapshots

Snapshots fully record the NAS system state and metadata and can be used to quickly restore files to previously-recorded states if they are accidentally deleted/modified or if the system is compromised by ransomware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data.

lightweight-switch-ts-1673au-rp

Stay Notified of System Status and Security

Notification Center consolidates all QTS system events and alerts, providing you with a single-app solution for notifications. Security Counselor evaluates and recommends settings to improve NAS security.

Stay informed at all times

Notification Center is a single-app solution for QTS system events and alerts. You don’t need to configure settings in different apps, helping you streamline management processes and save time.

NAS security portal

Security Counselor checks for weaknesses and offers recommendations to secure your NAS. Anti-virus and anti-malware solutions are also included to ensure complete protection.

Low-latency Access to Cloud-based Data

The TS-1253DU-RP can be integrated with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TS-1253DU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud solution.

HybridMount

HybridMount File-based Cloud Gateway

Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud Block

VJBOD Cloud Block-based Cloud Gateway

Mount object cloud storage as a block-based volume or LUN on a NAS. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes (such as addition, modification, or deletion) will be transmitted. This is ideal for enterprise-level applications with large file transfer requirements (such as databases, VM volumes, and videos).

Next-generation Surveillance Solution

QVR Pro allows you to establish dedicated, independent storage space for surveillance data on a TS-1253DU-RP and leverage the advantages of scalability and storage manageability of QTS. With QVR Pro, camera management, storage space allocation, camera live view and playback is greatly simplified, and the QVR Pro Client mobile app allows for universal monitoring of surveillance feeds.

NAS as a Multi-OS Platform

Virtualization Station and Container Station provide comprehensive solutions for creating virtualized environments to improve business IT infrastructure, workflows, and productivity.

Virtualization Station

Virtualization Station allows you to run multiple Windows®, Linux®, UNIX® and Android™ virtual machines on the TS-1253DU-RP. You can use Virtual Network Computing (VNC) through a browser to operate virtual machines. Virtualization Station is ideal for organizations to run multiple applications on a single NAS.

Container Station

Container Station

Container Station integrates LXC and Docker® lightweight virtualization technologies. Download apps from the built-in Docker Hub® to easily import/export container apps and manage access controls to enjoy the benefits of easy installation, transferability and high-efficiency.

High-speed 2.5GbE VM Backup Solution

With Hyper Data Protector, the TS-1253DU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. With 2.5GbE connectivity, backup and restoration times are greatly reduced, providing a cost-effective solution for disaster recovery.

Flexible and economical storage expansion

QNAP provides easy storage capacity expansion solutions. Here are several ways to expand the TS-1253DU-RP storage to accommodate data growth:

Attach Expansion Enclosures

Attach Expansion Enclosures

Connect two expansion enclosures (TR-004U) or one USB 3.2 Gen 2 JBOD (TL-R1200C-RP) and use the Storage & Snapshots Manager to handle NAS capacity expansion.

Upgrade RAID Capacity

Upgrade RAID Capacity

Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-1253DU-RP.

Migrate to a New NAS

Migrate to a New NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Multiply Your Productivity

The app-driven QTS operating system provides solutions for simplifying file backup, management, search, and more.

QmailAgent

QmailAgent

Centrally manage and switch between different email accounts, back up emails to the TS-1253DU-RP, and safeguard email security and personal privacy.

Notes Station 3

Notes Station 3

Notes Station 3 provides the advantages of collaborative note-taking with improved productivity to provide higher efficiency for your workgroup.

Smart Filing

Qfiling automates file organization. Files are automatically archived into folders based on your settings.

Full-Text Search

Qsirch quickly finds images, music, videos, documents, emails, and other files.

Extend hardware warranty up to 5 years

The TS-1253DU-RP is backed by a 3-year warranty at no additional cost. You can purchase a warranty extension that extends your warranty coverage up to 5 years.

Hardware Specifications:

	TS-1253DU-RP-4G
CPU	Intel® Celeron® J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz)
CPU Architecture	64-bit x86
Graphic Processors	Intel® HD Graphics 600
Floating Point Unit
Encryption Engine	(AES-NI)
Hardware-accelerated Transcoding
System Memory	4 GB SO-DIMM DDR4 (1 x 4 GB)
Maximum Memory	8 GB (2 x 4GB)
Memory Slot	2 x SO-DIMM DDR4 When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots.
Flash Memory	4GB (Dual boot OS protection)
Drive Bay	12 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD.
Drive Compatibility	3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
Hot-swappable
M.2 SSD Slot	Optional via a PCIe adapter
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2
Jumbo Frame
PCIe Slot	1 Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance.
USB 2.0 port	2
USB 3.2 Gen 1 port	2
USB 3.2 Gen 2 (10Gbps) Port	Optional via a PCIe adapter
HDMI Output	1, HDMI 1.4b
Form Factor	2U Rackmount
LED Indicators	HDD 1-12, Status, LAN, Expansion, Power
Buttons	Power, Reset
Dimensions (HxWxD)	3.49 × 18.98 × 16.69 inch
Weight (Net)	20.79 lbs
Weight (Gross)	31.06 lbs
Operating temperature	0 - 40 °C (32°F - 104°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	300W (x2), 100-240V
Power Consumption: HDD Sleep Mode	36.233 W
Power Consumption: Operating Mode, Typical	71.195 W Tested with drives fully populated.
Fan	2 x 80mm, 12VDC
Sound Level	24.6 db(A)
System Warning	Buzzer
Max. Number of Concurrent Connections (CIFS)	1500

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Product Views:

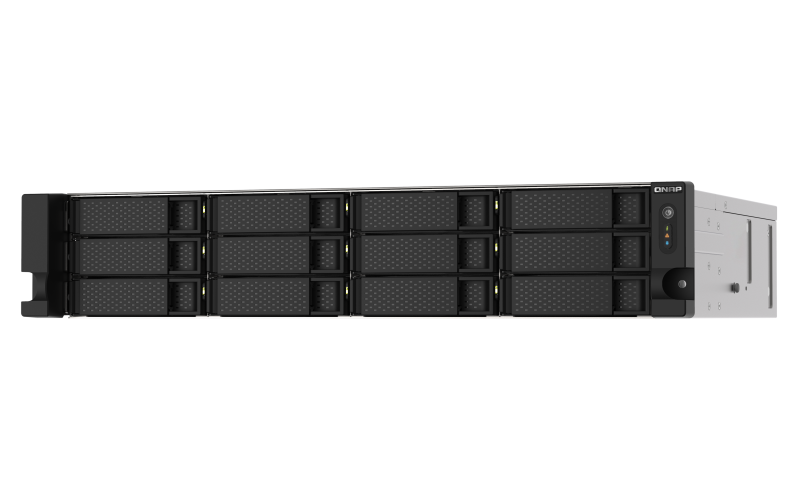

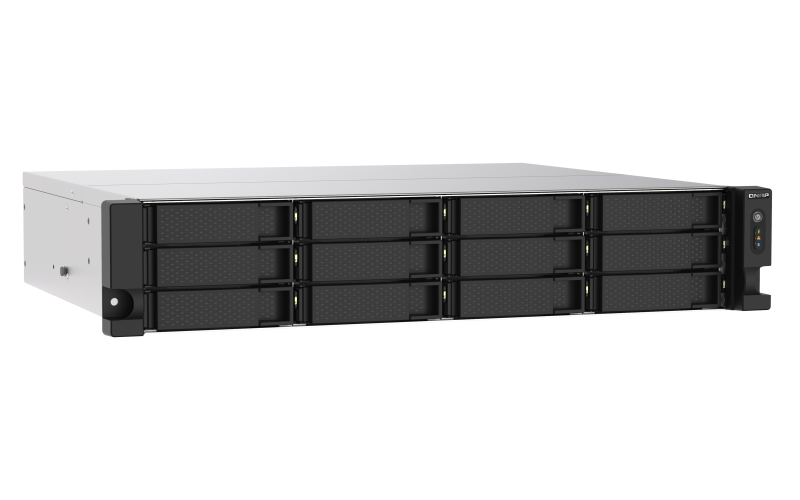

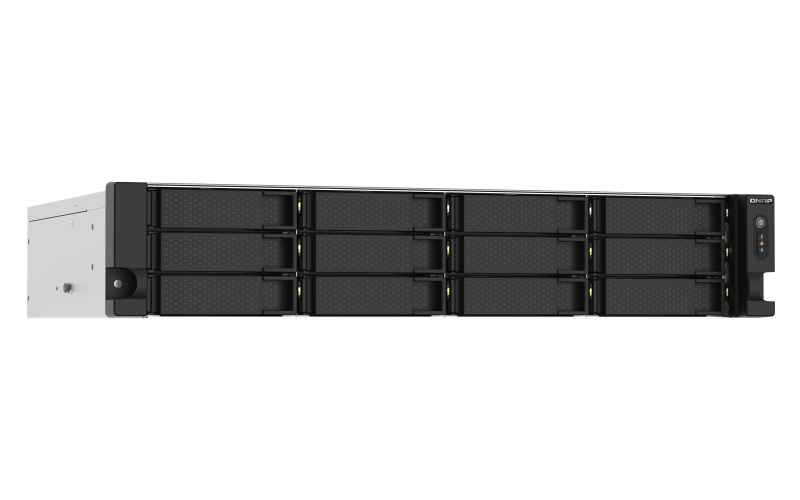

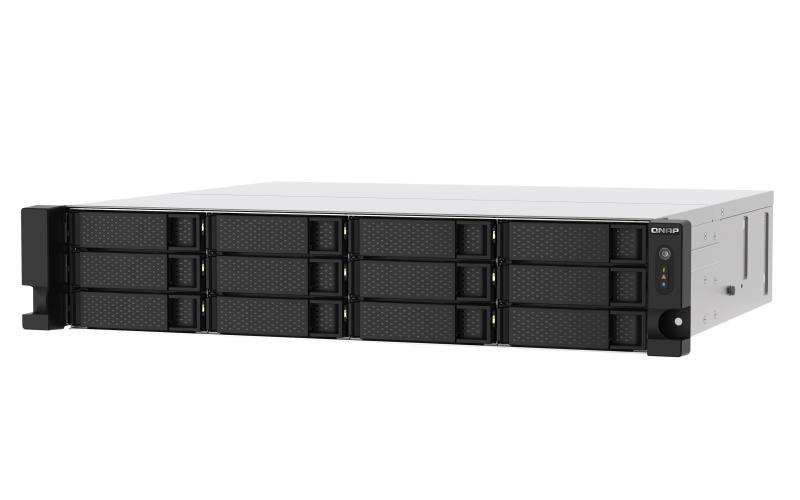

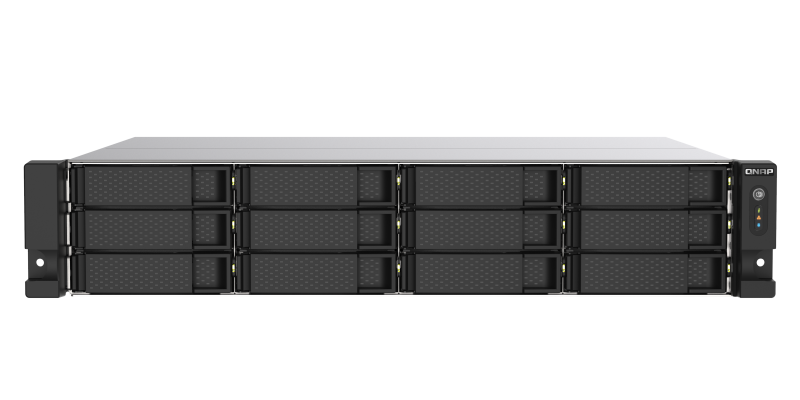

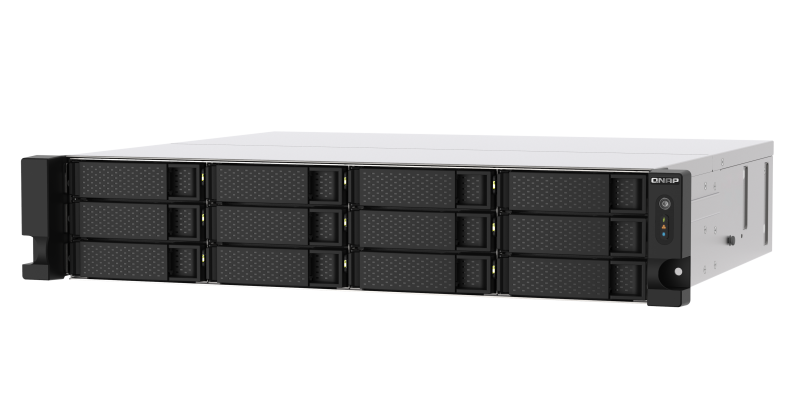

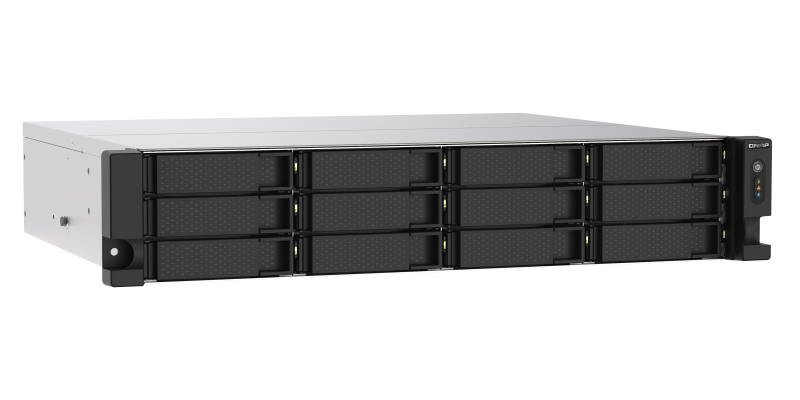

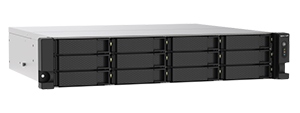

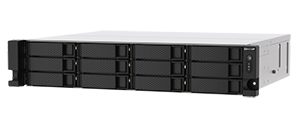

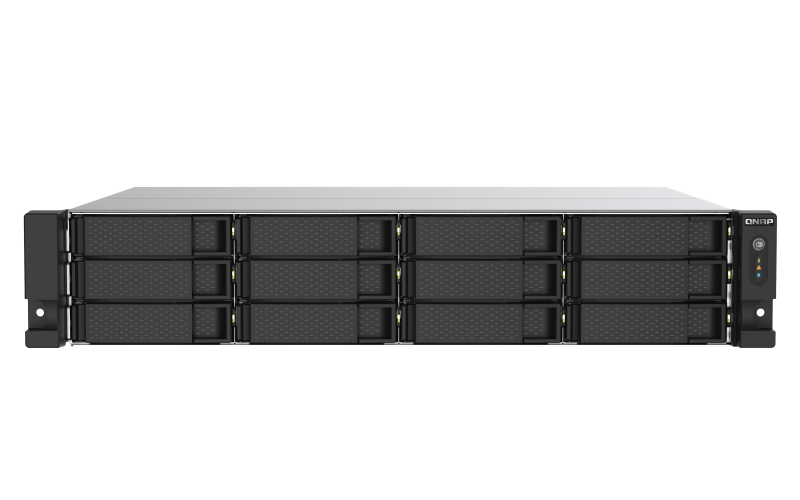

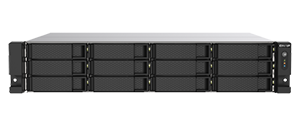

Front View	Right Angle View	Left Angle View

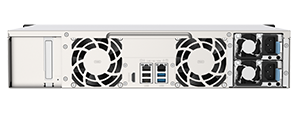

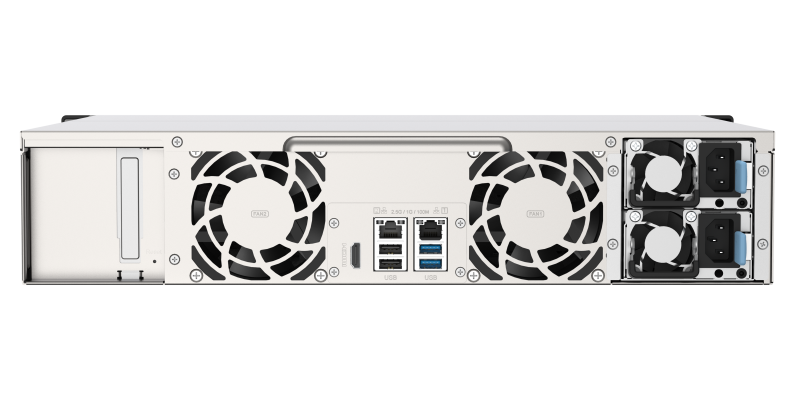

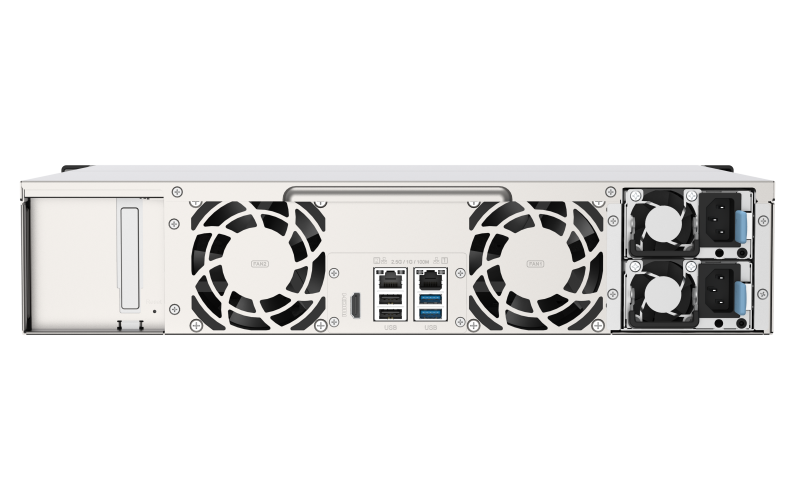

Rear View

Documentation:

Datasheet for QNAP TS-1253DU-RP is coming soon.
