Absolute performance with AMD Ryzen™ 7
Powered by a high-performance AMD Ryzen™ 7 3700X 8 cores/16 threads 3.6 GHz processor (Turbo Core 4.4 GHz) with AES-NI encryption acceleration and up to 128 GB (4 x 32 GB) DDR4 RAM, the TS-h1677XU-RP delivers aggressive yet power-smart performance to meet multi-tasking demands – including the ability to run multiple virtual machines simultaneously. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, the TS-h1677XU-RP provides dependable high performance in demanding business IT environments as a cost-efficient NAS solution.

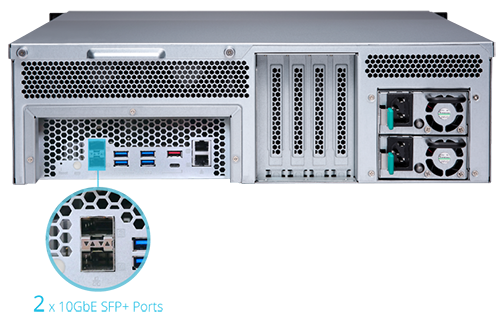

10GbE connectivity optimizes data transfer and VMware virtualization with iSER
The TS-h1677XU-RP provides two 10GbE SFP+ SmartNIC ports (with an NVIDIA® Mellanox ConnectX-4 Lx SmartNIC controller) that support iSCSI Extensions for RDMA (iSER) to increase data transfer performance and offload CPU workloads between a NAS and ESXi server. With Port Trunking for up to 20Gb/s bandwidth and failover support, the TS-h1677XU-RP satisfies demanding applications including virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission. The TS-h1677XU-RP is also ideally matched with QNAP’s managed and unmanaged 10GbE switches to form high-speed, secure and scalable network environments without going over budget.
PCIe expansion for 25GbE connectivity, storage expansion, or graphics cards
Install various expansion cards based on your needs to fulfill greater I/O capabilities.
5/10/25GbE network cards
Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.
QM2 cards
Adds M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.
SAS/SATA expansion cards
Designed for connecting the TS-h1677XU-RP to SAS 12Gb/s or SATA 6Gb/s expansion units for petabyte-scale storage capacity.
Graphics cards
Supports high-profile graphics cards to streamline video editing, transcoding, or enable GPU pass-through to virtual machines.
Note: When Virtualization Station uses the graphics card, the TS-h1677XU-RP will temporarily stop hardware transcoding acceleration for QuTS hero (or vice versa).
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
| Data integrity is key |
Data reduction improves storage efficiency and performance |
Multi-level cache technology |
| QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported. |
Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance. |
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security. |
| RAID Z enables robust data protection |
QSAL (QNAP SSD Antiwear Leveling) enhances data protection |
App Center ecosystem extends NAS functionality |
| Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection. |
RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability |
Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h1677XU-RP. |
Inline data deduplication, compression, and compaction drives Big Data storage efficiency
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h1677XU-RP optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
Note: SnapSync will be available from QuTS hero h4.5.2.
The TS-h1677XU-RP also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.
Snapshots multiply backup protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h1677XU-RP to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.
All-in-one virtual machine and container hosting solution
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.
License-free VMware® and Hyper-V backup appliance
With Hyper Data Protector, the TS-h1677XU-RP becomes an agentless backup tool for VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
Move business data to the cloud and enjoy low-latency access to cloud-based data
The TS-h1677XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.
HybridMount File-Based Cloud Gateway
Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
Subscribe to QVR Elite surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. You can arrange a dedicated, independent storage space for surveillance data on the TS-h1677XU-RP and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. With QVR Pro Client software installed on your Windows®/Mac® or mobile devices, taking full control over monitored areas becomes more convenient and easier.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h1677XU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Flexible and economical storage expansion
The storage capacity of the TS-h1677XU-RP can be expanded by connecting up to sixteen SAS 12Gb/s JBODs (TL-R1620Sep-RP or TL-R1220Sep-RP) using PCIe QXP expansion cards, or by using USB-based expansion enclosures. NAS storage expansion management is made easy with the user-friendly Storage & Snapshots Manager app.
Extend hardware warranty up to 5 years
The TS-h1677XU-RP is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Switch operating systems for higher everyday performance
The TS-h1677XU-RP also supports QTS - QNAP’s standard NAS operating system – that provides greater everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TS-h1677XU-RP.
Note:
QTS and QuTS hero use different file systems. You must remove all the drives from the TS-h1677XU-RP before switching from QuTS hero to QTS.
More productivity applications
Boxafe
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.
QuObjects
A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Qsirch
Designed for object service developers; allows for creating high-performance S3 compatible development environments on a NAS to simplify service development workflows from testing to production.
