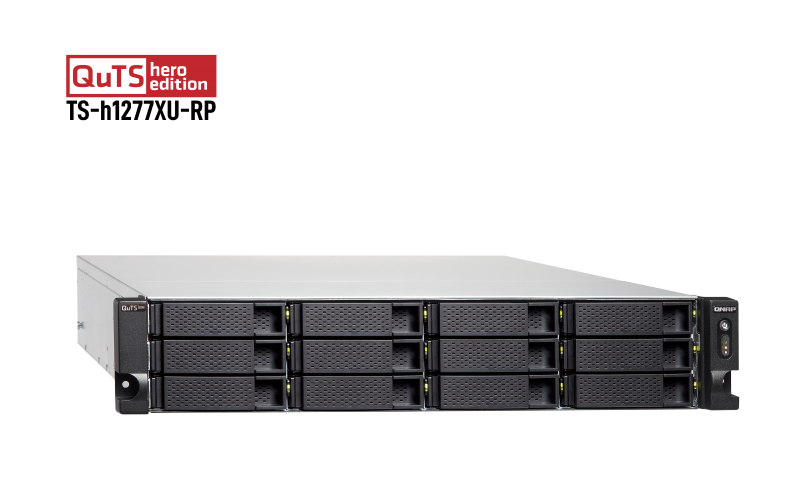

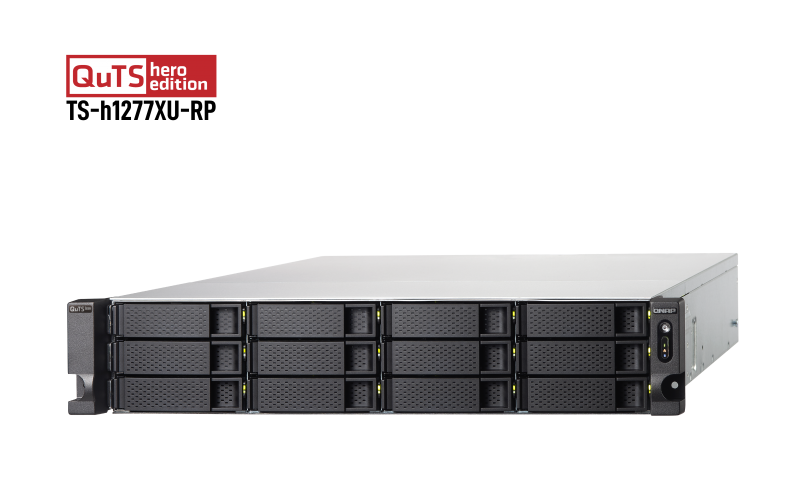

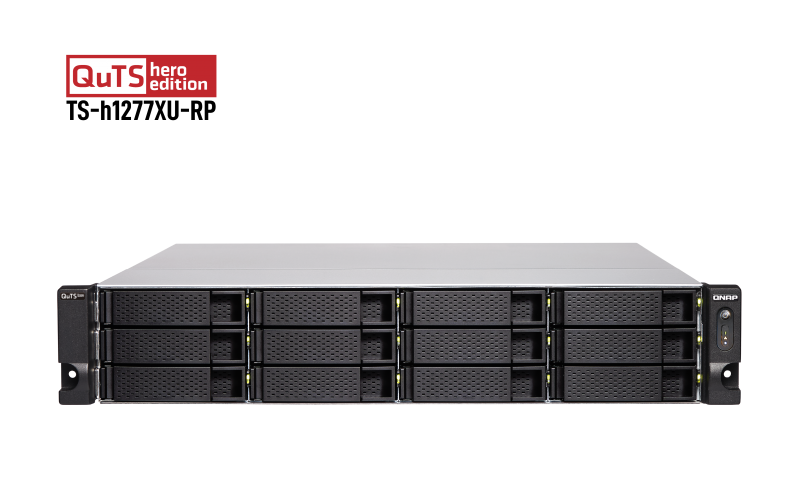

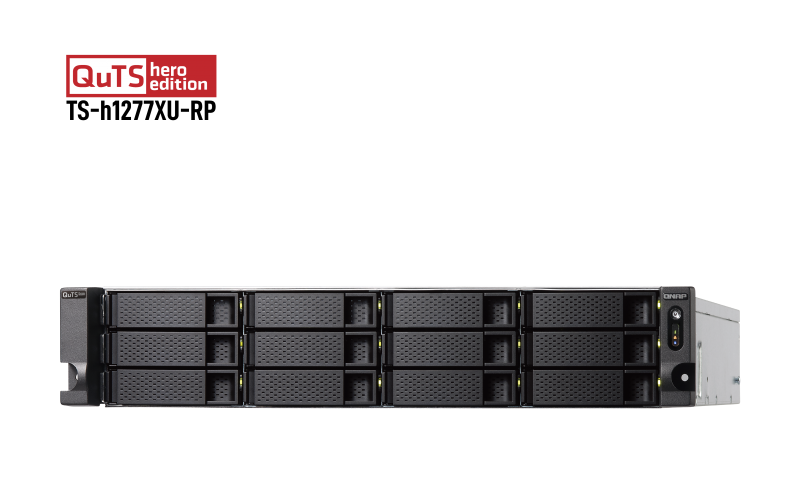

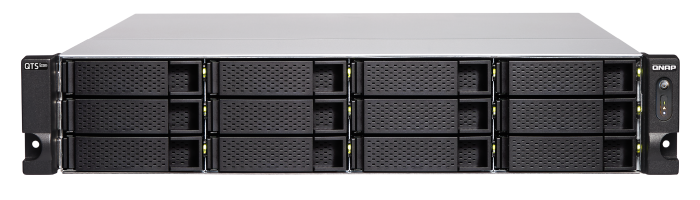

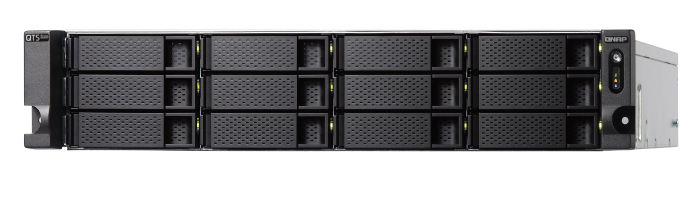

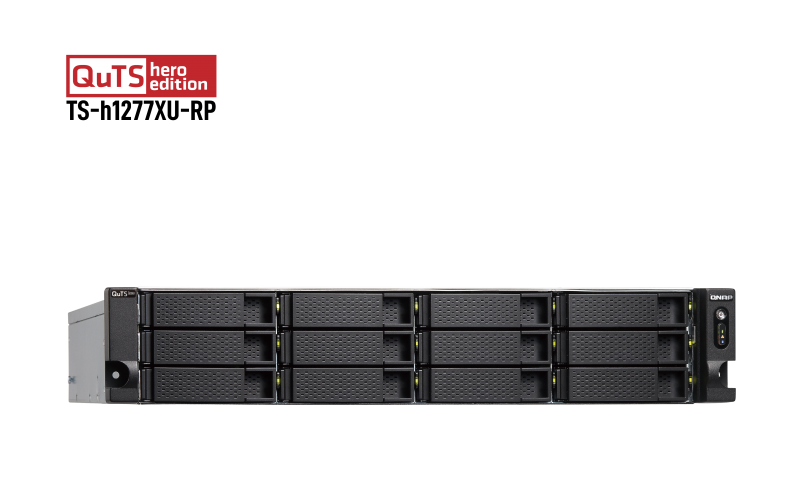

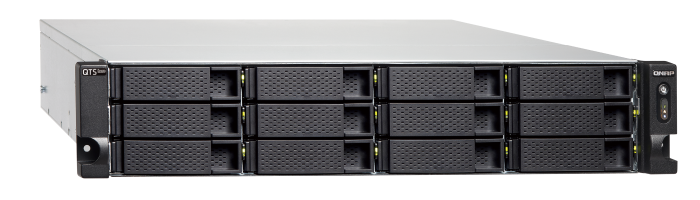

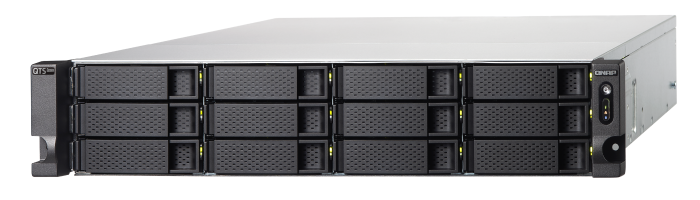

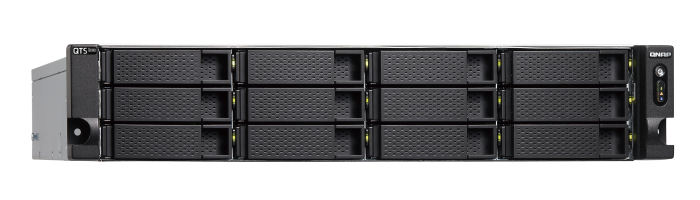

QNAP TS-h1277XU-RP
Powered by QTS hero — a ZFS-based operating system with greater reliability and higher performance

Sorry, this product is no longer available, please contact us for a replacement.

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Package Content

QNAP TS-h1277XU-RP Storage
2 x Ethernet cables
2 x 10GBASE-T Ethernet cables
2 x Power cords
48 x Flat head screw (for 3.5" HDD)
36 x Flat head screw (for 2.5" HDD)
Quick Installation Guide

Overview:

The QTS hero NAS TS-h1277XU-RP is powered by an AMD Ryzen™ 7 processor that delivers supreme system performance with up to 8 cores/16 threads and Turbo Core up to 4.4 GHz. Running the brand new QTS hero operating system that incorporates ZFS, the TS-h1277XU-RP supports near-limitless snapshots, SnapSync, block-level inline data deduplication, and inline data compression. The TS-h1277XU-RP helps your business achieve reliable service-level agreement performance, whether in mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.

Available Models

TS-h1277XU-RP-3700X-128G-
AMD Ryzen™ 7 3700X 8 cores/16 threads 3.4 GHz processor (Turbo Core 4.4 GHz), 128 GB DDR4 memory (4 x 32 GB), redundant power supply

TS-h1277XU-RP-3700X-32G-
AMD Ryzen™ 7 3700X 8 cores/16 threads 3.4 GHz processor (Turbo Core 4.4 GHz), 32 GB DDR4 memory (2 x 16 GB), redundant power supply

dual-port 10GbE RJ45 adapter

Provides two built-in 10GbE SFP+ ports and pre-installed with a dual-port 10GbE RJ45 adapter for bandwidth-demanding applications.

PCIe expandability

PCIe expandability allows for 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.

SSD cache

SSD cache acceleration improves random read/write performance to meet IOPS-demanding applications.

virtualization storage

Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V®, Windows Server® 2019, and hosts virtual machines and containers.

cloud storage

Supports block-based and file-based cloud storage gateways with local cache for low-latency access to cloud data. (This feature will be available in QTS hero soon.)

QTS App Center

QTS App Center includes feature-rich apps for expanding NAS applications without extra costs.

Features:

Absolute performance with AMD Ryzen™ processor

Powered by a high-performance AMD Ryzen™ 7 3700X 8 cores/16 threads 3.4 GHz processor (Turbo Core 4.4 GHz) with AES-NI encryption acceleration and up to 128 GB DDR4 RAM, the TS-h1277XU-RP delivers aggressive yet power-smart performance to meet your multi-tasking demands and is capable of running multiple virtual machines simultaneously. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, the TS-h1277XU-RP delivers high performance and dependable reliability for rugged business IT environments as a cost-efficient NAS solution.

Dual-channel memory to deliver power-smart performance

The TS-h1277XU-RP supports dual-channel DDR4 memory and four Long-DIMM slots. When using paired memory modules, the TS-h1277XU-RP can leverage the power of dual-channel architecture to boost performance. You can also customize the memory configuration (supports up to 128 GB RAM) of the TS-h1277XU-RP, making it the most ideal and cost-efficient storage solution for environments including virtualization that contain dynamically-changing workloads.

Top-class hardware engineering with high I/O expandability

The TS-h1277XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification demands.

The brand-new ZFS-based QTS hero operating system enhances NAS performance and data integrity

QTS hero operating system combines the app-based QTS with a 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QTS hero streamlines your business-critical tasks.

Data reduction improves storage efficiency and performance	Data integrity is key	RAID Z enables robust data protection
Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.	QTS hero’s self-healing features ensure data integrity and reliability. The operating software also supports Write Once, Read Many Times (WORM).	Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror are added to deliver higher level of data protection.
Multi-level cache technology with both read and write	Snapshots multiply backup protection	App Center ecosystem extends NAS functionality
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions are simultaneously supported to boost performance.	Near-limitless, instant snapshots bring you peace of mind. Snapshot Replica simplifies data protection, while SnapSync enables enterprise-class disaster recovery.	Apps for backup/sync, business, content management, productivity, and more features, are available for installation on demand to expand NAS application potential.

Tiered storage configuration for a QTS hero NAS

Follow these steps to acquire optimal storage efficiency and performance for QTS hero.

Step 1：System Drive

The first Storage Pool you create will be the system drive. Create an SSD RAID with at least two SSDs for the system drive. You must allocate at least two SSDs for create the RAID.

Step 2：Read/Write Cache

Use more SSDs for a read/write cache. You can also install QM2 expansion cards to add M.2 SSDs for expanding cache space.

Step 3：Data Storage

Allocate HDDs/SSDs to create a RAID for storing files and application data. If needed, you can configure an all-flash configuration for optimal performance.

10GbE connectivity optimizes high-speed data transfer

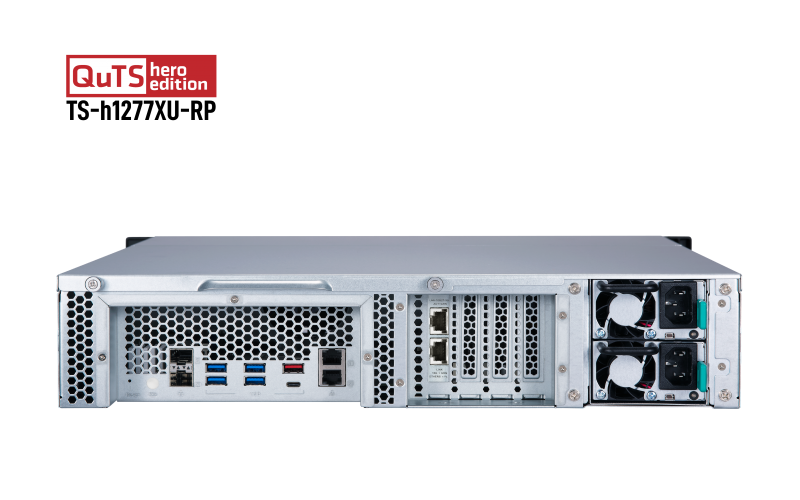

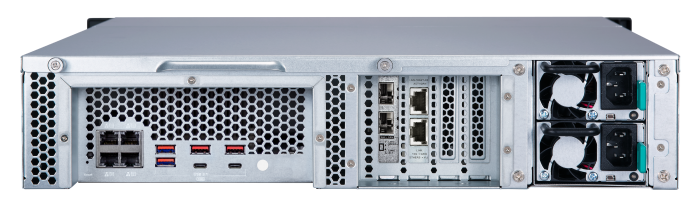

The TS-h1277XU-RP provides two Gigabit RJ45 ports, two 10GbE SFP+ ports, and comes with a dual-port 10GbE RJ45 expansion card pre-installed in a PCIe slot. The sufficient 10GbE connectivity improves overall network performance to streamline bandwidth-demanding applications, such as virtualization, large file sharing, and high-speed backup and recovery.

10GbE connectivity

Abundant I/O capability with PCIe expansion

The TS-h1277XU-RP features 4 PCIe slots that enable deployment of numerous expansion cards for expanding application potential.

Note: The 2U rackmount model uses low-profile graphics cards

SSD caching to accelerate IOPS performance

Adding an SSD cache to the TS-h1277XU-RP is an easy way to increase IOPS performance and reducing storage volume latency. It is perfect for IOPS-demanding applications, including databases and virtualization, and can significantly improve overall workflows. You can launch, stop, or change settings to meet your needs at any moment without shutting down the system.

SSD caching

Block-based iSCSI LUN: Ideal choice for virtualization storage

Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Citrix®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments.
Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.

All-in-one solution for hosting virtual machines and containers

Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, allowing you to flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station

Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station

Container Station

Experience LXC and Docker® lightweight virtualization technologies, and download apps from the built-in Docker Hub Registry®, import or export containers, and create multiple microservices.

Complete backup planning

QNAP provides a reliable, flexible backup and disaster recovery solution to assist organizations in routine backup jobs cost-effectively and with high productivity.

HBS

HBS

Consolidates backup, restoration and synchronization functions for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan. QuDedup technology deduplicates backup data at the source to accelerate multi-version backups.

Snapshots

Snapshots

Snapshots are essential for NAS data protection, and the block-level feature makes them a dependable method for protecting data in the face of growing ransomware threat. QTS hero supports near-limitless snapshots to reinforce your multi-version backups.

VM backup

VM backup

With high performance, potentially huge storage capacities, integrated virtualization solutions, and snapshot support for recording the system state at any specific time, the TS-h1283XU-RP is perfect for backing up virtual machines.

Cloud Storage Gateway provides low latency access to data on the cloud

The TS-h1277XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

Note: This feature will be available on QTS hero soon.

HybridMount

HybridMount File-based Cloud Gateway

Flexibly expand your storage capacity by connecting to the cloud storage. You can leverage QTS hero apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud Block

VJBOD Cloud Block-based Cloud Gateway

Supports mounting object cloud storage as a block-based volume or LUN on a NAS. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes, such as addition, modification, or deletion will be transmitted. This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.

Hardware Specifications:

	TS-h1277XU-RP-3700X-128G	TS-h1277XU-RP-3700X-32G
CPU	AMD Ryzen™ 7 3700X 8-core/16-thread 3.4 GHz processor, Turbo Core 4.4 GHz
CPU Architecture	64-bit x86
Floating Point Unit
Encryption Engine	(AES-NI)	(AES-NI)
System Memory	128 GB UDIMM DDR4 (4 x 32GB)	32 GB UDIMM DDR4 (2 x 16GB)
Maximum Memory	128 GB (4 x 32 GB)
Memory Slot	4 x Long-DIMM DDR4
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives

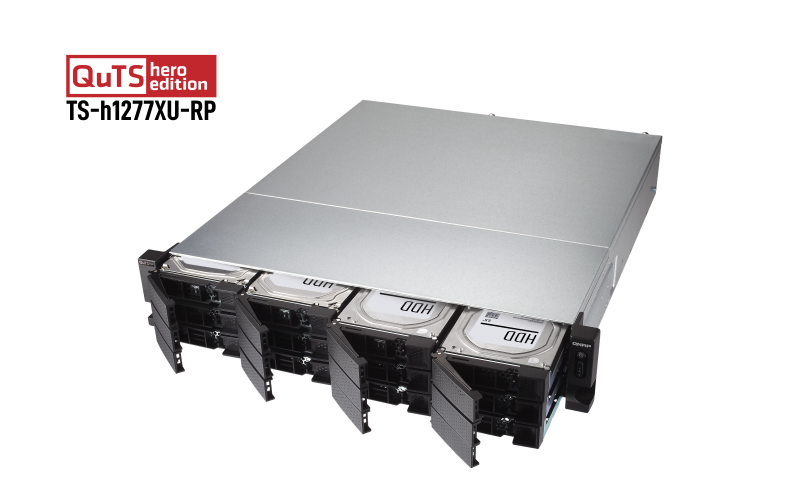

Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45)	2
10 Gigabit Ethernet Port	2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port
Jumbo Frame
PCIe Slot	4 Slot 1: PCIe Gen 3 x4 (PCH) Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4* Slot 3: PCIe Gen 3 x4 Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4** Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use. Slot 3 provides the width of PCIe Gen.3 x8 when Slot 4 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 4 is in use. **PCIe slot 4 is preinstalled with a 10GbE network adapter
USB 3.0 port	4
USB 3.1 Gen 2 (10Gbps) Port	1 x Type-C USB 3.1 Gen2 5V/3A 10Gbps 1 x Type-A USB 3.1 Gen2 5V/1A 10Gbps
Form Factor	2U Rackmount
LED Indicators	HDD 1-12, Status, LAN, storage expansion port status
Buttons	Power, Reset
Dimensions (HxWxD)	88.3 × 482 × 562 mm
Weight (Net)	13.73 kg
Weight (Gross)	16 kg
Operating temperature	0 - 40 °C (32°F - 104°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	300W(x2), 100-240V
Power Consumption: Operating Mode, Typical	106.66 W With drives fully populated
Fan	System fan: 2 x 60mm, 12VDC
Sound Level	37.2 db(A)
System Warning	Buzzer

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

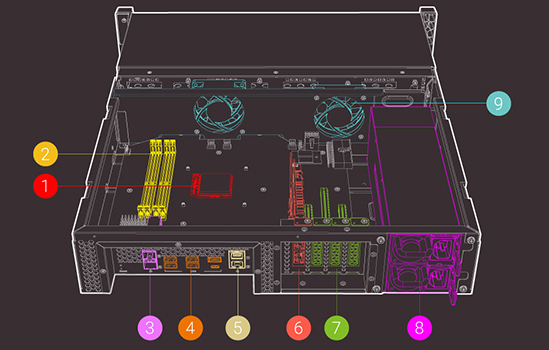

1	AMD Ryzen™ 7 processor	AMD Ryzen™ 7 3700X 8 cores/16 threads 3.4 GHz processor (Turbo Core up to 4.4 GHz) delivers high computing power
2	Up to 128 GB DDR4 memory	Supports four DDR4 dual-channel Long-DIMM memory modules for a maximum of 128 GB RAM.
3	2x 10GbE SFP+ ports	Fully supports 10GbE high-speed networks, ideal for running bandwidth-demanding applications.
4	USB 3.0/ USB 3.1 ports	Supports external hard drives, printers and UPS. The USB 3.1 Gen 2 port provides data transmission speeds up to 10Gb/s, significantly boosting data transfer performance.
5	2x Gigabit Ethernet ports	Ideal for service binding, port trunking, and MPIO configurations.
6	Dual-port 10GbE RJ45 expansion card	Provides two 10GbE RJ45 ports to speed up your workflows.
7	4x PCIe expansion slots	Supports 10GbE/ 25GbE/ 40GbE network expansion cards, QM2 cards, Fibre Channel cards, and SAS expansion cards for greater application potential. (Slot 4 comes with a pre-installed 10GbE adapter). Note: Slot 2 transmission speed decreases from PCIe Gen 3.0 x8 to PCIe Gen 3.0 x4 when slot 1 is in use. Slot 3 transmission speed decreases from PCIe Gen 3.0 x8 to Gen 3.0 x4 when slot 4 is in use.
8	Redundant power supply unit	Redundant 300W power supplies ensure continuous system uptime.
8	System fans	Monitors system temperatures and automatically adjusts fan speeds accordingly.

Optional Accessories:

RAM-16GDR4A1-UD-2400

DDR type: DDR4(288PIN)
Capacity: 16GB
Spec: SAMSUNG 1024M X 8
Manufacturer: ADATA
Frequency: DDR4-2400
Form(PIN): 288PIN
Manufacturer P/N: AD4U2400316G17-BSSZ
Power Supply: 1.2V
Dram Organization: 2048M*64
Temperature: 0℃~85℃
Environmental Regulation: RoHS

RAIL-B02

Rail kit for rackmount models
Note: This rail kit is designed for racks with 25-inch mounting depth. You may need to reserve some space when installing and adjusting the rail kit for racks with 18-inch mounting depth.
