QNAP QSW-2104-2T
A plug & play switch featuring 10GbE and 2.5GbE connectivity, suited for SOHO and professionals
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Package Content
- QNAP QSW-2104-2T Switch
- Power supply
- Bracket screws
- Anchors
- Foot pads
- Quick Installation Guide
Overview:
The QSW-2104-2T is an easy-to-use unmanaged switch with 2-port 10GbE RJ45 and 4-port 2.5GbE RJ45, allowing you to upgrade your network environment by connecting a wider range of devices with different bandwidth requirements. Featuring a near-silent fanless design and compliance with IEEE 802.3az (Energy Efficient Ethernet, EEE), the QSW-2104-2T operates quietly and with optimal power usage. With high performance and superb functionality, the QSW-2104-2T is the ideal choice for creating an affordable high-speed network environment in your home or workplace.
Two 10GbE RJ45 ports (compatible with the 10GBASE-T/NBASE-T™ standard) support 5 speeds (10G/5G/2.5G/1G/100M) to meet different bandwidth requirements.
Four 2.5GbE RJ45 (2.5G/1G/100M) ports can immediately multiply your network speed by 2.5 times using existing Cat 5e cables.
No complex settings are required, and auto-negotiation ensures optimal performance.
Automatic loop detection and blocking to ensure continuous network operation.
The unique fanless design with ventilated construction provides noiseless operation.
IEEE 802.3az (EEE) helps to reduce power consumption for low-speed and inactive connections.
Features:

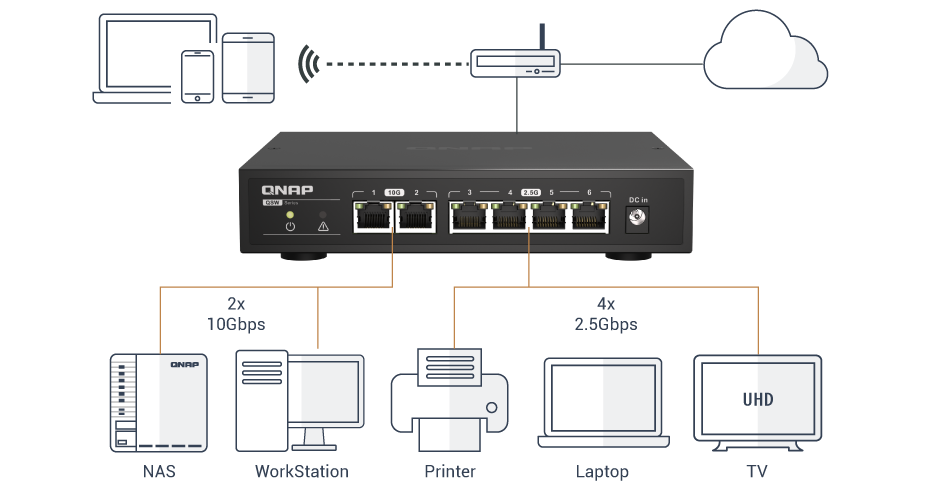

Maximum flexibility with multiple 10G and 2.5G Ethernet ports
The QSW-2104-2T features 10GbE and 2.5GbE RJ45 ports for connecting various bandwidth-demanding devices, and supports the NBASE-T™ standard for connection using Cat 5e or Cat 6a cabling. With the QSW-2104-2T, you can easily create a hybrid high-speed network in homes and offices to accelerate file transfer, virtual machine applications, multimedia streaming/sharing, and more.
Note: If the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used to achieve 10Gb/s speeds.
| CAT 5e | CAT 6e | CAT 6A & CAT 7 | |
|---|---|---|---|
| 100M | |||
| 1G | |||
| 2.5G | |||
| 5G | |||
| 10G | (55m) |
Future-proof your network environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
| A fast NAS | Choose from various QNAP NAS that support 2.5GbE or 10GbE connectivity to meet your demands for higher speeds! |
| Upgrade desktops and servers | Servers and desktops can install PCIe network cards that support 10G/5G/2.5G/1G/100M Multi-Gig. |
| Add an extra network port to laptops | Laptops and computers that lack native Ethernet connectivity can use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter or Thunderbolt™ 3 to 10GbE adapter. |
Plug & play. Auto-negotiation for optimal speed of connection.
No complex settings are required to use the QSW-2104-2T - simply connect your devices and it’s ready to use. The QSW-2104-2T supports auto-negotiation that optimizes transfer speeds and performance for each connected device.

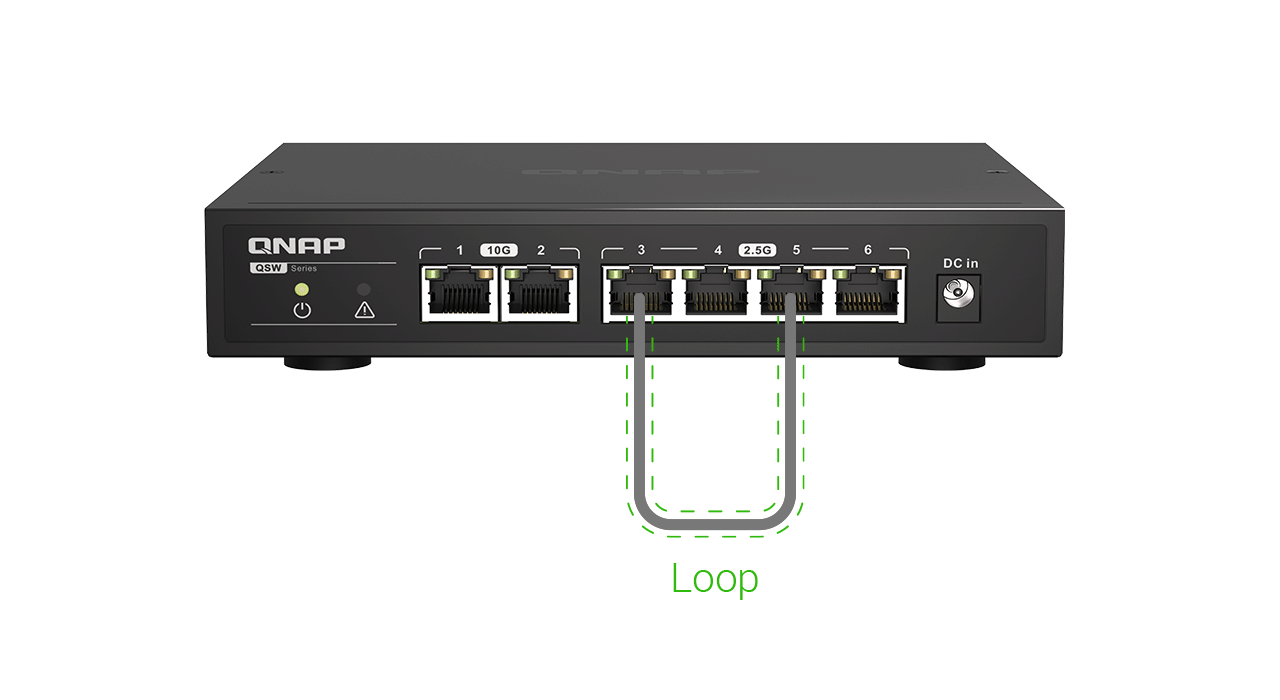

Loop detection and blocking
The QSW-2104-2T features network loop detection. If a network loop is detected, the QSW-2104-2T automatically locks the looped ports to ensure the network environment quickly resumes normal operation.
Near-silent and energy saving
The QSW-2104-2T features a fanless design for near-silent operation. The unique ventilated construction assists in cooling without disrupting your quiet environment while maintaining high performance. IEEE 802.3az (EEE) support also reduces power consumption without sacrificing performance or functionality.
Hardware Specifications:
| QSW-2104-2T | |
|---|---|
| Management Type | Unmanaged |
| Number of Ports | 6 |
| 10GbE SFP+ | 2 |
| 2.5GbE (RJ45) | 4 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 12W |
| Input Power Type | DC |
| Input Voltage Range | 12V/1A |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 30Gbps |
| Switching Capacity | 60Gbps |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | |
| Fanless | |
| Supported Standards | IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10GBase-T IEEE 802.3az Energy Efficient Ethernet (EEE)IEEE |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Loop LED: Loop Per System: Power/Status |
| Dimensions (HxWxD) | 34 x 180 x145 mm |
| Weight (Net) | 1.59 lbs |
| Weight (Gross) | 2.25 lbs |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~90% Non-condensing |
| Certifications | FCC, CE, BSMI, VCCI, LVD,CCC,KCC |
| Electromagnetic Compliance | CLASS B |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.
