QNAP TVS-675
Cost-efficient 8-core 2.5GbE NAS, supporting M.2 SATA/NVMe SSD caching, PCIe expansion, and 4K HDMI display
(Supports QTS or QuTS hero operating system)


QNAP Products
SMB Storage
QNAP Desktop 8-bay NAS/iSCSI IP-SAN, ZhaoXin KX-U6580 8C 2.5GHz, 8GB RAM, two 2.5GbE, 10G-ready
ZhaoXin KX-U6580 8C 2.5GHz, 8GB DDR4 RAM (2 x SODIMM slots, max. 64GB), 2x M.2 PCIe Gen 3x1 or SATA, 2 x 2.5GbE LAN, optional 10GbE expansion via a PCIe, 2 x PCIe 3.0 x 4 slots. 1 x HDMI 2.0 (up to 3840 x 2160 @ 60Hz), USB 3.2 Gen 2 Type-A Ports
#TVS-675-8G-US
Our Price: $1,049.00

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Package Content

  • QNAP TVS-675 Storage
  • 1 x Ethernet cable
  • 1 x Power cord
  • 18 x Flat head screw (for 3.5" HDD)
  • 18 x Flat head screw (for 2.5" HDD)
  • 2 x M.2 SSD Heatsink
  • Drive tray keys
  • Quick Installation Guide

Overview:

Powered by the x86 architecture Zhaoxin KaiXian KX-U6580 8-core processor, the TVS-675 provides businesses with a modern 2.5GbE NAS solution to tackle everyday tasks like file backup/restore, and to boost team collaboration with higher productivity. Besides hardware advantages with built-in M.2 SSD slots for cache acceleration and PCIe expansion, the TVS-675 supports abundant business and media applications (including snapshot protection, virtual machines, cloud storage gateways, 4K HDMI display, and real-time transcoding) alongside expandable storage capacity and install-on-demand apps, making it a cost-effective and reliable data storage and media NAS.



Available Models

  • TVS-675-8G-
    Zhaoxin KaiXian KX-U6580 8 cores/8 threads 2.5GHz processor, 8 GB memory (1 x 8 GB)


2.5GbE ports

Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.

M.2 SSD

Install high-performance M.2 PCIe NVMe Gen 3 x1 SSDs or economical SATA 6Gb/s SSDs in the dedicated SSD slots for caching with improved random I/O or high-performance storage pools.

PCIe

Two PCIe Gen 3 slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or QXP storage expansion cards.


4K media playback

4K media playback and real-time transcoding; directly output videos to an HDMI 2.0 display (up to 4K @60Hz).

virtual

Supports storage for virtualization; hosts multiple virtual machines and containers to run a wide range of applications on one NAS device.

PCIe

Flexibly scale the total storage capacity to match business growth by connecting QNAP expansion enclosures.

Features:

High-performance multi-tasking with an 8 core 2.5GHz processor and up to 64 GB RAM

Powered by an x86 architecture Zhaoxin KaiXian KX-U6580 8 cores/8 threads 2.5GHz processor and 8 GB DDR4 memory (expandable up to 64 GB - 2x 32GB, dual channel support), the TVS-675 has enormous processing power to drive virtual machine performance and tackle complex multitasking workloads. AES-NI encryption support boosts encryption performance while also maintaining the security of your NAS data.


Virtualization Certifications Supported by TVS-675

citrix-xenserver

vmware-ready

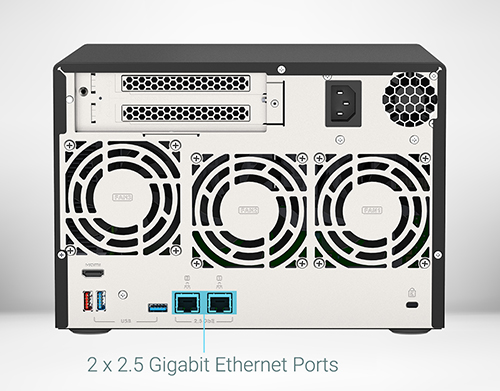

Streamline large file transfers and video editing with 2.5GbE

The TVS-675 comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the business efficiency of bandwidth-hungry applications such as large file transfers, fast backup/restoration, and multimedia transfer & editing.

2x2.5gbe-tvs-675


Future-proof your IT infrastructure for high-speed networks

The TVS-675 is also ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

tvs-675-10-25gbe


Faster USB transfers

Featuring two USB 3.2 Gen 2 (10Gbps) and two USB 3.2 Gen 1 (5Gbps) ports, the TVS-675 allows compatibility with faster USB external drives/enclosures for transferring large media files. The TVS-675 also supports USB devices such as mobile phones, uninterruptible power supplies, and printers for greater all-round functionality.

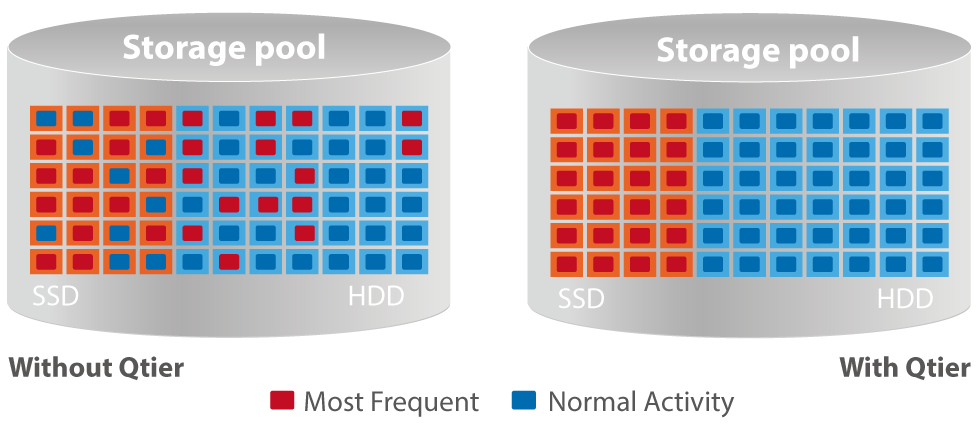

Get performance benefits from SSD caching and Qtier Technology

To attain optimal I/O and reduce latency, you can configure SSD caching by using either 2.5-inch SSDs or the two built-in M.2 2280 SSDs slots (supports high-performance PCIe NVMe Gen 3 x1 SSDs or economical SATA 6Gb/s SSDs, sold separately) in the TVS-675. Extra M.2 SSD slots can also be added by installing QM2 PCIe cards, allowing you to configure your M.2 SSDs in a RAID 5/6 array to achieve higher sequential speed or a read-only cache speed similar to the performance of a RAID 10 array while maintaining high storage efficiency.

Qtier-12G-SAS


SSD over-provisioning SSD cache acceleration Qtier for auto-tiering
You can add additional SSD over-provisioning to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer SSDs! Enable SSD caching for increasing IOPS performance and reducing latency for storage volume. This feature is perfect for IOPS-demanding applications including databases and virtualization. Qtier technology drives auto-tiered storage with continuous data optimization across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time.

Abundant I/O capabilities with PCIe expansion

The TVS-675 has two PCIe Gen 3 x4 slots that allow for installing various expansion cards for expanding application potential.

2.5/5/10/25GbE network card

Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, massive data transmission, fast backup/restore).

QM2 card

Adds M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimize performance and bandwidth.

Wireless adapter

Install a QXP-W6-AX200 Wi-Fi 6 wireless adapter to turn the TVS-675 into a wireless NAS. Or make the TVS-675 a wireless access point by installing the QWA-AC2600 wireless adapter and the WirelessAP Station app.


Direct 4K HDMI output for multimedia and virtual machine content

The TVS-675 features ZhaoXin® C-960 UHD Graphics that supports hardware decoding and real-time transcoding*. The HDMI 2.0 output supports up to 4K (3840 x 2160p) @60Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-675 to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TVS-675 as a versatile workstation by directly outputting virtual machines from Virtualization Station or Linux Station.

*Note: The TVS-675’s hardware provides H.264 hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.


Protect your data with higher security

The TVS-675 is loaded with comprehensive security features to keep your data safe.

  • QuFirewall for network security: Supports IPv6, firewall access lists, and GeoIP filtering to restrict access upon the geographical location for higher network security.
  • WPA2 Enterprise: Provides enterprise-grade wireless security for business networks, including certificate authority, encryption key, and enhanced encryption/decryption.
  • Security Counselor: A security portal that checks for weaknesses and offers recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

WPA2-tvs-675


A secure file center supporting regular backups and snapshot protection

The TVS-675 provides a reliable, flexible backup and disaster recovery solution to simplify routine backup jobs cost-efficiently and with high productivity.

Time-icon

HBS simplifies 3-2-1 backup plans

HBS centralizes backup, restoration, and synchronization for easily backing up Windows® and Mac® data and transferring data in the TVS-675 to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.

Camera-icon

Snapshots multiply backup protection

Block-level snapshots are dependable data protection methods, especially in the face of growing ransomware threats. The TVS-675 supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.


All-in-one virtual machine and container hosting solution

You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other networked devices, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station

Virtualization Station

Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station

Container Station

Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.


License-free VMware® and Hyper-V backup appliance

With Hyper Data Protector, the TVS-675 becomes an agentless backup tool for VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.


Optimized collaboration with seamless file sharing and sync

The TVS-675 centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with the Qsync utility, any file uploaded to the TVS-675 will become available for all linked devices (such as computers, laptops and mobiles). You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. The support of Azure Active Directory Domain Services (Azure AD DS), Windows AD® and LDAP services assist system administrators in managing user accounts and permissions for multiple NAS devices with greater efficiency.


Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb Fibre Channel expansion cards in the TVS-675, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.


Subscribe to QVR Elite surveillance solution for 24/7 security

QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. You can arrange a dedicated, independent storage space for surveillance data on the TVS-675 and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. With QVR Pro Client software installed on your Windows®/Mac® or mobile devices, taking full control over monitored areas becomes more convenient and easier.


More productivity-boosting applications

Linux Station

Linux Station

Run Linux® applications (including apps from the Linux Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser.

Security Counselor

Security Counselor

Consolidates all QTS system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

HybridMount-icon

HybridMount

Integrate the NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TVS-675, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access.


QuObjects-icon

QuObjects

A high-performance S3 compatible development environment on a NAS to simplify service development workflows from testing to production. You can also move cold data from the cloud to on-premises QuObjects for storage to save cloud storage costs.

QuMagie

QuMagie

An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tool. It supports Google Edge TPU to drive 10x faster image recognition!

Notification Center-icon

Notification Center

Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.


Flexible and economical storage expansion

The TVS-675 also supports QuTS hero - QNAP’s ZFS-based NAS operating system. Providing end-to-end data integrity, data reduction (inline data deduplication, compression and compaction), and much more, QuTS hero uses additional system resources to ensure an optimal environment for protecting business data.


Switch operating systems for optimal data integrity and reliability

The TVS-675 also supports QuTS hero - QNAP’s ZFS-based NAS operating system. Providing end-to-end data integrity, data reduction (inline data deduplication, compression and compaction), and much more, QuTS hero uses additional system resources to ensure an optimal environment for protecting business data.

Note:

  1. QTS and QuTS hero use different file systems. You must remove all the drives from the TVS-675 before switching from QTS to QuTS hero.
  2. QuTS hero requires a NAS with at least 8 GB memory.
  3. Inline Data Deduplication requires a NAS with at least 16 GB memory (at least 32 GB memory is recommended for optimal performance).
  4. It is recommended to create an SSD RAID with at least two SSDs for the QuTS hero system drive to attain optimal system performance. Please note that M.2 SSD hot-swapping is only supported by M.2 SSD slots on PCIe cards (such as the QM2). M.2 SSD slots that are built into the NAS do not support hot-swapping.

ui_qts-to-quts-hero


Extend hardware warranty up to 5 years

The TVS-675 is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Hardware Specifications:

  TVS-675-8G
CPU ZhaoXin KX-U6580 8-core 2.5GHz processor
CPU Architecture 64-bit x86
Graphic Processors ZhaoXin C-960 Graphics
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory 64GB (2 x 32 GB)
Memory Slot 2 x SO-DIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 SSD Slot 2 x M.2 2280 PCIe Gen 3 x1 or SATA 6Gb/s slots
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via an adapter
10 Gigabit Ethernet Port Optional via an adapter
Wake on LAN (WOL)   Only the 2.5GbE port
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 1 port 2
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
HDMI Output 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)
Form Factor Tower
LED Indicators HDD 1-6, Status, LAN, USB, M.2 SSD 1-2
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 188.2 × 263.9 × 280.8 mm
Weight (Net) 6.2 kg
Weight (Gross) 7.67 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W, 100-240V AC, 50/60Hz, 3.5A
Power Consumption: HDD Sleep Mode 41.897 W
Power Consumption: Operating Mode, Typical 60.794 W
Fan 3 x 80mm, 12VDC
Sound Level 20.2 db(A)
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 2000
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site. Designs and specifications are subject to change without notice.

Product Views:

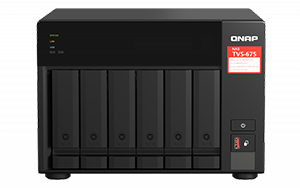

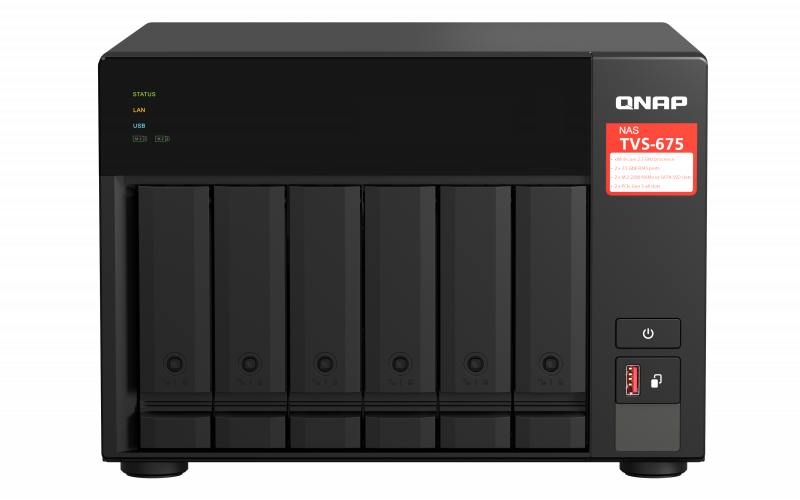

Front View

Front View

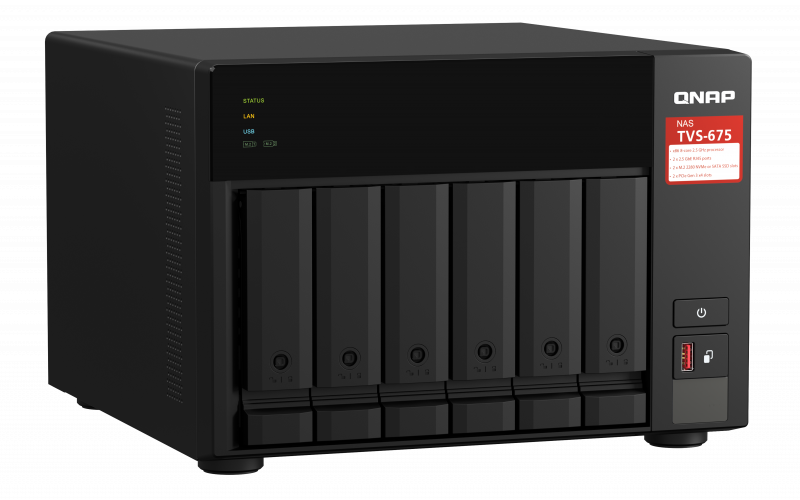

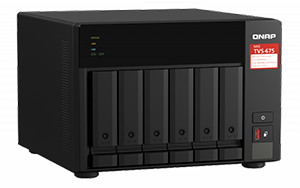

Top Right Angle View

Top Right Angle View

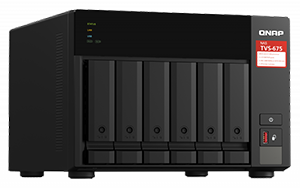

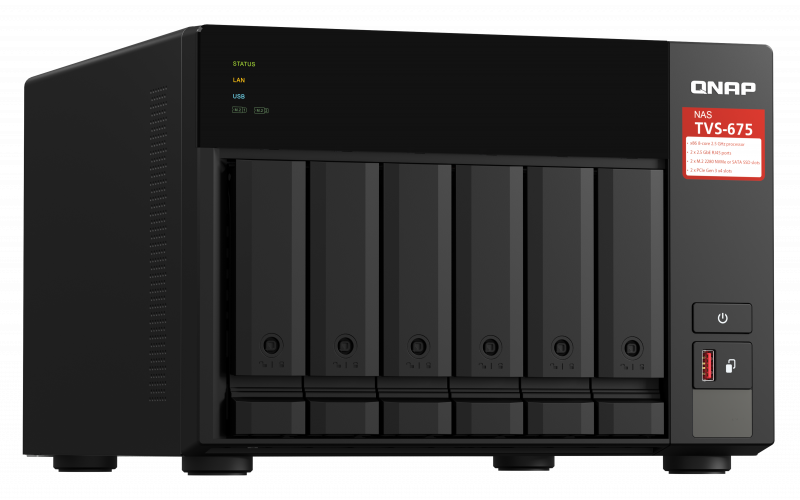

Right Angle View

Right Angle View

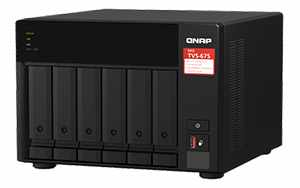

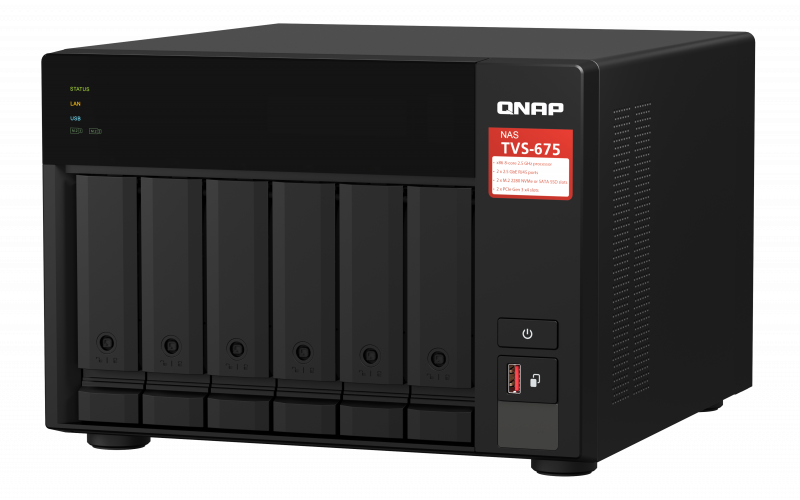

Top Left Angle View

Top Left Angle View

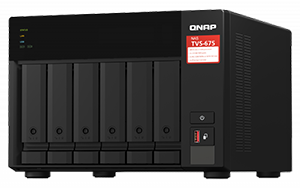

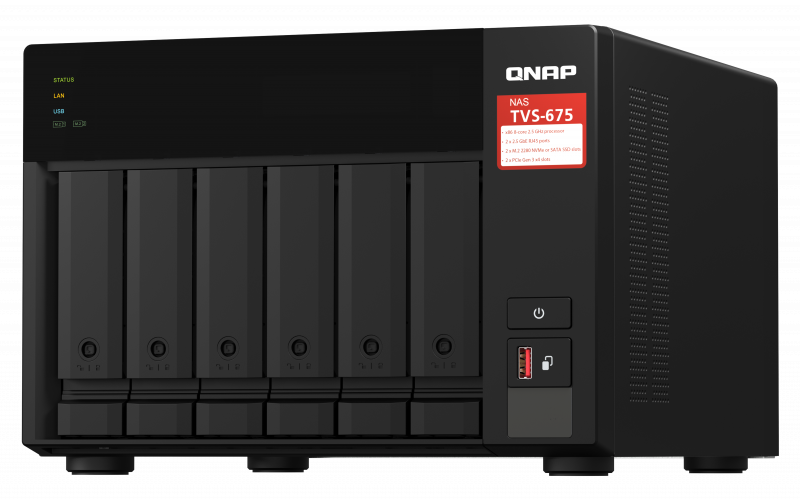

Left Angle View

Left Angle View

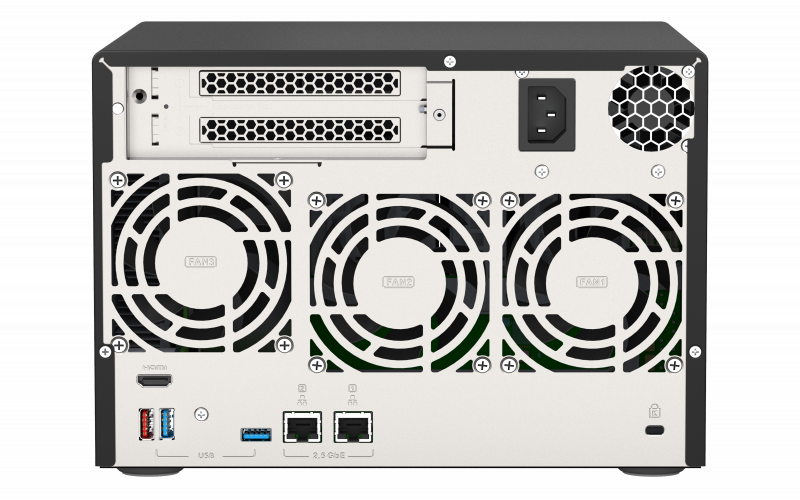

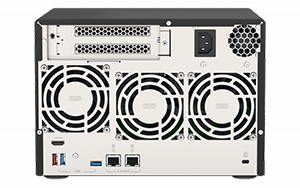

Rear View

Rear View
