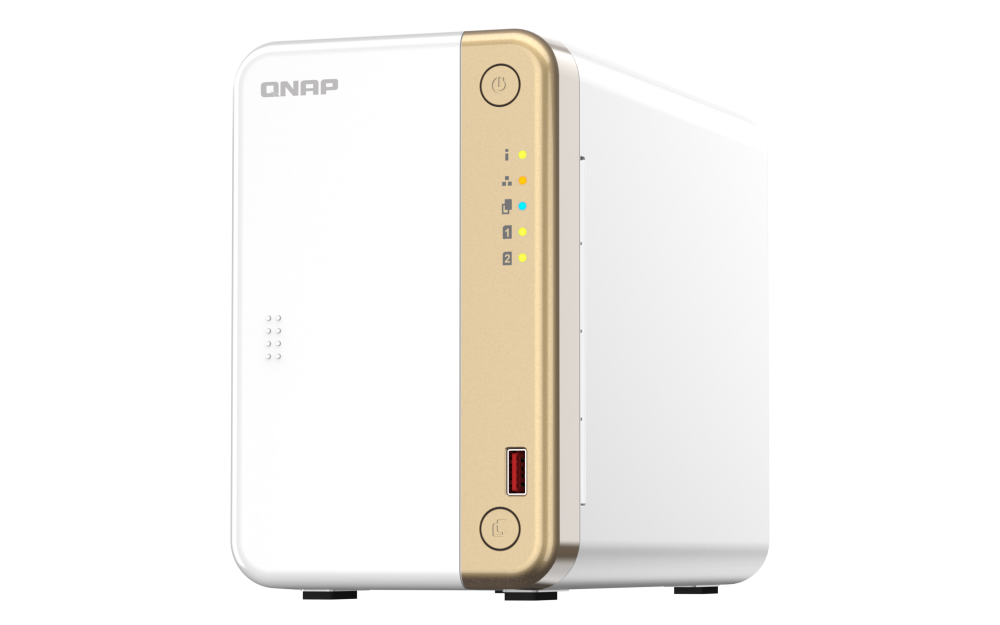

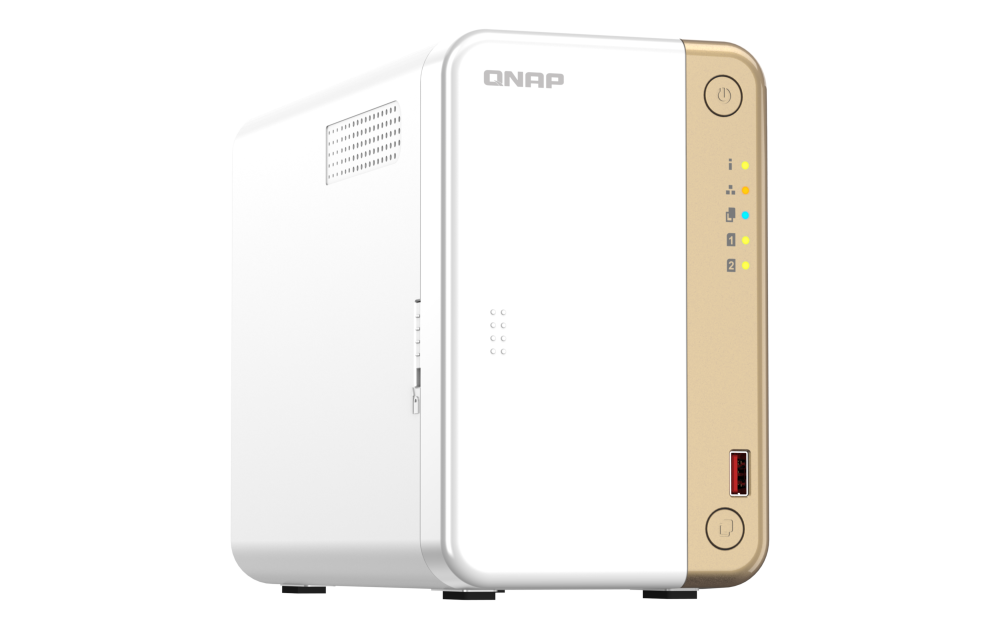

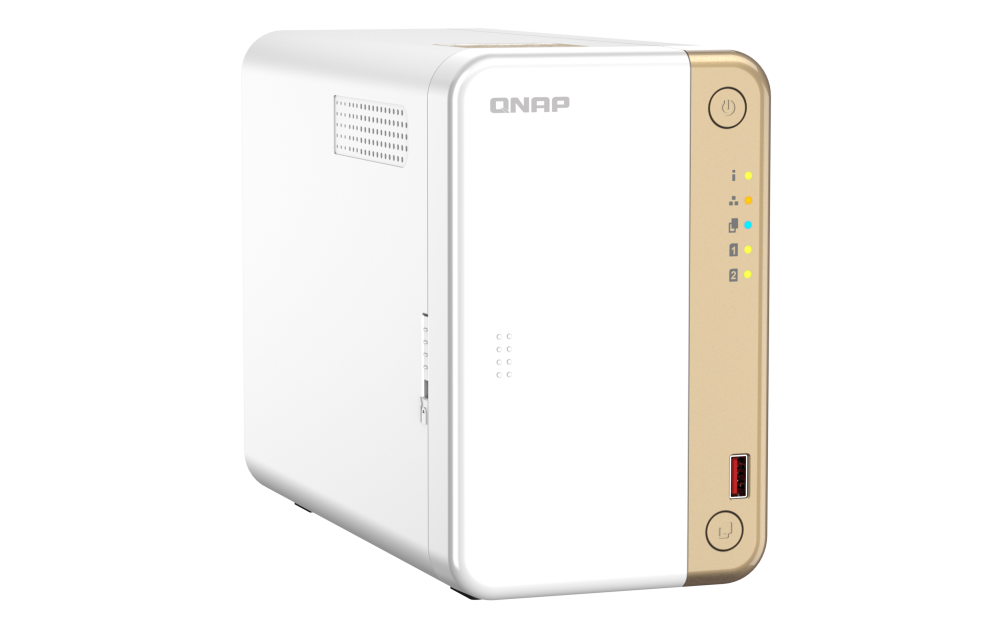

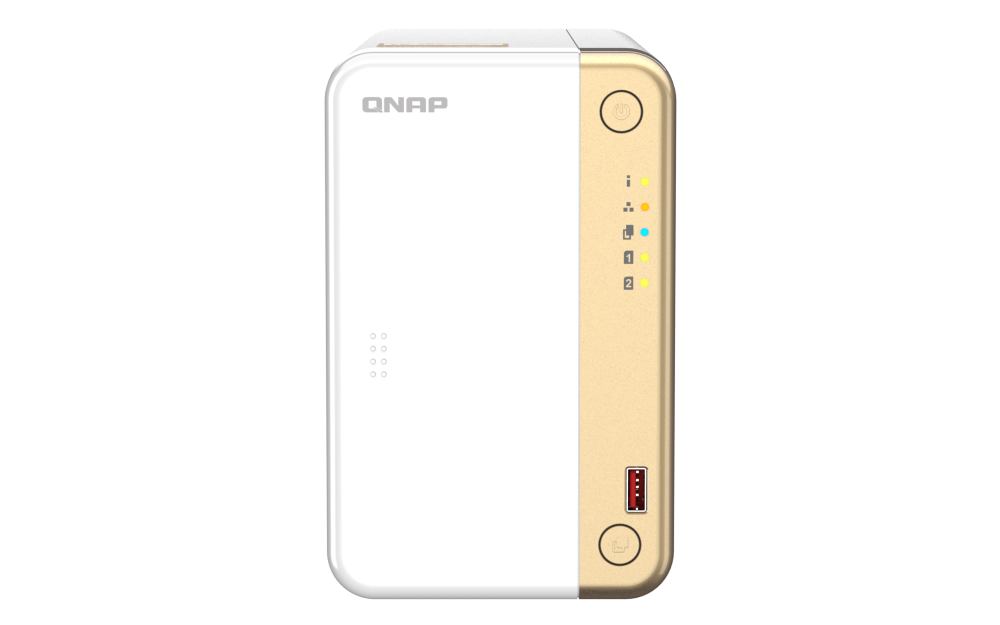

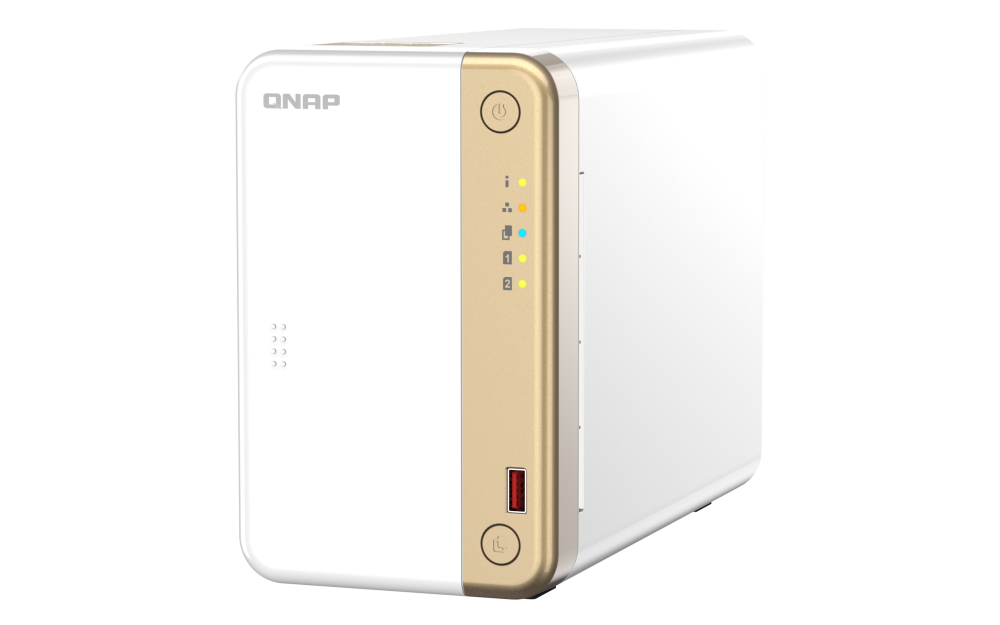

QNAP TS-262
Intel Dual-Core 2.5GbE Multimedia NAS with M.2 PCIe slots and PCIe expandability

Upgrade your home network to 2.5GbE

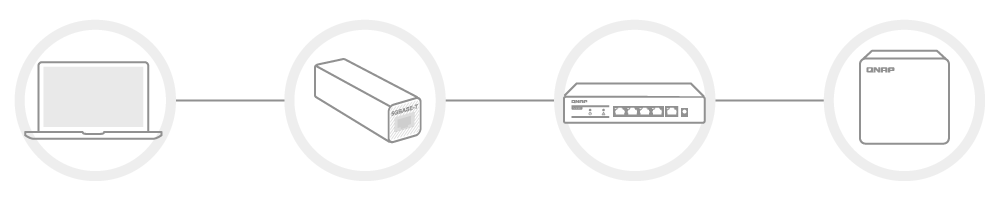

Wi-Fi 6 and 5G are becoming the new normal for networking, and there’s no reason why your home wired network shouldn’t also get a boost. The TS-262 comes with single 2.5GbE RJ45 LAN port which supports existing CAT5e cables. If your computers don’t have 2.5GbE ports, you can use QNAP’s USB 3.2 Gen 1 to 5GbE adapter (model name QNA-UC5G1T) to take advantage of the huge speed increase that 2.5GbE provides over standard Gigabit Ethernet. QNAP also provide affordable 2.5GbE switches and other adapters for you to take full advantage of the TS-262’s 2.5GbE connectivity.

---

Intel dual-core processor burst up to 2.9 GHz

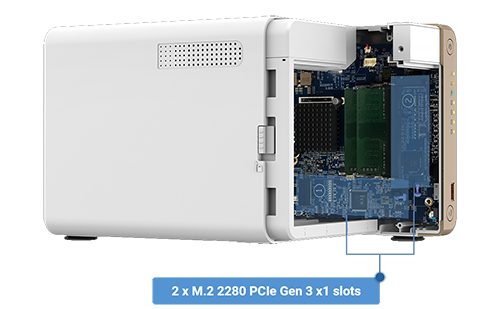

The TS-262 is powered by an Intel® Celeron® N4505 dual-core processor (burst up to 2.9 GHz), and supports SATA 6 Gb/s drives. The Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of your NAS data. You can flexibly install NVMe SSDs in the M.2 PCIe slots for cache acceleration to maximize network and storage performance for data-intensive applications or enable Qtier for auto-tiered storage for higher storage efficiency.

Tested in QNAP Labs. Figures may vary by environment.

NAS: TS-262-4G
OS: QTS 5.0.0
Volume type: 2 x Samsung 960 PRO 1 TB M.2 SSD, RAID 1, thick volume
Client PC: Windows Server 2016 Standard, Intel i7-6700 3.4Ghz, 64GB RAM
IOmeter: RAM*4, 30-sec ramp up time, 3-min seq. run time, 1 workers, 32-outstanding

---

---

SSD caching and auto-tiering enable 24/7 optimized storage efficiency

While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-262 supports numerous SSD-aware features that significantly maximize NAS performance with high cost-effectiveness.

SSD over-provisioning (Over-provisioning)	SSD cache acceleration	Qtier for auto-tiering
You can add additional SSD over-provisioning (1% ~60%) to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer SSDs!	Enables SSD caching for increasing IOPS performance and reducing latency for storage volume. This feature is perfect for IOPS-demanding applications including databases and virtualization. The TS-262 also supports write-only cache to boost write-intensive applications.	Qtier technology drives auto-tiered storage with continuous data optimization across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time.

---

Direct 4K HDMI output for multimedia

The TS-262 supports hardware decoding and real-time transcoding*. The HDMI 2.1 output supports up to 4K (3840 x 2160p) @60Hz, allowing you to directly enjoy high-res videos on a TV or monitor.

---

Faster image identification with integrated Intel® OpenVINO™ AI engine.

With integrated Intel® OpenVINO™ AI computing resources, the TS-262 accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.

Tested in QNAP Labs. Figures may vary by environment and NAS models.
Test environment: NAS: TS-262

---

Abundant I/O capabilities with PCIe expansion

The TS-262 has a PCIe Gen3 x2 slot that allows for installing a expansion card to expand the TS-262‘s potential.

---

QTS 5, Fast, smooth, and easy-to-use!

The TS-262 supports the cutting-edge QTS 5, which builds upon its solid foundations with a smoother user interface and much more!

---

The best storage for your high-resolution multimedia files

High-resolution RAW files eat up phone storage so quickly. Whether you are a photographer enthusiastic, YouTuber, or professional photo/video editors, use the TS-262 with high-capacity hard drives to alleviate your storage anxiety and organize files efficiently as the best storage center.

---

Stream all your media to every device in the house

The TS-262 is a complete multimedia center, allowing fast and easy streaming for photos, music and video to TVs, computers and mobile devices.

DLNA
PLEX
Qmedia

---

Connect to a TV or Monitor with HDMI

With HDMI output, the TS-262 allows you to directly enjoy multimedia content, use web browsers, manage your NAS, or watch recorded surveillance footage or live feeds on your NAS.

---

An easy-to-use, all-in-one backup solution

The TS-262 can do many things, but at its heart is a complete backup solution to protect your files and data. By regularly backing up your files and device content, you can make data loss a thing of the past.

---

Protect your data from ransomware threats with Snapshots

Snapshots are an advanced backup method and are normally reserved for high-end business NAS. QNAP provides snapshots as standard for all NAS – including the TS-262. Snapshots work by recording the current state of the system, allowing it to be restored back this state at any time - greatly helping in mitigating the threat of ransomware.

---

Tips for a more productive workday

With a wide range of awesome apps, you can easily access files from various devices, instantly synchronize files with friends’ or colleague’s devices, quickly find specific files, and automatically organize your documents and media files. You can also map the TS-262’s shared folders as network drives on your computers, making accessing NAS files easy and intuitive. The TS-262 helps you save time while being more efficient and productive.

File Station	Easily manage files stored in your TS-262 using the web-based File Station. The Qfile companion mobile app also puts all your files at your fingertips, providing a complete personal cloud service that is accessible from anywhere!
Qsync	Qsync is a perfect replacement of Dropbox®, allowing you to synchronize files with computers and mobile devices belonging to your family, friends, colleagues, and clients.
Qsirch	QNAP’s powerful, Google™-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions.
Qfiling	Save time organizing and archiving your files with Qfiling. Simply categorize your files, set a schedule, and Qfiling will automatically organize and archive them.

---

Access your NAS from anywhere

The myQNAPcloud service enables quick and easy remote access to your TS-262, allowing you to be always connected without needing to configure complex network settings. With myQNAPcloud Link you are provided with a unique domain name for your TS-262, and will automatically connect using the best method based on your network environment.

---

Easily build a wallet-friendly home surveillance system!

With the subscription-based QVR Elite smart surveillance solution you only pay for the channel licenses you need, allowing you to affordably safeguard your property. You can arrange a dedicated, independent storage space for surveillance data on the TS-262 and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Recordings are saved as MP4 files for playback on nearly every device. You can also use USB webcams as network cameras with the QUSBCam2 app, and remotely monitor your surveillance feeds at any time with the QVR Pro Client companion mobile app.

*The maximum number of channels supported varies by NAS model, network configuration, and camera settings.

---

Extend hardware warranty up to 5 years

The TS-262 is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
