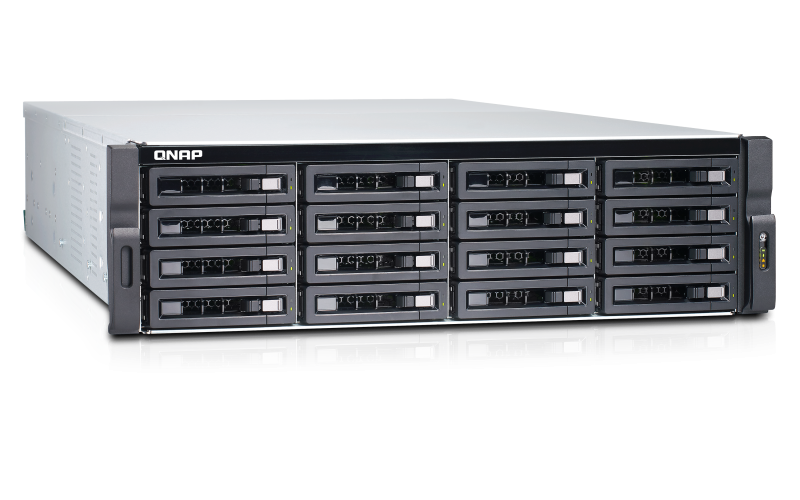

QNAP TDS-16489U-R2
Dual CPU and dual OS system: A perfect NAS solution for high-performance computing and storage by using the QES or QTS operating system
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Integrating an application server and storage server into one system, the next-generation TDS-16489U R2 also provides you with the option of using either QES (an enterprise-grade OS that provides efficient and reliable storage for mission-critical tasks) or QTS (a feature-rich OS for storage and diverse application servers). Whether being used as a file server, virtualization server, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup & recovery, the flexible TDS-16489U R2 with dual CPU and dual OS options is your ideal solution.
Package Content
- TDS-16489U-R2
- 2 x Ethernet Cables
- 2 x Power Cords
- 64 x Flat Head Screws (for 3.5" HDD)
- 64 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)

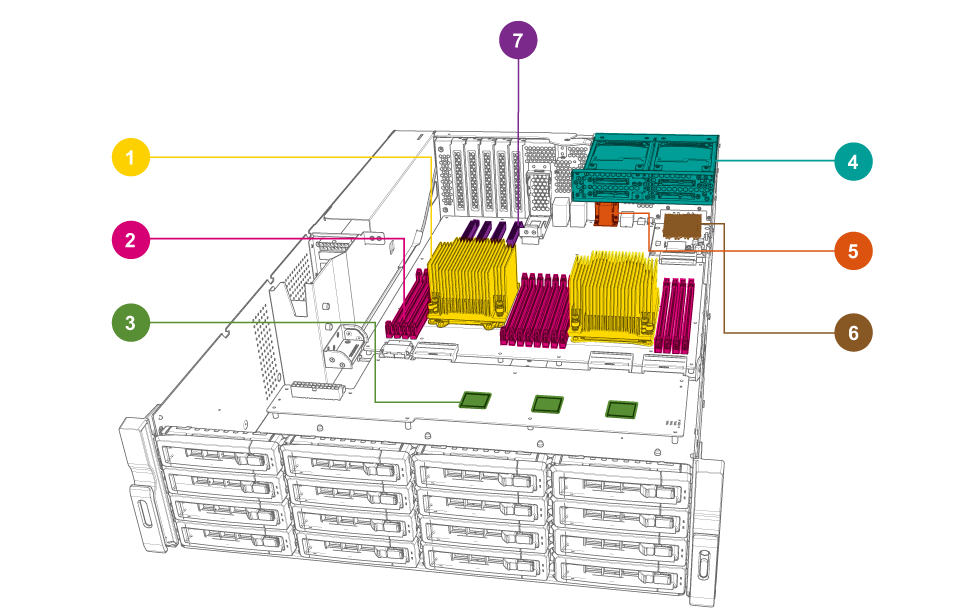

Multiplied computing power with dual Intel® Xeon® E5 processors
Built for data-intensive applications and demanding workloads, the TDS-16489U R2 is powered by dual Intel® Xeon® E5-2600 v4 multi-core processors, up to 1 TB quad-channel DDR4 2133MHz RDIMM/LRDIMM RAM (Long-DIMM x16), and 12Gb/s SAS drive support to deliver outstanding performance for data transmission and applications. While providing the power to handle CPU-demanding tasks and everyday application needs such as virtualization, video surveillance, and media streaming, the TDS-16489U R2's unrivaled performance provides the ability for businesses to improve their Big Data computing to explore greater business opportunities.
- Dual Intel® Xeon® E5 processors
- Quad-channel DDR4 RDIMM/LRDIMM RAM
- 3x SAS 12Gb/s controllers
- 4x 2.5-inch SSD slots
- IPMI (Intelligent Platform Management Interface)
- 4x 10GbE SFP+ ports
- 4x PCIe slots
| QES QNAP Enterprise System |
QTS QNAP NAS System |
|
|---|---|---|
| OS Kernel | FreeBSD | Linux |
| File system | ZFS | Ext4 |
| CIFS/FTP/NFS/iSCSI | ||
| Snapshot upper limit | 65535 | 1024 |
| Remote disaster backup and recovery | SnapSync | Snapshot Replica |
| Deduplication | Deduplicate backup data at the source (Hybrid Backup Sync 3.0) |
|
| Real-time data compression | ||
| End-to-end data integrity | ||
| Qtier (Auto Tiering) | ||
| Application services (Virtualization Station, Web Server, multimedia service, etc.) |
||
| App Center | ||
| Application scenarios | • Reliable storage for mission-critical business tasks. • The perfect backup storage for the dual-controller Enterprise ZFS NAS. |
• High-performance storage with SSD and Qtier technology for maximized cost-efficiency. • Storage for hosting virtual machines and containerized applications. • Application server using QTS services (Web server, VPN server, FTP server, etc). |

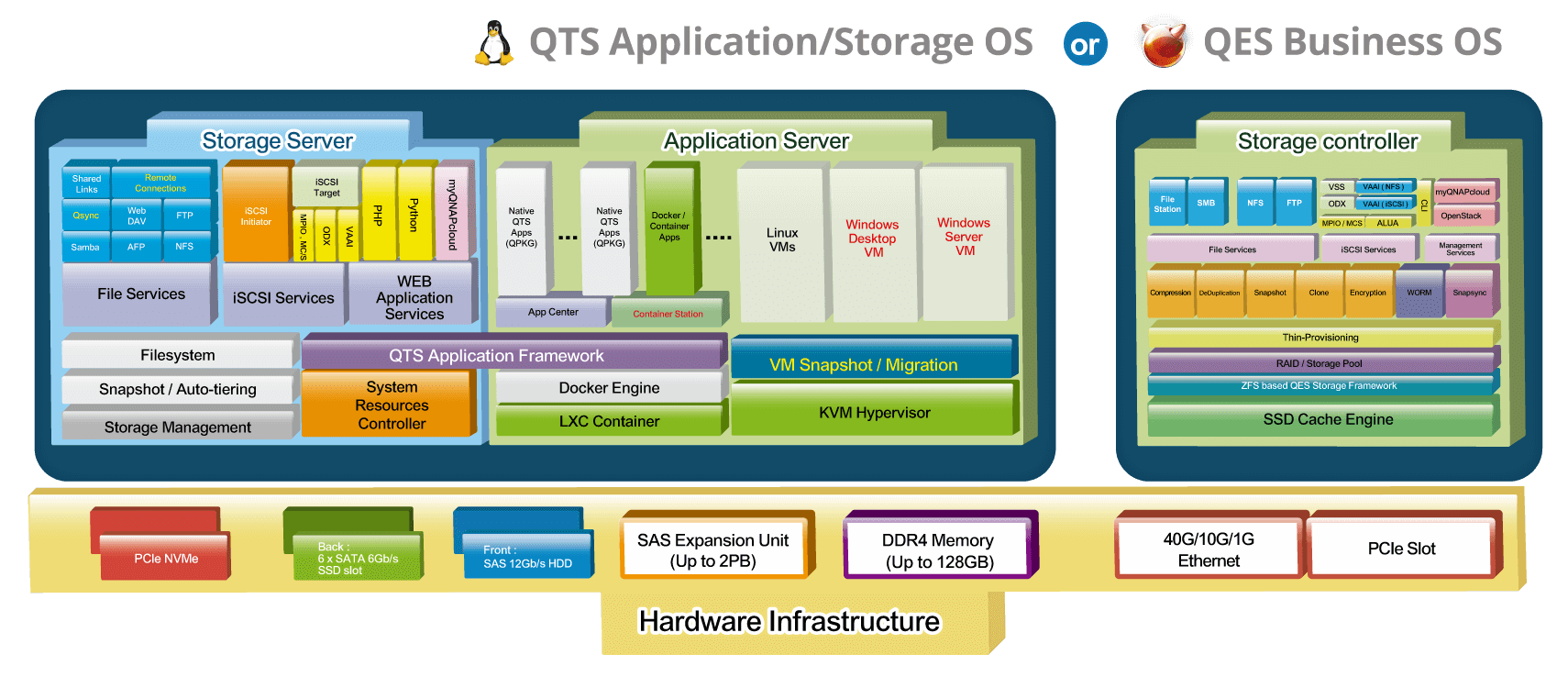

Convertible NAS that supports two operating systems
The TDS-16489U R2 provides flexibility to choose from two operating systems, enabling businesses to deploy an operating system that fits their needs and goals in different stages.

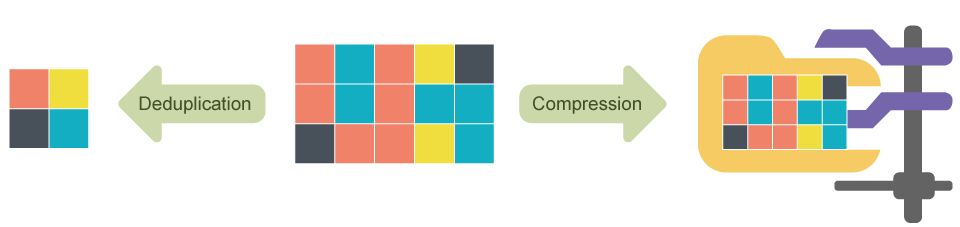

QES supports deduplication and compression to maximize VDI storage performance
QES supports block-based data deduplication to reclaim storage used by redundant/repeated data and in-line data compression to shrink file sizes. Both functions optimize storage utilization and provide cost savings for businesses when using SSDs (particularly for all-flash storage deployment). In VDI environments where there could be over 90% duplicate data from OS images and applications that are spread over virtual desktops, deduplicated virtual desktops become easier to be cached to achieve optimal virtual desktop performance.

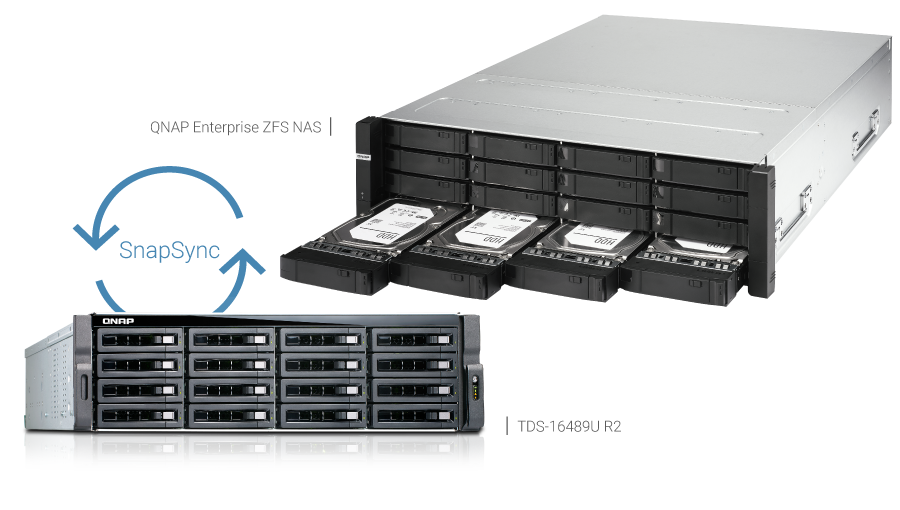

Ideal backup NAS for Enterprise ZFS NAS
When running the QES operating system, the TDS-16489U R2 is the perfect backup storage for the dual-controller Enterprise ZFS NAS using SnapSync. If the Enterprise ZFS NAS unexpectedly stops, the TDS-16489U R2 can immediately recover all the backed up data locally to take over operations and services with minimized RTO (Recovery time objectives) and RPO (Recovery Point Objective). It prevents the downtime required to restore data from a remote QTS NAS/rsync server back to the recovered Enterprise ZFS NAS.

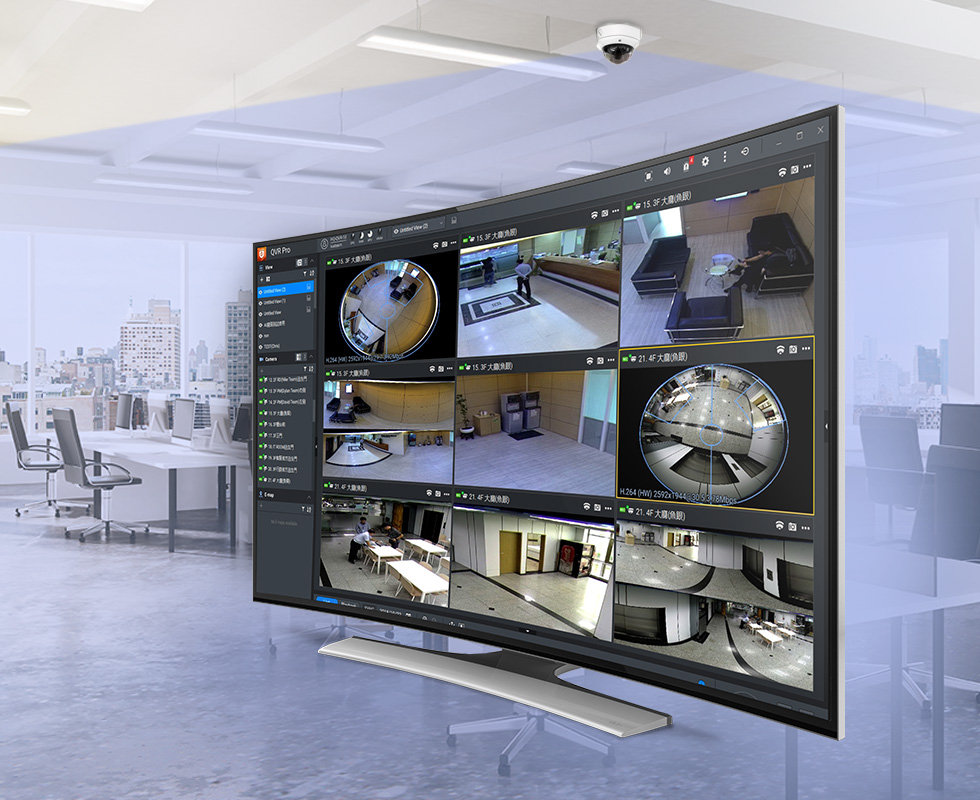

Use QVR Pro to deploy a professional security surveillance system
QNAP's QVR Pro surveillance solution supports over 5,000 IP cameras, including all of the standard fisheye cameras available on the market. There are more advanced features for fully unleashing the potential of fisheye cameras: allowing a single fisheye camera’s image to be simultaneously viewed in nine channels from different angles, and cross-platform hardware-accelerated decoding for fisheye camera images. QVR Pro ensures higher surveillance performance for greater security while providing deployment flexibility and budget-savings. 8 free channel licenses are provided, and can be expanded up to 128 channels* by purchasing additional licenses.
*The maximum number of channels supported varies by NAS model, network configuration, and camera settings.
QES is OpenStack Ready to explore out-of-the-box enterprise cloud services
QES supports OpenStack® Cinder and Manila file sharing services. With the QNAP Cinder Driver, the TDS-16489U R2 can provide block-level storage space to virtual machines. It not only accelerates the deployment of virtual machines and enhances virtual machine image access efficiency through iSCSI, but it is also easier to integrate into commercial cloud storage platforms.
Features:
Install PCIe cards to increase application performance, including 40GbE/ 25GbE/ 10GbE adapters, Fibre Channel cards, and graphics cards.
QES ensures data integrity with self-healing and uses end-to-end checksums to detect and correct silent data corruption.
QES supports data deduplication and compression to optimize storage utilization and data access performance.
QES supports near-limitless snapshots and SnapSync for efficient remote backup & disaster recovery solution.
Reliable storage for virtualization. QTS supports hosting VMs and containers; QES supports block-level storage for OpenStack® environments.
QTS supports software-defined SSD over-provisioning to improve write performance for IOPS-demanding applications.
Specifications:
| CPU | E5-2620 v4 8-core 2.1 GHz processor x2
*Available with customization requirement |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 64GB RDIMM DDR4 (8 x 8GB) |
| Maximum Memory | RDIMM/LRDIMM: 1 TB (16 x 64 GB) |
| Memory Slot | 16 x Long-DIMM DDR4
You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory. For the memory installation guidelines, see chapter 5 of the TDS-16489U User Guide. |
| Flash Memory | 4GB (DOM for dual OS) |

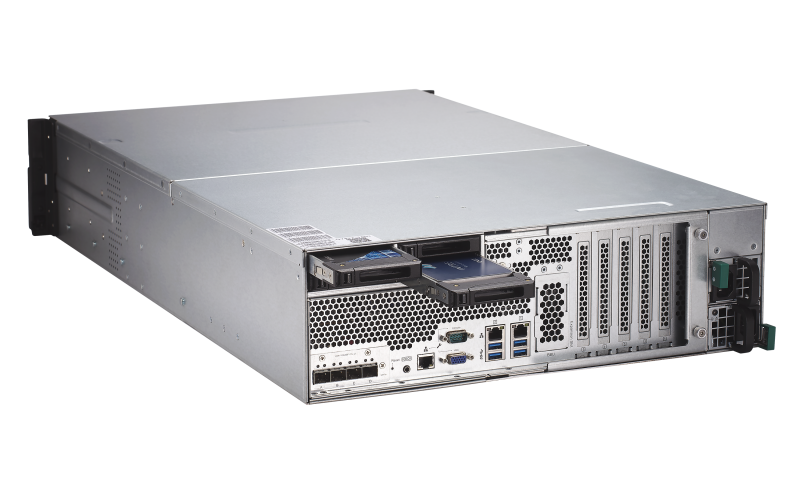

| Drive Bay | Front: 16 x 3.5-inch Rear: 4 x 2.5-inch |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA/SAS hard disk drives 2.5-inch SATA/SAS hard disk drives 2.5-inch SATA/SAS solid state drives 2.5-inch bays: 2.5-inch SATA/SAS solid state drives |

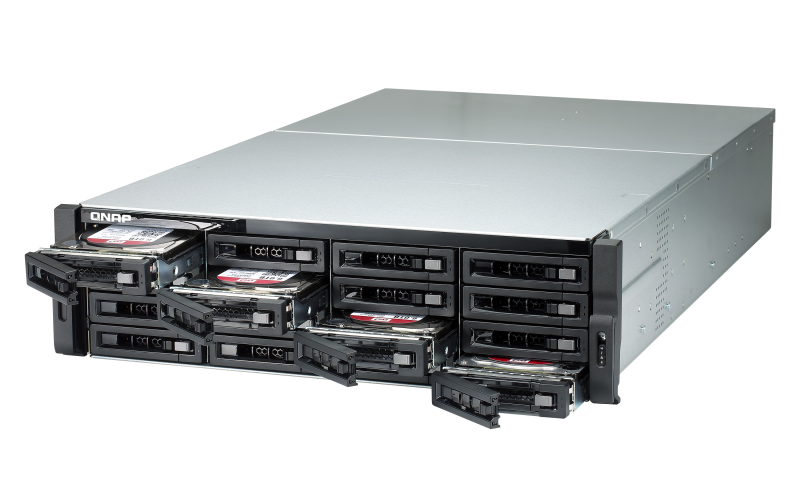

| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 2 For instructions on how to install network adapters, please refer to Chapter 6 of the QNAP NAS Hardware Manual. |
| 10 Gigabit Ethernet Port | 4 x 10GbE SFP+ |
| Jumbo Frame | |
| PCIe Slot | 4 (3 x PCIe Gen3 x8, 1 x PCIE Gen3 x16) |
| USB 3.0 port | 4 |
| IPMI | 1 |
| Form Factor | 3U Rack Mount |
| LED Indicators | HDD 1-16, Status, 10 GbE, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 130.8 × 444 × 744 mm |
| Weight (Net) | 22.42 kg |
| Weight (Gross) | 30.19 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Redundant/ Hot Swap ATX Power Supply,Input: 50-60 Hz 100-127V~/ 8.5A 200-240V/ 4.2A Output: 770W |
| Power Consumption: HDD Sleep Mode | 254.21 W |
| Power Consumption: Operating Mode, Typical | 362.86 W |
| Fan | 4 x 6cm smart cooling fan (12V DC) |
| Sound Level | 37.8 db(A) |
| CPU | E5-2620 v4 8-core 2.1 GHz processor x2
*Available with customization requirement |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 128GB RDIMM DDR4 (8 x 16GB) |
| Maximum Memory | RDIMM/LRDIMM: 1 TB (16 x 64 GB) |
| Memory Slot | 16 x Long-DIMM DDR4
You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory. For the memory installation guidelines, see chapter 5 of the TDS-16489U User Guide. |
| Flash Memory | 4GB (DOM for dual OS) |
| Drive Bay | Front: 16 x 3.5-inch Rear: 4 x 2.5-inch |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA/SAS hard disk drives 2.5-inch SATA/SAS hard disk drives 2.5-inch SATA/SAS solid state drives 2.5-inch bays: 2.5-inch SATA/SAS solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 2 For instructions on how to install network adapters, please refer to Chapter 6 of the QNAP NAS Hardware Manual. |
| 10 Gigabit Ethernet Port | 4 x 10GbE SFP+ |
| Jumbo Frame | |
| PCIe Slot | 4 (3 x PCIe Gen3 x8, 1 x PCIE Gen3 x16) |
| USB 3.0 port | 4 |
| IPMI | 1 |
| Form Factor | 3U Rack Mount |
| LED Indicators | HDD 1-16, Status, 10 GbE, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 130.8 × 444 × 744 mm |
| Weight (Net) | 22.42 kg |
| Weight (Gross) | 30.19 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Redundant/ Hot Swap ATX Power Supply,Input: 50-60 Hz 100-127V~/ 8.5A 200-240V/ 4.2A Output: 770W |
| Power Consumption: HDD Sleep Mode | 254.21 W |
| Power Consumption: Operating Mode, Typical | 362.86 W |
| Fan | 4 x 6cm smart cooling fan (12V DC) |
| Sound Level | 37.8 db(A) |
| CPU | E5-2630 v4 10-core 2.2 GHz processor x2
*Available with customization requirement |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 128GB RDIMM DDR4 (8 x 16GB) |
| Maximum Memory | RDIMM/LRDIMM: 1 TB (16 x 64 GB) |
| Memory Slot | 16 x Long-DIMM DDR4
You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory. For the memory installation guidelines, see chapter 5 of the TDS-16489U User Guide. |
| Flash Memory | 4GB (DOM for dual OS) |
| Drive Bay | Front: 16 x 3.5-inch Rear: 4 x 2.5-inch |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA/SAS hard disk drives 2.5-inch SATA/SAS hard disk drives 2.5-inch SATA/SAS solid state drives 2.5-inch bays: 2.5-inch SATA/SAS solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 2 For instructions on how to install network adapters, please refer to Chapter 6 of the QNAP NAS Hardware Manual. |
| 10 Gigabit Ethernet Port | 4 x 10GbE SFP+ |
| Jumbo Frame | |
| PCIe Slot | 4 (3 x PCIe Gen3 x8, 1 x PCIE Gen3 x16) |
| USB 3.0 port | 4 |
| IPMI | 1 |
| Form Factor | 3U Rack Mount |
| LED Indicators | HDD 1-16, Status, 10 GbE, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 130.8 × 444 × 744 mm |
| Weight (Net) | 22.42 kg |
| Weight (Gross) | 30.19 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Redundant/ Hot Swap ATX Power Supply,Input: 50-60 Hz 100-127V~/ 8.5A 200-240V/ 4.2A Output: 770W |
| Power Consumption: HDD Sleep Mode | 254.21 W |
| Power Consumption: Operating Mode, Typical | 362.86 W |
| Fan | 4 x 6cm smart cooling fan (12V DC) |
| Sound Level | 37.8 db(A) |
| CPU | E5-2630 v4 10-core 2.2 GHz processor x2
*Available with customization requirement |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 256GB RDIMM DDR4 (8 x 32 GB) |
| Maximum Memory | RDIMM/LRDIMM: 1 TB (16 x 64 GB) |
| Memory Slot | 16 x Long-DIMM DDR4
You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory. For the memory installation guidelines, see chapter 5 of the TDS-16489U User Guide. |
| Flash Memory | 4GB (DOM for dual OS) |
| Drive Bay | Front: 16 x 3.5-inch Rear: 4 x 2.5-inch |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA/SAS hard disk drives 2.5-inch SATA/SAS hard disk drives 2.5-inch SATA/SAS solid state drives 2.5-inch bays: 2.5-inch SATA/SAS solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 2 For instructions on how to install network adapters, please refer to Chapter 6 of the QNAP NAS Hardware Manual. |
| 10 Gigabit Ethernet Port | 4 x 10GbE SFP+ |
| Jumbo Frame | |
| PCIe Slot | 4 (3 x PCIe Gen3 x8, 1 x PCIE Gen3 x16) |
| USB 3.0 port | 4 |
| IPMI | 1 |
| Form Factor | 3U Rack Mount |
| LED Indicators | HDD 1-16, Status, 10 GbE, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 130.8 × 444 × 744 mm |
| Weight (Net) | 22.42 kg |
| Weight (Gross) | 30.19 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Redundant/ Hot Swap ATX Power Supply,Input: 50-60 Hz 100-127V~/ 8.5A 200-240V/ 4.2A Output: 770W |
| Power Consumption: HDD Sleep Mode | 254.21 W |
| Power Consumption: Operating Mode, Typical | 362.86 W |
| Fan | 4 x 6cm smart cooling fan (12V DC) |
| Sound Level | 37.8 db(A) |
Documentation:
Datasheet for QNAP TDS-16489U-R2 is coming soon.
