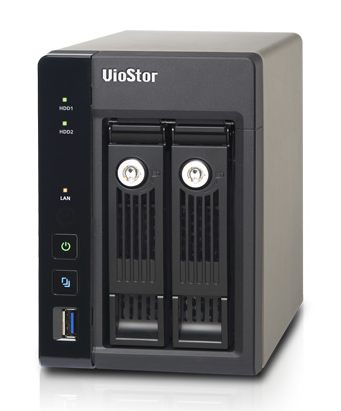

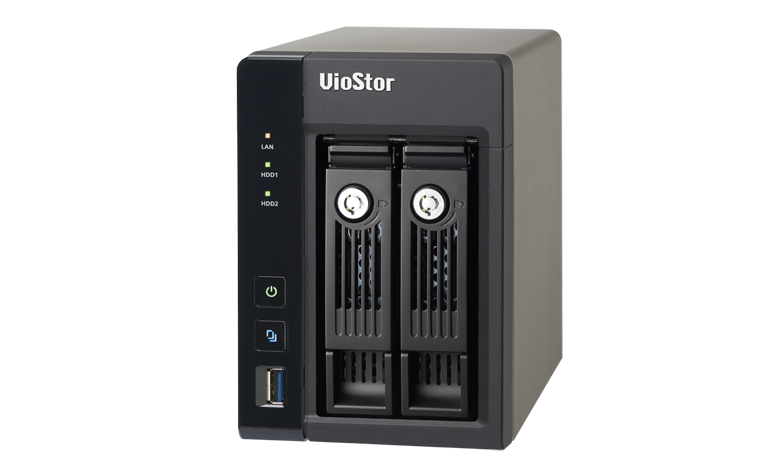

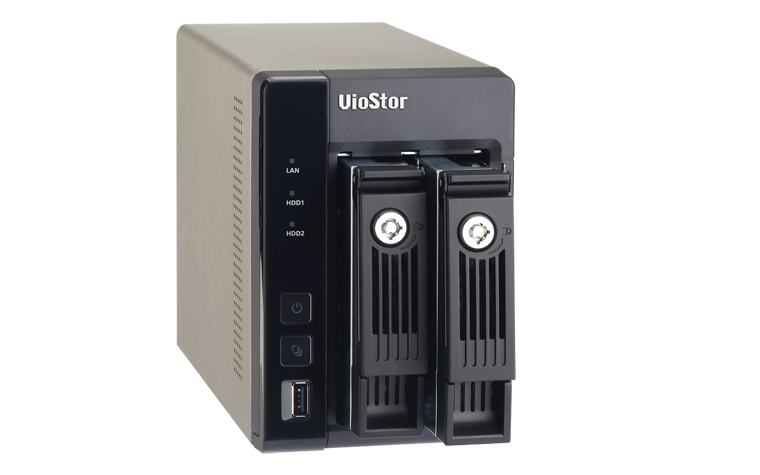

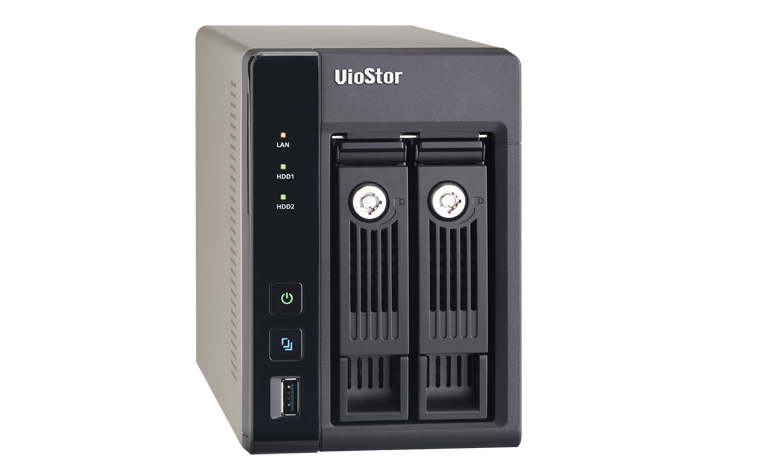

QNAP VS-2212 Pro+
12-channel / 2-bay / HDMI / Tower Network Video Recorder

Key Features:

Complete Recording Functions

High Quality H.264, MPEG-4, M-JPEG and MxPEG Recordings (depending on the camera models)
All-in-one Recording Functions Continuous/manual/scheduled recording * Alarm recording (by multiple events), alarm recording schedule * Pre-alarm and post-alarm recording Audio recording Auto snapshots * Different recording schedules for the IP cameras.
Megapixel Recordings The VioStor NVR supports megapixel recordings (up to 10-megapixel) from various IP cameras.

Multi-stream support
Administrators now can flexibly define multiple video streams (supported by specific camera models) according to bandwidth resources and number of live-view channels. The adjustable video stream setting helps improve the displaying quality of live-view and well manage the bandwidth resources based on different usage requirements.

Smart Recording
The VioStor NVR automatically selects video streams from IP cameras for different recording scenarios. In normal situation, video recording maintains at lower quality resolution. While the alarm event happens, video recording switches to high quality resolution to capture more details. In other words, smart recording effectively avoids the constant storage consumption at all time, but achieves greater storage efficiency and boost recording quality when alarm events happen.

Real-time Digital Watermarking The VioStor NVR supports real-time digital watermarking to protect the videos and snapshots from unauthorized modifications. The Watermark Proof utility is provided to verify whether or not the videos and snapshots are original.

Network Surveillance with Full HD 1080P Local Display

Diversified Modes for Local Monitoring 1, 4, 6, 8, 9, 10, 12, or 16-channel display modes Sequential display mode

High Resolution Local Display
The VioStor NVR provides an HDMI port which can be connected to an HDMI monitor or TV for doing monitoring in the full HD (1920 x 1080) resolution.

Convenient Control of PTZ and Speed Dome Cameras
The PTZ (Pan/Tilt/Zoom) cameras can be adjusted directly and the preset positions of the IP cameras can be viewed on the local display interface of the VioStor NVR.

Digital Zoom
Digital zoom (in/out) of the video image is supported on the monitoring and playback interfaces of the NVR.

On-screen Event Alert
When an event occurs, an alert icon will be shown instantly on the local monitoring page. The alert details can be viewed by clicking the alert icon

Video Search The VioStor NVR supports convenient video search by date and time on the local playback interface. Local Video Playbacks on HDMI Monitors or TVs The VioStor NVR supports direct video playbacks on HDMI monitors or TVs.
Quick System Setup The VioStor NVR can be set up in simple steps on the local display interface.

Network Surveillance by Web-based Interface to Perform Real-time Remote Monitoring

Cross-platform Support
Use QNAP Surveillance Client for Windows and Mac to watch the live view and play back the recording files on the VioStor NVR.

Cross-browser Compatibility
On the Windows PC, you can also use Google Chrome, Microsoft Internet Explorer, or Mozilla Firefox to enjoy our surveillance features.

Multi-server Monitoring Connect to one VioStor NVR and monitor up to 128 channels from other VioStor NVR servers over the LAN or WAN via an IE browser. Note: The feature is supported by Google Chrome, Microsoft Internet Explorer, and Mozilla Firefox
Diversified Remote Monitoring Modes 1, 4, 6, 8, 9, 10, 12, 16, 20, 25, 36, 42, 64-channel, and sequential display modes Dual-display mode

Smart Control of PTZ & Speed Dome Cameras The PTZ (Pan/Tilt/Zoom) cameras can be directly adjusted by the web user interface of the VioStor NVR.
Preset Position Control and Auto Cruising The preset positions of an IP camera can be viewed by clicking the corresponding number buttons on the monitoring page. The time interval can also be configured on the PTZ cameras to perform periodic monitoring.
Instant Event Notification When the alarm recording is enabled and an event occurs, an alarm icon will be shown instantly on the monitoring page. The alert details can be viewed by clicking the icon.
Digital Zoom Digital zoom (in/out) of the video image is supported on the monitoring and playback interfaces.
Dynamic E-map The VioStor NVR provides the E-map function for users to upload the digital maps and indicate the locations of the IP cameras of a monitoring location or region.

Remote Video Playback

Multi-view Playback
Use the multi-view playback feature to divide a video equally into multiple sessions for doing playback in a multi-view window, or play the videos of multiple IP cameras in the multi-view window simultaneously.

Video Search by Date and Time, Timeline, Event, Intelligent Video Analytics (IVA)
The VioStor NVR supports quick video search by date and time, timeline, event, and intelligent video analytics (IVA), which includes motion detection, foreign object, missing object, out of focus, and camera occlusion.

Event Management

Advanced Event Management VioStor NVR supports various event handling options for different kinds of events. Events: Motion detection, alarm input, connection failure, recording failure, and user-defined event. Actions: Video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output, and user-defined action.

Real-time SMS and Email Alert
Configure the SMTP server and SMSC server settings on the NVR in order to receive instant system warnings or error messages by email and/or SMS

Convenient Backup Solution

Storage Expansion
VioStor NVR provides surveillance storage expansion solution which enables users to leverage the Turbo NAS storage capacity. By installing the StorageExpansion QPKG in the Turbo NAS, administrators can connect the VioStor NVR with the Turbo NAS to flexibly enlarge the total surveillance storage.

Scheduled Remote Replication
The VioStor NVR supports scheduled remote replication for performing secure data backup to a remote QNAP NAS on the local network.

One Touch Auto Video Backup
Configure the one touch auto video backup button at the front of the NVR to copy the data from the NVR to an external storage device when the button is pressed.

Excellent Hardware Design

Intel^® CPU and DDRIII Memory for Superior System Performance
Powered by the Intel^® CPU and DDRIII memory, the VioStor NVR delivers superior performance for surveillance applications.

Linux Embedded System
The Linux-based VioStor NVR is more power-saving and less vulnerable to virus attacks compared to the PC-based surveillance solution.

Huge Storage Capacity for Long-term Recordings
The VioStor NVR supports RAID 0, 1, 5, 6, 5+hot spare, single, and JBOD disk configurations. Its hot-swap design allows a failed drive of a disk volume (RAID 1 or above) to be replaced by hot swapping without turning off the server.

Mobile Surveillance by VMobile

Use the VMobile network surveillance application on Android phone, Android Tablet, iPhone, iPad, or iPod touch to easily access video management functions Multi-view Playback Use the multi-view playback feature such as remote live view and playback recordings. In addition, the account on the VioStor NVR can be used to connect to an unlimited number of NVRs and IP cameras by VMobile through Wi-Fi, 3G, or 4G networks.

Camera function

Fisheye Dewarping
The fisheye dewarping function, available on the web and local display interface for specific fisheye cameras and specific cameras with panomorph lens, assists in doing practical surveillance management, allowing the administrators to view the monitoring area in a clearer shape.

Security Control

Authority Management Create multiple users on the VioStor NVR and assign them to different user groups (administrator, system manager, or user) with different rights for doing monitoring, playback, PTZ control, and audio monitoring.
Auto Logoff The VioStor NVR supports automatic user logoff from idling configuration pages. The administrator can set the timeout period to log off the users when the idling time has been reached.
Host Access Control Specify the host or IP connections to be allowed or denied to access the NVR.
On-line User List View the record of users currently logged on and previously logged on to the NVR.
Detailed Event Logs The VioStor NVR provides detailed event logs of system warnings, hard disk errors, network disconnections, UPS status, and access to the networking services of the NVR and video recordings

High Reliability and Smart Features

Advanced RAID with Hot-swap Design
The VioStor NVR supports RAID 0, 1, 5, 6, 5+hot spare, single, 6+hot spare and JBOD disk configurations. Its hot-swap design allows a failed drive of a disk volume (RAID 1 or above) to be replaced by hot swapping without turning off the server.

Online RAID Capacity Expansion and Online RAID Level Migration Online RAID Capacity Expansion The storage capacity of a RAID configuration can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process.
Online RAID Level Migration Upgrade the disk configuration to a higher RAID level with the data retained without turning off the server.
S.M.A.R.T. & Advanced HDD Health Scanning (HHS) S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) helps monitor the hard disk drives status. The VioStor NVR supports HHS (HDD Health Scan) for doing disk checking and bad blocks scanning.
Automatic System Startup after Power Recovery The VioStor NVR supports automatic system startup after a power recovery.
UPS Support for 24/7 Service The VioStor NVR supports APC, CyberPower, MGE, and YEC UPS devices to provide continuous services 24/7 against unexpected power outages.

DOM Architecture with Embedded Fail-safe Dual OS for Enhanced Reliability
All the OS and applications of the VioStor NVR are embedded in the DOM. The VioStor NVR allows system booting without accessing the physical disk sectors to prevent from unsuccessful system startup caused by bad blocks or file errors on the hard drives. Two operating systems are built on the DOM to boot the system alternatively upon every system startup. When one fails, the other one can be used for system startup and the failed OS is recoverable from the other healthy OS.

Network Services

Dual Gigabit LAN Ports

• Failover
  This mode allows the VioStor NVR to sustain the failure of one network port to provide continuous services.
• Load Balancing
  This mode provides bandwidth aggregation to boost the file transfer speed (works with managed Ethernet switch with 802.3ad configured).
• Multi-IP Settings
  Two IP settings can be configured on the NVR to allow network access from two different subnets.

Built-in DDNS Service
The VioStor NVR supports dynamic DNS (DDNS) for convenient access to the system by a domain name instead of a lengthy IP address.

Built-in NTP Server
This feature allows the connected IP cameras to synchronize their date and time settings with the NVR.

Convenient Data Access
The video data on the VioStor NVR can be accessed via the following protocols with proper access rights:

• SMB/CIFS (Windows).
• HTTP (Web file management)
• FTP

Easy Configuration and Management

System Setup in Simple Steps
The NVR can be set up in 6 simple steps via the local display or web-based interface (Internet Explorer).

Web-based User Interface
All the system configurations, monitoring, and playback features of the NVR can be managed by the web-based interface.

Smart Search of IP Cameras for Quick Settings
QNAP provides an intelligent software utility, Finder, to search for IP cameras and configure the system settings on the local network quickly.

Advanced Event Management:

Advanced event management can be divided into two parts:

Events

The VioStor NVR supports different event types, including motion detection, alarm input, connection failure, recording failure, and user-defined event to trigger follow-up actions.

	Motion Detection When the IP camera detects any movement, the defined actions will be activated.
	Alarm Input When the VioStor NVR receives a signal from the IP camera's alarm input, the defined actions will be activated.
	Connection Failure When the VioStor NVR fails to connect to the IP camera, the defined actions will be triggered.
	Recording Failure When the VioStor NVR fails to record video due to hard drive failure or system crash, the defined actions will be triggered.
	User-defined Event* The VioStor NVR supports user-defined events. The administrator can enter the CGI command in the browser to trigger the event, and the defined actions will be activated.

Actions

The NVR supports different actions when an event is triggered. These actions include multi-channel recording, adjusting the PTZ camera to the preset position, alarm output, built-in buzzer, email & SMS alert, and user-defined action.

	Recording When an event is triggered, the VioStor NVR starts recording one or more channels at the same time.
	Camera Control When an event occurs, the PTZ camera will be adjusted to the specified preset position for monitoring and recording. Use HTTP URL to activate further actions.
	Alarm Output When an event occurs, the alarm output from the IP cameras will trigger other alert systems, such as lighting system, auto phone dialing system, security system and so on**.
	SMS The VioStor NVR sends an SMS message to inform the specified recipients when an event occurs.
	Email When an event occurs, the VioStor NVR sends an email with snapshot to notify the specified recipients.
	Buzzer The buzzer of the VioStor NVR will sound when an event occurs.
	User-defined Action The VioStor NVR supports user-defined actions. Enter the HTTP URL from other surveillance systems. When an alert occurs, the NVR will activate other systems, such as extinguishing system, electronic control system, and air conditioning control system.

* The administrator can enter the following URL in the browser to trigger the event: http://NVR IP/cgi-bin/logical_input.cgi?name=User-defined Event Name
** The VioStor NVR supports the alarm output of AXIS, Panasonic, SONY, ACTi, and VIVOTEK camera models.

Playback Features:

Multi-view Playback
Use the multi-view playback feature to divide a video equally into multiple sessions for playback in a multi-view window, or play the videos of multiple IP cameras in the multi-view window simultaneously.

Real-time Digital Watermarking The VioStor NVR supports digital watermarking to protect the videos from unauthorized modification.
Data Search by Date & Time, Timeline, Event, and Intelligent Video Analytics (IVA) The VioStor NVR supports quick search of recording data by date and time, timeline, event, and intelligent video analytics (IVA), including motion detection, foreign object, missing object, out of focus, and camera occlusion.

Motion Detection: Detects movement in the video. The moving objects of the search area are highlighted in red brackets.
Foreign Object: Detects a new object in the video. The foreign objects of the search area are highlighted in yellow brackets.
Missing Object: Detects a missing object in the video. The missing objects of the search area are highlighted in yellow brackets.
Out of Focus: Detects if the IP camera is out of focus.
Camera Occlusion: Detects if the IP camera is obstructed.

Solutions:

QNAP Network Attached Storage (NAS) Solution for Surveillance Applications

High Capacity, Reliability, and Availability Storage Solutions for Video Recording

Turbo NAS Series for Recording Storage Expansion 2, 4, 5, 6, 8, and 10 drive tower models and 4-bay 1U, 8-bay 2U, 12-bay 2U rackmountmodels Secure, reliable, scalable iSCSI and virtualization deployment with high capability/price value	System Management Tools Comprehensive event logs Email, SMS, and Instant Messaging alert SNMP (Simple Network Management Protocol) S.M.A.R.T. & Advanced Hard Drive Health Scan (HHS) Touch-N-Go PC-less installation Scheduled power on/off Wake on LAN
Local Backup Storage expansion for PC-based DVR Video backup from a NAS to another NAS on the local network Real-time or scheduled data backup	High Reliability and Smart Features RAID 0, 1, 5, 6, 10, 5+hot spare, 6+hot spare, 1 0+hot spare, JBOD Online RAID capacity expansion & online RAID level migration Dual Gigabit LAN for network fail-over or load-balancing Redundant Power Supply (for rackmount models) Linux-embedded DOM-based architecture
Remote Replication Real-time Remote Replication (RTRR) provides real-time or scheduled data replicationbackup to a remote QNAP NAS, an FTP server, or an external drive Remote replication to an rsync server Encrypted Remote Replication by Rsync	Storage Expansion for Video Recording iSCSI target for storage expansion of video recording serve Real-time remote replication to back up new and modified files immediately to a remote NAS Surveillance storage expansion onto multiple Turbo NAS servers

Central Management System

Manage and monitor up to 128 IP cameras centrally on a single Turbo NAS by connecting multiple Turbo NAS units to minimize management efforts.

Manage large-scale cameras
By connecting multiple Turbo NAS units, you can manage, monitor and play back up to 128 IP cameras managed by the Turbo NAS at the same time from a single unit. This scalability provides greater flexibility for deploying a smaller surveillance system in the beginning and expanding the surveillance scale in the future when needed.

Specifications:

VS-2212 Pro+ Specifications
Processor	Quad-core Intel® 2.0GHz processor (burst up to 2.41GHz)
Memory	4GB DDR3L RAM
HDD Capacity	2 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive Note: The system is shipped without HDD.
Hard Drive Tray	2 x hot-swappable and lockable tray

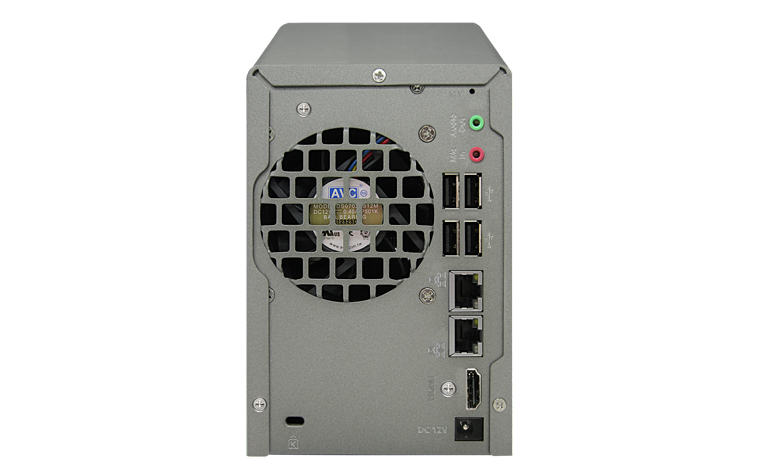

LAN Port	2 x Gigabit RJ-45 Ethernet port
LED Indicators	LAN, HDD1, HDD2, Status, USB, Power
USB	3 x USB 3.0 port (Front: 1, Rear: 2) Support pen drive, USB mouse, USB keyboard, USB sound card, and USB UPS etc.
Buttons	Power button, One-touch-auto-video-backup button, Reset button
Alarm Buzzer	System warning
Audio	Audio In/Out for local display
Form Factor	Tower
Dimensions	150 (H)x 102(W) x 216(D) mm 5.91(H) x 4.02(W) x 8.5(D) inch
Weight	Net weight: 1.74 kg (3.84lbs) Gross weight: 2.92 kg (6.44lbs)
Temperature	0~40˚C / 32~104˚F
Relative Humidity	5~95% RH non-condensing, wet bulb: 27˚C.
Power Supply	External power adapter, 90W, 100-240V
Power Consumption (W)	In Operation: 16.34W (with 2 x 1TB HDD installed)
Secure Design	K-Lock security slot for theft prevention
Video Output	HDMI (HDMI 2 is reserved) Suggested video output resolution: 1920 x 1080 (Full HD)
Fan	1 x quiet cooling fan (70 mm, 12V DC)
Certification	CE, FCC, VCCI, BSMI
Package Contents	VS-2212 Pro+ CD-ROM Ethernet cable x 2 Power cord Screw pack Terminal Block Quick Installation Guide Adaptor Hard Disk Lock

Software Specifications:

Recording
Supported Camera Models	Please visit http://www.qnapsecurity.com
Number of Channels Supported (Recording)	Up to 12
Video Compression	H.264/ MPEG-4/ M-JPEG/ MxPEG (depending on the camera models)
Video Setting	Video compression, resolution, quality, frame rate, audio
Recording Mode	Continuous/ manual/ schedule recording Alarm recording/ multiple alarm recording schedules Auto snapshot
Buffer Storage for Alarm Images (before and after events)	Pre-recording: Up to 300 sec Post-recording: Up to 300 sec
Recording Performance	Up to 30 fps at 1080P, 720P, VGA for each channel * Real performance may vary in different environment
Megapixel Recording	Supports megapixel cameras (up to 10-megapixel)
Network Throughput	180 Mbps
File Format	AVI (QNAP codec is required for playback)
Recording Enhancement	Real-time digital watermarking, auto snapshot
Application
Fisheye Dewarping	Support the specific fisheye IP Cameras and IP camera with panomorph lens on remote monitoring/playback and local display interface
Local Display
Display Mode	1, 4, 6, 8, 9, 10, or 12-channel display mode, sequential display mode
Hardware Decode	Full HD 1080P 200FPS *The NVR will auto detect H.264 stream format and activate hardware decoder for 12 CH live view.
Local Monitoring Enhancement	Full screen display, event notification, PTZ control, digital zoom
Local Playback	Single view playback from local NVR server
Search Mode for Local Playback	By date & time
Playback Control	Play, pause, stop, reverse play, next/ previous video file, different speed control
Local Playback Enhancement	Full screen display, digital zoom
Export	Convert multiple recording files to the external USB device instantly
System Administration	Quick configuration, administration password, network settings, time settings, disk volume configuration, camera settings
Remote Monitoring
Display Mode	1, 4, 6, 8, 9, 10, 12, 16, 20, 25, 36,42 or 64-channel display, sequential mode
Video Compression	H.264/ MPEG-4/ M-JPEG/ MxPEG (depending on the camera models)
Video Setting	Resolution, quality, frame rate
Multi-server Monitoring	Up to 128-channel monitoring from multiple VioStor NVR servers (browser-based)
Monitoring Enhancement	Full screen display, video snapshot, manual recording, event notification, PTZ control, digital zoom
E-map	Uploading the digital maps and indicating the locations of the IP cameras and GPI devices of a monitoring location or region
Remote Playback
Display Mode	1, 4, 6, 8, 9, 10, 12 or 16-channel display
Search Mode	By date & time, timeline, event, and intelligent video analytics (IVA)
Intelligent Video analytics (IVA)	Motion detection, missing object, foreign object, out of focus, and camera occlusion
Playback Mode	Play, pause, stop, reverse play, next/ previous frame, next/ previous video file, different speed control
Playback Enhancement	Full screen display, video snapshot, digital zoom, digital watermarking
Export	Convert recording files to one avi file
Download	Download recordings via the web
QNAP Surveillance Client for Mac
Display Mode	1, 4, 6, 8, 9, 10, 12, or 16-channel display mode, sequential display mode
Monitoring Enhancement	Full screen display, event notification, PTZ control, digital zoom
Playback	Single view playback
Search Mode for Playback	By date & time
Playback Control	Play, pause, stop, reverse play, next/ previous video file, different speed control
Playback Enhancement	Full screen display, digital zoom
Export	Convert multiple recording files to Mac device instantly
Advanced Event Management
Events	Motion detection, alarm input, connection failure, recording failure, and user-defined event
Actions	Video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output, and user-defined action
Backup
Schedule Remote Replication	Schedule video data backup to a NAS on the local network
Security Control
Authority Management	Different user groups and rights can be assigned to different users
Host Access Control	Specify the connections to be allowed and denied to access the VioStor NVR
Auto Logoff	Automatic user logoff from idling configuration pages
Event Logs	Detailed event logs
On-line Users List	Record of the users currently logged on and previously logged on to the VioStor NVR
Digital Watermarking	Verify whether or not the videos and snapshots are original
Reliability
Operation System	Linux-embedded system, free from PC crash and virus attack
Disk Management	Single disk, RAID 0, RAID 1, and JBOD/Linear Online RAID Capacity Expansion, Online RAID Level Migration HDD S.M.A.R.T., bad blocks scan
UPS	APC/ CyberPower/ Epson/ MGE/ YEC (USB UPS)
Network Services
Support	HTTP, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, NTP, UPnP, failover, load-balancing, multi-IP setting
Dual Gigabit LAN	Failover / load-balancing / multi-IP setting
Services	Web File Manager, FTP, SMB/CIFS
Language Support
Language	Czech, Danish, Dutch, English, French, Finnish, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Traditional Chinese, Turkish
Remote Surveillance
Client PC	Google Chrome, Internet Explorer, Mozilla Firefox (Browser-based) QNAP Surveillance Client for Windows
Mac	QNAP Surveillance Client for Mac
Android Tablet, phone	VMobile
iPad, iPhone, iPod Touch	VMobile
Windows Mobile (6.1, 6.5) Device	VMobile
Client PC Requirement (Suggested system requirement for better video performance)
CPU	M-JPEG format (up to 12 channels): Intel Pentium 4 CPU, 3.0GHz or above MPEG-4/ H.264/MxPEG format (up to 12 channels): Dual core CPU, 2.8GHz or above * For higher surveillance performance, please select more advanced PC models.
Memory	2 GB or above
Operation System	Microsoft Windows Vista/ 7/ 8 or Mac OS X 10.7.x, 10.8.x
Web Browser	Microsoft Internet Explorer 8/9/10/11 (Windows PC, desktop mode, 32-bit) Google Chrome 34.0.1847.116 m (Windows PC) Mozilla Firefox 28.0 (Windows PC)
Network Interface	10/100/1000 Mbps
Display Resolution	1280 x 720 pixels or above
Utility Software
QNAP Finder	The client application to discovery and quick setup of the VioStor NVR
QNAP Surveillance Client For Windows	The client application used to remotely access QNAP NVR servers for performing video monitoring and playback functions on client PC.
QNAP Surveillance Client For Mac	The client application used to remotely access QNAP NVR servers for performing video monitoring and playback functions on Mac.
QNAP Codec	The video codec to play the recording files on Windows Media Player.
VMobile	The Mobile App to monitor the network cameras on the VioStor NVR by the Android phone, Android tablet, iPhone, iPad, iPod touch, and Windows mobile (6.1, 6.5) device.

Product Views:

Front View	Left View	Left Angle View	Right View
Drives Pullout View	Rear View

Documentation:

Download the QNAP Network Video Recorder and QVR Datasheet (PDF).
