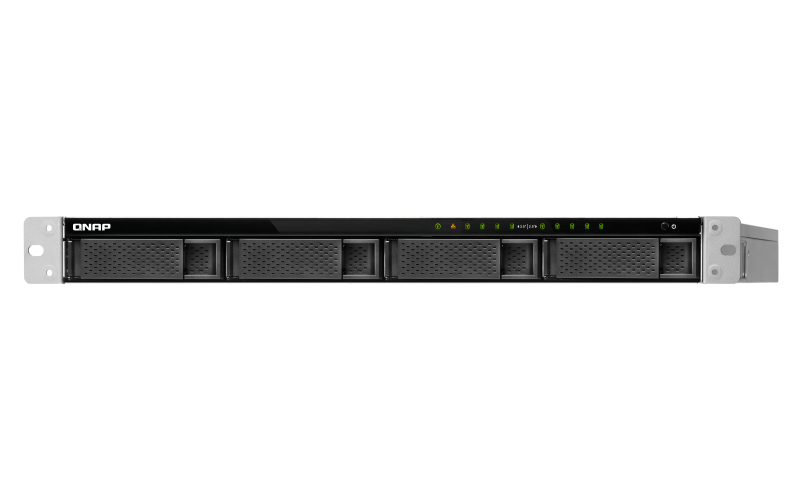

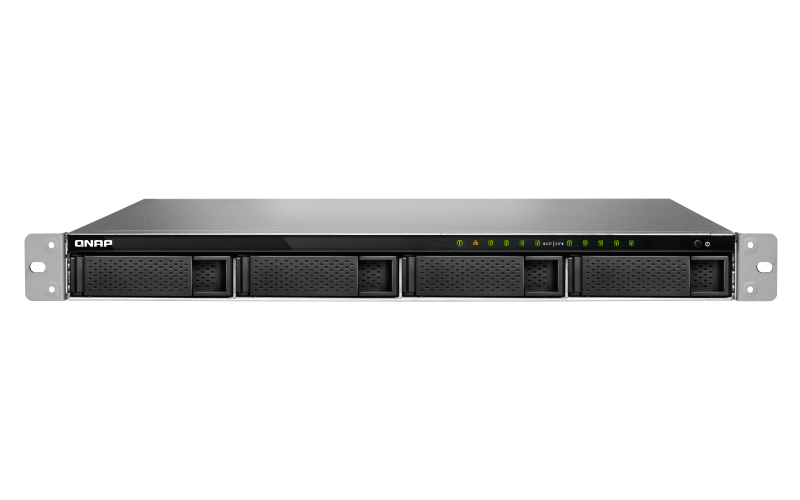

QNAP TS-977XU
HDD + SSD hybrid-structure AMD Ryzen™ 1U rackmount NAS with up to 4 cores/4 threads
Sorry, this product is no longer available, please contact us for a replacement.
Want to build a custom bundle? Contact us!
Overview:
Powered by AMD’s powerful Ryzen™ processor, the TS-977XU delivers high system performance with up to 4 cores/4 threads and Turbo Core up to 3.4 GHz. The TS-977XU features a hybrid structure with four 3.5-inch HDD and five 2.5-inch SSD drive bays, allowing for enabling SSD caching and Qtier™ auto-tiering technology to greatly boost IOPS to meet the performance requirements of demanding applications. The TS-977XU features two SFP+ 10GbE ports and two Gigabit ports for high-speed connectivity, providing businesses and organizations with an ideal solution for quickly deploying a high-bandwidth, high-reliability storage environment.

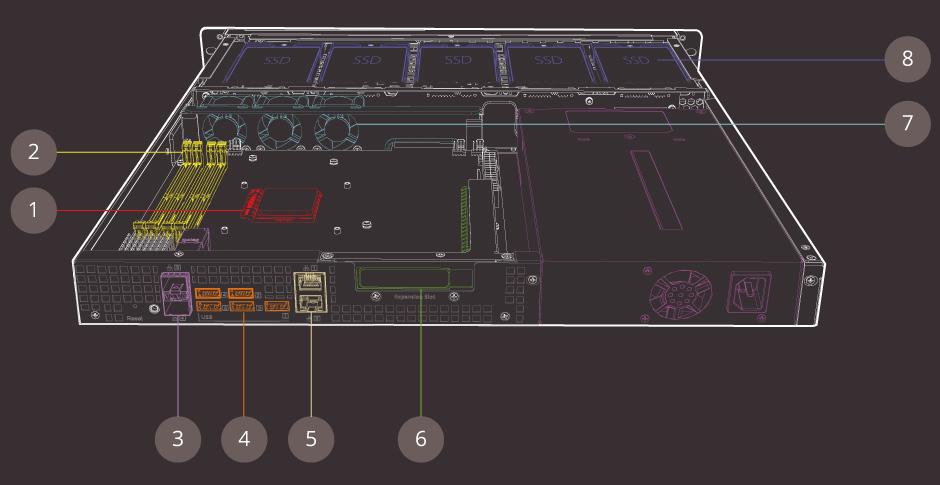

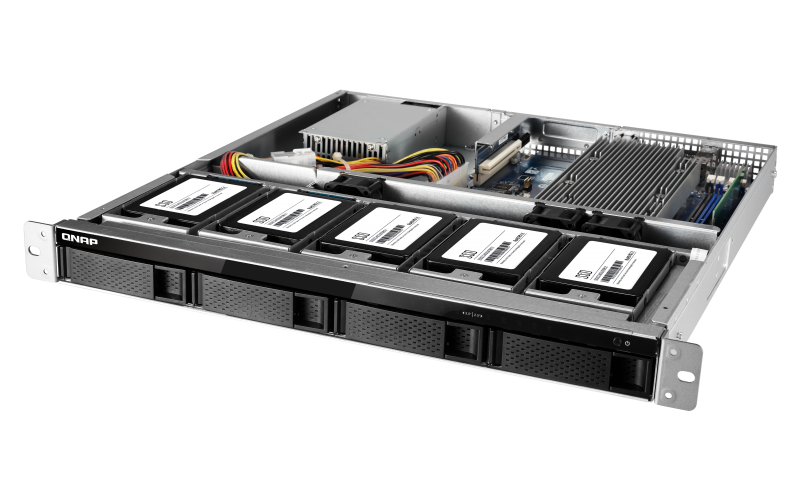

Top-class hardware engineering with high I/O expandability
The hardware design of the TS-977XU provides exceptional system performance and expandability to fulfill diverse application requirements.
![overview-1](/images/SMB/TS-977XU/overview-1.jpg)
- Multi-core AMD Ryzen™ processor
- DDR4 2400 MHz memory
- 2 x 10GbE SFP+ ports
- USB 3.0/ 3.1 ports
- 2 x Gigabit Ethernet ports
- 1 x PCIe expansion slots
- Three 4cm System fans
- Five 2.5-inch SSD drive bays
Absolute performance with AMD Ryzen™ and up to 64GB RAM
Powered by a high-performance AMD Ryzen™ 3 1200 processor or Ryzen™ 5 2600 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-977XU delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-977XU.
![overview-2](/images/SMB/TS-977XU/overview-2.gif)

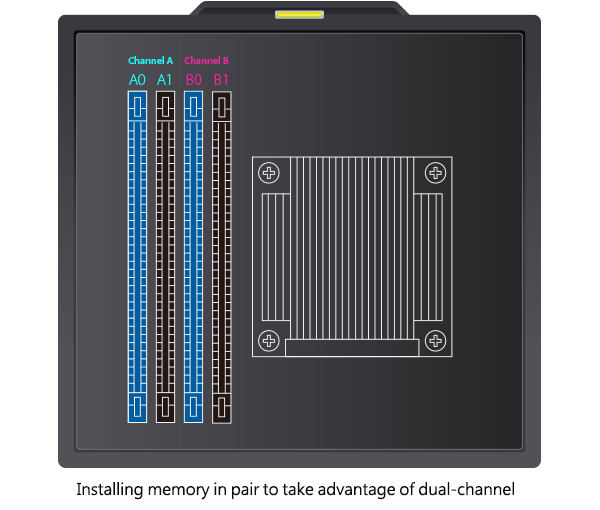

Dual-channel Memory to deliver power-smart performance
The TS-977XU supports dual-channel DDR4 memory and features four Long-DIMM slots. When using paired memory modules, the TS-977XU leverages the power of dual-channel architecture to boost performance. You can also customize the memory configuration (supports up to 64GB RAM) of the TS-977XU, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.
Extend NAS functionality with PCIe slots
The TS-977XU features a PCIe slot that allows for installing a 10GbE/40GbE network card, a QM2 M.2 SSD/10GbE PCIe card, or a wireless network card to provide greater application potential.
![overview-3](/images/SMB/TS-977XU/overview-3.png)
10GbE/ 40GbE adapters
Supports lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.
![overview-4](/images/SMB/TS-977XU/overview-4.png)
QM2 card with M.2 SSD/10GbE support
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.
![overview-5](/images/SMB/TS-977XU/overview-5.png)
Wireless network cards
Use with the WirelessAP Station app to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

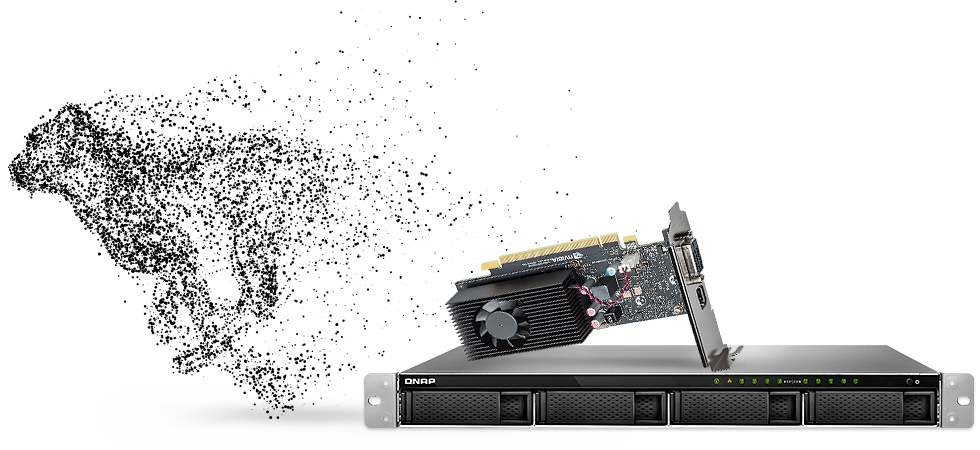

Install a graphics card for GPU-accelerated computing
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-977XU provides a 250 watt power supply and a PCIe slot that supports low-profile AMD Radeon™ or NVIDIA® GeForce® graphics cards that do not require additional power. Installing a graphics card can boost performance of applications such as video editing, 4K video transcoding, imaging processing in QTS and the performance of virtual machines via GPU passthrough.
![overview-6](/images/SMB/TS-977XU/overview-6.png)
![overview-6](/images/SMB/TS-977XU/overview-7.gif)

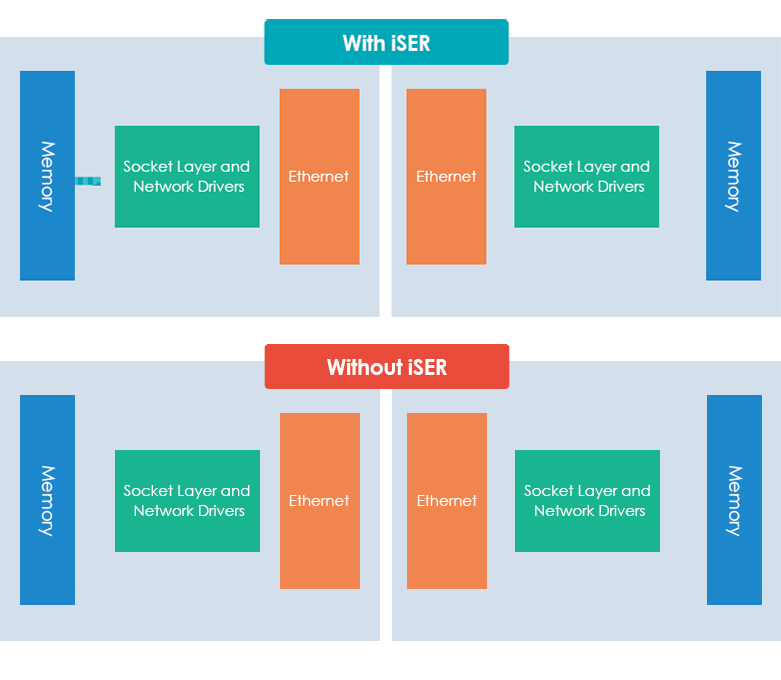

Optimized performance for VMware Virtualization with iSER
With the built-in dual 10GbE ports that natively features Mellanox® ConnectX-4, the TS-977XU supports the iSCSI Extensions for RDMA (iSER) protocol to boost data transfer performance of the TS-977XU as VMware® ESXi storage and to reduce the CPU load of the ESXi server. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.
Features:
![](/images/SMB/TS-977XU-RP/feat-1.png)
Install up to five SSDs in the 2.5-inch drive bays to enable SSD caching and Qtier for optimal system performance.
![](/images/SMB/TS-977XU-RP/feat-2.png)
Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
![](/images/SMB/TS-977XU-RP/feat-3.png)
PCIe expandability allows for installing QM2 expansion card, USB 3.1 Gen 2 (10Gbps) cards, or wireless network cards.
![](/images/SMB/TS-977XU-RP/feat-4.png)
Snapshots add an extra layer of protection for disaster recovery plans. You can set a custom snapshot schedule and can use snapshots to recover data from a local or remote NAS.
![](/images/SMB/TS-977XU-RP/feat-5.png)
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
![](/images/SMB/TS-977XU-RP/feat-6.png)
Besides using QNAP storage expansion enclosures, you can also leverage QNAP VJBOD technology to use the unused storage space from other NAS.
Specifications:
CPU | AMD Ryzen™ 3 1200 4-core/4-thread 3.1 GHz processor, Turbo Core 3.4 GHz Architecture: 64-bit Graphics: Optional (with PCIe expansion card) Encryption Engine: AES-NI |
System Memory | 4 GB UDIMM DDR4 (1 x 4GB) |
Maximum Memory | 64 GB (4 x 16 GB) |
Memory Slot | 4 x Long-DIMM slots (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) |
Drive Bay | 4 x 3.5-inch SATA 6 Gbps bays HDD 5 x 2.5-inch SATA 6 Gbps bays SSD |
Drive Compatibility | 3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives 2.5-inch drive bay • 2.5-inch SATA solid state drives |
10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC ports |
Gigabit Ethernet Port | 2 x RJ45 |
USB Port | 1 x 3.1 Gen 2 (10 Gbps) Type-A 4 x USB 3.0 Type-A |
PCIe Slot | Slot 1: Gen3 x16 |
HDMI Output | Optional: With PCIe expansion card |
Form Factor | 1U Rackmount |
Dimensions (H x W x D) | 43.3 x 482.6 x 484.15 mm 1.7 x 18.99 x 19.06 inch |
Weight | Net weight: 7.44 kg (16.4 lbs) |
Power Supply Unit | 250W, 100-240V AC, 50/60Hz |
Power Consumption (W) | In operation: 64.22 W |
Fan | 3 x 4.0cm fan (12V DC) |
Sound Level | 39.2 dB(A) |
Operating Temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Documentation:
Datasheet for QNAP TS-977XU is coming soon.
