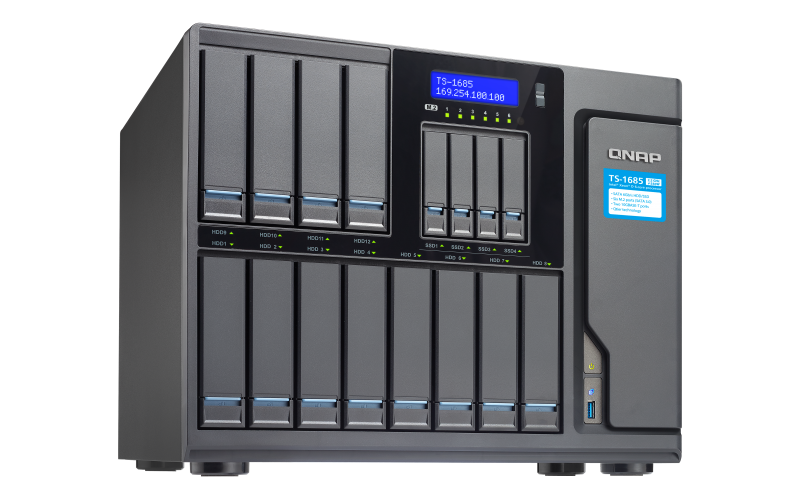

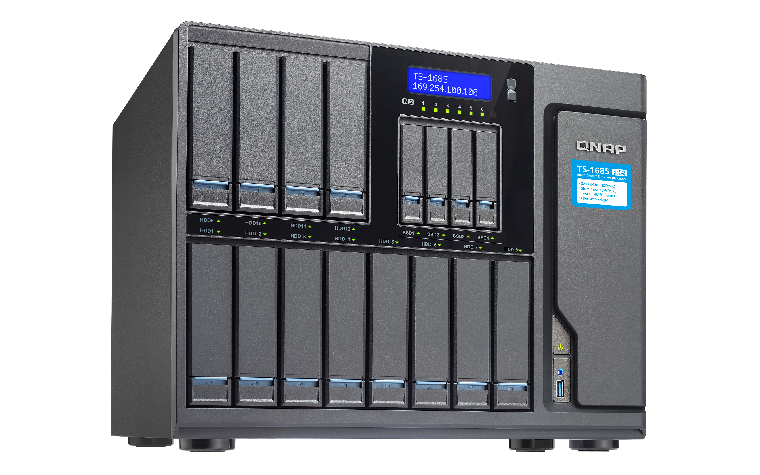

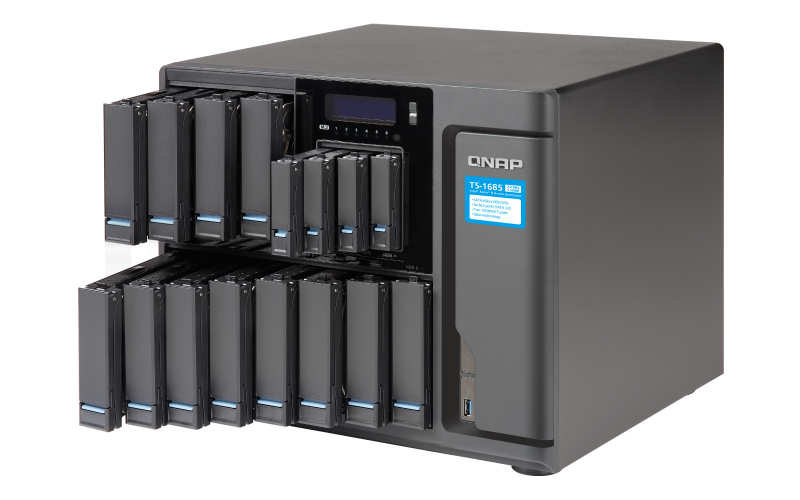

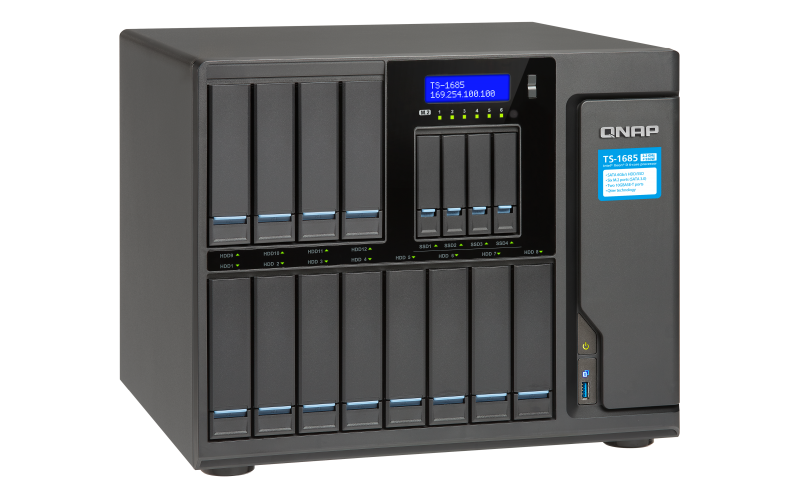

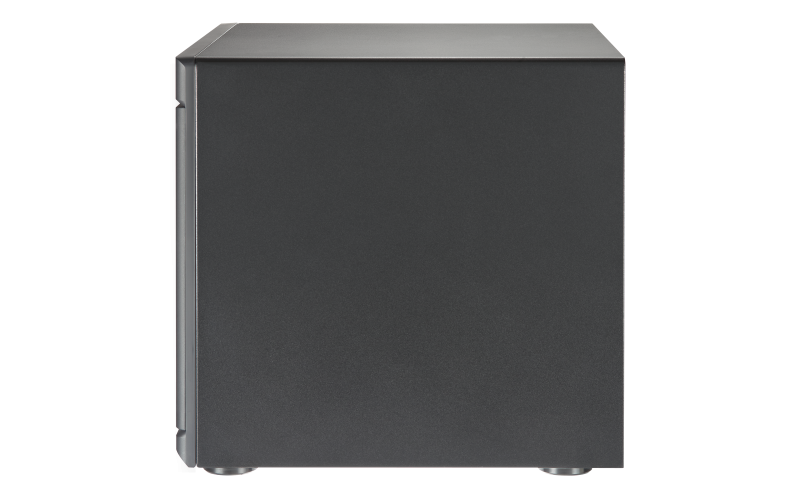

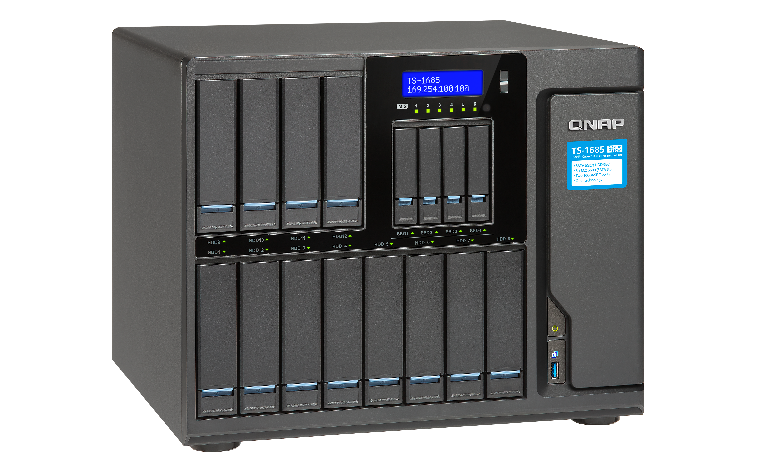

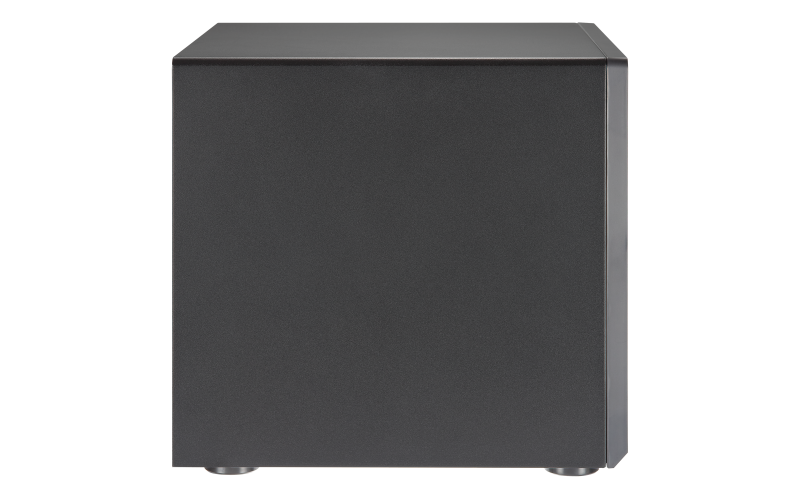

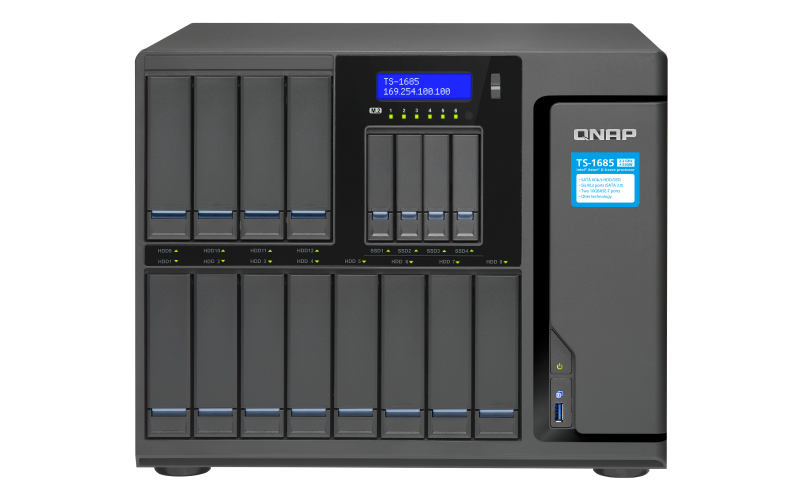

QNAP TS-1685
Cost-effective quad-core NAS with dual 10GbE SFP+ ports

TS-1685 TS-1685 TS-1685 TS-1685 TS-1685 TS-1685 TS-1685 TS-1685
TS-1685

Sorry, this product is no longer available, replaced by the TVS-h1688X.



Overview:

Supporting up to twelve 3.5" HDDs and four 2.5" SSDs, the TS-1685 is a high-capacity, robust, and reliable business NAS powered by an Intel® Xeon® D processor. Designed to optimize enterprise IT infrastructure, the TS-1685 comes with three PCIe slots that support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards. Incorporating security and scalability, the TS-1685 presents an ideal choice for a complete business-ready storage solution with cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization, and more business applications.

Package Content

  • QNAP TS-1685 Enterprise Storage
  • 4 x Ethernet Cables
  • 2 x 10GBASE-T Ethernet Cables
  • 1 x Power Cord
  • Flat Head Screws (for M.2 SSD)
  • Flat Head Screws (for 2.5" HDD)
  • 6 x M.2 SSD cooling module
  • Quick Installation Guide (QIG)
  • NAS and iSCSI-SAN unified storage solution
  • Built-in M.2 SATA 6Gb/s slots & 2.5” SSD slots
  • Qtier technology and SSD caching enable 24/7 optimized storage efficiency
  • 10GbE/40GbE-ready, highly-efficient storage solution for virtualization and intensive data transmission
  • Supports virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery
  • Q’center for centrally managing all of your NAS devices, and QRM+ as a centralized management solution for networked computing devices
  • Qfiling enabling automated file organization, Qsirch full-text search engine, and QmailAgent for centralized email management
  • Scalable up to 56 drive capacity with QNAP expansion enclosures

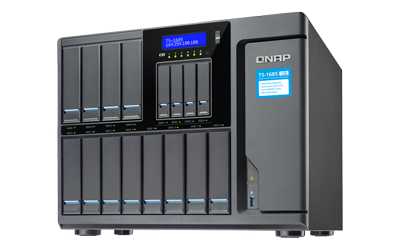

TS-1685 overview

Specifications:

TS-1685 Specifications
Ordering P/N TS-1685-D1521-16G
TS-1685-D1521-32G
TS-1685-D1521-32G-550W
TS-1685-D1531-32G
TS-1685-D1531-64G
TS-1685-D1531-64GR
TS-1685-D1531-128GR
TS-1685-D1531-64GR-550W
TS-1685-D1531-128GR-550W
CPU TS-1685-D1521-16G/TS-1685-D1521-32G/TS-1685-D1521-32G-550W:
Intel® Xeon® Processor D-1521, 4-core 2.4 GHz

TS-1685-D1531-32G/TS-1685-D1531-64G/TS-1685-D1531-64GR/TS-1685-D1531-128GR/TS-1685-D1531-64GR-550W/TS-1685-D1531-128GR-550W:
Intel® Xeon® Processor D-1531, 6-core 2.2 GHz
System Memory Total DIMM slots: 4
Maximum memory: DDR4 128GB (with DDR4 32GB RDIMM x 4)

Memory modules pre-installed:
TS-1685-D1521-16G: 16GB non-ECC RAM (8GB UDIMM x 2)
TS-1685-D1521-32G: 32GB non-ECC RAM (16GB UDIMM x 2)
TS-1685-D1521-32G-550W: 32GB non-ECC RAM (16GB UDIMM x 2)
TS-1685-D1531-32G: 32GB non-ECC RAM (16GB UDIMM x 2)
TS-1685-D1531-64G: 64GB non-ECC RAM (16GB UDIMM x 4)
TS-1685-D1531-64GR: 64GB ECC RAM (16GB RDIMM x 4)
TS-1685-D1531-128GR: 128GB ECC RAM (32GB RDIMM x 4)
TS-1685-D1531-64GR-550W: 64GB ECC RAM (16GB RDIMM x 4)
TS-1685-D1531-128GR-550W: 128GB ECC RAM (32GB RDIMM x 4)
Flash Memory 512 MB DOM
Hard Drive Tray 12 x 2.5"/3.5" HDD/SSD slot
4 x 2.5" SSD slot
Supported Hard Drive SATA 6Gb/s HDD and SSD
M.2 Slot 6 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD
Note:
1. The M.2 SSD is not included as standard.
2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
LAN Port 2 x 10GBASE-T ports, 4 x Gigabit ports
USB Front: 1 x USB 3.0 port; Rear: 2 x USB 3.0 port
Audio Output 1 x built-in speaker, 1 x 3.5mm Line-out jack
Note: Only one of the above audio output ports can work at a time. If a speaker is connected, the sound will output through the speaker.
LED Indicators System status, 2.5” SSD, M.2 SSD, 3.5” HDD
Buttons System: Power button, Reset button, USB one-touch-backup button
Form Factor Desktop
Dimension (HxWxD) 303.84 x 369.89 x 319.8 mm
11.96 x 14.56 x 12.59 inch
Weight Net weight (NAS only): 13.39 kg/ 29.52 lb
Gross weight (with packing and accessories): 15.96 kg/ 35.19 lb
Sound Level (dB)* Sound Level (dB) Sound pressure (LpAm) (bystander position): 22.5 dB
(with 12 x Seagate ST2000VN000 hard drive and 4 x SSD installed)
Power Consumption (W) Sleep mode: 61.36 W
In Operation: 127 W
Temperature 0-40˚C
Relative Humidity 5~95% non-condensing, wet bulb: 27˚C.
Power Supply TS-1685-D1521-16G/TS-1685-D1521-32G/TS-1685-D1531-32G/TS-1685-D1531-64G/TS-1685-D1531-64GR/TS-1685-D1531-128GR:
100-240V~, 3-1.5A, 60-50Hz, 250W PSU

TS-1685-D1521-32G-550W/TS-1685-D1531-64GR-550W/TS-1685-D1531-128GR-550W:
100-240V~, 3-1.5A, 60-50Hz, 550W PSU
PCIe Slot Number: 3
Slot 1: PCIe Gen.3 x8
Slot 2: PCIe Gen.2 x4
Slot 3: PCIe Gen.3 x8
Fan System: 3 x 9.2cm fan (12V DC)
CPU: 2 x 9cm fan

* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS
