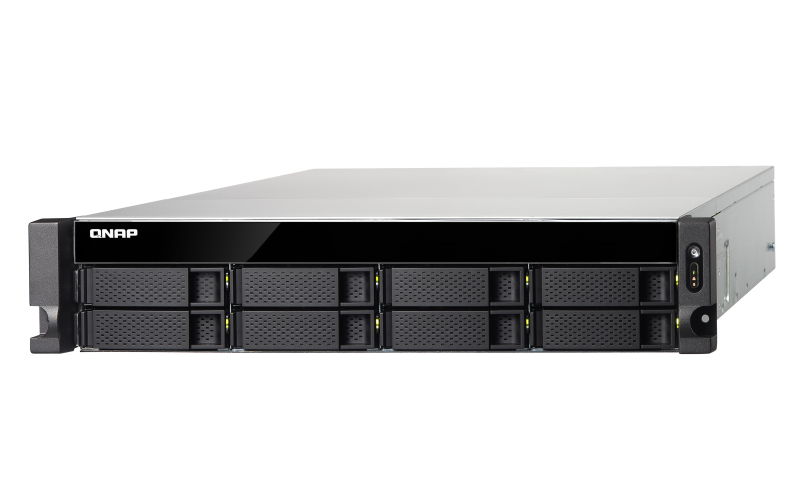

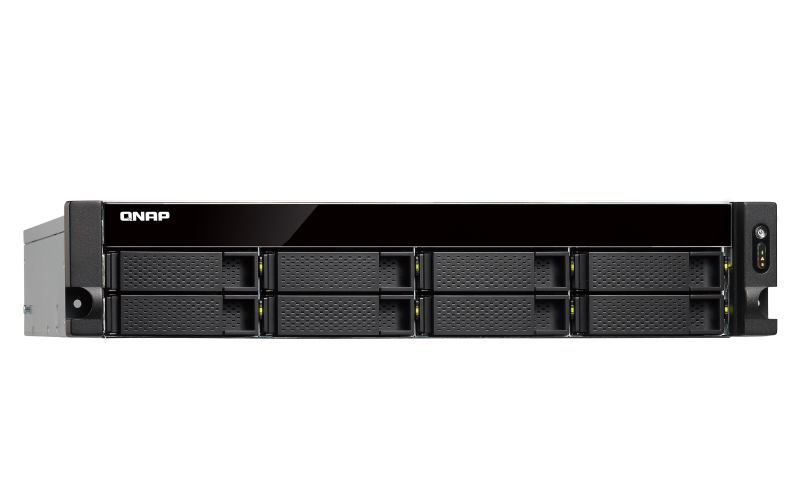

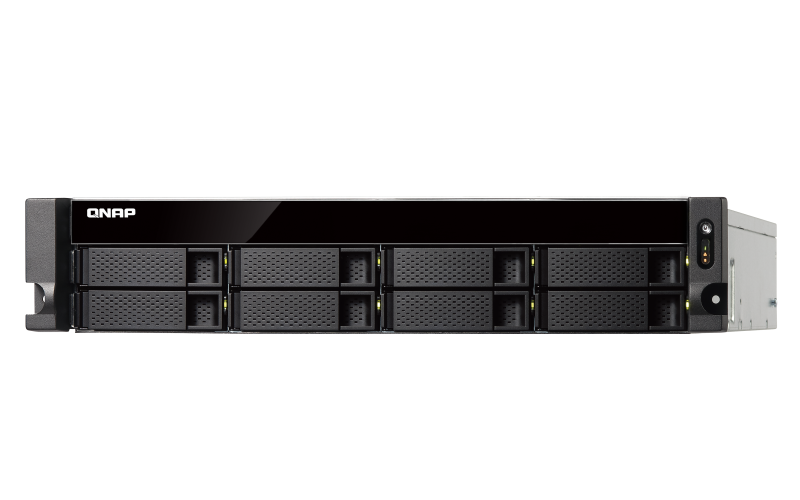

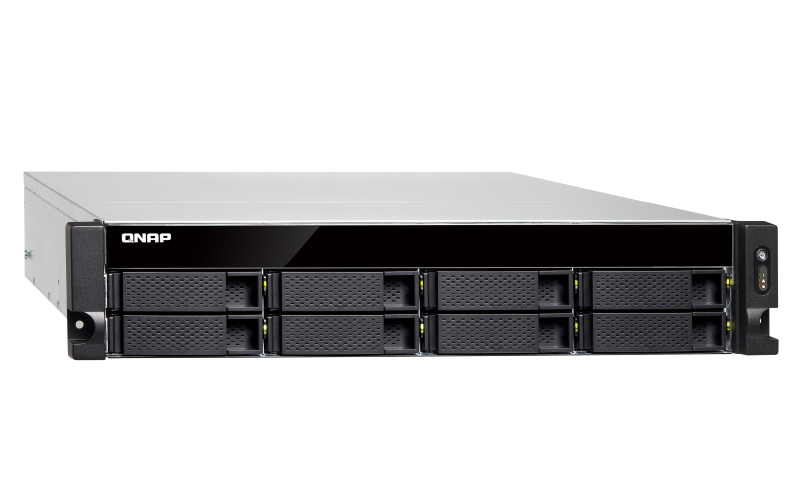

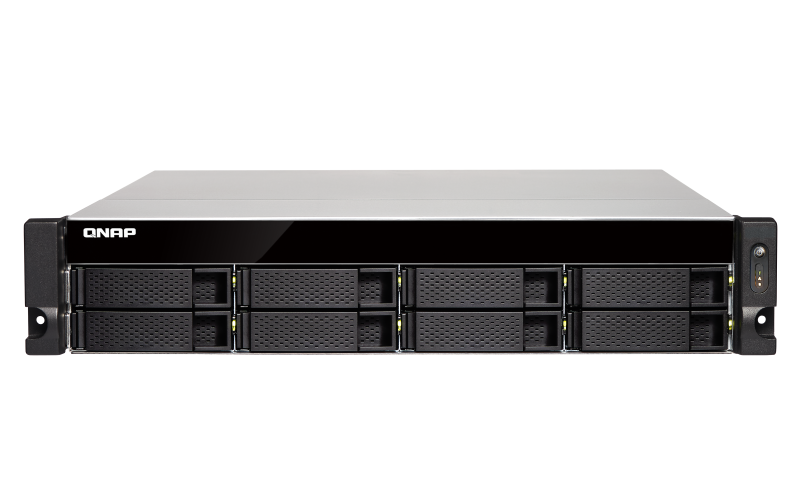

QNAP TS-863XU
High-performance quad-core 10GbE NAS

Sorry, this product is no longer available, please contact us for a replacement.

Want to build a custom bundle? Contact us!

Overview:

The cost-efficient 10GbE-ready TS-863XU is powered by a high-performance AMD G-Series quad-core processor. Featuring native 10GbE connectivity that delivers high performance with persistent throughput, along with storage scalability, the TS-863XU is perfect for businesses that demand higher bandwidth for data centers and virtualization.

Package Content

  • TS-863XU-RP
  • 2 x Ethernet Cables
  • 2 x Power Cords
  • Flat Head Screw (for 3.5" HDD)
  • Flat Head Screws (For 2.5" HDD)
  • Quick Installation Guide (QIG)

High performance and AES-NI accelerated encryption

The TS-863XU is equipped with an energy-efficient 64-bit AMD G-Series GX-420MC quad-core 2.0 GHz processor with 4GB DDR3L RAM (upgradable to 16GB), one 10GbE 10GBASE-T port, four Gigabit Ethernet ports, and SSD caching support for excellent multi-tasking performance. With a hardware-accelerated AES-NI encryption, the TS-863XU also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS.

Integrated 10GbE 10GBASE-T connectivity

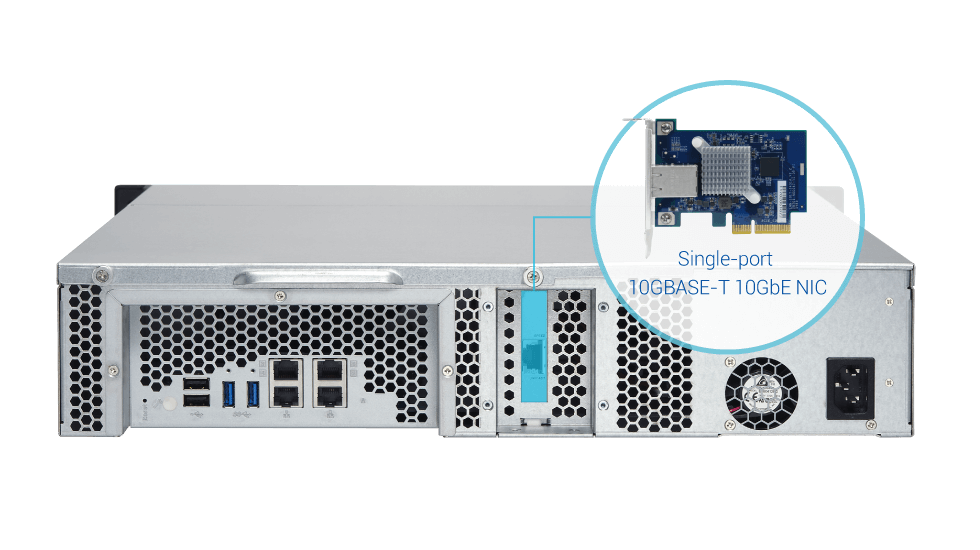

The TS-863XU comes with a pre-installed single-port 10GBASE-T Ethernet network adapter to fully support 10GbE high-speed networks. 10GbE networks deliver a major speed increase for virtualization tasks, fast backup & restoration, large-data applications, and also enable online video editing without needing the videos to be transferred between the NAS and workstations. Coupled with its large storage capacity potential, the TS-863XU is perfect for companies to store massive data and enjoy increased IT flexibility.

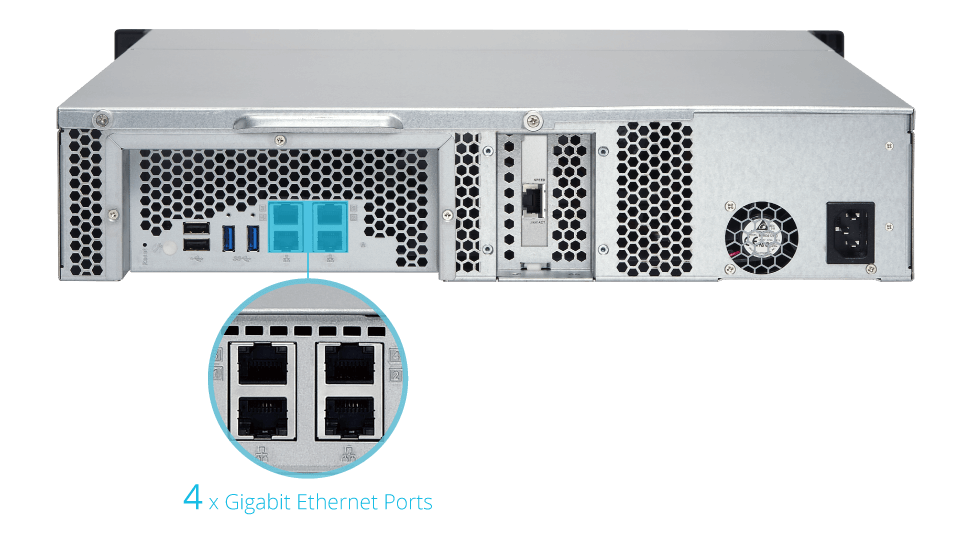

High reliability to ensure business continuity

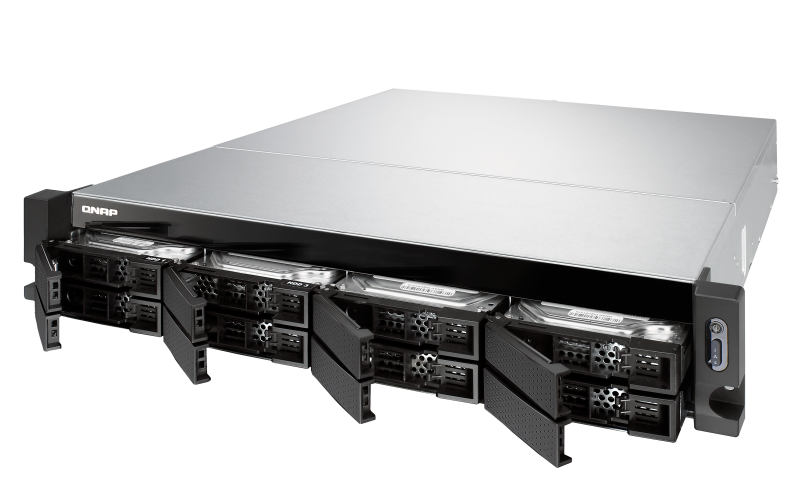

The business-ready TS-863XU is designed to provide 24/7 operations and services. The support for comprehensive RAID configurations and hot-swapping allow for replacing hard drives without service interruption. QNAP's advanced RAID recovery technology also helps if any healthy drives are accidentally removed from a degraded RAID volume. The system can be recovered by reinserting the wrongly-removed hard drives so the data can still be accessed. The TS-863XU delivers high reliability and efficiency with quad 1GbE LAN support for multiple port-trunking modes including fail-over support.

SSD caching and auto tiering enable optimized storage efficiency

The TS-863XU supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-863XU with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. The new Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Block-based iSCSI LUN: Ideal choice for virtualization storage

The TS-863XU supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016, the TS-863XU provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting the QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.

QTS – The intelligent, intuitive and creative NAS operating system

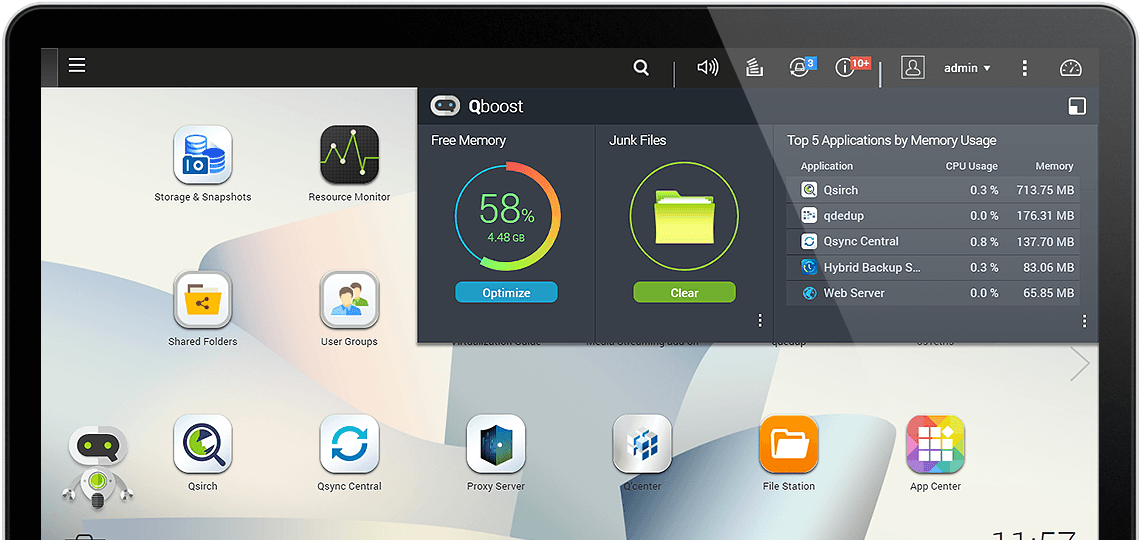

With modularized multiple applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more, making your NAS experience easier, efficient, and more flexible! The new Qboost provides a NAS optimization tool that helps accelerate applications, free up system resources, and schedule applications. The built-in App Center with hundreds of install-on-demand apps also opens up vast potential for extensive NAS functionality. QTS breaks the barriers of devices, platforms, and geography to bring you optimized cloud experiences and incorporates advanced features.


Features:

Built-in single-port 10GbE 10GBASE-T NIC to accelerate virtualization and high-resolution video editing and sharing.

Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

Snapshots fully record system status and data, and assist in quick data recovery and mitigating the threat of ransomware attacks.

Host containerized applications and virtual machines with various operating systems.

Secure private cloud supporting centralized storage, backup, sharing, and disaster recovery.

NAS and iSCSI-SAN (IP-SAN) unified storage solution with scalable design.

Complete backup planning

Windows and Mac backup

Use the free QNAP NetBak Replicator utility to backup/restore Windows® files. Time Machine® is also supported for Mac® devices.

Hybrid Backup Sync

Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

Snapshots for Volume & LUN

Snapshots are essential for NAS data protection, and its block-level operation makes it a dependable method for mitigating the growing threat of ransomware. The TS-1677X supports up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS.

VM backup

With potentially huge storage capacities, high performance, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-1677X is perfect for backing up virtual machines.

Specifications:

CPU AMD G-Series GX-420MC quad-core 2.0 GHz
Encryption Acceleration AES-NI
System Memory 4 GB DDR3L (1 x 4 GB)
Maximum Memory 16 GB (2 x 8 GB)
Memory Slot 2 x SO-DIMM DDR3L
(For dual-DIMM configurations, you must use a pair of identical DDR3L modules.)
Flash Memory 512MB DOM
Drive Bay 8 x 3.5-inch SATA 6 Gbps bays
Drive Compatibility • 3.5-inch SATA 6Gb/s HDD
• 2.5-inch SATA 6Gb/s HDD
• 2.5-inch SATA 6Gb/s SSD
SSD Cache Acceleration Support Drive bays 1 to 8
10 Gigabit Ethernet Port 1 x RJ45 10GBASE-T via a pre-installed PCIe network card, supporting 10G/5G/2.5G/1G/100M speeds
Note: Please use Cat 6a or Cat 7 LAN cables to achieve 10GbE speed over longer distance (not included).

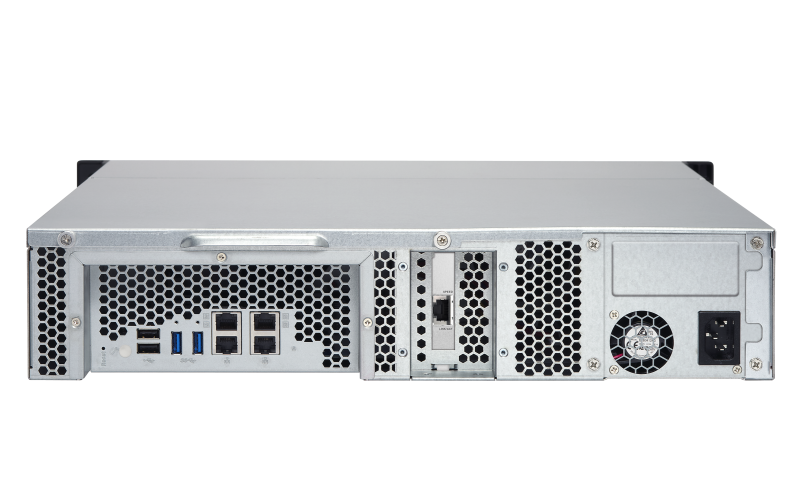

Gigabit Ethernet Port 4 x RJ45
PCIe Slot 1 x PCIe 2.0 x4 (preinstalled with a single-port 10GBASE-T network card)
USB Port 2 x USB 3.0
2 x USB 2.0
LED Indicators HDD 1-8, Status, USB, LAN
Audio Alarm buzzer
Buttons Power, Reset
System Warning Voice prompts
Form Factor 2U rackmount
Dimensions (H x W x D) 89 x 482 x 534 mm
3.5 x 18.98 x 21.02 inch
Weight Net weight: 11.00 kg (24.25 lbs)
Gross weight: 13.14 kg (28.97 lbs)
Power Consumption (W) HDD Sleep Mode: 40.28 (w/ 10GbE NIC)
In Operation: 94.40 (w/ 10GbE NIC)
Sound Level Sound pressure (LpAm) : 35 dB(A)
Power Supply Unit 250W,100-240V
Fan 2 x 7cm smart fan (12V DC)
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington security slot

Documentation:

Download the QNAP TS-863XU Specification Sheet (PDF).
