QNAP TS-332X
Budget-friendly 10GbE NAS: A 3-bay NAS with three M.2 SSD slots, supporting RAID 5 for balancing capacity, performance, and protection


Sorry, this product is no longer available, Please contact us for a replacement.



Overview:

The TS-332X is equipped with an AnnapurnaLabs, an Amazon company Alpine AL-324 quad-core 1.7 GHz Cortex-A57 processor (64-bit) with 2GB/4GB DDR4 RAM (upgradable to 16GB) and provides three SATA 6Gb/s drive bays. When processing AES 256-bit full NAS volume encryption, the TS-332X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. Alongside a pair of Gigabit LAN ports, the TS-332X features a 10GbE SFP+ port to fully support 10GbE high-speed networks, delivering a major speed increase for large-data applications, fast data transfer, backup & restoration, and containerized applications.

Package Content

  • TS-332X SAN/NAS Storage System
  • 2 x Ethernet Cables
  • 1 x Power Cord
  • AC Adapter
  • 2.5-inch HDD/SSD Drive Tray Base
  • M.2 SSD Heatsink
  • Quick Installation Guide (QIG)

M.2 SSDs for cache acceleration or efficient tiered storage

The TS-332X features SSD caching, and also supports up to three SATA 6Gb/s M.2 SSDs with 2280 form factors (sold separately). You can set up a high-capacity SSD cache for boosting IOPS-demanding applications or create a RAID 5 tiered storage with balanced performance and redundancy protection. Qtier™ technology empowers the TS-332X with auto tiering that helps continuously optimize storage efficiency across M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs with around-the-clock acceleration. The new Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

*Note:

  • All the drives bays of the TS-332X support SSD caching. The TS-332X comes with a 2.5-inch HDD/SSD drive tray base (subject to availability)
  • M.2 SSD are optional and are sold separately. As M.2 SSD operations can easily generate excessive heat, it is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.

Enjoy optimized SSD performance with extra over-provisioning

With SSD prices continuing to become more affordable for home and small business users, there's never been a better time for using SSDs in your NAS to enjoy higher performance, faster file backups, smoother multimedia experiences, and optimized virtualization applications. The latest QTS 4.3.5 takes SSD functionality even further by supporting software-defined SSD RAID extra over-provisioning (OP) that enables you to allocate additional OP space from 1% to 60%, beneficial for optimal SSD random write speeds and extended lifespan with higher endurance. Now you can use affordable consumer SSDs for the TS-332X, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs.

feat

Elegant appearance, effective airflow

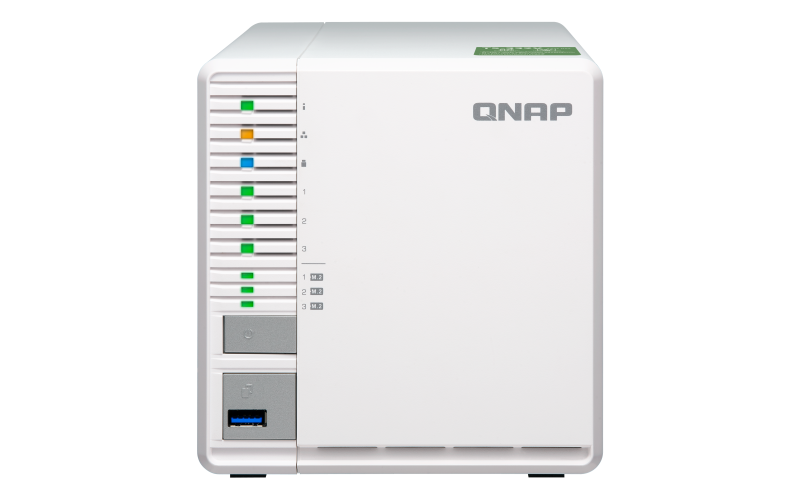

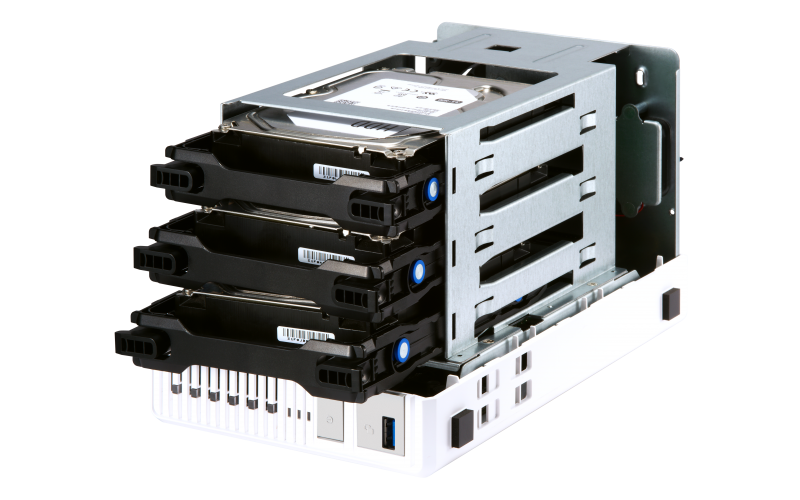

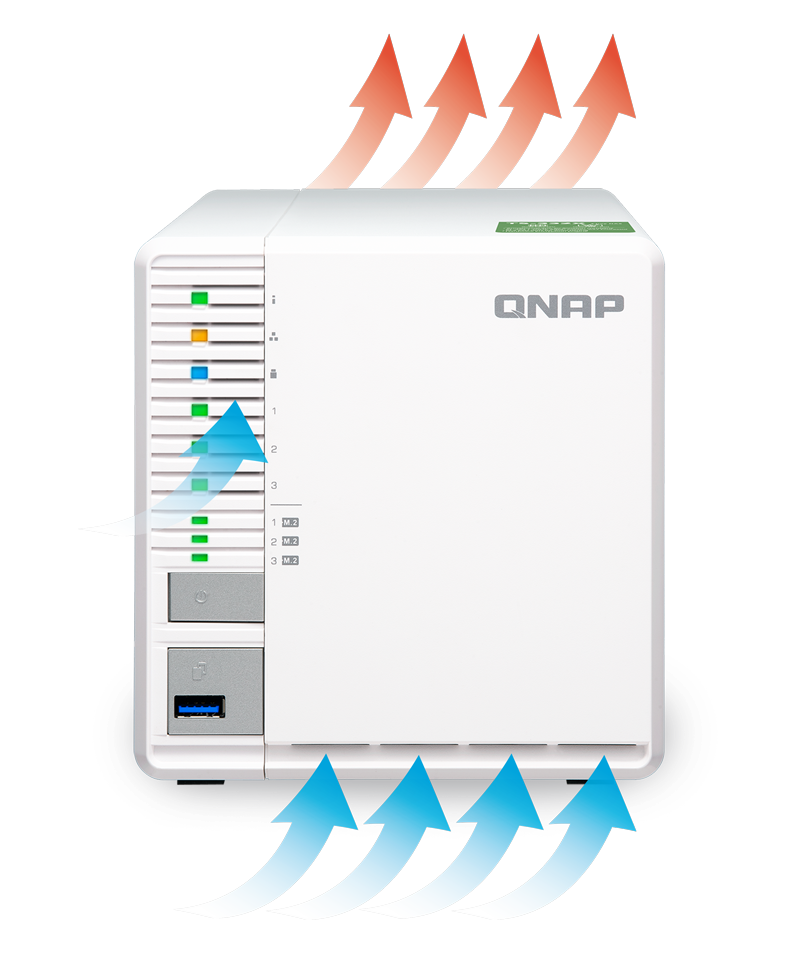

The TS-332X sports a stylish and elegant look with an industrial design concept to provide effective airflow and better cooling, ensuring smooth performance even under the heaviest loads. The tool-less 3.5-inch hard drive installation allows easier system setup and maintenance, while the front-panel LEDs assist in viewing system status.

Snapshots protect your data against ransomware

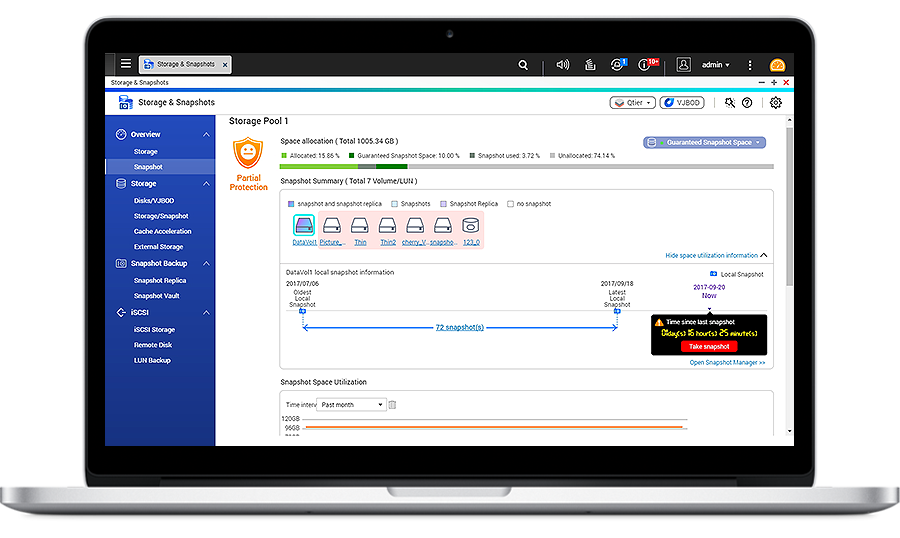

Essential for NAS data protection, snapshots help protect your data by fully recording the NAS system state and metadata. You can use Storage & Snapshots Manager or File Station to easily manage snapshots and quickly restore the system to its normal state if an error occurs. QNAP snapshots are block-based and only record the changed data. Not only does this save storage space but also reduces the time required to back up and restore data. The TS-332X with 4GB RAM can support up to 256 snapshots per NAS and 64 snapshots per volume/LUN.

feat

Upgrade your IT environment with QNAP's fast and affordable 10GbE Switch!

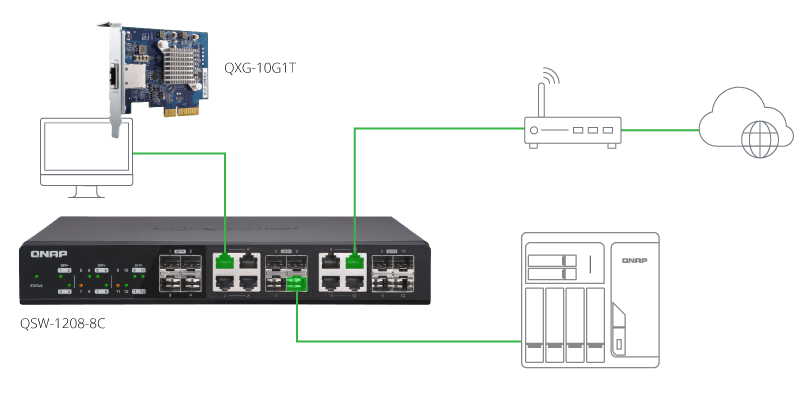

QNAP's 10GbE/NBASE-T™ unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provides a 10GbE PCIe network expansion card for Windows®/Linux® PCs to take advantage of high-speed LAN environments.

feat

Host container applications

With Container Station, you can enjoy both LXC and Docker® lightweight virtualization technologies. You can run Ubuntu®, Debian®, and Fedora® containers, download apps from the built-in Docker Hub®, easily import/export container apps and manage access controls, and rapidly deploy application services across several platforms including the cloud, servers, and PCs.

feat

Optimized collaboration with seamless file sharing and sync

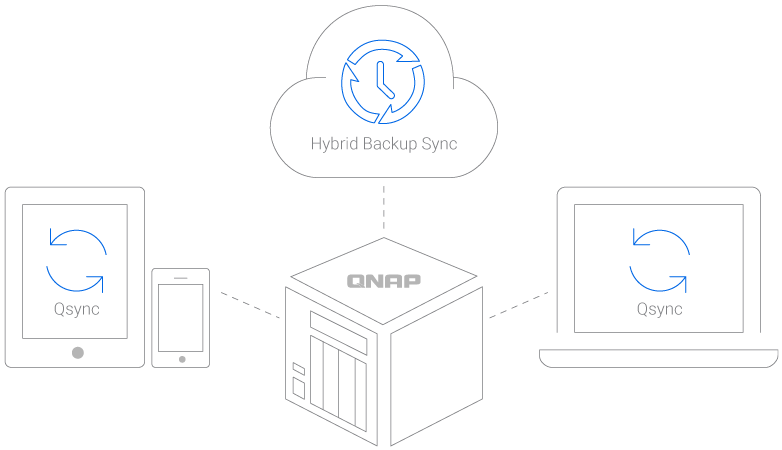

The TS-332X centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TS-332X will be made available for all linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.

Well-round, multi-point backup

Hybrid Backup Sync provides a reliable, flexible backup & disaster recovery solution to help organizations in routine backup jobs with cost-efficiency and high productivity. It centralizes backup, restore and synchronization for you to easily transfer your data in the TS-332X to other QNAP NAS, remote server, USB storage (one touch copy) or cloud storage. Backing up Windows® or Mac® data to the TS-332X is also effortless by using QNAP’s NetBak Replicator utility or Apple’s Time Machine®.

feat

Your NAS is also a surveillance solution

QNAP’s new QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on the TS-332X and leverage the advantages of storage manageability from QTS. With QVR Pro, camera management, storage space allocation, camera live view and playback is greatly simplified. You can also use the QVR Pro Client mobile app to monitor your cameras from anywhere, or use USB webcams as ONVIF network cameras with the QUSBCam2 app.

feat

Expand storage capacity using other QNAP NAS with Virtual JBOD

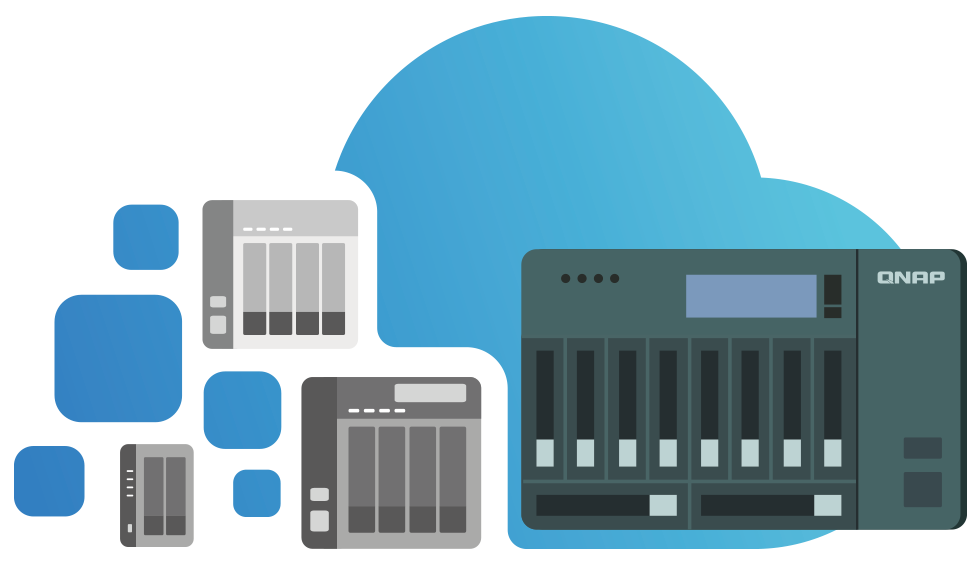

QNAP VJBOD (Virtual JBOD) is network-based JBOD, allowing you to expand the storage capacity of your QNAP NAS with unused storage space from other QNAP NAS. The unused storage capacity of the TS-332X can be mounted as local disks of other NAS, and you can create virtual storage pools and volumes for operating NAS services to maximize storage utilization.

Note: ARM-based NAS do not currently support the VJBOD "Host" function to utilize the storage space of other NAS.

Features:

Build a secure RAID 5 array with three disks for optimized storage capacity and protection against one disk failing.

One built-in 10GbE SFP+ port for accelerating massive file sharing and intensive data transfer.

Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

Supports LXC and Docker® containers for rapidly deploying application services across platforms including the cloud, servers, and PCs.

Secure private cloud supporting centralized storage, backup, sharing, and disaster recovery; a scalable storage solution.

Specifications:

CPU AnnapurnaLabs, an Amazon company Alpine AL-324 Quad-core 1.7GHz ARM® Cortex-A57 Processor, 64-bit
Encryption Acceleration
System Memory 4 GB DDR4 2400 (1 x 4 GB)
Maximum Memory 16 GB (1 x 16 GB)
Memory Slot 1 x SODIMM slot
Flash Memory 512 MB NAND Flash
Drive Bay Hot-swappable 3 x 3.5"/2.5" SATA 6Gb/s HDD/SSDs (2.5" tray base for installing 2.5" HDD/SSD can be purchased from QNAP Online Shop)
M.2 SSD Slot 3 x M.2 2280 SATA 6 Gbps SSD

Note:
1. The M.2 SSD is not included as standard.
2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.

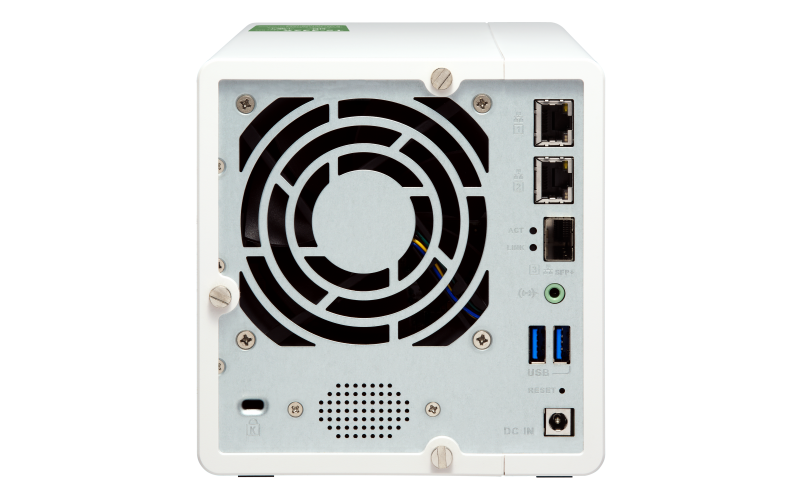

10 Gigabit Ethernet Port 1 x 10GbE SFP+
Gigabit Ethernet Port 2 x Gigabit RJ45
USB Port USB 3.0 (Front: 1; Rear: 2)
Audio 1 x Built-in speaker
1 x 3.5mm line out jack

Note: You cannot use the speakers and the line-out jack simultaneously.
LED Indicators Status/Power, LAN, USB, HDD 1-3, M.2 SSD 1-3
Buttons Power, Reset, USB One-touch-copy
System Warning Buzzer or Smart voice prompt
Form Factor Tower
Dimensions (H x W x D) 142 x 150 x 260.1 mm
5.59 x 5.9 x 10.24 inch
Power Consumption (W) HDD standby: 18.56 W
In operation: 26.22 W
(with 3 x HDDs and 3 x M.2 SSDs)

HDD:WD10EFRX
M.2 SSD: RBU-SNS8152S3256GG2 256G
Sound Level Sound pressure (LpAm): 20.4 dB(A)
Weight Net weight: 1.64 kg (3.62 lbs)
Gross Weight: 2.69 kg (5.93 lbs)
Operating Temperature & Relative Humidity 0 ~ 40˚C (32˚F ~ 104˚F)
5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington security slot
Fan 1 x 14cm smart fan (12V DC)
Power Supply Unit 90W AC external adapter, 100-240V
CPU AnnapurnaLabs, an Amazon company Alpine AL-324 Quad-core 1.7GHz ARM® Cortex-A57 Processor, 64-bit
Encryption Acceleration
System Memory 2 GB DDR4 2400 (1 x 2 GB)
Maximum Memory 16 GB (1 x 16 GB)
Memory Slot 1 x SODIMM slot
Flash Memory 512 MB NAND Flash
Drive Bay Hot-swappable 3 x 3.5"/2.5" SATA 6Gb/s HDD/SSDs (2.5" tray base for installing 2.5" HDD/SSD can be purchased from QNAP Online Shop)
M.2 SSD Slot 3 x M.2 2280 SATA 6 Gbps SSD

Note:
1. The M.2 SSD is not included as standard.
2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
10 Gigabit Ethernet Port 1 x 10GbE SFP+
Gigabit Ethernet Port 2 x Gigabit RJ45
USB Port USB 3.0 (Front: 1; Rear: 2)
Audio 1 x Built-in speaker
1 x 3.5mm line out jack

Note: You cannot use the speakers and the line-out jack simultaneously.
LED Indicators Status/Power, LAN, USB, HDD 1-3, M.2 SSD 1-3
Buttons Power, Reset, USB One-touch-copy
System Warning Buzzer or Smart voice prompt
Form Factor Tower
Dimensions (H x W x D) 142 x 150 x 260.1 mm
5.59 x 5.9 x 10.24 inch
Power Consumption (W) HDD standby: 18.56 W
In operation: 26.22 W
(with 3 x HDDs and 3 x M.2 SSDs)

HDD:WD10EFRX
M.2 SSD: RBU-SNS8152S3256GG2 256G
Sound Level Sound pressure (LpAm): 20.4 dB(A)
Weight Net weight: 1.64 kg (3.62 lbs)
Gross Weight: 2.69 kg (5.93 lbs)
Operating Temperature & Relative Humidity 0 ~ 40˚C (32˚F ~ 104˚F)
5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington security slot
Fan 1 x 14cm smart fan (12V DC)
Power Supply Unit 90W AC external adapter, 100-240V

Documentation:

Datasheet for QNAP TS-332X is coming soon.
